1000kg Capacity Warehouse Agv Stacking Warehousing Robot AMR

1 / 5

1000kg Capacity Warehouse Agv Stacking Warehousing Robot AMR

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📦 Overview & Basic Information

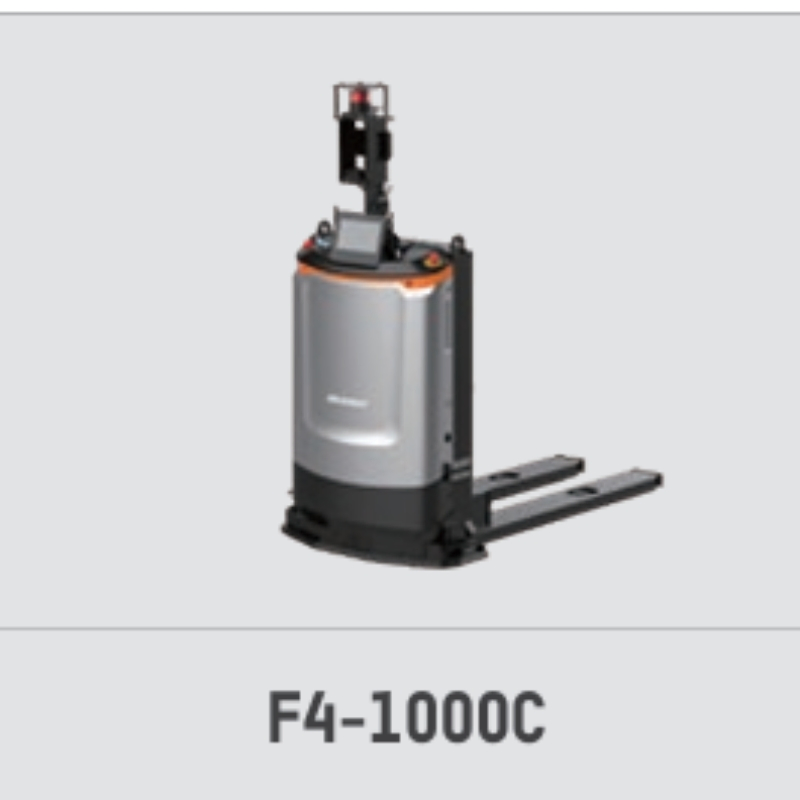

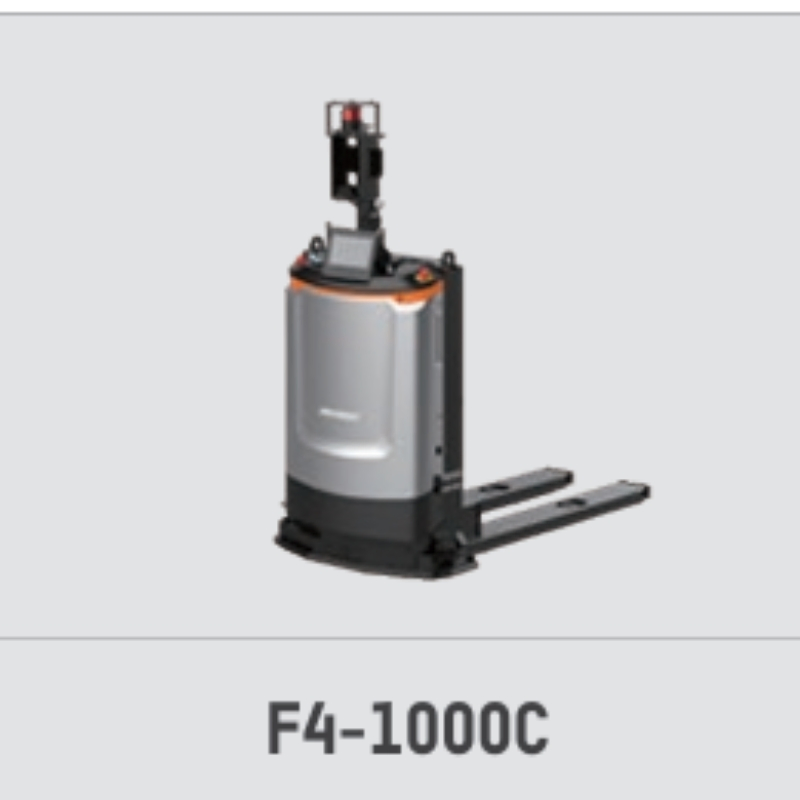

Model NO.

F4-1000C

Type

AMR (Autonomous Mobile Robot)

Load Capacity

1000 kg

Lifting Height

1331 mm

Dimensions

1692*990*1983 mm

Weight

700 kg

Fork Width

680 mm

Navigation

L-SLAM / 3D L-SLAM

Forklift Mobile Robot Stacking Series

Stacking series FMRs cover the load ranging from 1,000kg to 3,000kg, with the highest lifting height being customized up to 4.5m. The specially designed thickness of the FMR body greatly reduces the operation aisle width and effectively improves the storage space of materials. Adopting iconic robot head design and modular components, 80% of the components can be used in different scenarios. The whole series obtains full directive CE marking.

🚀 Key Features

Efficient Transportation: Steady running speed up to 1.5m/s.

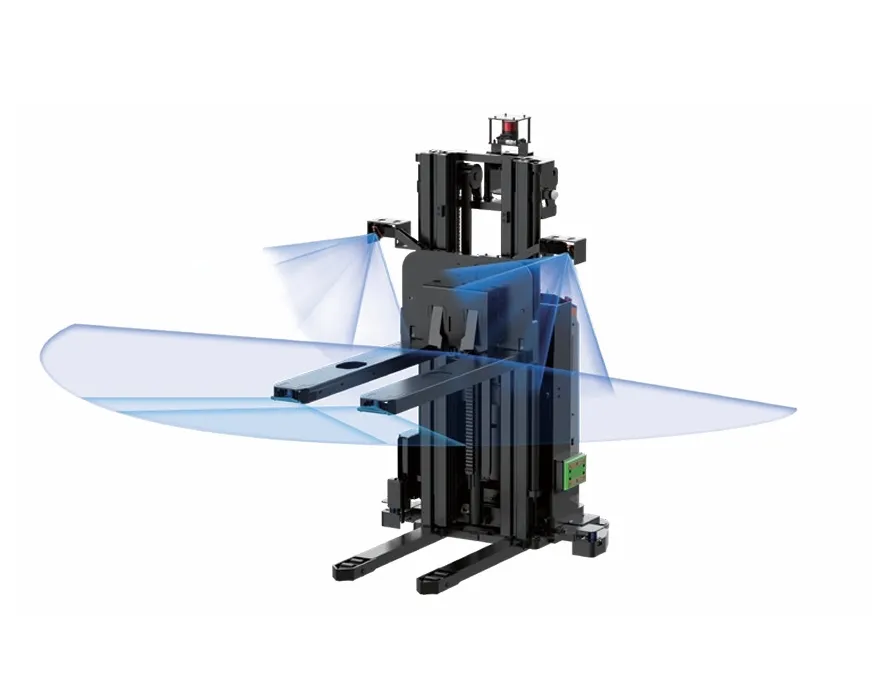

360° Stereo Sensing: Recognizing various environments and objects for safety.

Millimeter Precision: Combines laser and vision for high-accuracy positioning.

Carrier Recognition: Autonomous fork picking based on carrier offset.

Suspended Object Detection: Supports identifying low obstacles and suspended items.

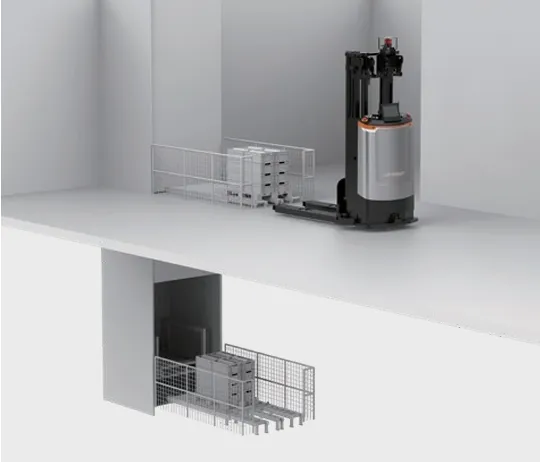

Flexible Docking: Docks with elevators, automatic doors, and conveyors.

📊 Technical Specifications

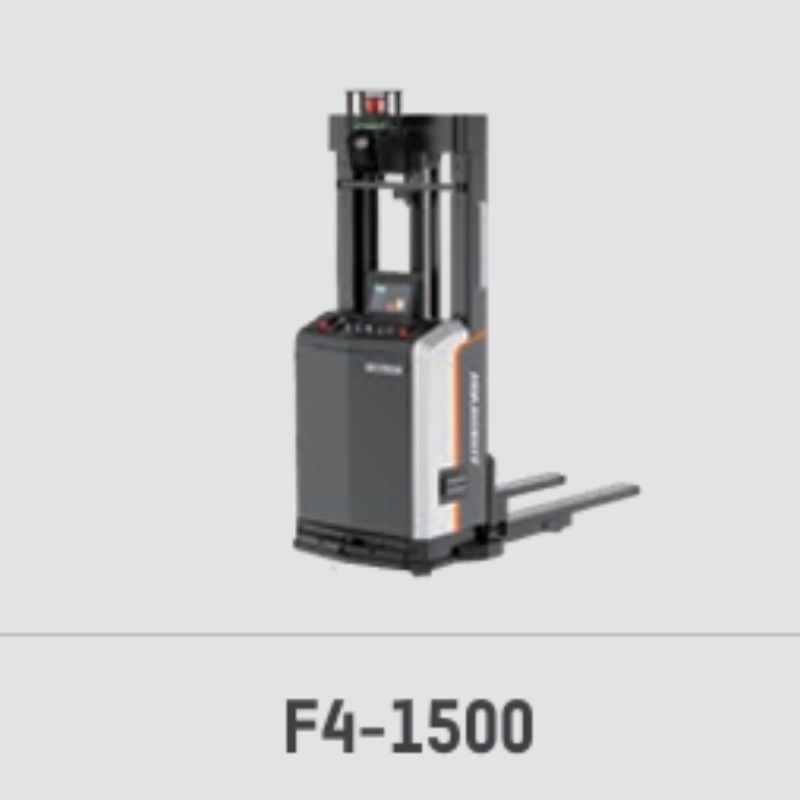

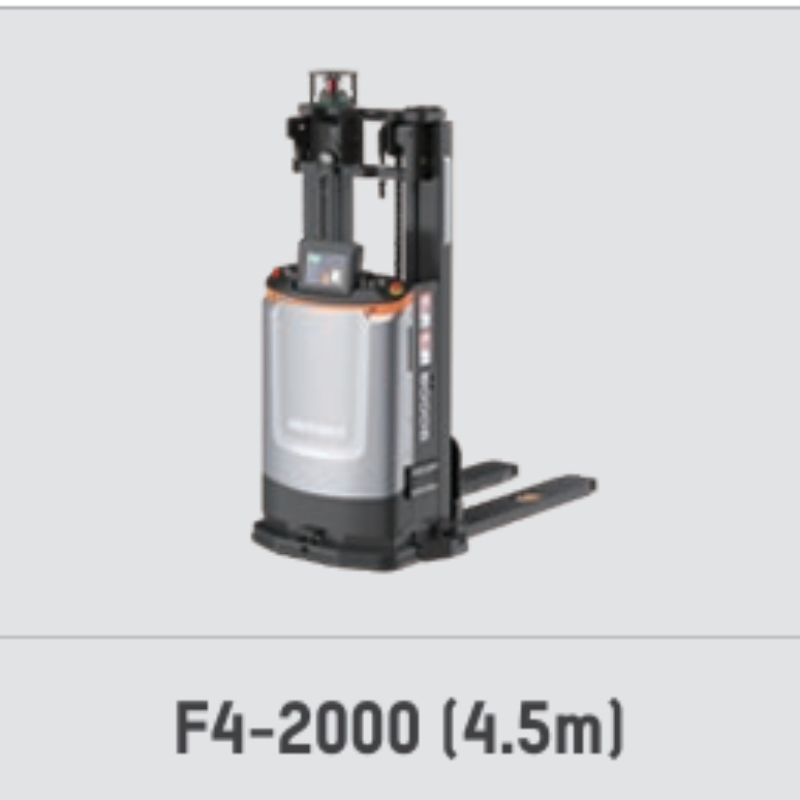

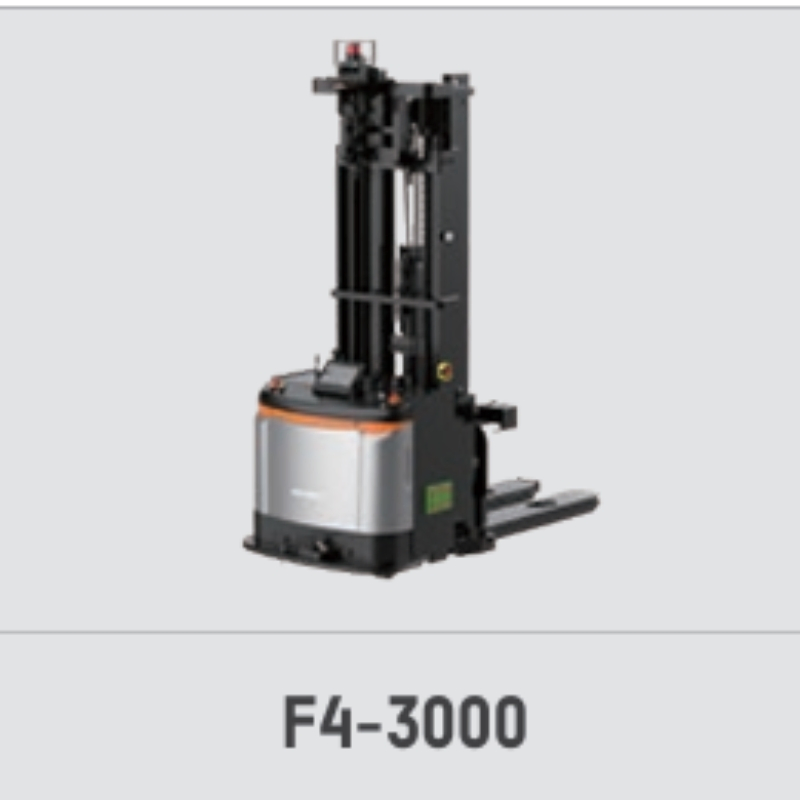

Model	F4-1000C	F4-1500	F4-2000 (3m)	F4-2000 (4.5m)	F4-3000
Rated Speed (m/s)	1.2	1.2	1.2	1.2	1.5
Accuracy (mm/°)	±10/±1	±10/±1	±10/±1	±10/±1	±10/±1
Min. Rotation (mm)	1183	1316	1400	1400	1891
Min. Aisle Width (mm)	2062	2490	2065	2065	2864
Run Time (h)	6-8	6-8	6-8	6-8	6-8
Charging Time (h)	≤ 2	≤ 2	≤ 2	≤ 2	≤ 2

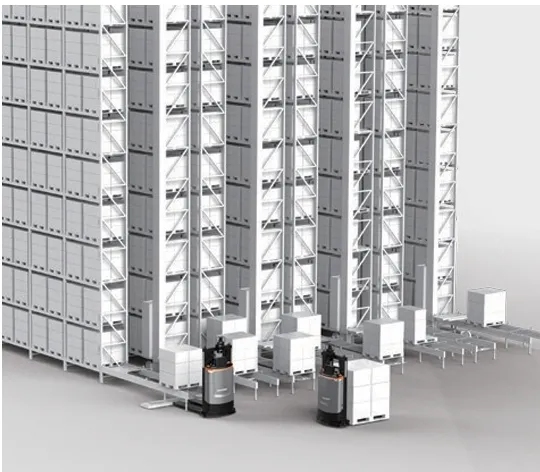

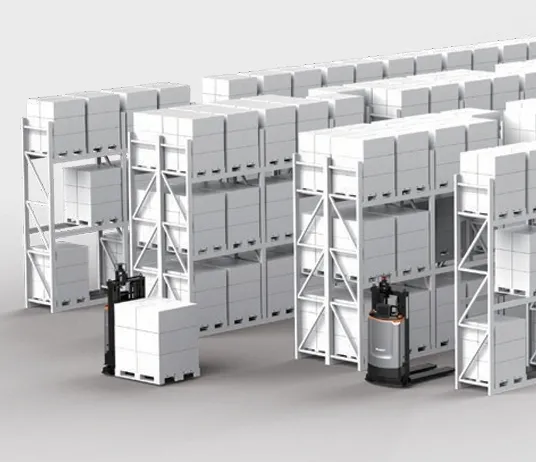

🏢 Applications

🔍 Success Cases

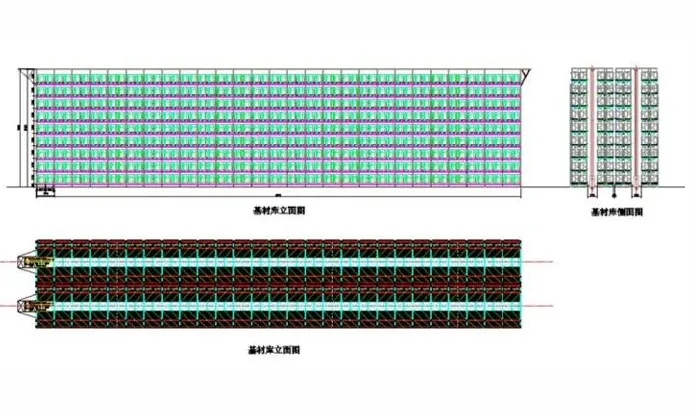

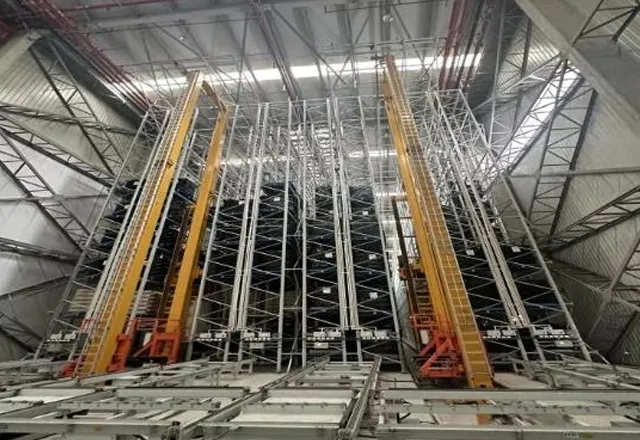

Automated Storage System Project for Raw Material Warehouse

Project Highlights:

Automated warehouse design
Stacker crane and system design

Project Scope:

2 stacker cranes, 4 sets of racks, 3,888 storage locations.
Inbound and outbound flow rate: 92 pallets per hour.
Final delivery in 200 days.

⚙️ After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance.

Training: On-site or remote operation and maintenance training.

❓ Frequently Asked Questions

How do I select the right AGV/AMR?

Hardware selection is recommended based on actual operational requirements. Technical teams usually propose the most suitable configuration after evaluating your site layout.

Is specific software required for AGV operation?

Yes. Dedicated robot dispatching and control software is essential to work in conjunction with the AGV hardware for tasks and traffic management.

Can multiple types of AGVs operate at the same site?

Absolutely. Modern systems support the simultaneous operation of multiple models and types of AGVs to handle various material handling requirements in one facility.

What information is needed for an AGV implementation proposal?

Initially, you will need to provide the factory layout, pallet dimensions, material details, and the intended workflow or throughput requirements.

How long does the implementation take?

Timeline varies by project scope. While complex systems take longer, simple deployments can sometimes be completed in as little as two weeks.

Can we perform the commissioning ourselves?

AGV commissioning requires high professional expertise. It is typically handled by professional technical teams to ensure safety and system stability.
