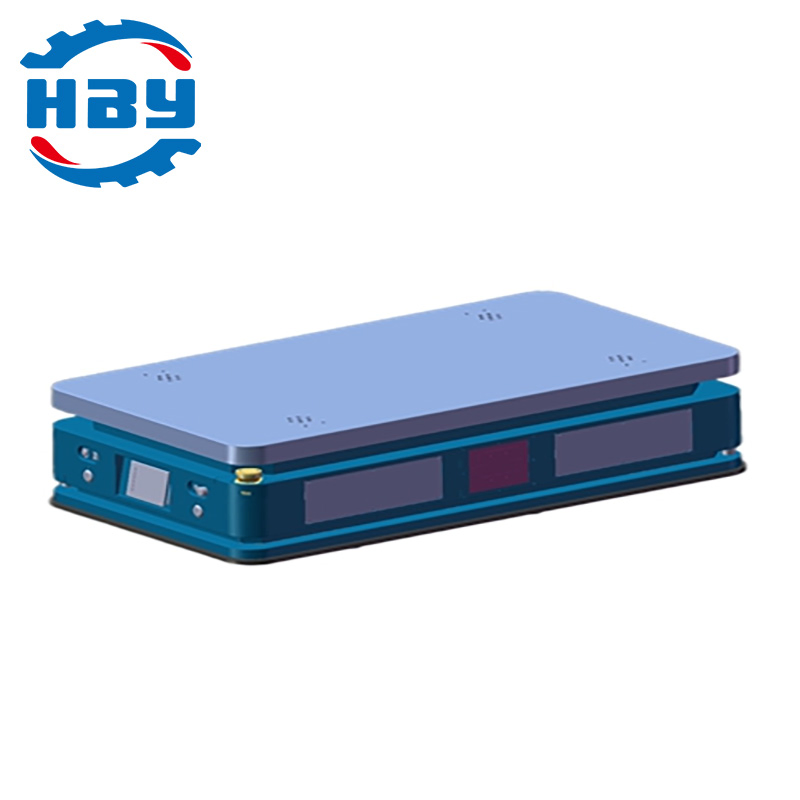

High-Capacity 5000kg Adaptive AMR/Agv Transport Robot for Smart Warehousing

Control Mode:	Point to Point Control
Drive Mode:	Electric
Load Capacity:	5000kg

Send Inquiry

Product Description

Basic Information

Model NO.crab 5000

TypeAMR (Autonomous Mobile Robot)

Safety FeaturesCollision Avoidance, Emergency Stop, Sensors

ColorCustomized

Transport PackageWooden

TrademarkHBY

HS Code8427109000

Production Capacity1000 Pieces/Year

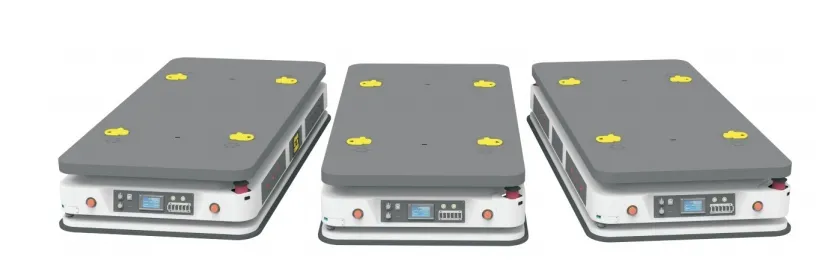

Automated Guided Vehicle Introduction

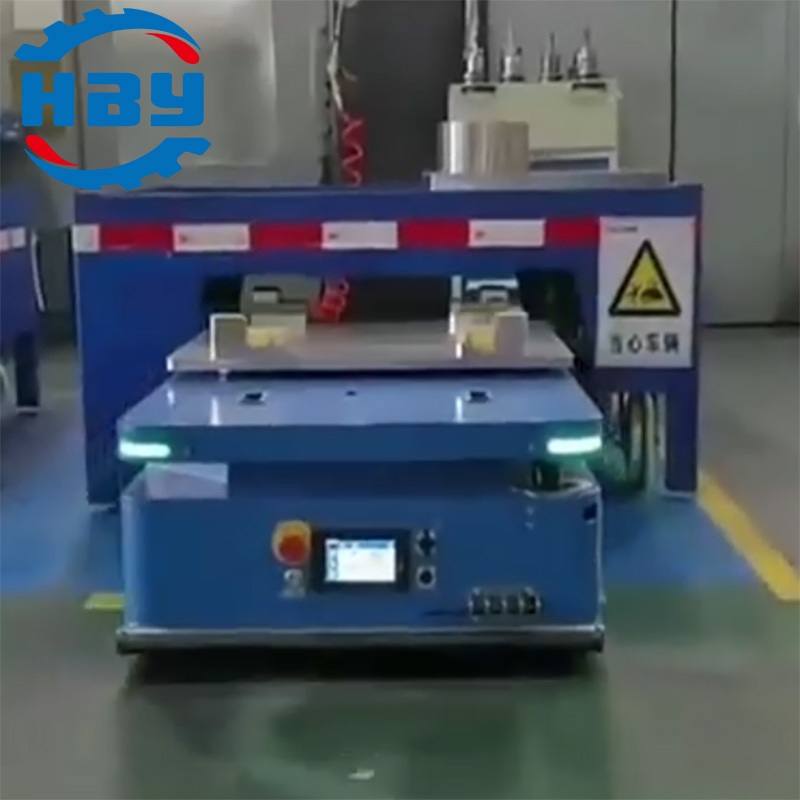

Crab 5000 is a heavy-duty steering wheels AGV, designed to carry heavy big materials and pallets. It is easily integrated with roller conveyors or lifts. Utilizing a self-developed SLAM system, it offers trackless guidance with a mature fleet control and task control UI. The robot surveys the path to form a navigation map and compares the real-time environment to the map to calculate its location, speed, and moving angles.

Product Advantages

🔹 Navigation: Magnetic tape/nail, QR code, Laser, or SLAM (optional).

🔹 Movement: Forward, backward, left/right turns, 90°/180° rotation, pivot.

🔹 Accuracy: Navigation stop accuracy ±10mm, customizable up to ±5mm.

🔹 Linkage: Supports multiple AGV linkage functions for coordinated tasks.

🔹 Elevator Access: Automatically connects with elevators for floor-to-floor transport.

🔹 Automation: Runs automatically via scheduling instructions without manual intervention.

🔹 System Integration: Compatible with WMS and MES systems for smart warehousing.

🔹 Self-Charging: Supports wireless and automatic charging modes.

🔹 Safety Protection: Laser avoidance, bumpers, and emergency stop buttons.

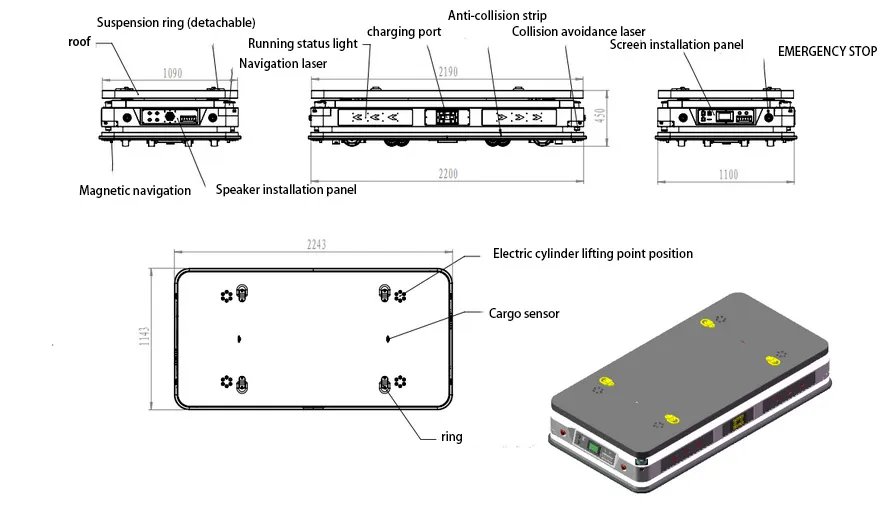

Technical Parameters

AGV Type	Crab 5000

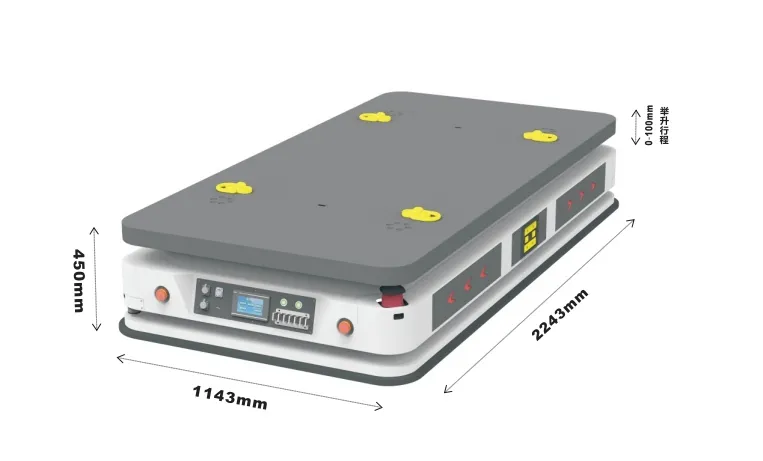

Size	L2243W1143H350(mm)
Navigation	SLAM, QR code, laser, magnetic tape/nail
Driving Mode	Dual Steering Wheel Drive
Lifting Stroke	100mm
Loading Capacity	5000KG
Moving Speed	0-40m/min
Battery	Lithium battery (≥2000 cycles)
Safety Range	0-180°, 0-3 meters adjustable
Lifespan	10 years

Operational Highlights

Key Features:

🚀 R&D-Driven: Cutting-edge navigation including SLAM and heavy-load engineering.
🛠️ Manufacturing: Strict quality control and industrial-grade automation standards.
🌐 Global Deployment: Proven reliability in global logistics, healthcare, and industrial sectors.

Frequently Asked Questions (FAQ)

Q1: What is the maximum load capacity of the Crab 5000? The Crab 5000 is a heavy-duty robot designed to carry loads up to 5000kg, making it ideal for large pallets and industrial materials.

Q2: Can this AMR navigate without tracks? Yes, it features a self-developed SLAM navigation system which allows for trackless guidance by creating and comparing environmental maps.

Q3: Does the robot support multi-floor operation? Yes, the robot can be integrated with ordinary elevators to automatically move across different floors.

Q4: How does the robot handle obstacles? The robot is equipped with triple safety protection, including laser obstacle avoidance sensors (0-3m range), front/rear bumpers, and emergency stop buttons.

Q5: Is the battery system designed for continuous work? Yes, it uses high-quality lithium batteries and supports automatic self-charging, enabling 24-hour operation cycles.

Q6: Can it be integrated with warehouse management systems? Absolutely. The control system is designed to be compatible with WMS and MES systems for seamless digital integration.
