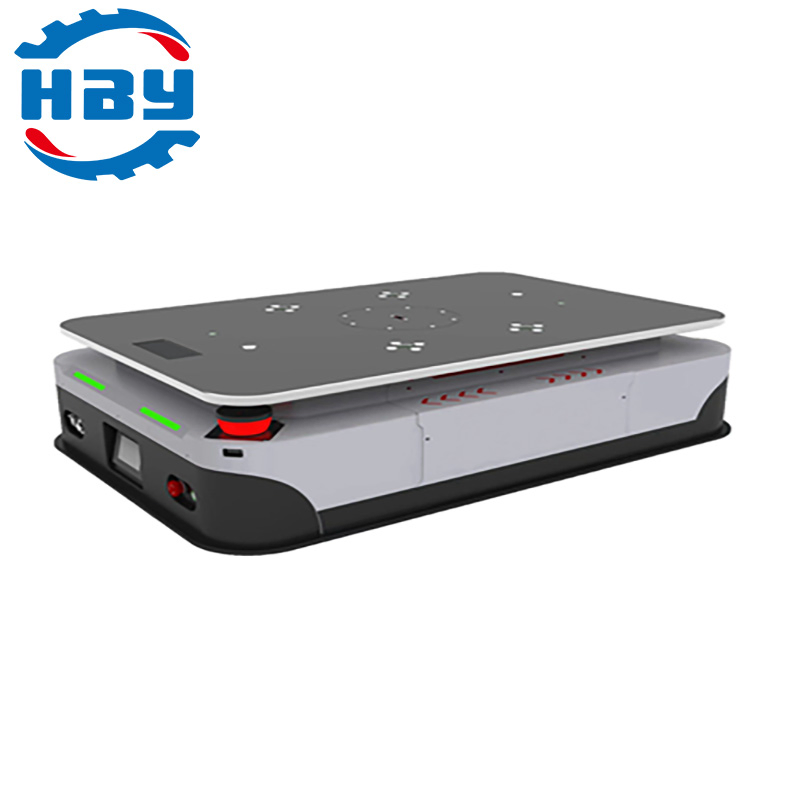

Advanced 2000kg Heavy-Duty Autonomous Mobile Robot for Smart Warehousing

1 / 5

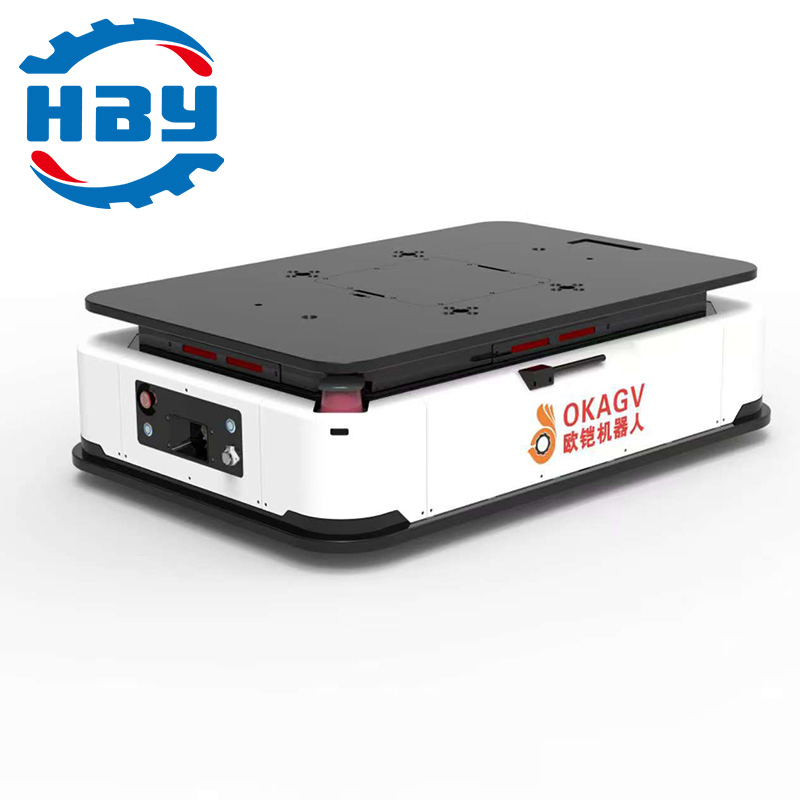

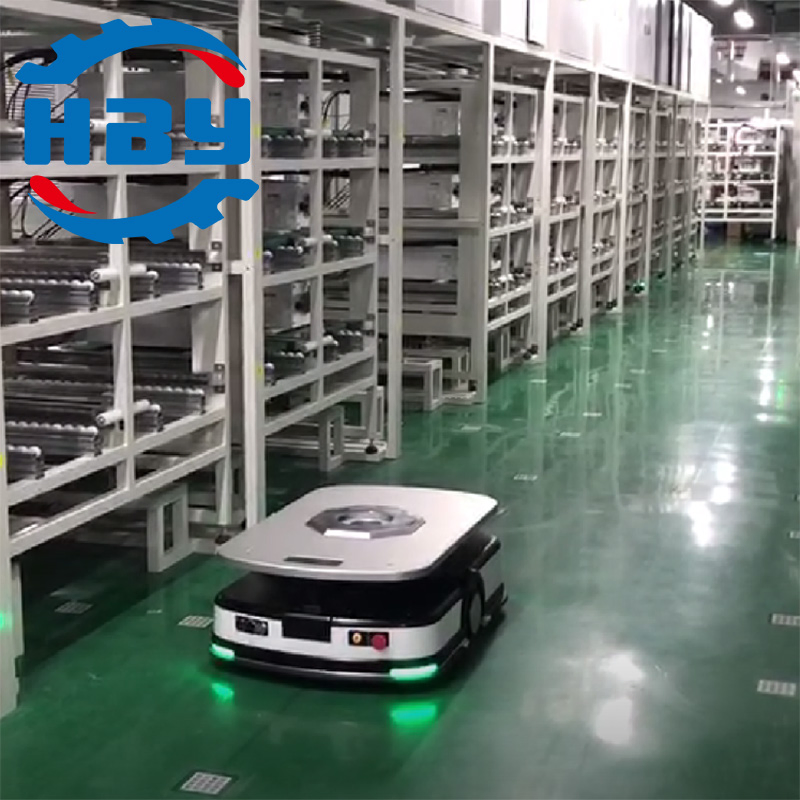

Advanced 2000kg Heavy-Duty Autonomous Mobile Robot for Smart Warehousing

Control Mode:	Point to Point Control
Drive Mode:	Electric
Load Capacity:	2000kg

Send Inquiry

Product Description

Basic Specifications

Model NO.

Crab 2000

Type

AMR (Autonomous Mobile Robot)

Safety Features

Collision Avoidance, Emergency Stop, Obstacle Sensors, Laser Scanner

Color

Customized

HS Code

8427109000

Capacity

1000 Pieces/Year

Automated Guided Vehicle Introduction

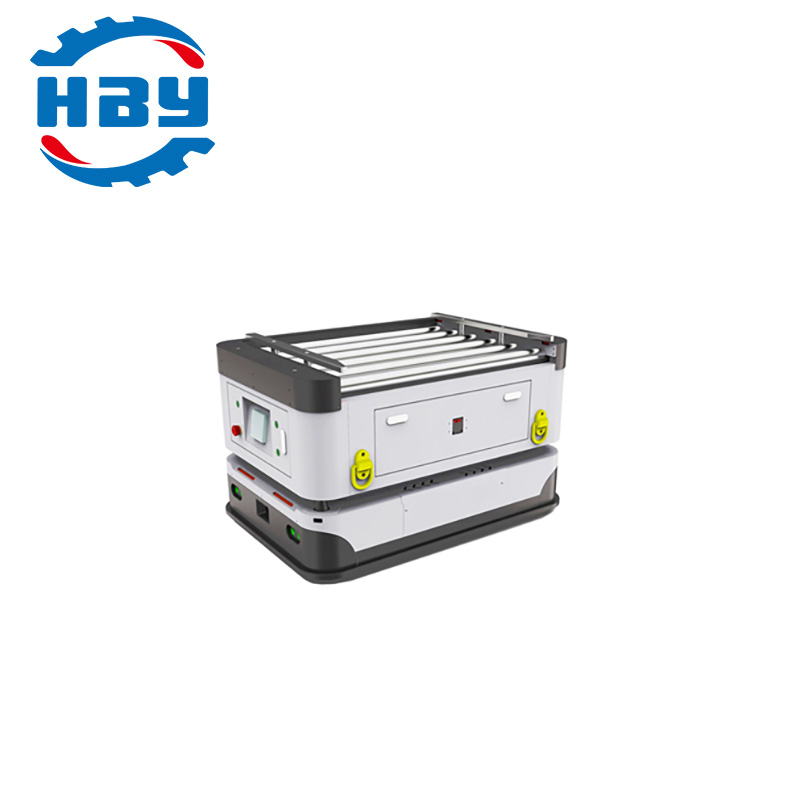

Crab 2000 is a heavy-duty steering wheel AGV, designed as a universal chassis for high-demand industrial applications. It serves as an ideal base for robot arm AMRs and SMT magazine transfer systems. This robot easily integrates with roller conveyors or lifts, featuring an in-house developed SLAM system for trackless guidance and a mature fleet control UI.

The system surveys the environment to create a navigation map, comparing real-time surroundings to calculate precise location, speed, and movement angles.

Technical Advantages

Navigation Methods

Supports SLAM (optional), Laser, QR code, Magnetic tape, or Magnetic nail guidance.

High Precision

Standard stop accuracy of ±10mm, with customization options reaching ±5mm.

Multi-Floor Operation

Capable of automatic elevator interaction for cross-floor material transport.

Smart Charging

Supports wireless and automatic charging for 24/7 continuous operation.

System Integration

Fully compatible with WMS (Warehouse Management) and MES (Manufacturing Execution) systems.

Triple Protection

Laser obstacle avoidance, mechanical bumpers, and dual emergency stop buttons.

Product Parameters

AGV Type	Crab 2000

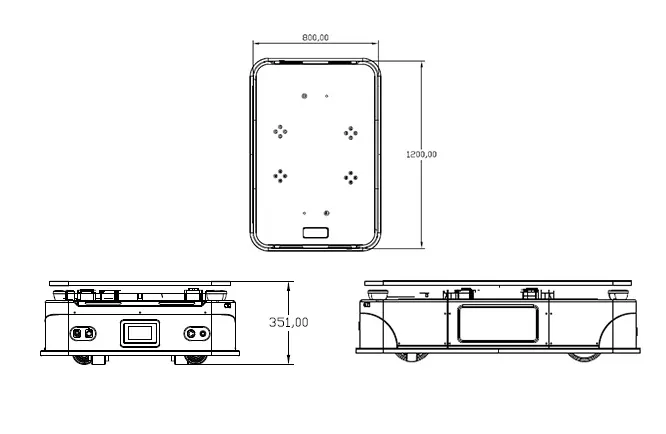

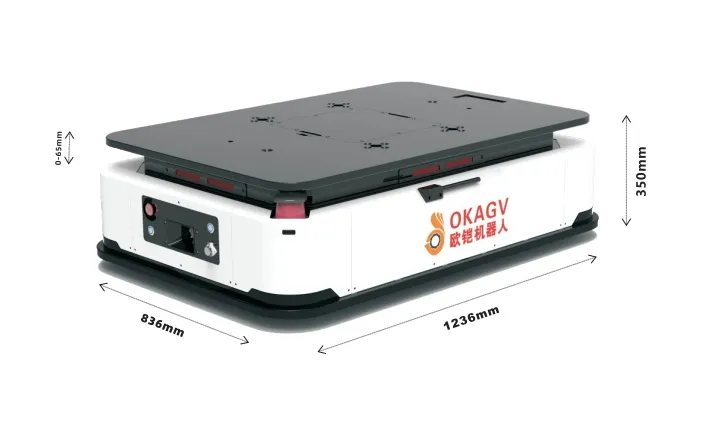

Dimensions	L1236 * W836 * H350 (mm)
Loading Capacity	2000 KG
Moving Speed	0-80 m/min
Driving Mode	Dual Steering Wheel Drive
Lifting Stroke	65mm (Automatic)
Battery Type	Lithium Battery (≥2000 cycles)
Working Time	24 Hours
Navigation Accuracy	±10mm
Gradeability	≤ 4°
Safety Range	0-3 meters (Adjustable)
Lifespan	Designed for 10 years

Global Deployment & Highlights

● R&D-Driven Technology: Advanced navigation (SLAM/laser/magnetic) and heavy-load engineering.

● Manufacturing Excellence: Industrial-grade production with strict quality control.

● Global Reach: Tailored solutions deployed in over 20 countries for logistics, healthcare, and industrial sectors.

Frequently Asked Questions

Q1: What is the maximum payload capacity of the Crab 2000?

The Crab 2000 is a heavy-duty AMR designed to handle a maximum loading capacity of 2000kg.

Q2: Which navigation methods are supported?

It offers versatile navigation options including SLAM, QR code, Laser, Magnetic tape, and Magnetic nail to suit different warehouse environments.

Q3: Can this AMR operate between different floors?

Yes, it features smart elevator connectivity, allowing it to automatically enter and exit elevators for multi-floor material handling.

Q4: How does the robot handle low battery situations?

The Crab 2000 supports automatic wireless charging. It can return to the charging station on its own to ensure 24-hour continuous operation.

Q5: Is it possible to integrate the robot with existing factory systems?

Absolutely. The control system is designed for high compatibility and can be seamlessly connected with WMS and MES systems.

Q6: What safety measures are in place to prevent collisions?

The robot is equipped with triple safety protection: laser obstacle avoidance sensors (3m range), front/rear physical bumpers, and accessible emergency stop buttons.
