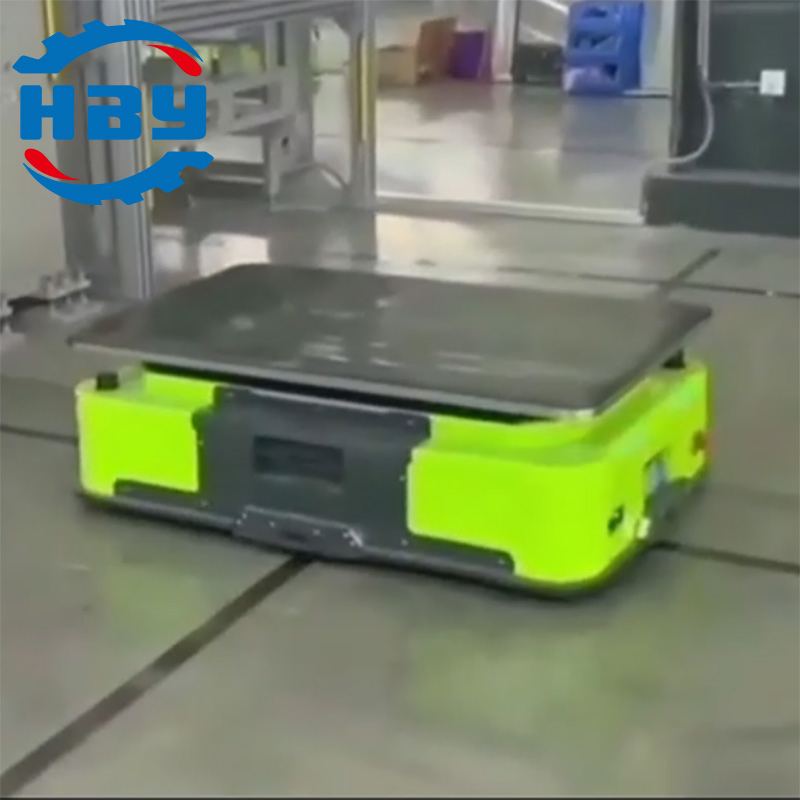

High-Performance 3000kg Agv-AMR Hybrid Robot for Advanced Warehousing Solutions

1 / 5

High-Performance 3000kg Agv-AMR Hybrid Robot for Advanced Warehousing Solutions

Control Mode:	Point to Point Control
Drive Mode:	Electric
Load Capacity:	3000kg

Send Inquiry

Product Description

Basic Specifications

Model NO.

crab 3000

Type

AMR (Autonomous Mobile Robot)

Safety Features

Collision Avoidance, Emergency Stop, Obstacle Sensors

Color

Customized

Package

Wooden

Capacity

1000 Pieces/Year

HS Code

8427109000

Origin

Henan

Automated Guided Vehicle Introduction

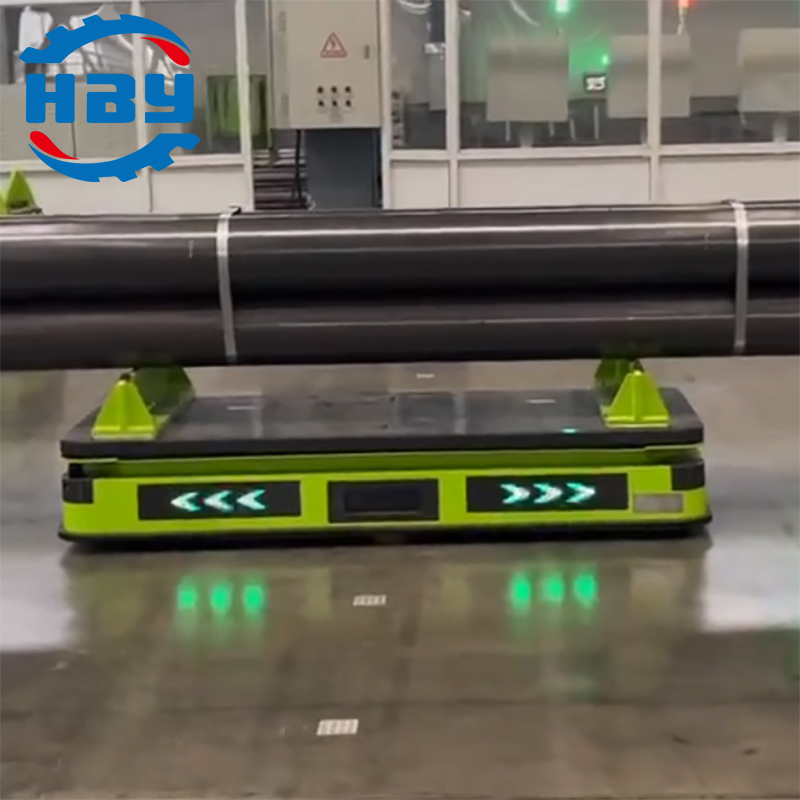

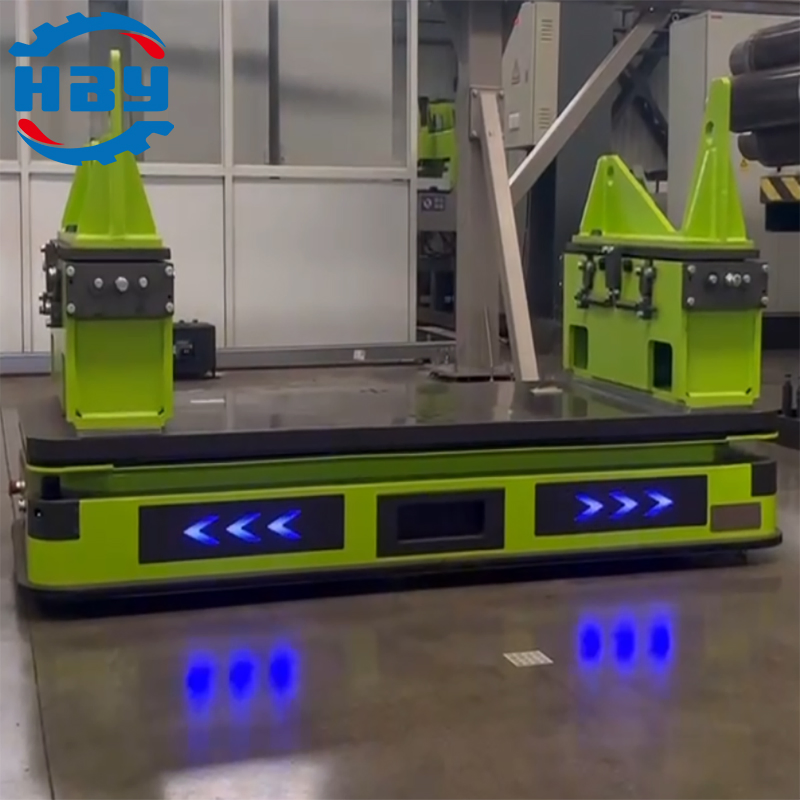

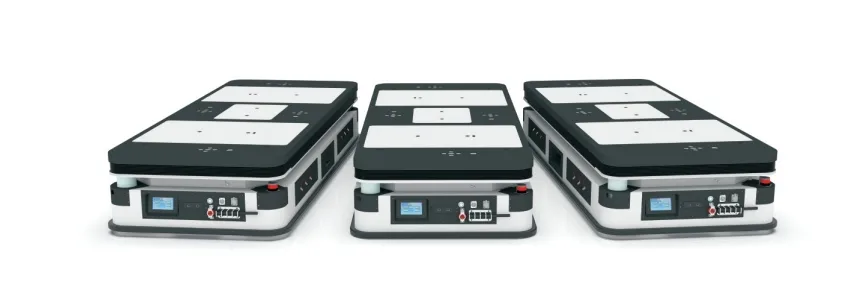

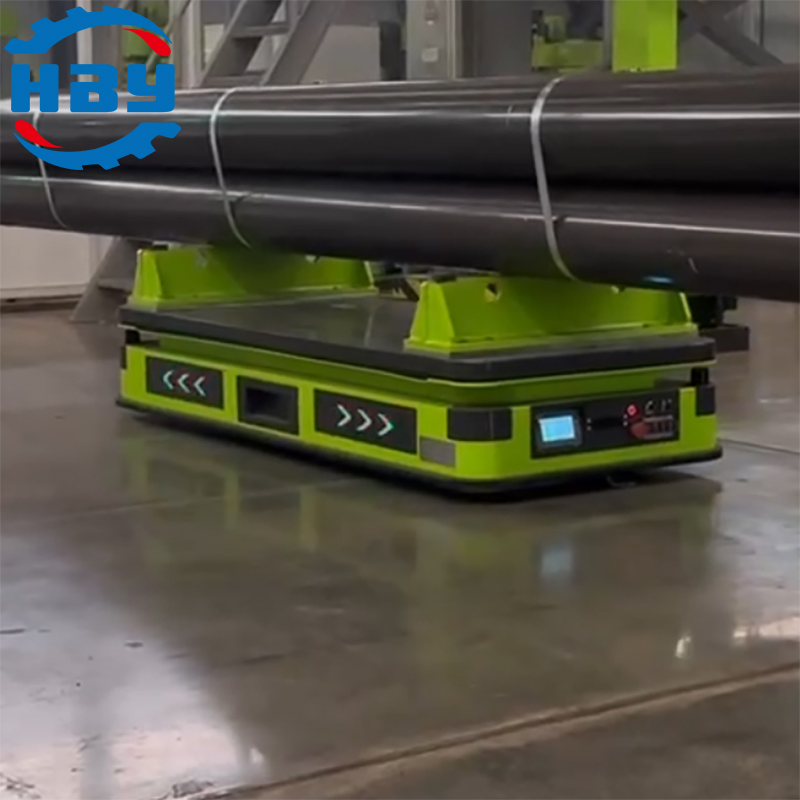

Crab 3000 is the smallest steering wheel AGV, designed as a universal chassis for applications such as robot arm AMR bases and SMT magazine transfer AMRs. It features an internally developed SLAM system, trackless guidance, and a mature fleet control interface. The robot surveys paths to create navigation maps and compares real-time environments to calculate location, speed, and moving angles accurately.

Product Advantages

Navigation versatility: Magnetic tape, QR code, laser, or SLAM (optional).

Omnidirectional movement: Forward, backward, 90°/180° rotation, and pivot turns.

High Precision: Stop accuracy of ±10mm, customizable up to ±5mm.

Smart Integration: Supports multiple AGV linkage and automatic elevator interaction for cross-floor tasks.

Autonomous Operation: Automatic scheduling instructions and self-charging (wireless supported).

System Compatibility: Fully connectable with WMS and MES systems.

Triple Safety Protection: Laser obstacle avoidance, bumper protection, and dual emergency stop buttons.

Technical Parameters

AGV Type	Crab 3000

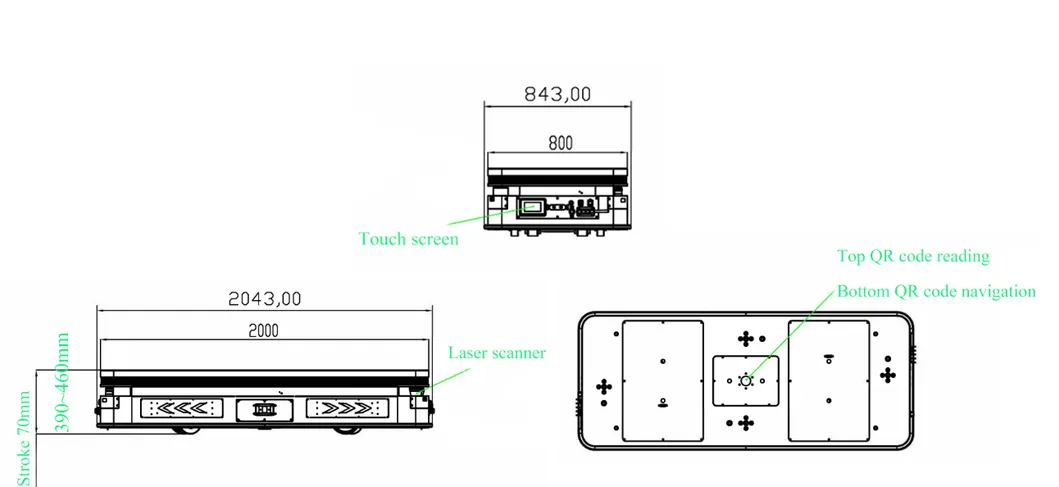

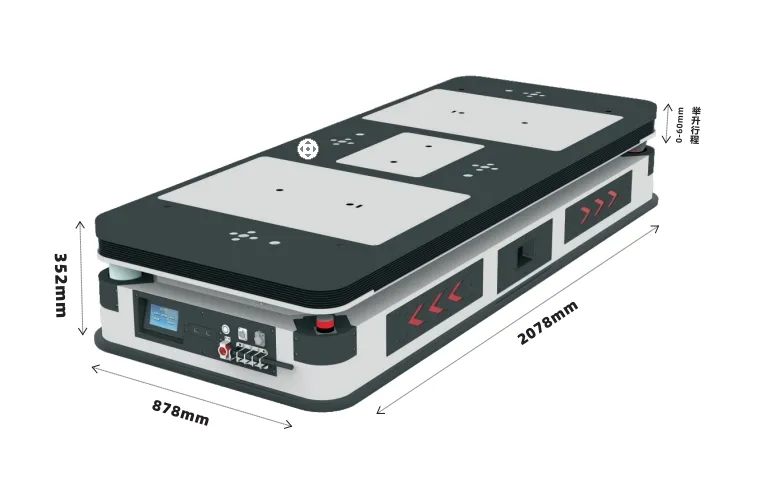

Dimensions	L2078 * W878 * H352 (mm)
Control System	Intelligent motion control system
Navigation	SLAM, QR code, Laser, Magnetic tape
Driving Mode	Dual Steering Wheel Drive
Loading Capacity	3000KG
Moving Speed	0-40m/min
Lifting Stroke	60mm
Working Time	24 Hours (Continuous)
Battery Type	Lithium battery (≥2000 cycles)
Safety Range	0-180°, 0-3 meters adjustable
Lifespan	10 Years

Industrial Automation Solutions

Company Overview

We are a professional AGV manufacturer specializing in autonomous mobile robots (AMR) and material handling vehicles. With over 120 employees, we focus on delivering industrial-grade automation tailored to global standards.

Global Partnerships

Our technology is trusted by clients worldwide, including enterprises from the UAE, UK, Russia, India, South Africa, and Thailand. We provide reliable performance across diverse logistics and industrial environments.

Key Highlights:

R&D-Driven: Cutting-edge SLAM and laser navigation.
Quality Control: ISO-certified manufacturing process.
Global Deployment: Solutions for 20+ countries.

Frequently Asked Questions

Q1: What is the maximum load capacity of the Crab 3000?

The Crab 3000 is designed for heavy-duty applications with a robust loading capacity of up to 3000KG.

Q2: Which navigation methods are supported?

The system is highly flexible, supporting SLAM, QR code, laser, magnetic tape, and magnetic nail navigation methods.

Q3: Can the AGV work across different floors?

Yes, it features an elevator integration function, allowing it to automatically enter/exit ordinary elevators for multi-floor logistics.

Q4: How does the robot handle safety and obstacles?

It employs triple protection: a laser obstacle avoidance sensor (adjustable range up to 3m), front/rear mechanical bumpers, and emergency stop buttons.

Q5: Does it support 24/7 operation?

Yes, with its automatic charging and wireless charging support, the AGV can operate 24 hours a day without manual intervention.

Q6: Is it compatible with warehouse management systems?

Absolutely. The Crab 3000 can be customized to connect seamlessly with existing WMS and MES systems for full digital integration.
