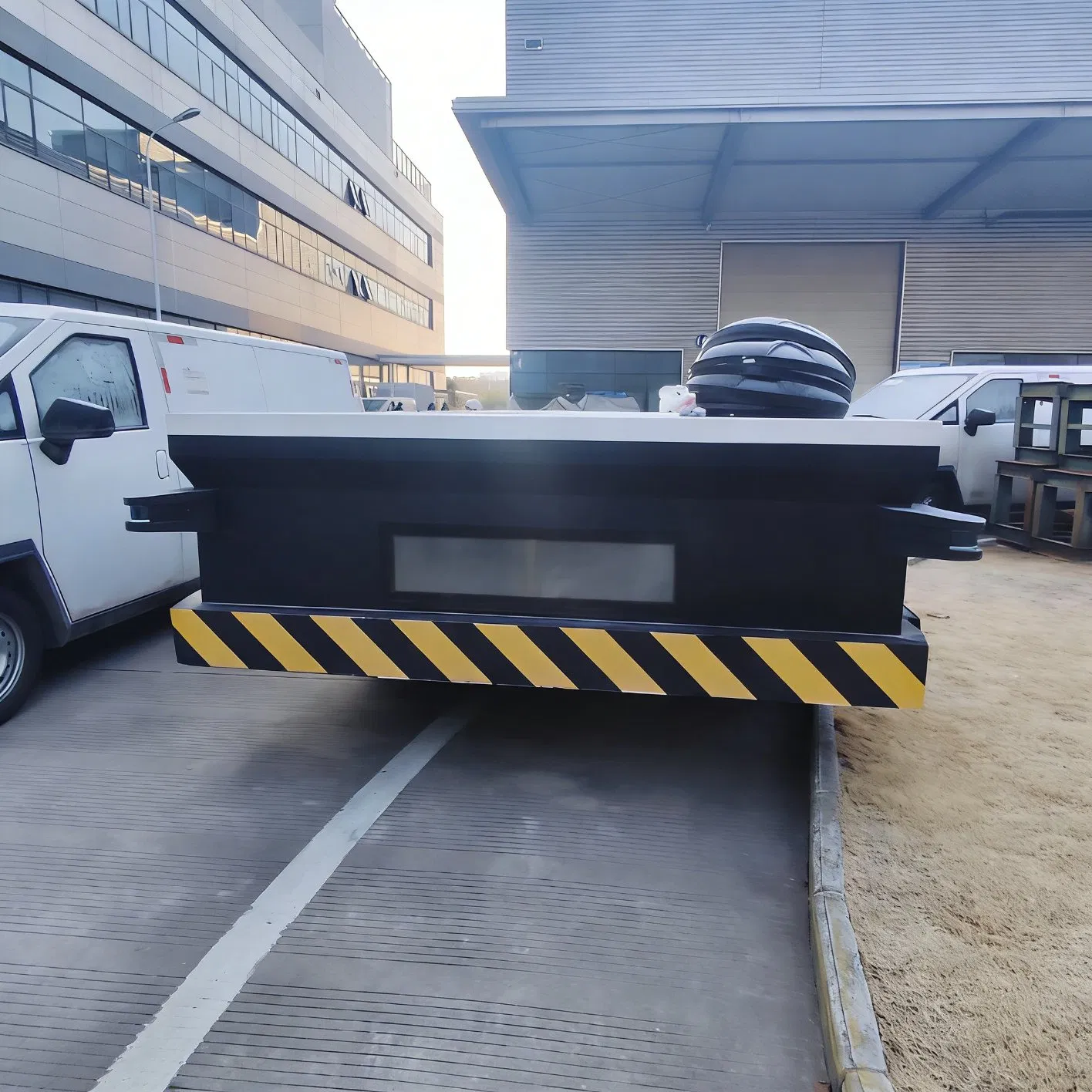

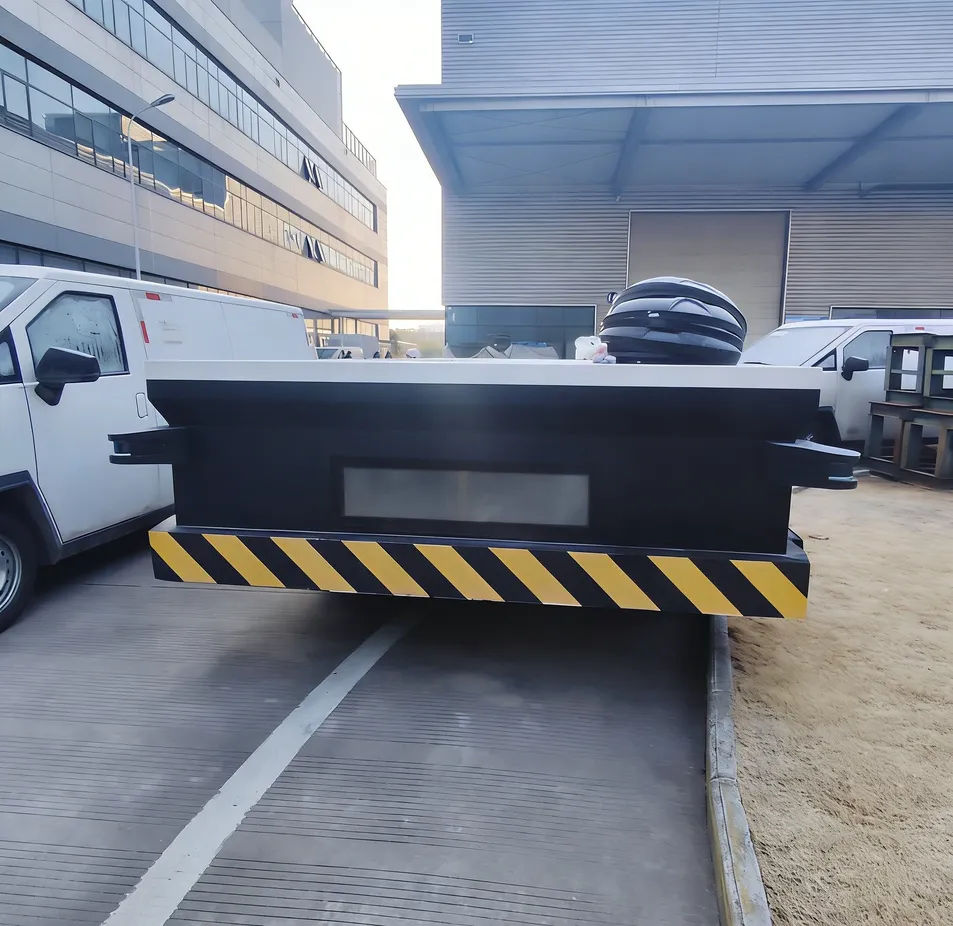

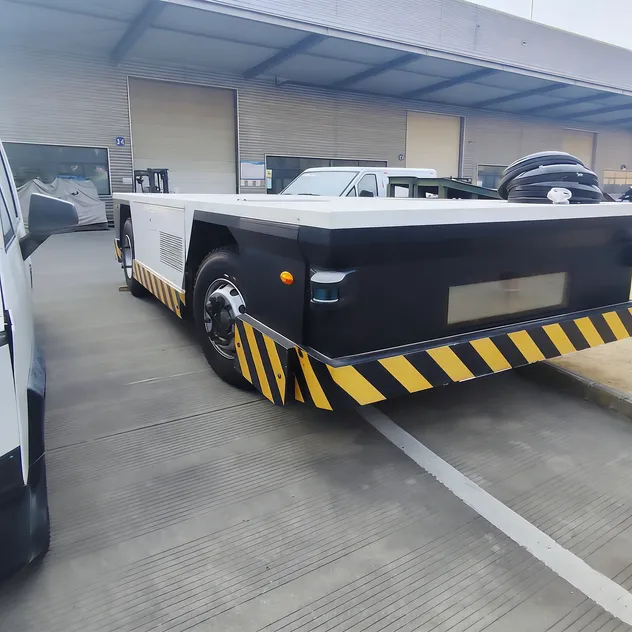

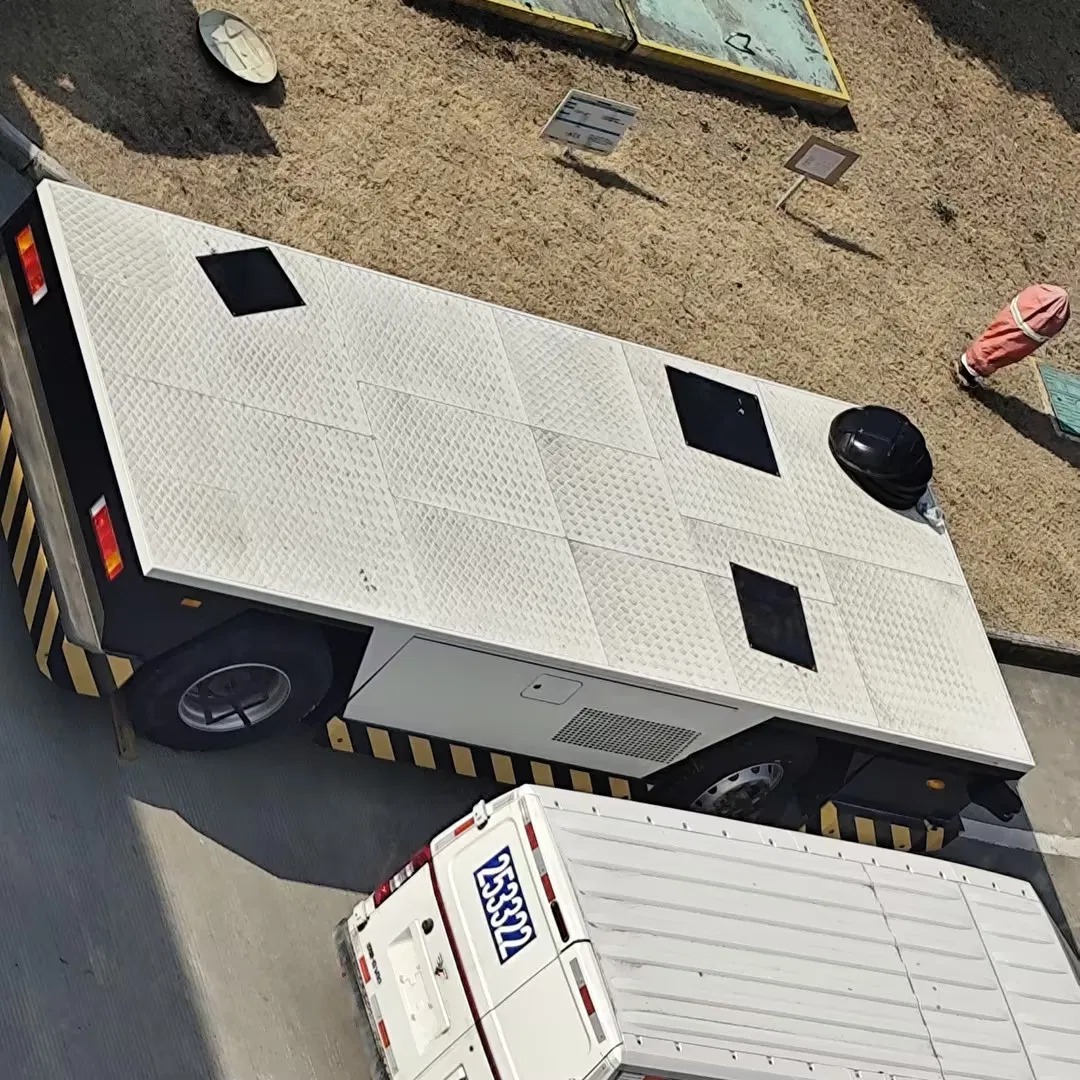

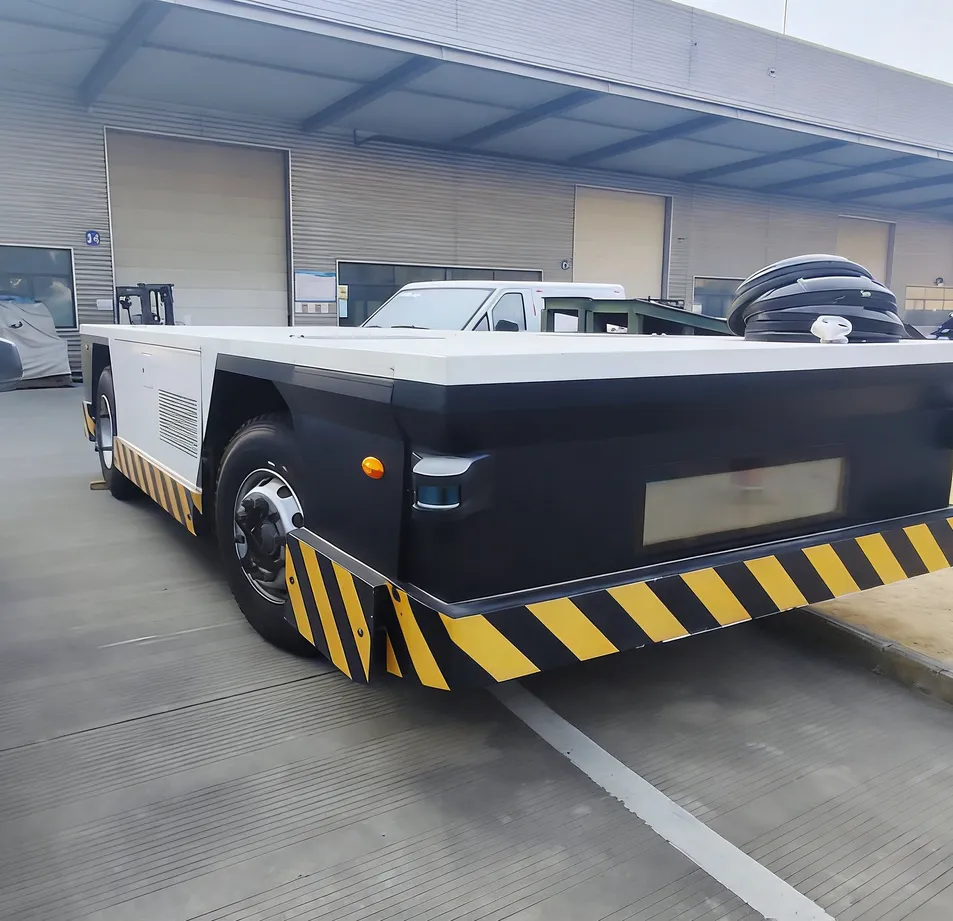

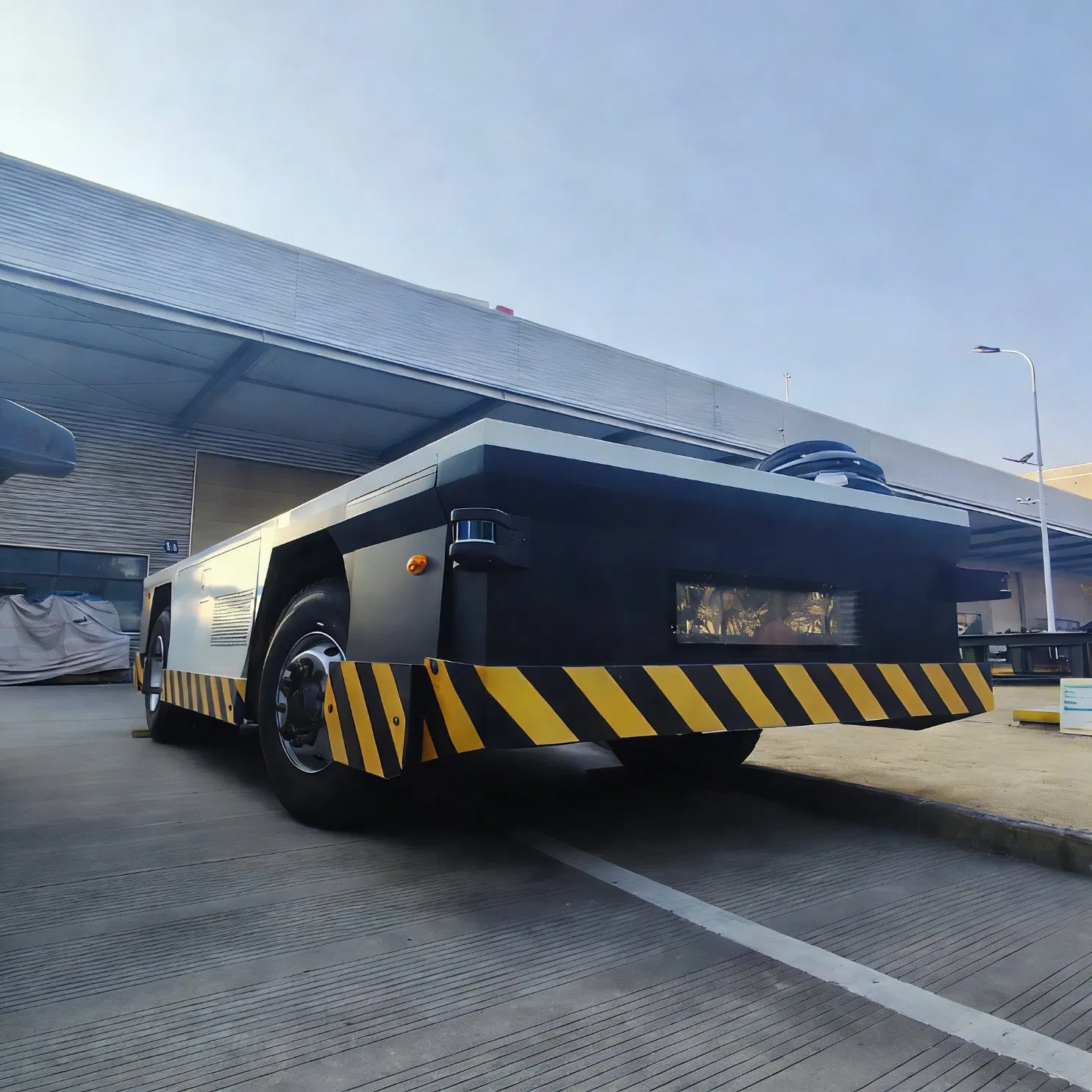

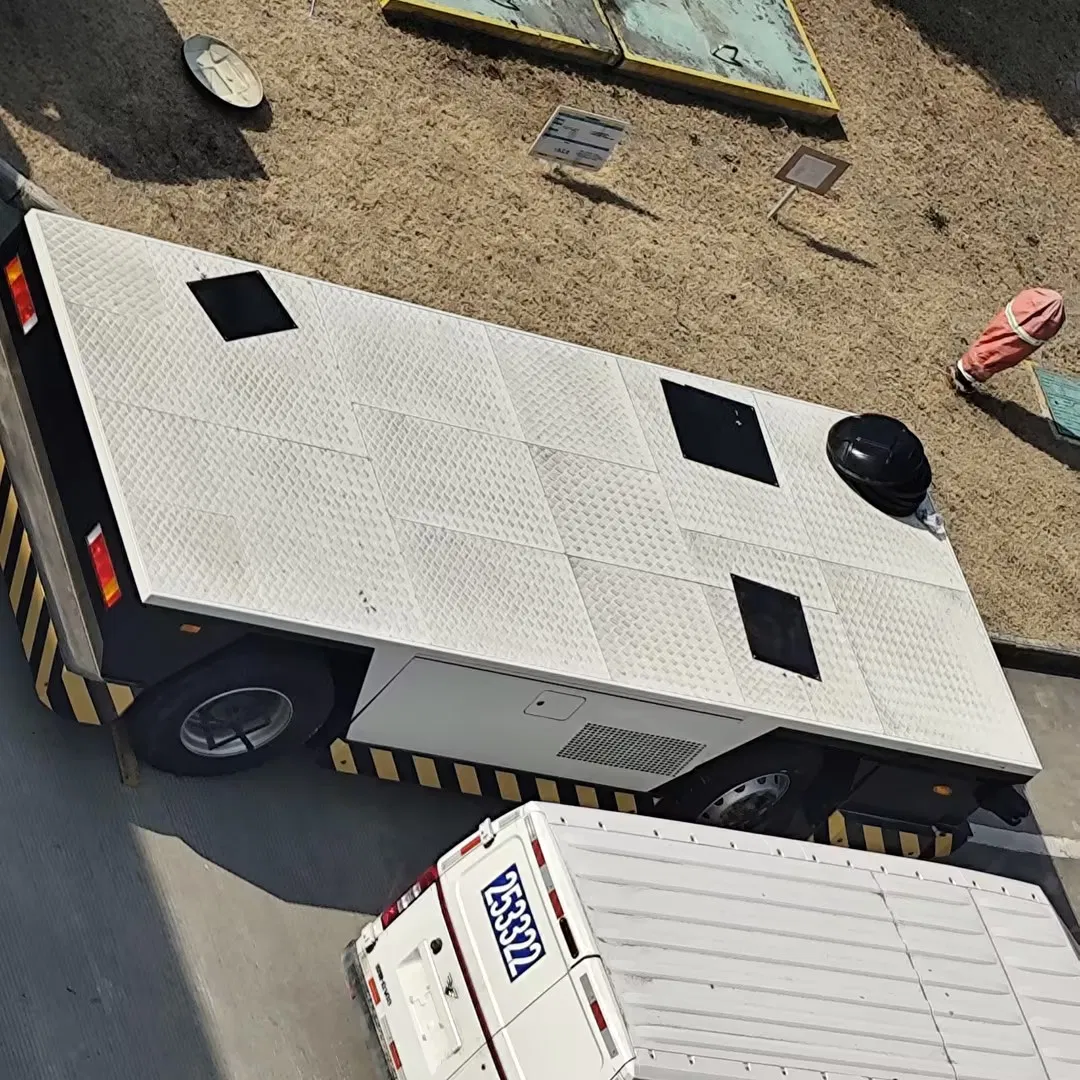

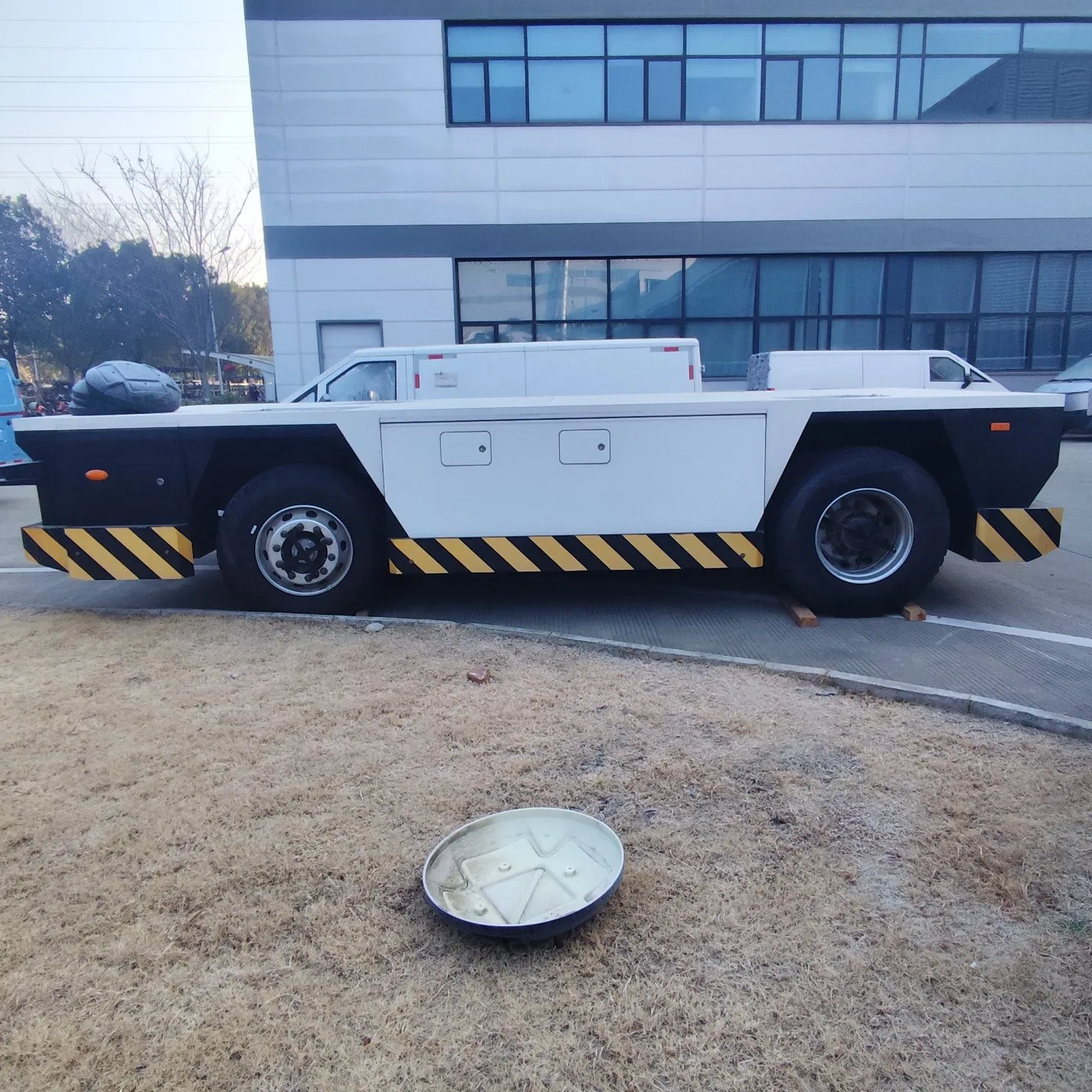

BEV 4x2 Unmanned AGV: This specialized Battery Electric Vehicle (BEV) is a heavy-duty, 4x2 unmanned Automated Guided Vehicle (AGV) designed for high-capacity industrial logistics. Engineered for robust performance, it boasts a massive 27,000 kg rated load capacity powered by a high-torque 201 kW electric motor.
The vehicle is equipped with a 175.1 kWh battery system capable of fast charging from 20% to 80% in just 36 minutes, ensuring high availability and minimal downtime during operations. With a cruising range of 120 km and a top speed of 25 km/h, it balances endurance with operational safety.
Primary Applications: Specifically tailored for heavy cargo transfer within ports, logistics hubs, and enclosed factory areas, offering an efficient, zero-emission solution for automated material handling.
| Parameter | Specification |
|---|---|
| Vehicle Size | 6436 x 2560 x 1301 mm |
| Wheelbase | 3550 mm |
| Curb Weight | 7090 kg |
| Maximum Total Mass | 34090 kg |
| Rated Load | 27000 kg |
| Maximum Speed | 25 km/h |
| Battery Capacity | 175.1 kWh |
| Cruising Range | 120 km |
| Fast Charging Time (20~80%) | 36 min |
| Maximum Motor Power | 201 kW |
| Maximum Torque of Motor | 2800 N·m |
Founded in 2008, the company is a comprehensive automotive tech provider and a powerful presence in the automotive industry. With auto technology at its core, the business range includes automotive product planning, whole-vehicle design and development, all-aluminum lightweight products, and overall solutions for independent new energy vehicle models.
