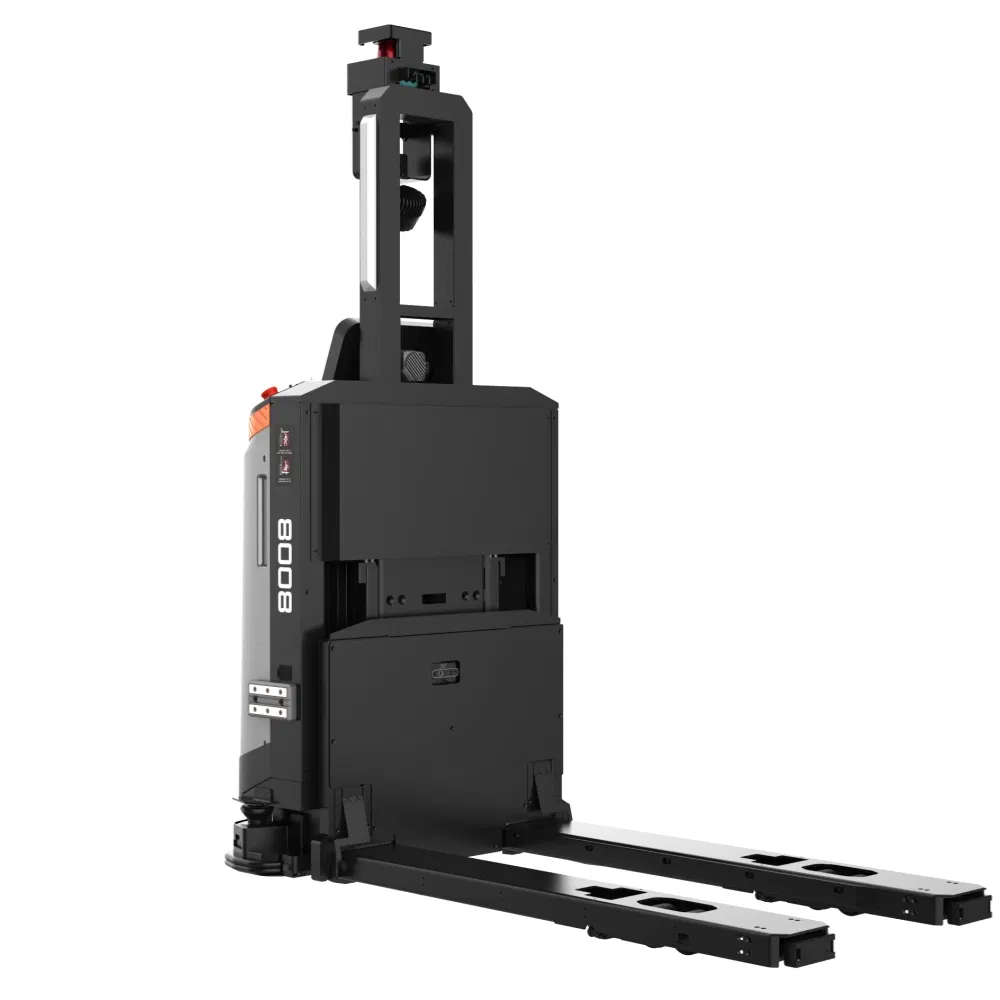

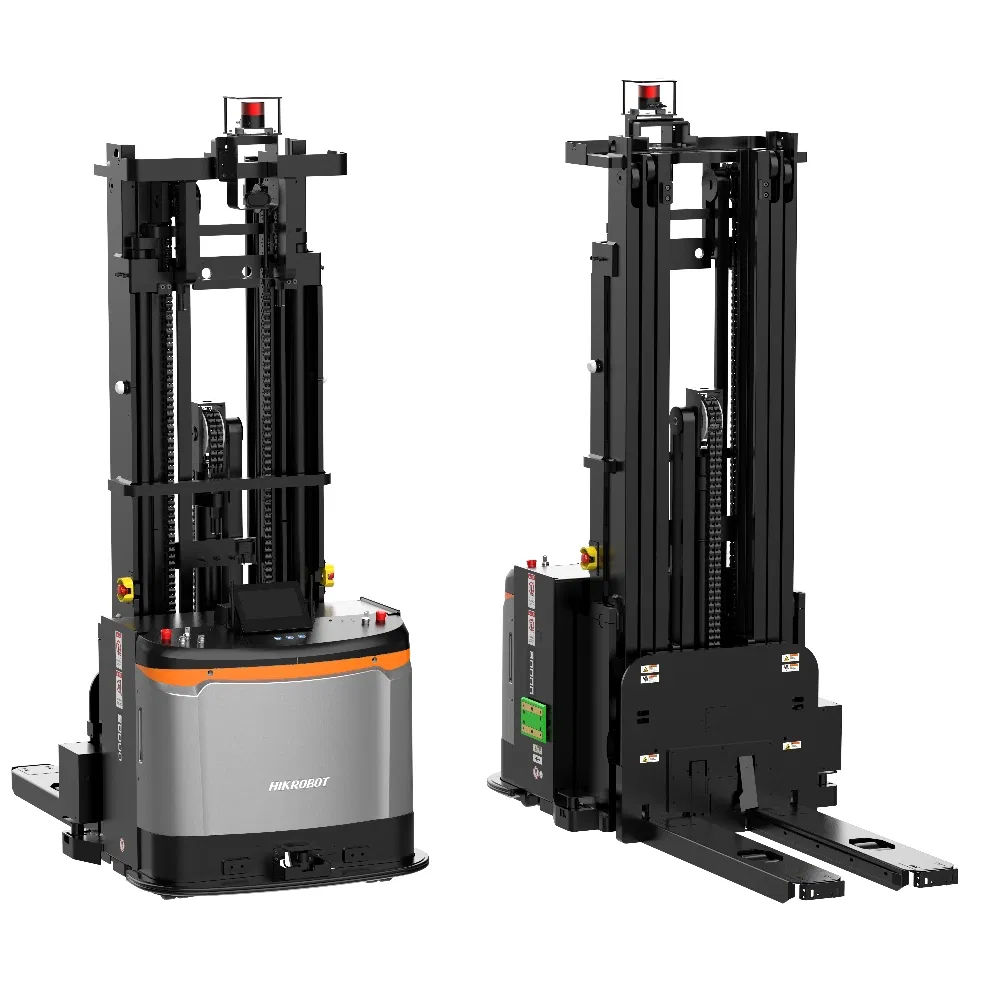

Carrying Series
Carrying series FMRs cover load ranging from 1,000kg to 3,000kg, with a maximum running speed of 2m/s. The lightweight FMR body is equipped with high-capacity batteries, reducing redundancy with precise requirements. The specially designed thickness of the FMR body greatly reduces the width of the running aisle and improves material storage space. The whole series adopts environmental contour navigation method for localization and easy deployment.
• Maximum steady running speed up to 2m/s

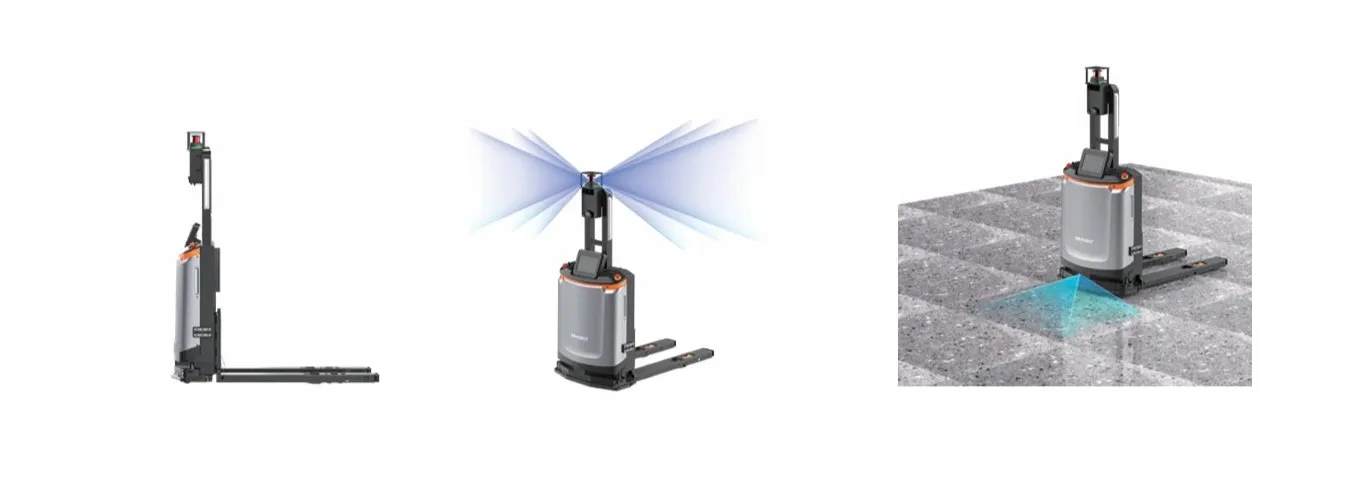

• 360° stereo sensing for safety
• Millimeter-level positioning accuracy
• Automatic pallet recognition and offset adjustment
• Suspended and low obstacle detection
• CE architecture design compliance

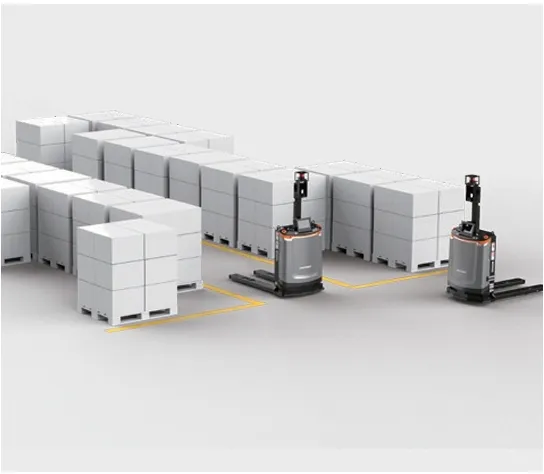

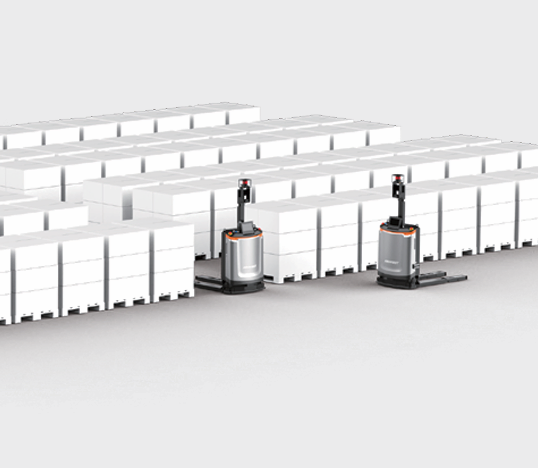

• Lineside, deep, and alleyway storage

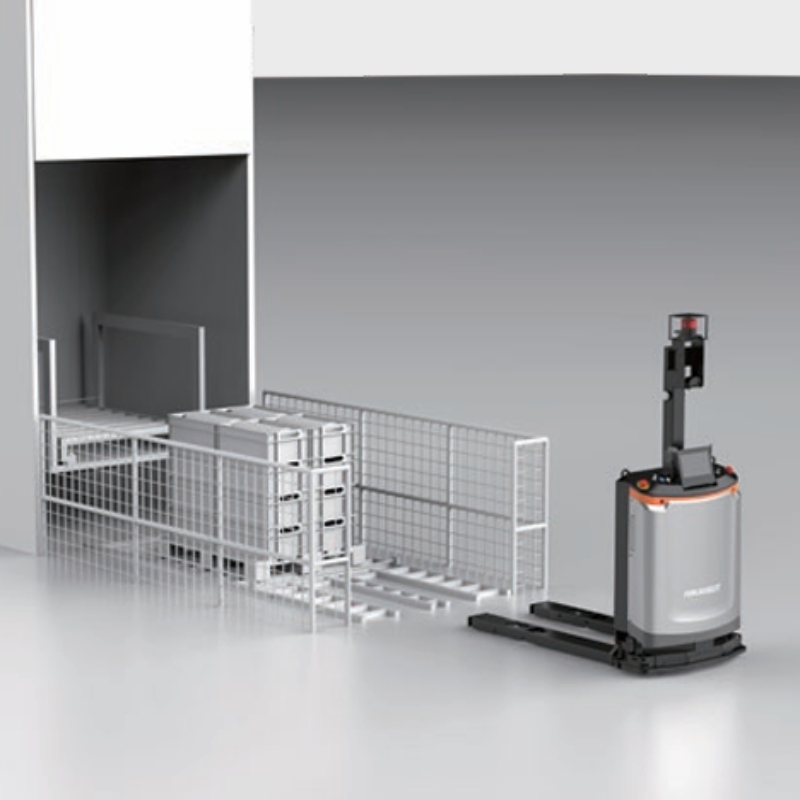

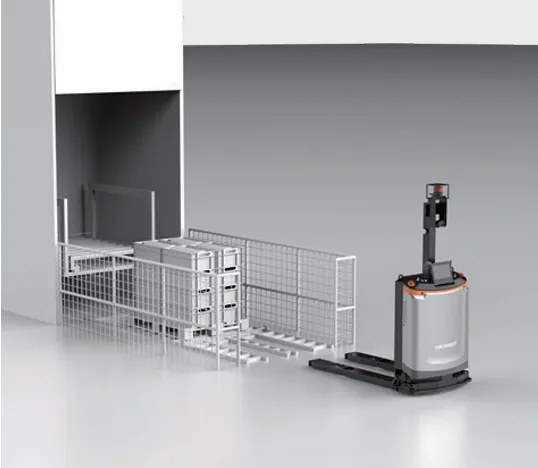

• Dock with elevators, doors, and conveyors
• Supports pallets, frames, and cage trolleys

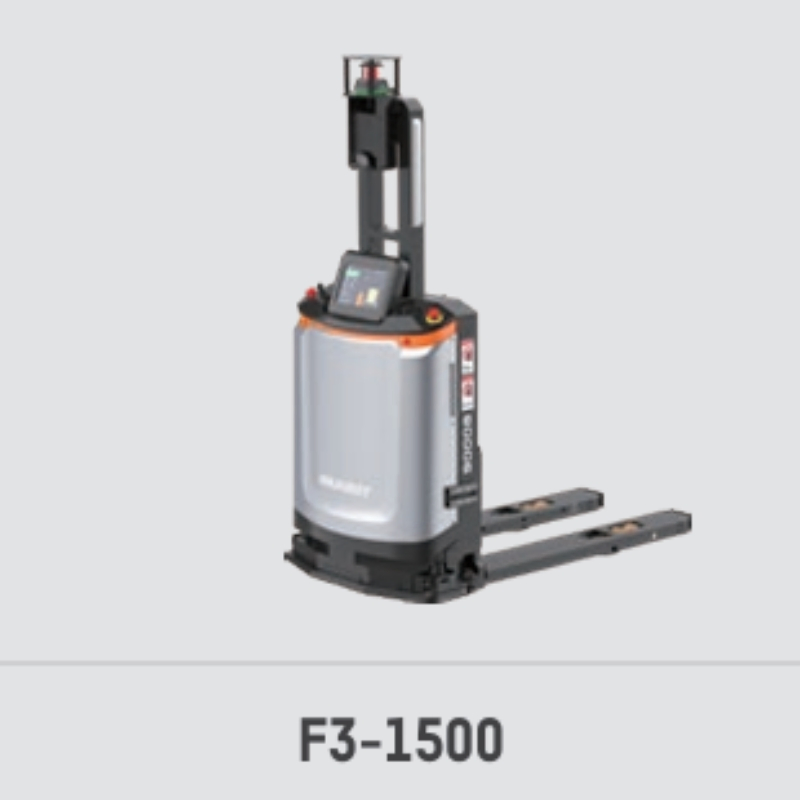

| Model | F3-1000 | F3-1500 | F3-2000 | F3-3000 |
| Rated speed (m/s) | 2.5 | 1.2 | 1.2 | 1.6 |
| Accuracy (mm/°) | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 |
| Min. rotation (mm) | 1701 | 1297 | 1377 | 1480 |
| Run time (h) | 6-8 | 6-8 | 6-8 | 6-8 |
| Obstacle Avoidance | Laser Support | Laser Support | Laser Support | Laser Support |
| Navigation Mode | L-SLAM / 3D L-SLAM (Customizable) | |||
1. One-year warranty
2. 24-hour online remote service
3. On-site support within 48 hours after visa approval during warranty period.
As a one-stop intelligent factory solutions provider, we specialize in green intelligent logistics robots and intelligent factory system design. We offer expert-level, customized, integrated solutions including consulting, software development, equipment manufacturing, and project implementation.
Our product line includes: AGV robots, WMS systems, ASRS with storage shelves, factory equipment, logistics equipment, conveyor systems, and more. We help customers develop tailor-made material flow solutions that bring maximum value.
