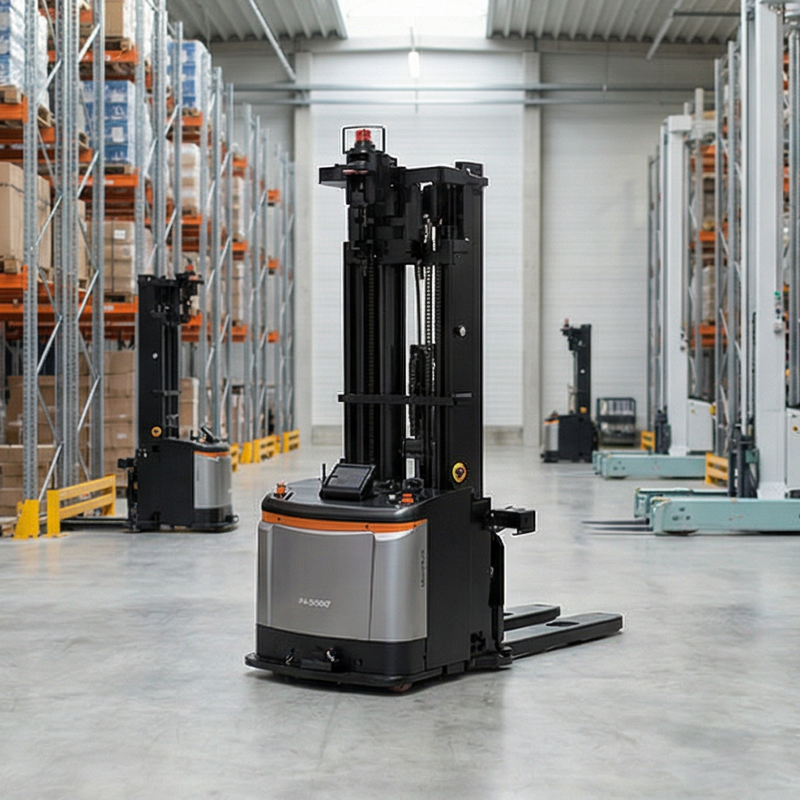

Heavy Load Pallet Transporting Slam AMR Stacking Agv Forklift Automated Mobile Robot

1 / 5

Heavy Load Pallet Transporting Slam AMR Stacking Agv Forklift Automated Mobile Robot

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

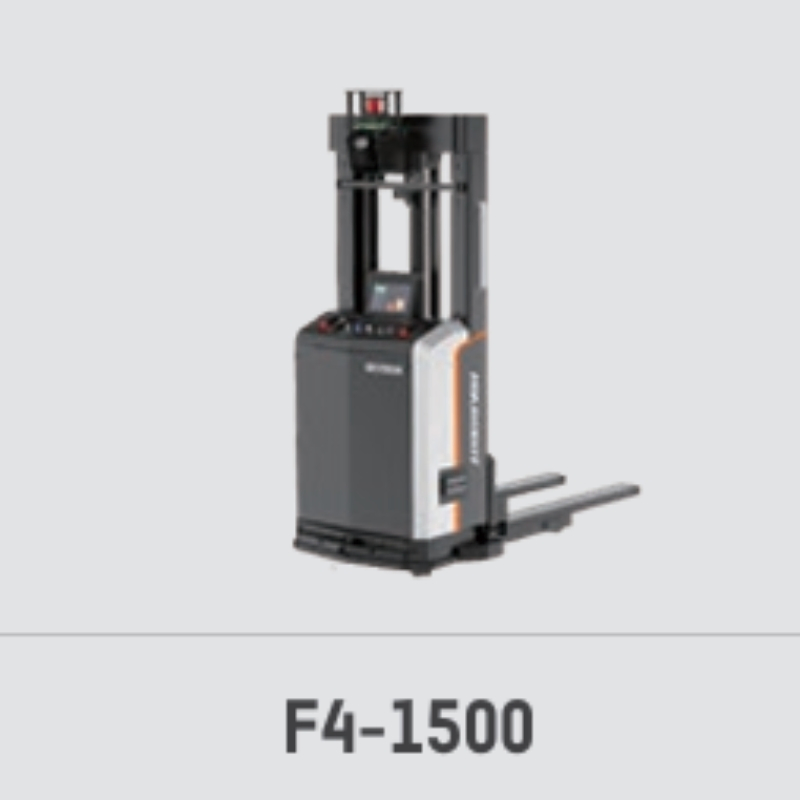

Model NO.

F4-1500

Load Capacity

1500 kg

Type

AMR (Autonomous Mobile Robot)

Dimension

1883*940*2165 mm

Weight

920 Kg

Lifting Height

3000 mm

Safety Features

Collision Avoidance, Emergency Stop, Laser Scanner

Origin

China

Forklift Mobile Robot Stacking Series

Stacking series FMRs cover the load ranging from 1,000kg to 3,000kg, with the highest lifting height being customized up to 4.5m. The specially designed thickness of the FMR body greatly reduces the operation aisle width, and effectively improves the storage space of materials. Adopting iconic robot head design and modular components, 80% of the components can be used in different scenarios. The whole series obtains full directive CE marking.

Key Features & Performance

Superior Performance: Steady running speed up to 1.5m/s.

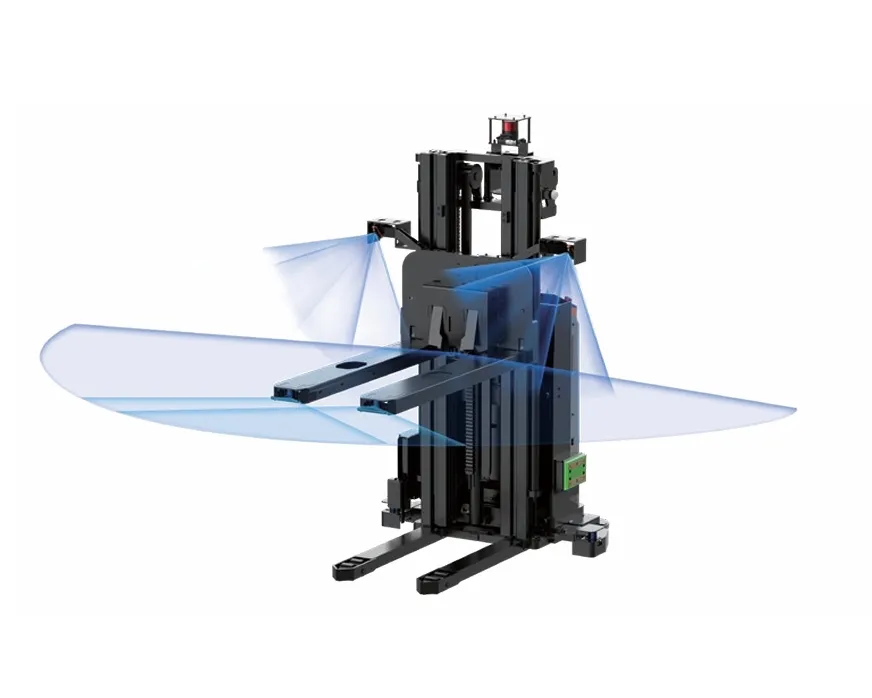

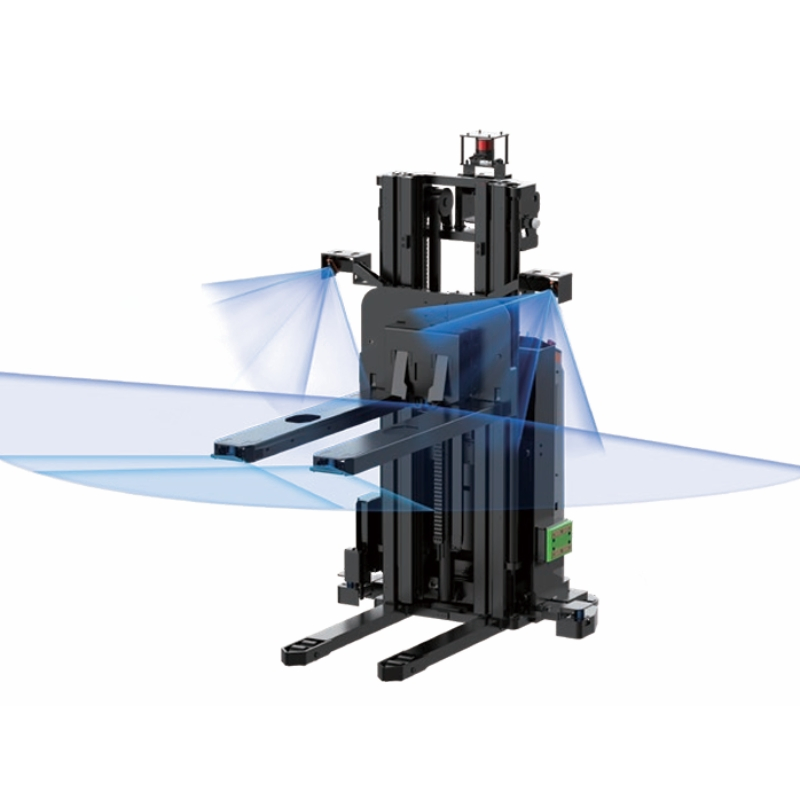

Safe and Reliable: 360° stereo sensing, recognizing various environments.
Precise Positioning: Millimeter-level accuracy combining laser and vision.
Carrier Recognition: Autonomous fork picking based on carrier offset.

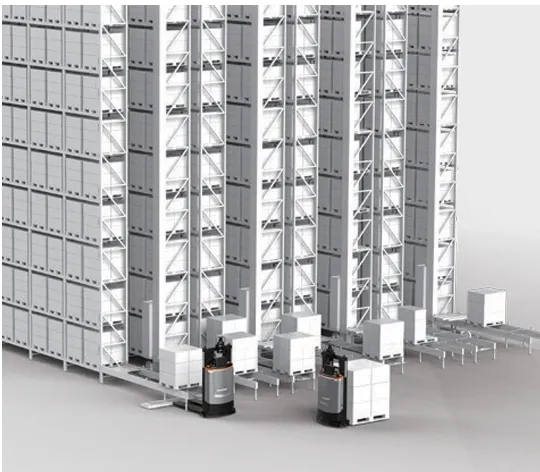

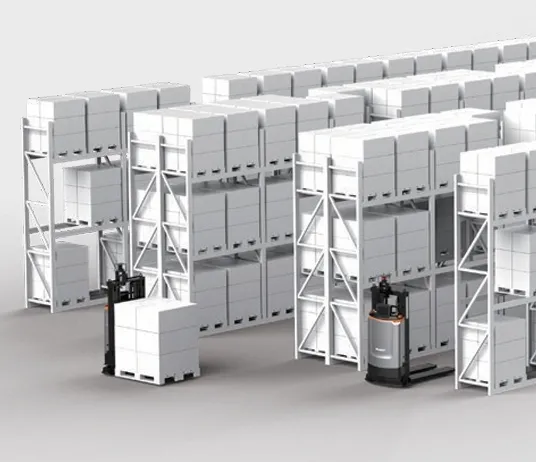

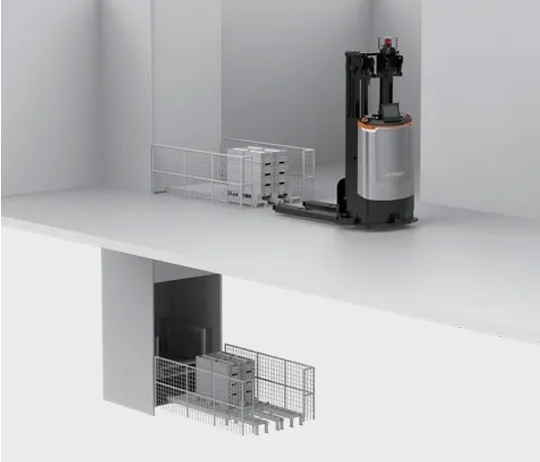

Rich Scenarios: Covering multi-level storage, material stacking, and deep storage.

Technical Specifications

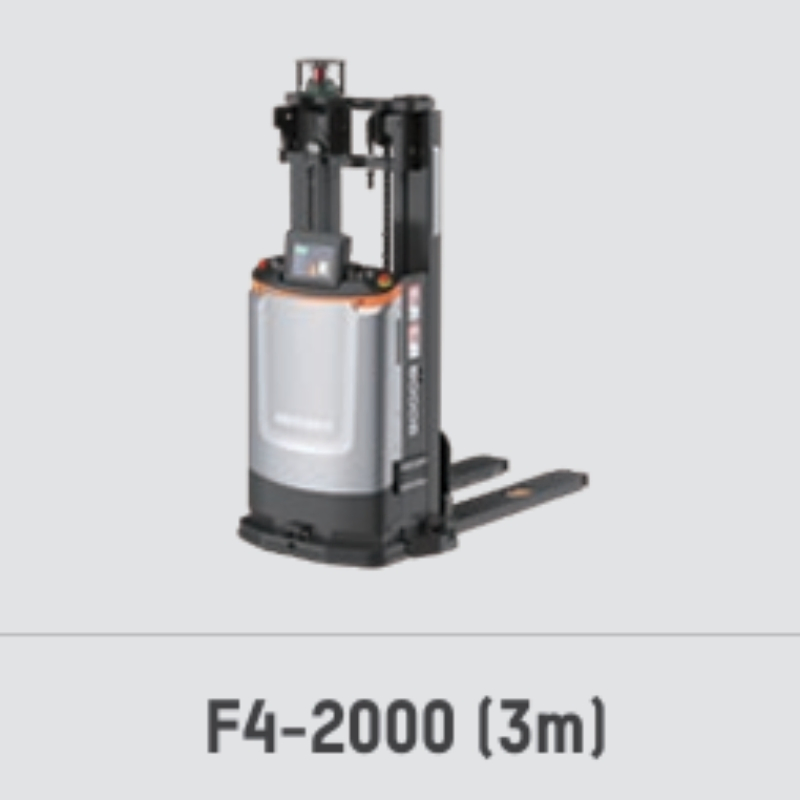

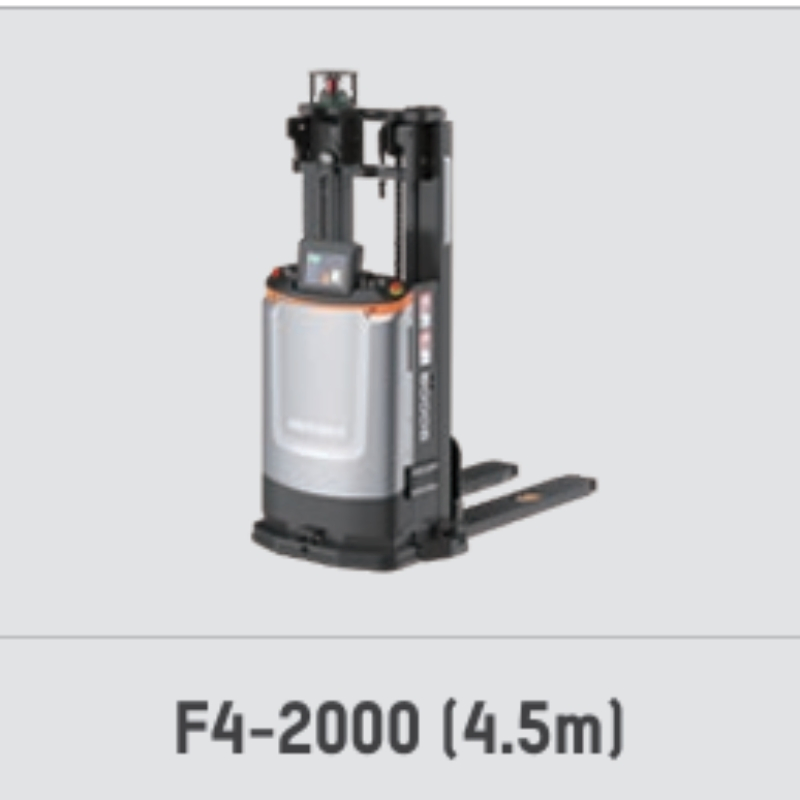

Model	F4-1000C	F4-1500	F4-2000 (3m)	F4-3000
Rated Speed (m/s)	1.2	1.2	1.2	1.5
Positioning Accuracy	±10mm / ±1°	±10mm / ±1°	±10mm / ±1°	±10mm / ±1°
Min. Rotation Radius (mm)	1183	1316	1400	1891
Min. Aisle Width (mm)	2062	2490	2065	2864
Run Time (h)	6-8	6-8	6-8	6-8
Charging Time (h)	≤ 2	≤ 2	≤ 2	≤ 2
Navigation Mode	L-SLAM	L-SLAM	L-SLAM	L-SLAM

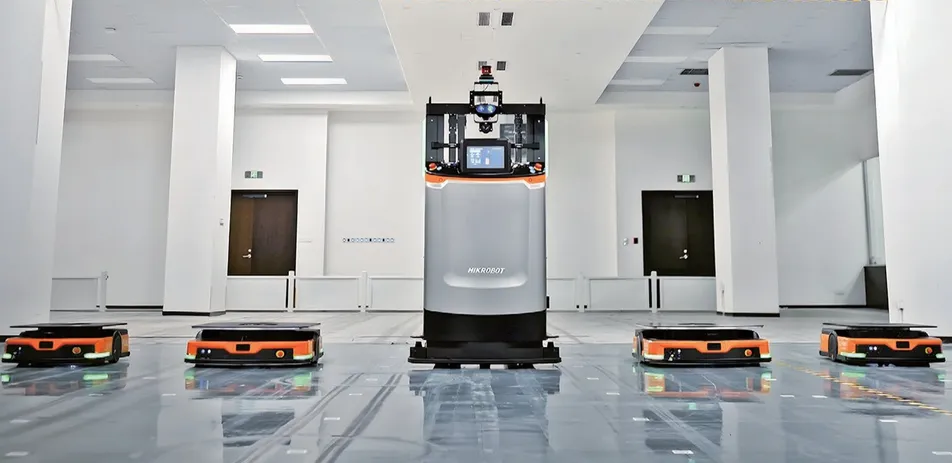

Applications

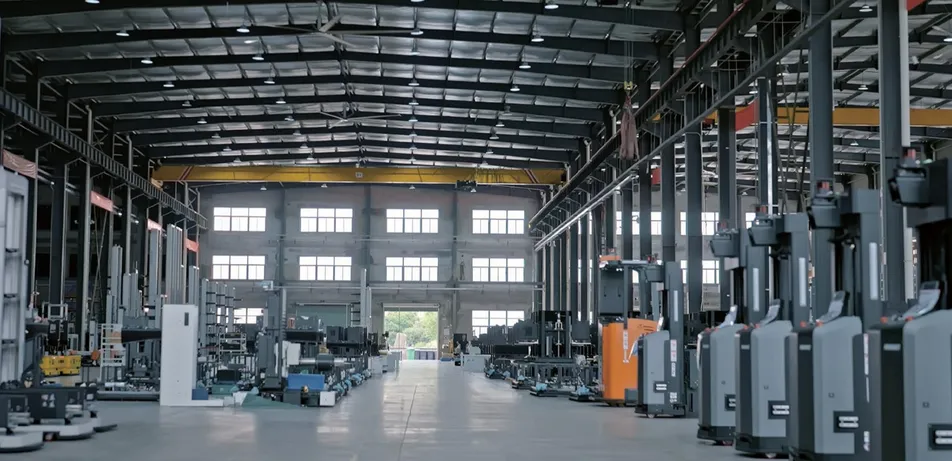

Project Cases

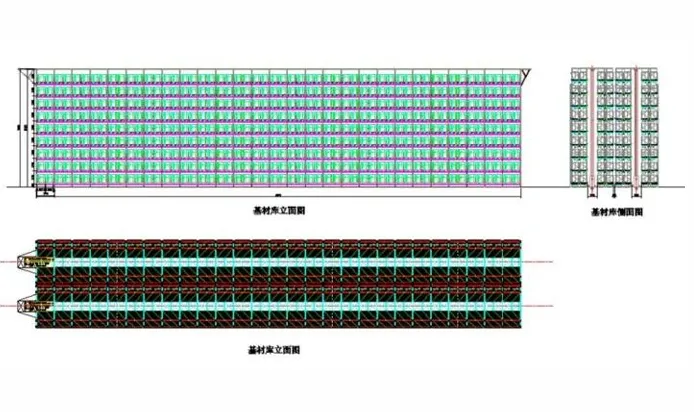

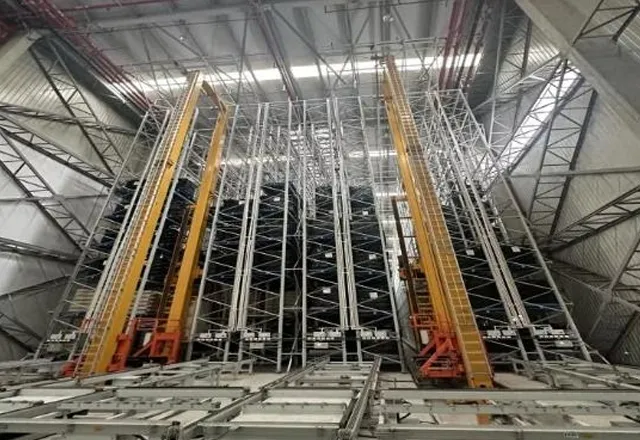

Automated Storage System Project for Raw Material Warehouse

Project Highlights: 2 stacker cranes, 4 sets of racks, 3,888 storage locations. Inbound and outbound flow rate of 92 pallets per hour (P/H).

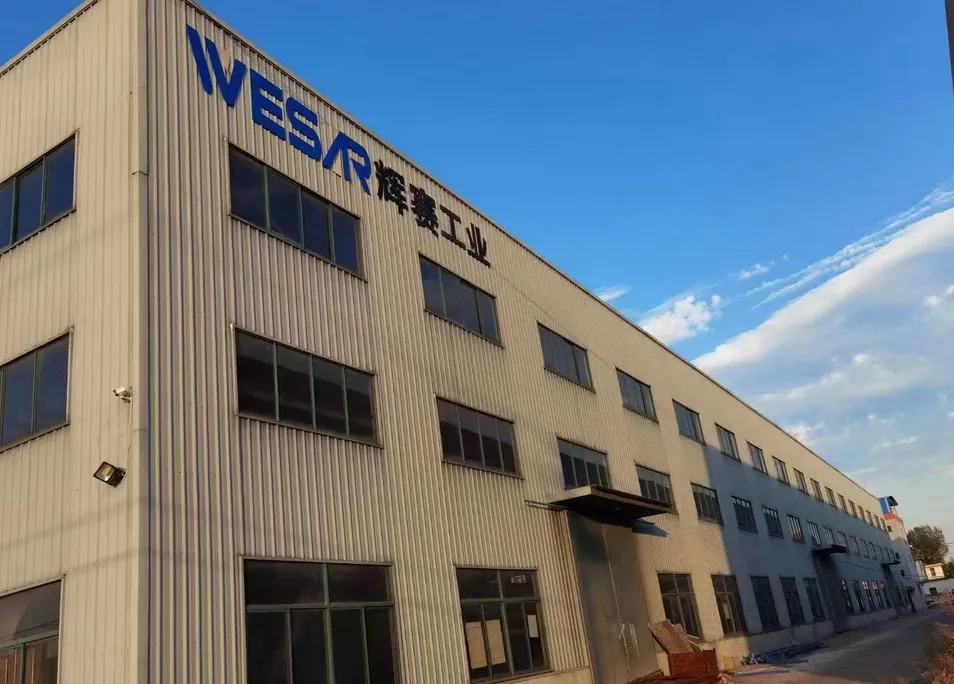

Service & Support

Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
Extended Warranty: Optional coverage up to 36 months.

Frequently Asked Questions

How do I select the right AGV for my facility?

We recommend selecting hardware based on your actual operational requirements, such as load weight, lifting height, and aisle width. Our team proposes the most suitable configuration for your needs.

Is specialized software required for AGV operation?

Yes. Dedicated robot dispatching and control software is necessary to work in conjunction with the AGV hardware to manage tasks and navigation.

Can different types of AGVs operate at the same site?

Absolutely. Our systems support the simultaneous operation of multiple AGVs, including different models, at the same site to meet various material handling requirements.

What information is needed to start an AGV project?

In the early stages, we require the factory layout, pallet dimensions, material details, and process flow descriptions.

What is the typical timeline for AGV implementation?

The timeline varies based on project scope. However, for standard specifications, deployment can sometimes be completed in as little as two weeks.

Can we perform the implementation ourselves?

AGV commissioning requires high professional expertise. Typically, our expert team handles this part to ensure safety and accuracy.
