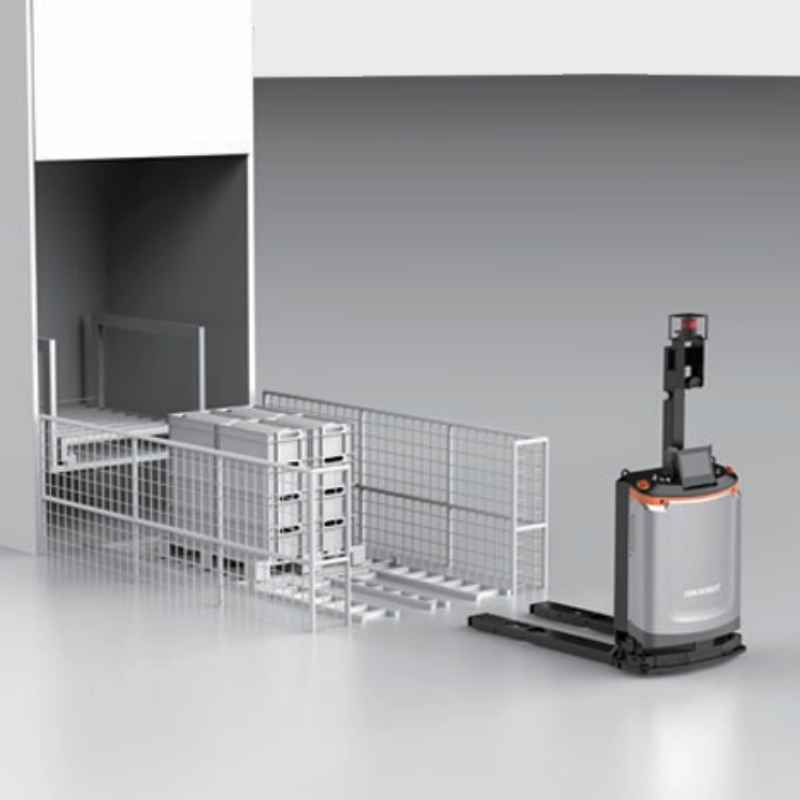

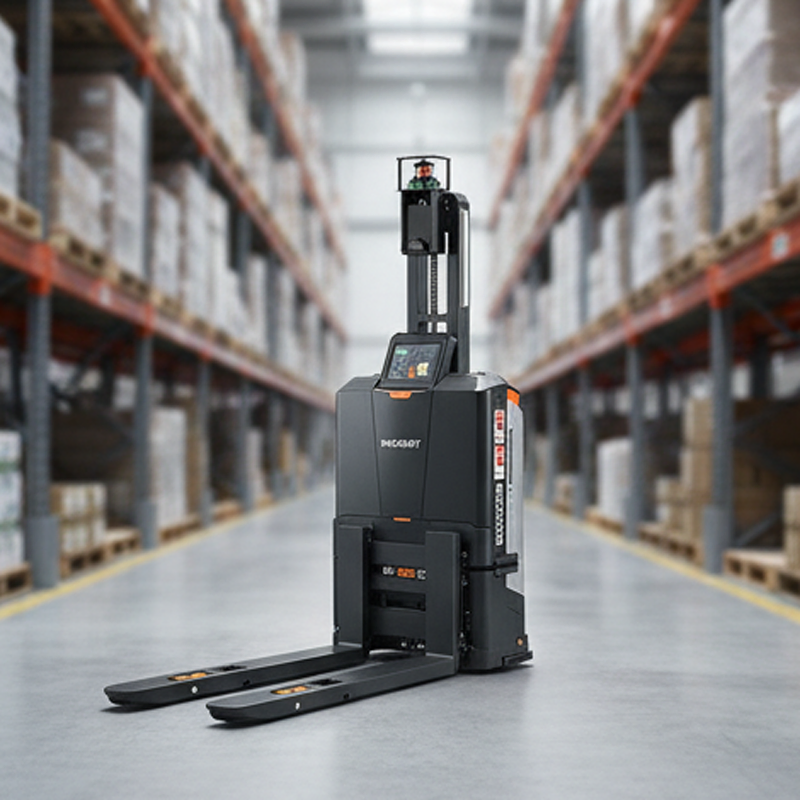

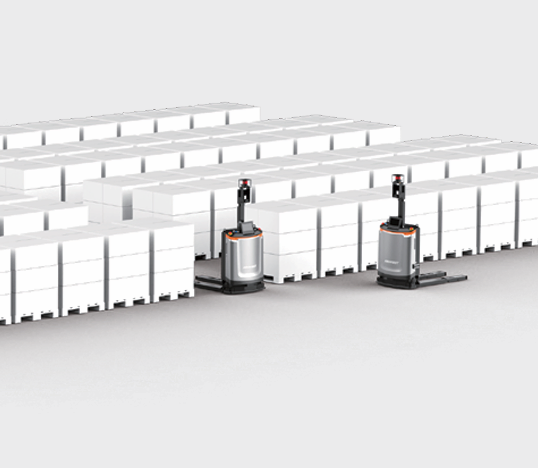

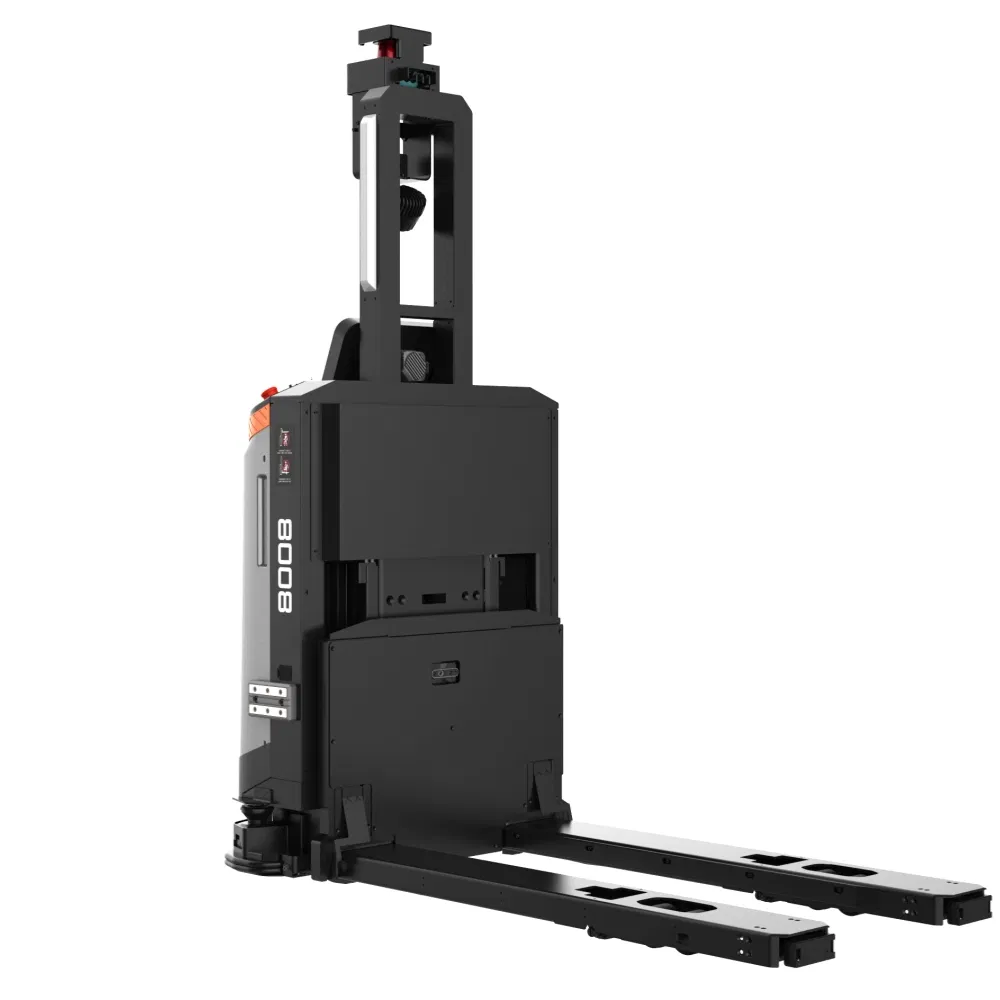

1500kgfor Efficient Warehouse AMR Pallet Handling Agv Forklift Mobile Robot

1 / 5

1500kgfor Efficient Warehouse AMR Pallet Handling Agv Forklift Mobile Robot

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Info.

Model NO.

F3-1500

Load Capacity

1500 kg

Type

AMR (Autonomous Mobile Robot)

Dimension (mm)

1645*870*1984

Weight (Kg)

500

Fork Lifting Height

200 mm

Origin

China

Safety Features

Collision Avoidance, Emergency Stop, Obstacle Sensors

🤖 Carrying Series FMR

Carrying series FMRs cover load ranging from 1,000kg to 3,000kg, with a maximum running speed of 2m/s. The lightweight FMR body is equipped with high-capacity batteries. The specially designed thickness of the FMR body greatly reduces the width of the running aisle and improves material storage space. Environmental contour navigation method supports texture navigation for precise localization.

✨ Key Features

Superior Performance

Efficient transportation: up to 2m/s speed
Wide load coverage: 300kg to 3T

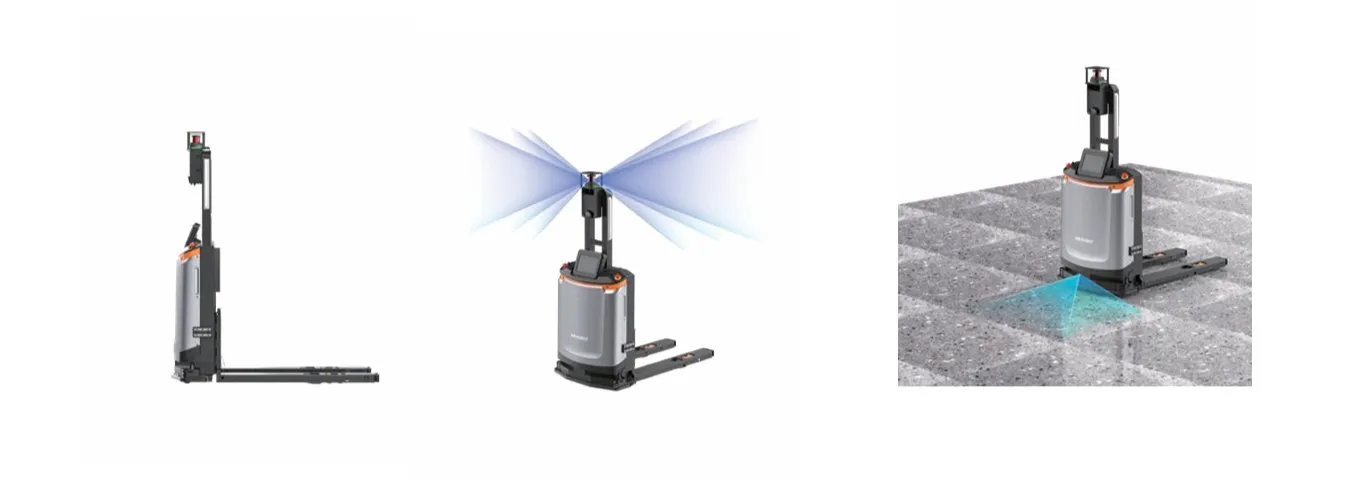

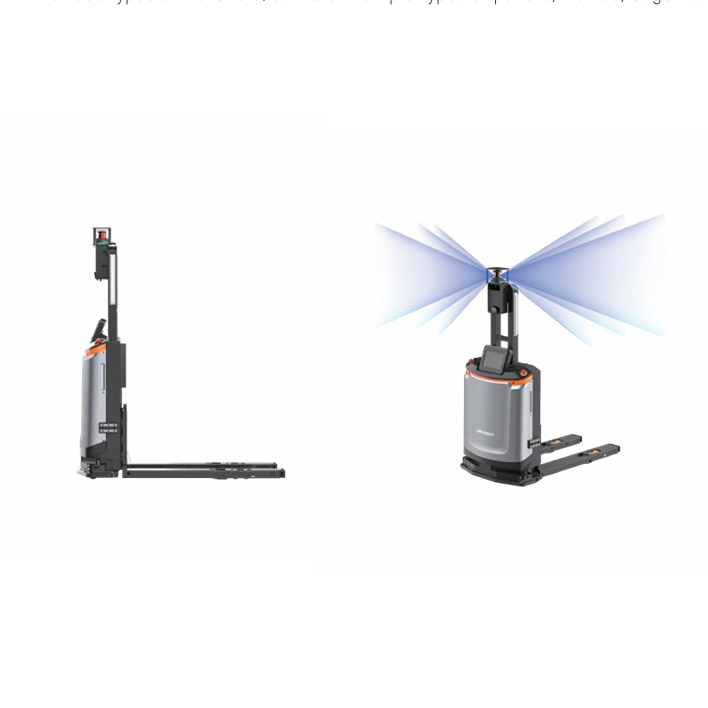

360° stereo sensing for safety
Millimeter-level positioning accuracy

Full-featured Intelligence

Automatic pallet recognition and picking
Suspended object and low obstacle detection
Compliant with CE architecture design

Rich Scenarios

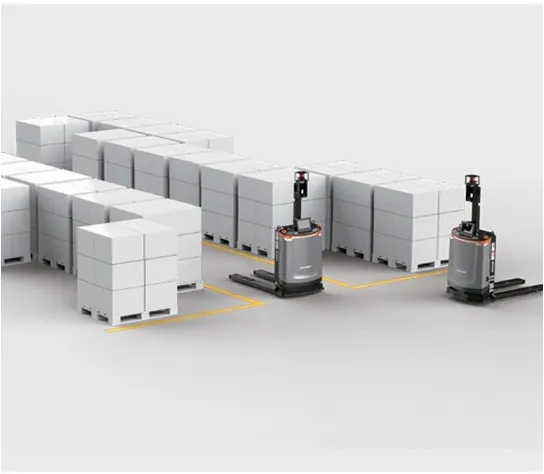

Lineside carrying and deep storage

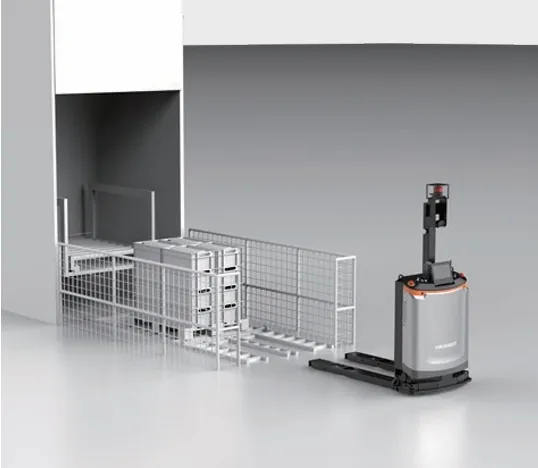

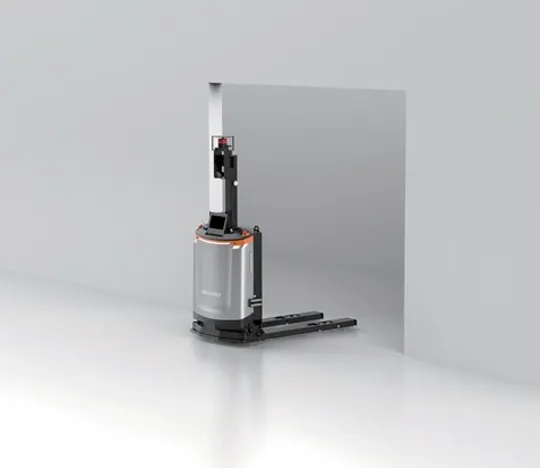

Docks with elevators, doors, and conveyors
Handles pallets, frames, and cage trolleys

📋 Specification Comparison

Model	F3-1000	F3-1500	F3-2000	F3-3000
Rated speed (m/s)	2.5	1.2	1.2	1.6
Accuracy (mm)/(°)	±10/±1	±10/±1	±10/±1	±10/±1
Min. rotation radius (mm)	1701	1297	1377	1480
Min. aisle width (mm)	2525	2191	2277	2230
Run time (h)	6-8	6-8	6-8	6-8
Charging time (h)	≤ 2	≤ 2	≤ 2	≤ 3
Navigation Mode	L-SLAM/ 3D L-SLAM (Customizable)

🤝 After Sales Service

One-year warranty
24-hour online remote service
On-site support within 48 hours during warranty period (after visa approval)

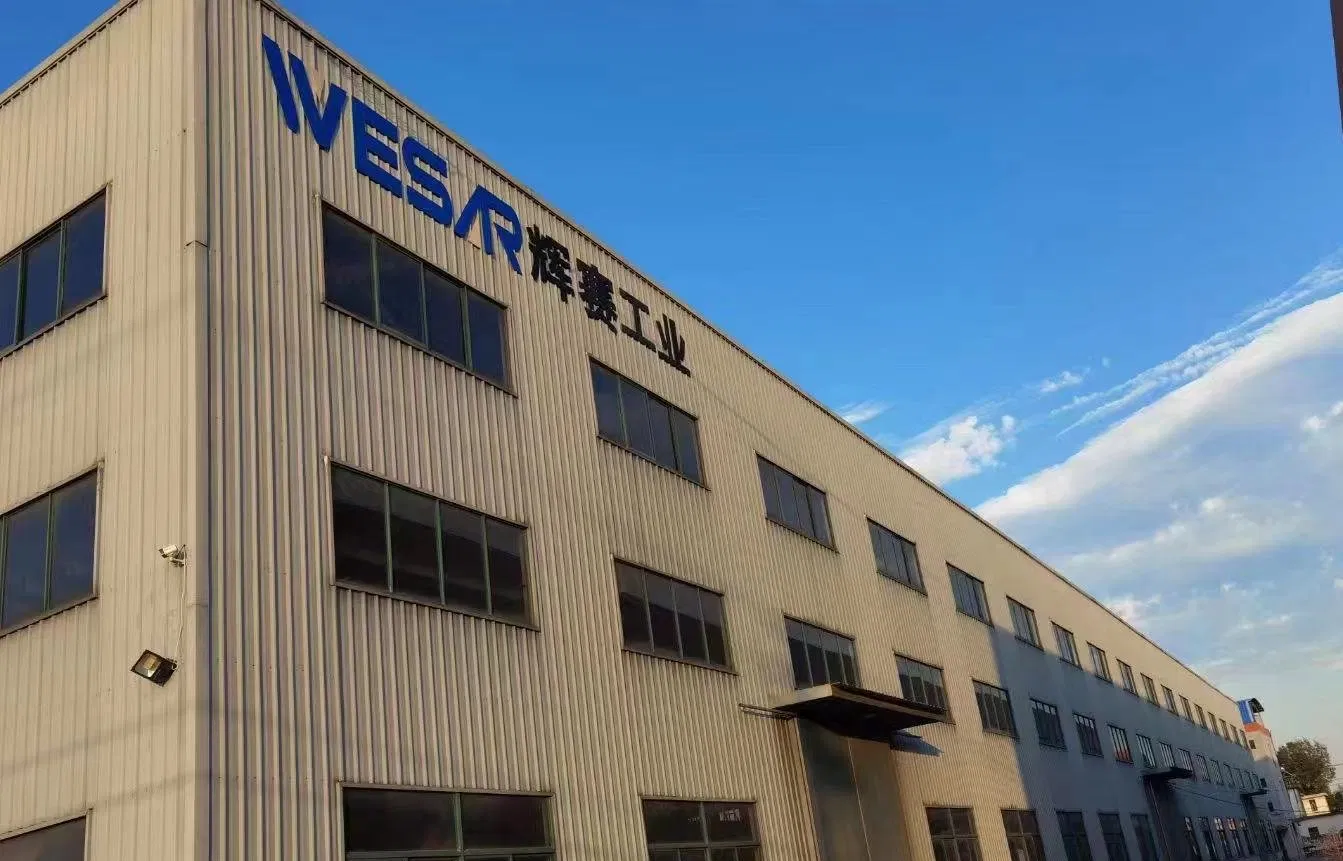

🏢 Professional Solutions Provider

As a one-stop intelligent factory solutions provider, we specialize in core services such as green intelligent logistics robots, intelligent factory system design and construction. We offer expert-level, customized, integrated solutions including consulting, software development, equipment manufacturing, and project implementation. Product lines include AGV robots, WMS systems, ASRS, and various logistics equipment.

📜 Certifications

Frequently Asked Questions

How do I select the right AGV for my facility?

We recommend selecting the AGV hardware based on your actual operational requirements. Our team proposes the most suitable configuration after analyzing your needs.

Is dedicated software required for AGV operation?

Yes. To enable AGV operation, dedicated robot dispatching and control software is required to work in conjunction with the AGV hardware.

Can different types of AGVs operate at the same site?

Absolutely. We support the operation of multiple AGVs, including different models and types, at the same site to meet various material handling requirements.

What information is needed to begin an AGV project?

In the early stages, we require information such as your factory layout, pallet dimensions, and specific material details.

What is the typical timeline for AGV implementation?

The timeline varies depending on project scope. In some cases, deployment and commissioning can be completed in as little as two weeks.

Can we handle the AGV commissioning ourselves?

Commissioning typically requires high professional expertise and experience. This work is usually handled by our specialized team to ensure safety and efficiency.
