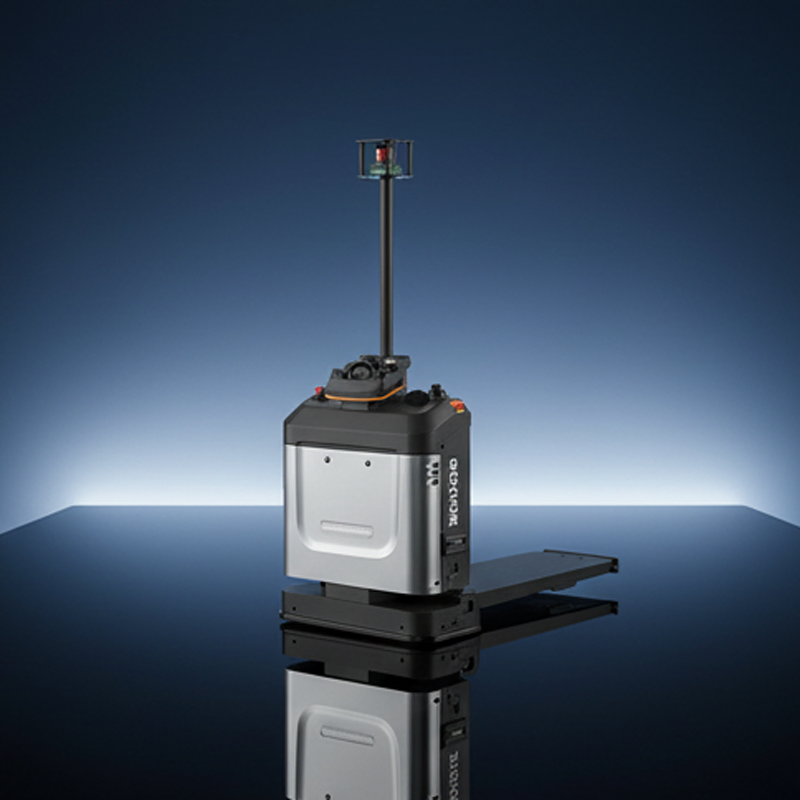

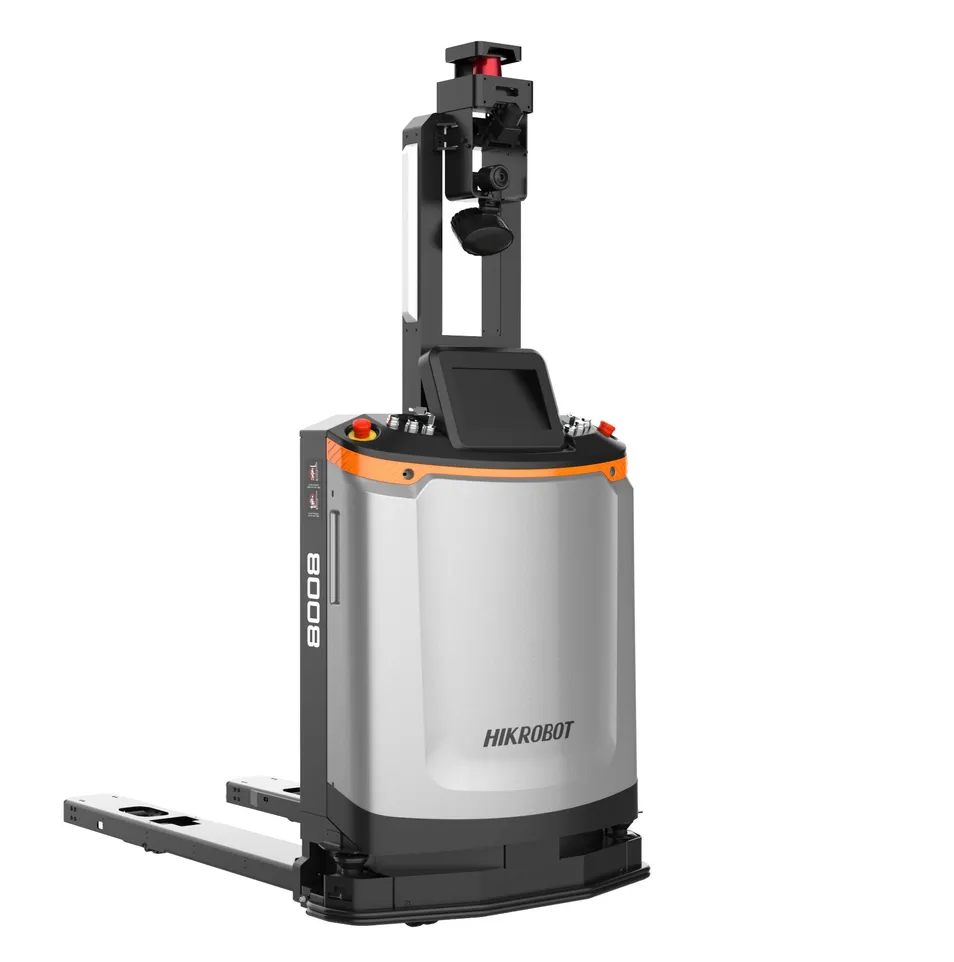

300kg Loading Weight Customized AMR Omnidirectional Forklift Robot

Basic Specifications

Model:

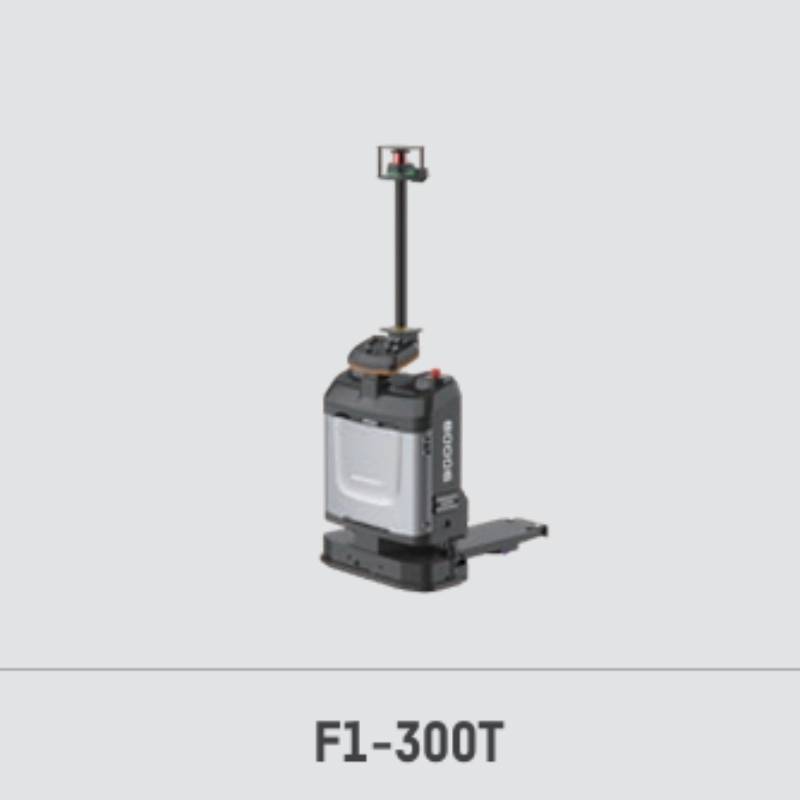

F1-300T

Load Capacity:

300 kg

Type:

AMR (Autonomous Mobile Robot)

Dimensions:

1093*745*1932 mm

Weight:

300 kg

Lifting Height:

438 mm

Control Mode:

Point to Point Control

Safety:

Collision Avoidance, E-Stop, Obstacle Sensors, Laser Scanner

Product Overview

Key Features

🚀

Superior Performance

Steady speed up to 1.5m/s with millimeter-level positioning accuracy.

🛡️

Safety Guaranteed

360° stereo sensing for obstacle detection and environment recognition.

🔄

Omnidirectional

Supports straight lines, skew movement, arcs, and in-place rotation.

🤝

Human-Machine Synergy

Organic synergy between manual and autonomous operations.

Technical Specifications

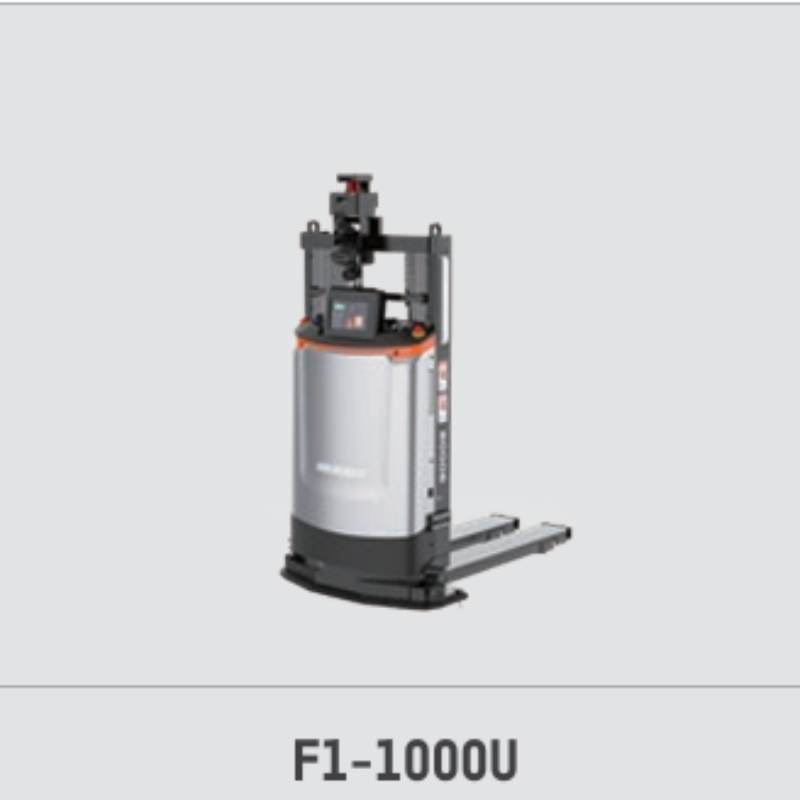

Model	F1-300T	F1-500T	F1-600U	F1-1000U
Rated speed (m/s)	1	1	1.2	1.2
Positioning accuracy (mm)	±10/1°	±10/1°	±10/1°	±10/1°
Min. rotation radius (mm)	585	727	933	933
Motion method	Omnidirectional driving
Run time (h)	6-8	6-8	6-8	6-8
Charging time (h)	≤ 1.5	≤ 1.5	≤ 1.5	≤ 2
Navigation Mode	L-SLAM / 3D L-SLAM

Application Cases

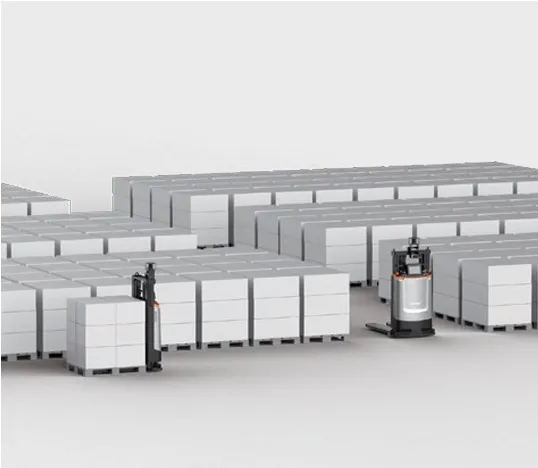

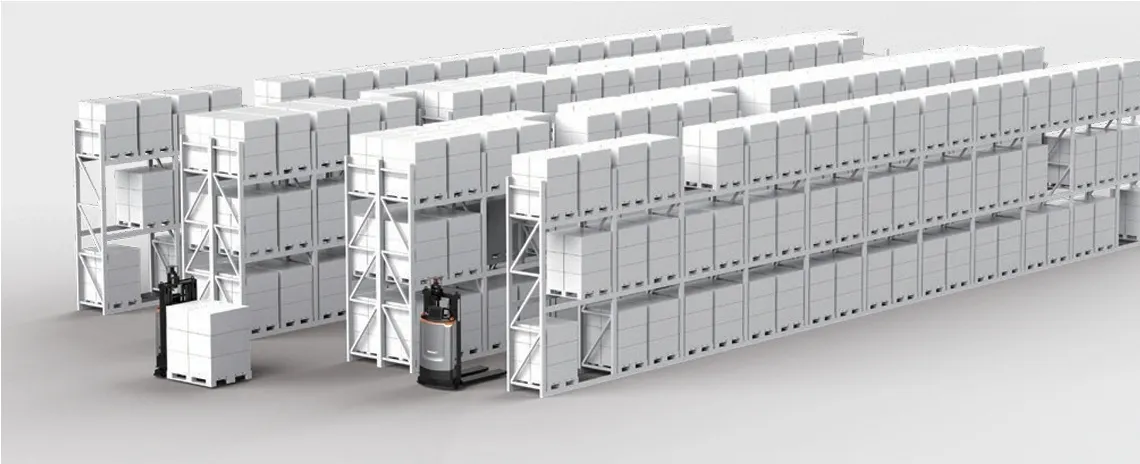

Deep Storage Warehouse

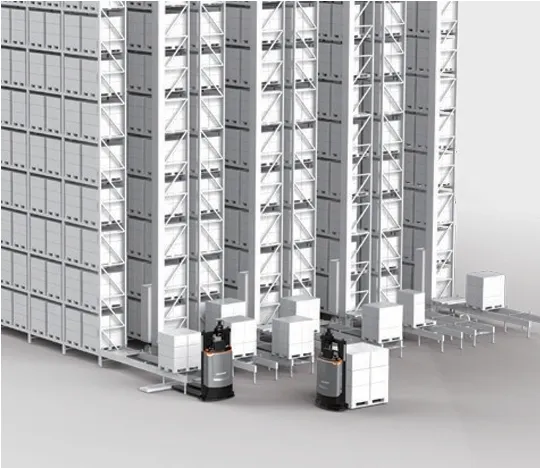

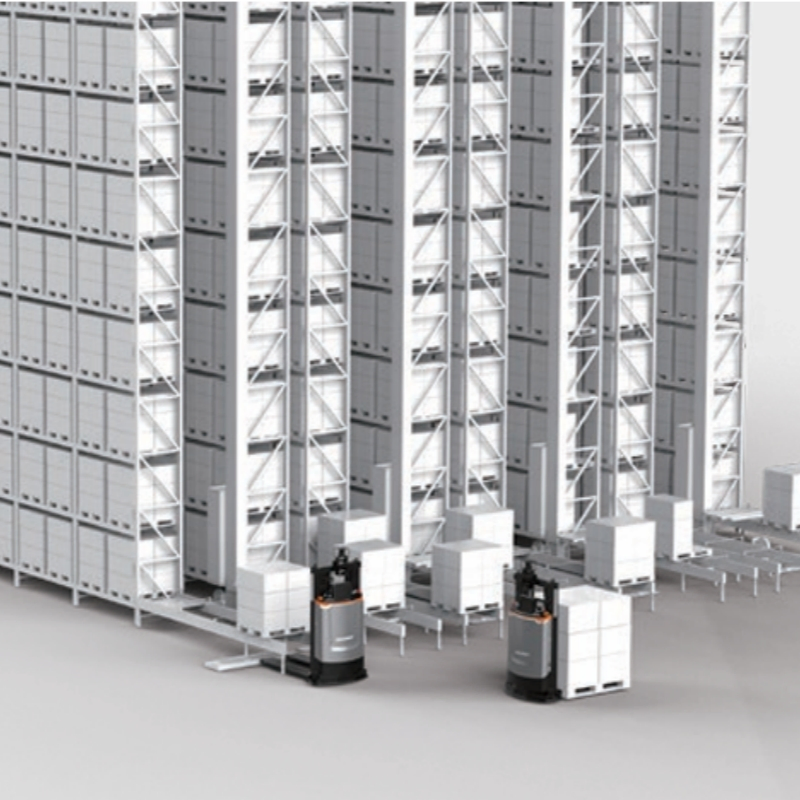

Conveyor Docking

Project Highlights

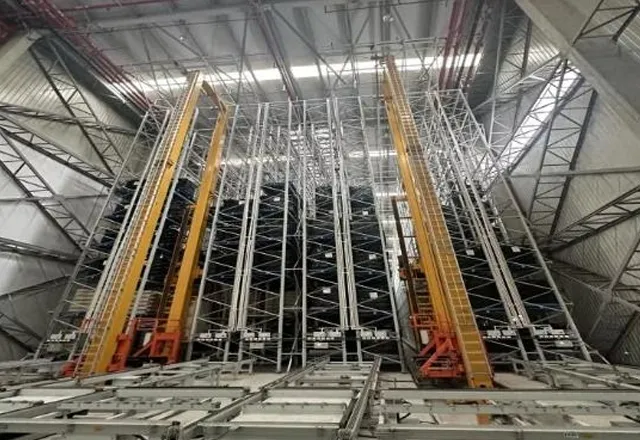

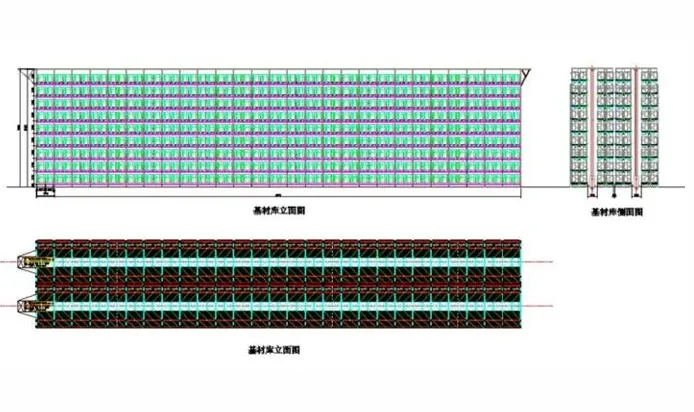

Automated Raw Material Storage: Design of stacker cranes and rack systems with 3,888 storage locations.

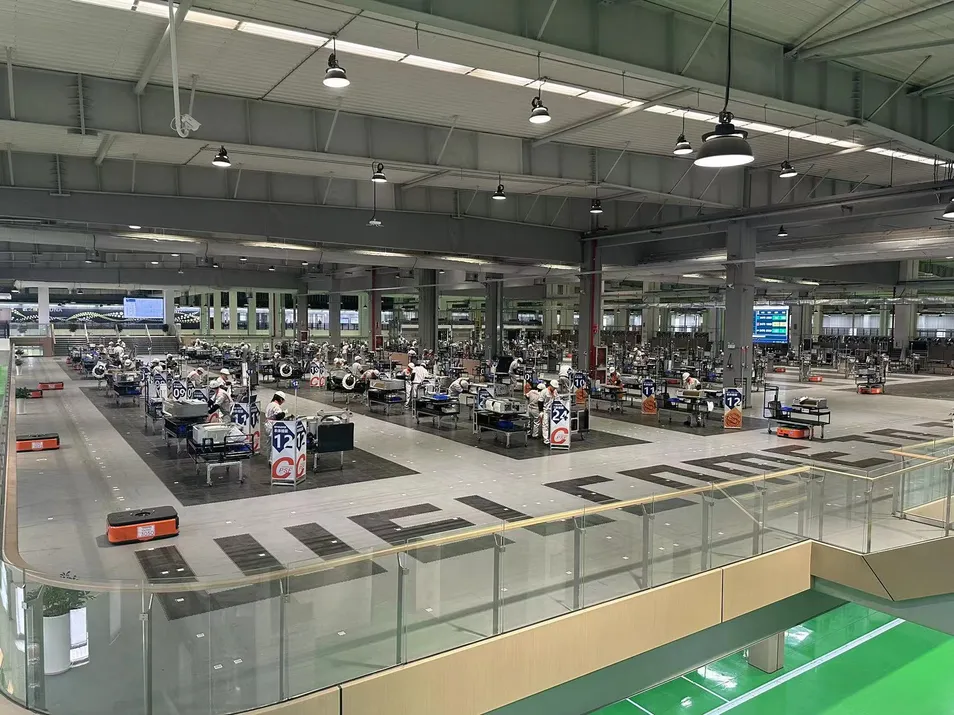

Home Appliance Manufacturing: Deployment of 120 LMRs reducing labor costs by 40%.
Global Delivery: Proven projects across Europe and Southeast Asia.

Solutions & Services

Providing one-stop smart factory solutions including production of smart shelving, intelligent logistics, and automated warehousing robots. Specializing in customized integrated solutions spanning consulting, planning, software development, and ASRS delivery.

After-Sales Service

Standard 12-month or 2,000-hour warranty. Global 24/7 technical assistance and on-site training.

Business Scope

Consulting, Planning, Design, Manufacture, Installation, and Lifecycle Support.

Frequently Asked Questions

How do I select the right AGV/AMR for my needs?

Selection is based on your specific operational requirements, including load weight, travel path, and facility layout. Our team proposes the most suitable hardware configuration after a detailed assessment.

Is specialized software required for robot operation?

Yes, a dedicated robot dispatching and control software system is essential to manage task allocation, traffic control, and hardware coordination.

Can different types of robots operate at the same site?

Absolutely. Our systems support the simultaneous operation of multiple robot models at a single site to handle diverse material handling tasks.

What information is required to start a project?

Initially, we require the factory layout (CAD), pallet dimensions, material details, and target throughput (pallets per hour).

What is the typical implementation timeline?

Timeline varies by project scope. Simple deployments can be completed in as little as two weeks, while complex automated warehouse systems may take several months.

Can we handle the robot commissioning ourselves?

Commissioning requires high technical expertise. Our professional engineering team handles the implementation to ensure safety and efficiency.
