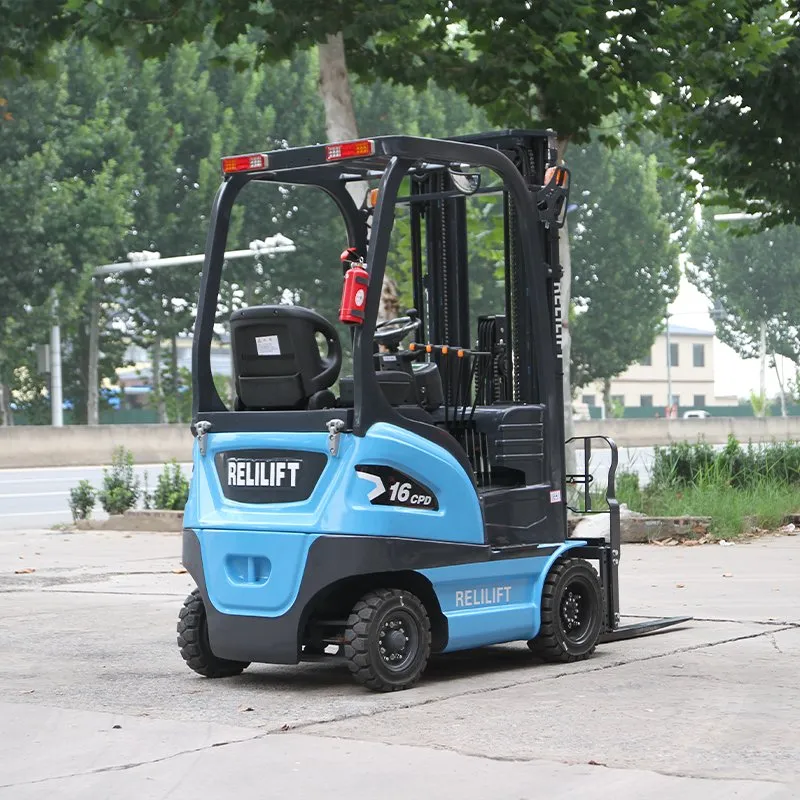

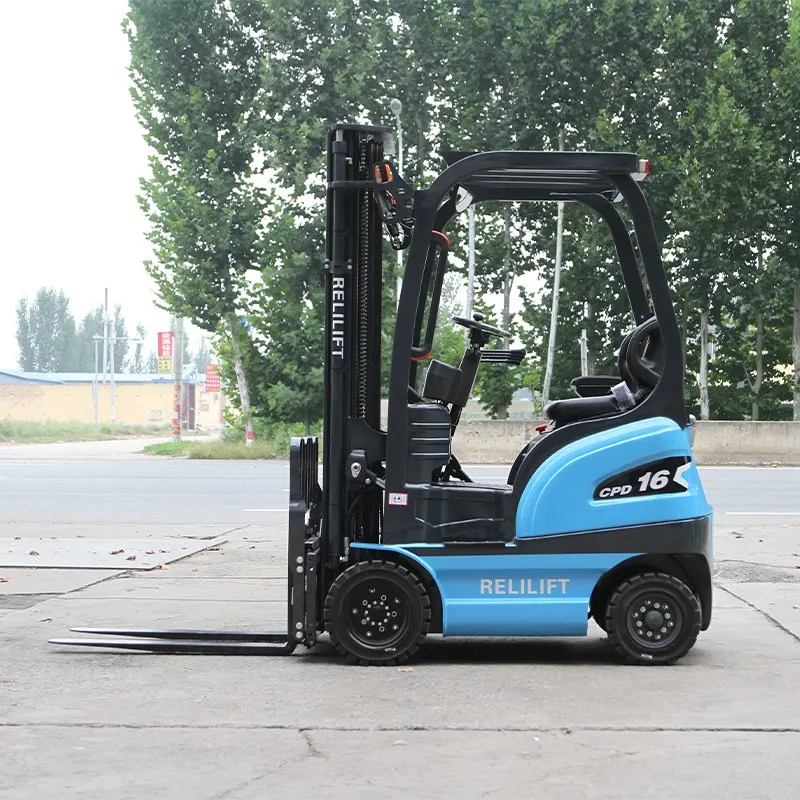

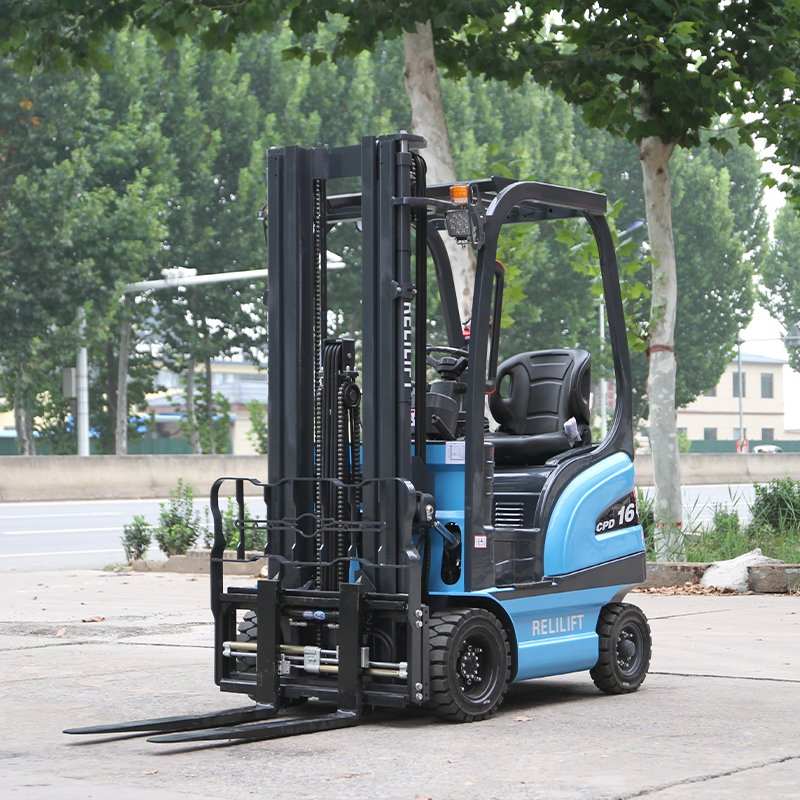

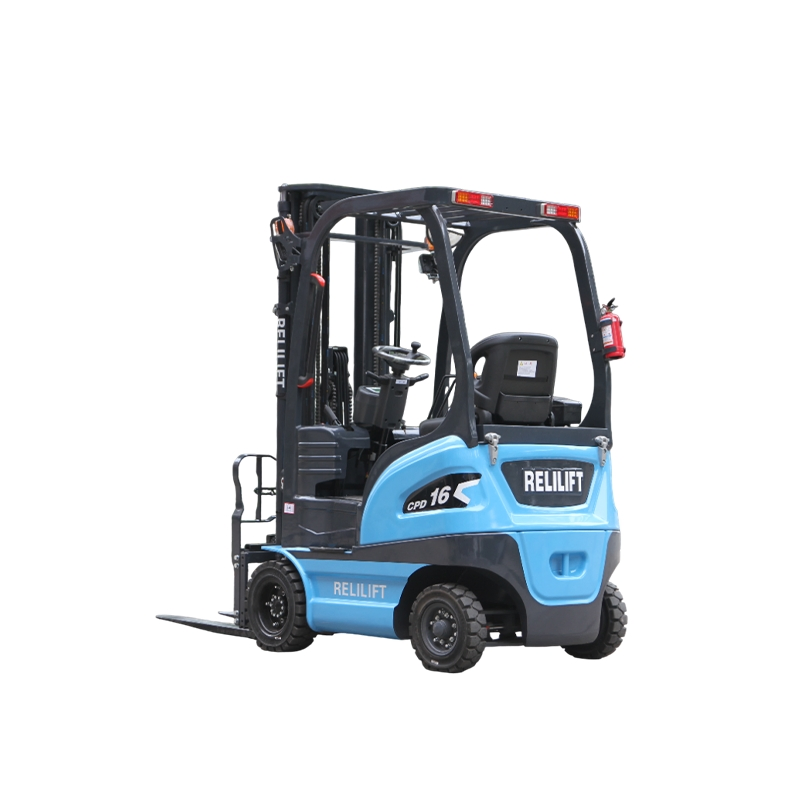

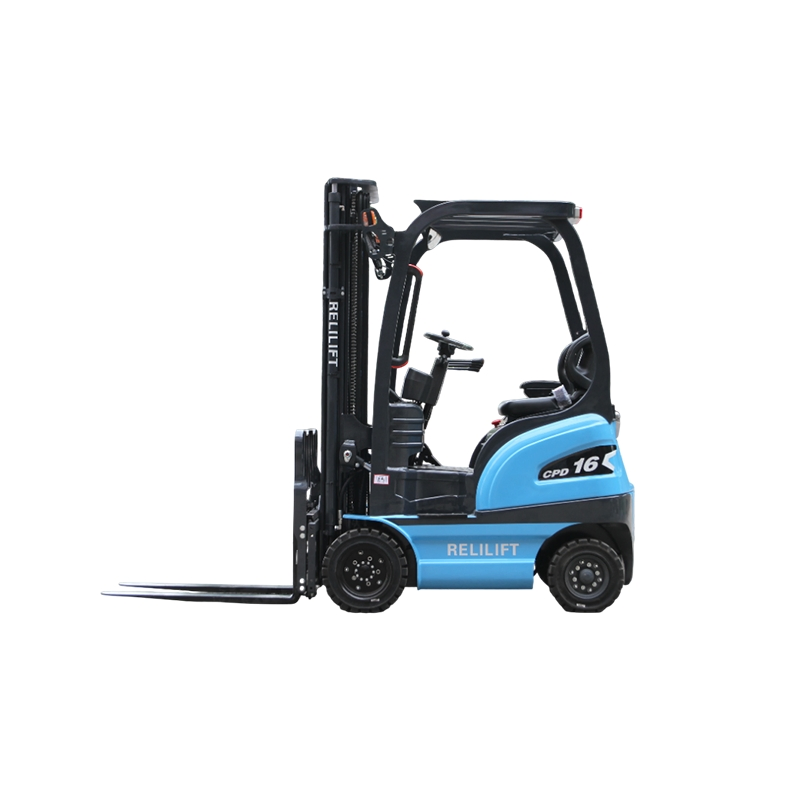

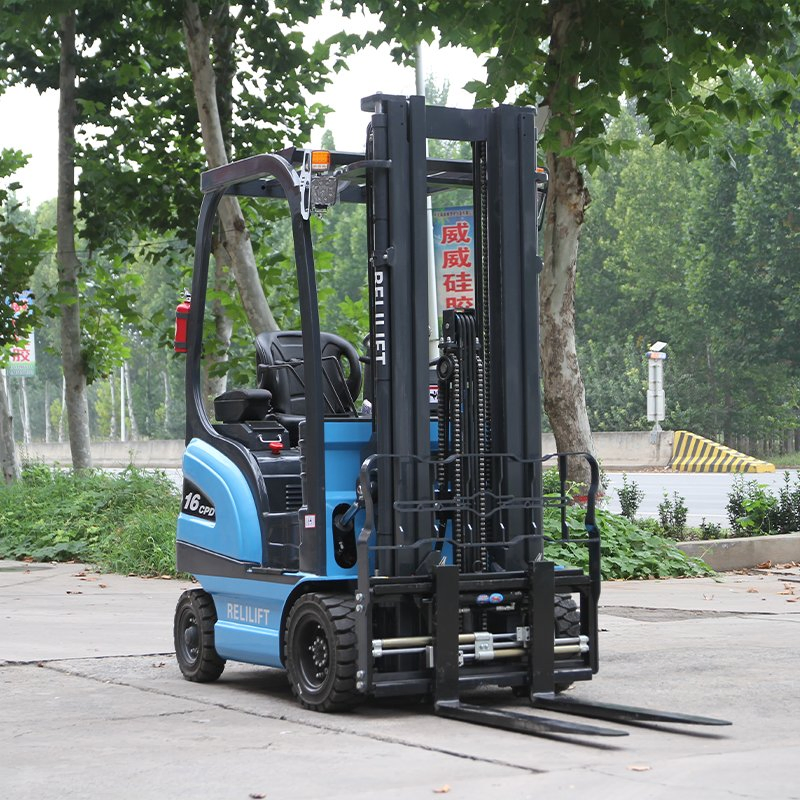

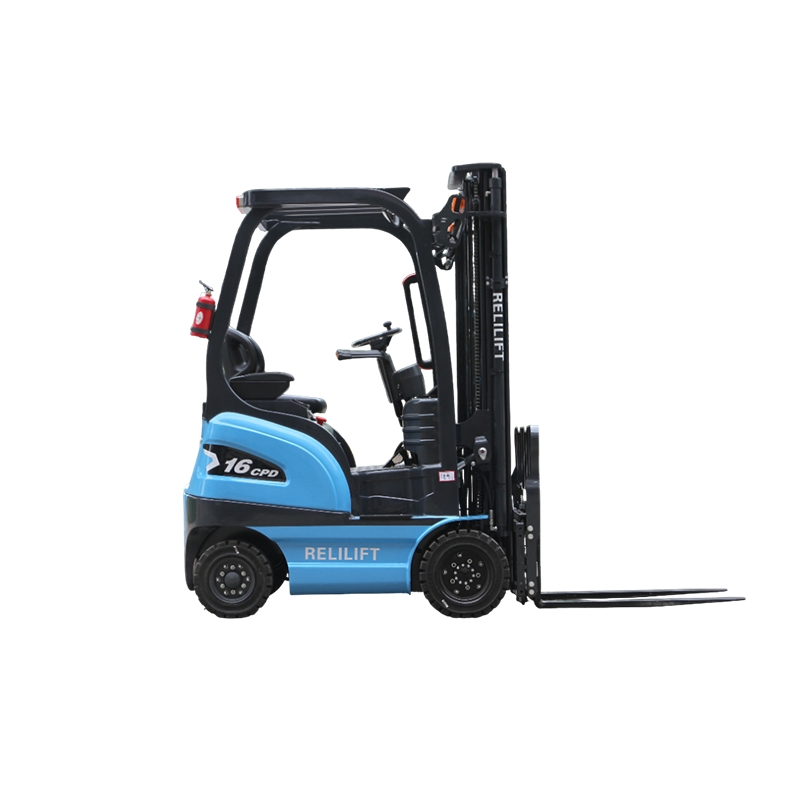

1.5T Electric Forklift
The 1.5T electric forklift is a compact, eco-friendly material handling solution designed for light to medium-duty loading, unloading, stacking, and horizontal transport tasks. It replaces traditional internal combustion (IC) forklifts with an all-electric powertrain, making it ideal for indoor operations such as warehouses and workshops where low emissions and noise are required.
| Item No. | Description | Unit | Parameters |
|---|---|---|---|
| 1.1 | Model | - | CPD16 Cast Iron |
| 1.2 | Power Type | - | Electric |
| 1.4 | Load Capacity | kg | 1600 |
| 1.5 | Load Center Distance | mm | 500 |
| 1.7 | Wheelbase | mm | 1470 |
| 2.1 | Self-weight (with battery) | kg | 2350 |
| 3.1 | Tire Type | - | Solid Tire |
| 4.3 | Maximum Lifting Height | mm | 3000 |
| 4.8 | Overall Length | mm | 3305 |
| 4.17 | Turning Radius | mm | 1985 |
| 5.1 | Travel Speed (Loaded) | km/h | 10 / 12 |
| 6.1 | Drive Motor Power | kW | 5 |
| 6.4 | Drive Control Type | - | AC |
