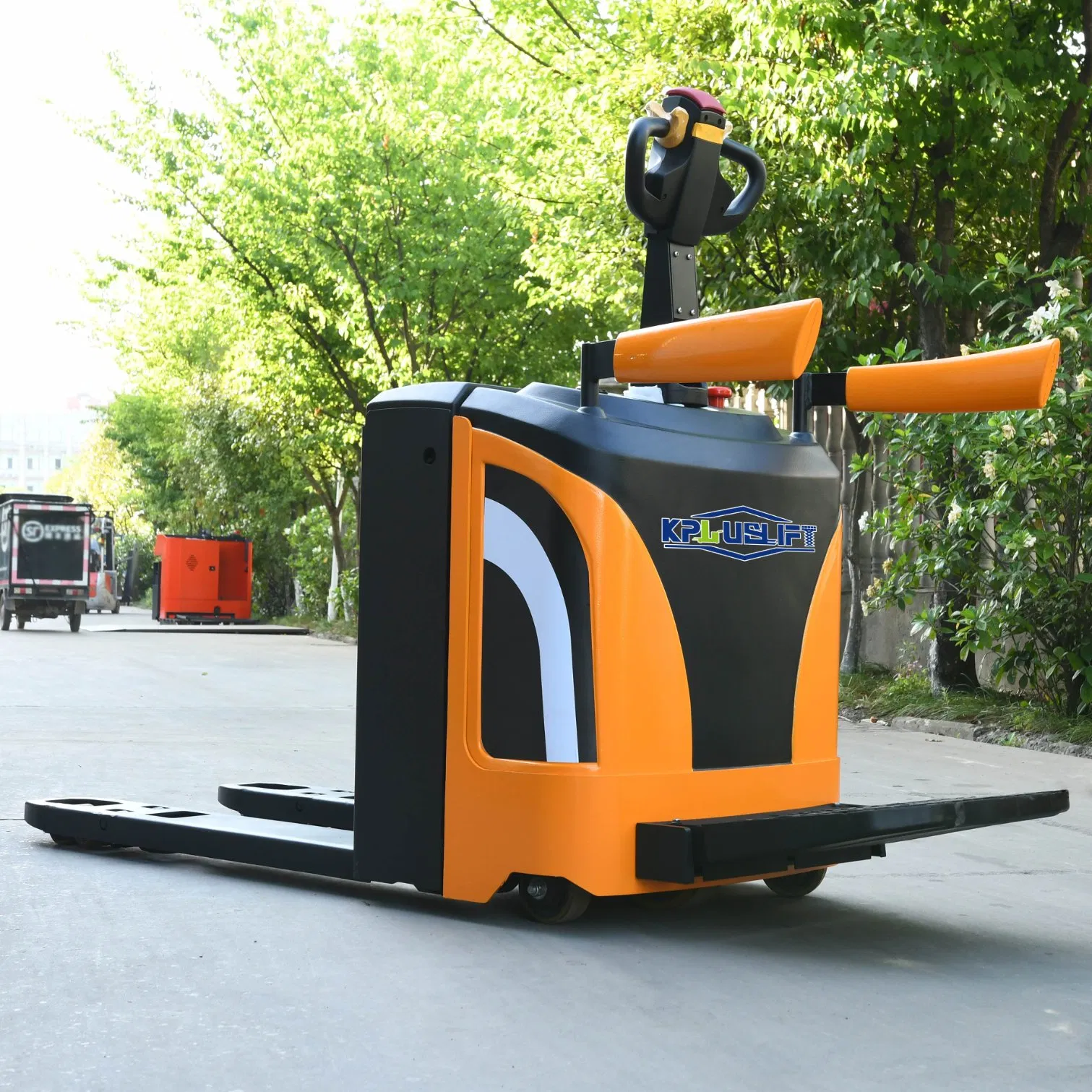

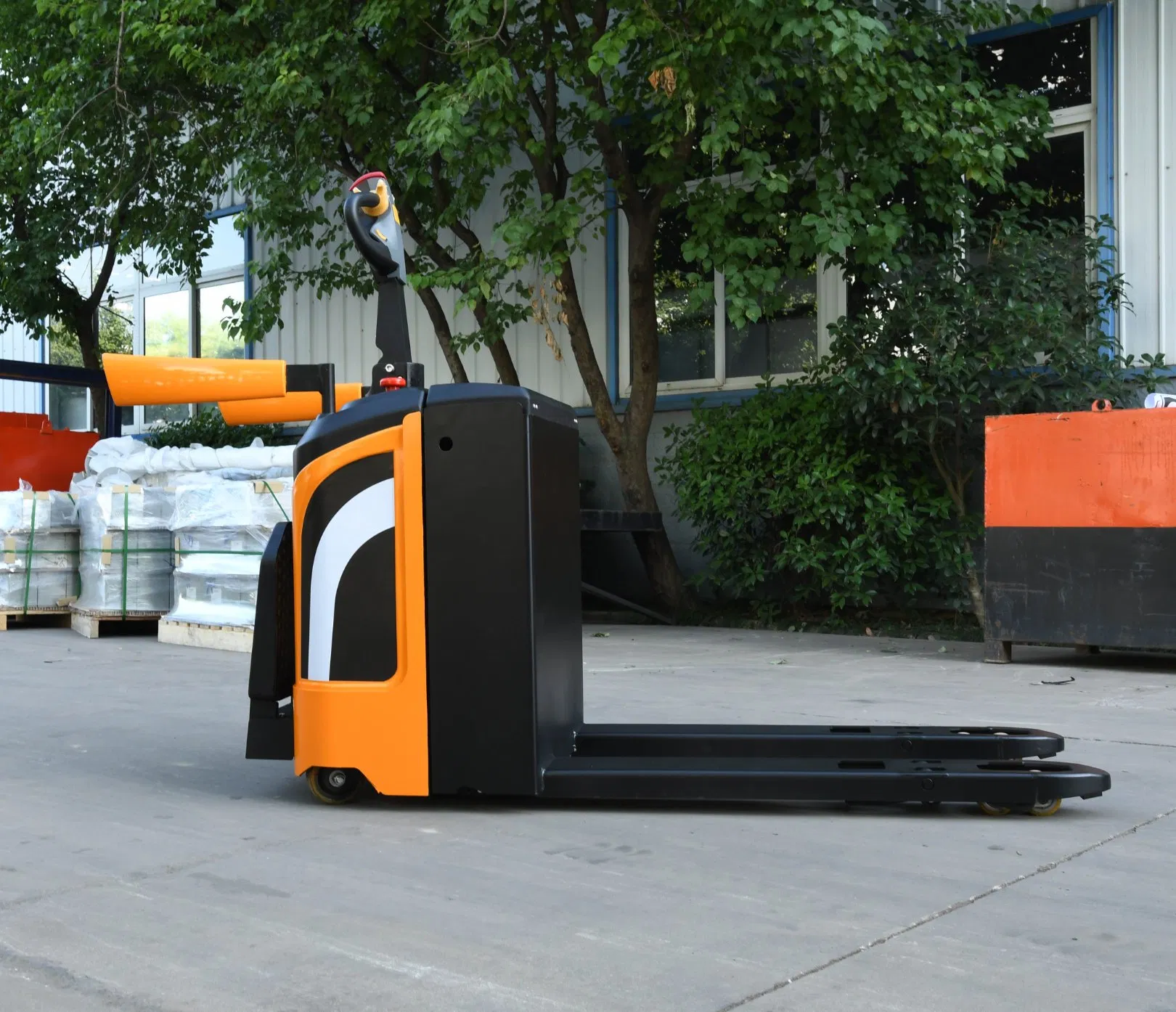

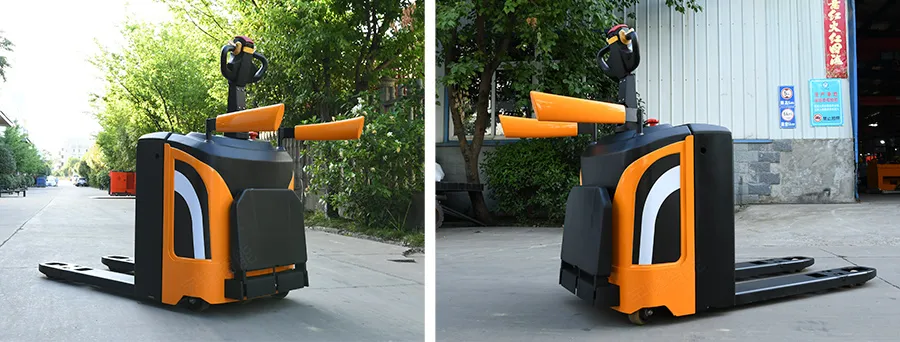

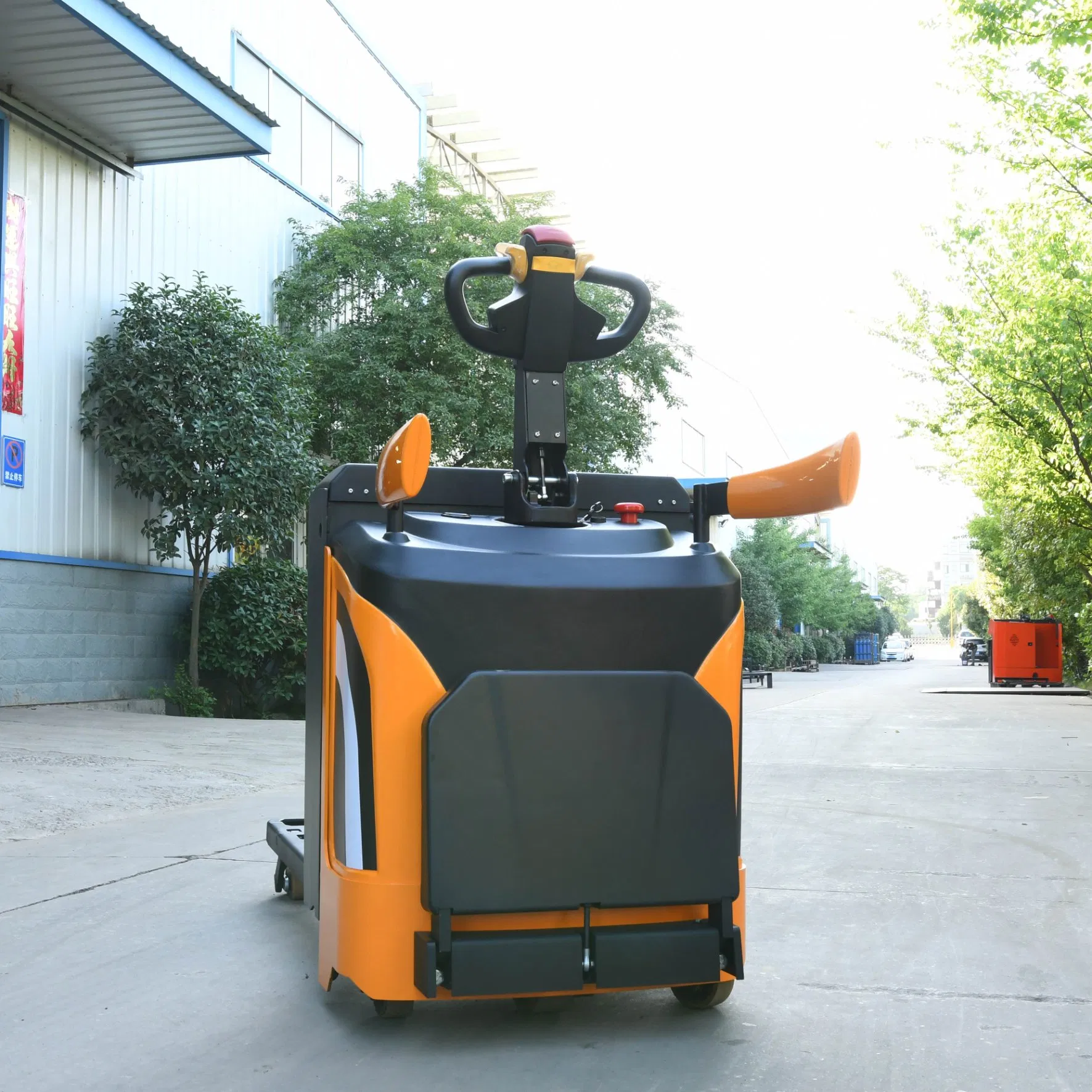

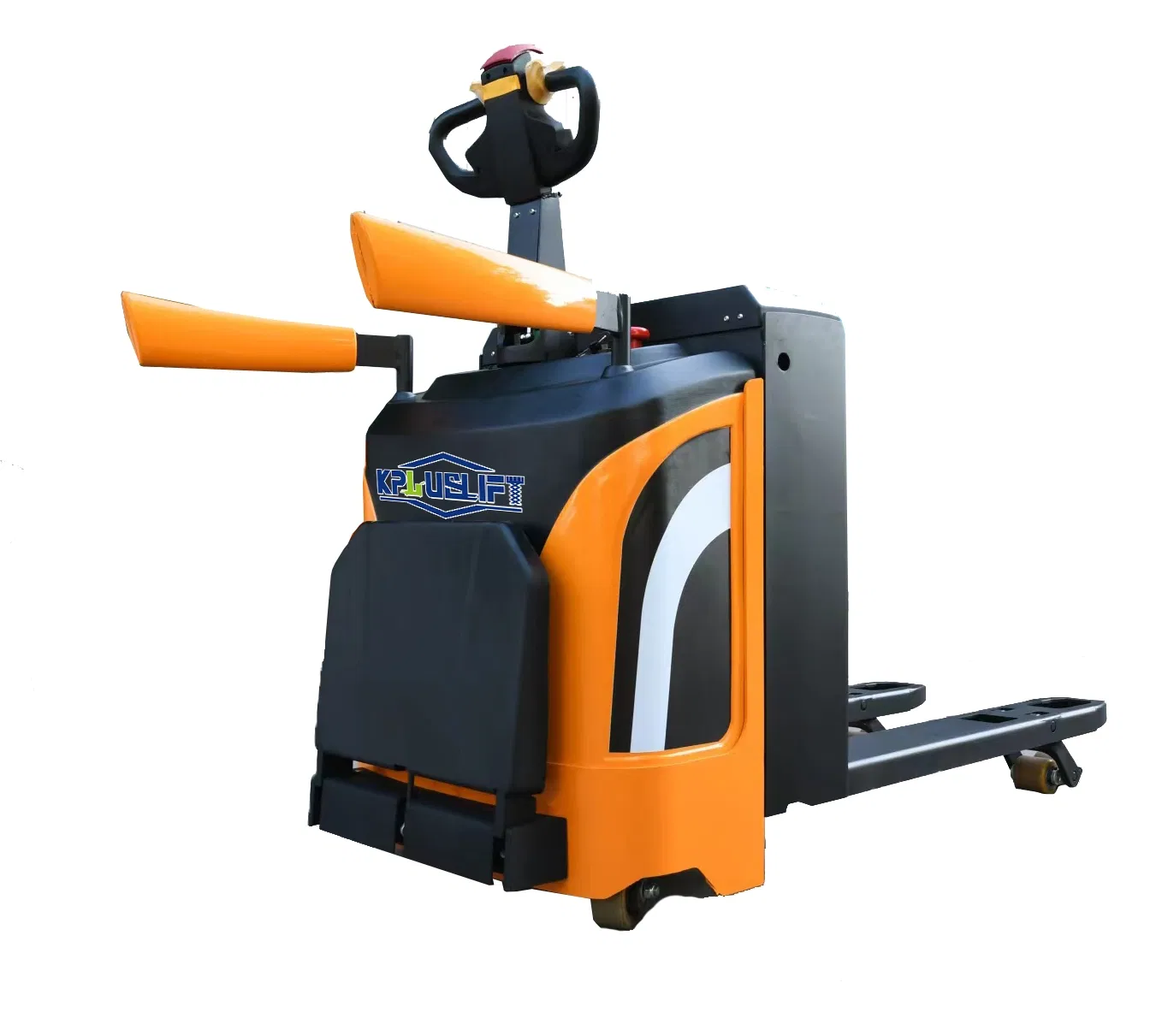

An electric pallet truck, also known as a powered pallet truck, is a motorized tool used for lifting and moving pallets. It is mostly found in warehouses for moving goods within the confines of the warehouse. Depending on the design, some powered pallet trucks have a platform that lets users stand while moving pallets.
This equipment series represents a pioneering solution in electric power, specializing in efficient material handling. Learn more about the capabilities of the powered electric pallet jacks in our specification table below.
| Specifications | Unit | Model KE20 | Model KE25 | Model KE30 | Model KE40 | Model KE50 |
|---|---|---|---|---|---|---|
| Power | - | Electric | Electric | Electric | Electric | Electric |
| Operation mode | - | Rider type | Rider type | Rider type | Rider type | Rider type |
| Steering mode | - | EPS | EPS | EPS | EPS | EPS |
| Rated load capacity | Q(kg) | 2000 | 2500 | 3000 | 4000 | 5000 |
| Load center | C(mm) | 600 | 600 | 600 | 600 | 600 |
| Self-weight with battery | kg | 710 | 730 | 750 | 800 | 1020 |
| Max. Lifting height | H(mm) | 205 | 205 | 205 | 225 | 225 |
| Vehicle body width | S(mm) | 760 | 760 | 760 | 850 | 850 |
| Driving motor power | kw | 1.5 | 1.5 | 1.5 | 2.5 | 3 |
| Battery voltage/capacitance | V/Ah | 24V/210Ah | 24V/210Ah | 24V/210Ah | 24V/280Ah | 24V/300Ah |
