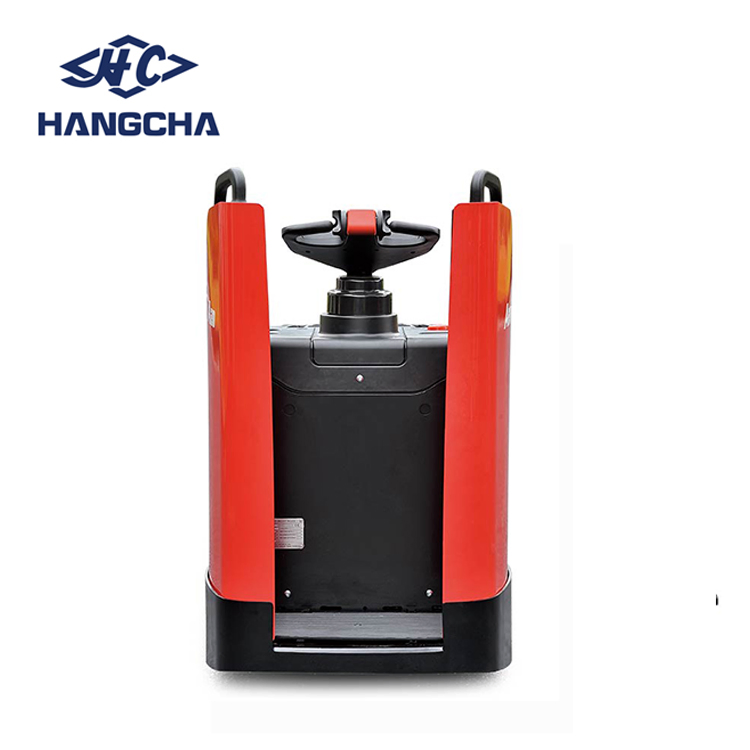

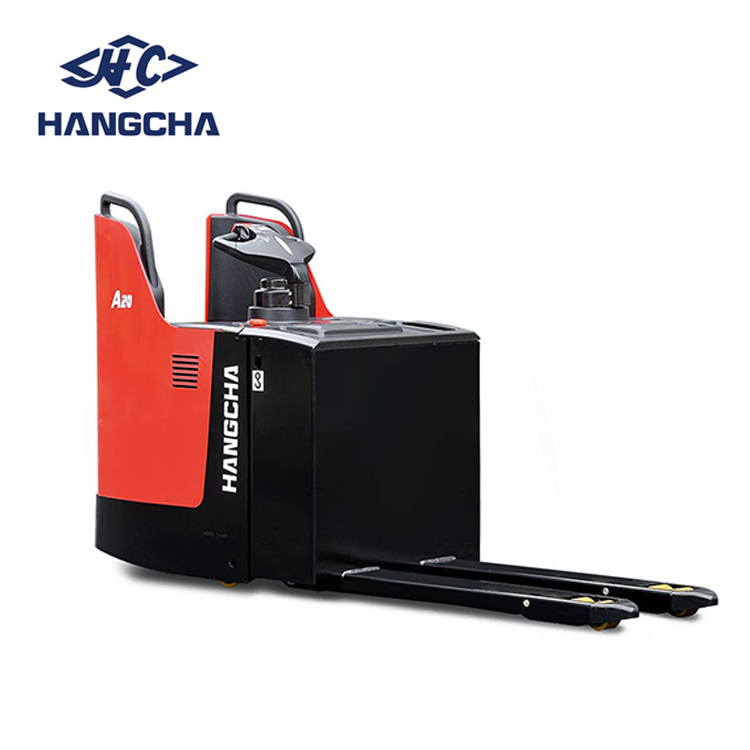

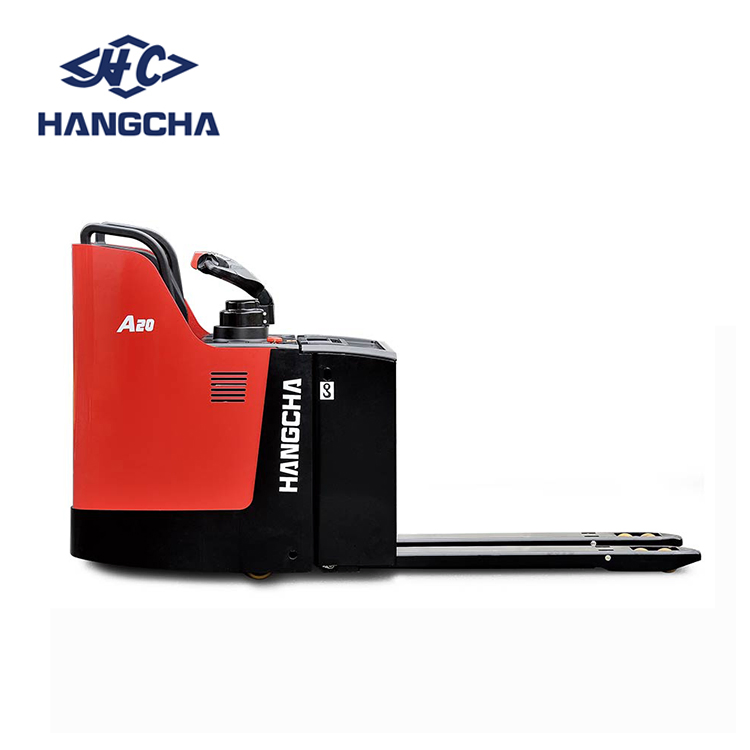

Hangcha a Series Rider Pallet Truck Capacity 2ton-3ton

1 / 4

Hangcha a Series Rider Pallet Truck Capacity 2ton-3ton

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

CBD20-ABC1-SU, CBD25-ABC1-SU, CBD30-ABC1-SU

Type

Pallet Jack

Power

DC Motor

Load Capacity

2000kgs-3000kgs

Fuel

Electric

Load center

600mm

Lift height

200mm

Operator

Stand Type

Specification

2370*800*1200

Production Cap.

10000 Units

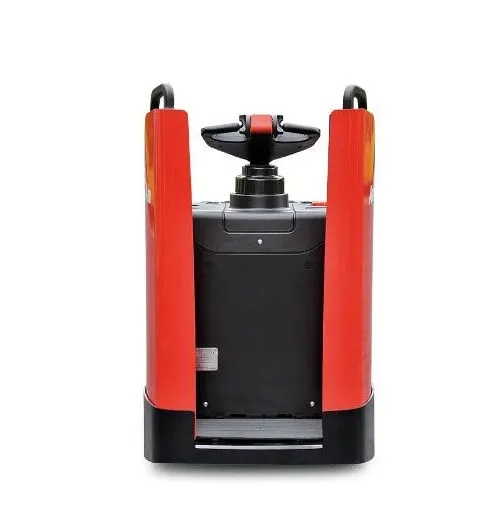

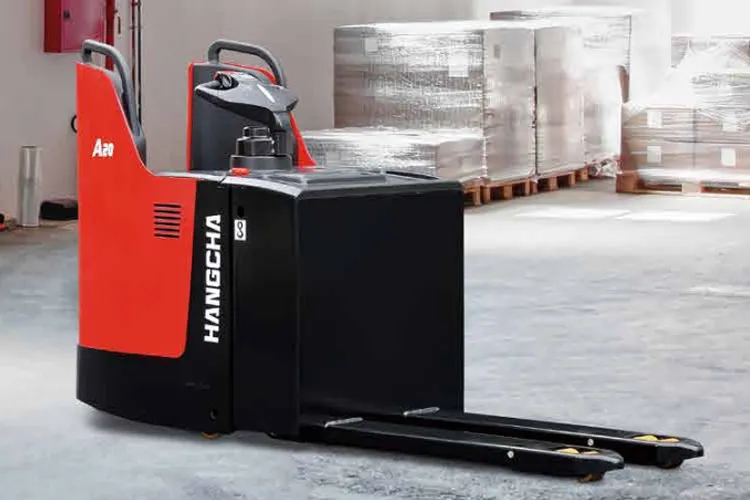

A Series Rider Electric Pallet Truck

The rider pallet truck is a premium model in the A series lineup. Utilizing the latest AC drive technology, it delivers advanced performance, superior comfort, and exceptional safety. Reliable and low in maintenance cost, it is the ideal tool for heavy-duty and long-distance transport operations.

Key Features:

Professional Design: Ergonomic streamlines and compact build following the latest industrial trends.
Robust Construction: Steel stamping and injection molding for front and back guards.
Advanced Steering: Standard Electric Power Steering (EPS) for flexible operation.

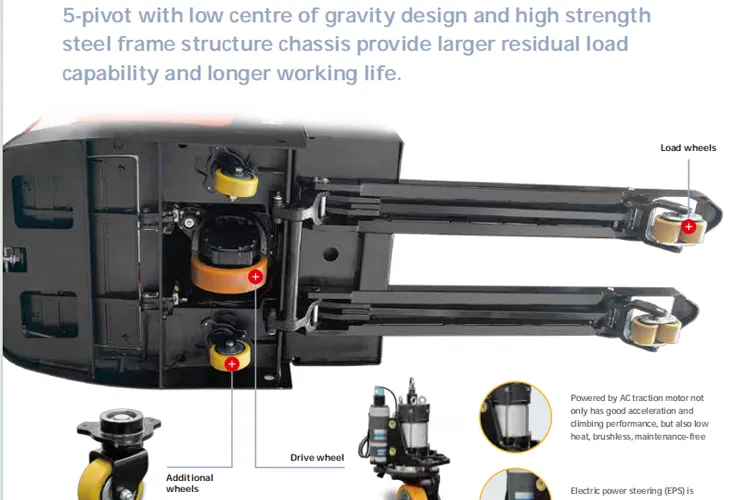

AC Traction Motor: Powerful acceleration, excellent climbing, brushless, and maintenance-free.
CAN-BUS System: Fast and reliable data transition for quick inspection and status monitoring.

Standard Configuration

AC Drive Motor & Controller
Electric Power Steering (EPS)
Emergency Switch
1150mm Fork Length
Side Battery Change System
Multi-function Battery Indicator
Automatic speed reduction when cornering
Imported Hydraulic Unit

Technical Specification Data

Description	ID	CBD20-ABC1S-SU	CBD20-AC1S-SU	CBD30-ABC1S-SU	CBD30-AC1S-SU
Drive Type	1.3	Electric	Electric	Electric	Electric
Operator Type	1.4	Standing	Standing	Standing	Standing
Rated Capacity (kg)	1.5	2000	2000	3000	3000
Service Weight (kg)	2.1	825	880	880	920
Travel Speed (km/h)	5.1	6.5 / 7.0	9.0 / 9.5	5.5 / 7.0	7.5 / 9.5
Battery Voltage/Capacity	6.4	24V / 240Ah	24V / 280Ah	24V / 280Ah	24V / 340Ah

Li-Ion Battery Options

Model Designation	Battery Type	Voltage/Ah	Optional Capacity
CBD20-AC1S-I/SU	Li-Ion	24V / 150Ah	24V / 200Ah
CBD30-AC1S-I/SU	Li-Ion	24V / 150Ah	24V / 200Ah

Frequently Asked Questions

What is the maximum load capacity of this electric pallet truck?

The A Series rider electric pallet truck models support a rated load capacity ranging from 2000kg to 3000kg (2ton-3ton), depending on the specific model selected.

Does this truck feature power steering?

Yes, Electric Power Steering (EPS) is a standard specification for this series, providing flexible and highly precise operation for the user.

What are the advantages of the AC drive motor?

The AC traction motor provides excellent acceleration and climbing performance. It is brushless, maintenance-free, and produces low heat, ensuring a longer service life and reduced operating costs.

Can the battery be changed from the side?

Yes, the truck is designed with a side battery change system as standard, which simplifies the process and is ideal for multi-shift operations.

Are there different battery options available?

Yes, customers can choose between standard lead-acid batteries with various capacities or high-performance Li-Ion battery systems for faster charging and higher efficiency.

What safety features are included for cornering?

For enhanced stability and safety, the truck includes an automatic speed reduction function that activates when cornering to prevent tipping or load shifts.
