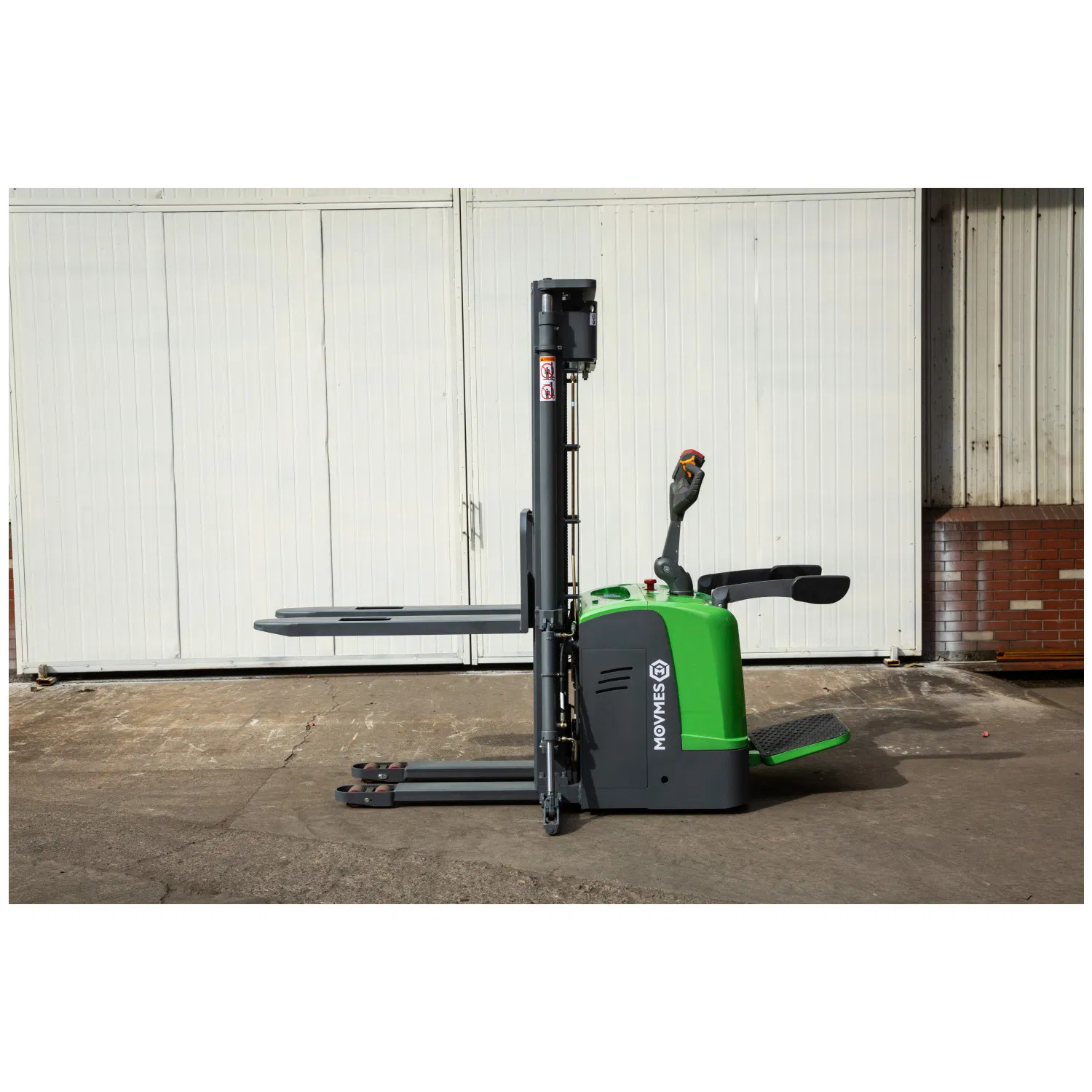

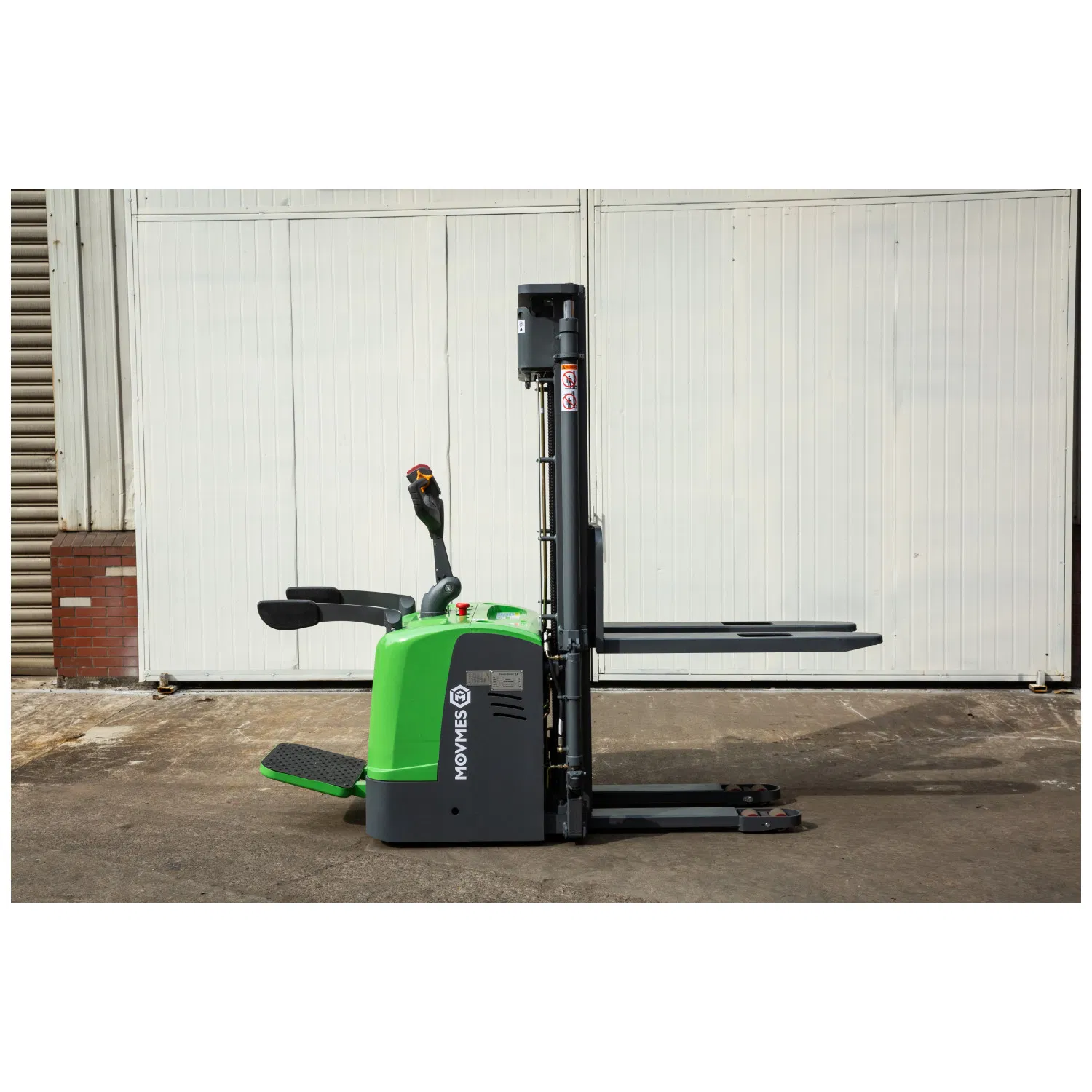

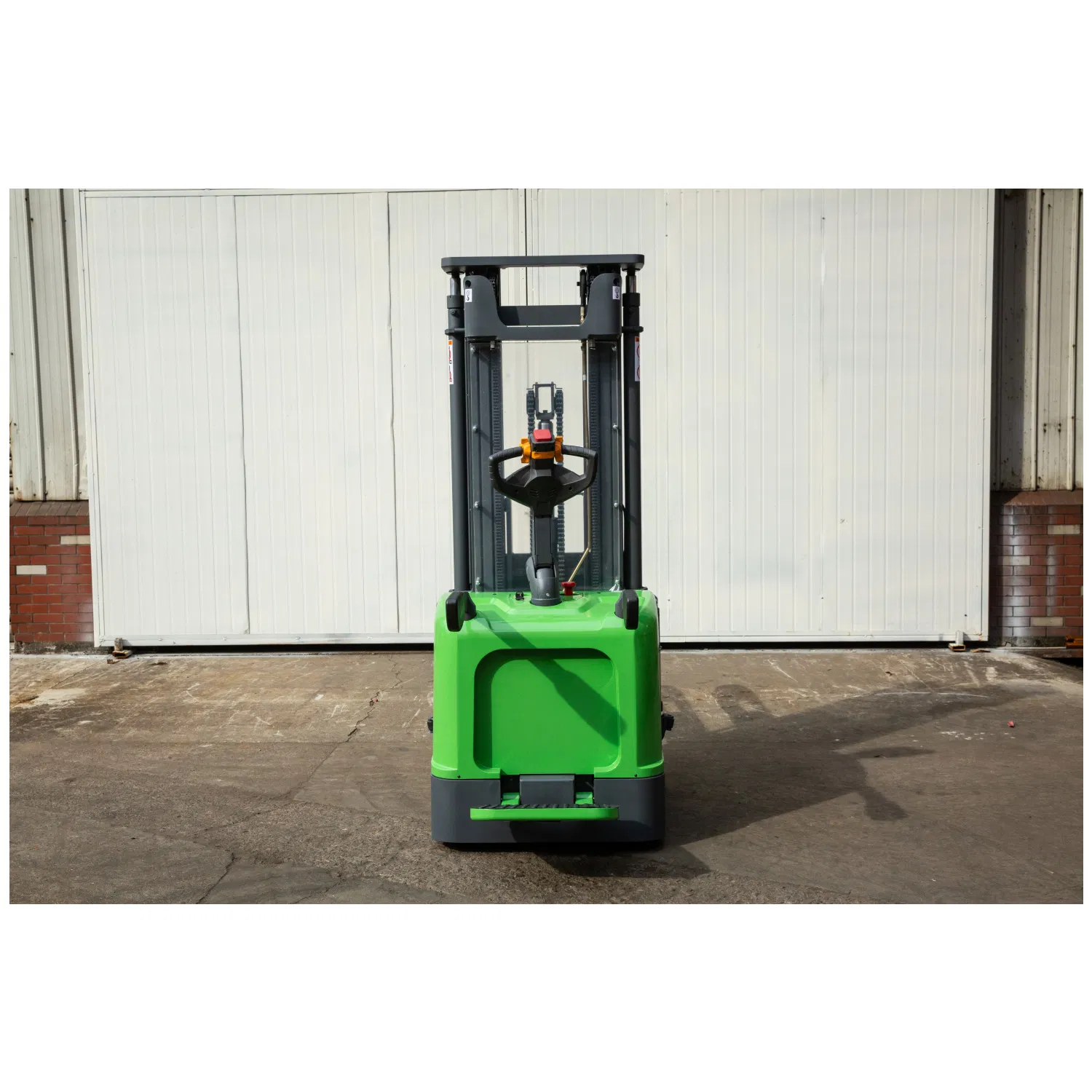

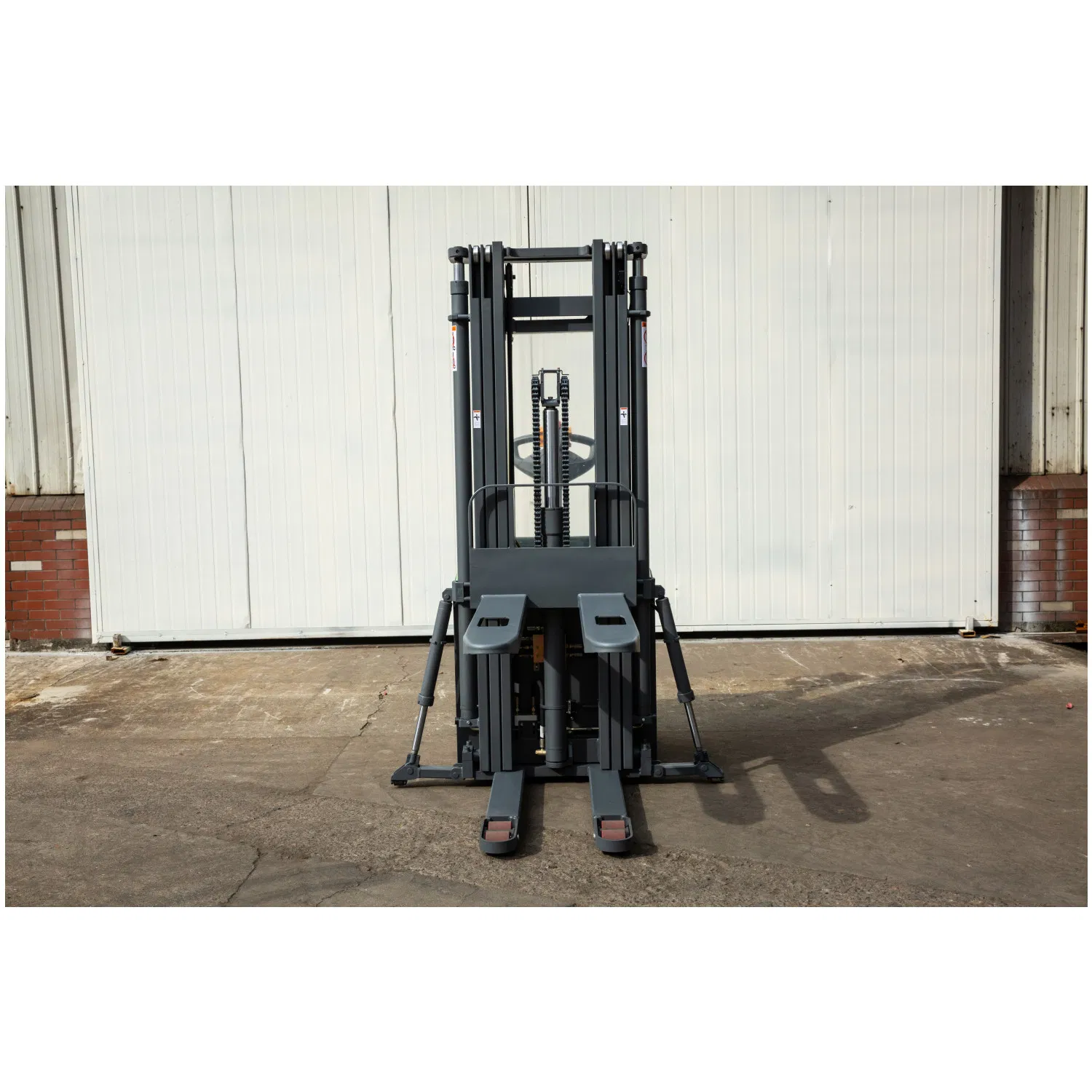

2.0 Ton 2000kg Warehouse Using Rider Type Heavy Duty Electric Pallet Stacker Forklift Truck with Support Leg

1 / 5

2.0 Ton 2000kg Warehouse Using Rider Type Heavy Duty Electric Pallet Stacker Forklift Truck with Support Leg

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

CDDK20

Type

Stacker

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift height

3000~5000mm

Wheel

Battery Voltage

24V300ah

✓

Product Description

2.0 Ton Warehouse Rider Type Heavy Duty Electric Pallet Stacker

Main Configuration
System Power	24V AC POWER
Controller	CURTIS CONTROLLER
Battery Type	24V300AH LEAD-ACID BATTERY
Steering System	EPS (Electronic Power Steering)
Safety Features	Supporting legs for over 4.5m lift height

⚙

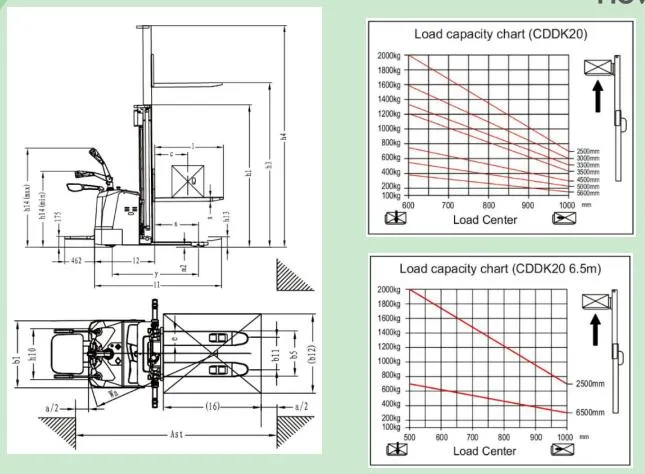

Technical Parameters

Parameter Item	Unit	CDDK20 Standard	CDDK20 (6.5m)
Load capacity	kg	2000	2000
Load center	mm	600	500
Max. lift height	mm	2500-5600	6500
Overall width	mm	850	950
Travel speed (laden/unladen)	km/h	7 / 7.1	7 / 7.1
Turning radius	mm	1655	1735
Service weight	kg	1280 - 2020	1850

★

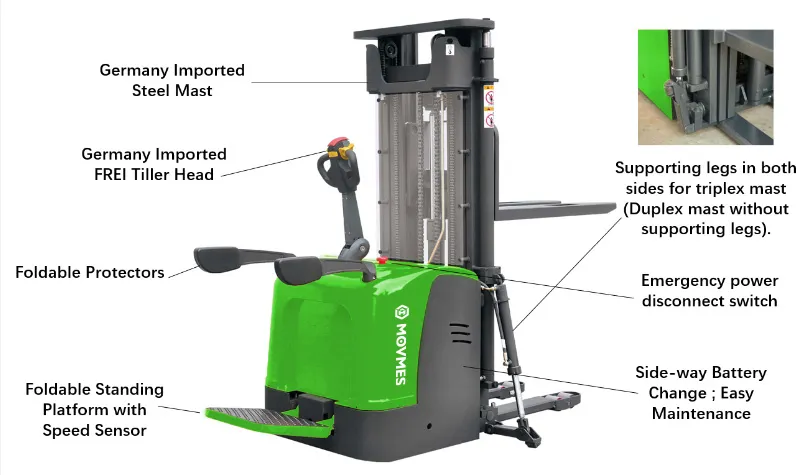

Safety and Productivity Advantages

● AC motor eliminates carbon brush replacement.

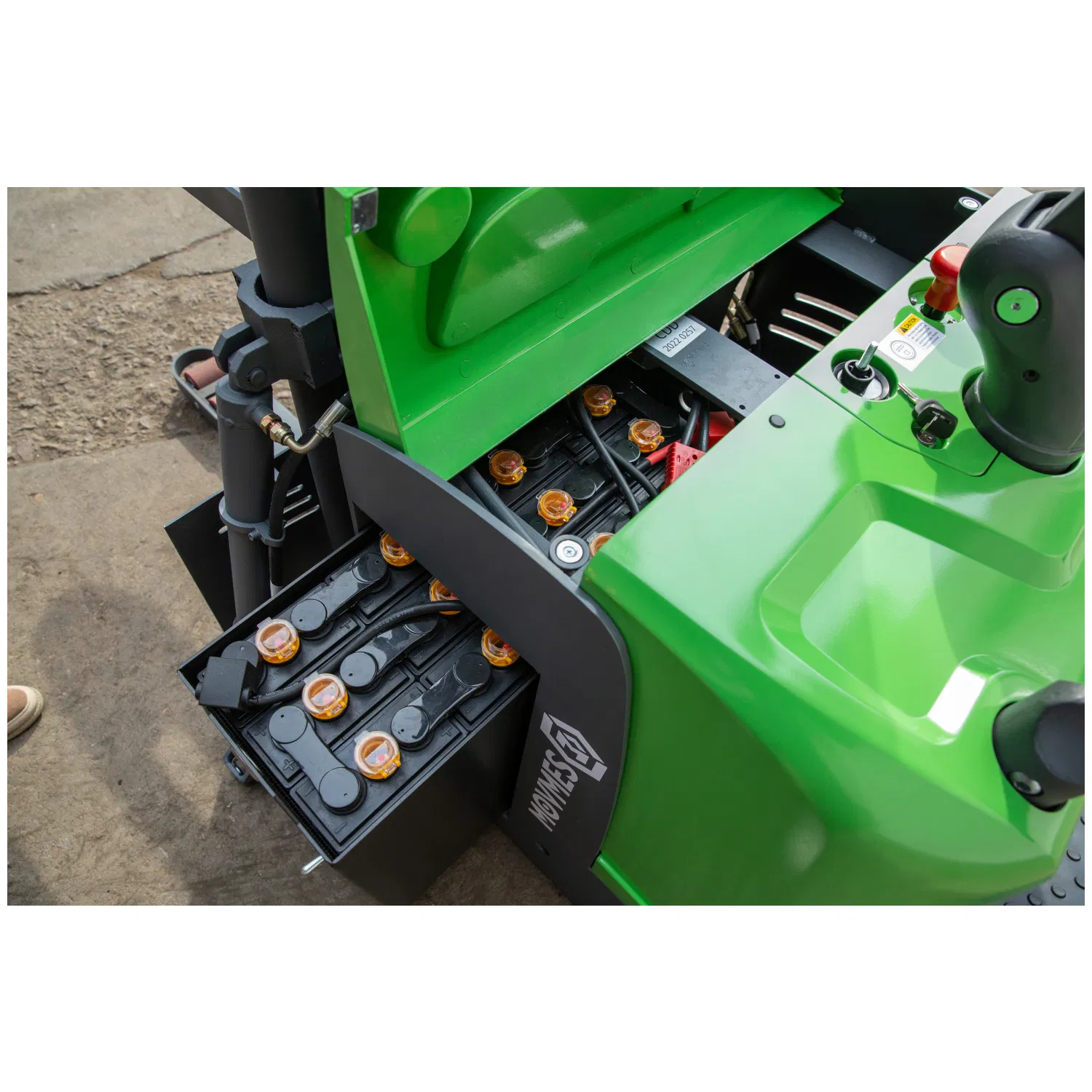

● Side-way battery for easy maintenance.
● Emergency reversing device for operator safety.
● Auto deceleration function during turns.
● Turtle-shaped low speed switch for precision.
● CANbus technology for reduced wiring complexity.
● Vertical driving wheel for small turning radius.
● Full free lifting design for low-roof operations.

✚

Related Production

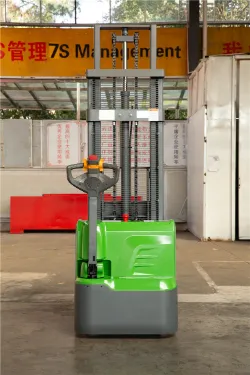

CDD10/12RE-19 (1.0/1.2 ton)

CDDR15-III FULL-ELECTRIC (1.5 ton)

CDDR15 (1.5 ton GEL Battery)

🏭

Factory Strength & Certification

36+Years Experience

150k m²Factory Area

1200+Employees

157+Export Regions

Our equipment has approved CE standards of ISO3691-1, EN1175-1, and EN16307-1, along with ISO9001 and ISO14001 management systems.

Frequently Asked Questions

What is the continuous working time for the electric truck?

The continuous working time is approximately 3-6 hours, depending on the battery volume. Charging typically takes 3-6 hours to reach full capacity.

What are the battery and charger specifications for CDDK20?

It uses a 24V300Ah Lead-acid battery. We can provide power plugs matching USA, UK, Australian, or European standards.

Is the CDDK20 suitable for heavy-duty warehouse applications?

Yes, it is designed for heavy-duty warehouse use with a 2000kg load capacity and rider-type operation for increased efficiency.

What safety mechanisms are built into the equipment?

Safety features include an emergency reversing device in the handle, auto deceleration, emergency power disconnect, and built-in pressure relief valves to prevent overloads.

What is the turning radius of this stacker?

The standard turning radius for the CDDK20 model is 1655mm, making it highly maneuverable in tight warehouse aisles.

Does the product come with a warranty?

We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are replaced free of charge.
