| Model Specification | CCD-3C | CCD-4C | CCD-5A | CCD-6A | CCD-7A | ||
|---|---|---|---|---|---|---|---|
| Carrying capacity (load centre 0.6m) | 3000kg | 4000kg | 5000kg | 6000kg | 7000kg | ||
| Max.lift height | 3.5m | 3.5m | 3.55m | 3.55m | 3.0m | ||
| Max.lift speed | 0.25m/s | 0.25m/s | 0.23m/s | 0.23m/s | 0.23m/s | ||
| Max.traveling speed | 13/15km/h | 13/15km/h | 14km/h | 14kw/h | 14km/h | ||
| Min.turning radius | 4.3m | 4.3m | 4.45m | 4.45m | 4.45m | ||
| Overall Length | 4.45m | 4.45m | 4.65m | 4.65m | 4.65m | ||
| Truck width | 1.6m | 1.6m | 1.715m | 1.715m | 1.715m | ||
| Weight (unladen) | 5300kg | 5800kg | 8800kg | 8800kg | 9000kg | ||

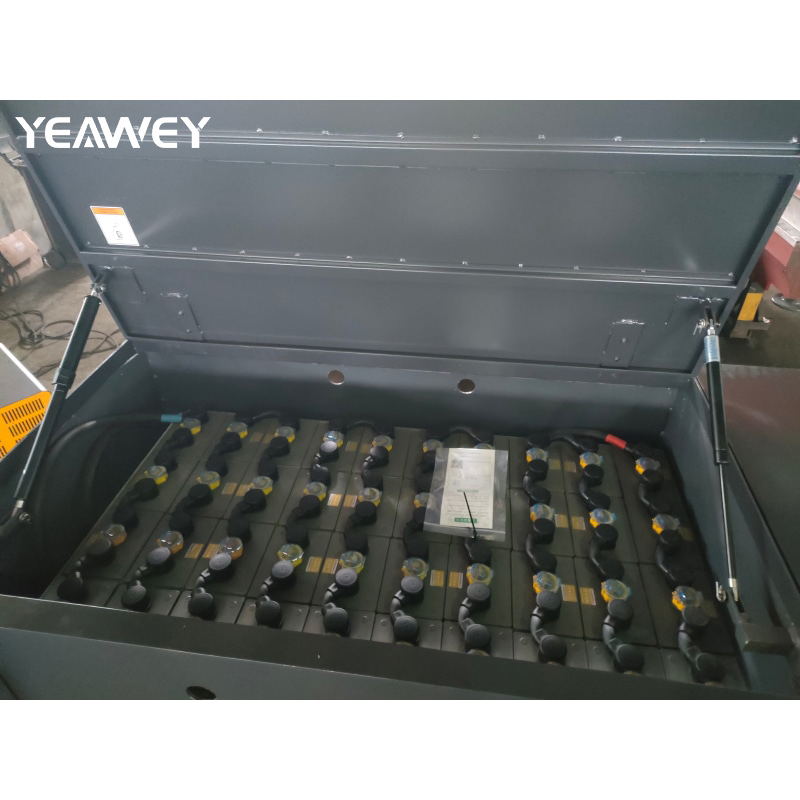

| Volts AH battery | 80V/540Ah | 80V/600Ah | 80V/800Ah | 80V/800Ah | 80V/800Ah | ||

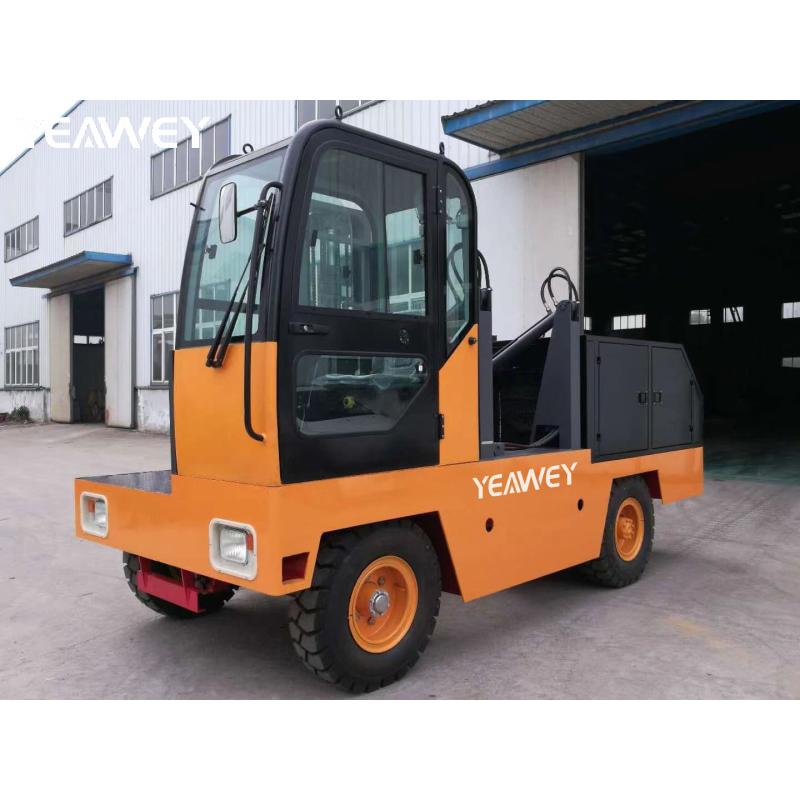

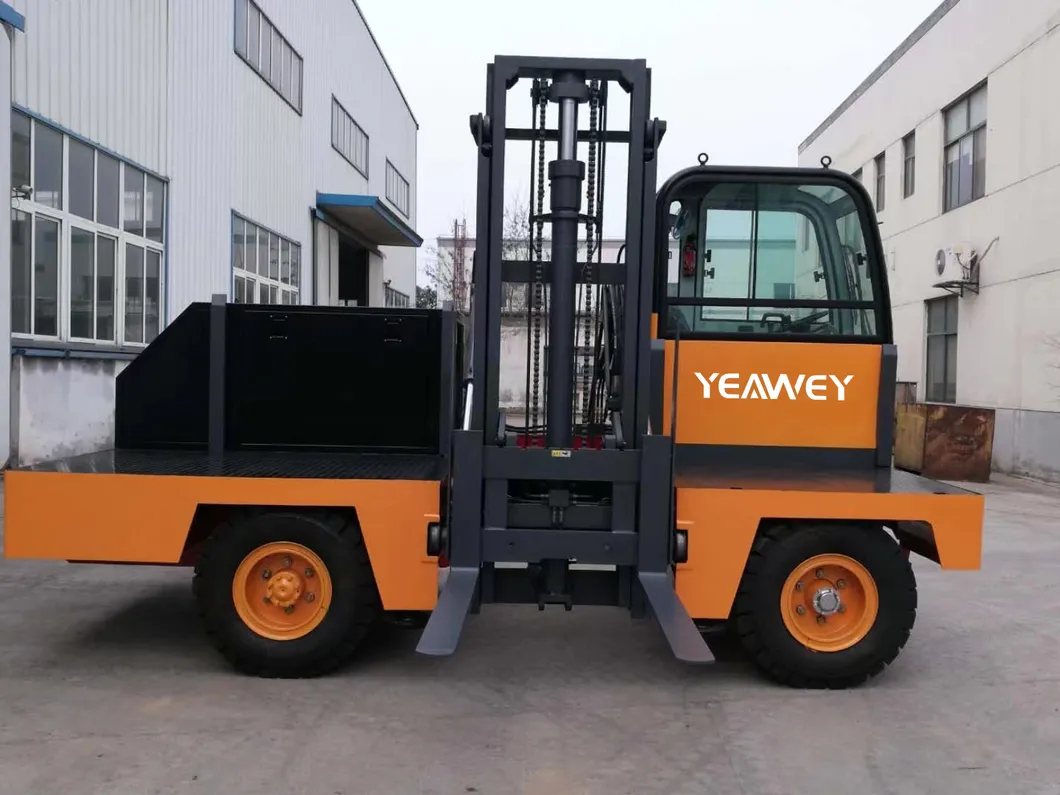

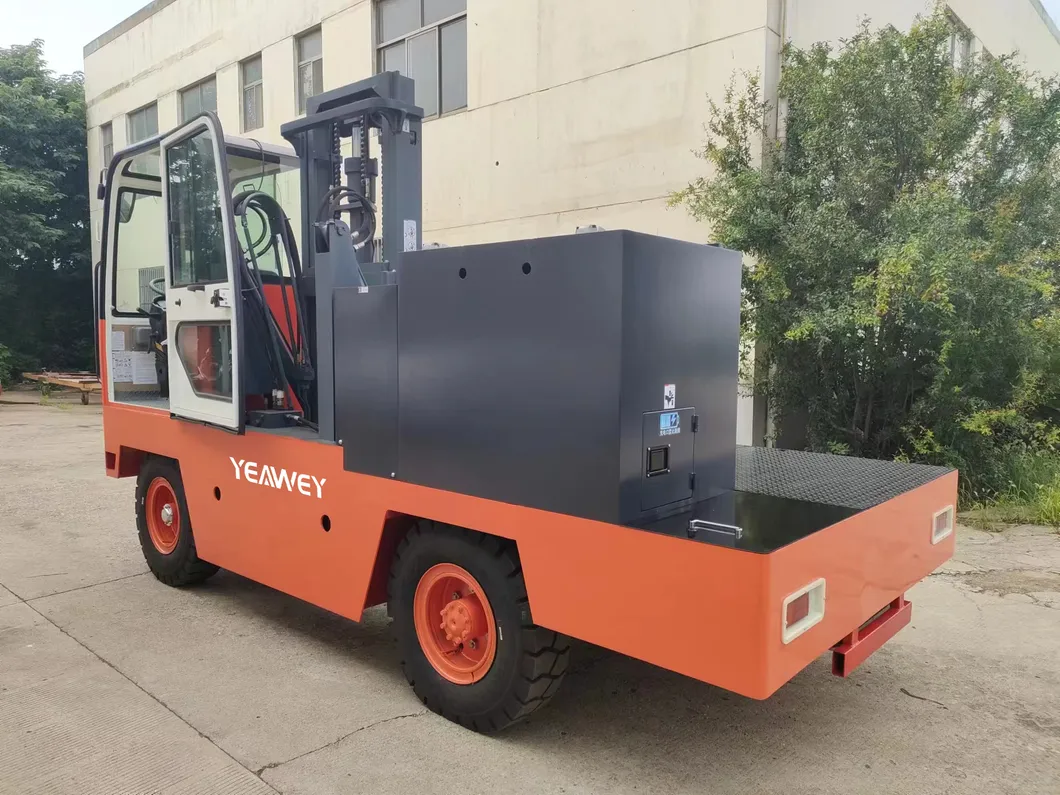

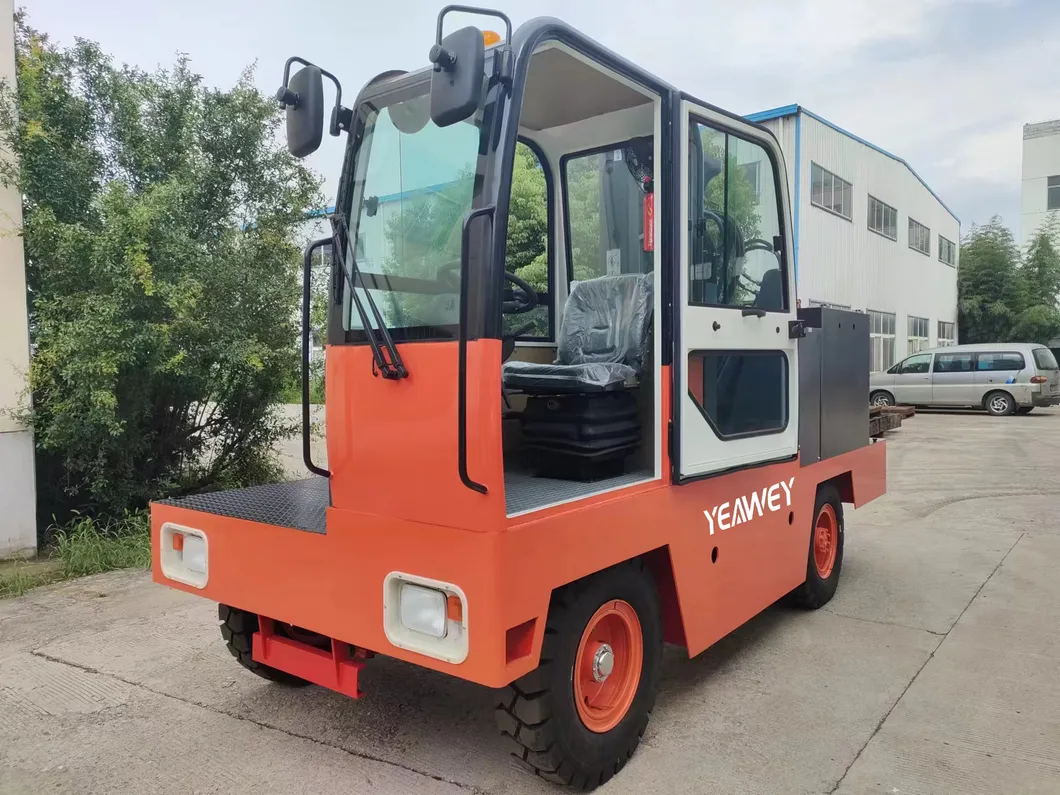

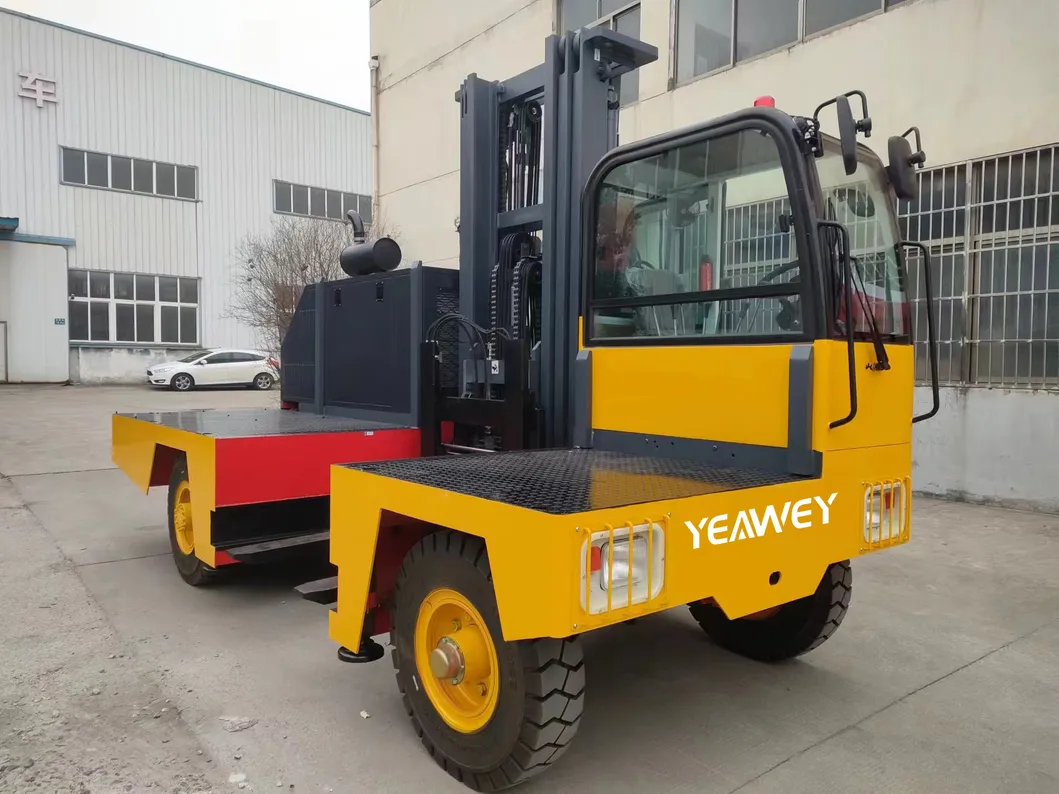

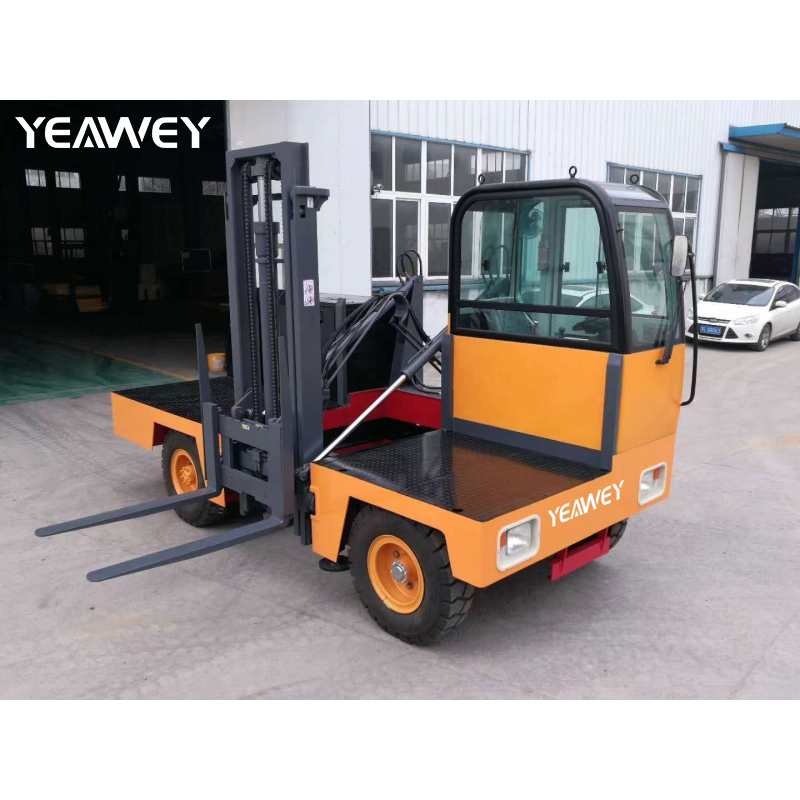

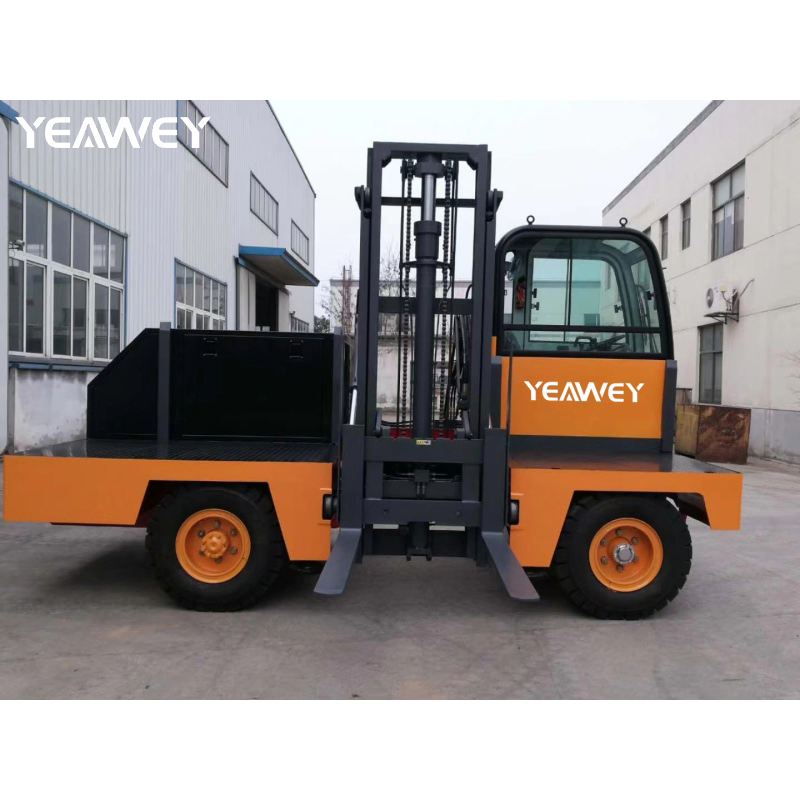

The Side Loader Forklift is a specialized material handling solution where the forks are mounted on the side of the body. Besides standard lifting and tilting, the forks can traverse to the right side of the truck frame and retract, allowing long cargoes to be loaded onto the truck deck safely.
By piling long cargoes lengthwise along the platform, the required passageway width is remarkably reduced. This makes the side forklift particularly suitable for handling timber, section steels, line poles, cement tubes, and other bulky, over-length cargoes in confined spaces.

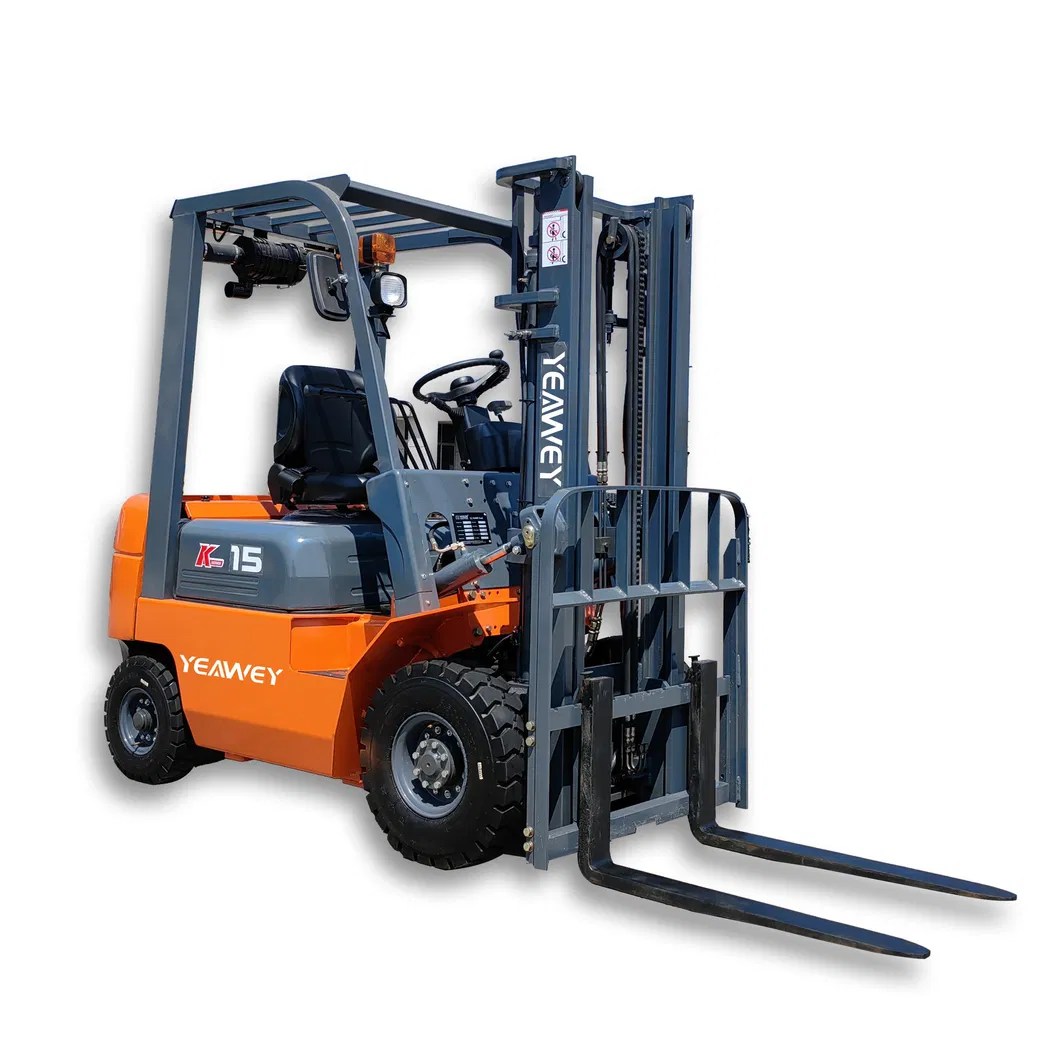

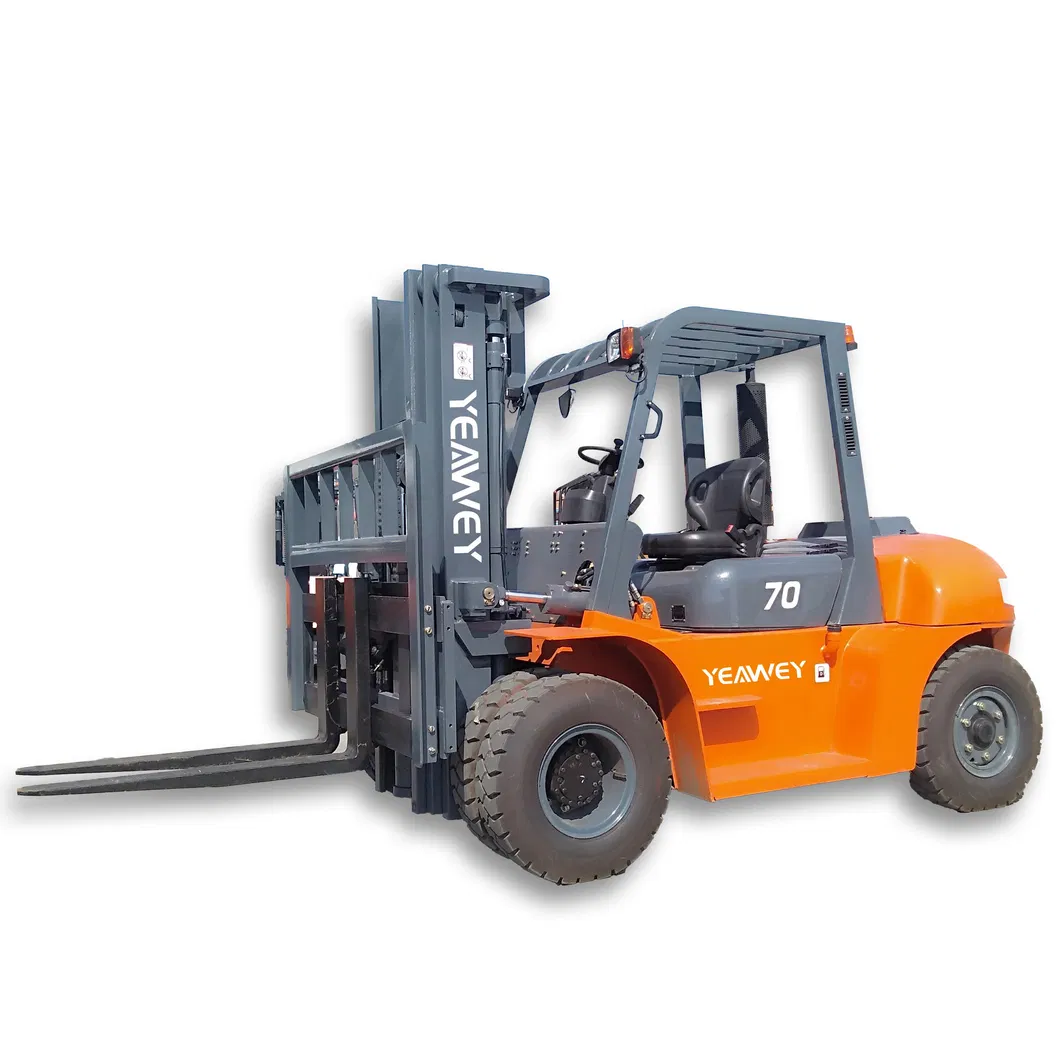

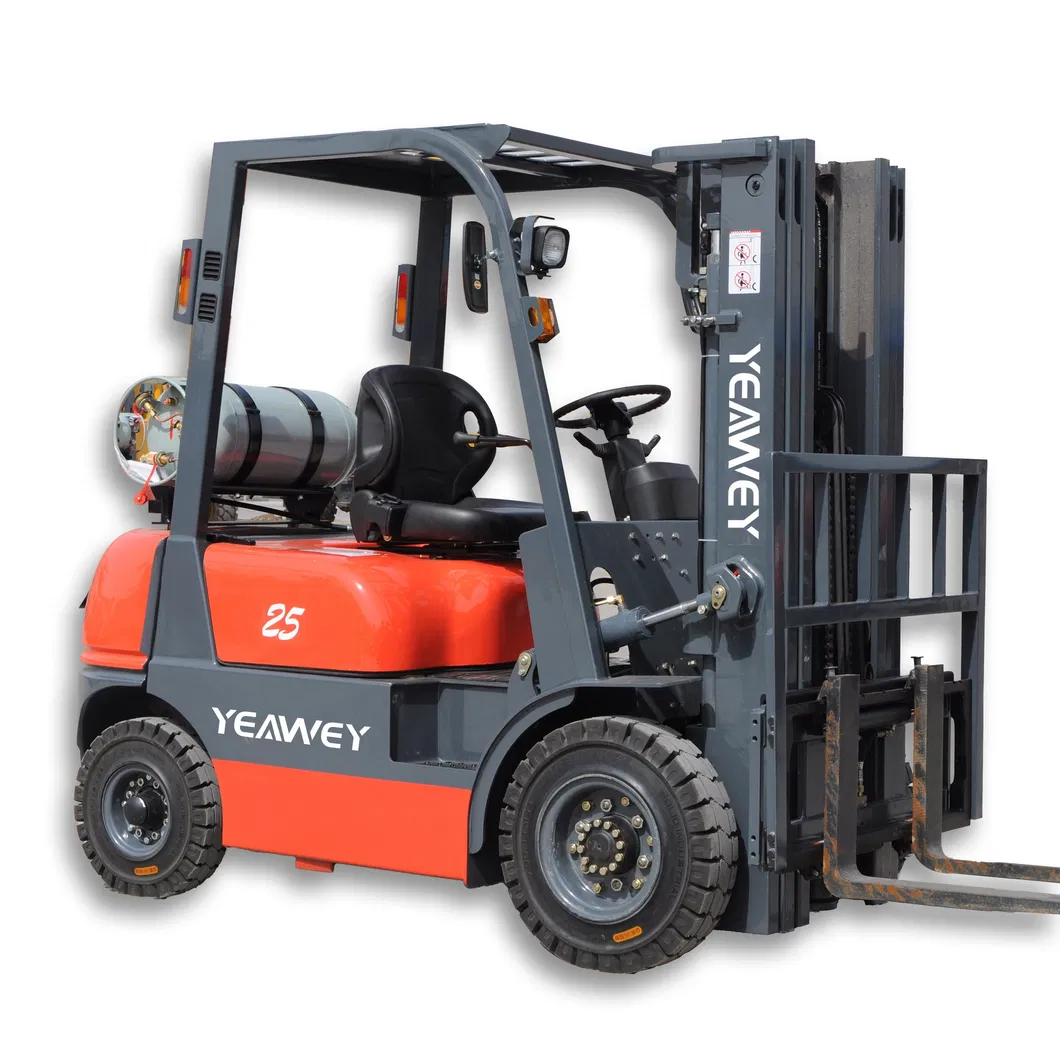

We focus on research development, production, sales, and service of various materials handling equipment. Our range includes diesel, gasoline, LPG, and electric forklifts from 1.5Ton to 15Ton capacity. We provide optimal products and professional after-sales support, including operator training and regular maintenance suggestions to improve work efficiency.
