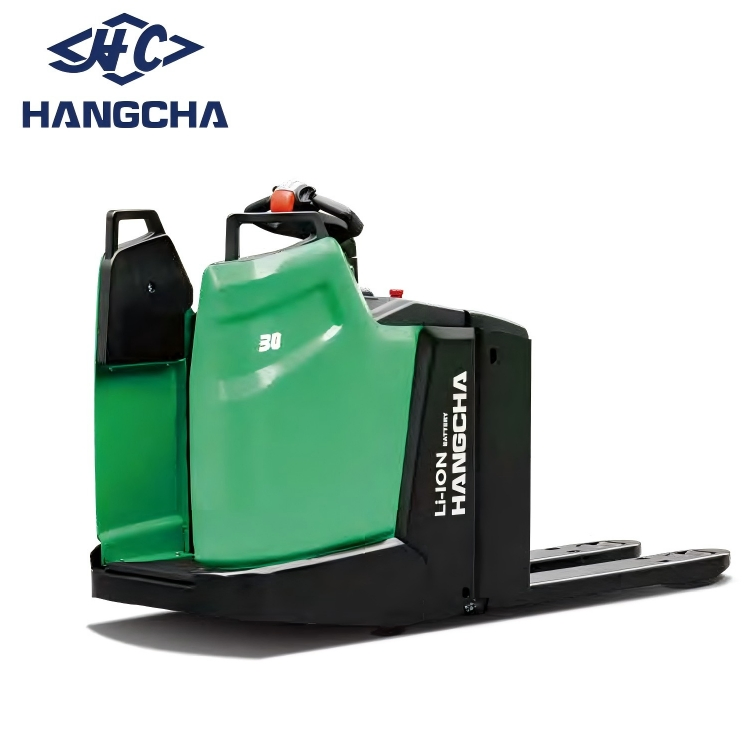

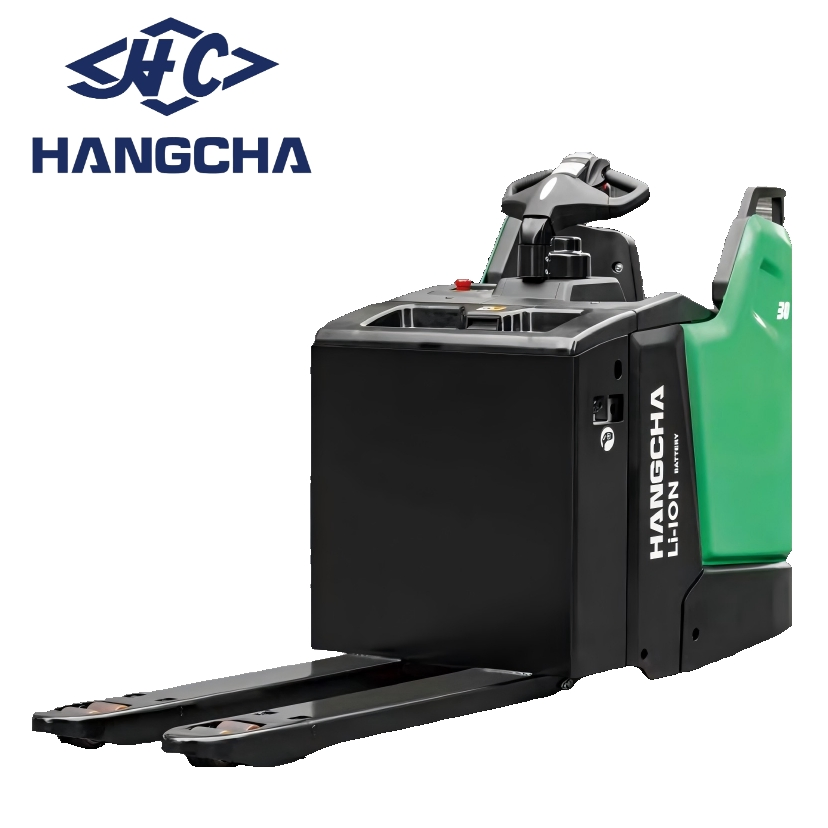

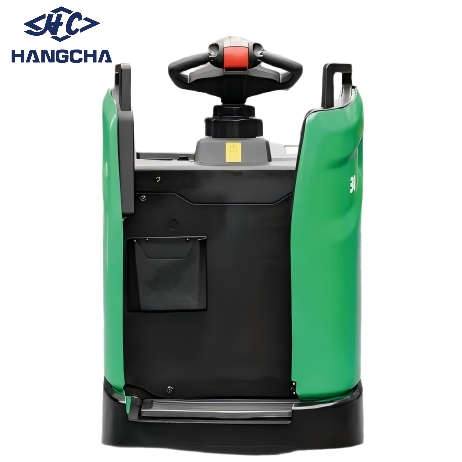

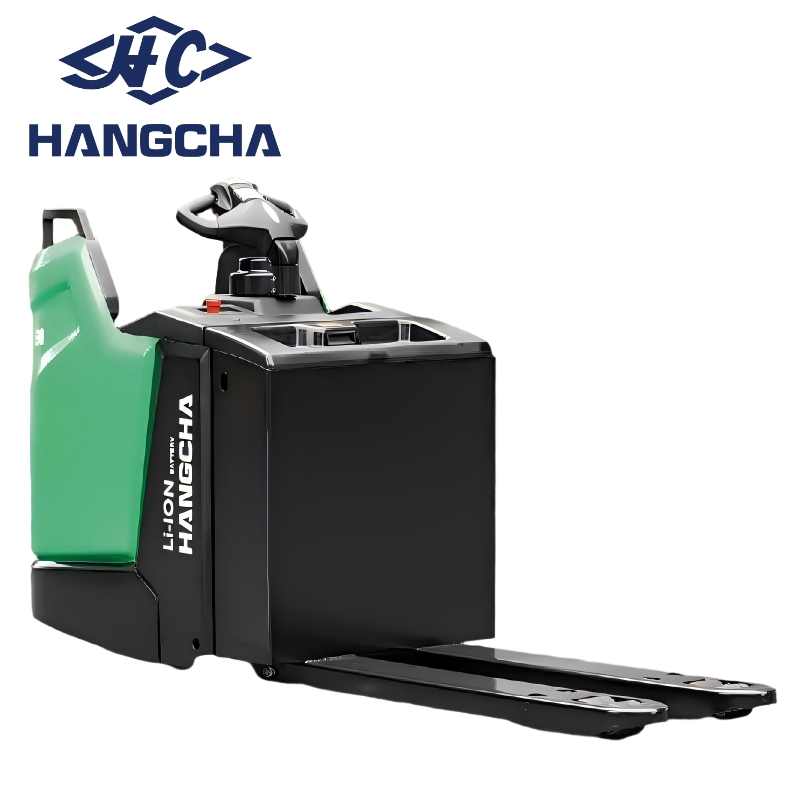

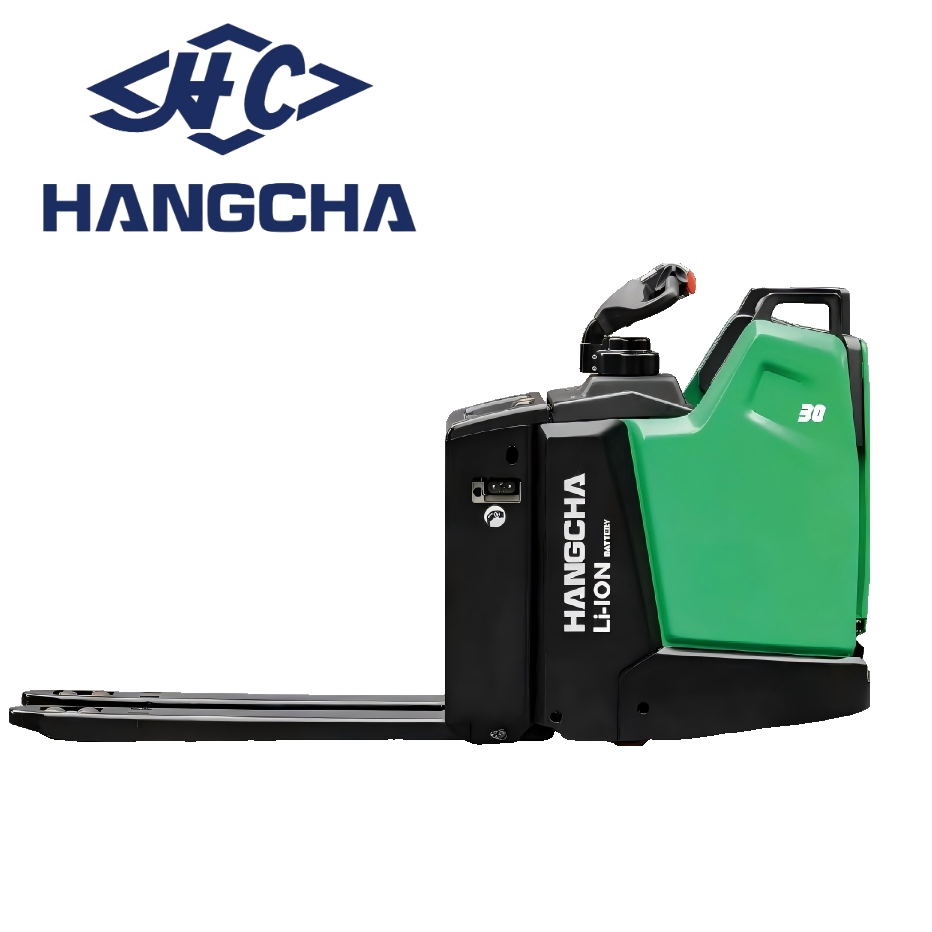

X SERIES RIDER PALLET TRUCK is a new generation of products developed for warehousing and logistics applications. Using advanced permanent magnet brushless drive technology and equipped with a new 48V system, the products have advanced performance, comfortable, safe and reliable operations and low use and maintenance costs.
They are ideal tools for loading, unloading and handling palletized goods in warehouses, supermarkets, workshops and homes.
| Distinguishing Data | Designation | Unit | CBD20-XT1S-SISU | CBD30-XT1S-SISU | |
|---|---|---|---|---|---|
| 1.3 | Drive | - | Electric | Electric | |
| 1.4 | Operator Type | - | Standing | Standing | |
| 1.5 | Rated Capacity | kg | 2000 | 3000 | |
| 1.6 | Load Centre Distance | mm | 600 | 600 | |
| 2.1 | Service Weight | kg | 705 | 705 | |
| 3.1 | Tyres | - | PU | PU | |
| 4.4 | Lift | mm | 125 | 125 | |

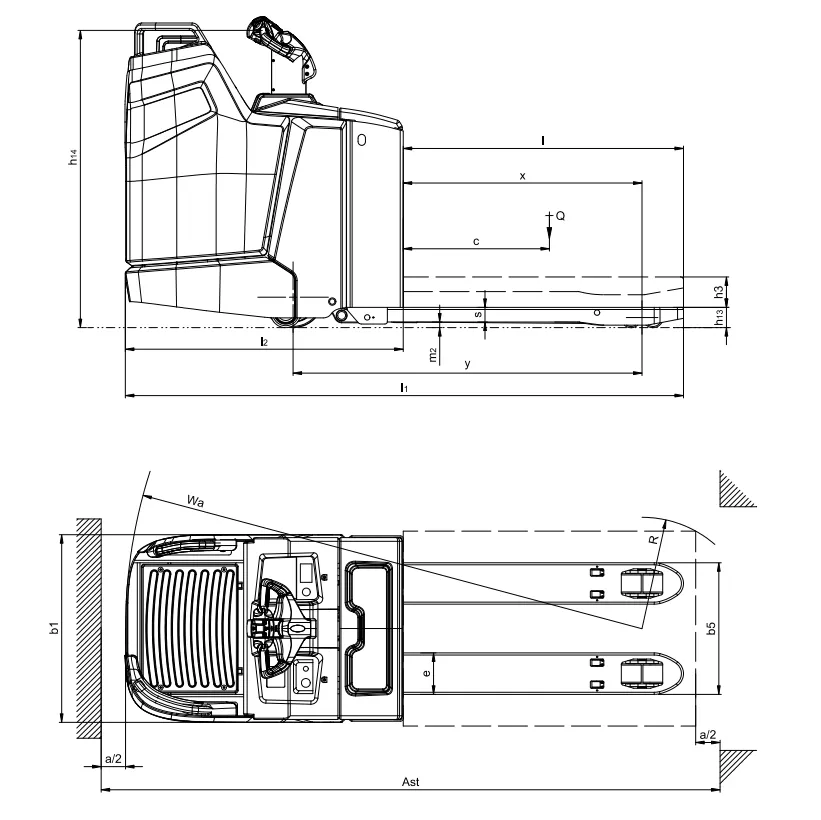

| 4.19 | Overall Length | mm | 2290 | 2290 | |
| 4.21 | Overall Width | mm | 770 | 770 | |
| 5.1 | Travel Speed (Laden/Unladen) | km/h | 9.5/12.5 | 7.5/12.5 | |
| 6.1 | Drive Motor Rating | kW | 2.2 | 2.2 | |
| 6.4 | Battery Voltage/Capacity | V/Ah | 48/80 | 48/80 | |
