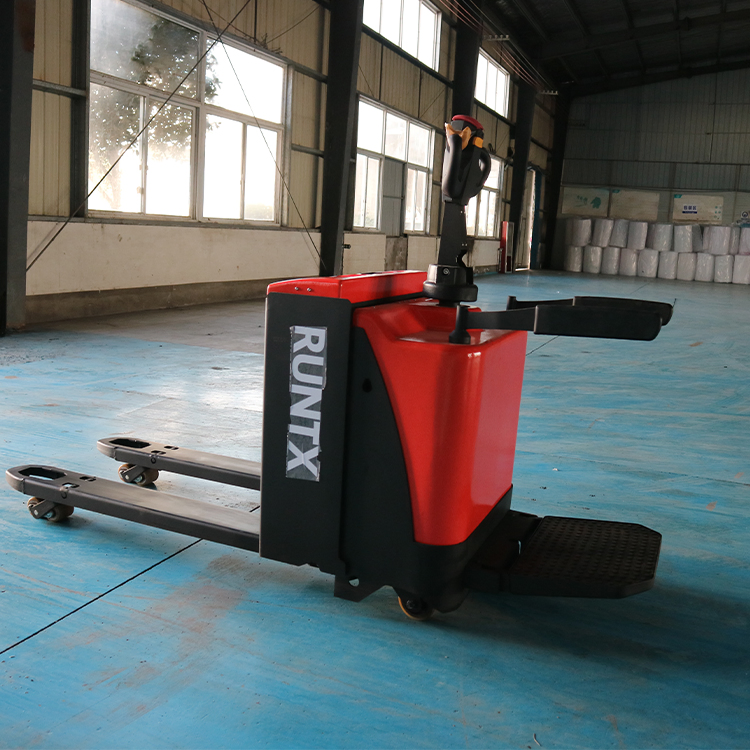

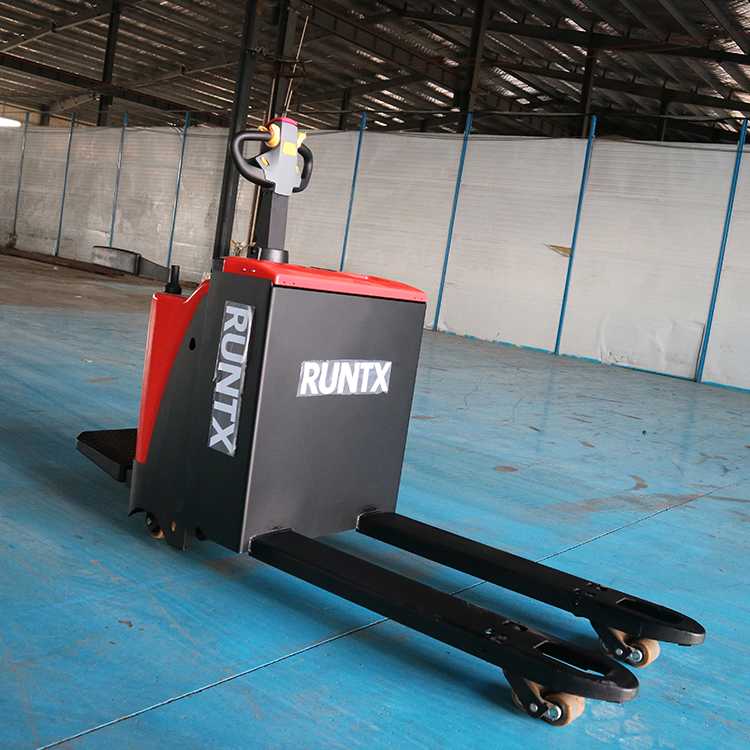

Hot Sell Pallet Jack 2 Ton 3 Ton Rider Truck Full Electric Pallet Truck

1 / 5

Hot Sell Pallet Jack 2 Ton 3 Ton Rider Truck Full Electric Pallet Truck

Customization:	Available
After-sales Service:	Online Serves
Warranty:	1y/2000h Work Time

Send Inquiry

Product Description

Basic Information

Model NO.

CBD

Type

Powered Pallet Truck

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load Center

200mm

Condition

New

Origin

China

HS Code

8427209000

Production Capacity

3000 Units/Year

Technical Specifications

Operation type	Electric Pallet Truck (CBD) (Standing Type)
Model No.	Unit	CBD20	CBD25	CBD30
Power type	-	Full Electric
Load capacity	kg	2000	2500	3000
Max. lifting height	mm	200	200	200
Wheel type	-	Polyurethane solid tire
Fork size	mm	1200*175
Overall length (pedal closed)	mm	1918
Overall width	mm	780
Battery capacity	V/Ah	24/210
Driving motor	Kw	1.5
Brake	-	Electromagnetic

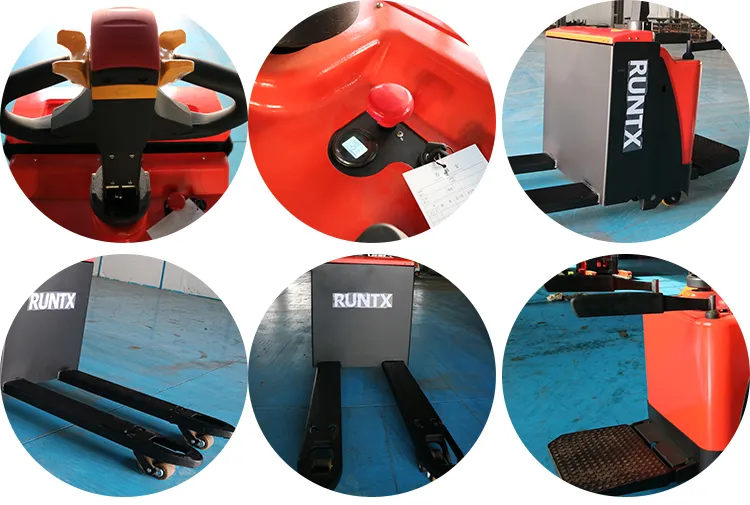

Core Features & Details

Electronic ControlEquipped with CURTIS electronic control for multiple automatic protection system operations.

Damping SuspensionActive vertical drive adjustment based on road conditions, reducing impact and balancing force.

Hydraulic StationHigh-quality buffer pump station offering low noise, low vibration, and smooth lifting performance.

Safety BrakingAnti-skid function prevents declining on slopes or when the vehicle is out of control.

AC Drive SystemStepless speed regulation, quiet operation, and emergency reverse/brake safety switches.

Integrated HandleMulti-function control for acceleration, horn, emergency direction, and lifting.

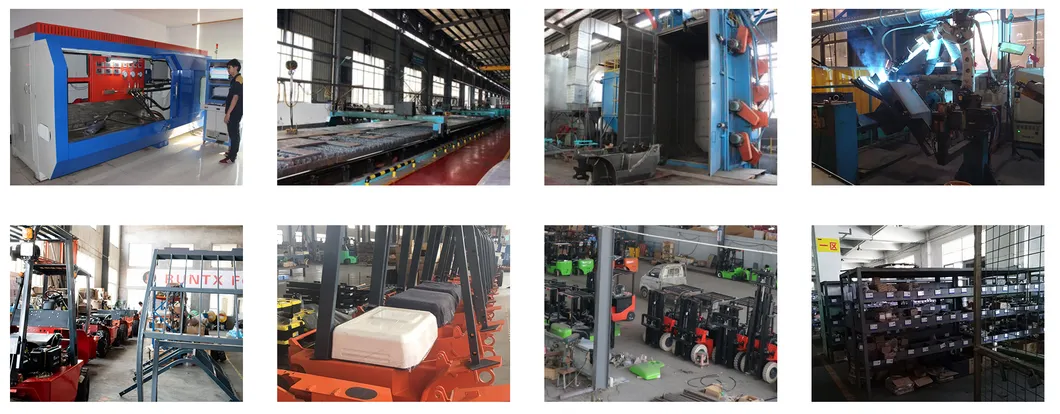

Production & Shipping

Shipping Details: Packed by PVC film and carton, securely loaded on pallets or containers.

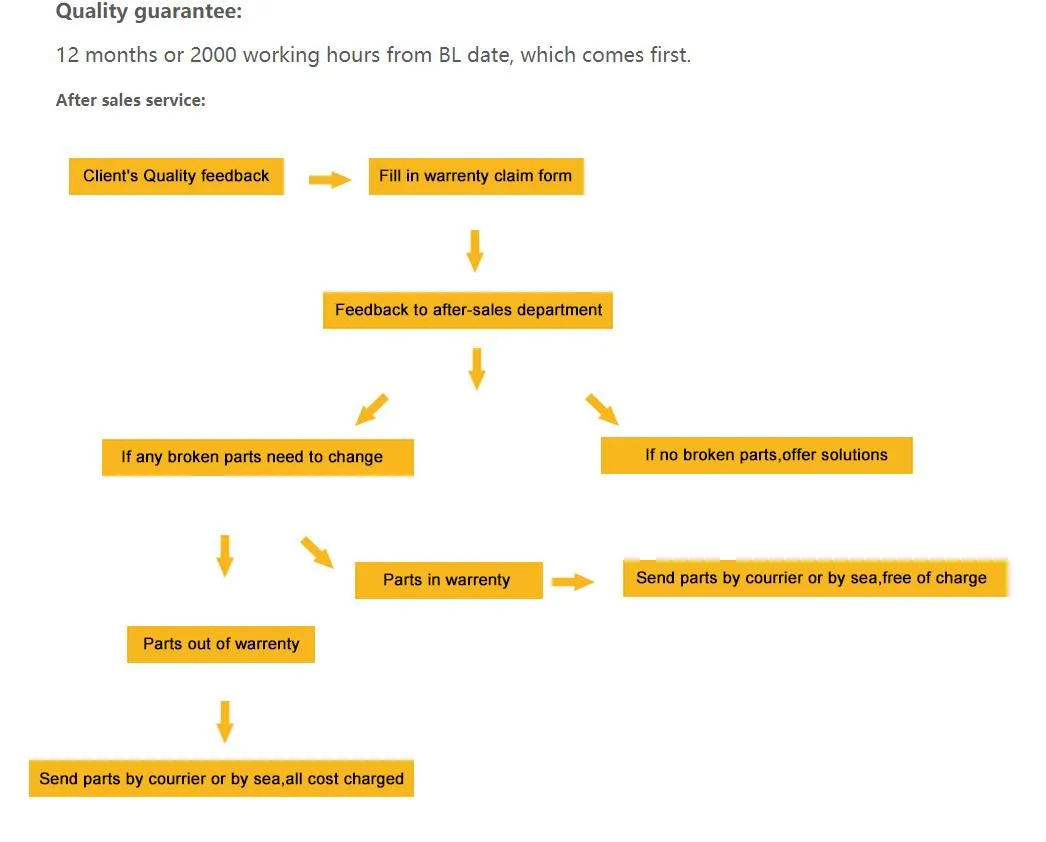

Professional After-Sales Support

Frequently Asked Questions

What is the maximum load capacity of these pallet trucks?

The CBD series offers a versatile load capacity range from 1 ton up to 5 tons, with specific models handling 2000kg, 2500kg, and 3000kg.

What type of control system is used in the vehicle?

We utilize high-performance CURTIS electronic controllers, which include integrated automatic protection systems for enhanced reliability.

How does the suspension system handle uneven surfaces?

The damping suspension spring automatically adjusts the vertical drive unit based on road conditions, reducing impact and ensuring a smooth ride.

Is the pallet truck fully electric?

Yes, it is a full electric standing-type pallet truck powered by an AC driving motor and a 24V/210Ah battery.

What safety features are included for slope operation?

The truck is equipped with an anti-skid electromagnetic brake system and an emergency reverse device to prevent accidents on inclines.

What are the standard dimensions of the forks?

The standard fork size is 1200mm in length and 175mm in width, designed to handle standard pallets efficiently.
