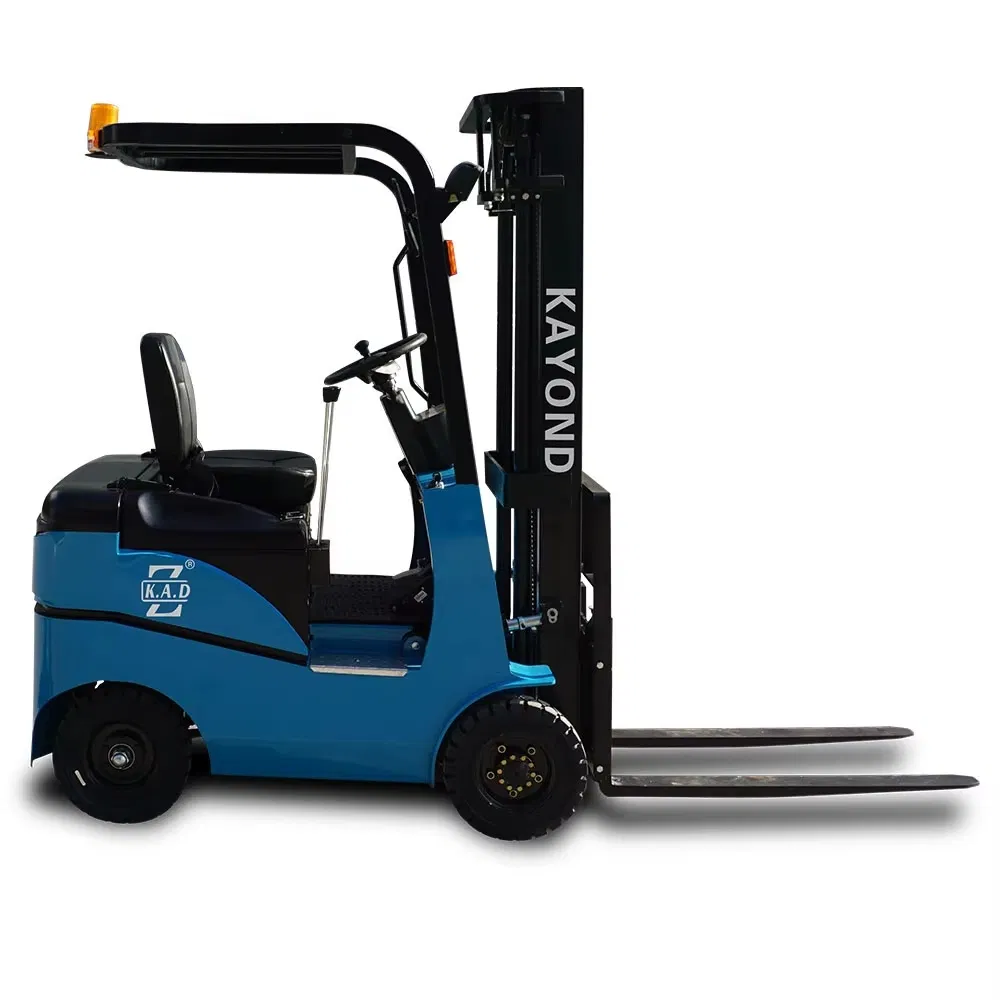

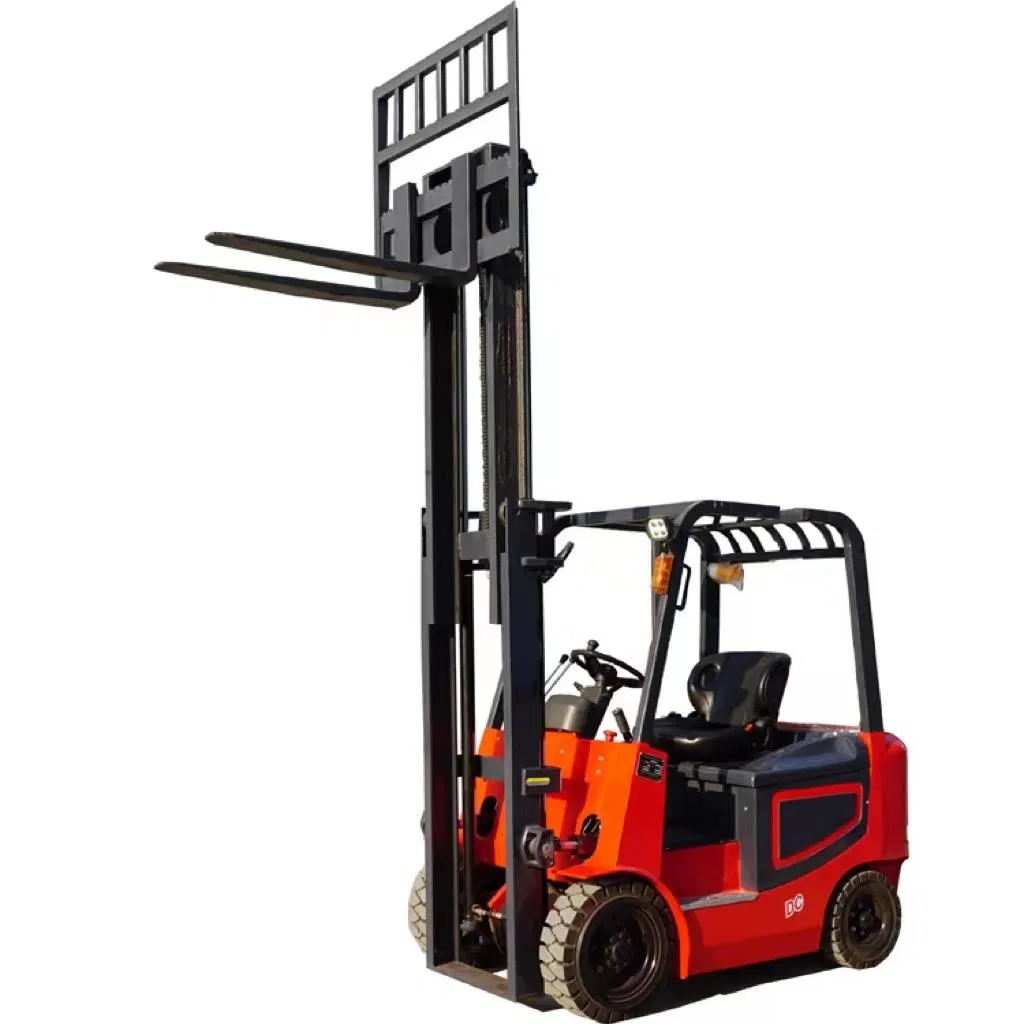

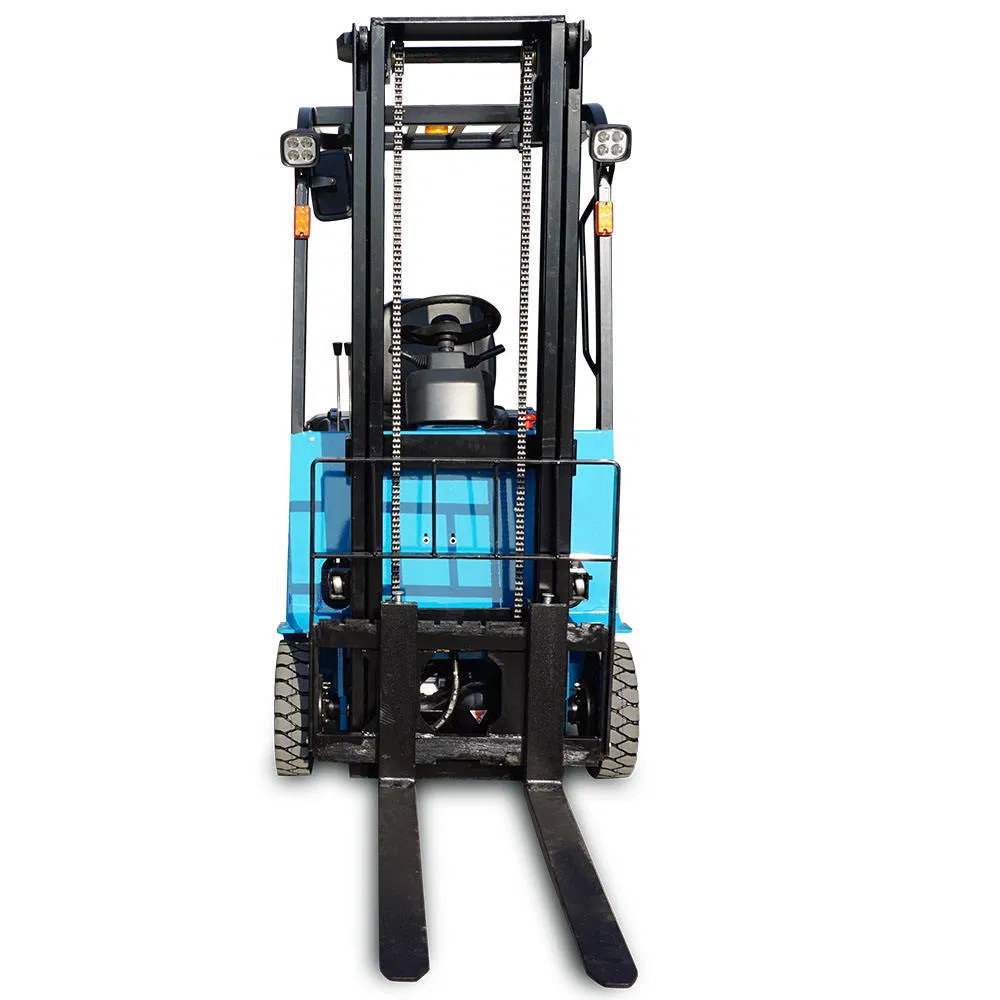

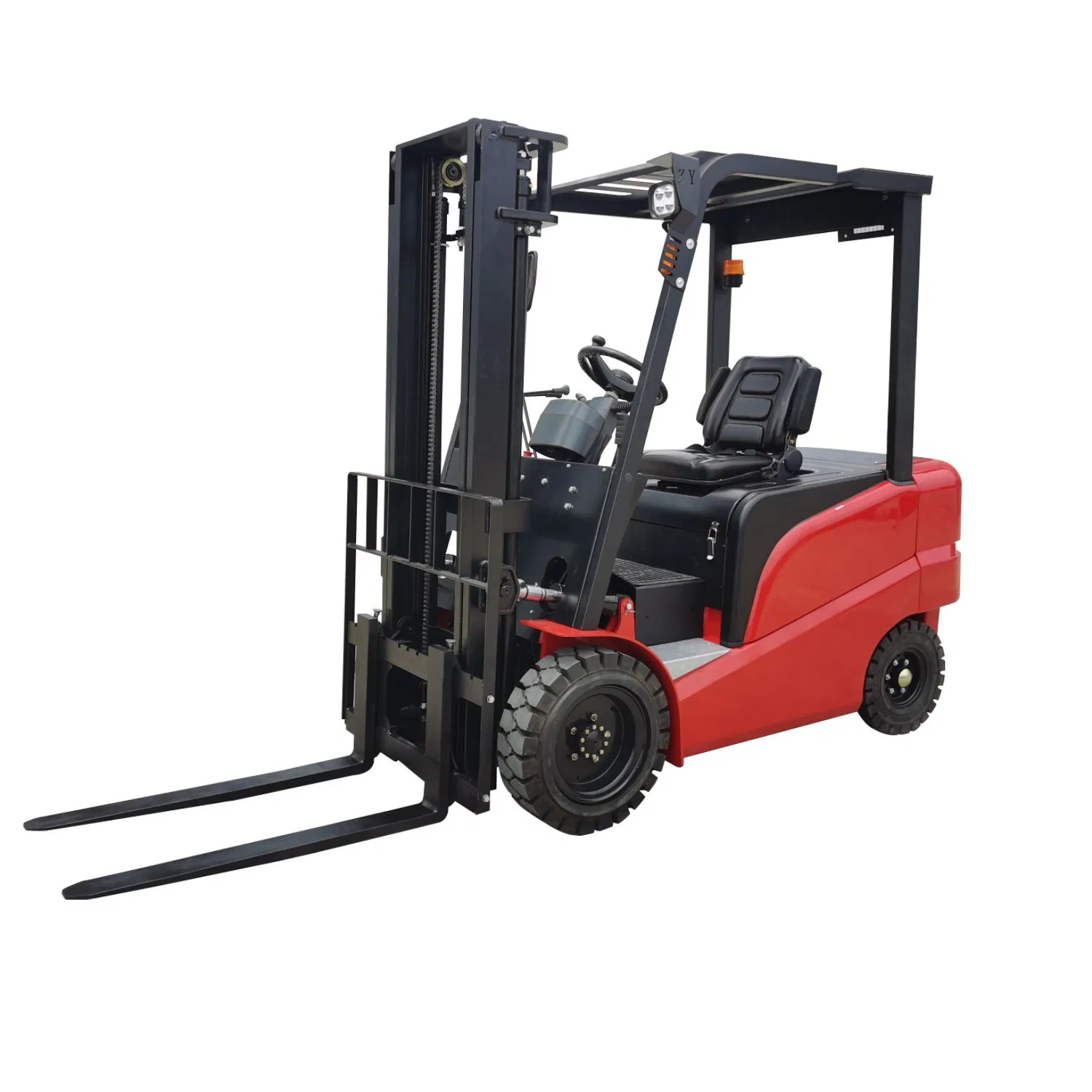

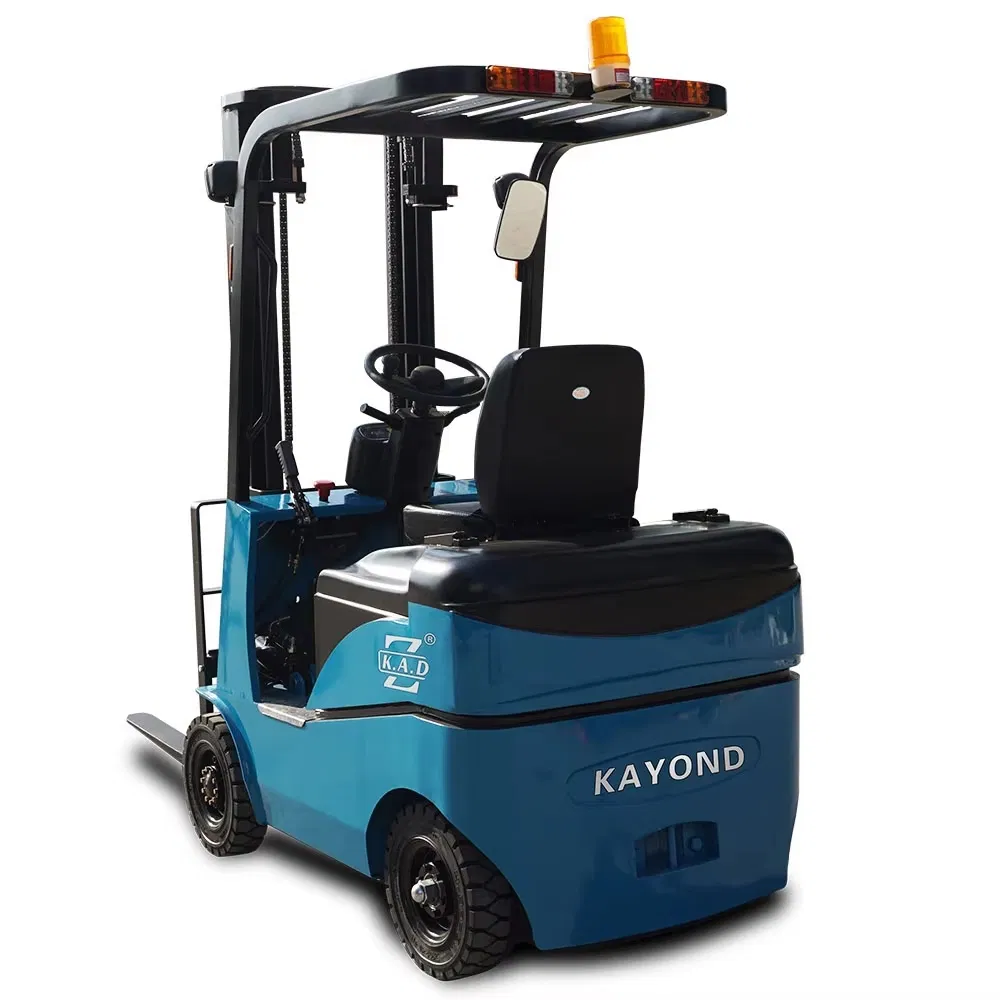

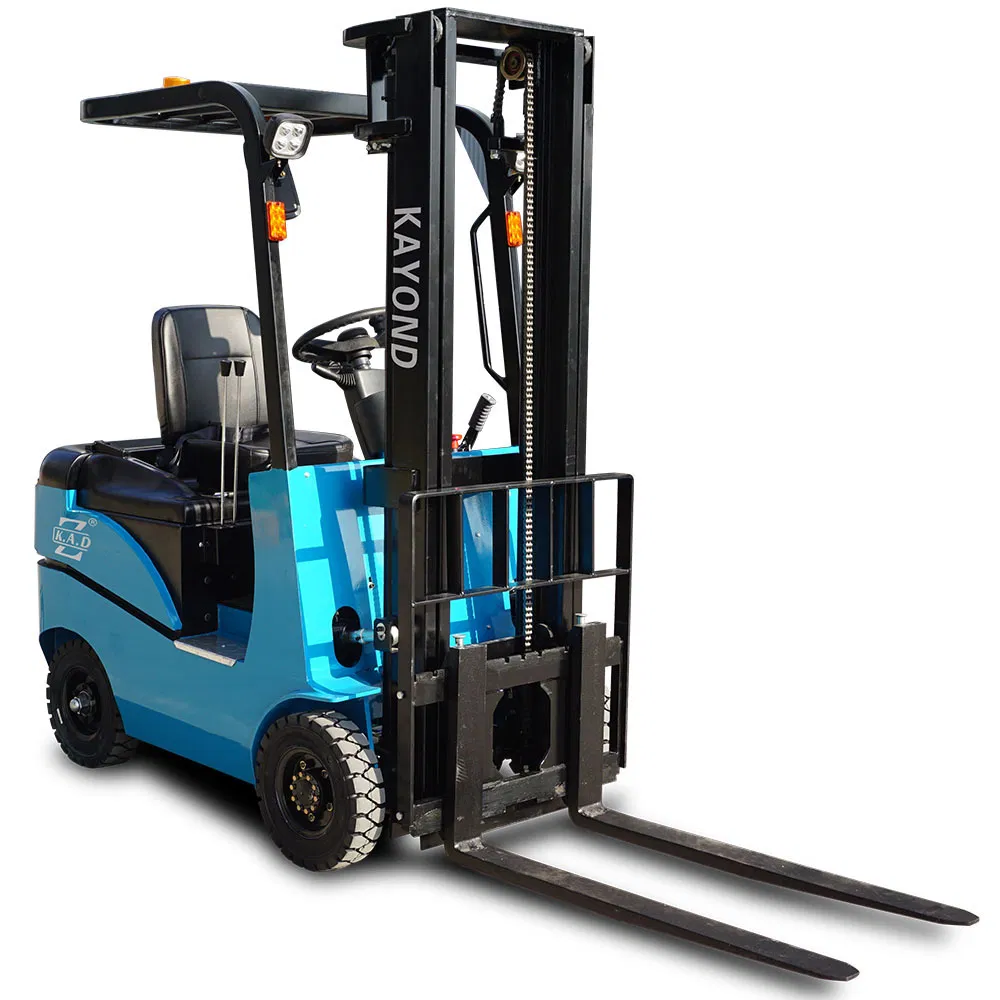

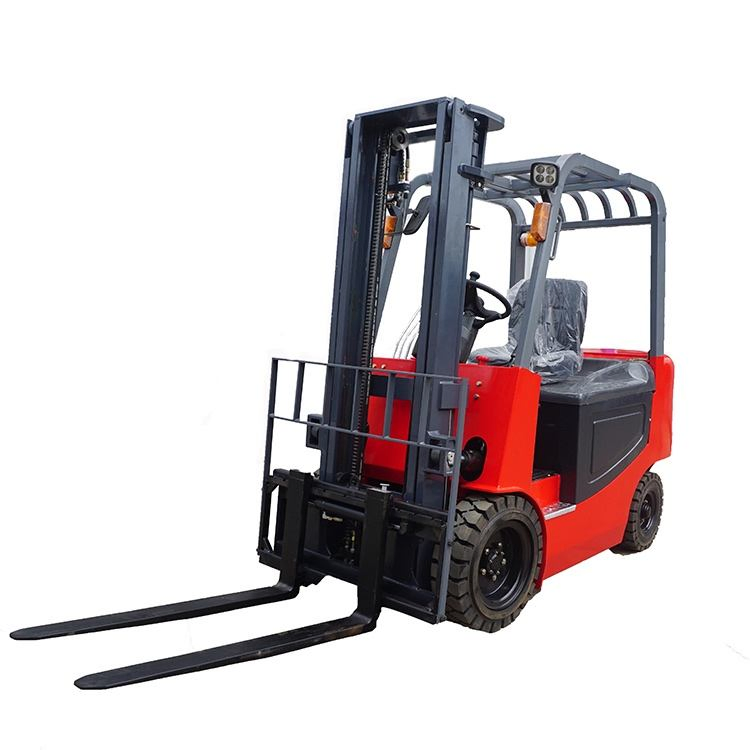

A four wheel stacker is a flexible handling tool in warehousing logistics, with a design that facilitates operation in narrow spaces. It is mainly used for lifting and stacking goods.
| Model | Unit | CPD1530 | CPD2030 | CPD3030 |
|---|---|---|---|---|
| Load Capacity | kg | 1500 | 2000 | 3000 |
| Lifting Height | mm | 3000 | 3000 | 3000 |
| Load Center | mm | 500 | 500 | 500 |
| Fork size | mm | 1070*100*40 | 1220*120*60 | 1220*120*60 |
| Tyre Type | - | Solid Tyres | Solid Tyres | Solid Tyres |
| The Min.Turning Radius | mm | 1750 | 2100 | 2150 |
| Driving Speed with Full Load | km/h | 6 | 15 | 15 |
| Battery | V/Ah | 48/140 | 60/280 | 48/420 |
| Driving Motor | kw | 3 | 5 | 5 |
| Lifting Motor | kw | 3 | 5 | 5.5 |
