AC Motor 4 Forks 2000kg 3000kg Rider Electric Steering Pallet Truck

Customization:	Available
After-sales Service:	Online
Warranty:	12 Months

Send Inquiry

Product Description

⚙ Basic Information

Model NO.

CBD20

Type

Pallet Jack

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift height

210mm

Controller

USA Curtis

Tire

Polyurethane

Battery Voltage

24V/210ah

Handle

Germany Imported

Specification

1500kg

Origin

China

📦 Product Description

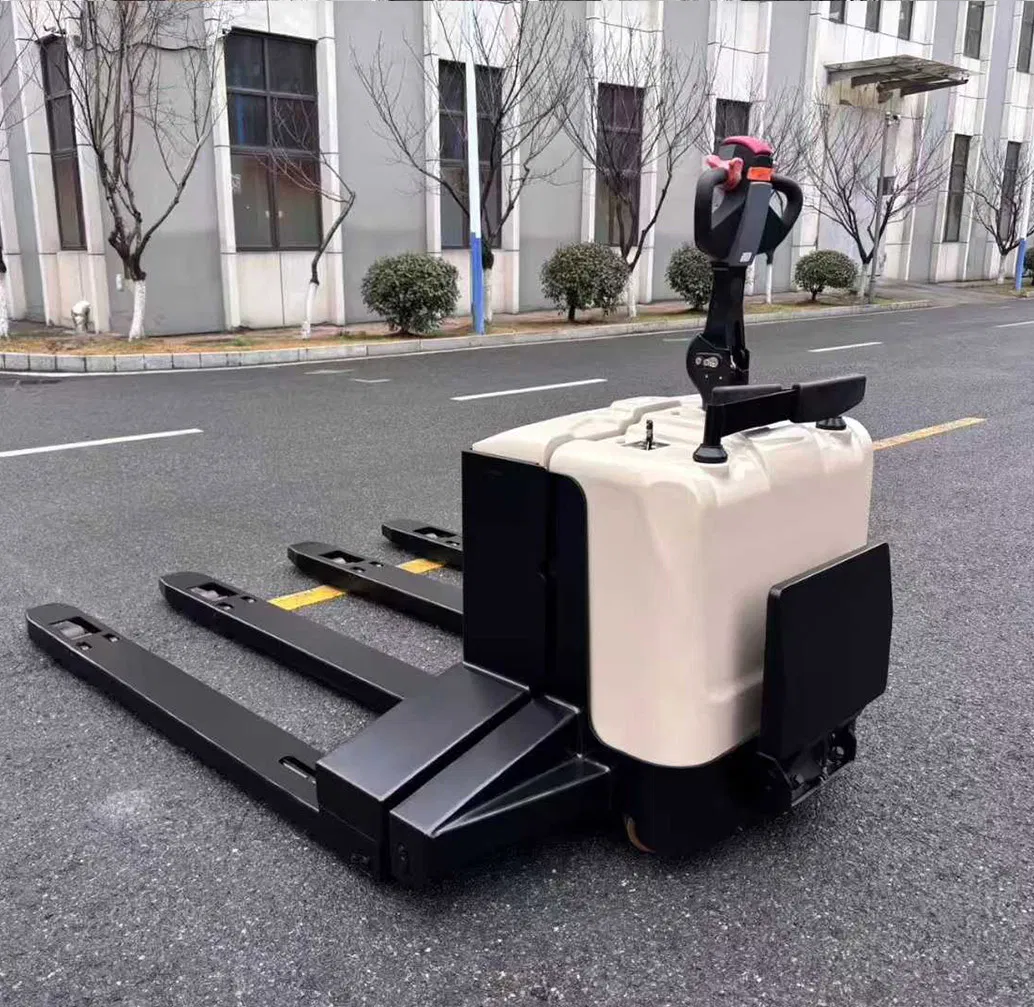

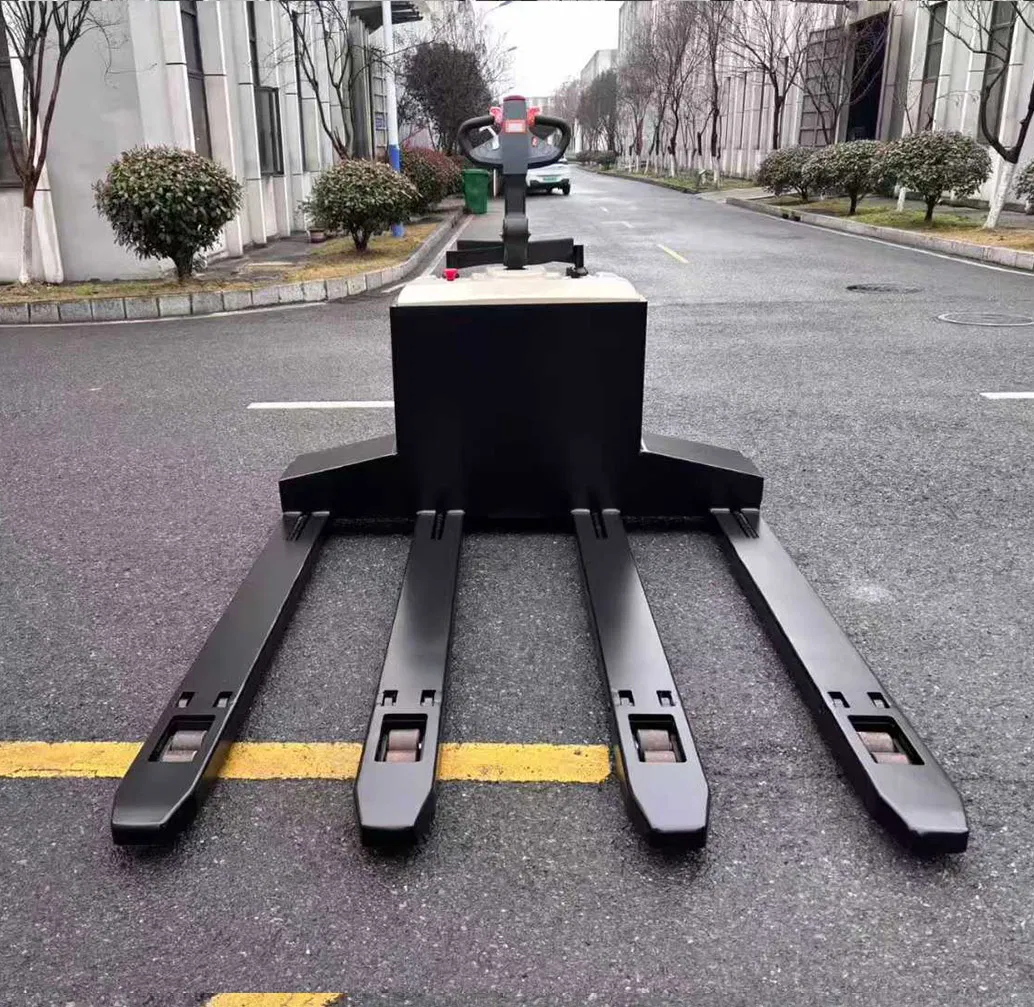

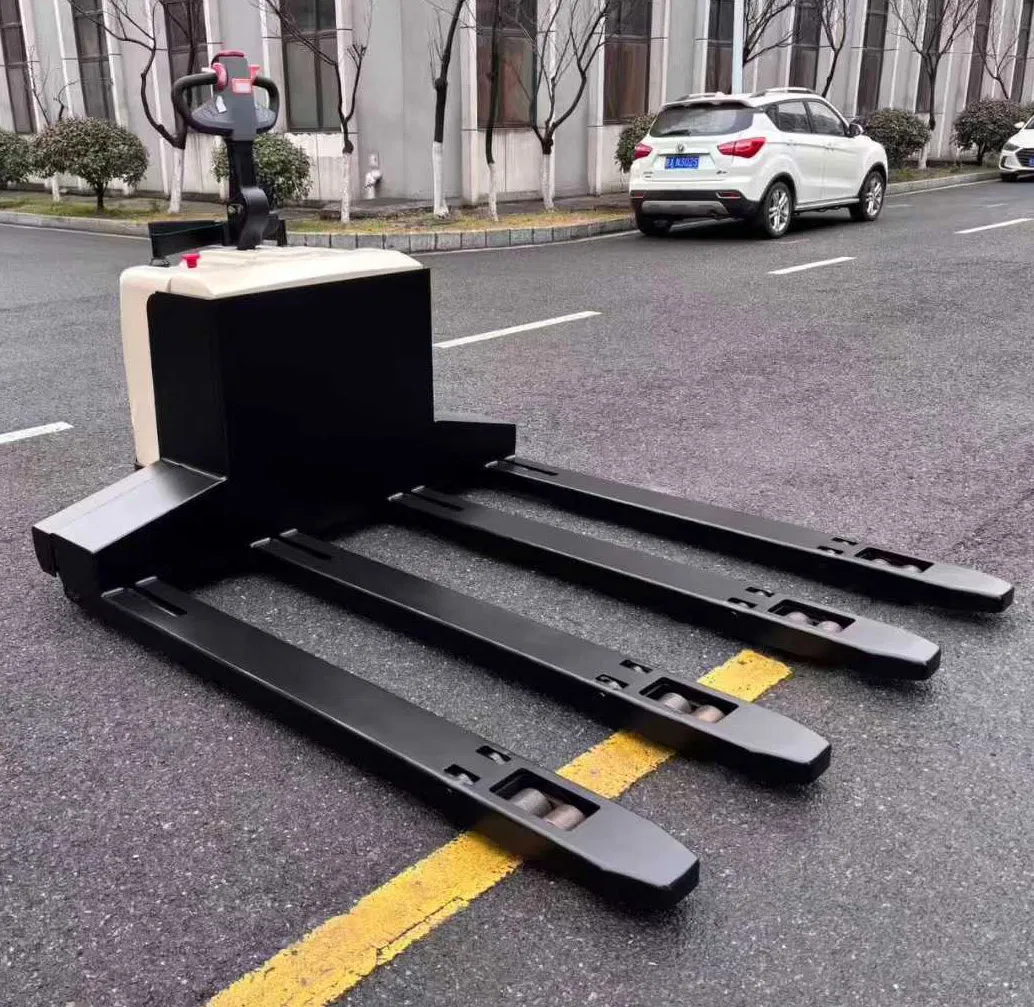

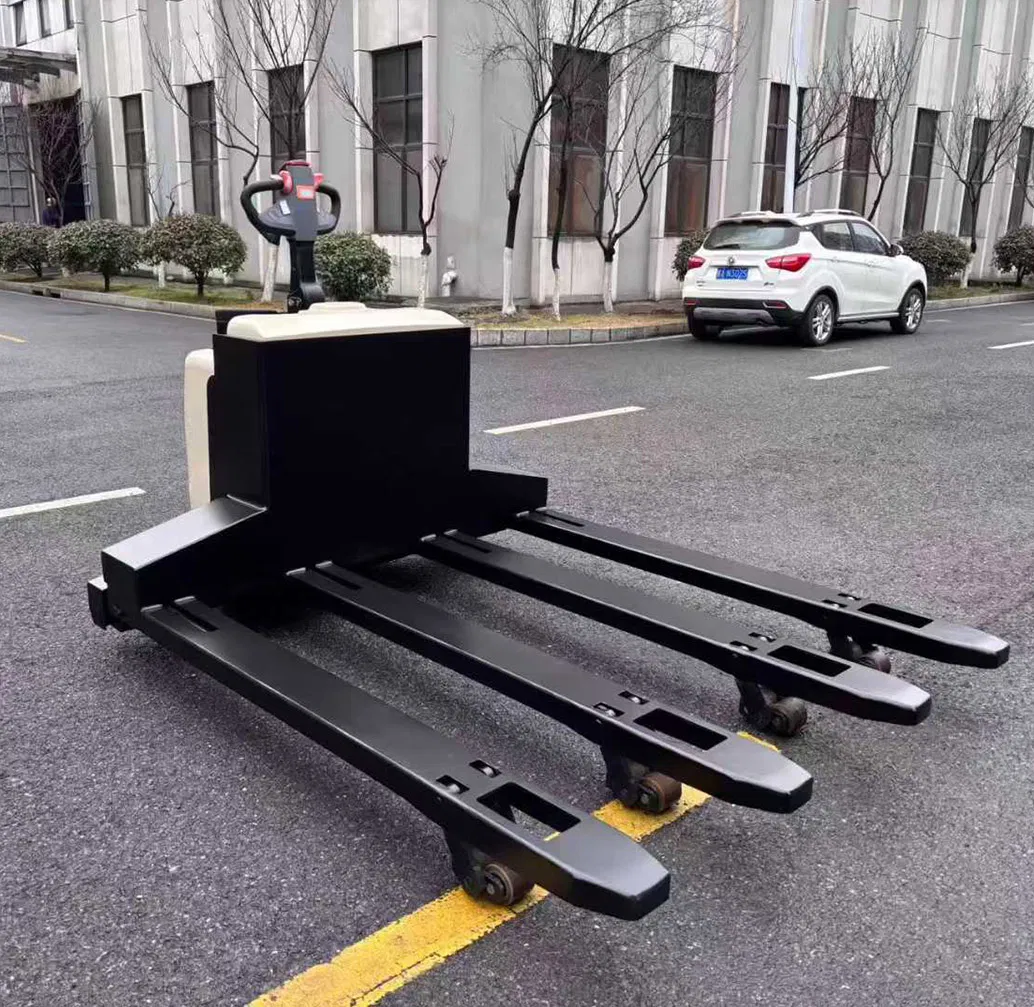

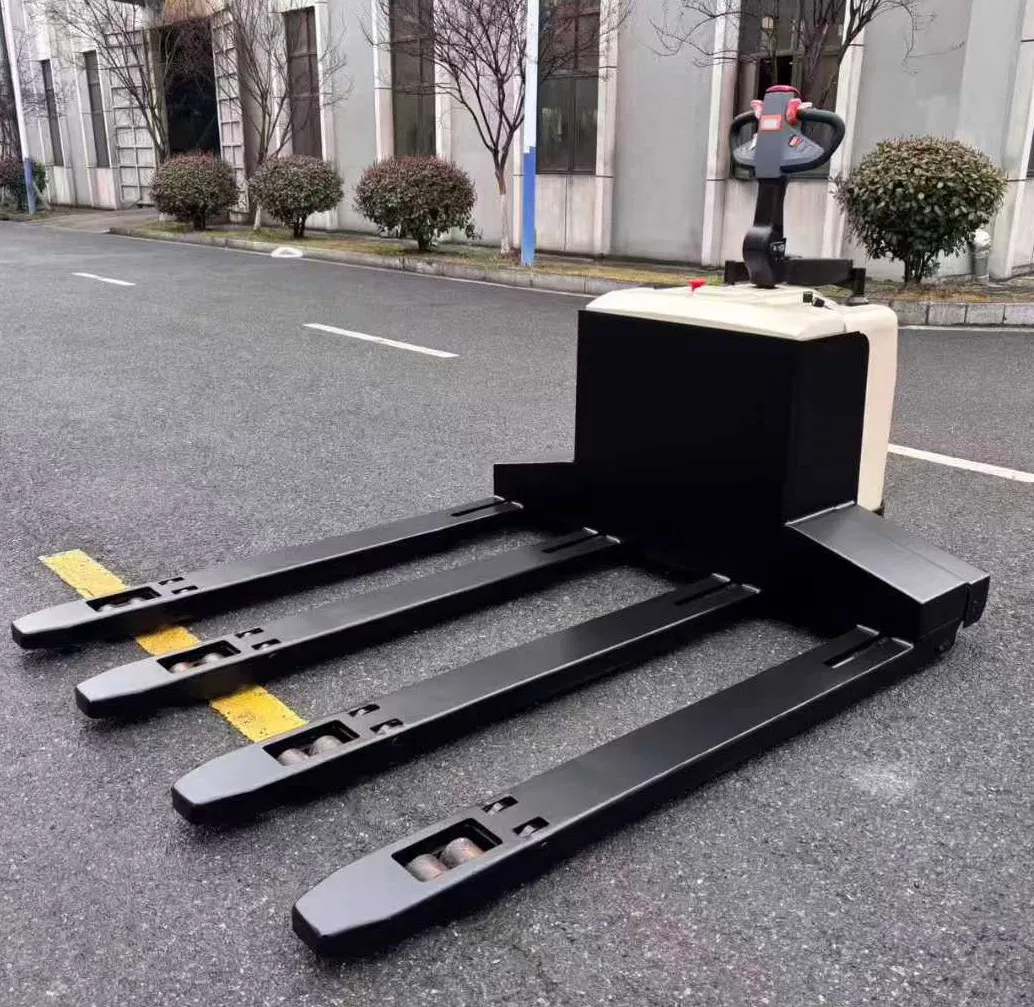

2000kg 3000kg Electric Pallet Truck with 4 Forks

Parameter	Unit	Specification (QDD20)
Type of power	-	Lead-acid battery
Driving type	-	Stand-on Pedal model
Rated traction capacity	kg	2000
Overall length (retracted/down)	mm	1700/2097
Overall width	mm	846
Overall height	mm	1510
Battery voltage/capacity	V/Ah	24/210
Driving motor power	kw	1.6
Lifting motor power	kw	2.2
Tire type	-	Polyurethane
Turn radius (retracted/down)	mm	1620/2012
Vehicle noise	dB(A)	≤70

⭐ Key Advantages

USA Curtis brand drive control system
Multi-function integrated handle
AC drive, no carbon brush, free-maintenance
Electronic steering, highly portable
Electromagnetic regenerative braking system
Drive and handle shock absorbers
Inductive proximity switch

🛡 Safety Features

Drive stepless speed regulation
Controller multiple automatic protection system
Emergency reverse and emergency brake devices
Automatic deceleration in corners
Cylinder safety shut-off valve

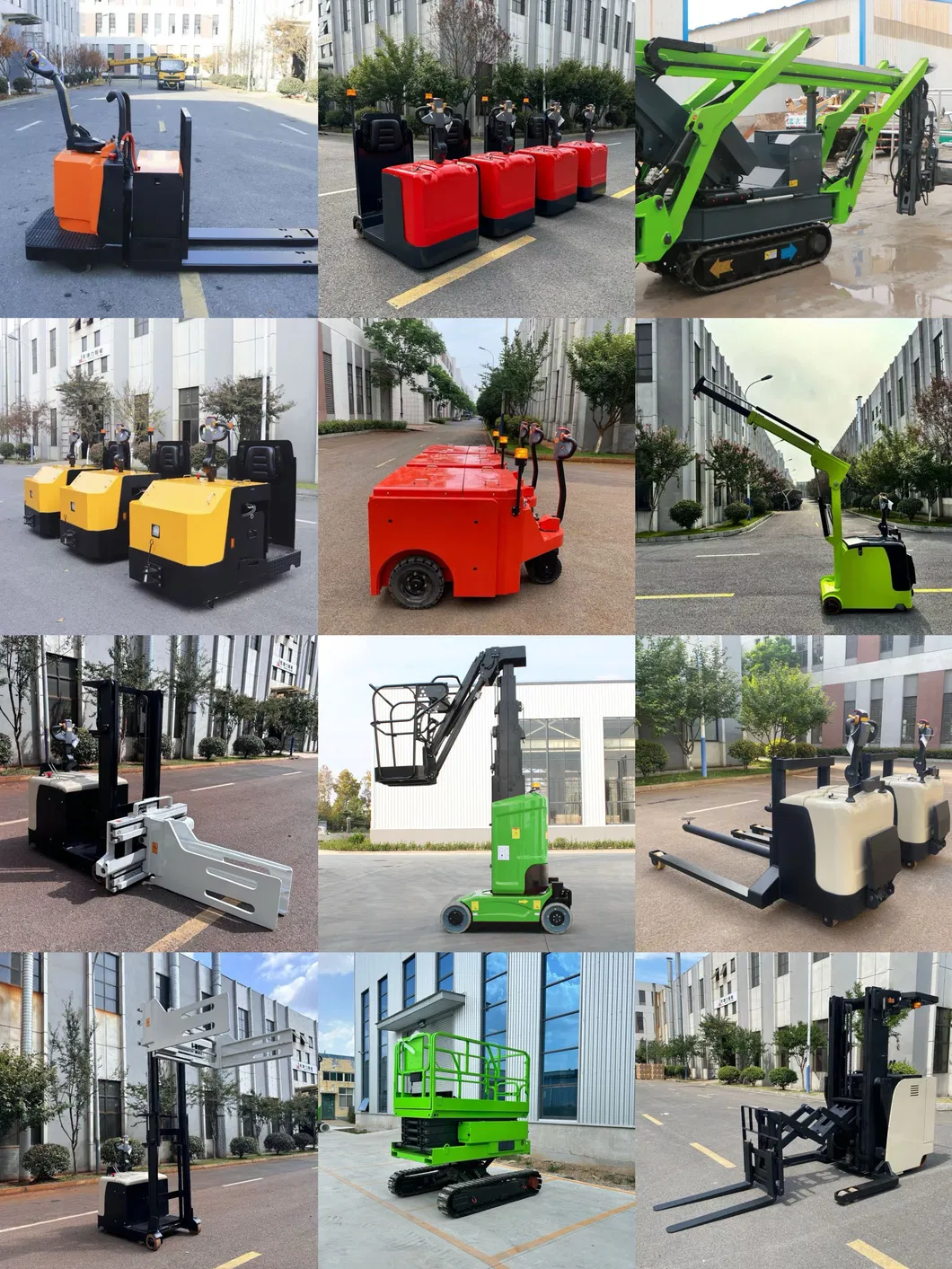

🚜 Our Product Catalogue

We provide a comprehensive range of material handling solutions:

Diesel forklift trucks (1.5ton to 16ton)
Electric forklift trucks (1.5ton to 3.5ton)
LPG/Gasoline forklift trucks (1.5ton to 7ton)
Warehouse equipment: Pallet trucks, reach trucks, stackers, trailers
Rough terrain forklift trucks (1.8-5ton)
Special function forklifts: Cold warehouse, explosion-proof

Our products are exported to over 130 countries, including the UK, Russia, Brazil, Australia, USA, Southeast Asia, Middle East, and Africa.

Frequently Asked Questions (FAQ)

What is the load capacity of the CBD20 electric pallet truck?

The CBD20 series offers a versatile load capacity ranging from 1 Ton up to 5 Tons, suitable for various warehouse requirements.

What are the benefits of using an AC motor system?

The AC drive system eliminates carbon brushes, making the motor maintenance-free and improving energy efficiency and reliability.

Is the steering system easy to operate for long shifts?

Yes, it features electronic steering and a Germany-imported handle with shock absorbers, making it highly portable and reducing operator fatigue.

What type of controller is installed in this pallet truck?

This model is equipped with a high-performance USA Curtis brand drive control system for precise and stable operation.

What safety mechanisms are included?

Safety features include emergency reverse devices, automatic deceleration in corners, electromagnetic regenerative braking, and a multiple automatic protection system via the controller.

Can the color of the forklift be customized?

Yes, we provide customer customized color options to meet your specific branding or fleet requirements.
