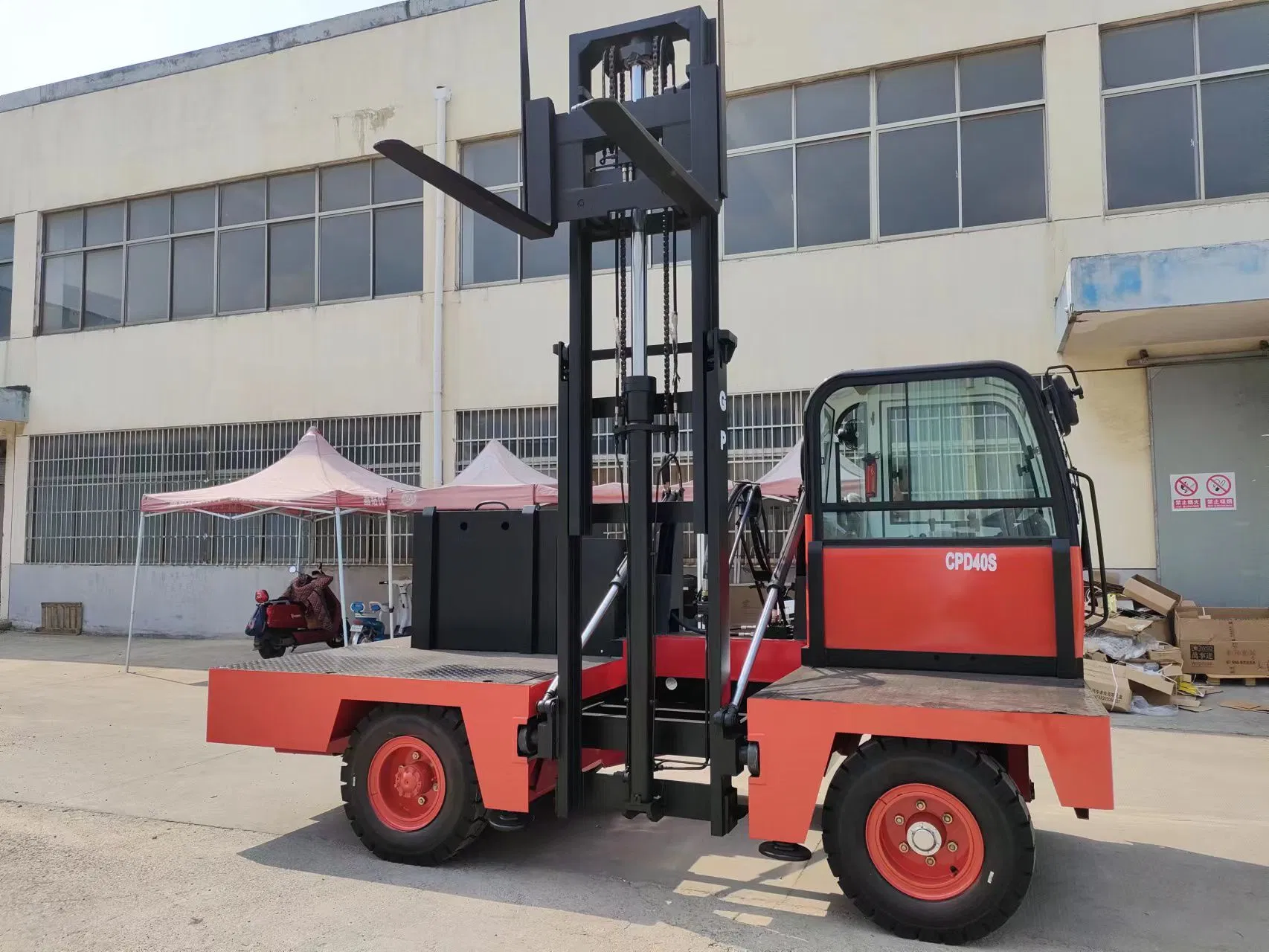

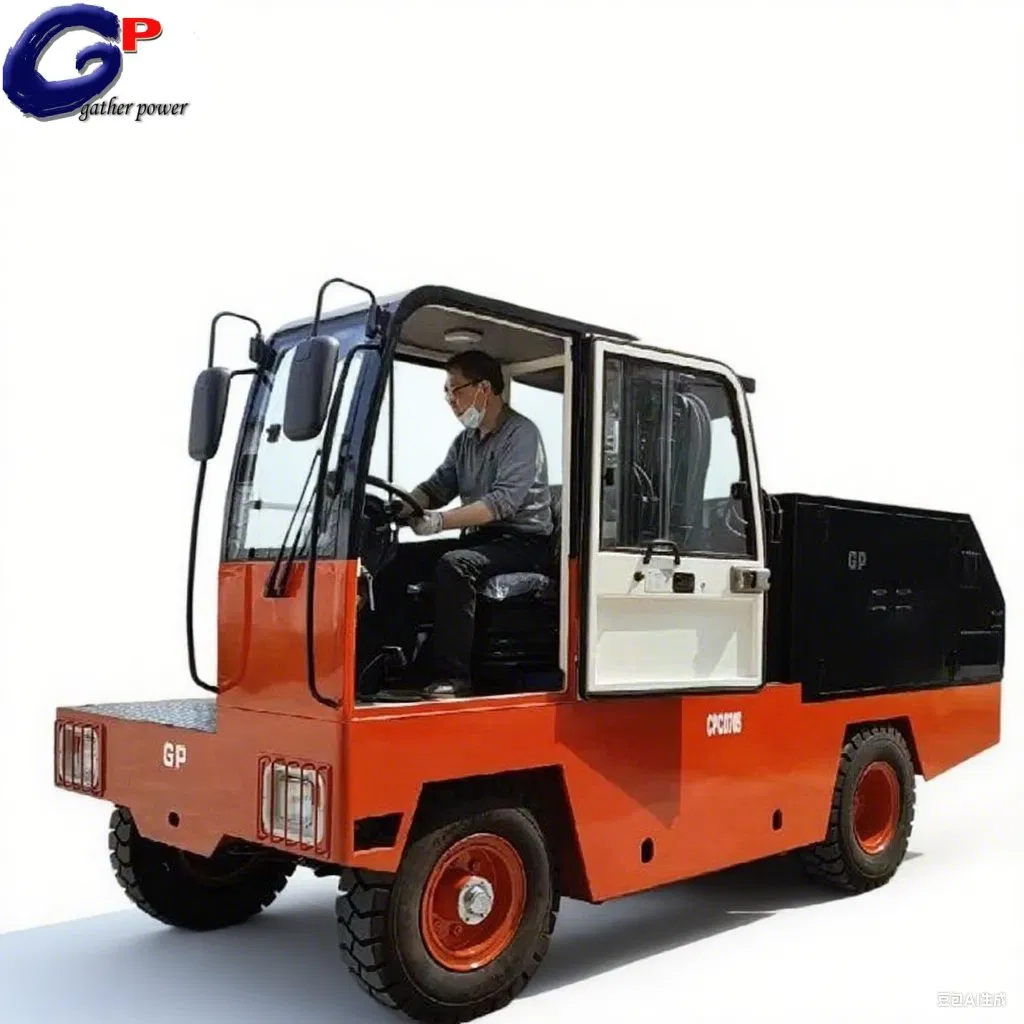

4ton 4000kg Diesel Side Loader Side Loader Forklift Electric Side Forklift with Curtis Controller

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Information

Model NO.
CPD40S
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift height
3000~5000mm
Condition
New
Tyre Type
Pneumatic
Fork Size
1220*150*55
HS Code
842720900
📦

Packaging & Delivery

Package Size
420.00cm * 150.00cm * 220.00cm
Gross Weight
4515.000kg
🔍

Product Description

Side forklift truck is a new type of carrying scraper. It differs from the counter-balanced one mainly in that the forks are mounted on the side of the body. Besides lifting and tilting, the forks can also traverse to the right side of the truck frame, and retract back alongside the well in the middle section of the truck. Long cargoes can be loaded by the forks on/from the truck deck, as well as transported in limited spaces. As the long cargoes are piled lengthwise along the truck's platform, the width of the passageway required by the forklifter can be reduced remarkably. The side forklift truck is particularly suitable for handling timber, section steels, line poles, cement tubes, plastic pipes and other kind of bulky, over-length cargoes. It finds wide applications in railway stations, oilfields, harbours, warehouses, factories, construction sites, etc.
📊

Product Parameters

Main Parameters Specification Unit CPD30S CPD40S
Rated load capacityKg30004000
Load centremm600600
Maximum Lifting Heightmm35003500
Maximum Lifting Speed (laden)mm/s280280
Tilting Angle of Fork (up/down)°3°/5°3°/5°
Grade Ability (laden)%15%15%
Minimum Ground Clearancemm200205
Width of Carriermm12001200
Length of Carriermm44004400
Wheelbasemm26002700
Self-Weightkg55706200
Controller system-USA Curtis
Battery (Lead Acid/Lithium option)AH80/50080/550
🖼️

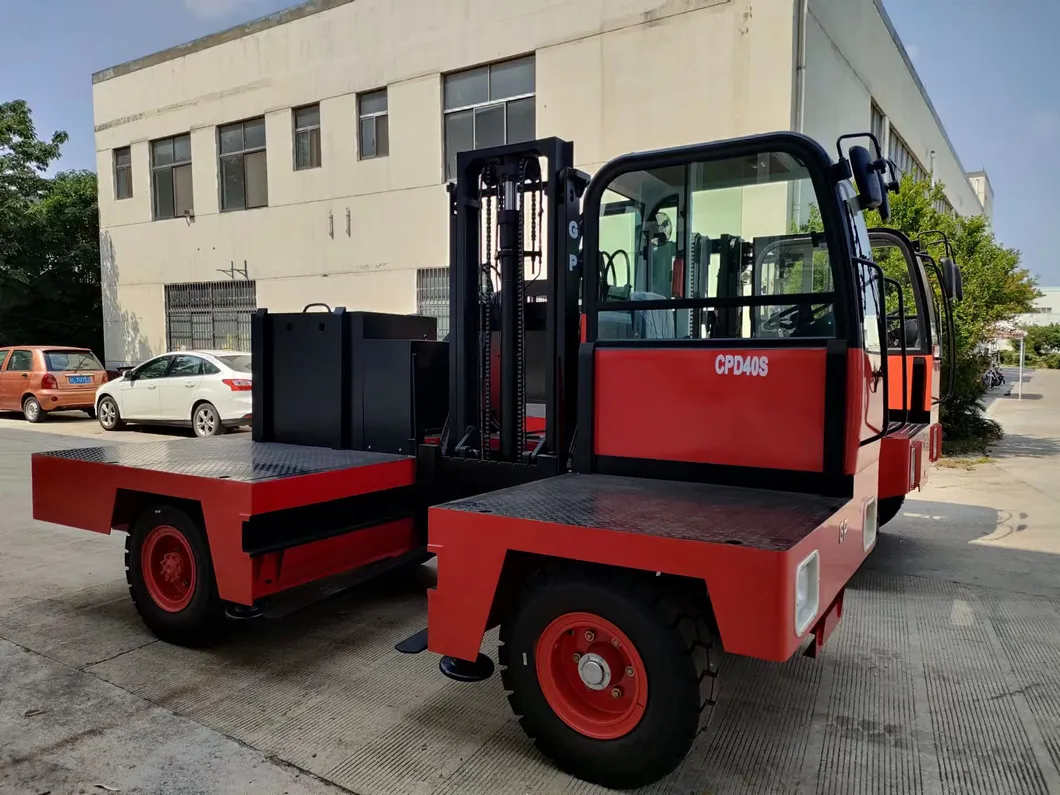

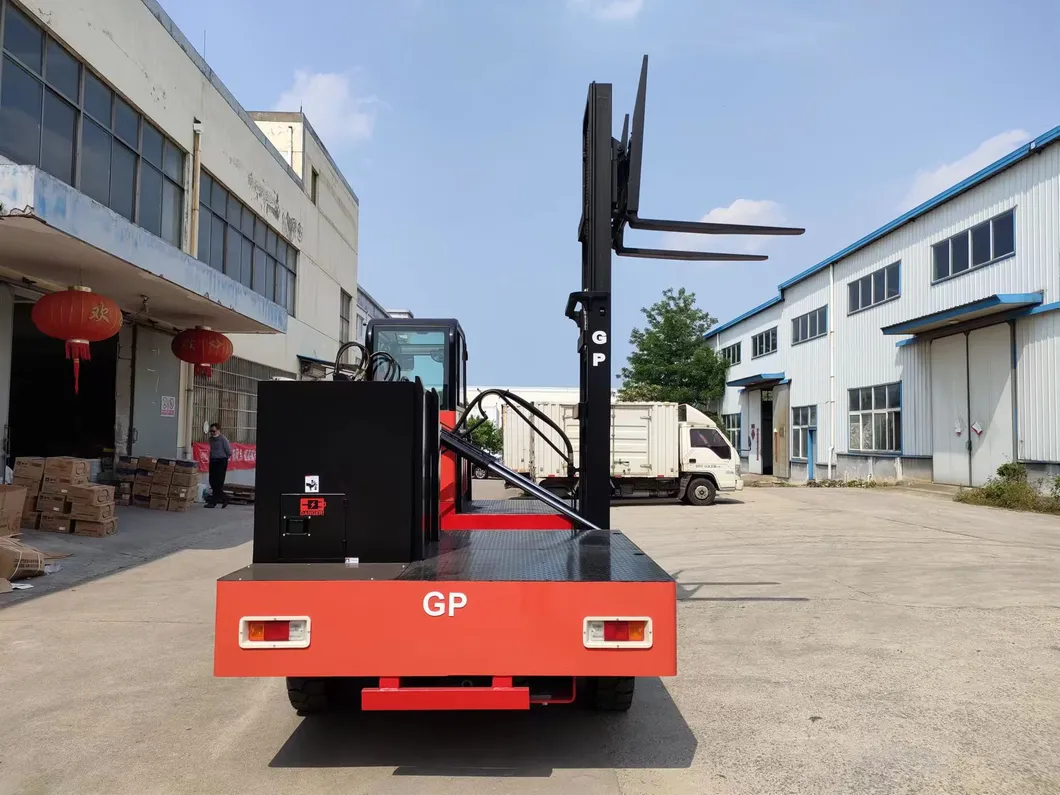

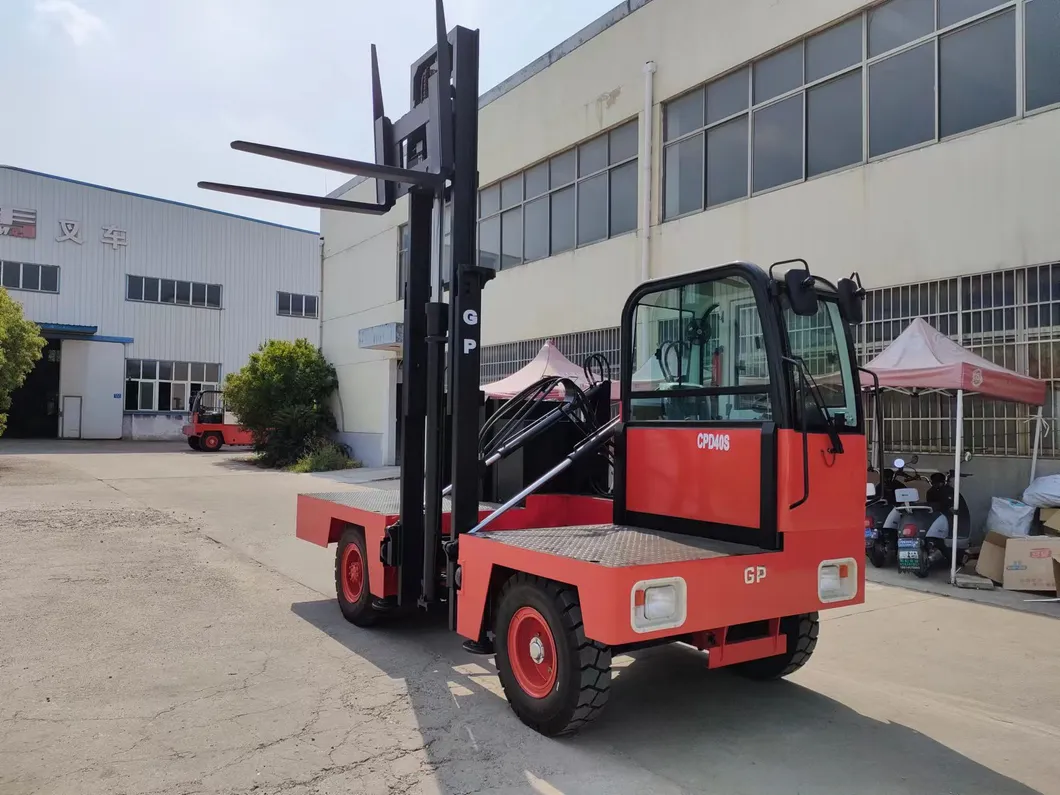

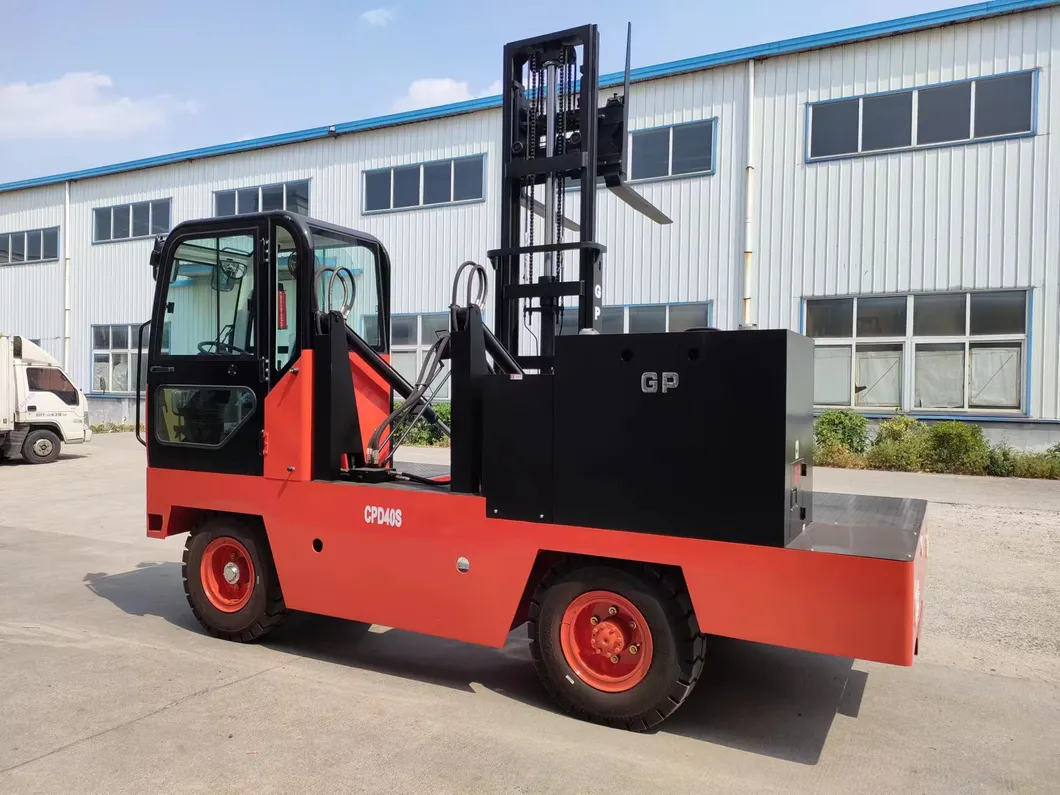

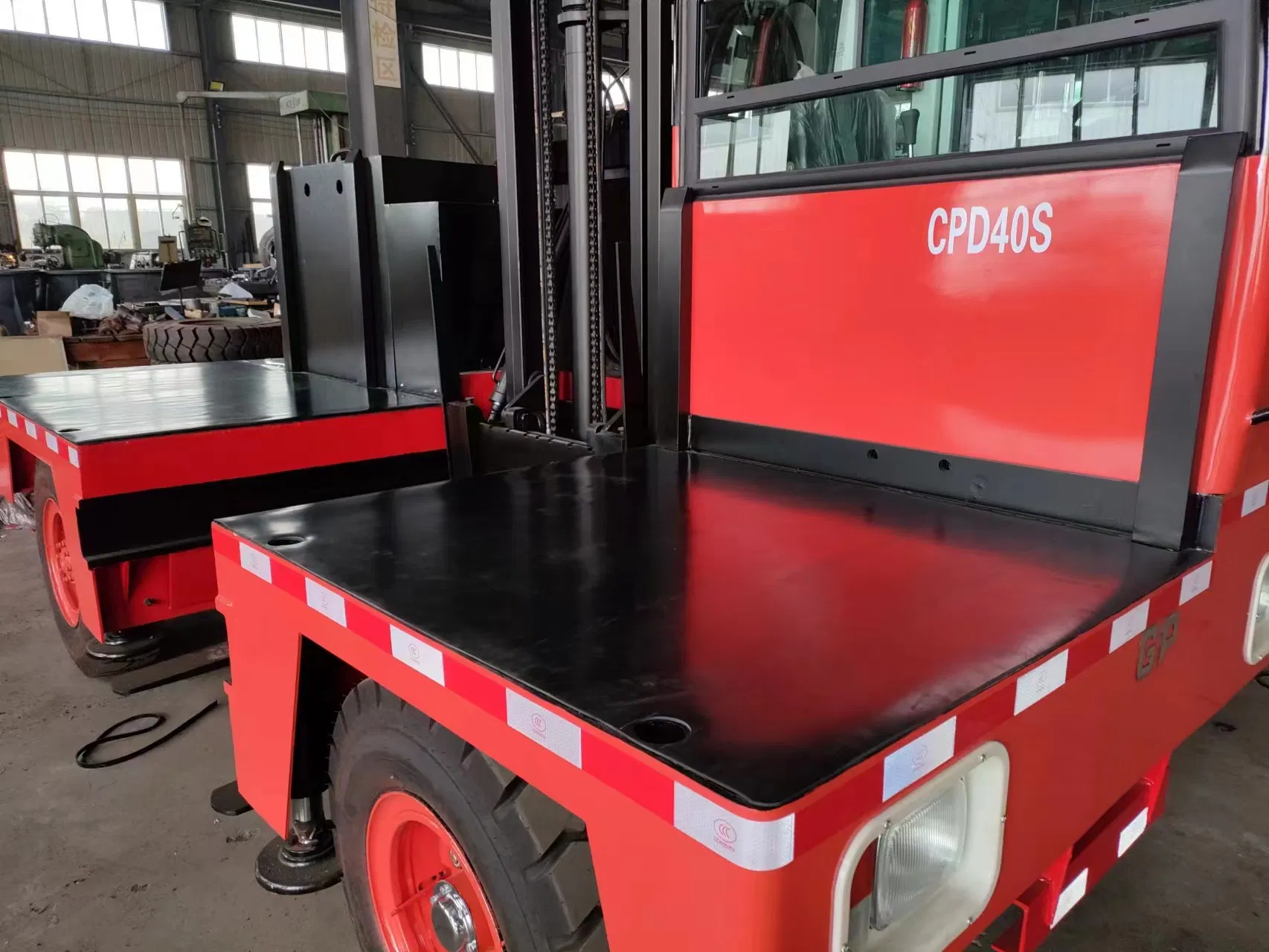

Detailed Photos

Our Advantages

Frequently Asked Questions

Q1: What are the main benefits of using a side forklift? A1: Side forklifts are ideal for handling long and bulky cargoes like timber or pipes in narrow aisles, significantly reducing the width of the passageway required.
Q2: Which controller system do these forklifts use? A2: Our electric side forklifts are equipped with high-quality USA Curtis controller systems for reliable performance.
Q3: What types of batteries are available? A3: Customers can choose between standard Lead Acid batteries or more efficient Lithium battery options.
Q4: What is the maximum lifting height? A4: The standard maximum lifting height for these models is 3500mm, though options between 3000mm and 5000mm are available.
Q5: Are the tires suitable for different terrains? A5: Yes, the trucks come with pneumatic tires, which provide good stability and performance on various industrial surfaces.
Q6: What industries commonly use these side loaders? A6: They are widely used in railway stations, oilfields, harbours, timber warehouses, and construction sites for handling over-length materials.
