| Model NO. | CPD30-B12 |
| Type | Electric Forklift |
| Power | AC Motor |
| Load Capacity | 1T - 5T (Rated 3000kg) |
| Fuel | Electric |
| Lift Height | >5000mm |
| Battery Voltage/Capacity | 80V/206ah |
| Driving Style | Sit Down |
| Minimum Turning Radius | 2450mm |

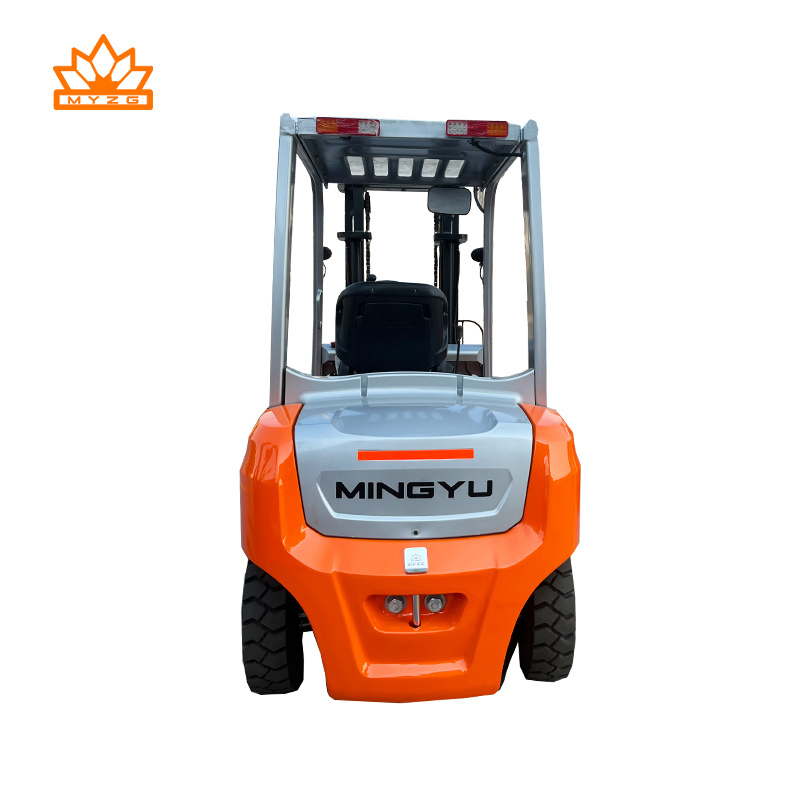

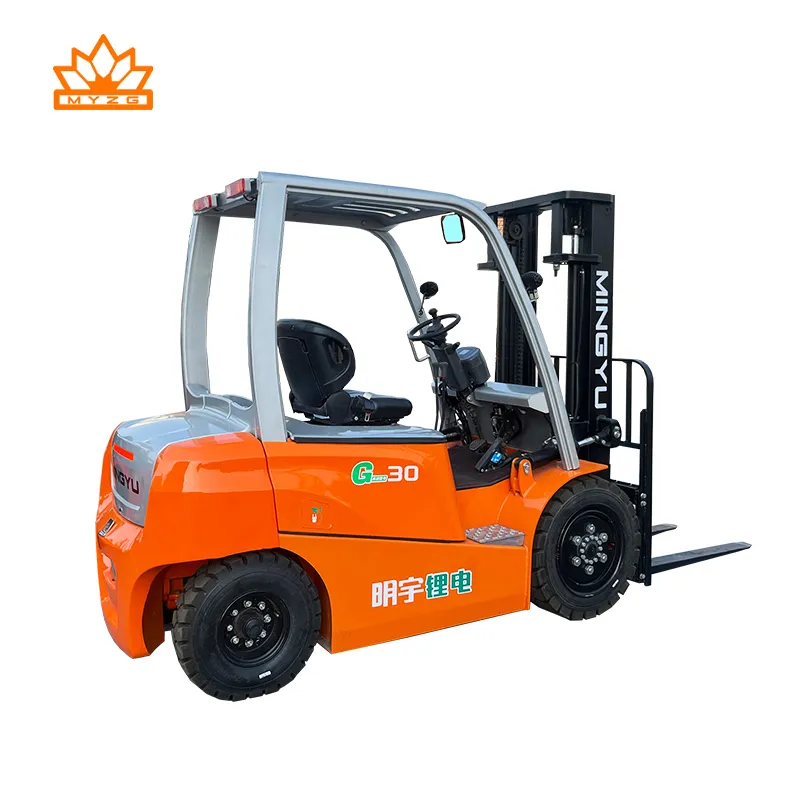

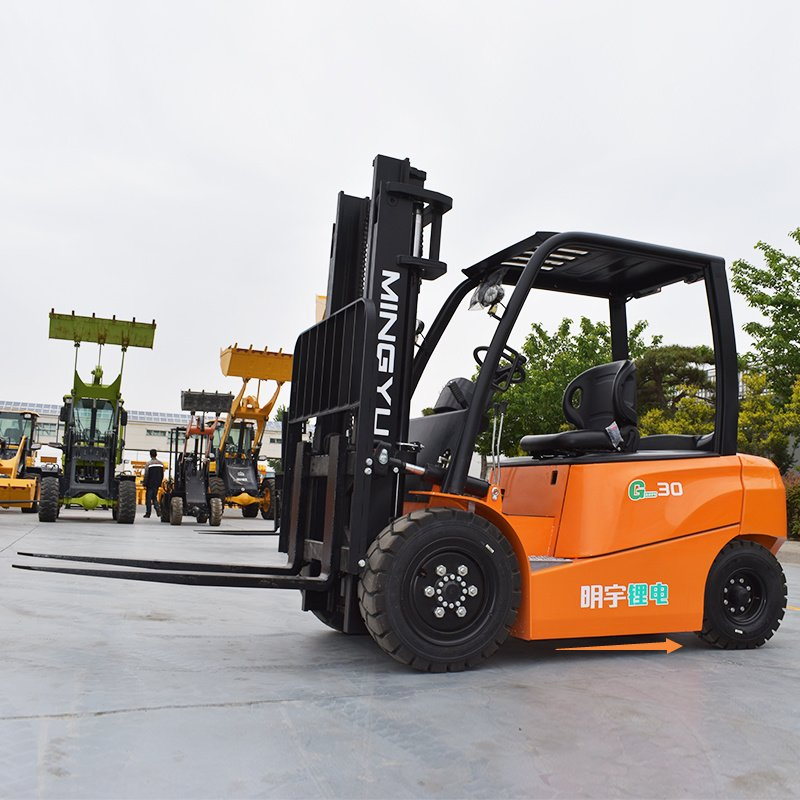

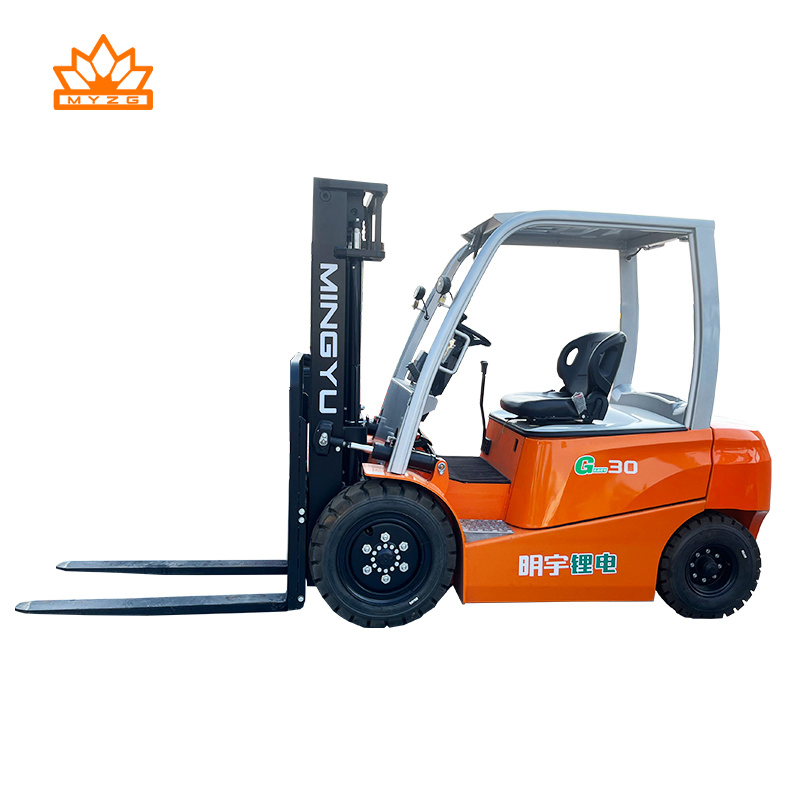

3Ton Small Electric Pallet Truck Lithium Battery Powered Pallet Truck Mini Forklift Used in Narrow Aisle Workshop
| Rated Load Lifting Capacity | 3000kg |
| Load Centre Distance | 500mm |
| Length (with fork) | 3710mm |
| Width | 1232mm |
| Overhead Guard Height | 2105mm |
| Max Height at Working | 4183mm |
| Standard Lifting Height | 3000mm |
| Max Travel Speed (Full Load) | 12Km/h |
| Max Lifting Speed (Full Load) | 300mm/s |
| Tyre Size (Front) | 28x9-15 |
| Tyre Size (Rear) | 6.50-10 |
| Drive Motor Power | 10Kw |
| Oil Pump Motor Power | 12Kw |

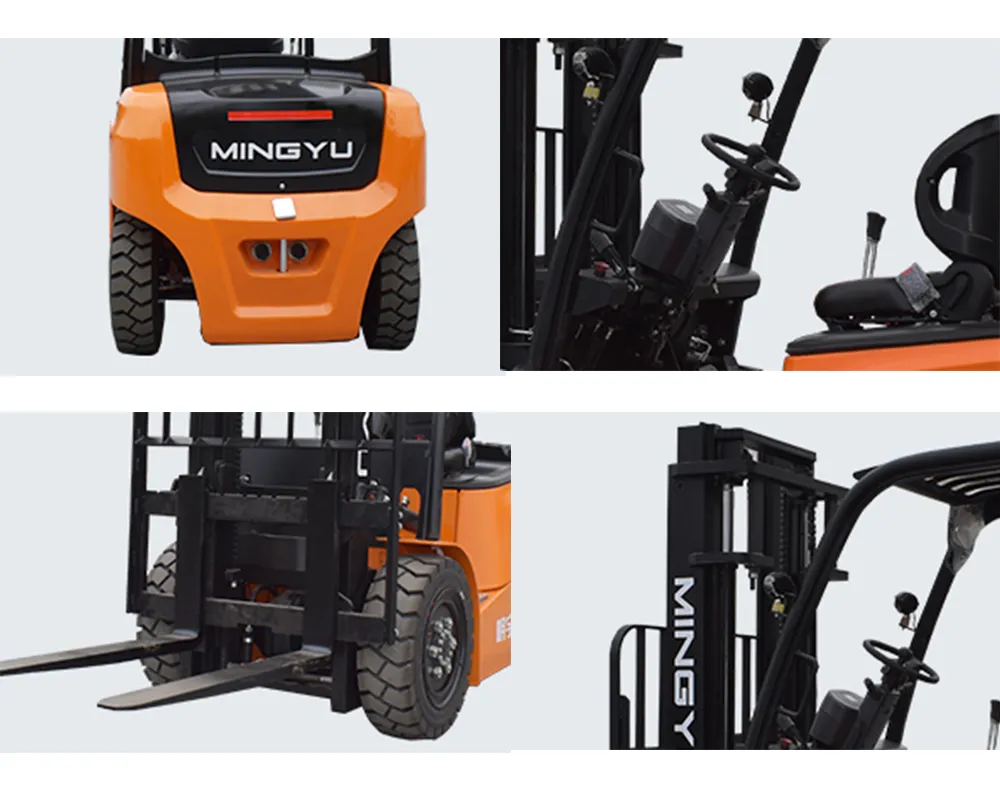

Enhanced Safety
LED work lights and warning lights for poor lighting; new overhead guard protective device; thicker reinforcing plates for maximum efficiency.Ease of Operation
Single chain technology with reinforced load backrest provides an excellent and wider field of vision for the operator.Ergonomic Comfort
New suspension adjustable seat; step area is 1.5 times larger than standard forklifts with a lower step height.Durable Construction
Sunken tilt cylinder builds a broader flat floor; alloy copper sliders reduce abrasion; thicker steering axle bridge deck.

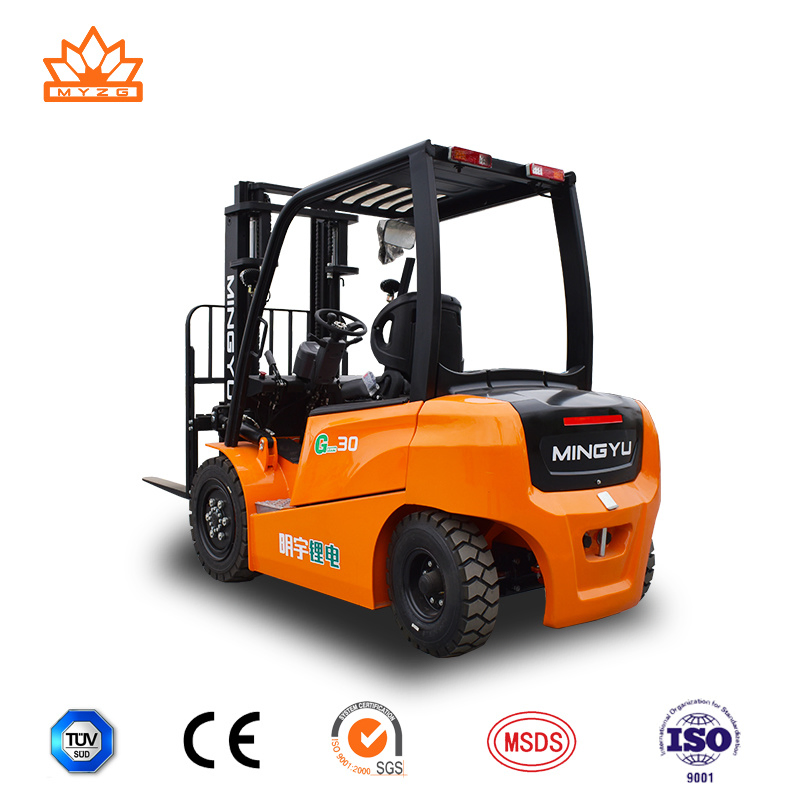

Passed ISO international system and EU CE certification. Guaranteed quality for international export.

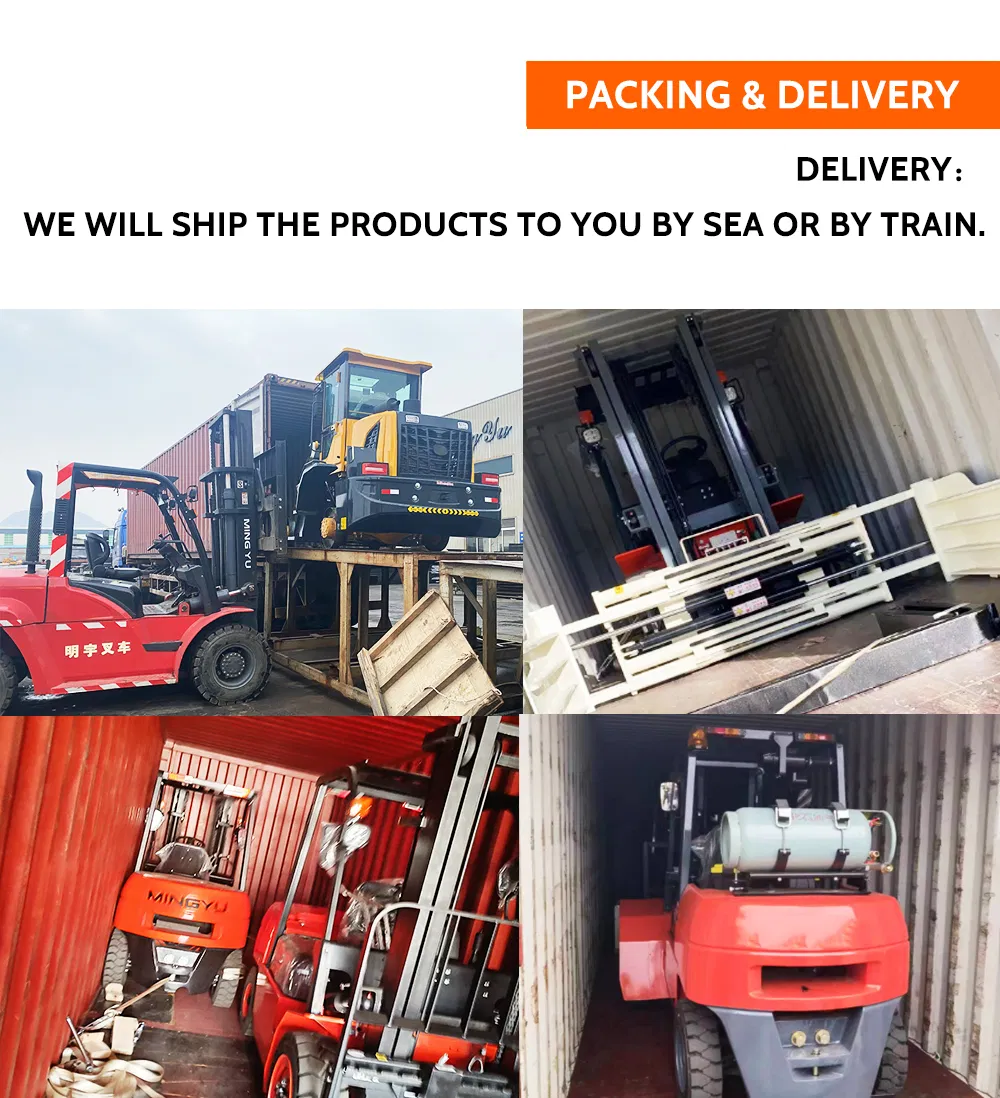

| Package Size | 380.00cm * 130.00cm * 220.00cm |
| Package Gross Weight | 4200.000kg |

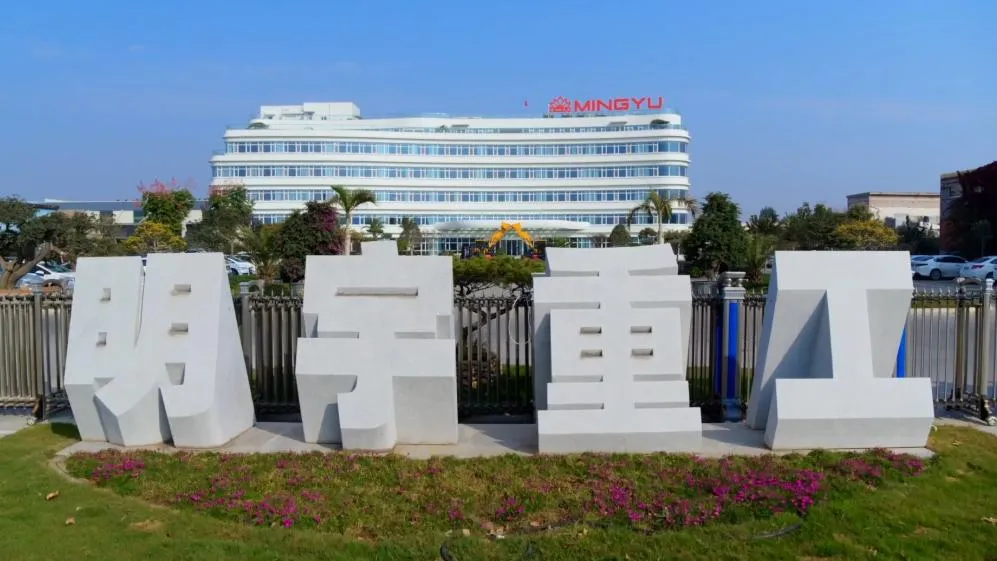

Founded in 1996, our facility stands at the forefront of the Chinese small heavy machinery industry. Every machine undergoes rigorous testing to ensure qualified delivery to customers.

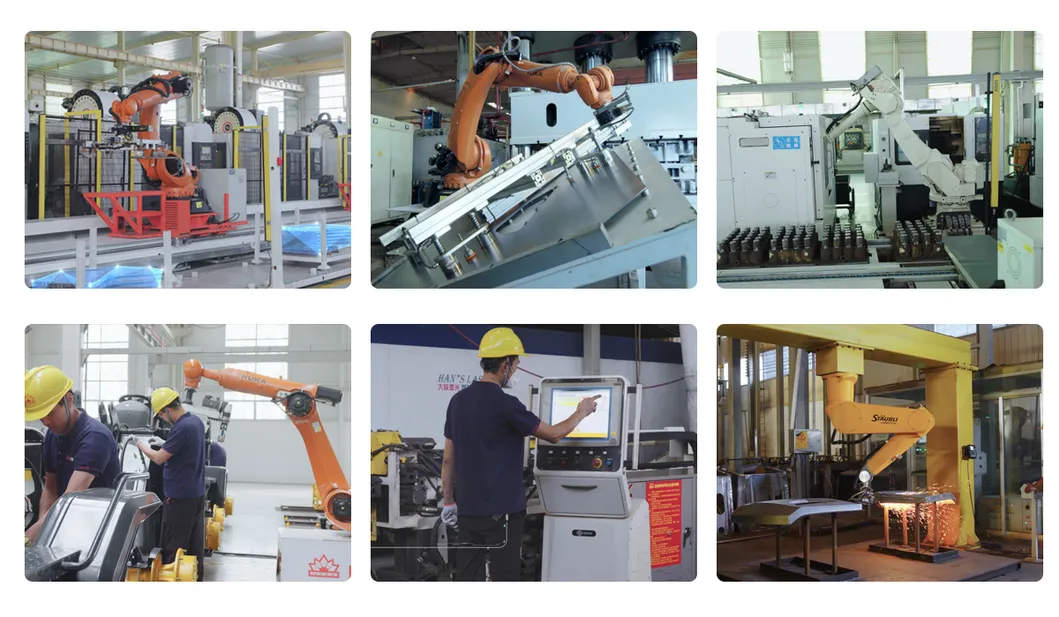

We operate 12 modern production workshops with an annual capacity of 80,000 units per workshop. Utilizing advanced scientific research, intelligent inspection systems, and automated production, we build high-quality industrial digital solutions. Our parts service life is significantly higher than ordinary products due to strict quality supervision.
The entire production process is controlled by an ERP system. Our machines are exported to more than 130 countries, utilizing reputable engine brands like Quanchai, Deutz, Mitsubishi, Yanmar, and Isuzu.

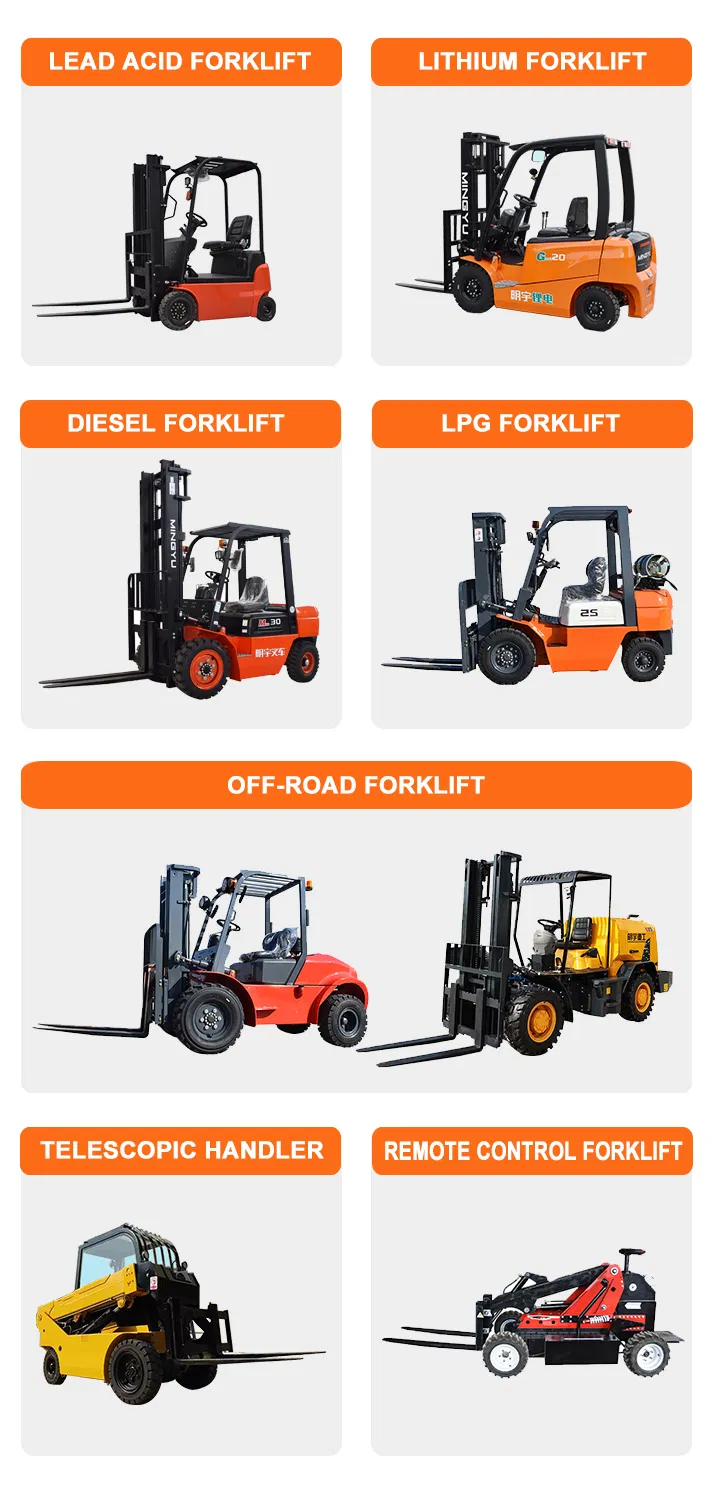

Other power options can be selected
