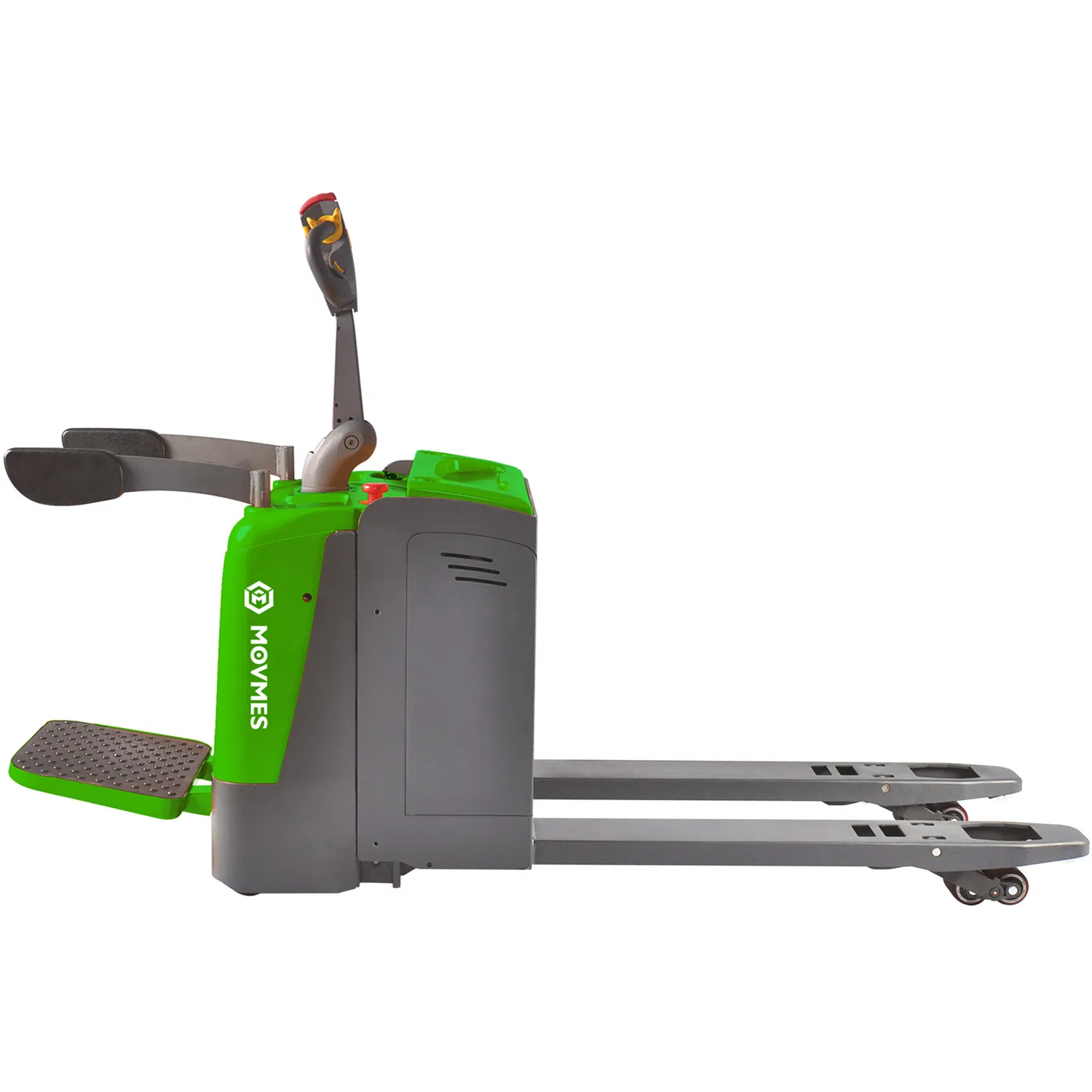

3.0 Ton Electric Pallet Walkie Rider Power Jack Motor Pallet Truck

1 / 5

3.0 Ton Electric Pallet Walkie Rider Power Jack Motor Pallet Truck

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

CBD30R-II

Type

Powered Pallet Truck

Power

AC Motor

Load Capacity

3.0 Ton

Fuel

Electric

Load center

600 mm

Lift height

202 mm

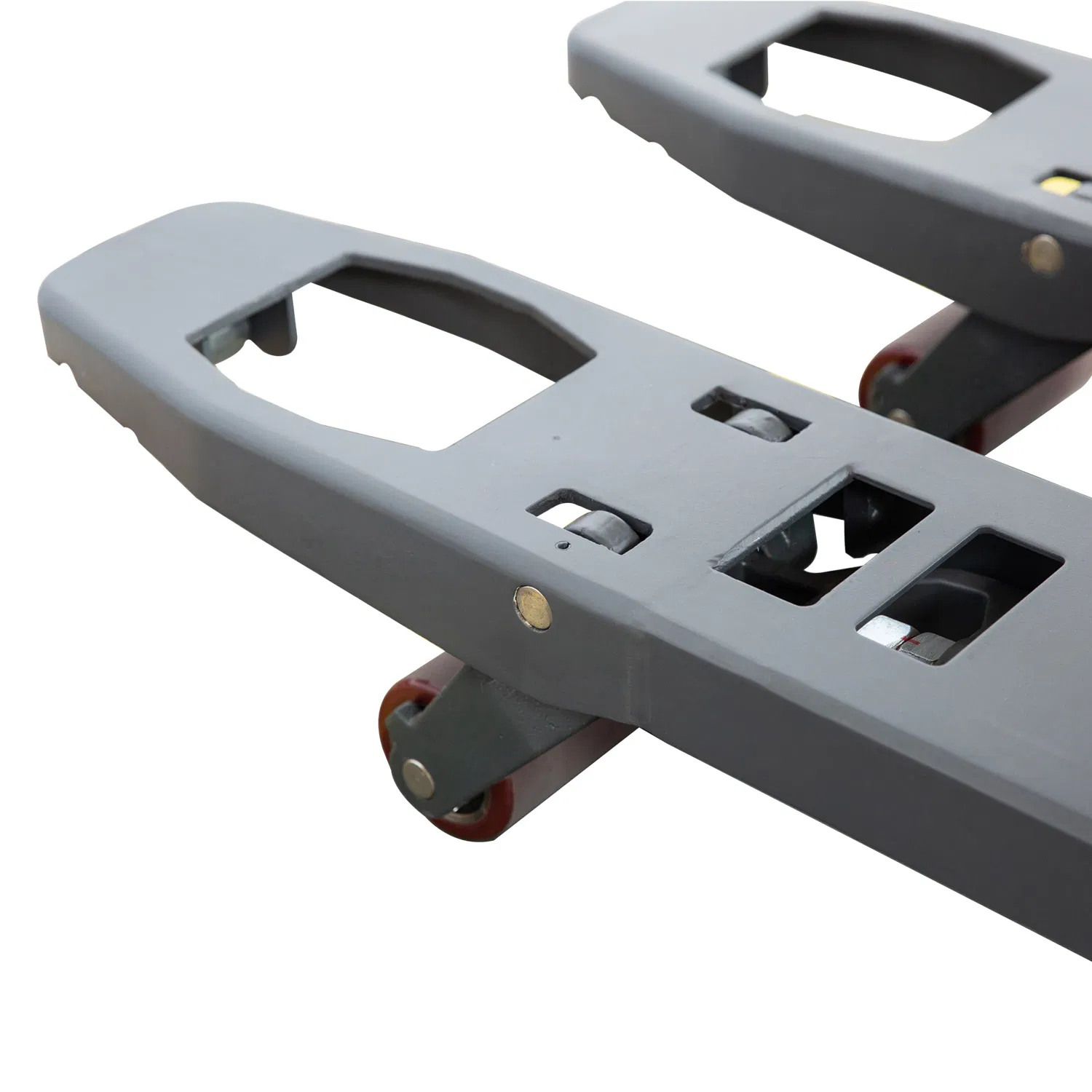

Fork Dimensions

54X180X1100 mm

Turning Radius

1550/1600/1670 mm

Battery Voltage

24V / 240(280)Ah

Product Description

3.0 Ton Electric Pallet Walkie Rider Power Jack Motor Pallet Truck

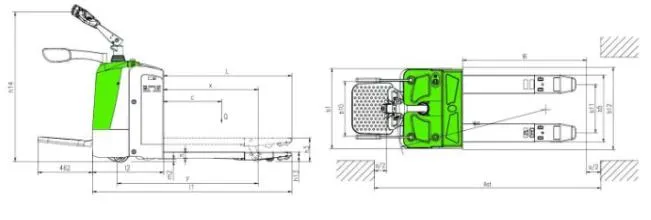

Technical Parameters

Model	Unit	CBD20R-II	CBD25R-II	CBD30R-II
Load capacity	Q(kg)	2000	2500	3000
Load center distance	c(mm)	600	600	600
Fork height, lowered	mm	82	82	82
Tyre size, front	mm	Dia250x70	Dia250x70	Dia250x80
Max. lift height	mm	202	202	202
Overall length	mm	1710/1760/1830	1710/1760/1830	1785/1835/1905
Travel speed, laden/unladen	Km/h	7/7.1	7/7.1	9/9.2
Service weight (with battery)	Kg	720	750	780

Design & Advantages

The stand-on type platform pallet truck features a small turning radius and a super light steering system. It is widely used in large warehouses and big supermarkets for medium-distance transport. Our professional design team is committed to improving work efficiency, reducing safety risks, and optimizing customer utilization.

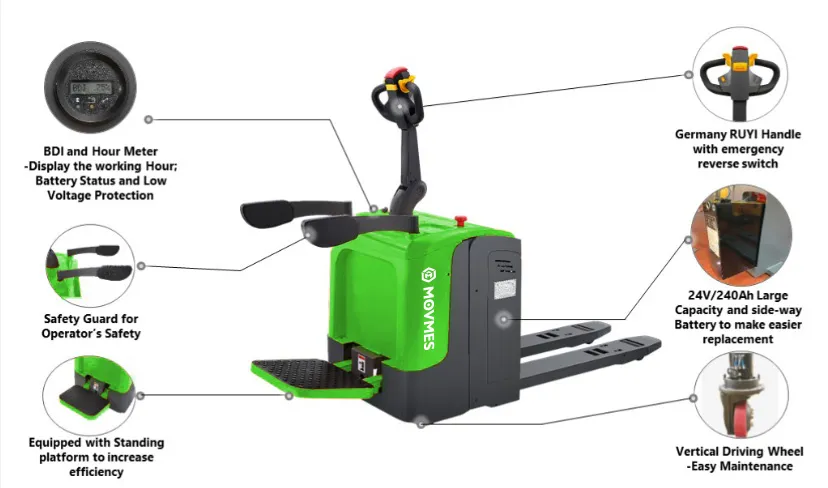

Standard Features

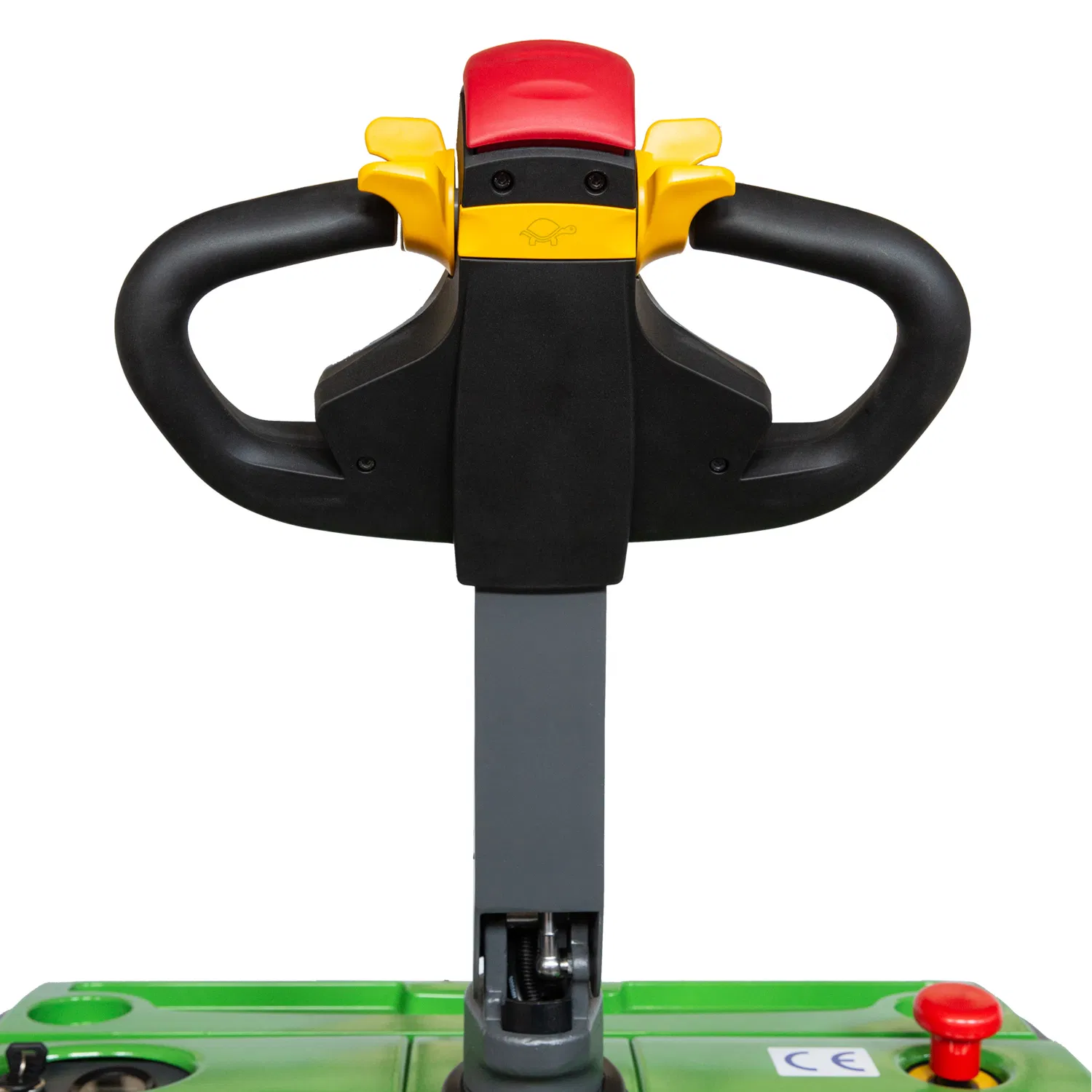

Ergonomic handle

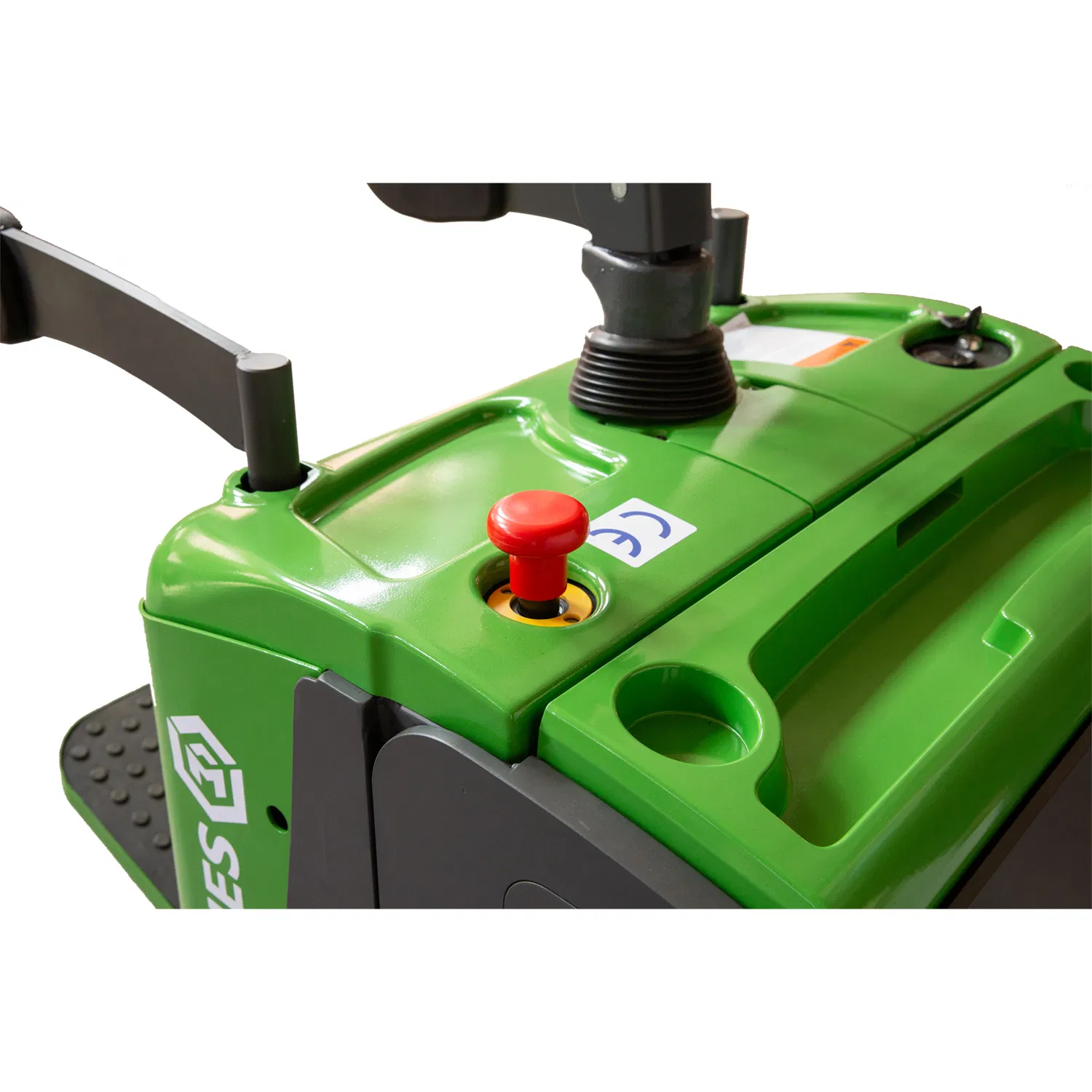

Emergency stop & belly button
BDI and hour meter
Casters for balance stability
Brushless AC motor

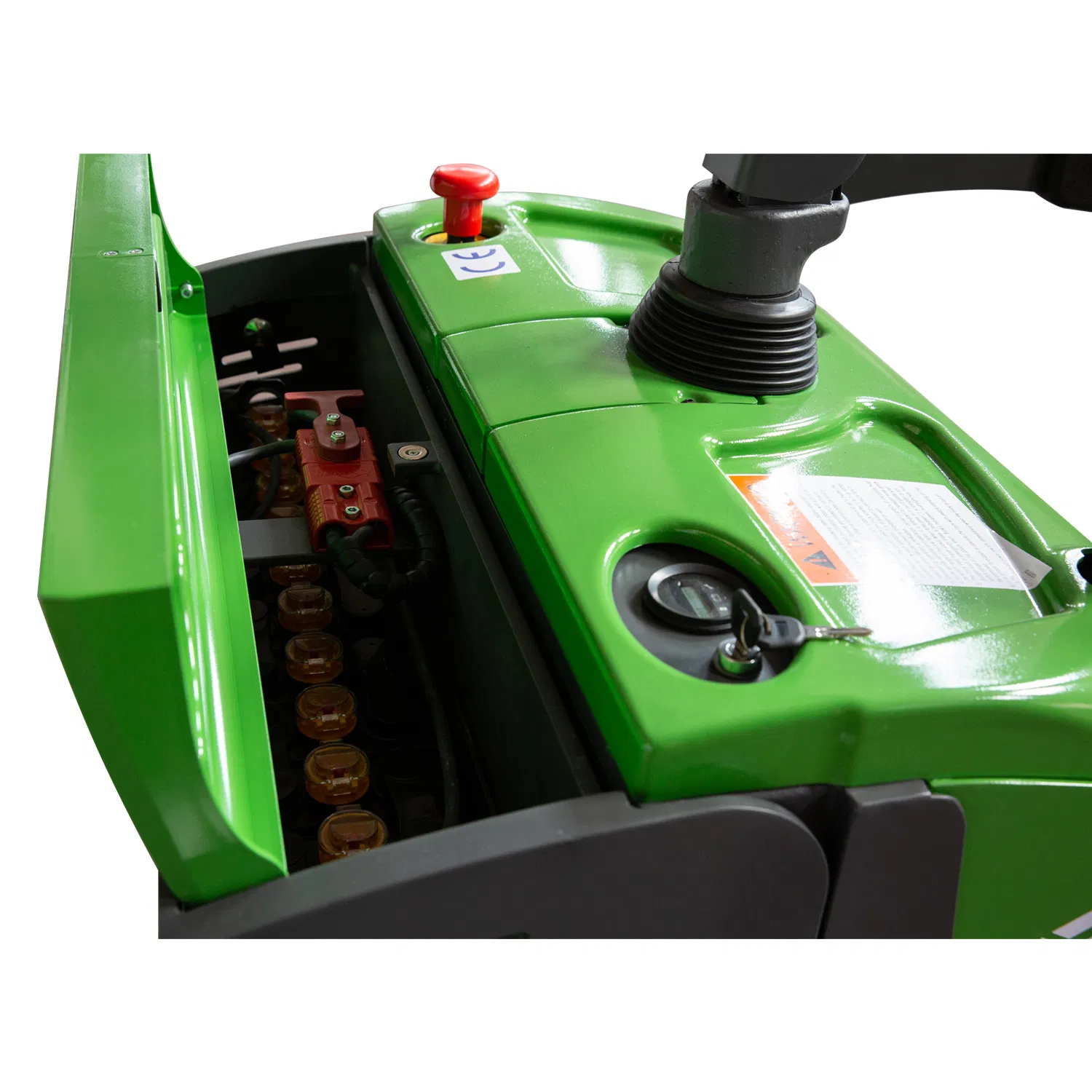

Sideway battery change

Optional Configurations

Customized fork width and length
Load backrest
Cold storage modification
EPS (Electric Power Steering)
Large capacity battery (Up to 400Ah)

★

Related Hot Sales

Quality Control & Feedback

Certifications:

ISO9001:2008 Quality Management | ISO14001:2004 Environmental Management | OHSAS18001:2007 Safety Management. Products meet CE standards EN3691-5:2014 and EN3691-1:2012.

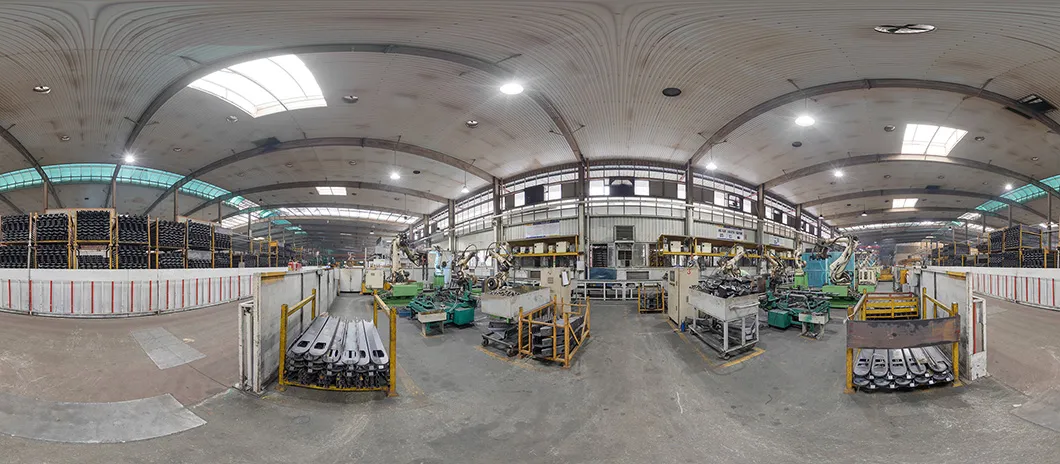

Testing & Packing

Strengthening test detection
Stability detection
Climbing performance and current testing
Braking performance debugging
Technical parameter verification

Each truck is carefully packaged according to delivery requirements. Producing time is usually 15-20 days after payment.

Frequently Asked Questions

How long is the continuous working time and charging time?

The continuous working time is approximately 3-6 hours depending on the battery volume. It usually requires 3-6 hours for a full charge.

What are the specifications for the chargers?

Our chargers are available in 24V and 48V. Power plugs can be configured to USA, UK, Australia, or European standards. The side-way battery system allows for easy replacement.

Can you provide customized, OEM, or ODM products?

Yes, we have professional experience in developing warehouse equipment since 1985 and have provided OEM services for many international brands.

What is the warranty period for these electric trucks?

We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.

What kind of testing is performed before delivery?

Every unit undergoes five core tests: strengthening detection, stability testing, climbing performance, braking performance, and technical parameter verification.

What is the typical production lead time?

Standard production time is between 15 to 20 days. For common models, we may have stock available for immediate delivery.
