IDD Motion
1 / 5
| Configuration Type | Standard / Optional Specifications |
|---|---|
| Controller | CURTIS Controller |
| Power System | 24V AC Power / 48V Options |

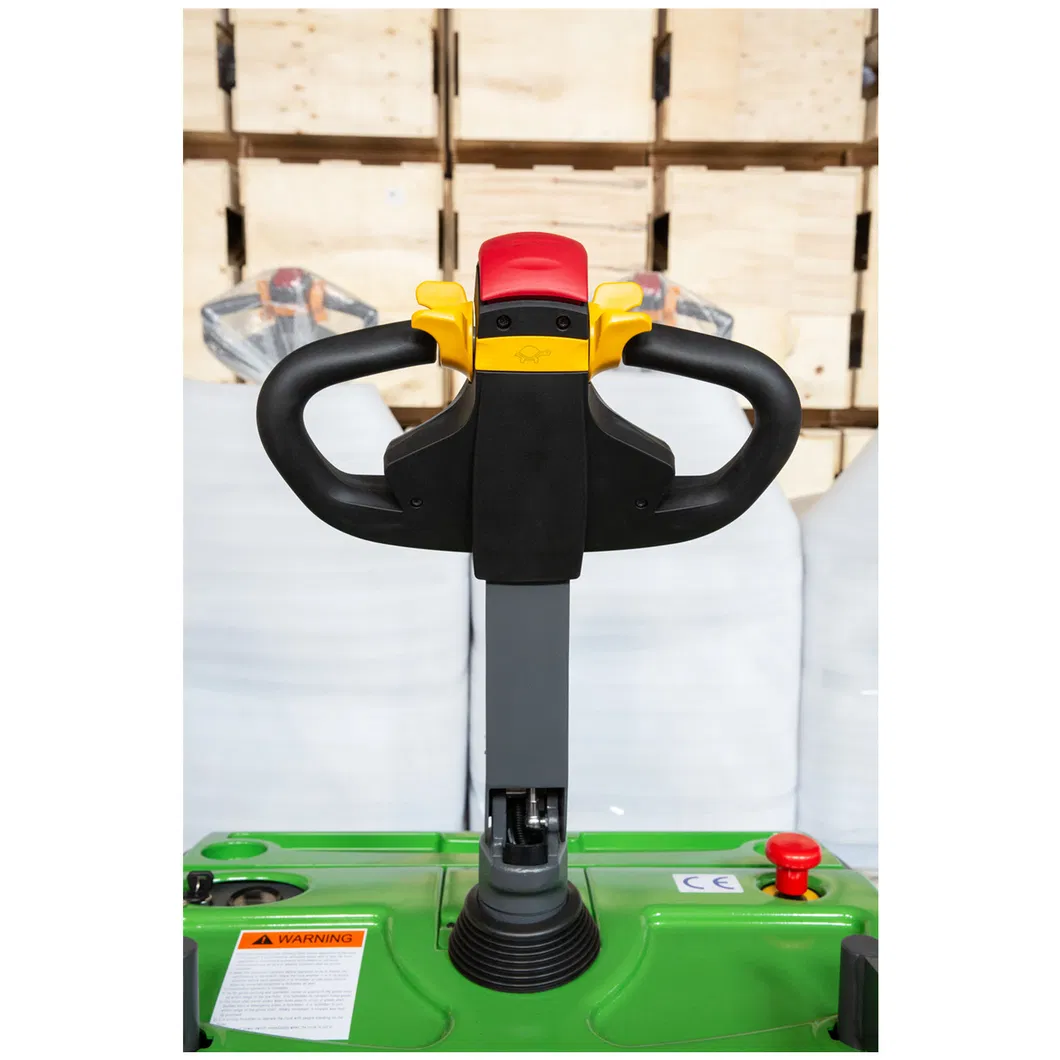

| Tiller Handle | Ergonomic RUYI Tiller |

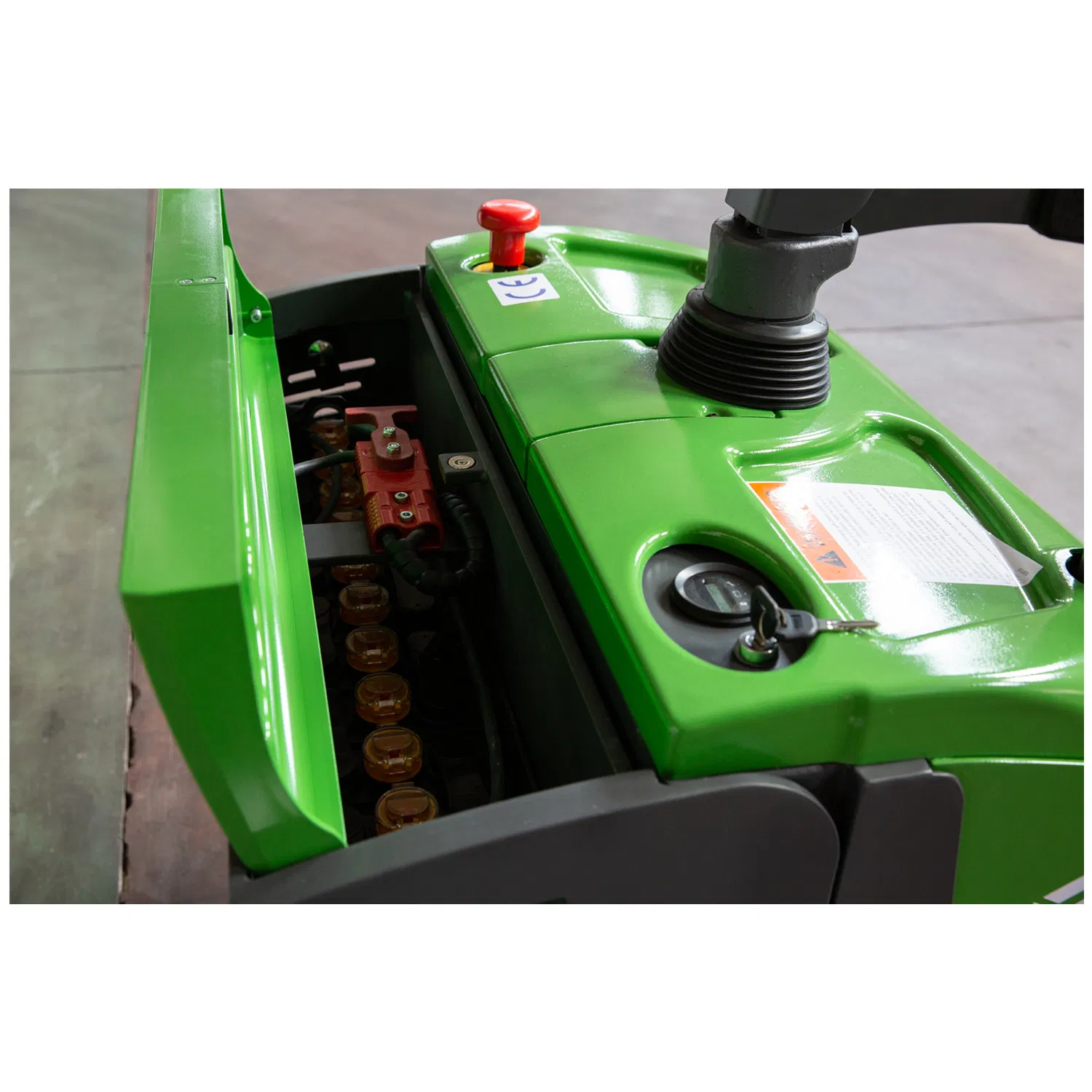

| Battery (Standard) | 24V 240AH Lead-Acid Battery |
| Charger | 24V 30A External Charger |
| Steering | EPS (Electric Power Steering) |
| Lithium Option | Lithium 24V225AH with 24V100A Fast Charger |
| Fork Options | Length 1220mm - 2440mm |
| Model | CBD20R-II | CBD25R-II | CBD30R-II |
|---|---|---|---|
| Load capacity Q(kg) | 2000 | 2500 | 3000 |
| Load center c(mm) | 600 | 600 | 600 |
| Fork height, lowered (mm) | 82 | 82 | 82 |
| Max. lift height (mm) | 202 | 202 | 202 |
| Overall width b1(mm) | 775 | 775 | 775 |
| Travel speed, laden/unladen (Km/h) | 7/7.1 | 7/7.1 | 9/9.2 |
| Battery voltage (V/Ah) | 24/210 | 24/240 | 24/240 |
| Service weight (kg) | 720 | 750 | 780 |

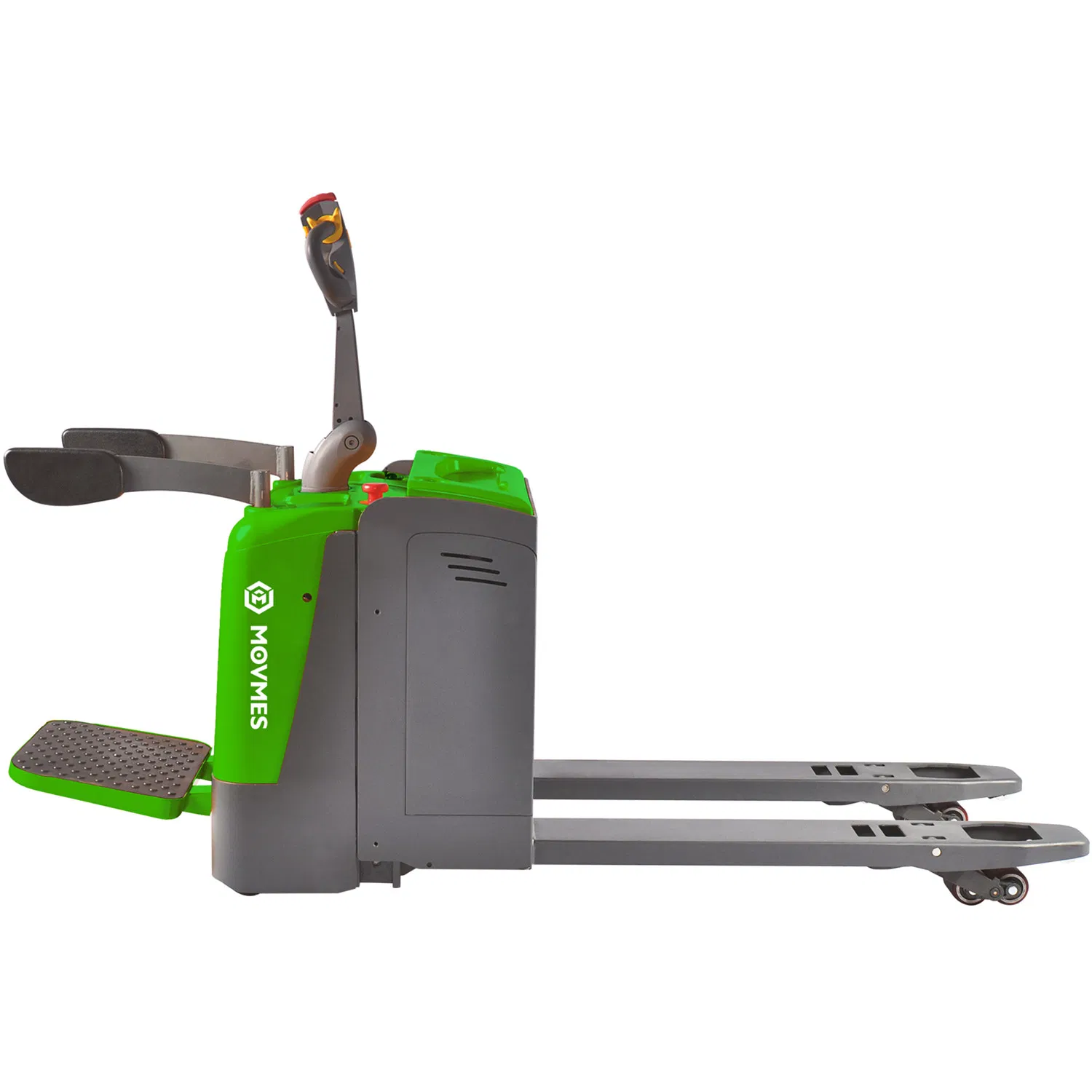

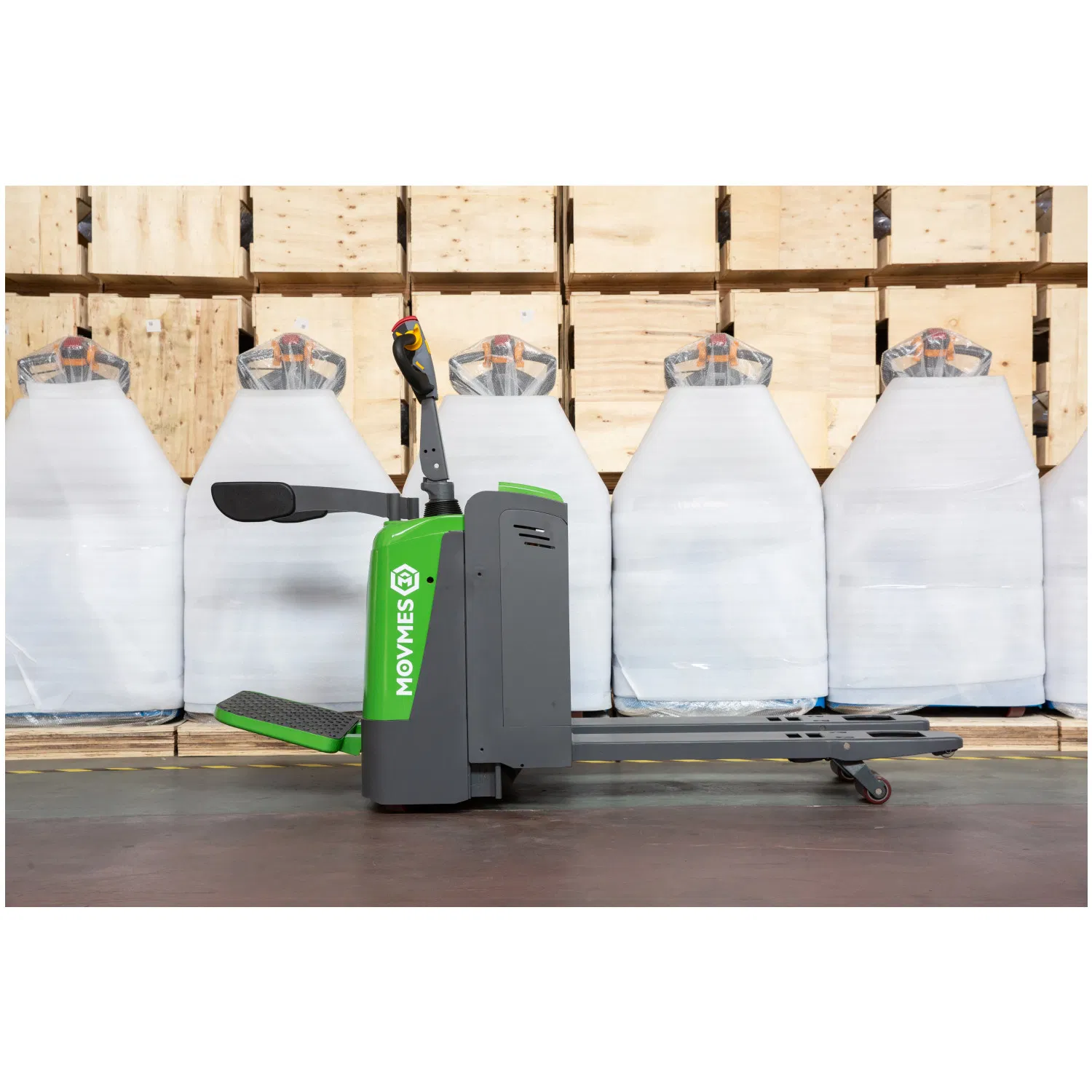

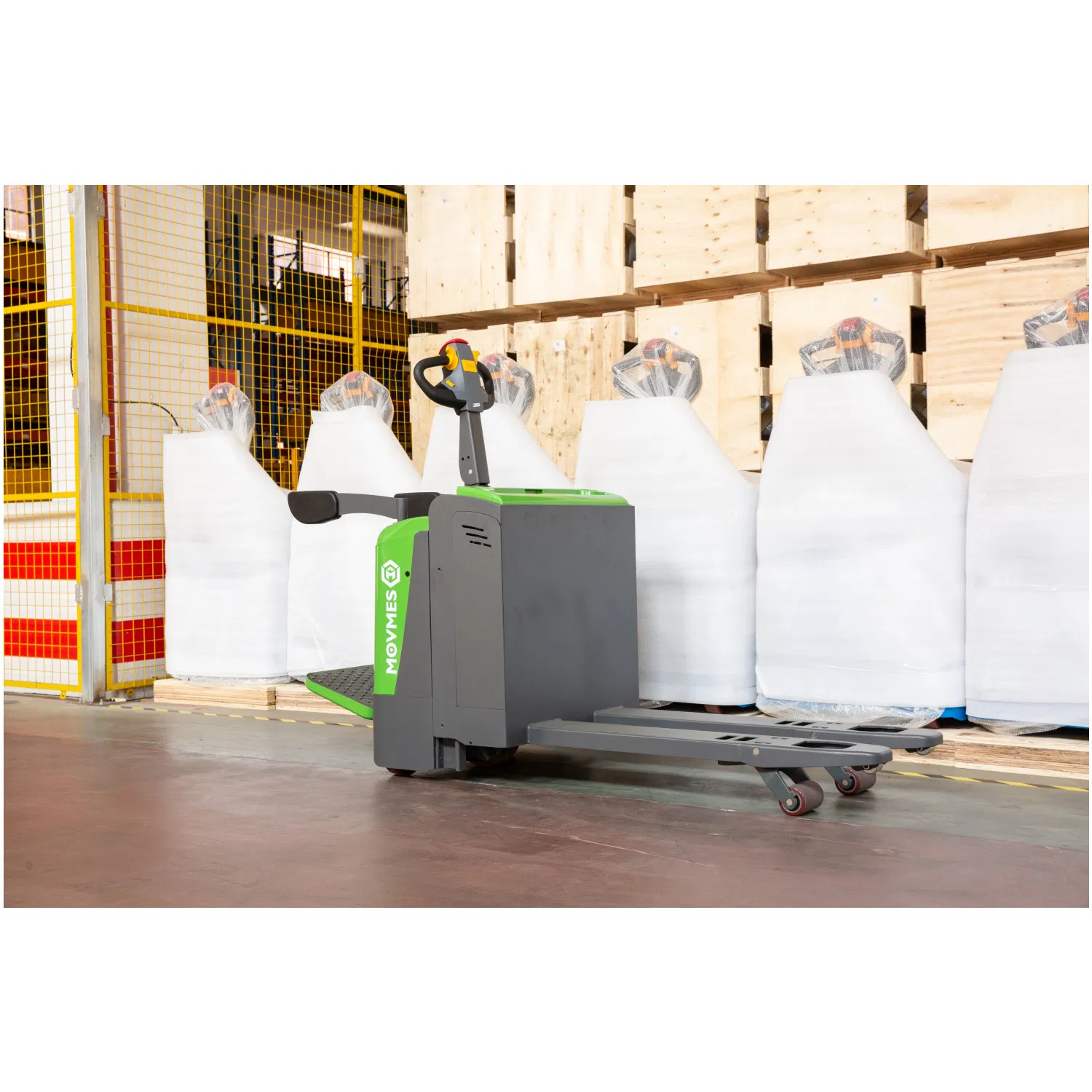

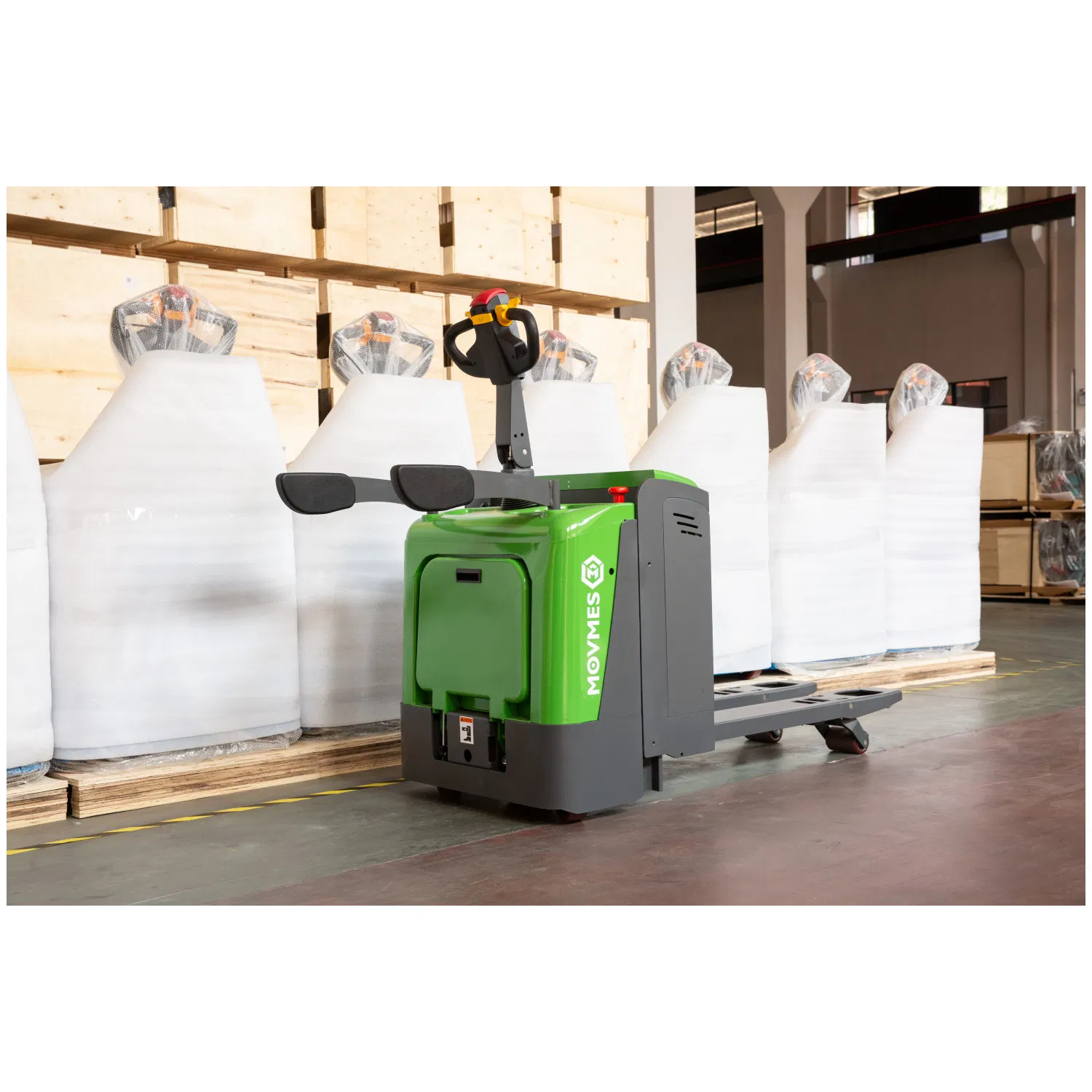

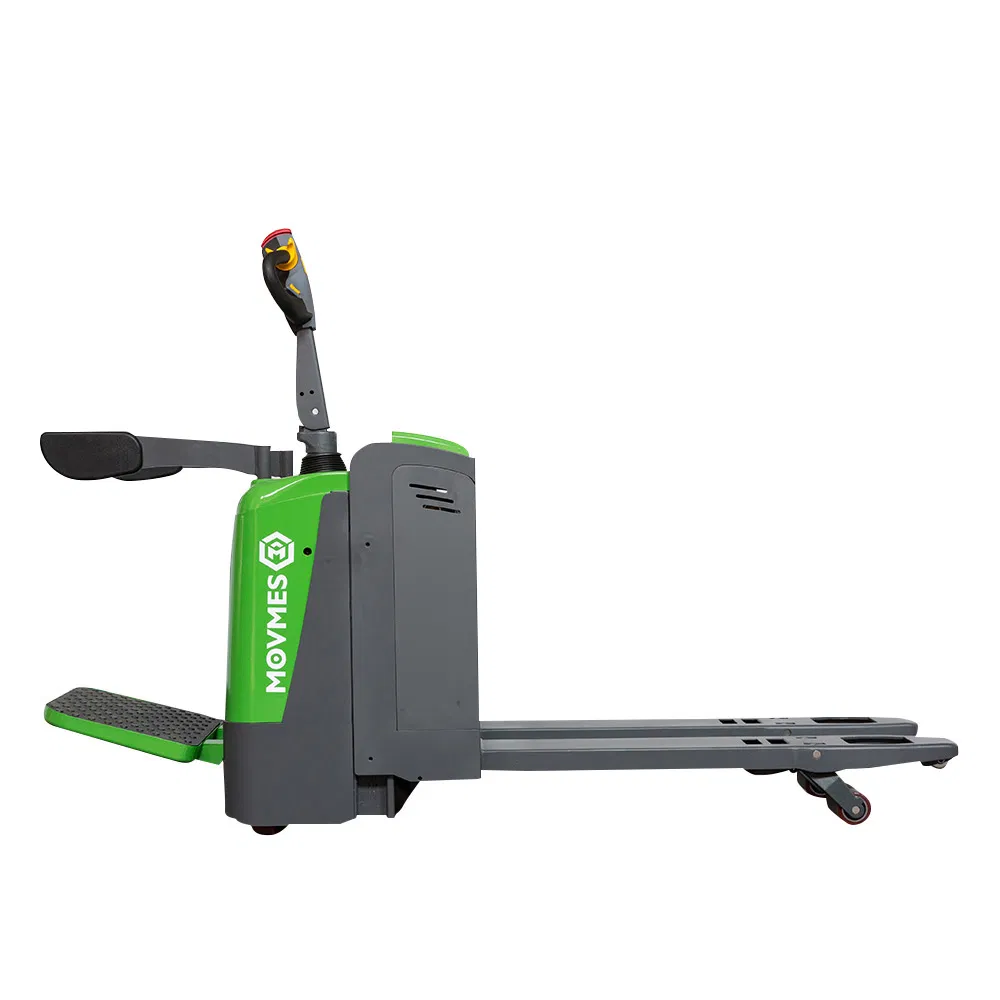

The rider-type platform pallet truck features a small turning radius and super light steering system, ideally suited for large warehouses and supermarkets.
