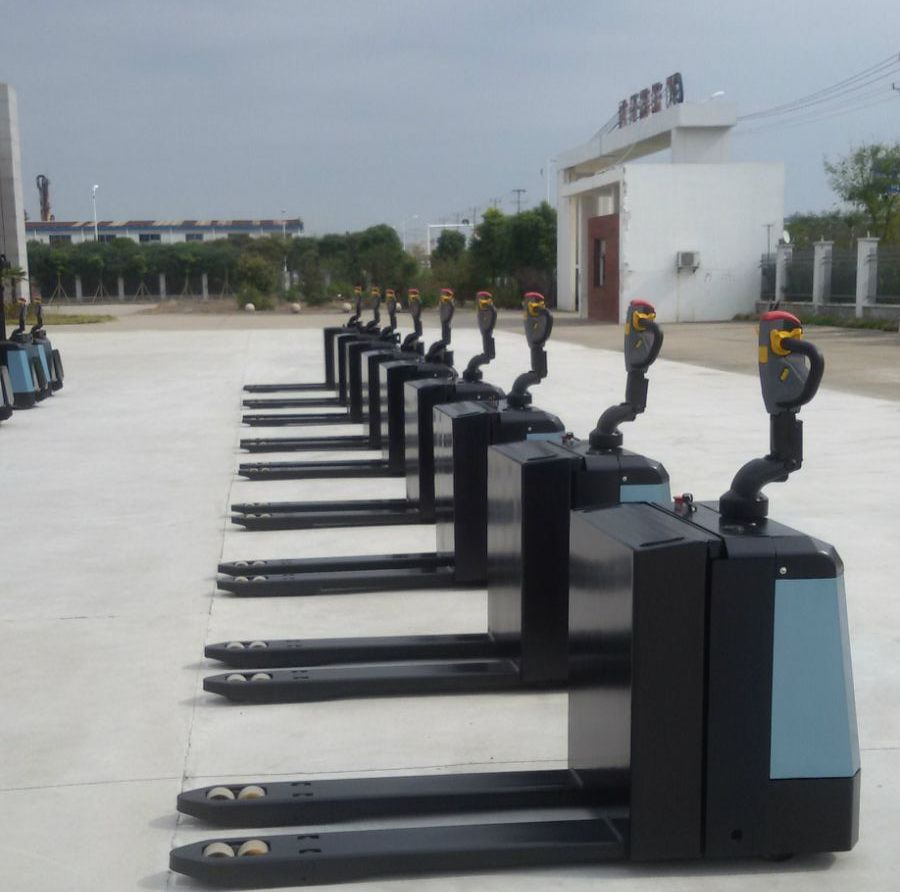

2t Full Electric Rider Pallet Truck with EPS System

1 / 5

2t Full Electric Rider Pallet Truck with EPS System

Customization:	Available
After-sales Service:	18 Months
Warranty:	18 Months

Send Inquiry

Product Description

ℹ

Basic Info.

Model NO.

EPG112

Cab Location

Not Adjustable

Type

Powered Pallet Truck

Power

DC Motor

Load Capacity

2000kg

Fuel

Electric

Load Center

>500mm

Lift Height

200mm

Condition

New

Wheel Type

Turning Radius

1490mm

Brake Type

Electromagnetic

Battery

24V/200ah

Controller

Curtis

Specification

Production Capacity

300 Units/Month

📦

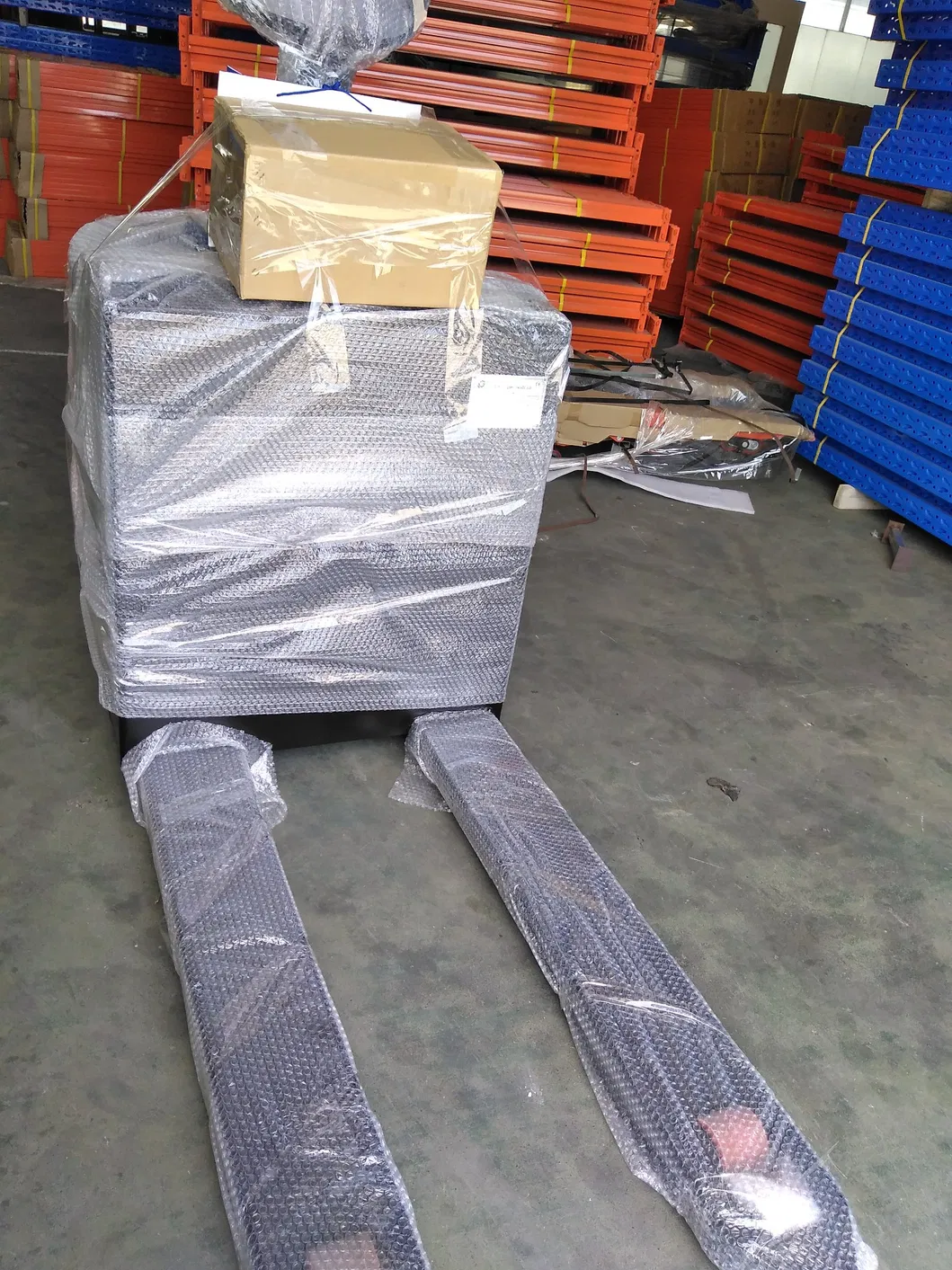

Packaging & Delivery

Package Size

180.00cm * 145.00cm * 140.00cm

Package Gross Weight

3450.000kg

⭐

Product Advantages

Low noise and low energy consumption (only 2 kwh per day)
USA CURTIS controller with multiple automatic protections
Compact body design, ideal for narrow space operations
Maintenance-free sealed batteries for safe, pollution-free use
Stepless speed control system for easy operation
Automatic lifting limit for safety and energy saving
Emergency reversing device and emergency brake switch

📊

Technical Parameters

Feature	Model Detail	Unit	Data
General	Model	-	EPG220
	Operating type	-	Walkie
	Load capacity	kg	2000
	Load center	mm	600
Weight	Self-weight with battery	kg	205
Wheel	Wheels type	-	PU
Dimensions	Min. height of fork	mm	85
	Overall length	mm	1600
	Overall width	mm	560/685
	Turning radius	mm	1475
Performance	Travel speed (laden/unladen)	Km/h	3.5/4
	Gradeability (laden/unladen)	°	2/6
	Brake	-	Electromagnetic / Regenerative
Electric	Drive motor	kw	0.6
	Lift motor	kw	0.8
	Controller	-	CURTIS (USA)

🛠

Technical Features

1. Integrated motor drive system with electromagnetic brake; vertical arrangement motor for low heat and reliable performance.
2. Integrated hydraulic power unit combining motor, valve, and pump for smooth, noise-reduced operation.
3. MOS tube electronic control for stepless speed regulation and thermal protection.
4. High-capacity 430Ah batteries for extended working cycles and improved efficiency.
5. Four-link mechanism fork lifting system ensures manufacturing accuracy and operational reliability.
6. Spacious operating handrails and anti-slip platform provide enhanced safety for operators.
7. Designed using advanced 3D software for optimized system integration.
8. Modern industrial styling for a professional and creative appearance.
9. All wheels utilize high-quality imported polyurethane parts.

🖼

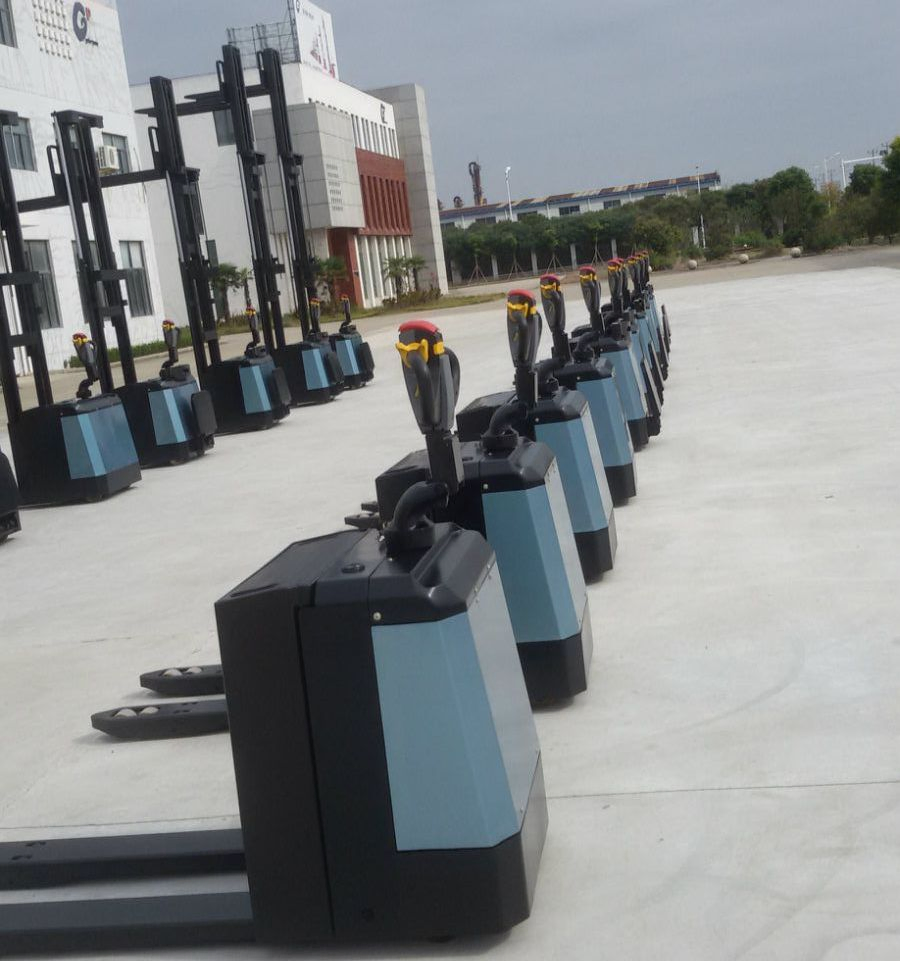

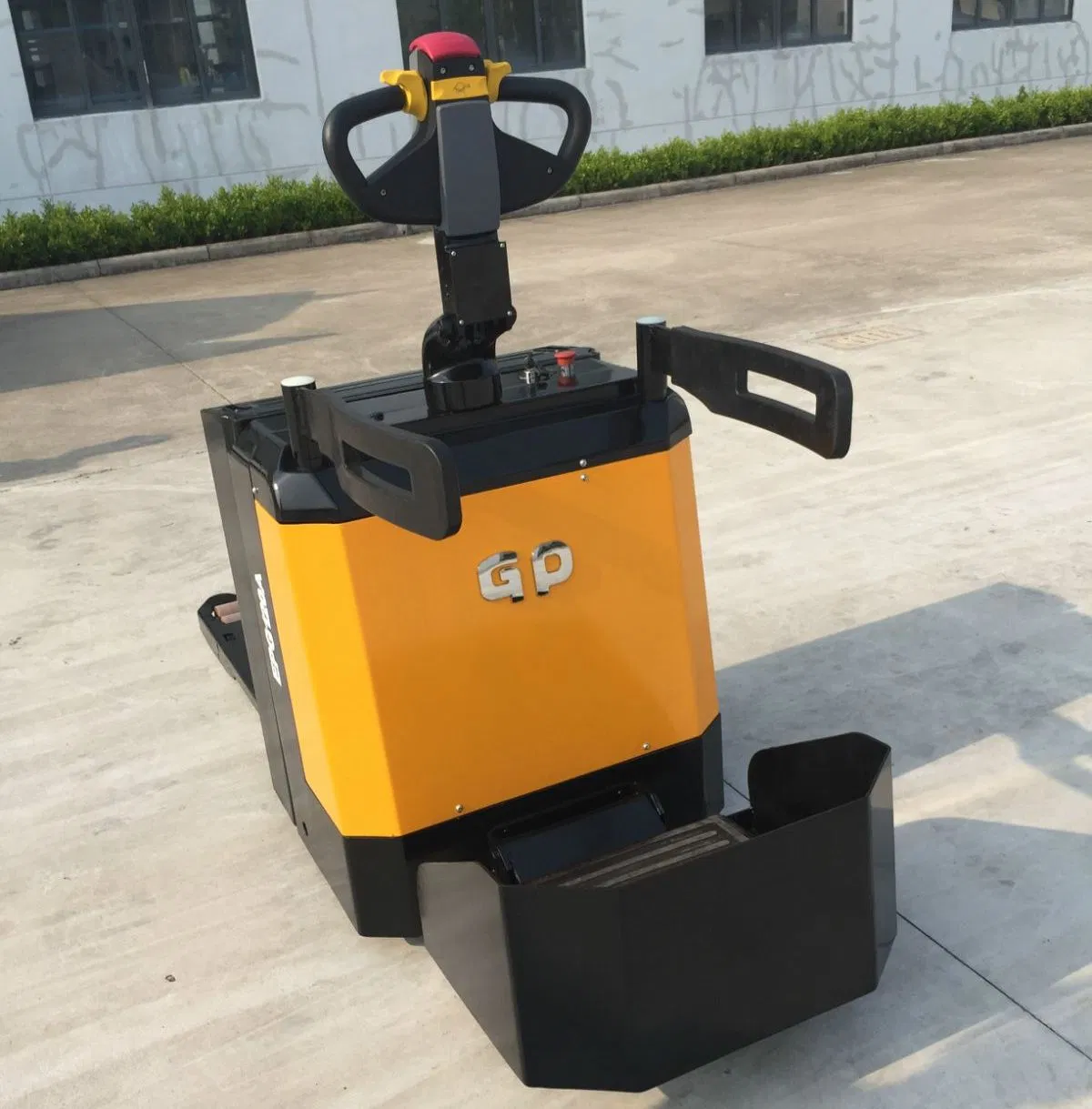

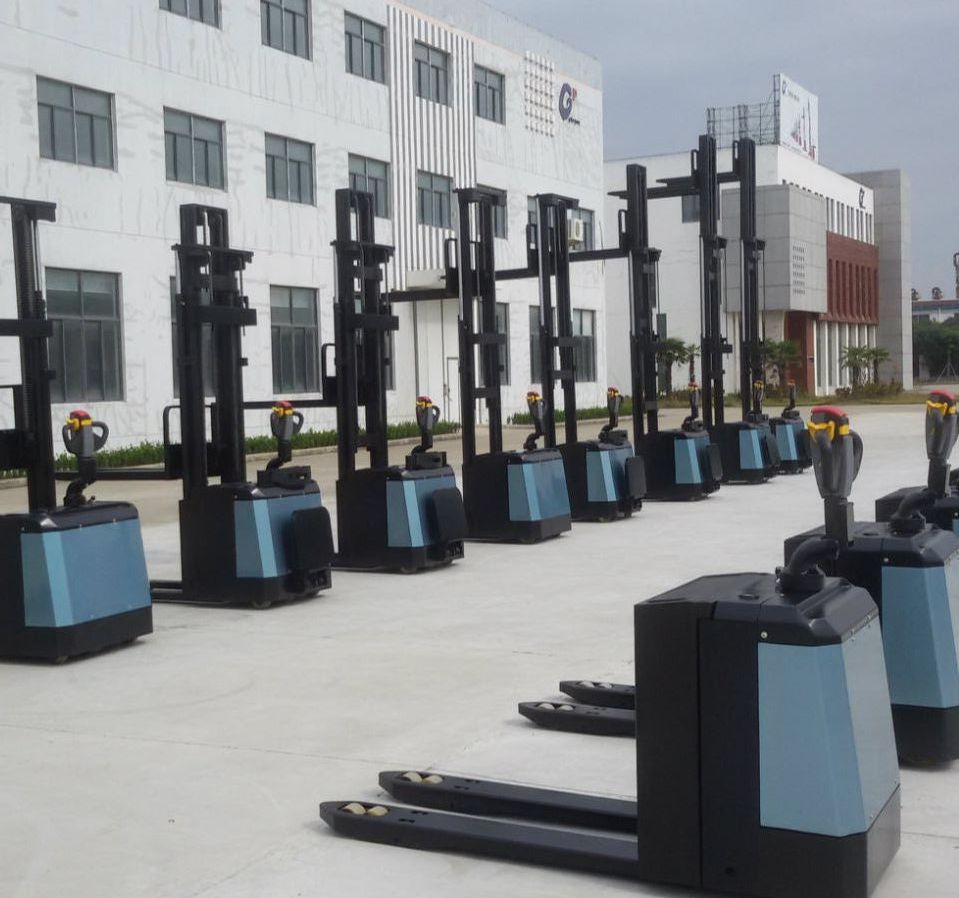

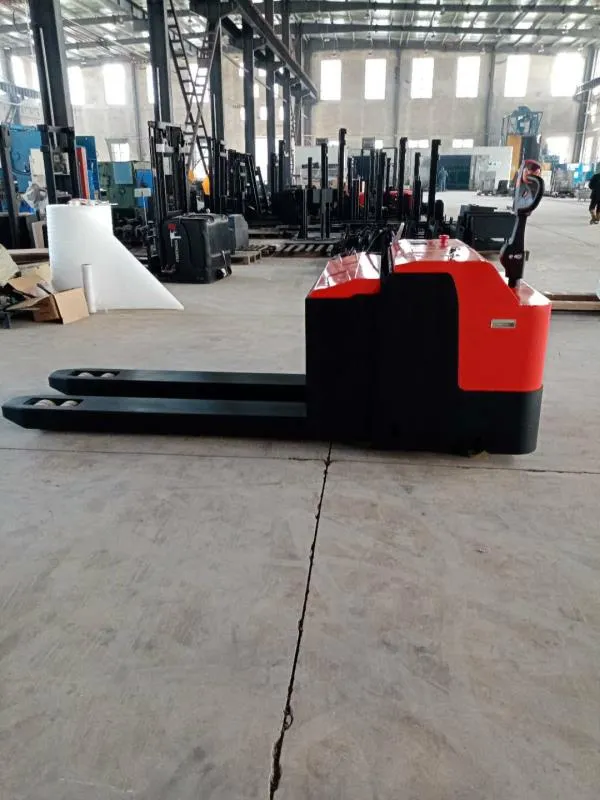

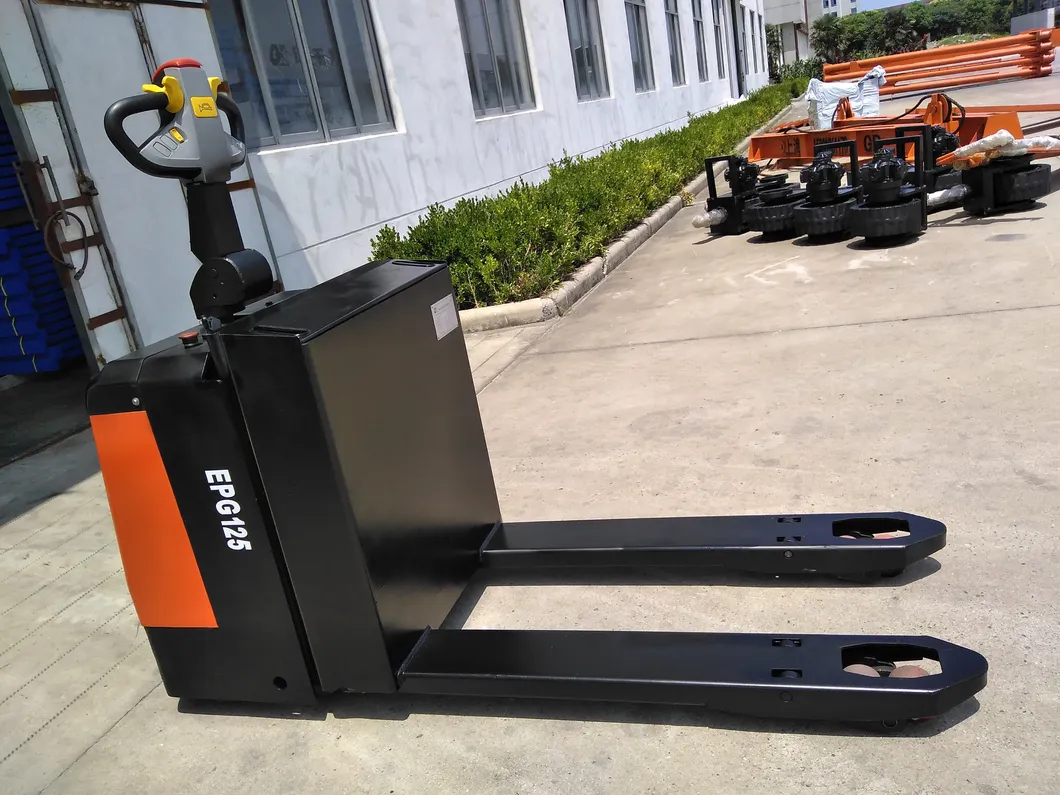

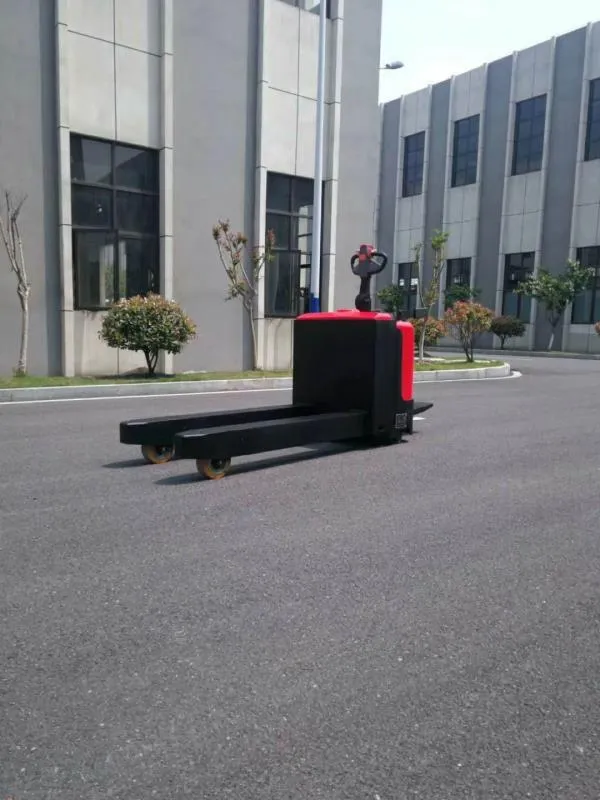

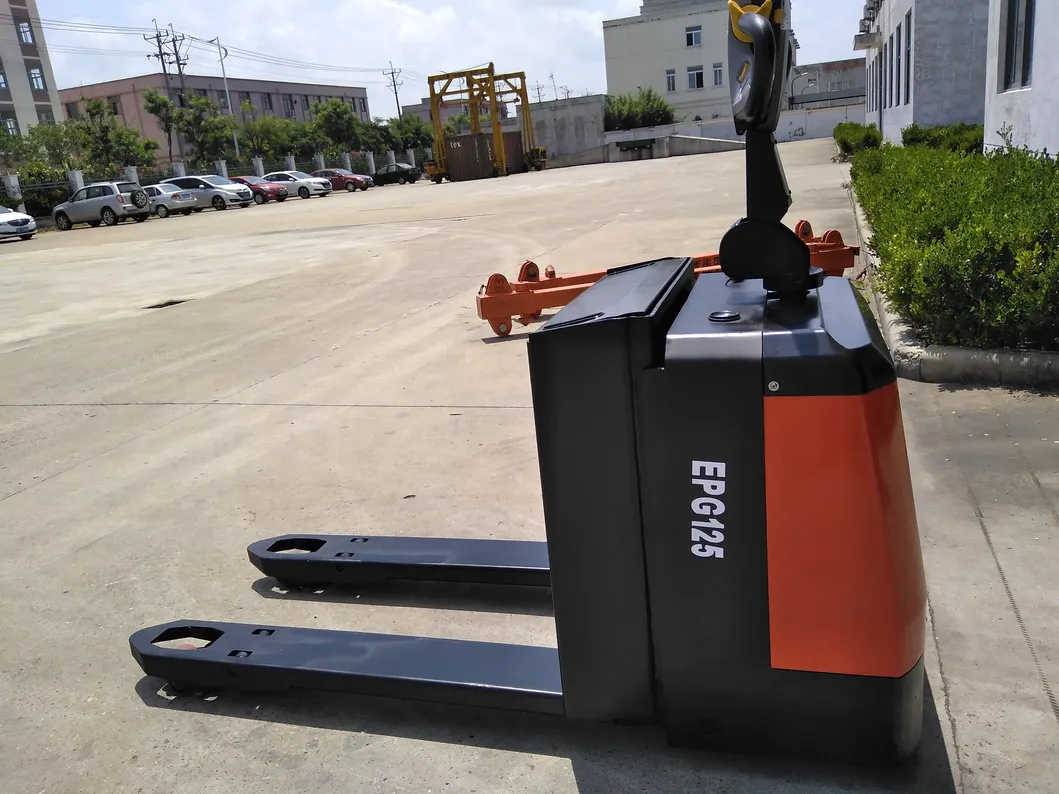

Product Showcase

Frequently Asked Questions

What is the load capacity of the EPG112 pallet truck?

The EPG112 has a robust load capacity of 2000kg (2 tons), making it suitable for most standard industrial pallet handling needs.

What kind of controller does this electric pallet truck use?

It is equipped with a high-quality USA CURTIS controller, which provides multiple automatic protection functions and reliable performance.

Is this pallet truck suitable for use in tight aisles?

Yes, the truck features a small body design and a turning radius of approximately 1475mm-1490mm, specifically designed for operation in narrow spaces.

How energy-efficient is the DC motor system?

The system is highly efficient, with a typical energy consumption of only about 2 kWh per day under standard operating conditions.

What safety features are included for the operator?

Safety features include an electromagnetic brake, an emergency reversing device, an emergency brake switch, and an anti-slip operating platform with protective handrails.

What is the battery maintenance requirement?

The truck uses sealed batteries that are maintenance-free, offering safe operation without the need for regular fluid checks or risk of pollution.
