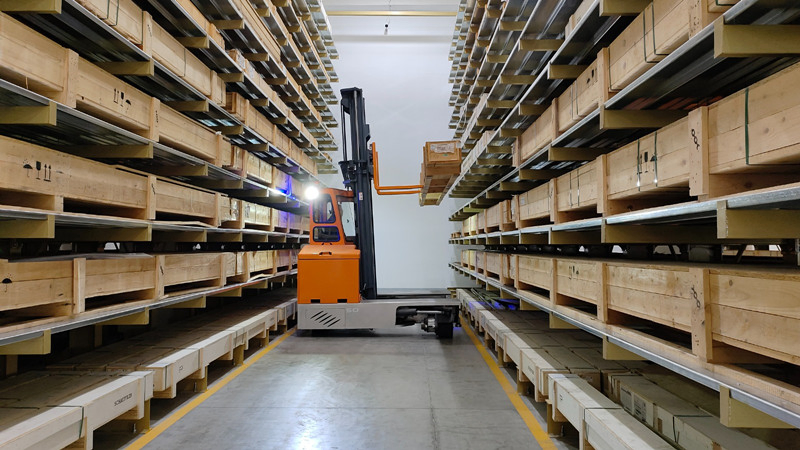

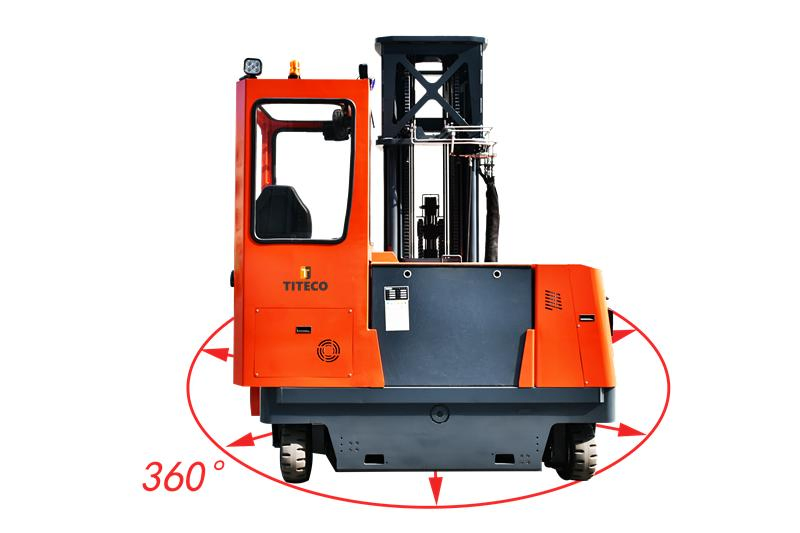

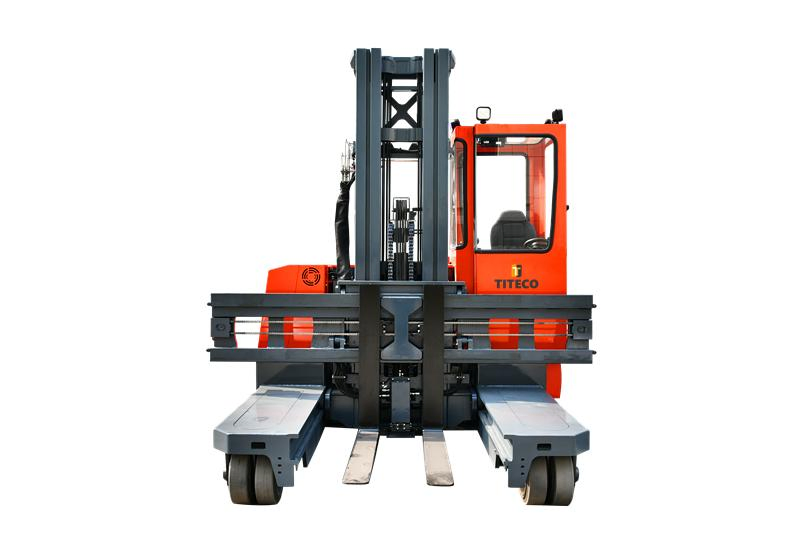

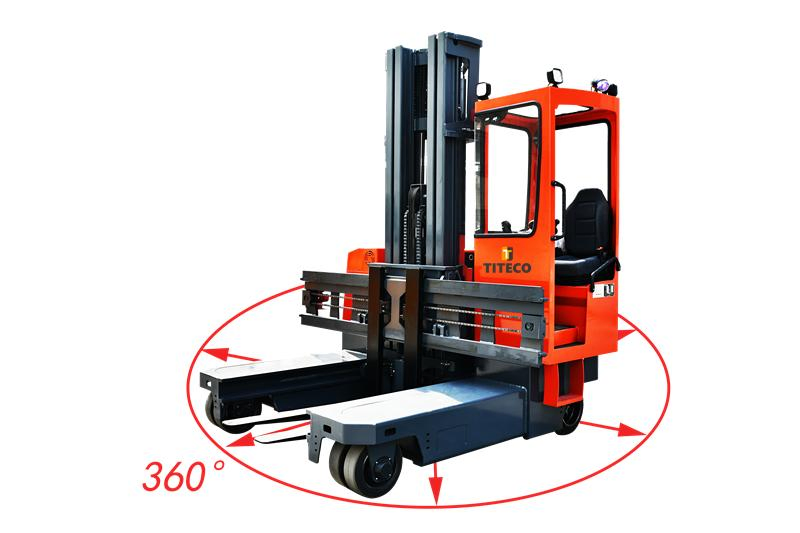

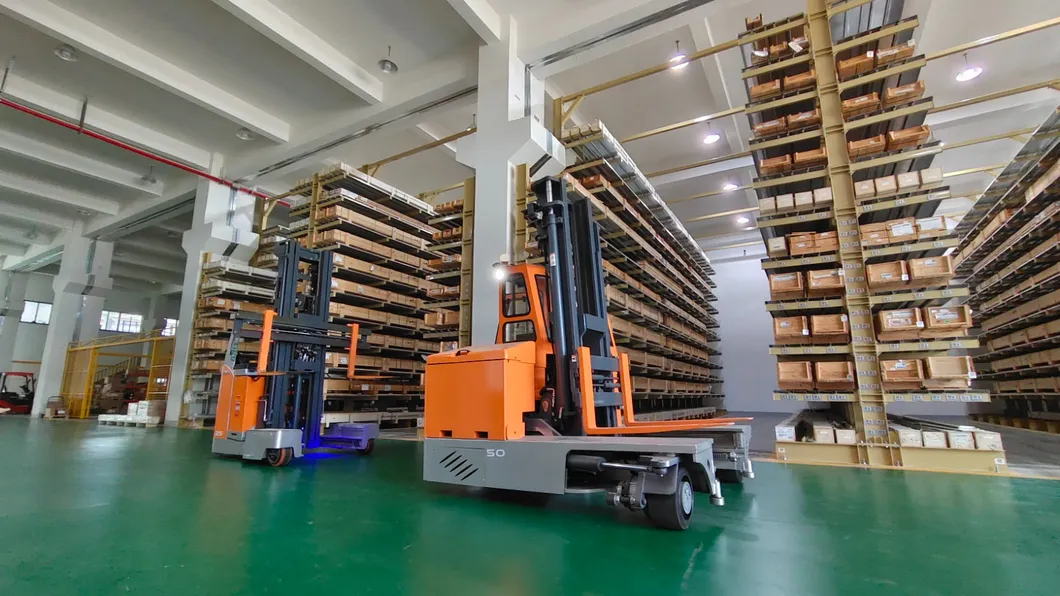

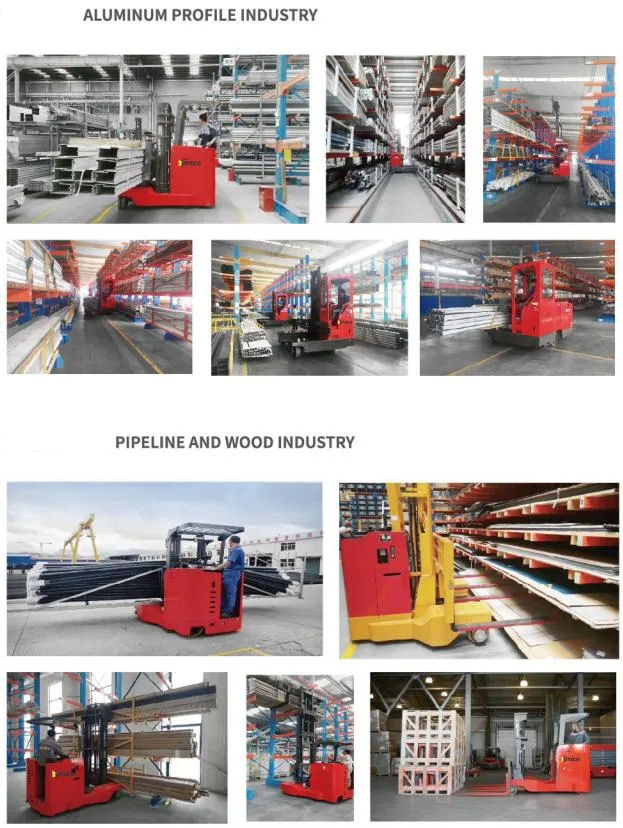

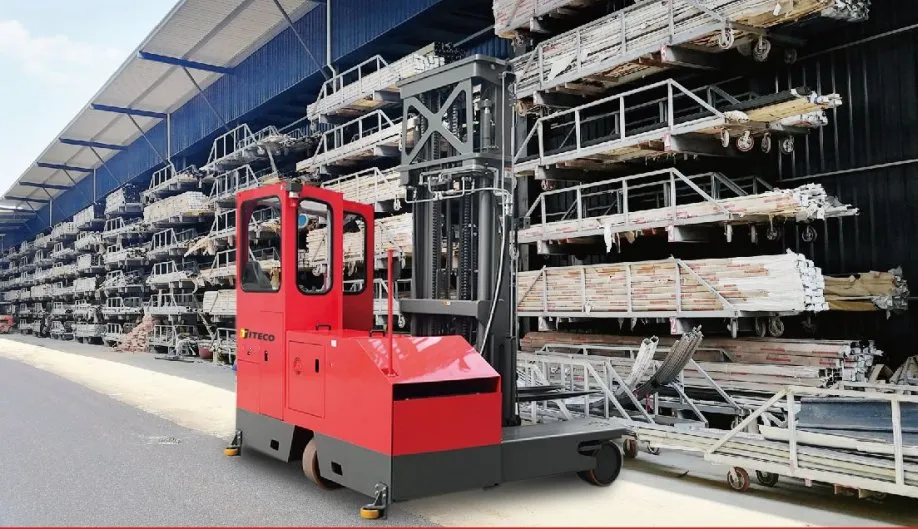

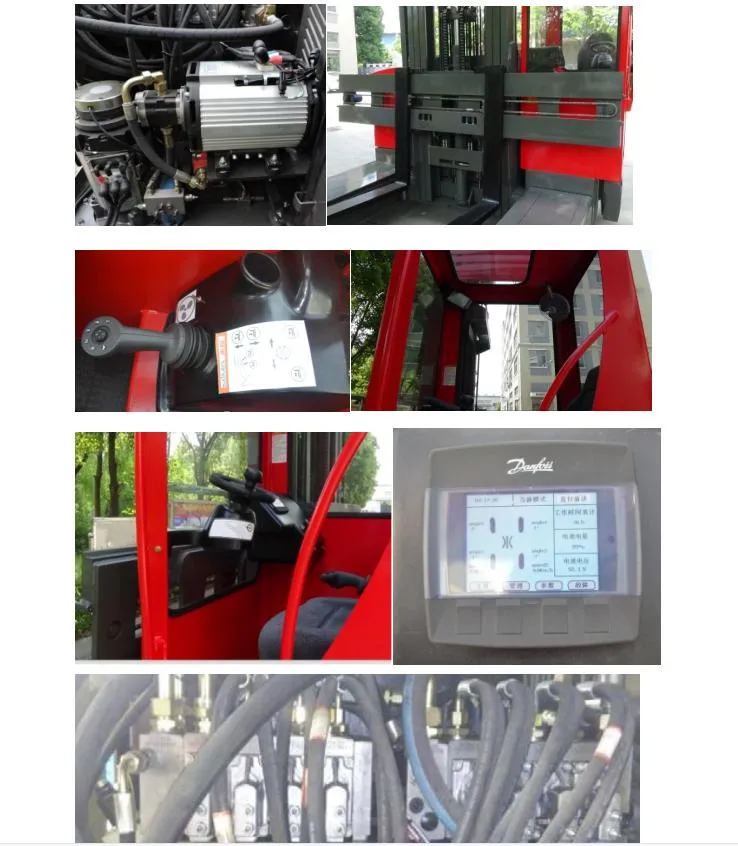

Multi directional forklift is special forklift for long material using, with straight travelling, side travelling and in situ rotating functions, capacity from 1500kg to 5000kg. OPS system, EPS steering and integrated handle. Perfect for long material handling, such as metal profiles, wood, curtain wall, steel pipe and others.

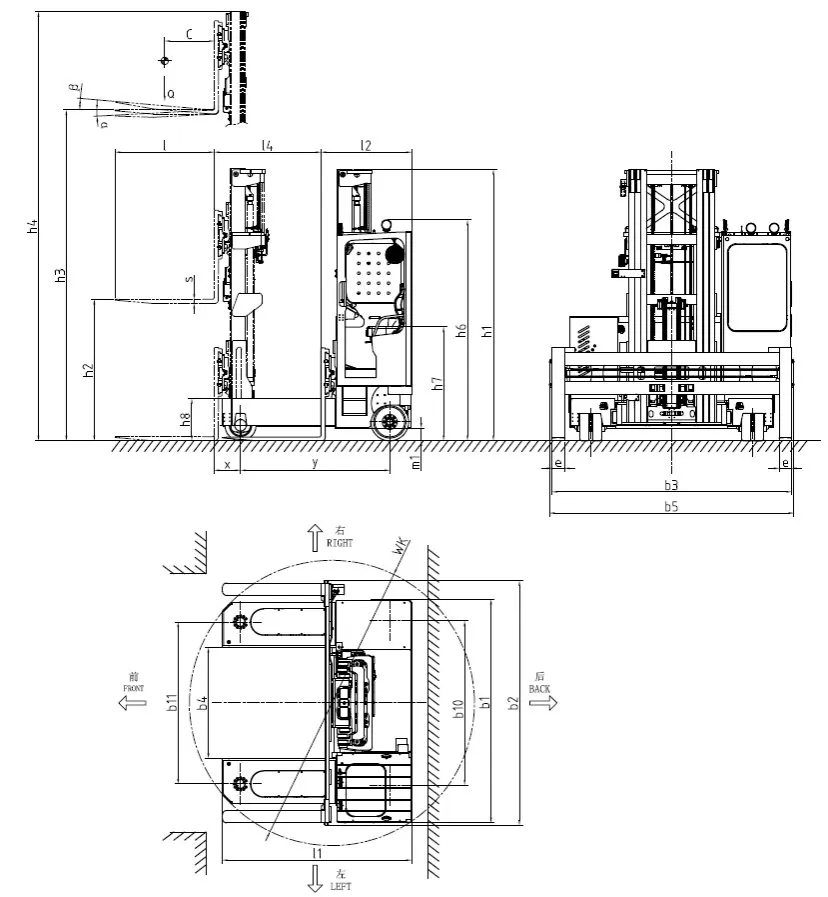

| Major Parameter | TFC40/TFC45 | MQC50 |
|---|---|---|
| Power Type | Electric | Electric |
| Driving Type | Seated Type | Seated Type |
| Rated Loading Q(kg) | 4000/4500 | 5000 |
| Load Center C(mm) | 600 | 600 |
| Wheel Base y(mm) | 1800 | 1800 |
| Total Weight (kg) | 7750 | 8100 |
| Lifting Height h3(mm) | 6000 | 6000 |
| Cabin Height h6(mm) | 2670 | 2680/2550 |
| Total Length L1(mm) | 2300 | 2300 |
| Driving Speed (km/h) | 7.8/9.0 | 7.0/8.0 |
| Lifting Motor Power (kw) | 15AC | 21AC |
| Battery Voltage (V/Ah) | 48/900 | 80/500 |
