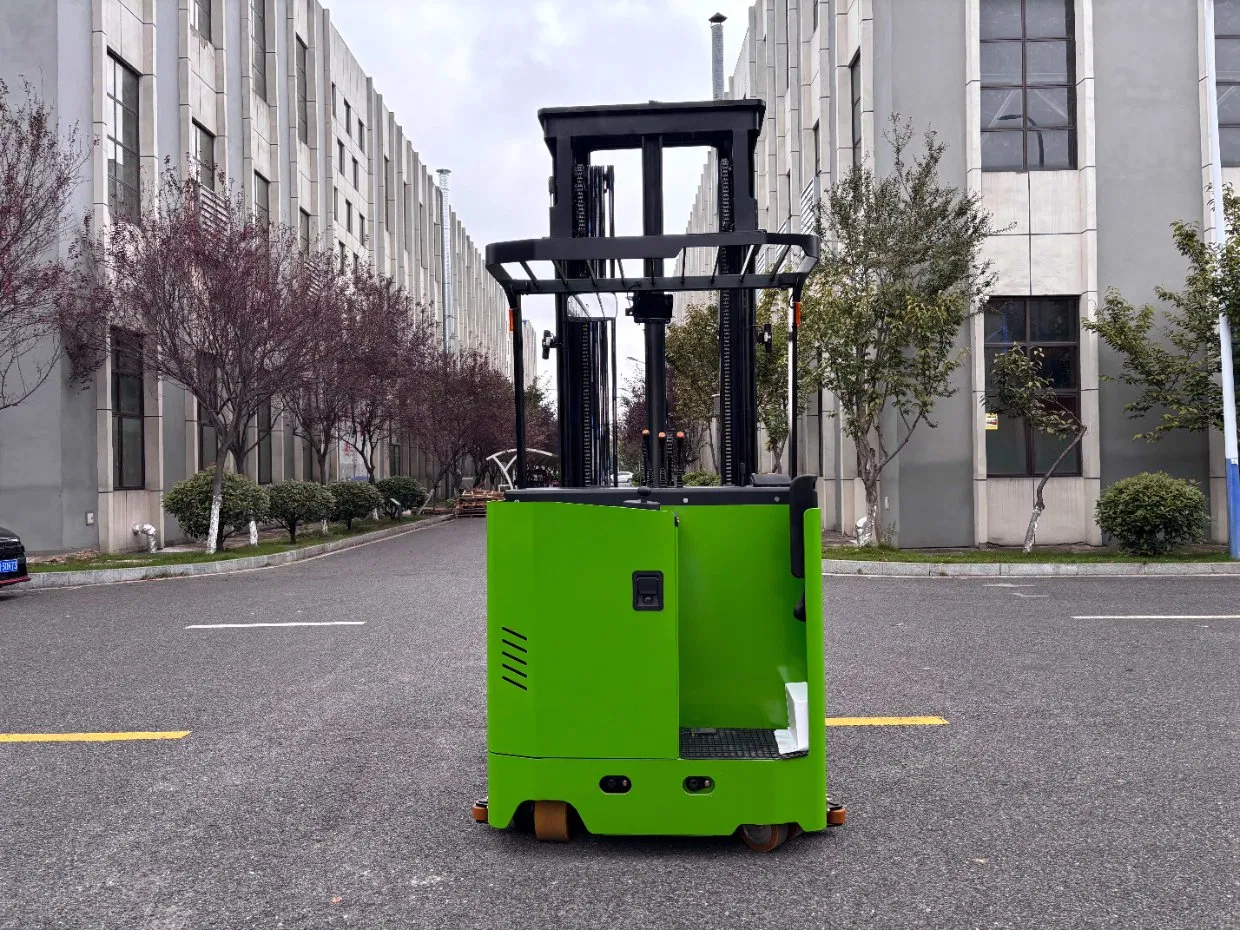

2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.
2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.
2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.
2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.
2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.
1 / 5
2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.
2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.
2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.
2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.
2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.

2t Three-Way Electric Forklift/3way Forklift: 6m Lift, 180° Rotation for Space-Optimized Warehousing.

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Overview & Basic Info
Model NO.
ETT20
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load Center
500mm
Lift Height
>5000mm
Operation Type
Stand-on
Overall Width
1550mm
Driving Motor
5.0(AC)
HS Code
8427209000
Package Size
407.00cm * 155.00cm * 220.00cm
📝 Product Description

Very Narrow Aisle 4-Direction Reach Truck: The electric 4-direction reach truck is a multi-directional forklift designed to reduce the aisle width required for handling long and bulky loads. This narrow aisle forklift features a unique four-directional travel mode that enables outstanding maneuverability and efficiency, resulting in increased storage capacity. It is capable of loading 1500~2500 Kg and lifting up to 8000 mm height.

⚙️ Product Parameters
Characteristics Model Unit ETT18 ETT20
PowerBattery-BatteryBattery
OperationStand-StandStand
Load CapacityQKg18002000
Load CentreCmm500500
Wheelbaseymm15301530
Service Weight-Kg38904850
Tyre TypePU-PUPU
Lift Heighth3mm80008000
Overall Lengthl2mm38504070
Overall Widthb1mm14951550
Travel Speed-km/h8/98/9
Drive Motor-kw5.56.5
Battery Voltage-V/Ah48/40048/645

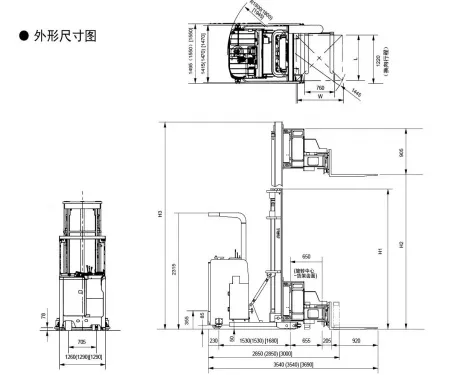

Electric Forklift Parameters
📷 Detailed Photos

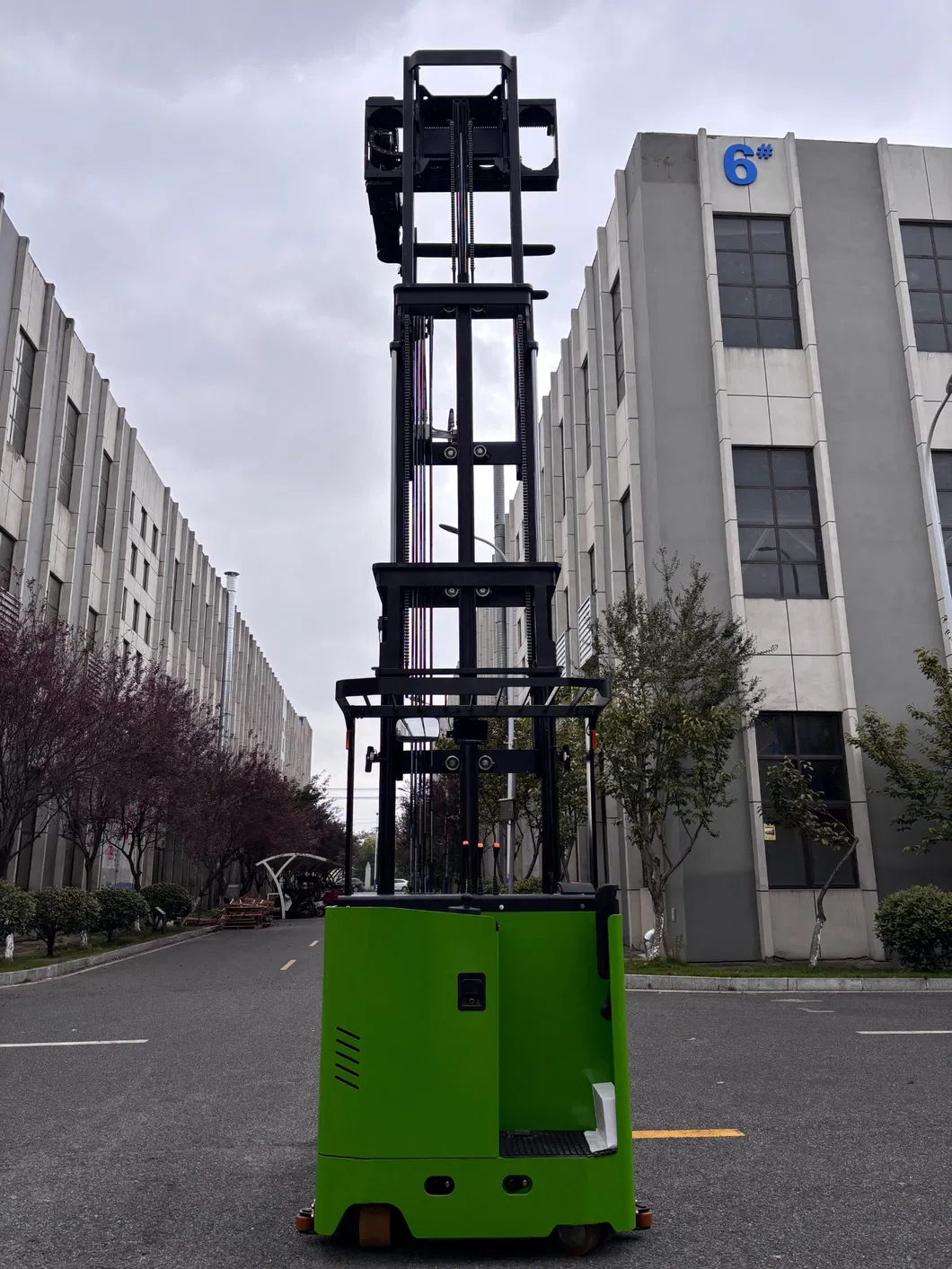

Forklift View 1

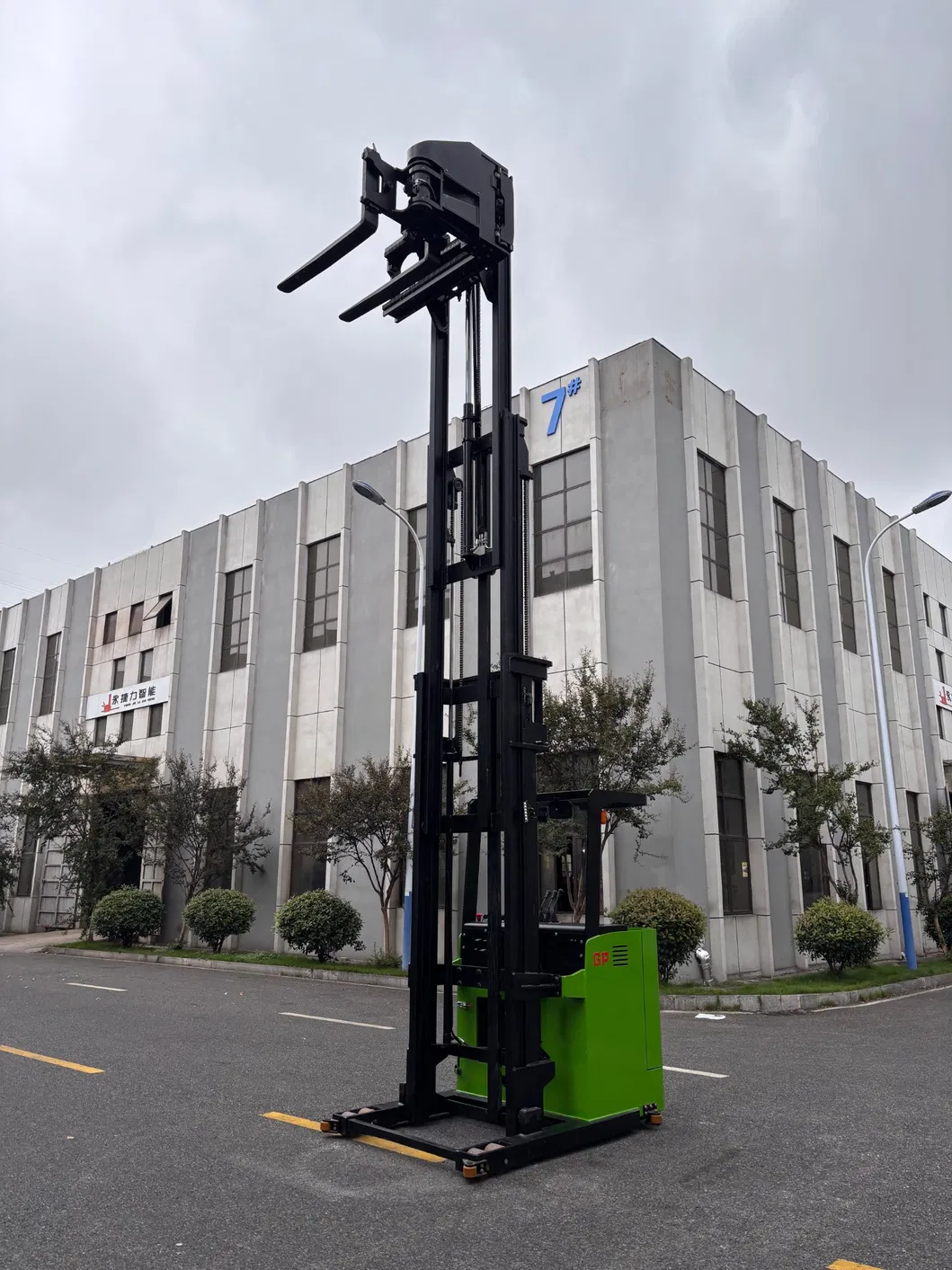

Forklift View 2

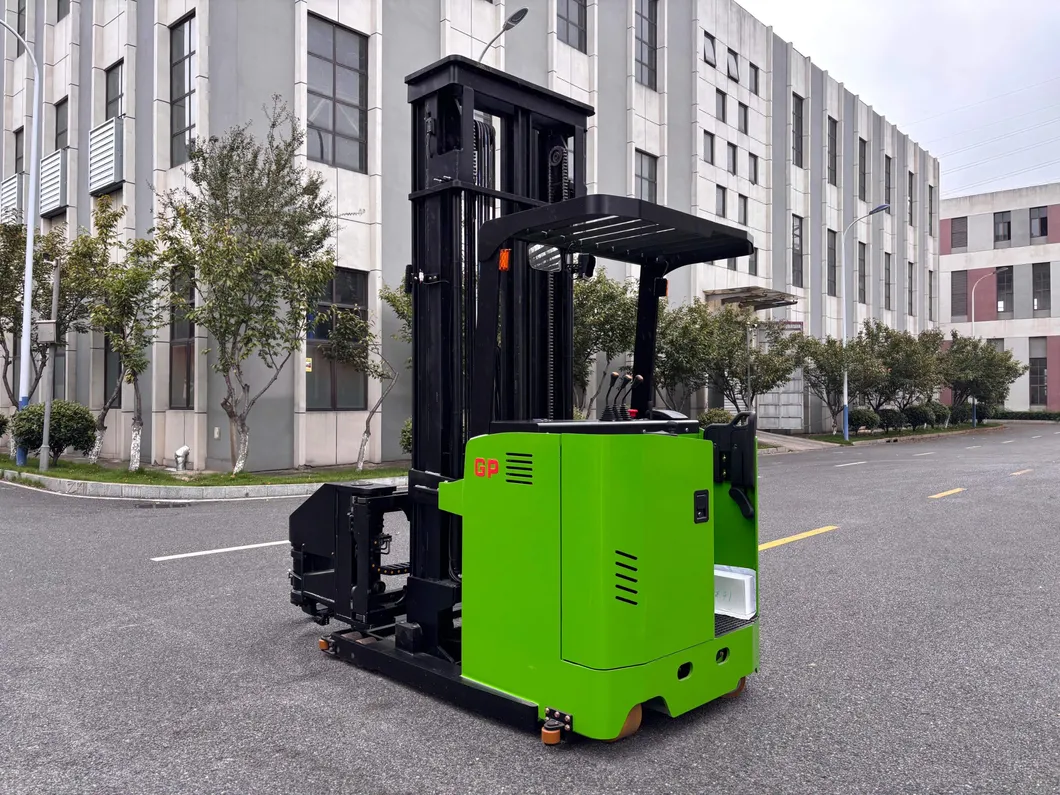

Forklift View 3

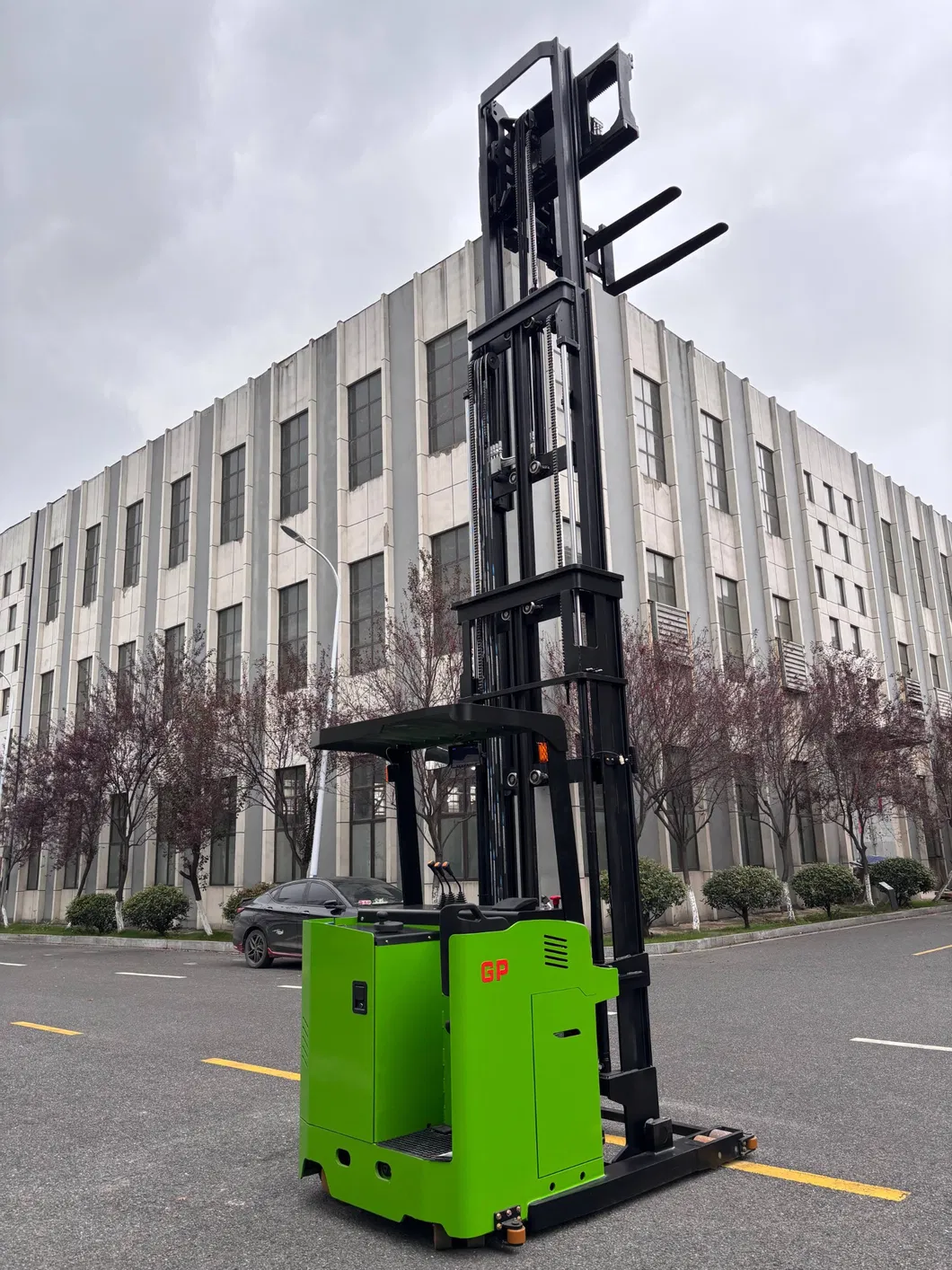

Forklift View 4

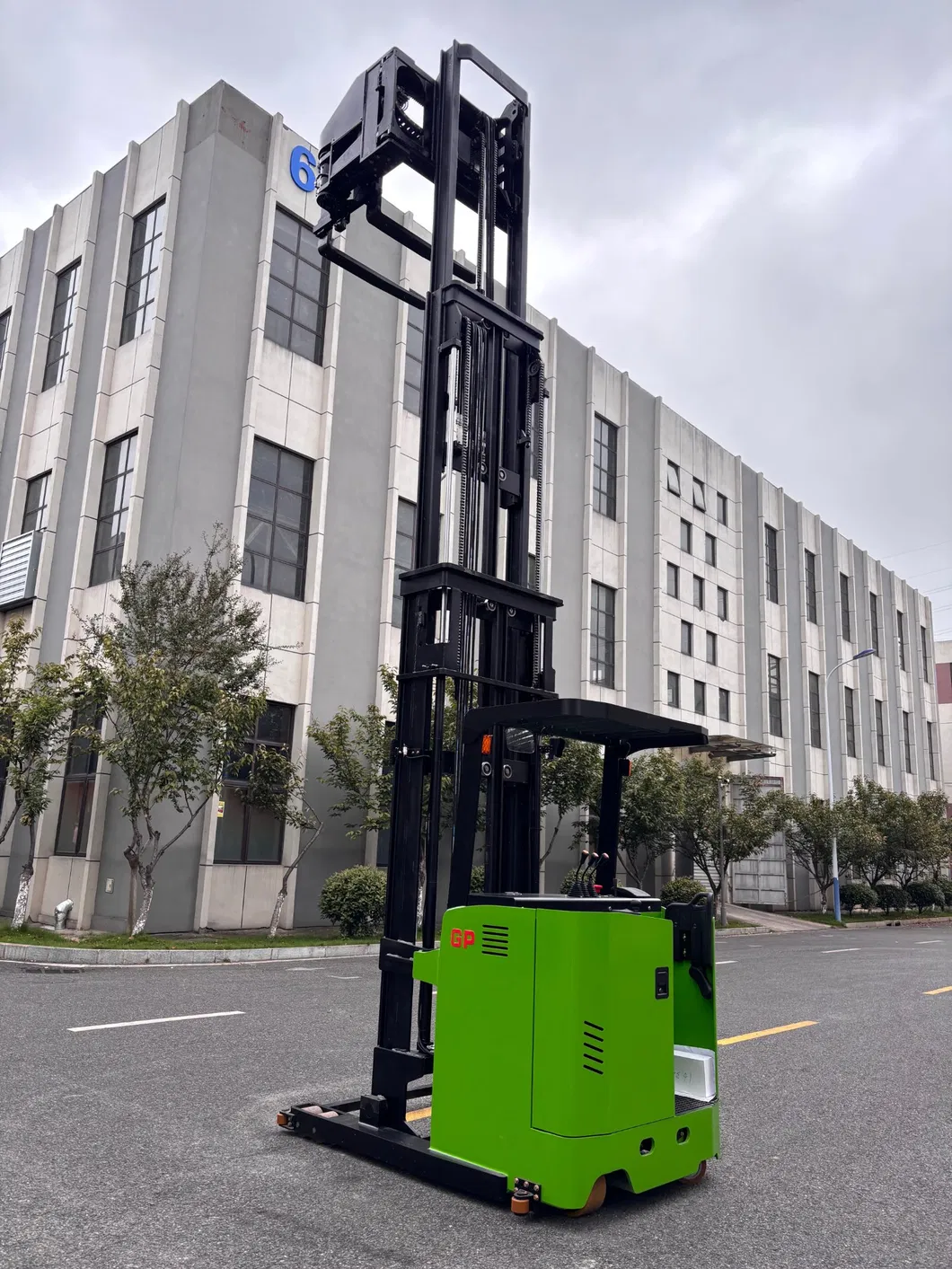

Forklift View 5

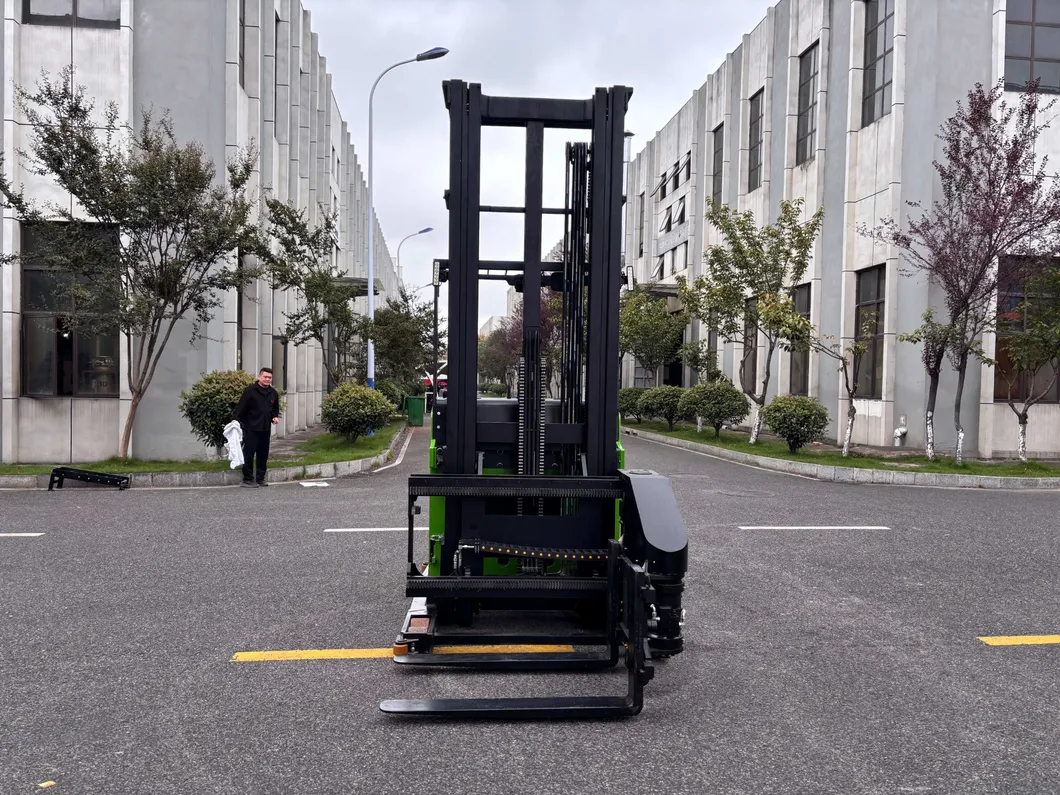

Forklift View 6
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
❓ Frequently Asked Questions
What makes a 4-direction reach truck unique?
Its unique ability to travel in four directions allows it to handle long and bulky loads in extremely narrow aisles where traditional forklifts cannot maneuver.
What is the maximum lifting height of this forklift?
This model is designed for high-reaching applications, capable of lifting loads to a maximum height of 8,000 mm.
How does this truck improve warehouse storage capacity?
By operating in much narrower aisles than standard forklifts, it allows for more racking rows within the same floor area, significantly increasing storage density.
What type of battery and motor does the equipment use?
The forklift is equipped with a high-performance AC driving motor and a 48V battery system, ensuring efficient and quiet operation.
Is this forklift suitable for heavy-duty lifting?
Yes, depending on the specific model (ETT18 or ETT20), it supports a load capacity ranging from 1,800 kg to 2,000 kg.
What type of floor surface is required for operation?
The truck uses PU (polyurethane) tires, which are ideal for smooth, indoor warehouse concrete floors to provide maximum stability and traction.
