Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years
Send Inquiry

Product Description

Basic Information

Model NO.
GNA20
Type
Electric Forklift
Load Capacity
1T - 5T
Fuel
Electric
Load Center
500mm
Lift Height
3000~5000mm
Condition
New
Mast
2 Stage/3 Stage
Power Source
AC Electric
Production Capacity
10000PCS/Month

Product Description

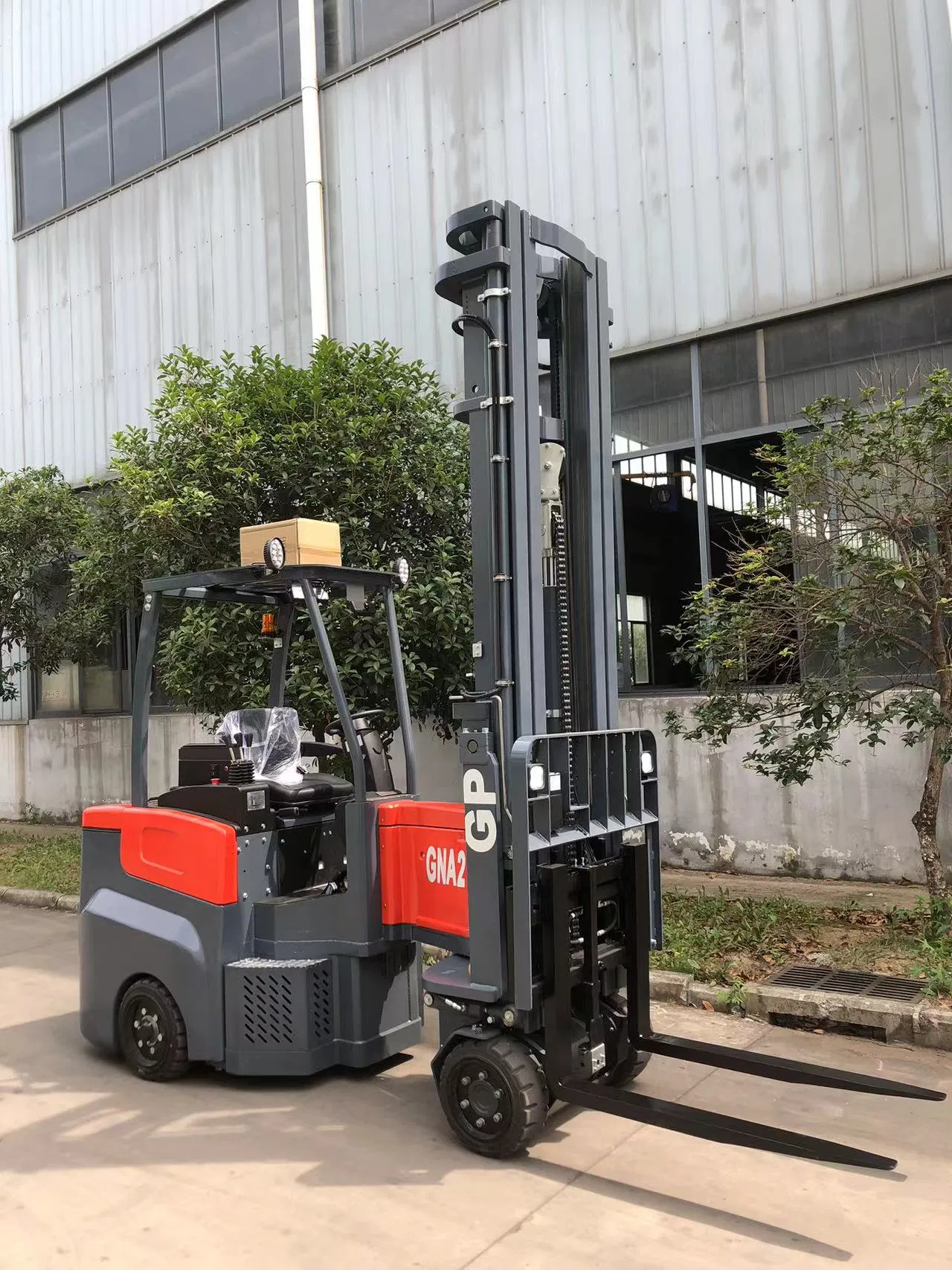

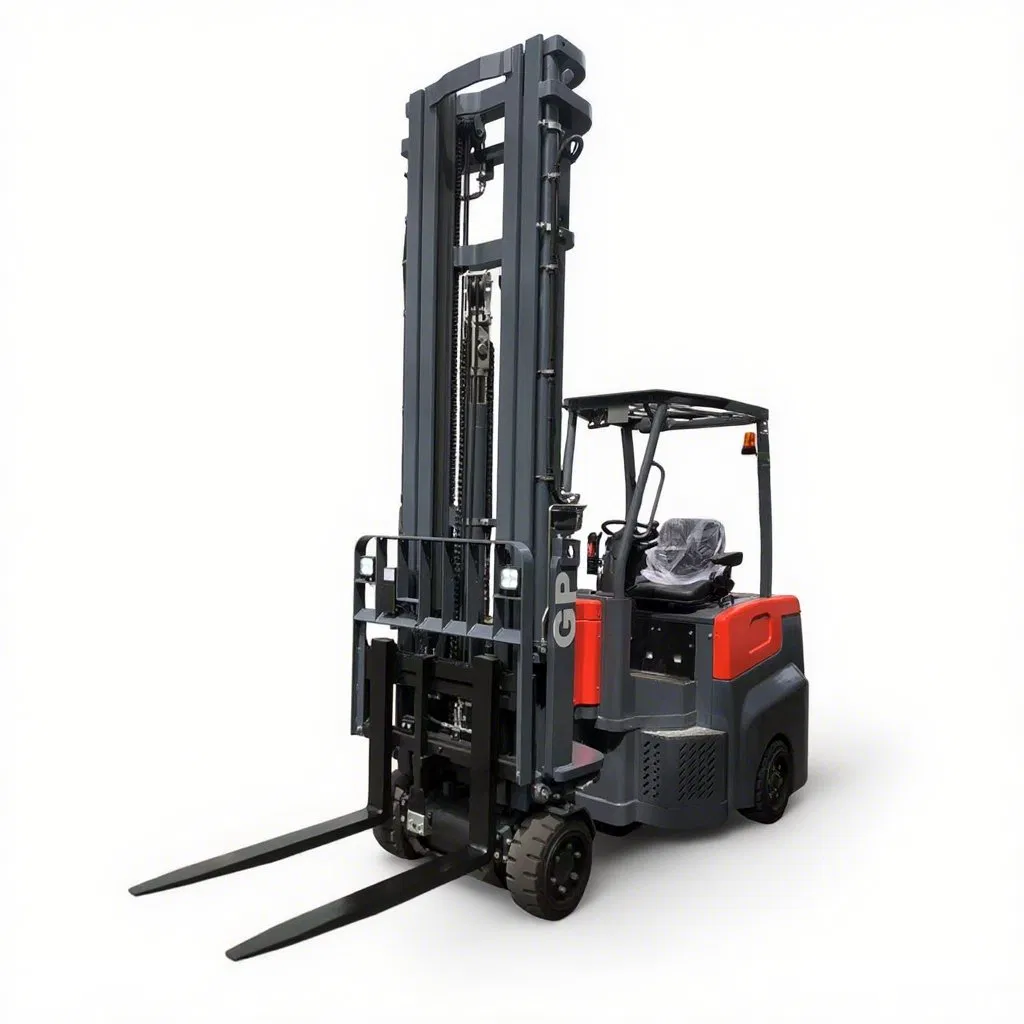

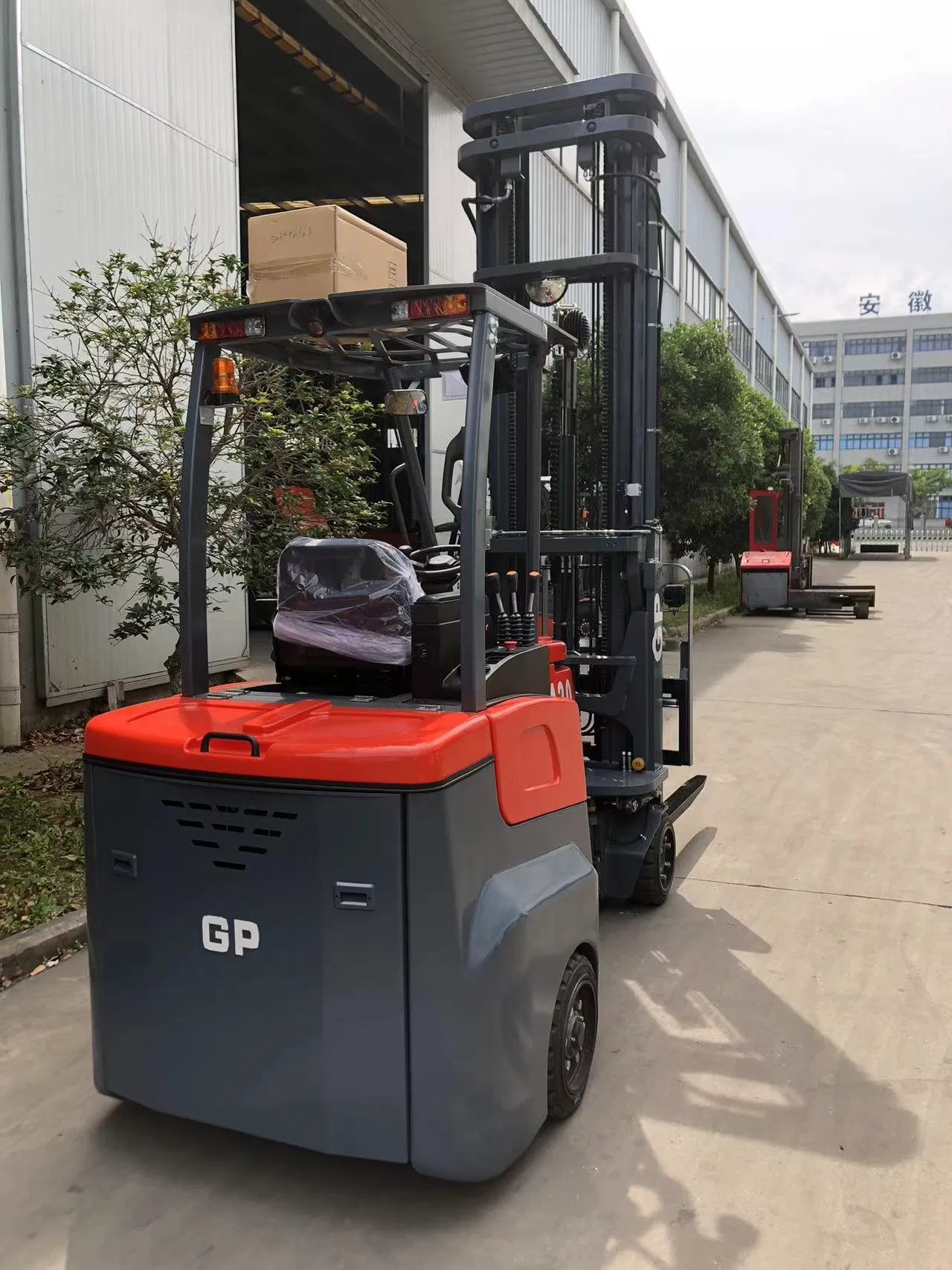

Narrow Aisle Electric 2000kg Articulated Forklift Truck

High performance articulated joint forklift, covering narrow and wide bodies, with a load capacity of 2 tons and a maximum lifting height of 12.5 meters. Designed for both indoor and outdoor use, this vehicle meets medium and heavy-duty working conditions while ensuring high work efficiency, rapid lifting speeds, and superior driving performance.

⚙
Application Scenarios:
• Narrow aisle intensive storage and high-capacity warehouses.
• Versatile for low-altitude storage and transportation inside or outside warehouses.
• Perfect for restricted passages where general forklifts cannot operate.

Detailed Photos

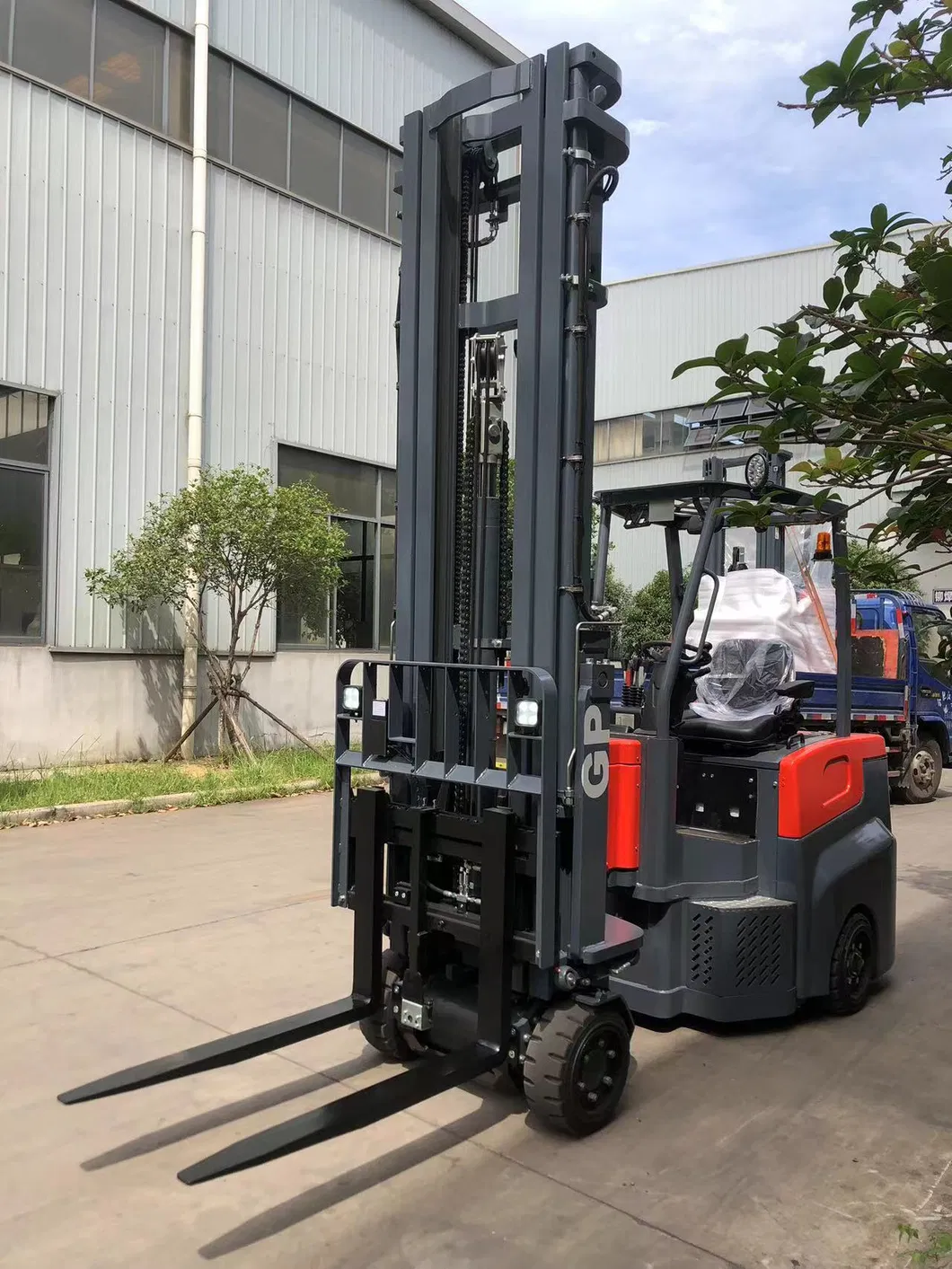

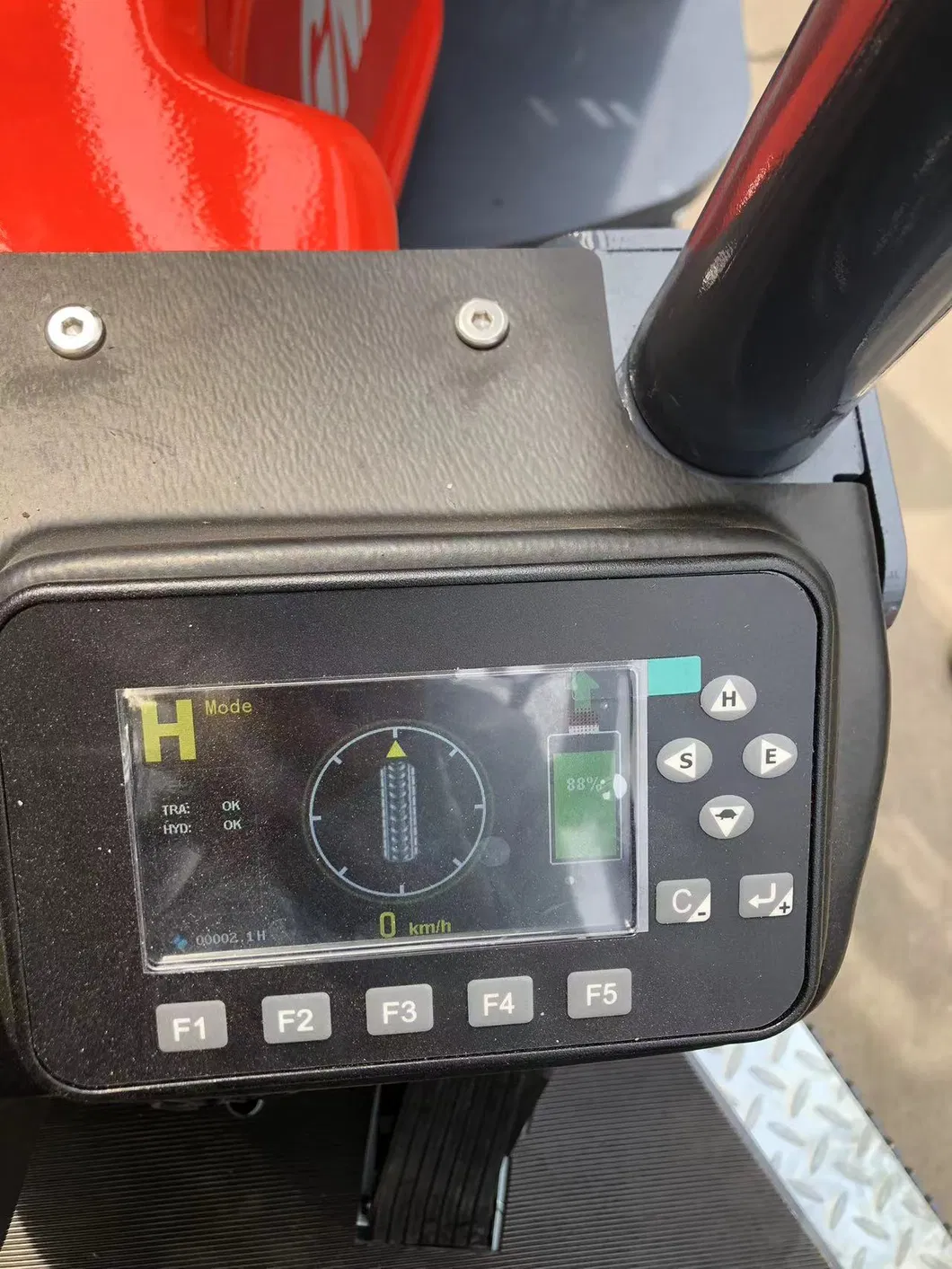

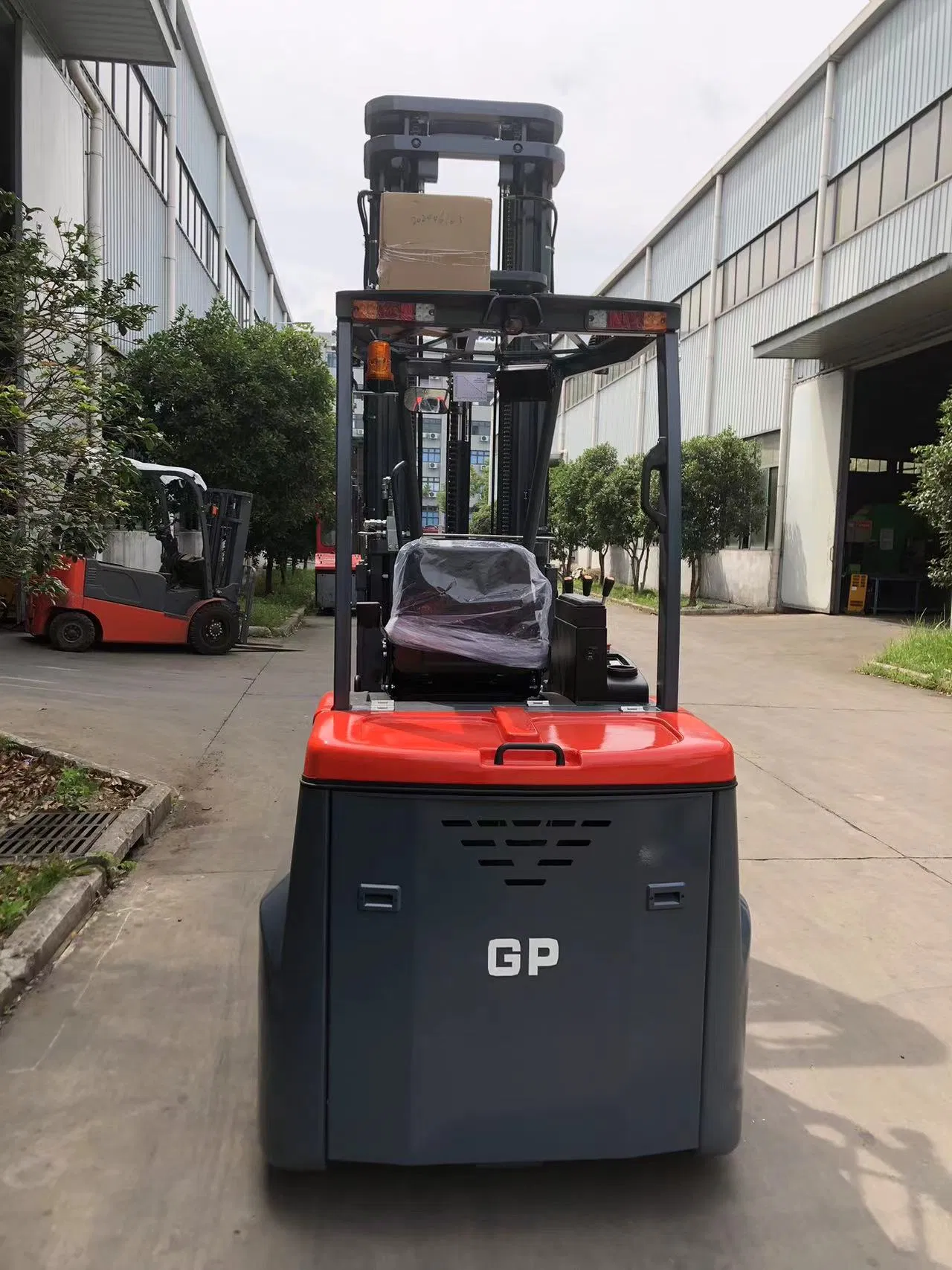

Narrow Aisle Forklift View 1 Narrow Aisle Forklift View 2 Narrow Aisle Forklift View 3 Narrow Aisle Forklift View 4 Narrow Aisle Forklift View 5 Narrow Aisle Forklift View 6

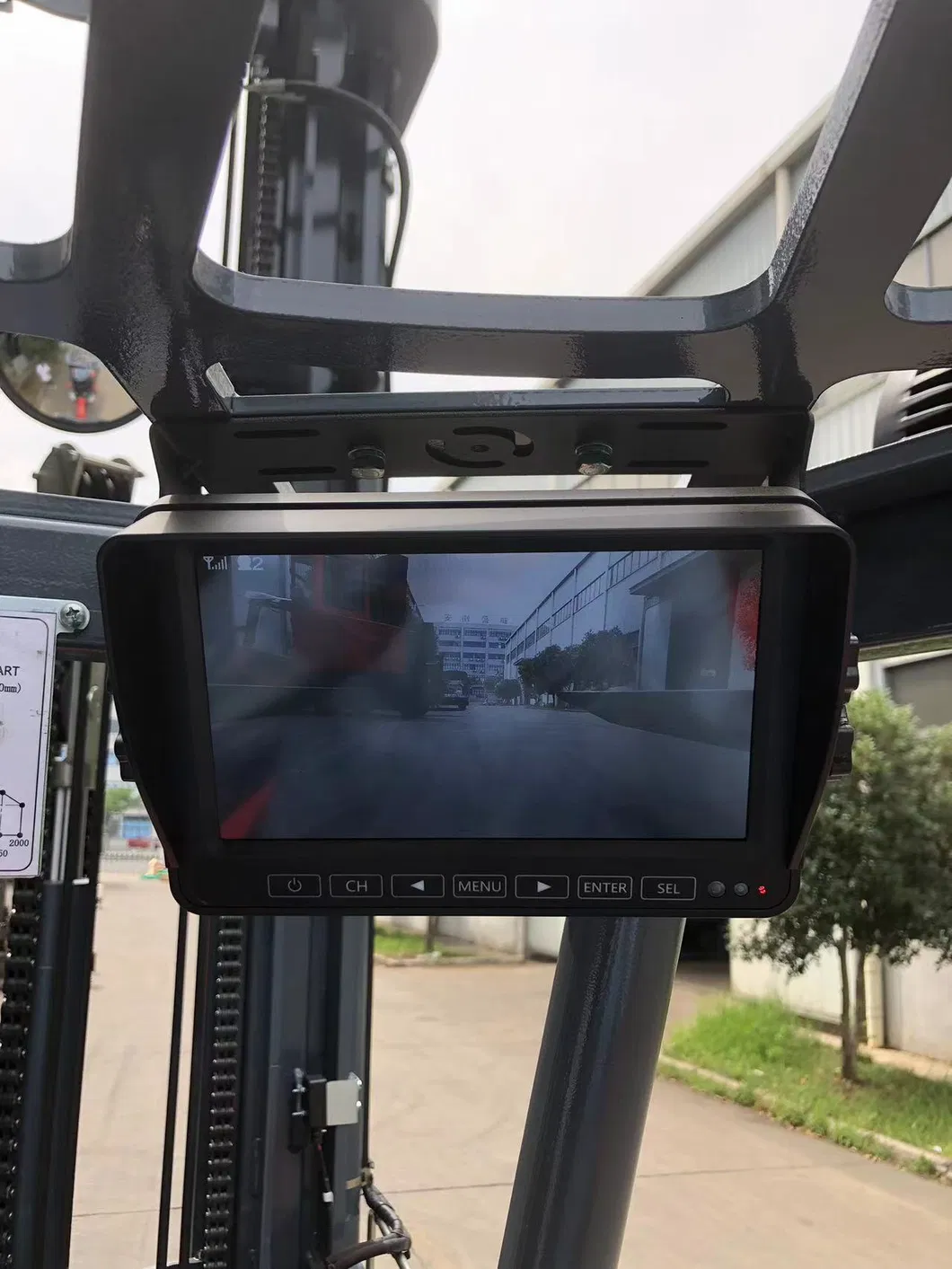

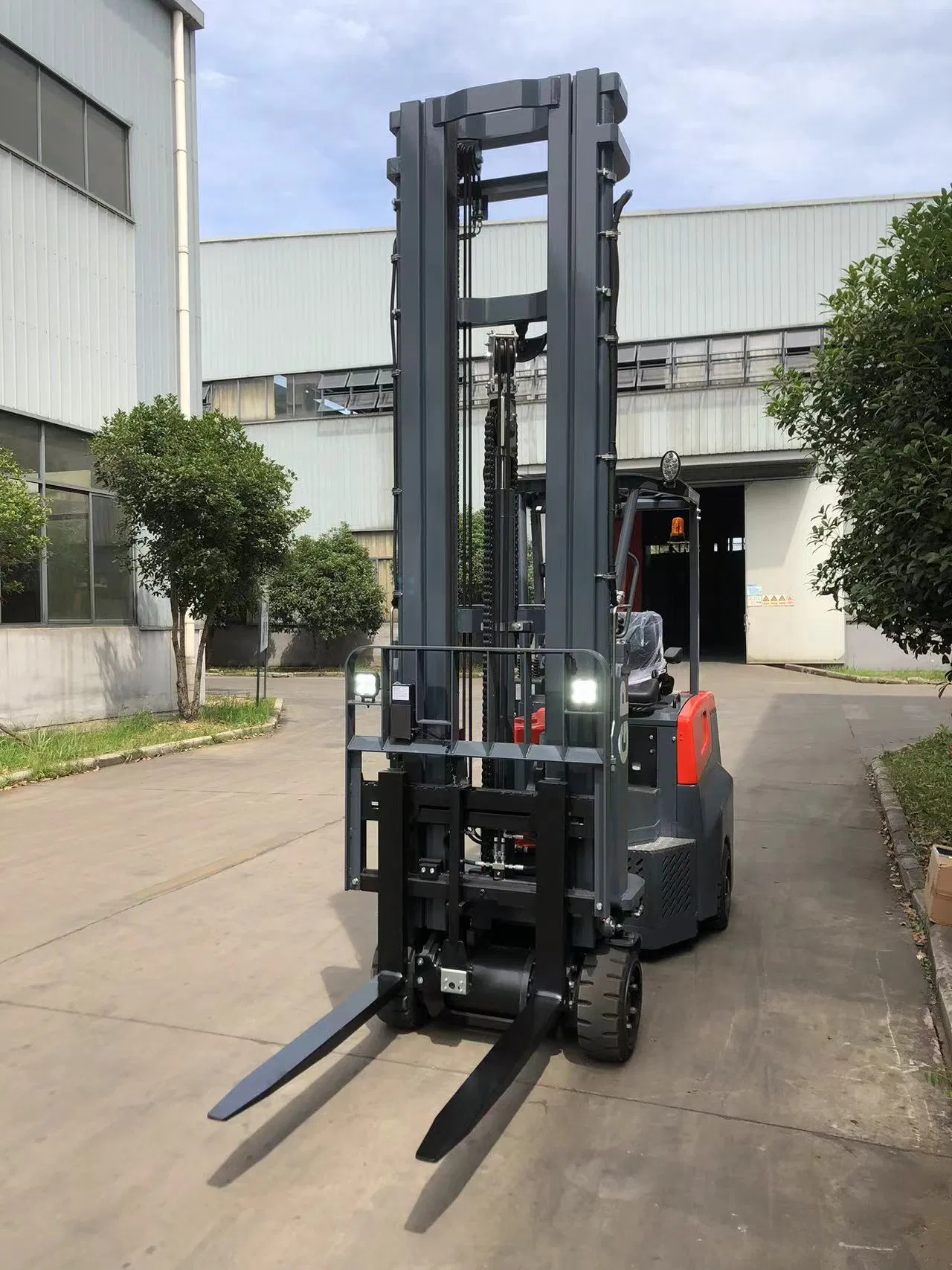

Narrow Aisle Forklift Front View

Product Parameters

Item / Model Unit GNA20 Specification
Load Capacitykg2000
Load Centermm600
Power-AC Electric
Standard Lifting Heightmm6500
Mast Retracted Heightmm3650
Mast Maximum Heightmm8120
Total Length (with fork)mm3860
Total Widthmm1260
Transfer Aisle Widthmm2150 (pallet: 800*1200)
Driving Speed (load/unload)km/h15
Lifting Speedmm/s400/420
Weight (with battery)kg6985
Battery Voltage/CapacityV/Ah48V / 800Ah

Additional Technical Views

Technical Diagram 1 Technical Diagram 2 Operation View
Component Detail 1 Component Detail 2 Component Detail 3
Safety Features Overview

Frequently Asked Questions

What is the maximum lift height of the GNA20 forklift?
The standard lifting height is 6500mm, but the series can reach a maximum lifting height of up to 12.5 meters depending on the configuration.
Can this forklift be used in outdoor conditions?
Yes, the GNA20 articulated forklift is designed for both indoor and outdoor usage, making it highly versatile for various warehouse environments.
What is the minimum aisle width required for operation?
For a standard 800*1200mm pallet, the transfer aisle width required is approximately 2150mm, allowing for efficient narrow aisle storage.
What type of battery and power system does it use?
It uses a high-capacity 48V/800Ah AC electric system, providing powerful traction and efficient pump control for heavy-duty tasks.
What is the load capacity of this model?
The GNA20 model has a rated load capacity of 2000kg with a 600mm load center.
Is the forklift suitable for high-intensity work?
Absolutely. It is built to meet medium and heavy-duty working conditions, focusing on high lifting and driving speeds to maximize warehouse productivity.
