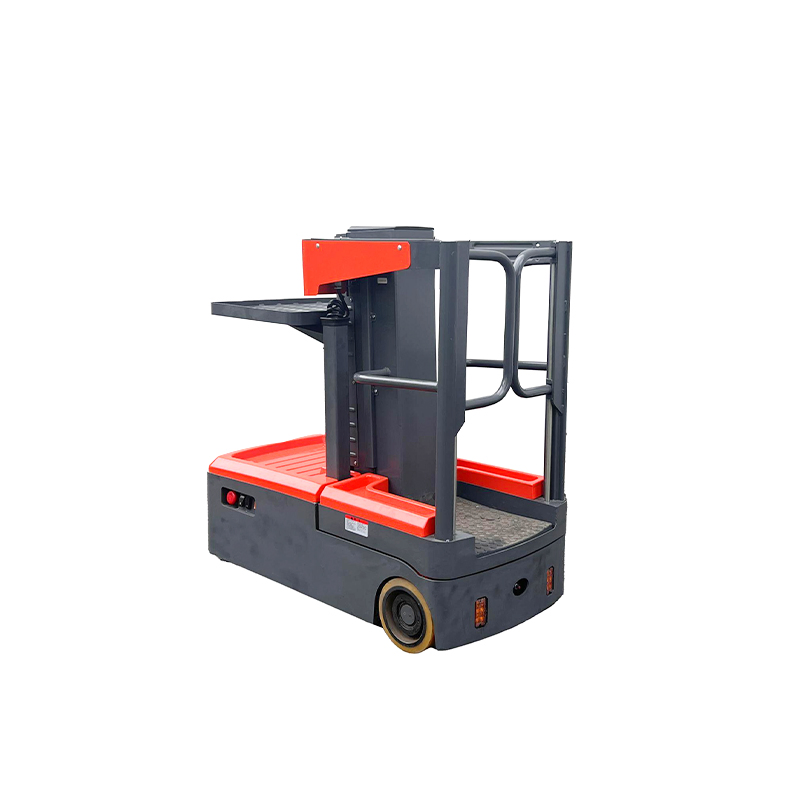

Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
1 / 5
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller

Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
NXT JXD20
Type
Post Pallets
Material
Steel
Size
1140mm*1140mm
Load Capacity
2T
Entry Type
2-Way
Color
Customizable
Certification
CE, ISO9001
Power Unit
Electric
Origin
China
🚀

Product Description

Electric Order Picker

Higher Safety Factor: The main gantry adopts 12# channel steel, with legs up to 21.3mm thick, sturdy fixed support legs, and high-strength vehicle body steel frame, ensuring stability during operation.

Lifting Power Limit Function: High speed limit setting automatically decreases speed when forks reach a certain height to ensure high-altitude safety.

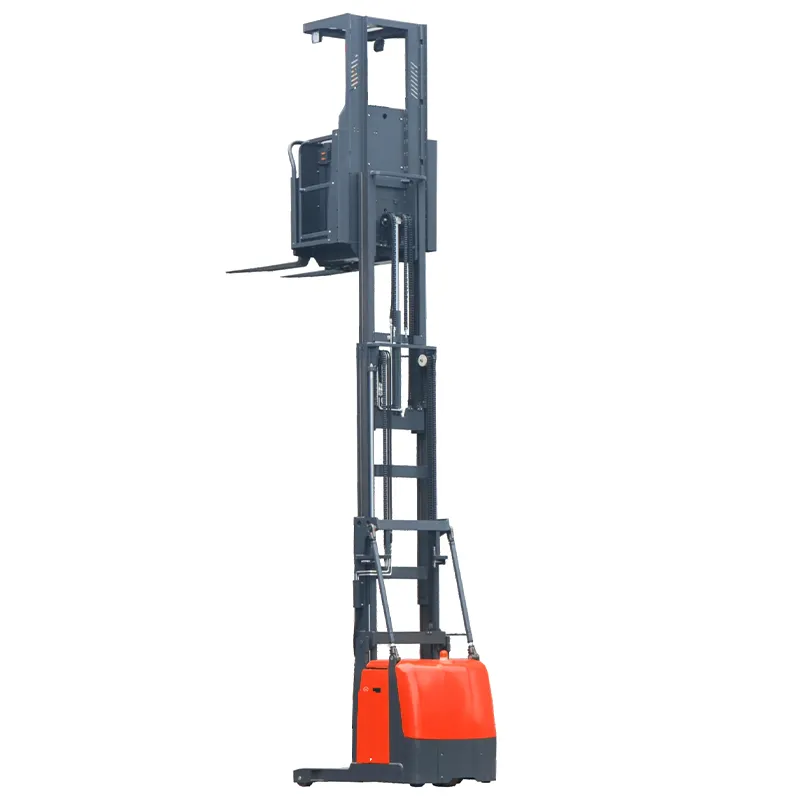

Stable Operation

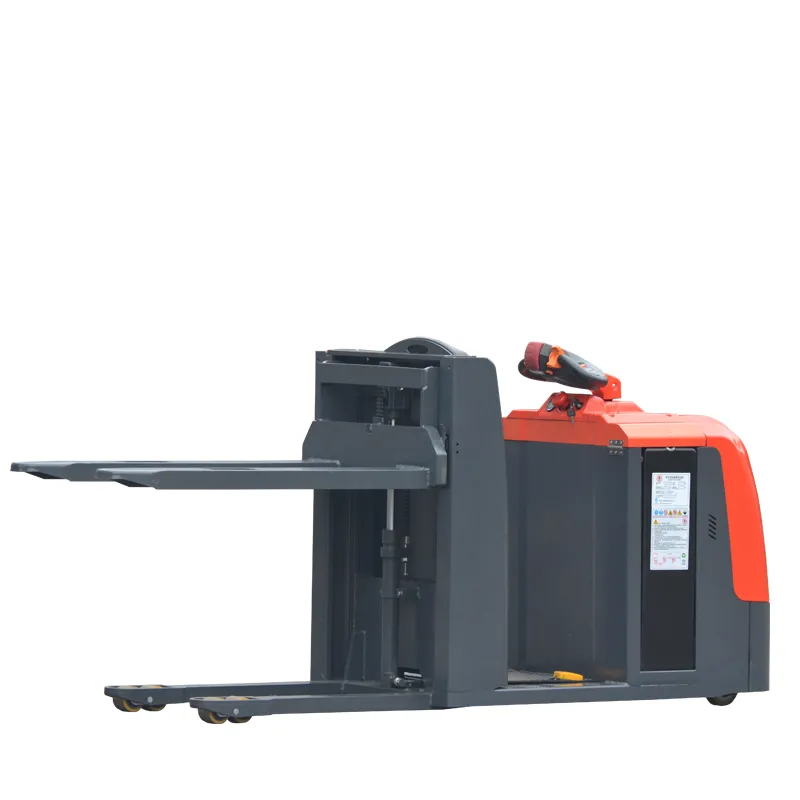

Component Details
  • Imported AC Controller: High power drive with quiet, stepless speed regulation and reverse braking.
  • Hydraulic Power Unit: Compact structure, high efficiency, and reliable lifting performance.
  • Lifting Limit Function: Automatically cuts power at maximum height to prevent accidents and extend component life.
  • Standard Battery Side Replacement: Convenient for multi-shift operations and fast battery swaps.
  • Dual-Side Controls: Allows moving the picker from either side, reducing get-on/get-off delays.
  • Safety Switches: Pedal-type safety switch prevents accidental walking operations.

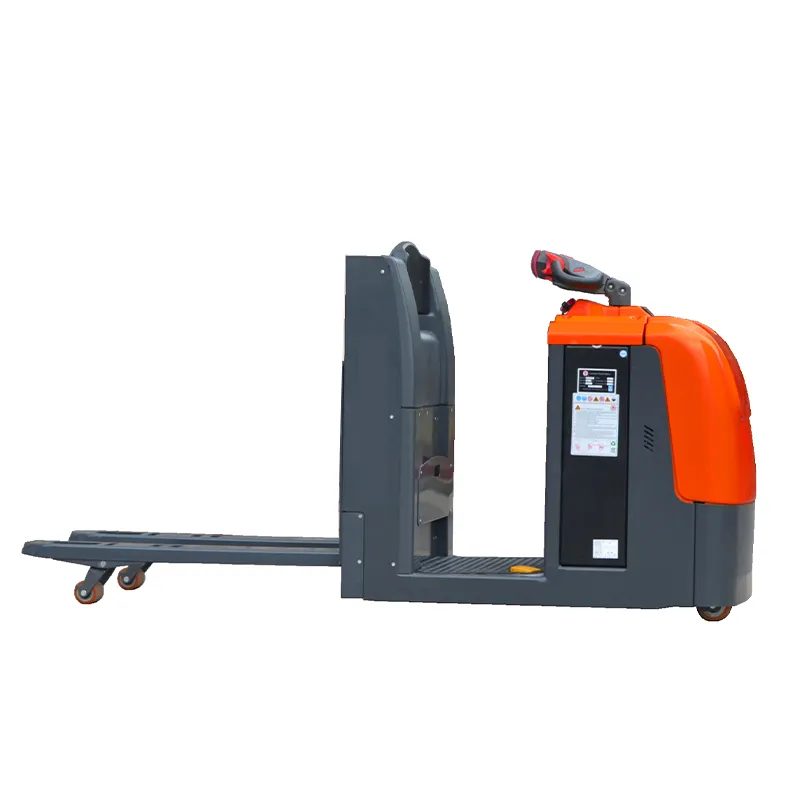

Forklift Control
Warehouse Equipment
⚙️

Technical Parameters

Characteristics Unit/Details Model JXD20
Rated Traction Weightkg2000
Load Centremm600
Wheel Basemm2080
Service Weight (with battery)kg1070
Driving Wheel Sizemmφ250×75
Bearing Wheel Sizemmφ80×70
Lift Heightmm200
Overall Lengthmm2517
Travel Speed (Laden/Unladen)km/h5.2/5.5
Battery Voltage/CapacityV/Ah24/360
🏭

Production & Quality

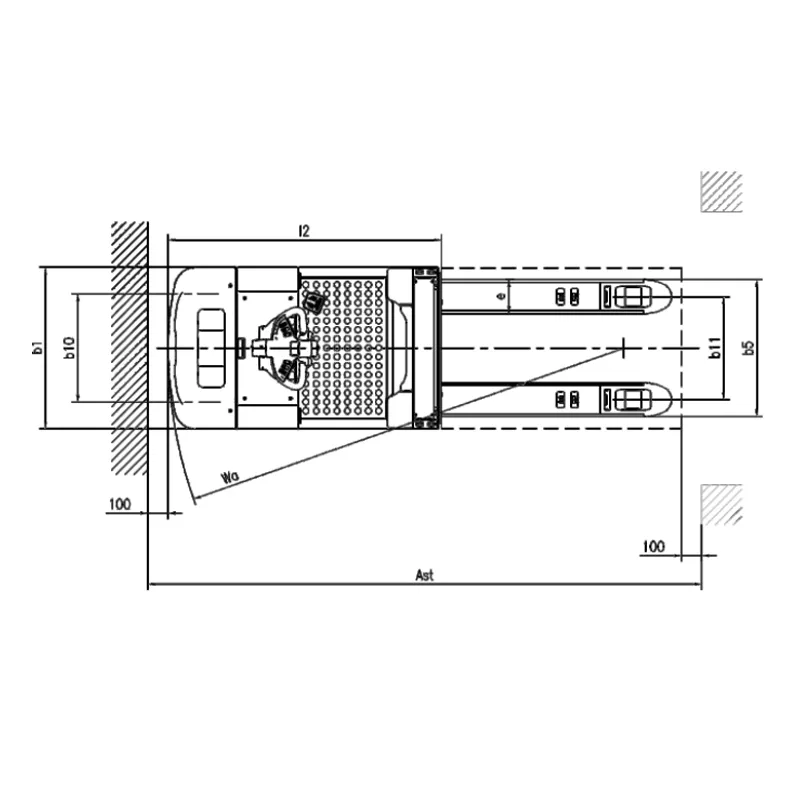

Details 1

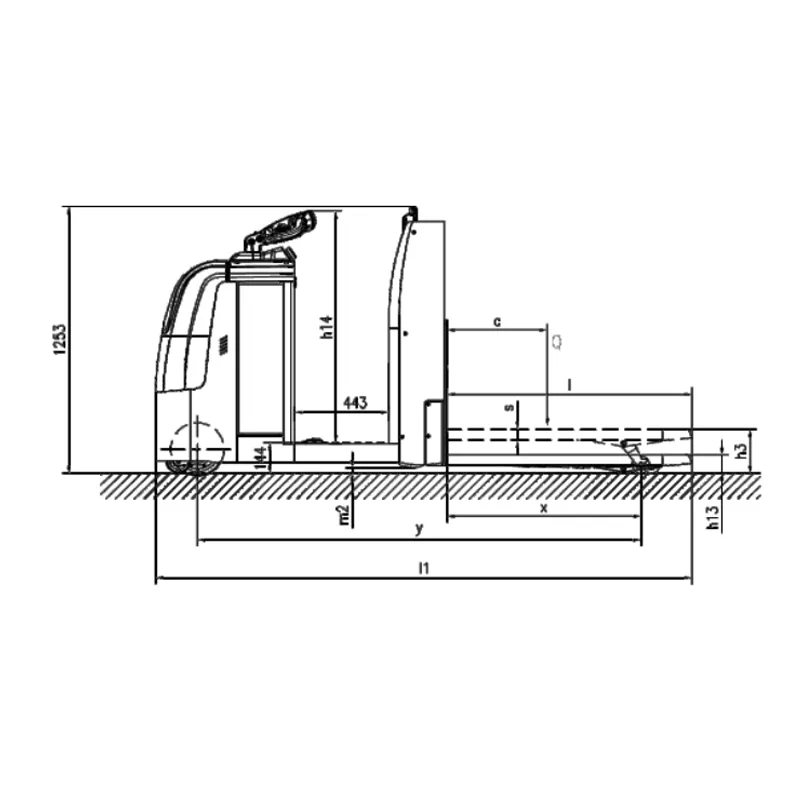

Details 2

Equipped with emergency stop switches, turtle speed buttons for precise control, and maintenance-free batteries. The separated mask design allows for easy access to main components for repairs.

Certificates

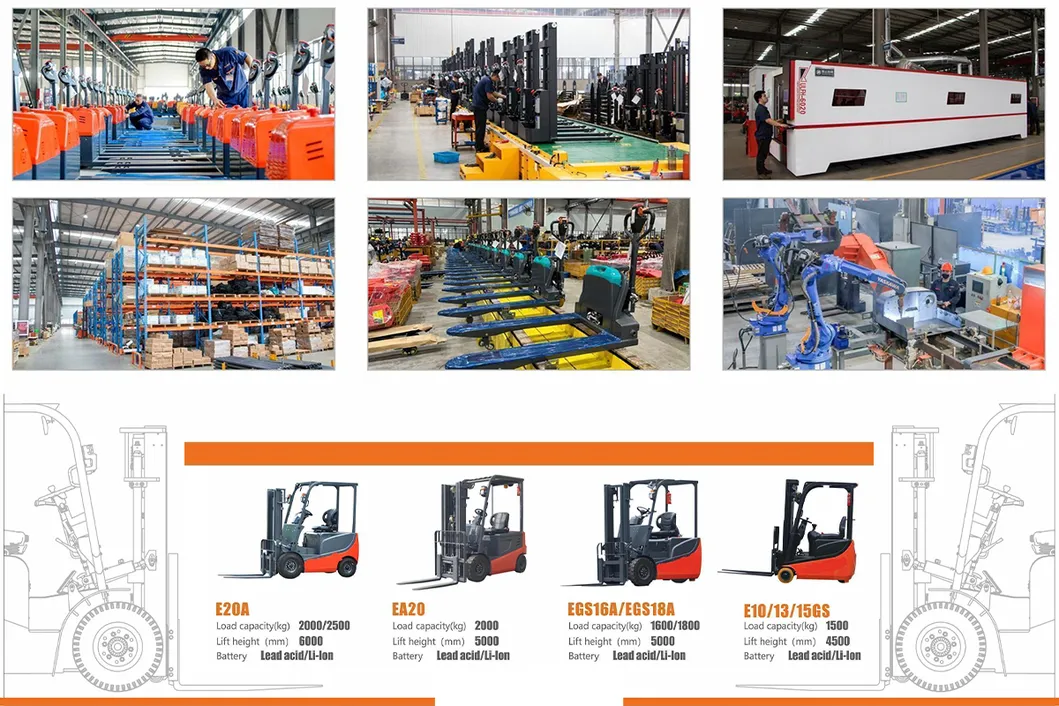

Workshop
❓

Frequently Asked Questions

Q: What is your standard delivery time? A: The delivery time is around 30 working days. During peak seasons, production may take slightly longer.
Q: What payment terms do you support? A: Normally we accept TT (Telegraphic Transfer) and LC (Letter of Credit) at sight.
Q: How do you handle quality control? A: We have a strict quality control system and a professional QC team monitoring every step of production.
Q: Can the product color be customized? A: Yes. While standard colors are Yellow, Red, or Green, we can customize the color according to your specific color code.
Q: What kind of warranty and after-sales service is provided? A: We provide a 1-year warranty. If any parts fail due to quality issues within this period, new parts will be sent free of charge within 7 working days.
Q: What certifications do your products have? A: Our production processes are ISO 9001:2008 certified, and all forklifts/stackers carry the CE certification.
