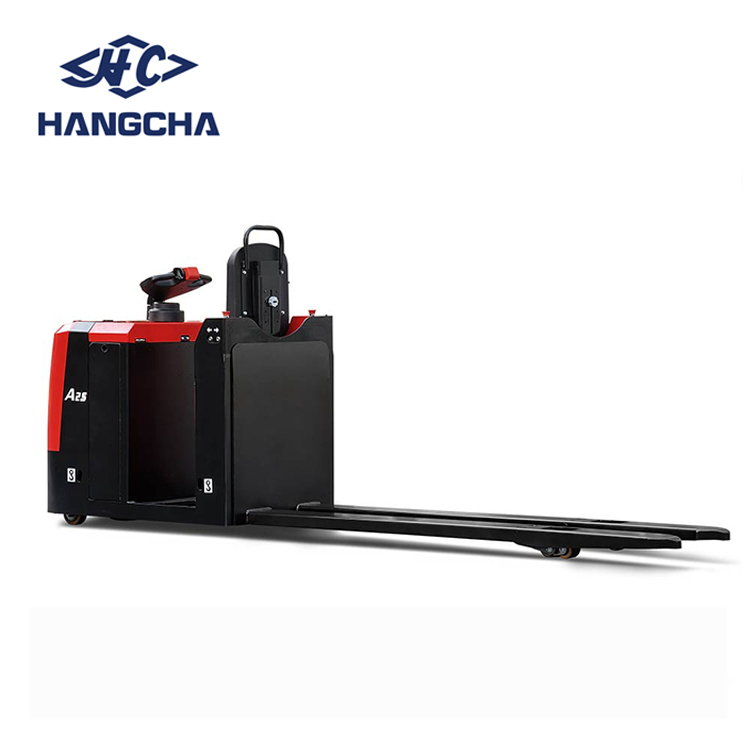

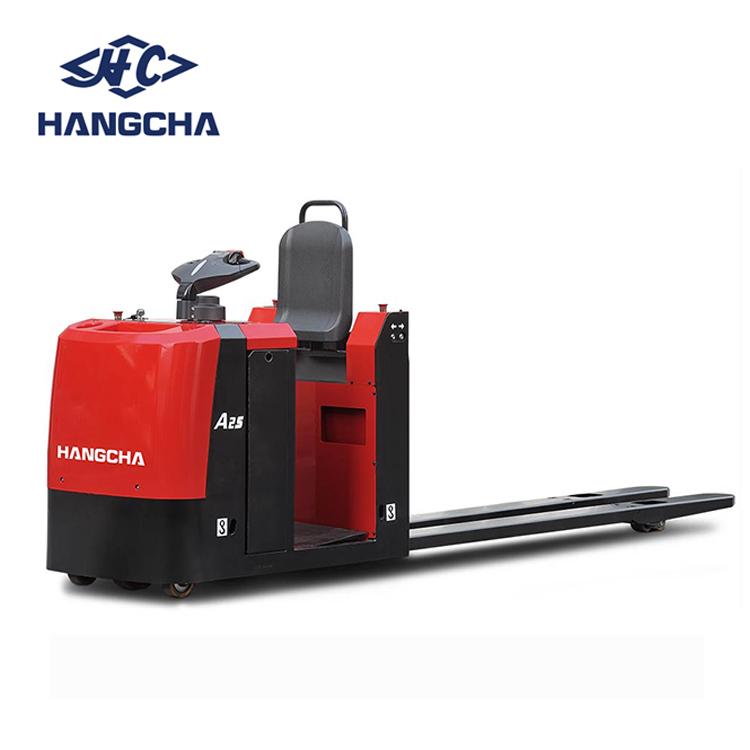

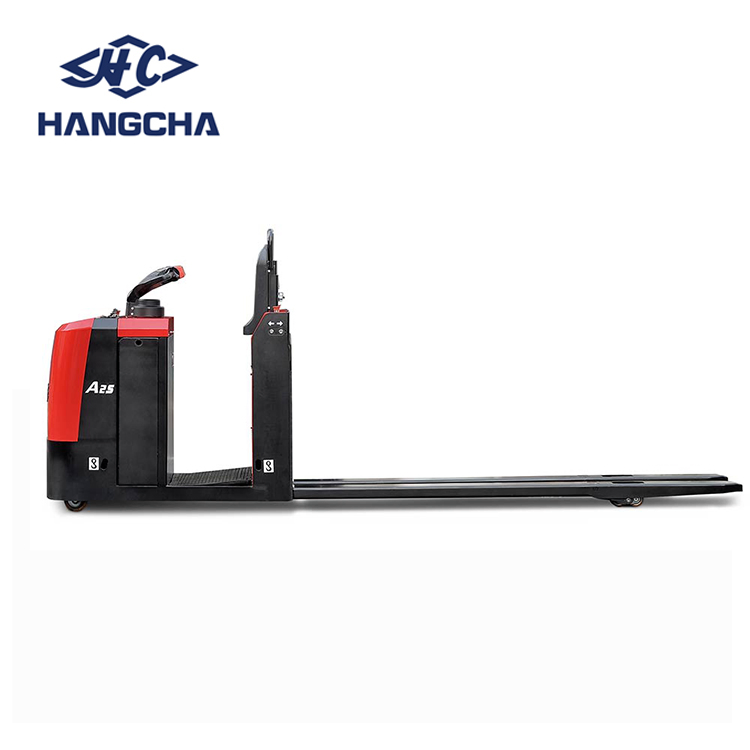

Hangcha a Series Low-Level Order Picker 2500kgs Cjd25-AC1-L
Hangcha a Series Low-Level Order Picker 2500kgs Cjd25-AC1-L
Hangcha a Series Low-Level Order Picker 2500kgs Cjd25-AC1-L
1 / 3
Hangcha a Series Low-Level Order Picker 2500kgs Cjd25-AC1-L
Hangcha a Series Low-Level Order Picker 2500kgs Cjd25-AC1-L
Hangcha a Series Low-Level Order Picker 2500kgs Cjd25-AC1-L

Hangcha a Series Low-Level Order Picker 2500kgs Cjd25-AC1-L

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
CJD25-AC1-L
Type
Pallet Jack
Power
AC Motor
Load Capacity
2500kgs
Fuel
Electric
Load center
600mm
Lift height
125mm
Condition
New
Product Name
Electric Pallet Truck
Operator
Stand Type
Origin
China
HS Code
8427109000
🚚
A series Low-level Order Picker 2500kgs

Applied in long-distance transportation among production lines. Featuring a low operator platform for frequent and effortless entry and exit. The standing design significantly improves operation efficiency, while the electric drive system ensures environmental friendliness for indoor workshop applications.

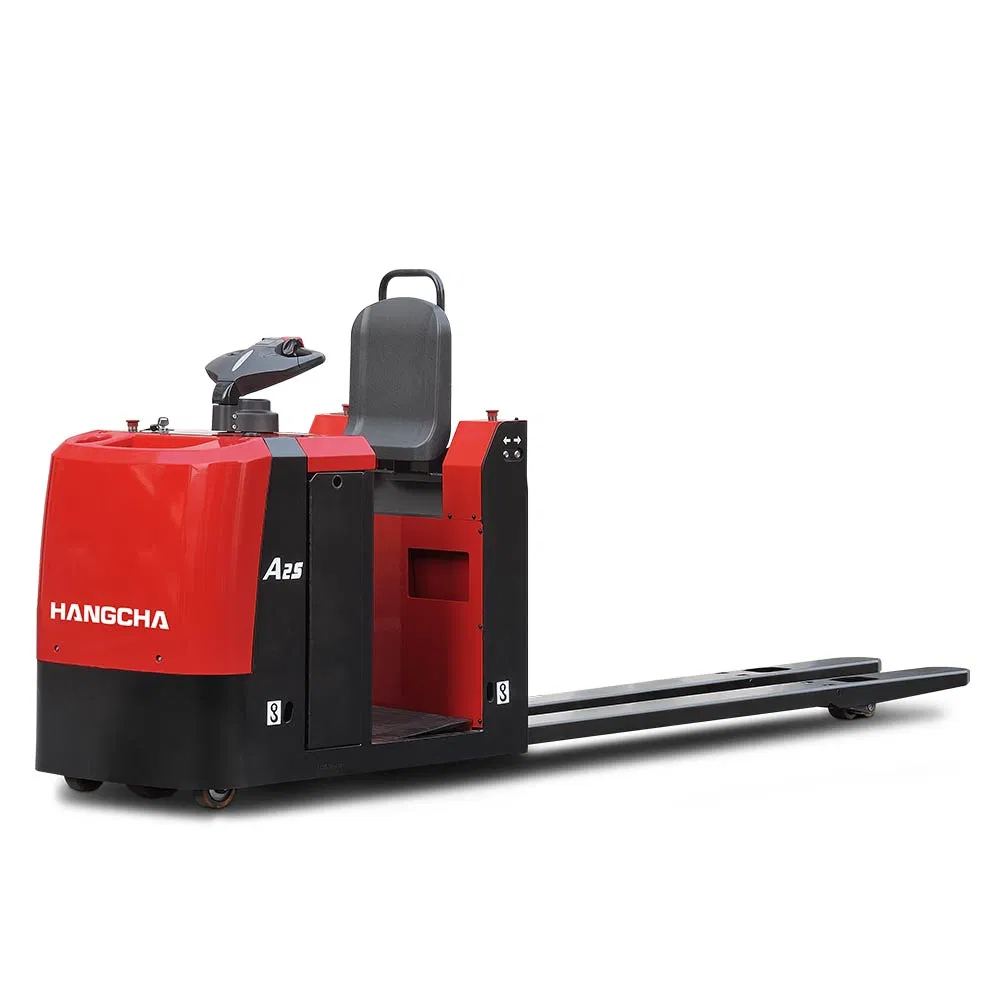

Low-Level Order Picker Main View

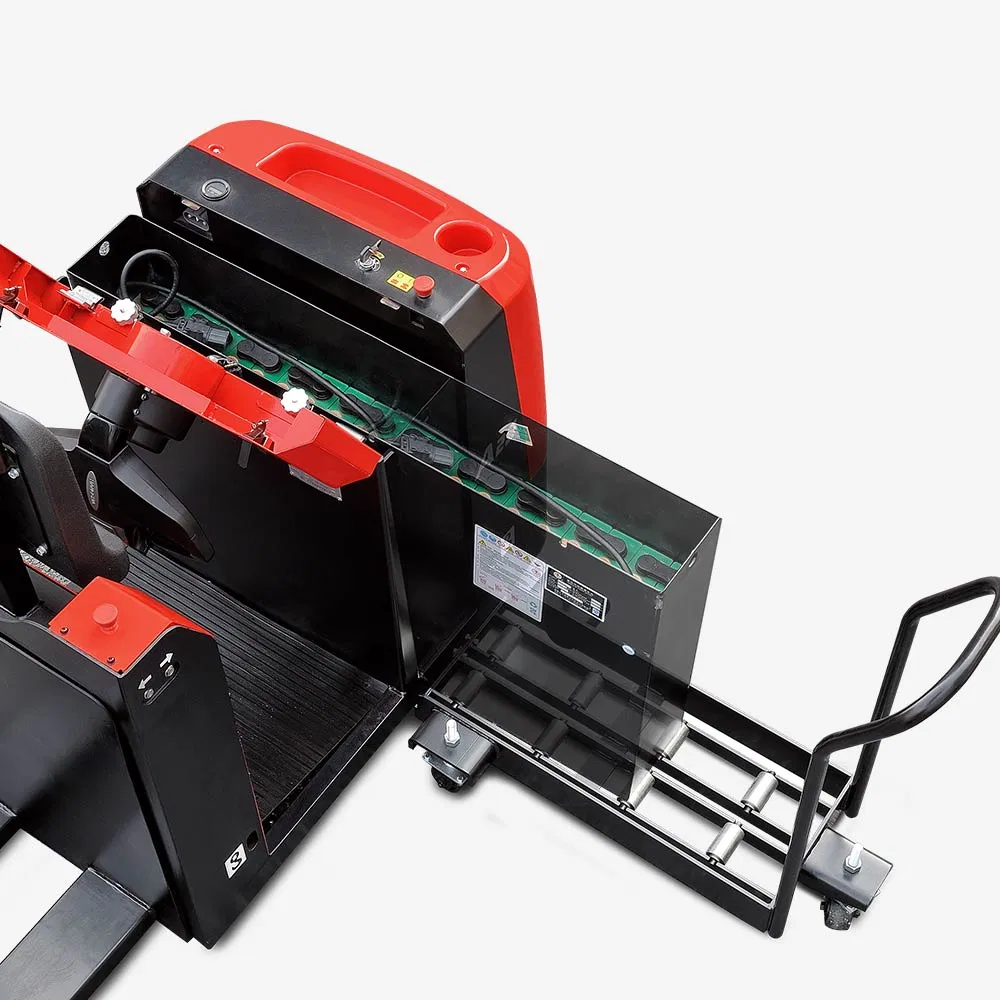

Order Picker Detail 1

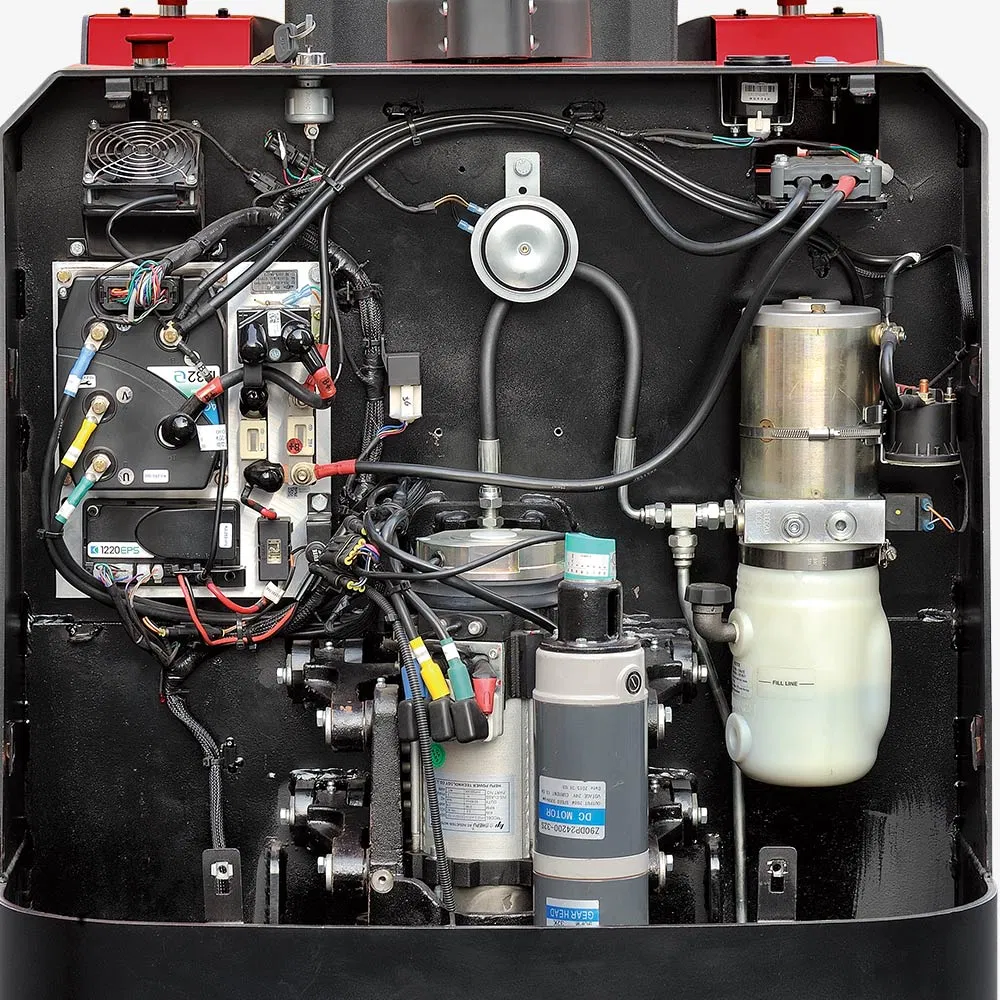

Order Picker Detail 2

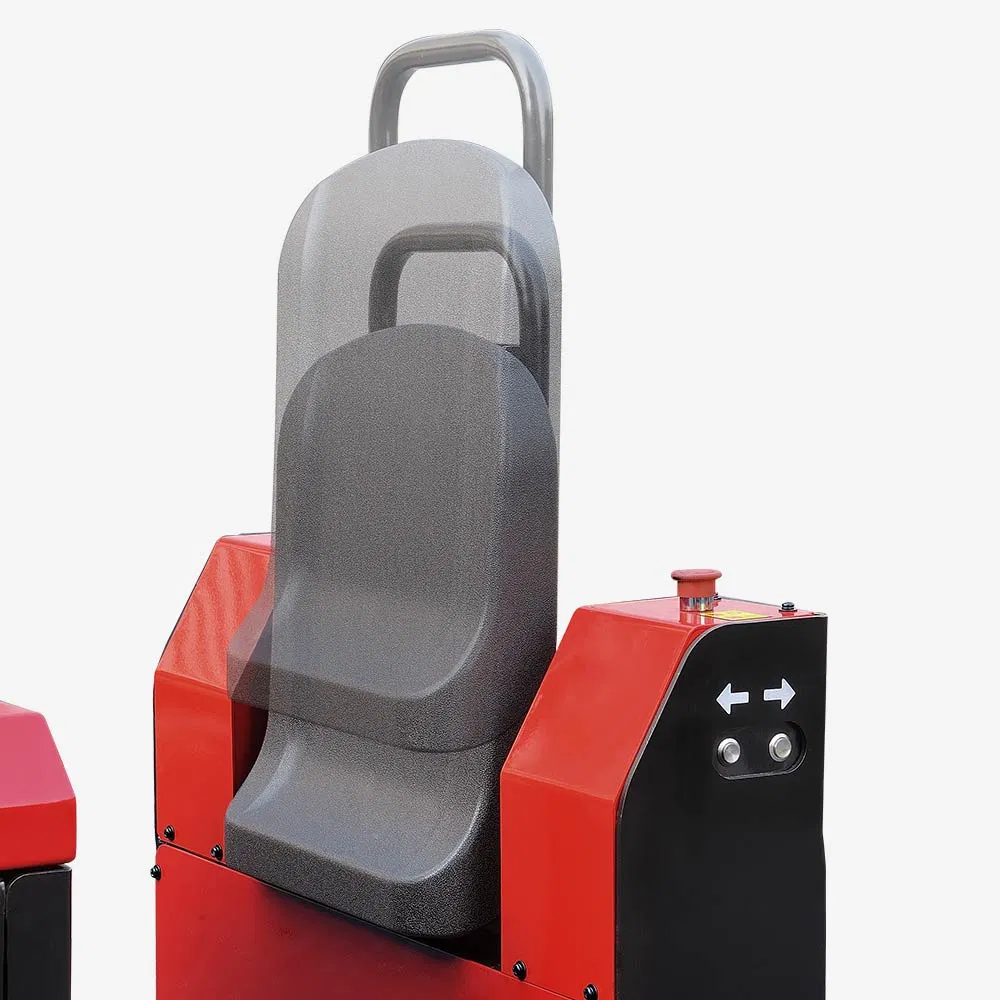

Order Picker Detail 3
Key Features & Performance
🔵
High Performance: Electric Power Steering (EPS) is standard, providing flexible operation and precise control via the CURTIS AC system.
🔵
Professional Design: Ergonomic industrial design with steel stamping and injection molding for a robust and durable guard.
🔵
Advanced Motor: AC traction motor offers excellent acceleration and climbing, brushless, and maintenance-free.
🔵
Easy Operation: Inching switches on both sides and double tray design for efficient picking and transshipment.
Technical Specification Sheet
1.2Manufacturer's type designationCJD25-AC1-L
1.4Operator typeOrder-picker
1.5Rated capacity/rated load2500kg / 5500lb
1.6Load centre distance1200mm
2.1Service Weight1130kg
3.1Tyres typePolyurethane (PU)
4.4Lift height125mm
4.19Overall length3730mm
4.21Overall width800mm
4.22Fork dimensions64/170/2400 mm
5.1Travel speed, laden/unladen7.0 / 10.0 kph
6.1Drive motor rating2.2 kW
6.4Battery voltage/capacity24V / 360Ah
Standard Specification
  • ✓ AC traction motor & Controller
  • ✓ Imported hydraulic unit
  • ✓ EPS (Electric Power Steering)
  • ✓ Side battery change
  • ✓ Safety pedal & Rubber backrest
  • ✓ Multi-function tiller with CAN-Bus
Available Options
  • + Imported battery (420Ah)
  • + Various fork lengths (1150/1220/2150mm)
  • + Load backrest
  • + Charger options
  • + Guide roller
Frequently Asked Questions
What is the maximum load capacity of this order picker?
The A series low-level order picker has a rated load capacity of 2500kgs (5500lbs).
Is the steering system manual or electric?
Electric Power Steering (EPS) comes as a standard specification for flexible and effortless operation.
What type of battery and motor does it use?
It uses a high-performance AC traction motor and a 24V/360Ah battery (with a 420Ah option available).
What are the primary applications for this truck?
It is ideal for long-distance transportation in automobile manufacturing, logistics companies, and indoor warehouse environments.
Does the truck support quick data inspection?
Yes, the CAN-BUS connection allows all truck data to be read out quickly for reliable inspection and maintenance.
What is the travel speed of the CJD25-AC1-L?
The truck reaches a travel speed of up to 7.0 kph when laden and 10.0 kph when unladen.
