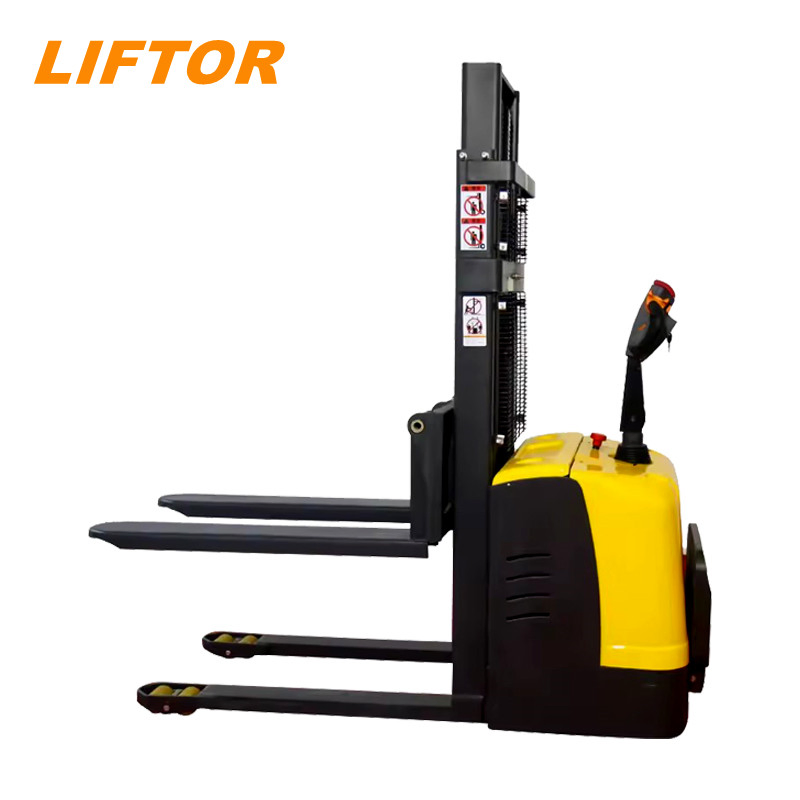

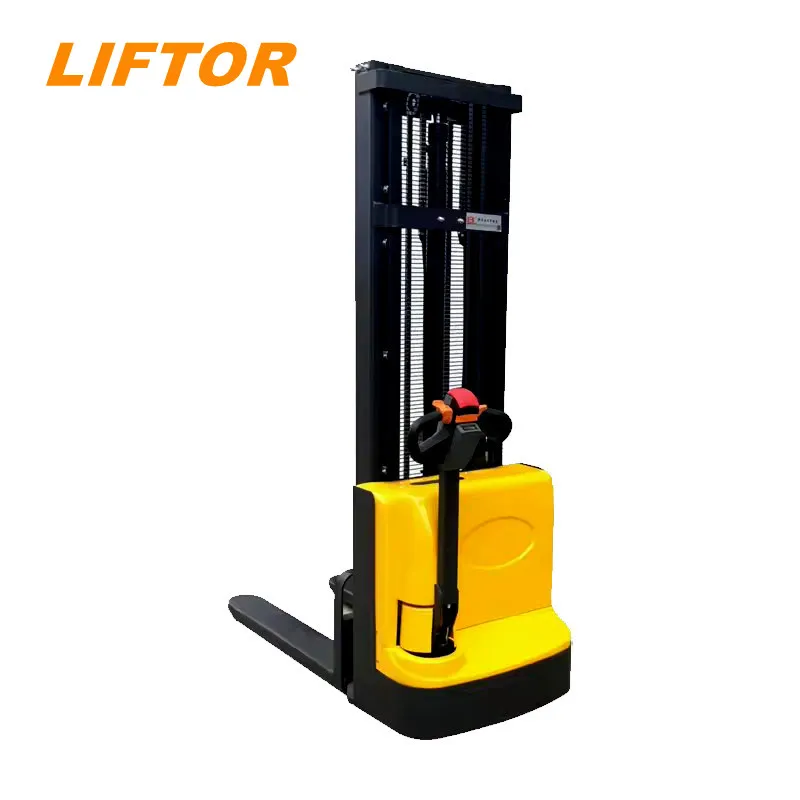

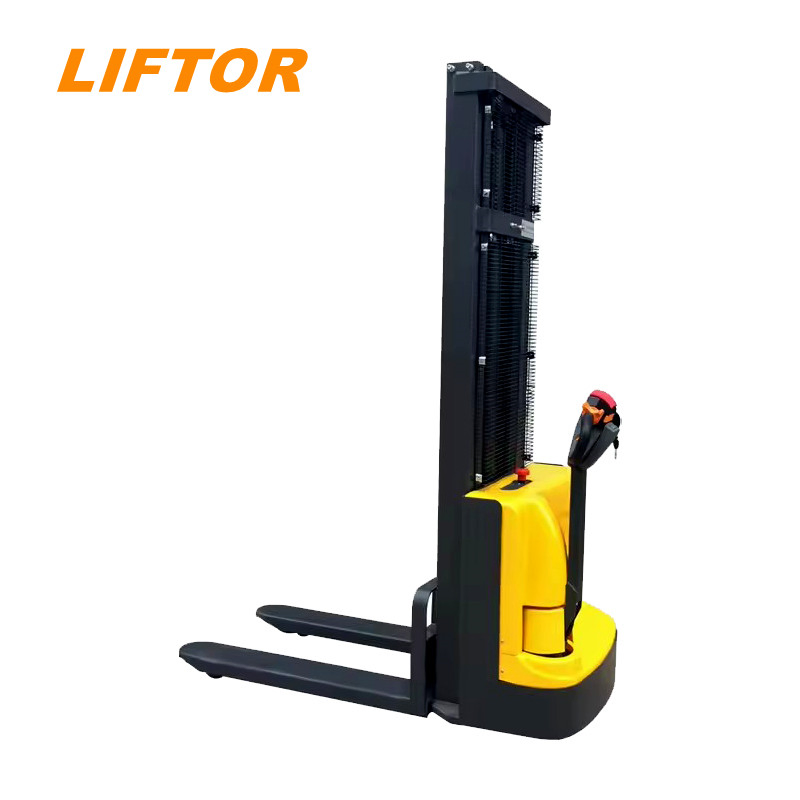

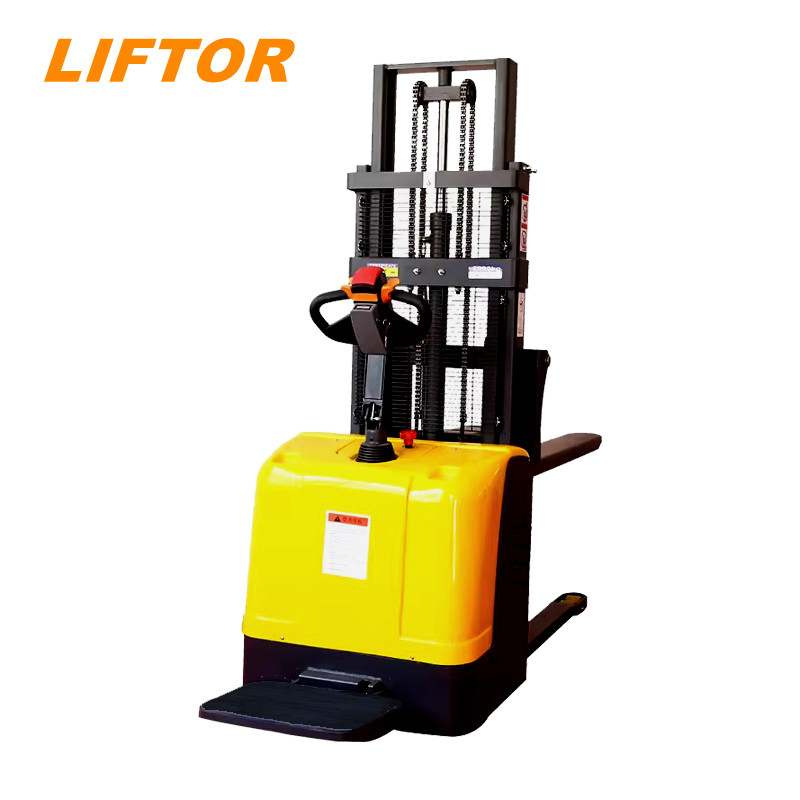

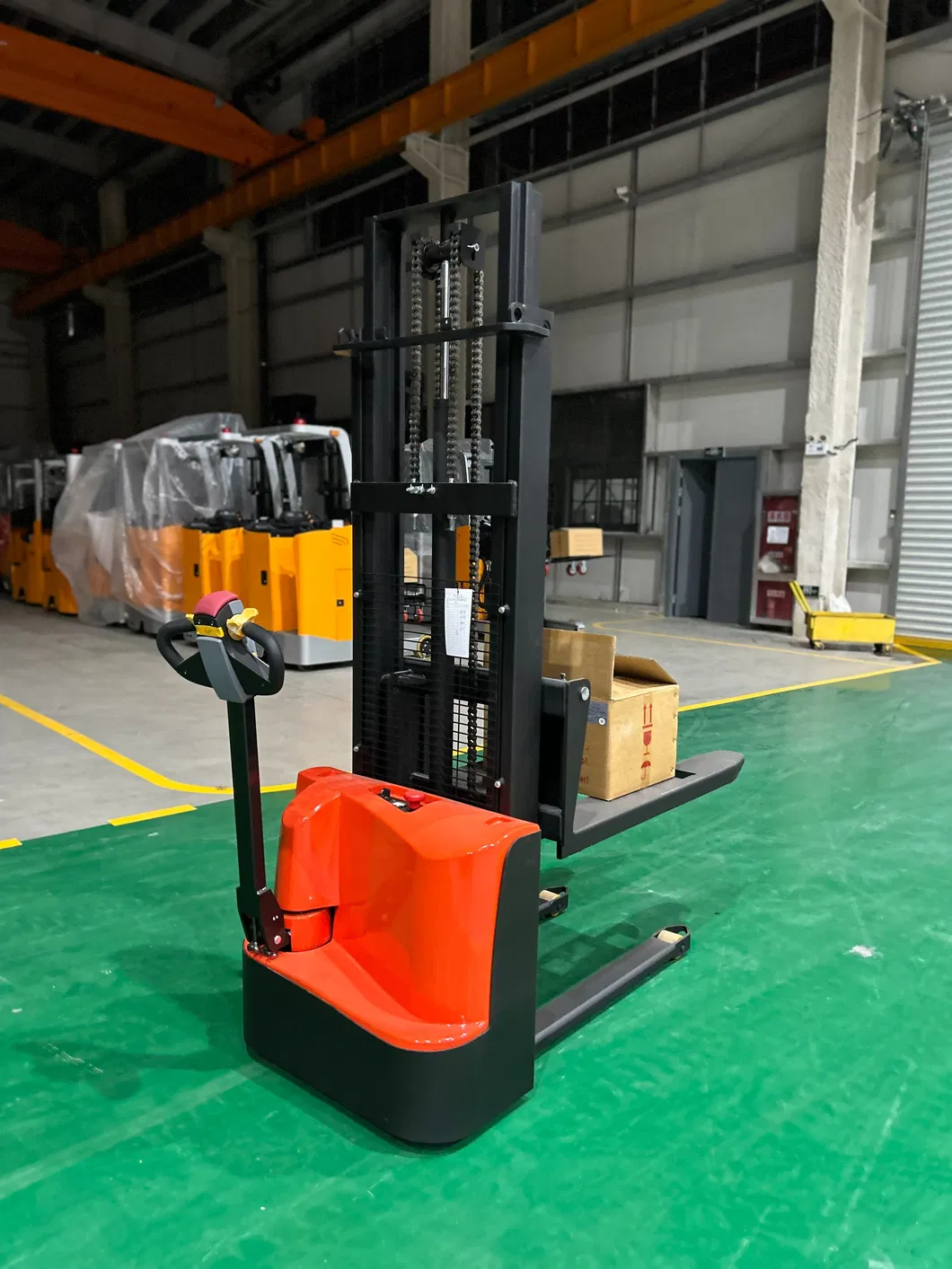

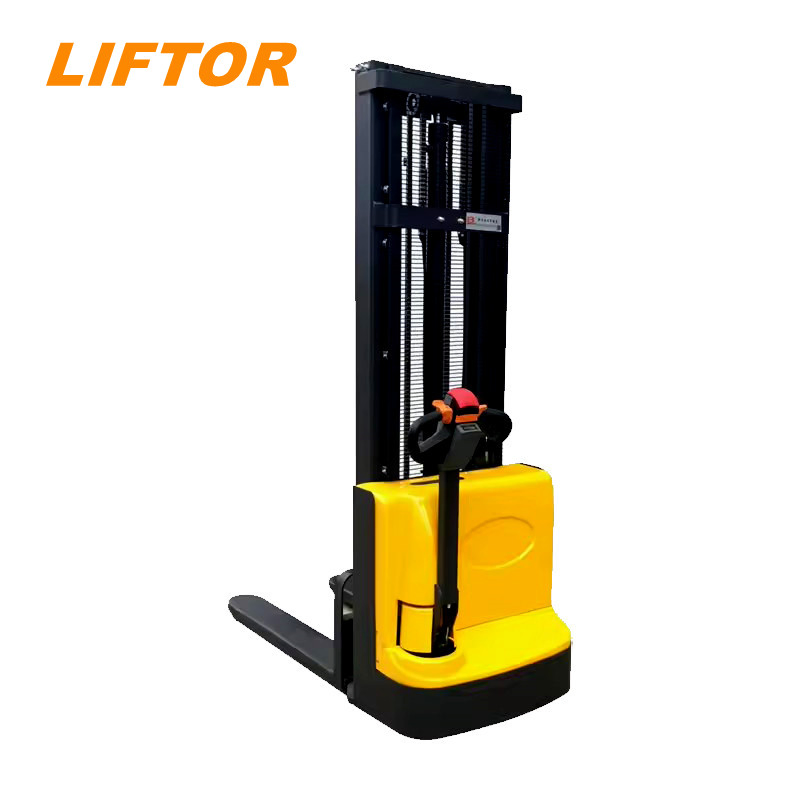

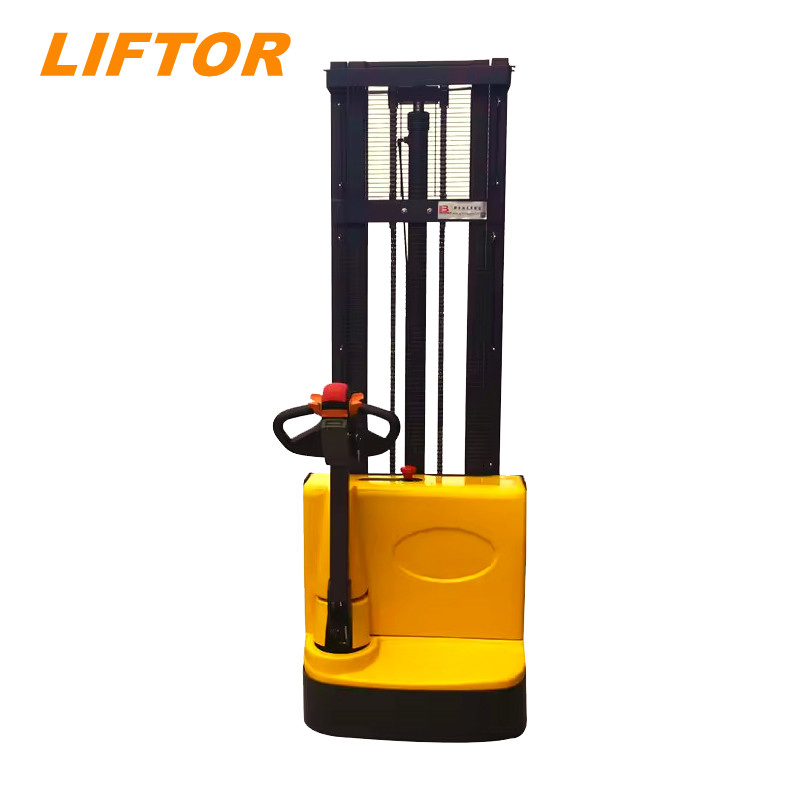

The walkie full electric stacker is a compact, energy-efficient material handling solution designed for maneuvering in tight spaces. It features a fully electric drive system, offering ease of operation, high load capacity, and improved stability. Ideal for warehouses, it reduces energy consumption while enhancing operational efficiency and safety.
Fully electric drive reduces energy consumption, improves operational efficiency, and lowers operating costs.
Small and agile, perfect for navigating narrow spaces and high-density storage environments.
User-friendly design with intuitive controls and smart system integration for enhanced safety.
Robust load-bearing capability adaptable to various material handling needs.
| Model Specification | CDD10A | CDD15A | CDD20A |
|---|---|---|---|
| Load Capacity | 1T | 1.5T | 2T |
| Lifting Height | 3000mm | 3000mm | 3000mm |
| Fork Length | 1070mm | 1070mm | 1070mm |
| Vehicle Dimensions | 1770x850x2090mm | 1770x850x2090mm | 1770x850x2090mm |
| Turning Radius | 1390mm | 1390mm | 1390mm |
| Drive Motor | DC 0.75kw | DC 0.75kw | DC 0.75kw |
| Lifting Motor | DC 2.2kw | DC 2.2kw | DC 2.2kw |
| Battery | 24V/80A | 24V/80A | 24V/80A |

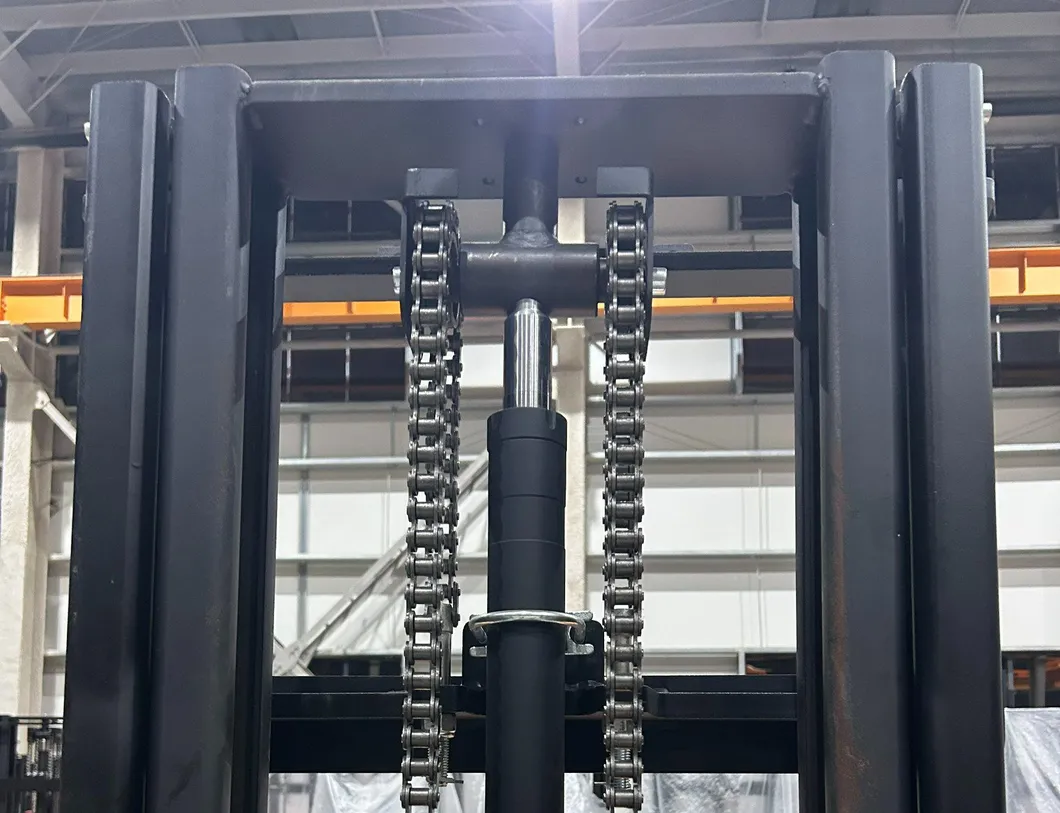

Thicker "C" door frame steel is selected to extend the service life of the mast and ensure structural integrity under heavy loads.

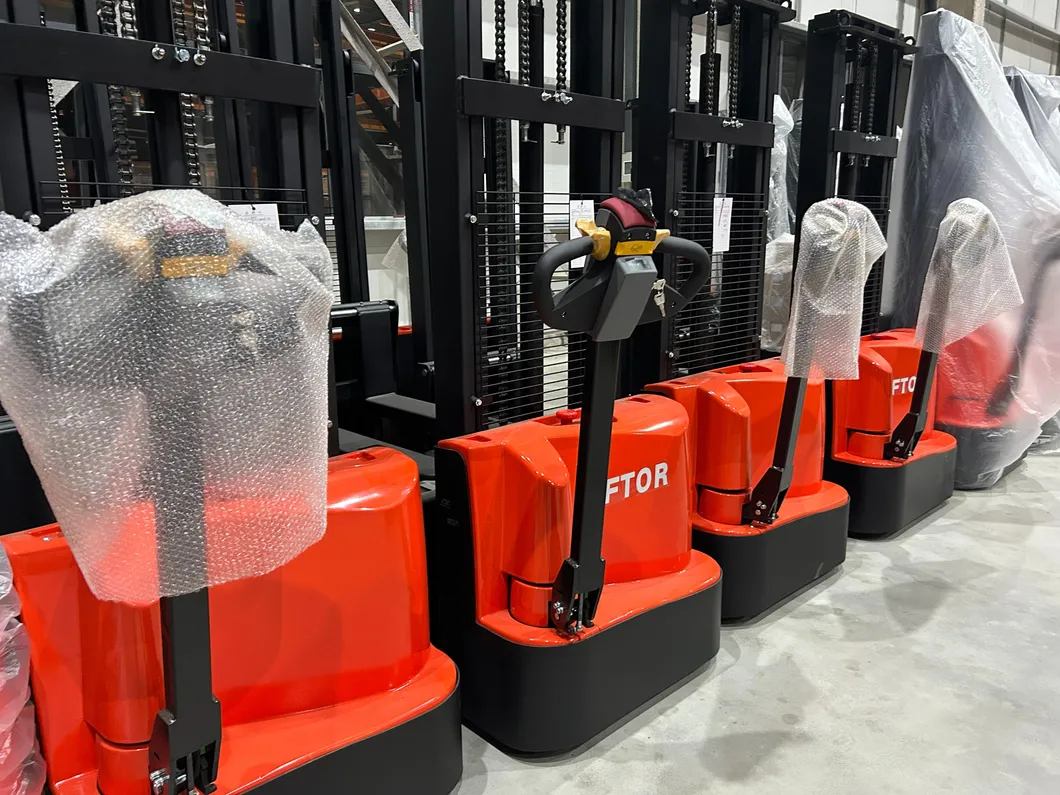

The whole vehicle adopts thickened steel plates, making the chassis more sturdy and durable for long-term industrial use.

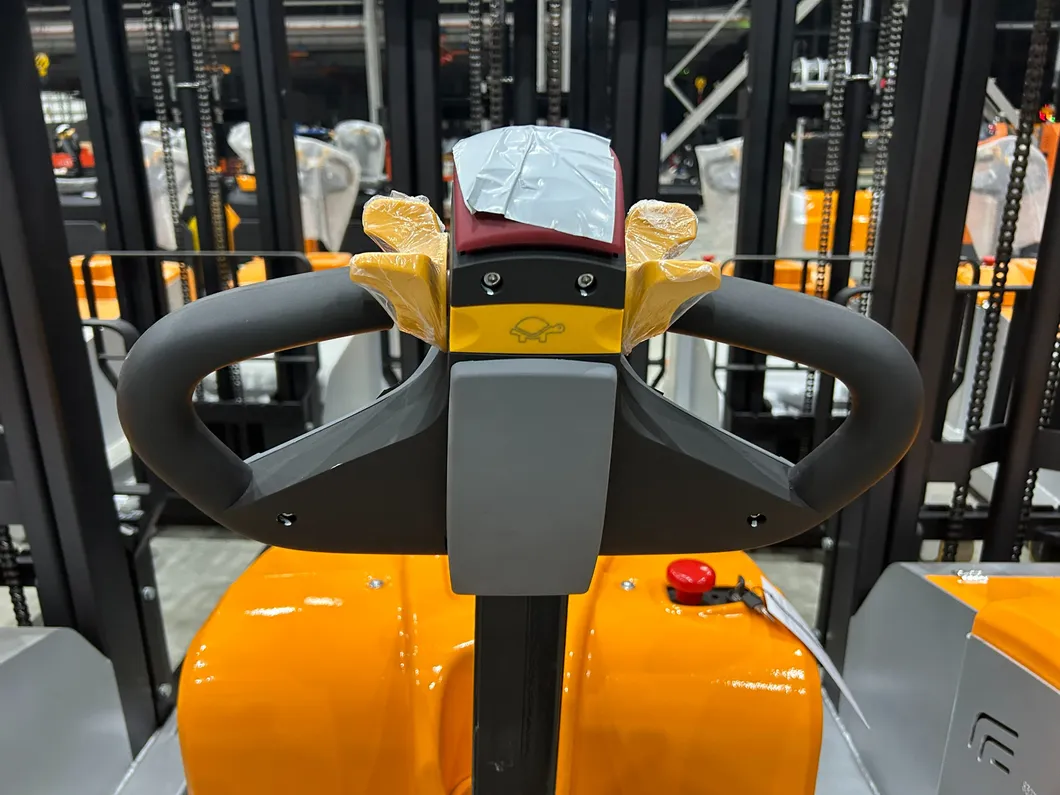

Multifunctional handle featuring lift, turtle/hare speed adjustment, power display, and emergency reverse for easy and safe operation.

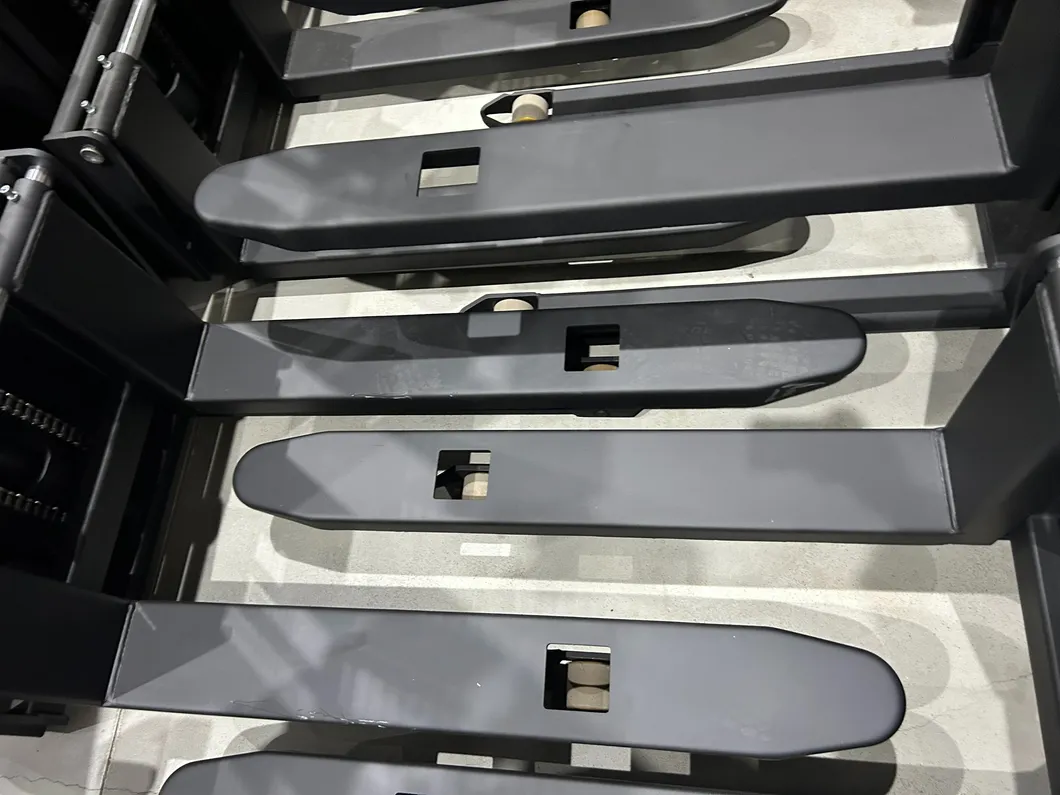

Thickened adjustable forks are designed for versatility, making it suitable for various pallet sizes and handling requirements.
