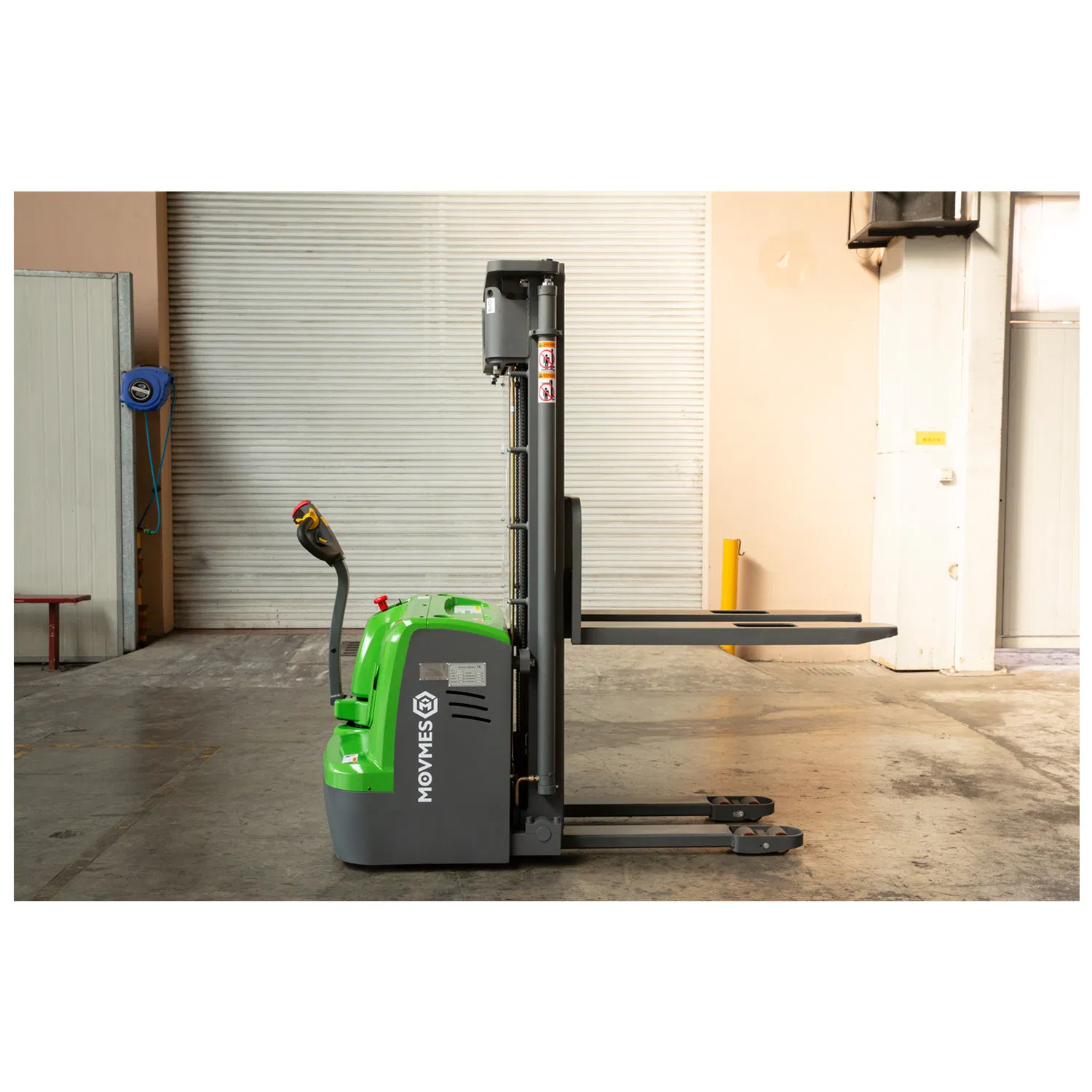

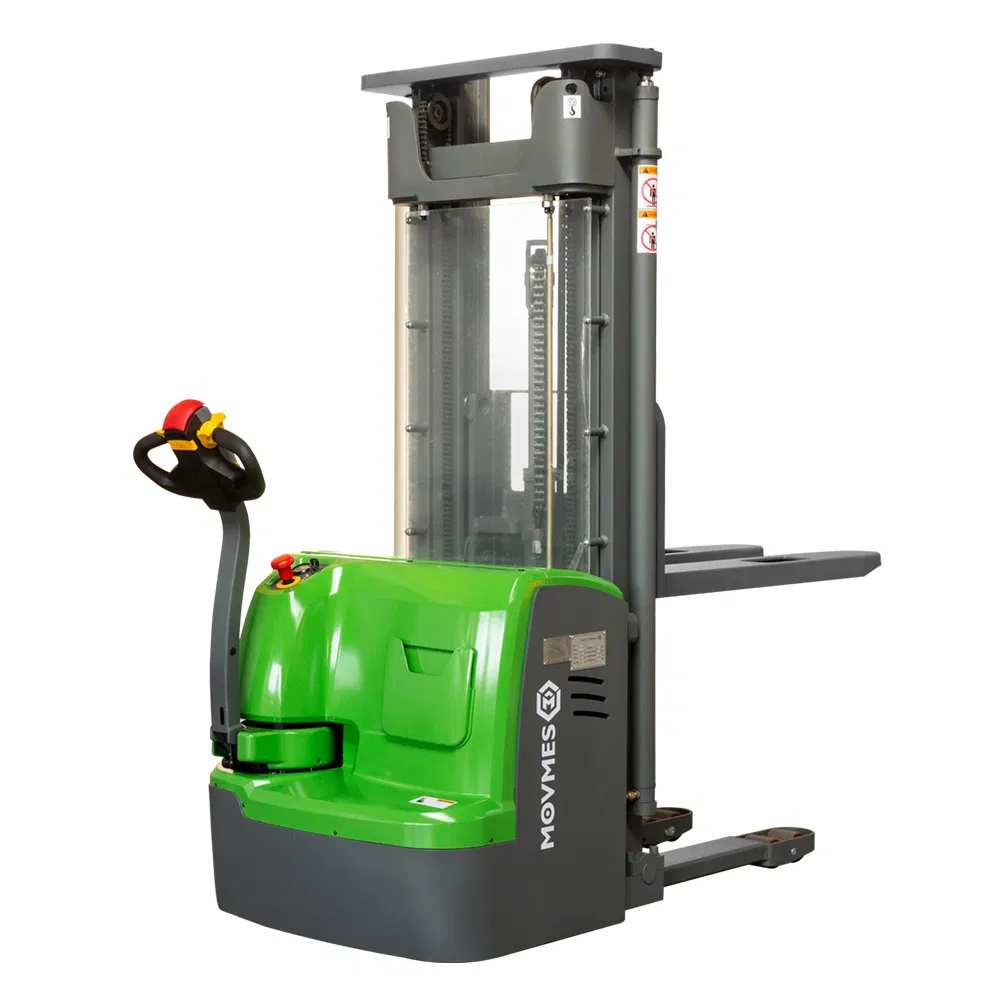

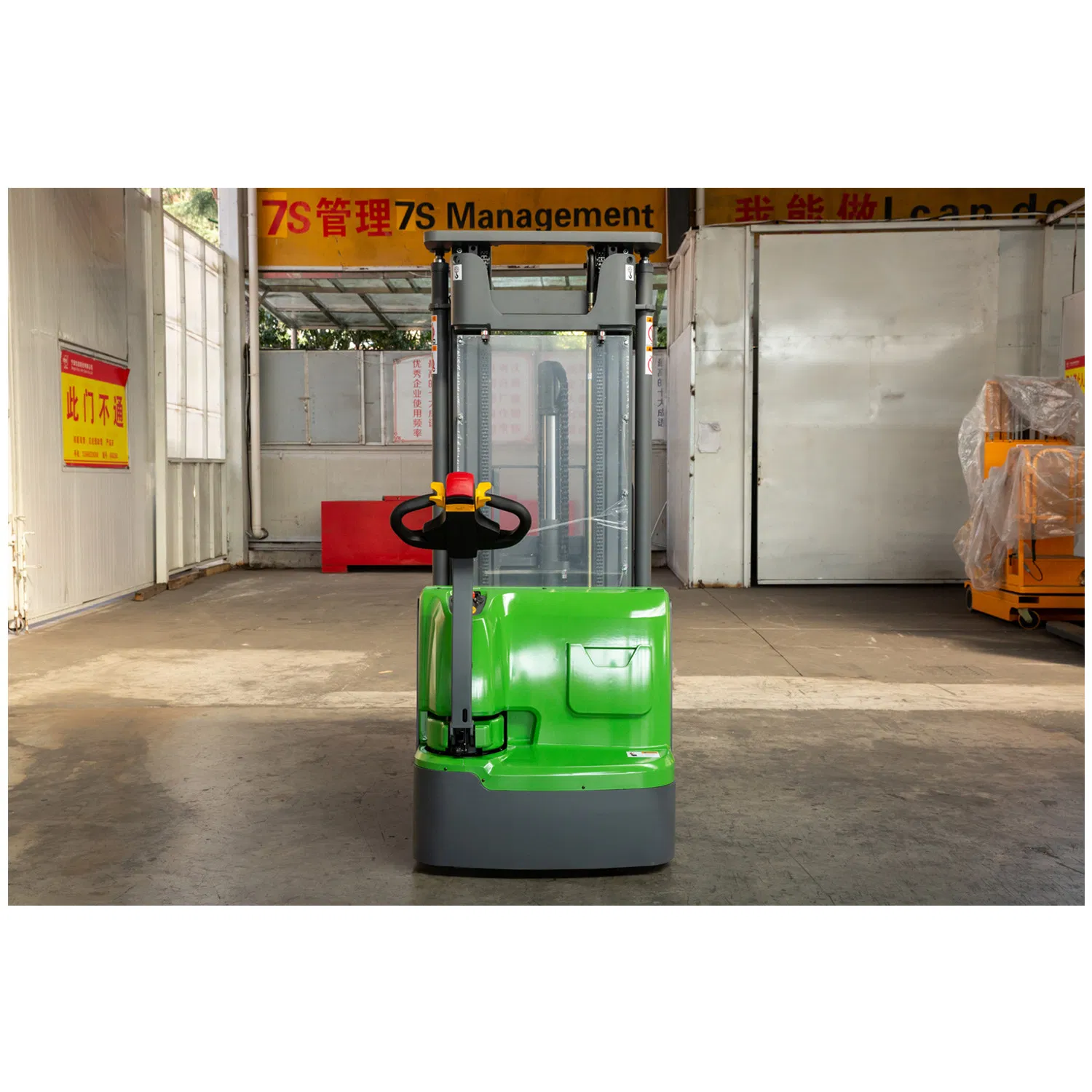

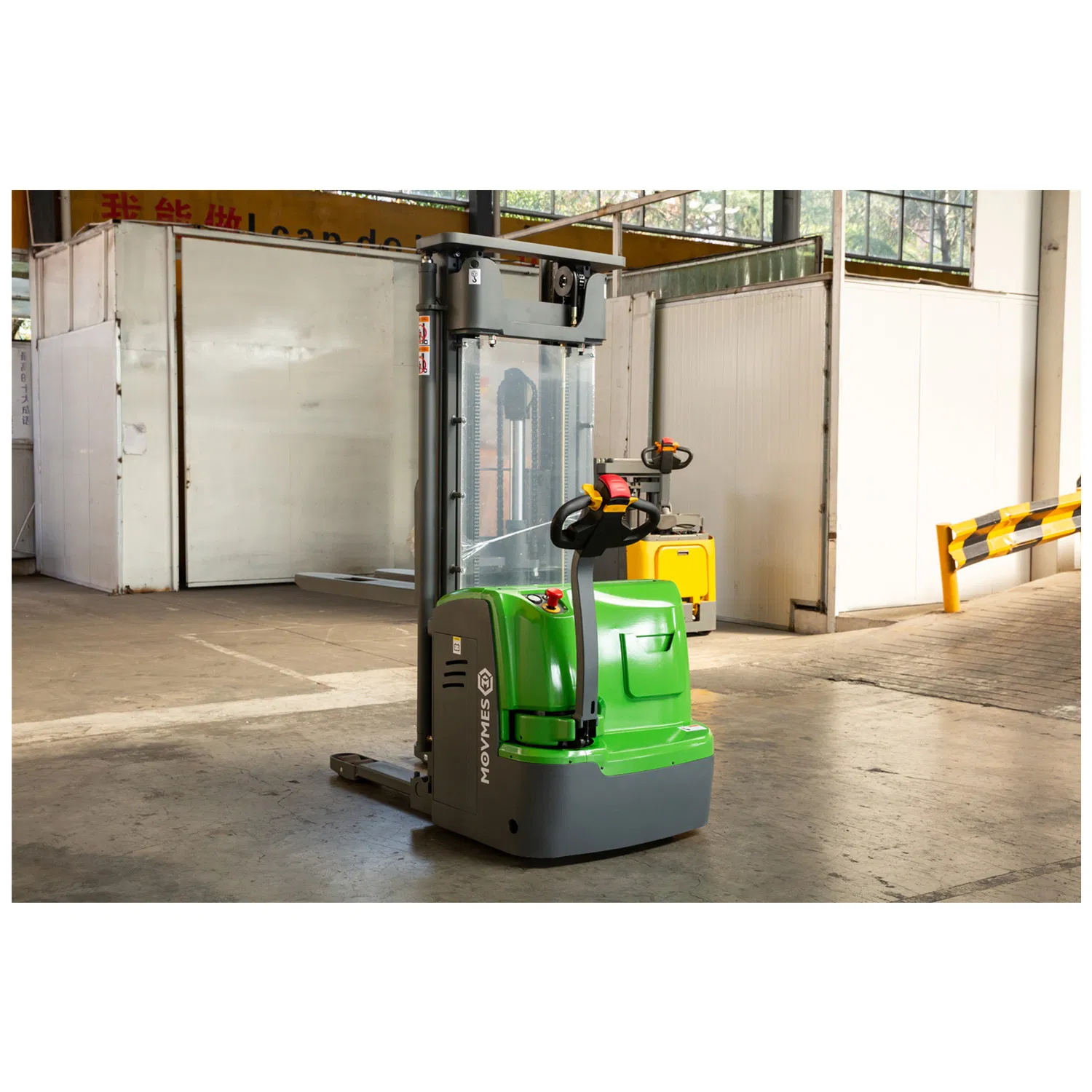

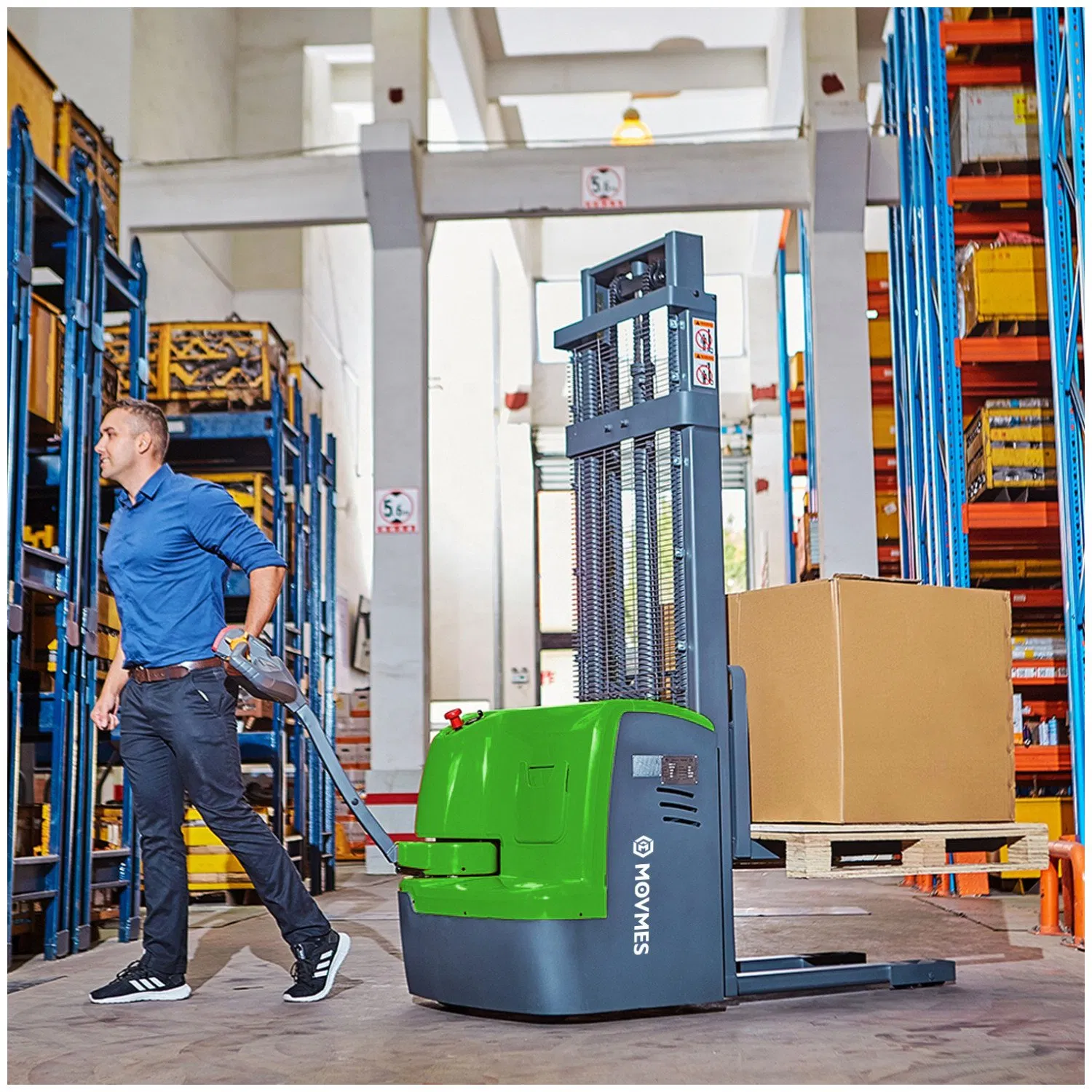

This electric stacker provides a cost-effective solution for applications involving medium lifting storage and short-distance pallet transportation. It features high-quality hydraulic components and a full self-lifting height design, making it an ideal choice for warehouse operations.

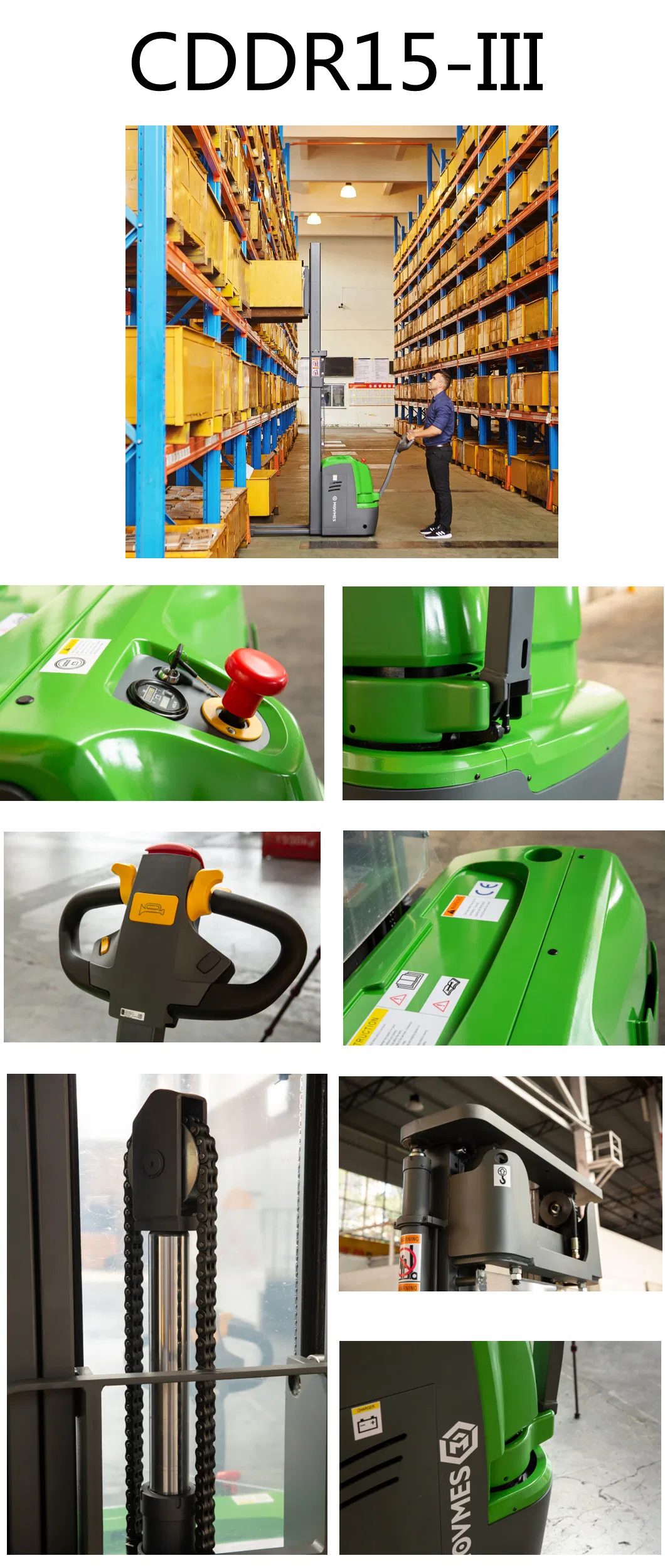

Advanced AC control system with intelligent regenerative braking. Features multi-function display (BDI, hour meter), emergency reversing device, and built-in pressure relief valve for overload protection.
CANbus technology reduces wiring complexity. Side-way battery with roll-out system allows for convenient replacement and maintenance.
Low center of gravity ensures stable operation. The vertical driving wheel allows for a small turning radius. Waterproof and dust-proof motor structure extends service life.

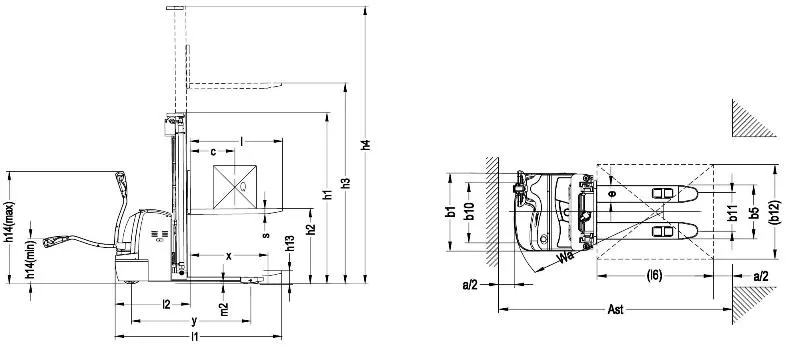

| Parameter | Unit | CDDK15-III (Standard) | CDDK15-III (Extended) |
|---|---|---|---|
| Load capacity | kg | 1500 | 1500 |
| Load center distance | mm | 600 | 600 |
| Fork height, lowered | mm | 90 | 90 |
| Tyre size, front | mm | Dia250x70 | Dia250x70 |
| Max. lift height | mm | 1600-3300 | 4500-5600 |
| Overall width | mm | 820 | 820 |
| Travel speed, laden/unladen | Km/h | 5.8/6 | 5.8/6 |
| Battery voltage | V/Ah | 24/200 | 24/200 |
Every truck undergoes five rigorous tests before delivery: Strengthening detection, Stability detection, Climbing performance, Braking performance, and Technical parameter verification.

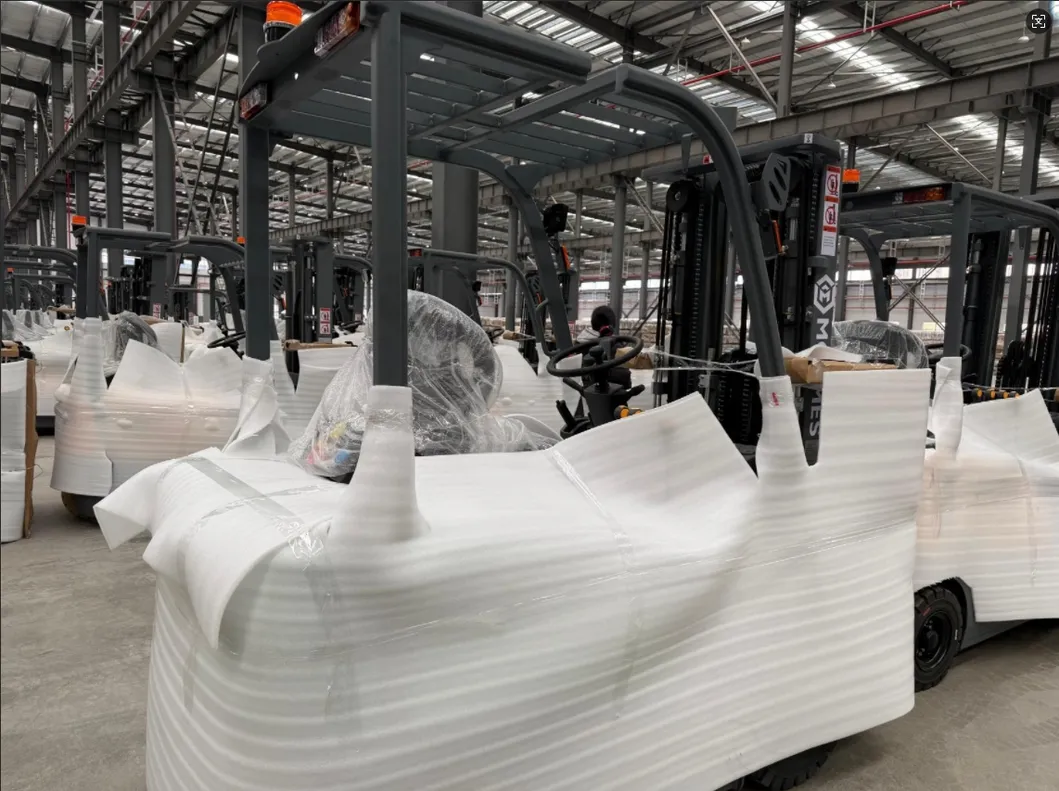

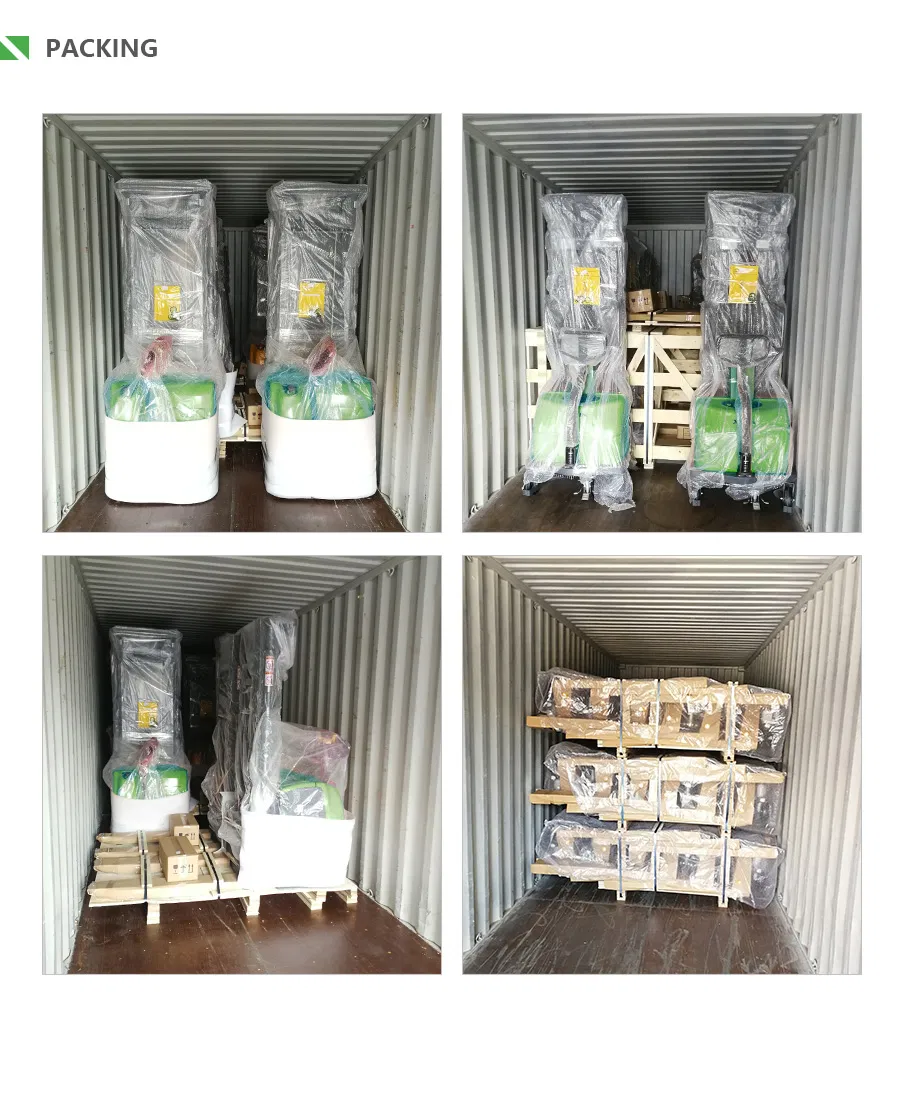

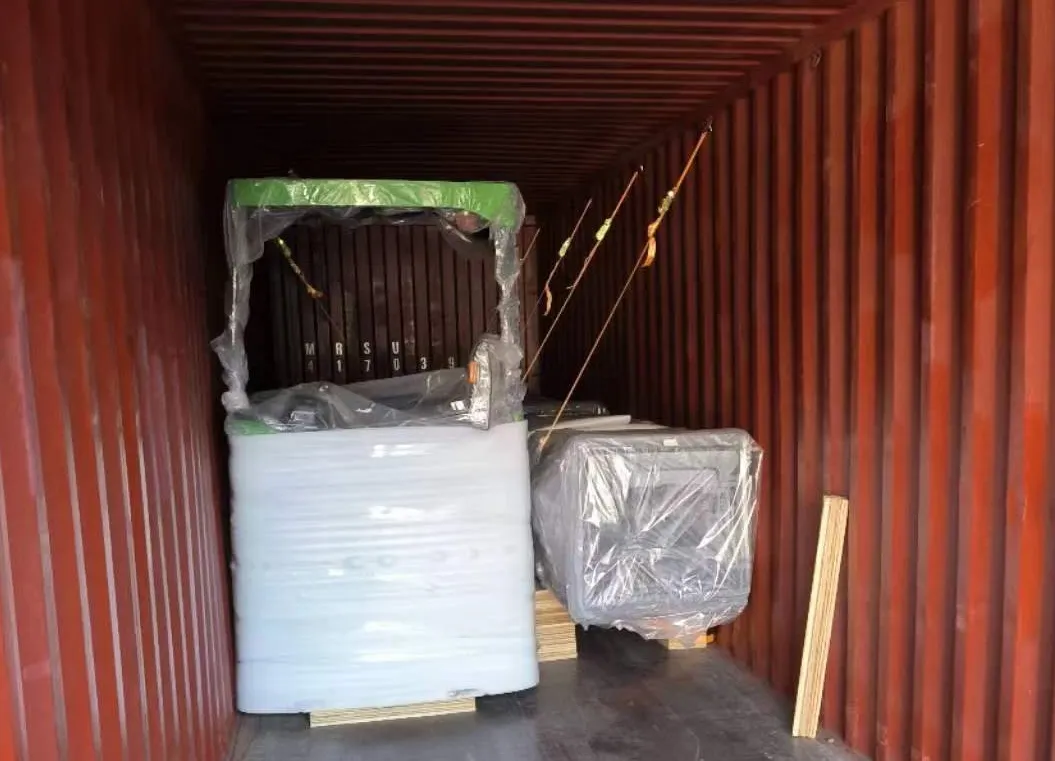

Standard export packaging for electric trucks. Each unit is carefully inspected and photographed before shipping to ensure it reaches customers in perfect condition.
