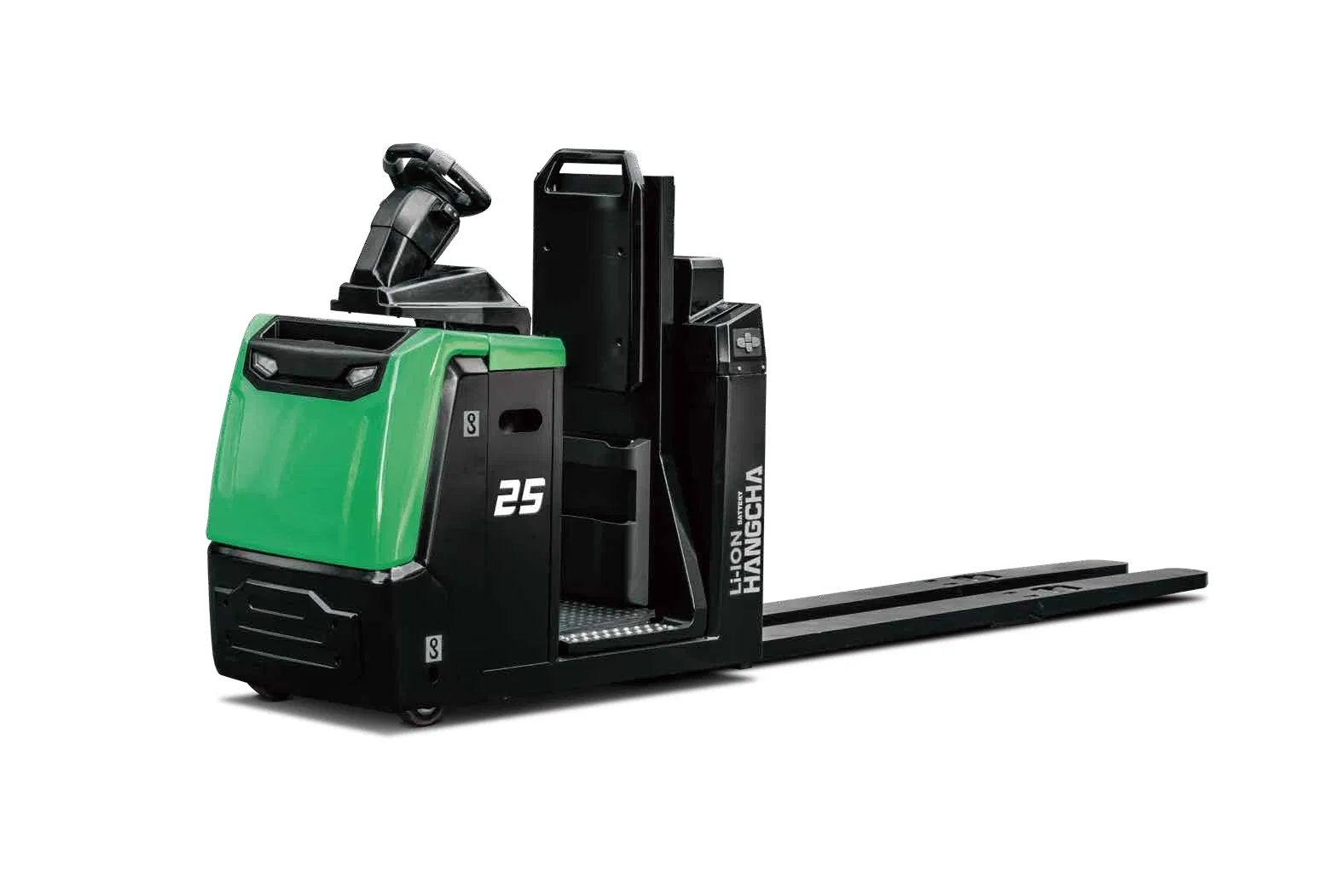

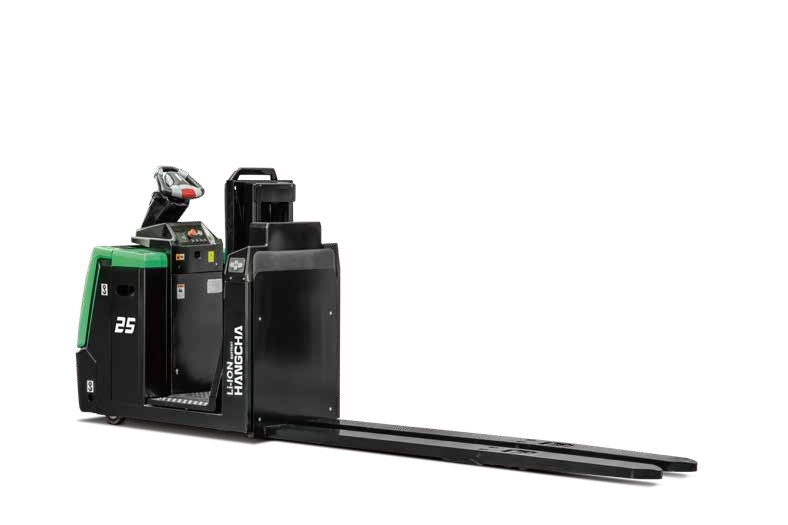

The X Series low-level order picker features an advanced permanent magnet brushless drive system and a brand new 48V system platform. It is safe and reliable, offering comfort and efficiency with outstanding performance and low maintenance costs, making it ideal for the selection of large items from the lower shelves in large supermarkets.
| Category | No. | Description | Unit | CJD25-XT1-LI | CJD25-XT1-LIT |
|---|---|---|---|---|---|
| Distinguishing | 1.2 | Manufacturer's type designation | - | CJD25-XT1-LI | CJD25-XT1-LIT |
| 1.3 | Drive: Electric (battery) | - | Electric | Electric | |
| 1.5 | Rated capacity/rated load | kg | 2500 | 2500 | |
| 1.9 | Wheelbase (y) | mm | 2614/2684 | 2730/2800 | |
| Weight | 2.1 | Service weight | kg | 880 | 1130 |
| Tyres/Chassis | 3.1 | Tyres | - | PU | PU |
| 3.2 | Tyre size, front | mm | Ø250x80 | Ø250x80 | |
| 3.5 | Wheels, number front/rear | - | 1x+1/4 | 1x+1/4 | |
| Dimensions | 4.4 | Lift (h3) | mm | 125 | 125 |
| 4.19 | Overall length | mm | 3692 | 3808 | |
| 4.21 | Overall width | mm | 800 | 800 | |
| 4.35 | Turning radius (Wa) | mm | 2822/2892 | 2938/3008 | |
| Performance | 5.1 | Travel speed, laden/unladen | km/h | 9.5/12.5 | 9.5/12.5 |
| 5.8 | Max. gradeability, laden/unladen | % | 6/16 | 6/16 | |
| 5.10 | Service brake | - | Regenerative | Regenerative | |
| Electric | 6.1 | Drive motor rating | kW | 2.2 | 2.2 |

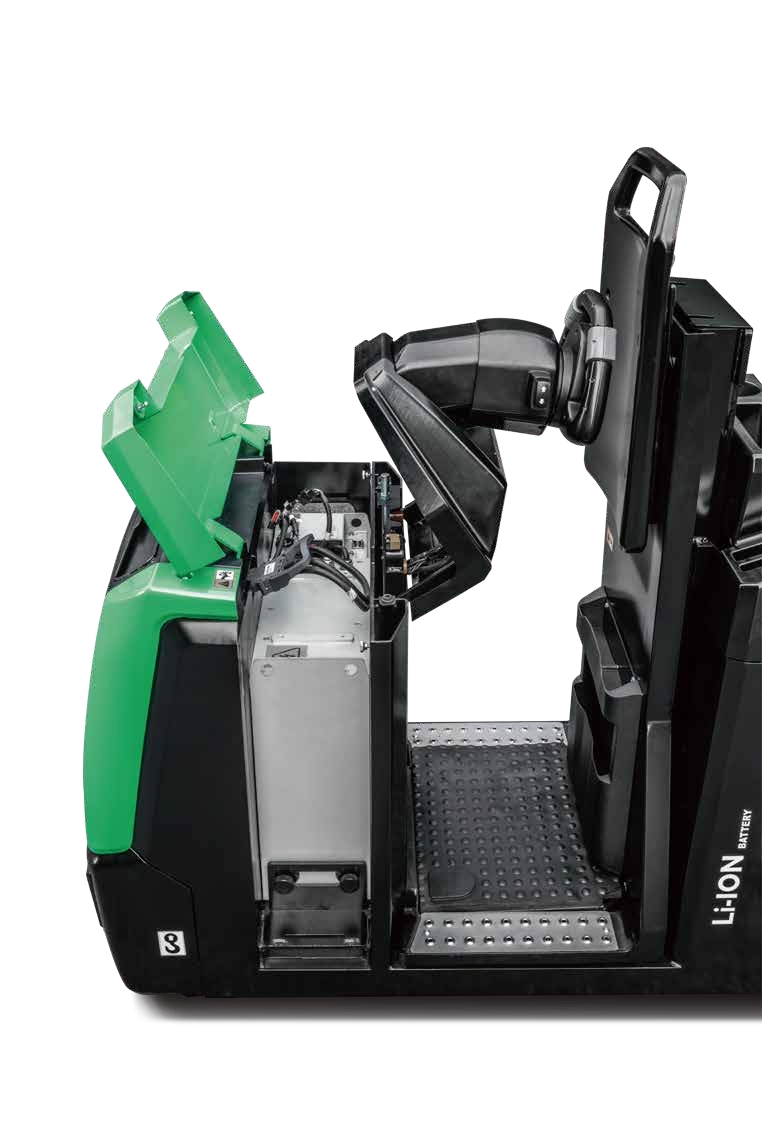

| 6.4 | Battery voltage/nominal capacity | V/Ah | 48/80 | 48/80 |
