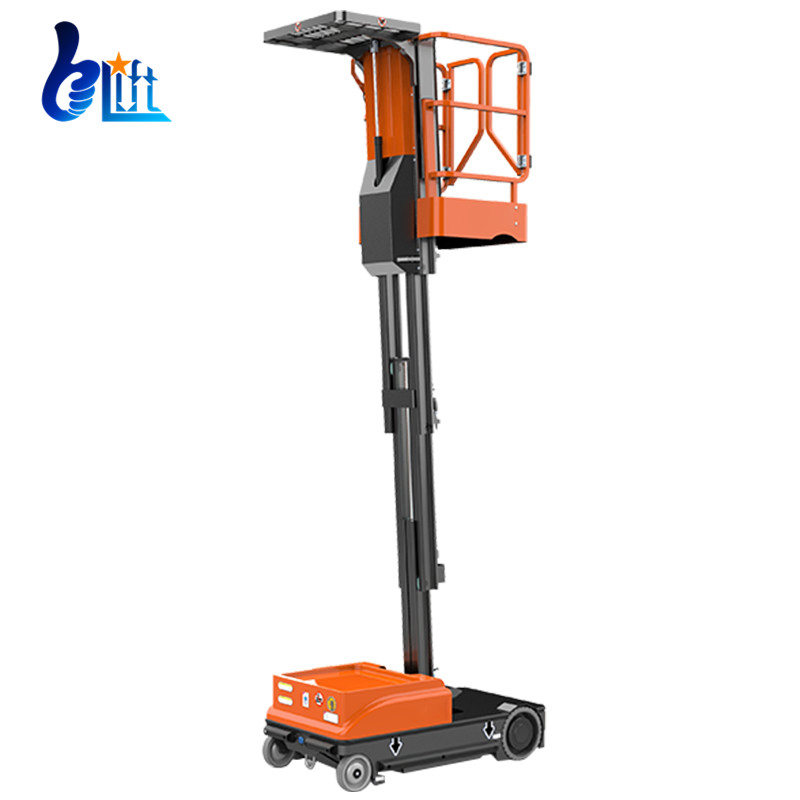

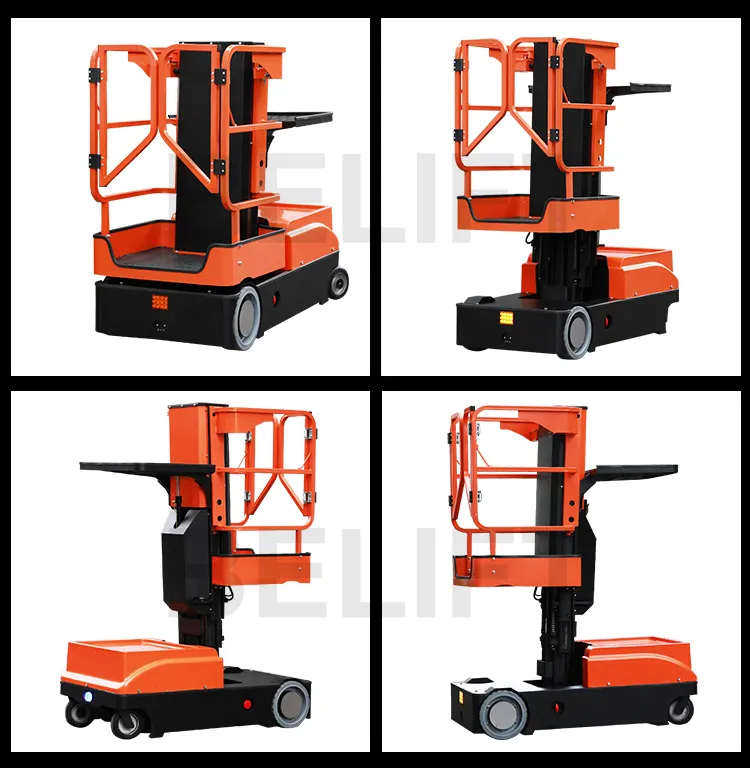

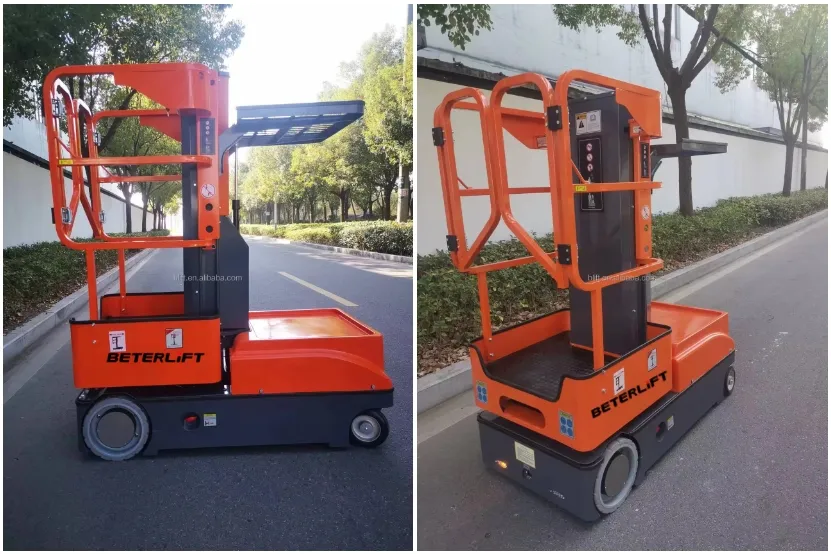

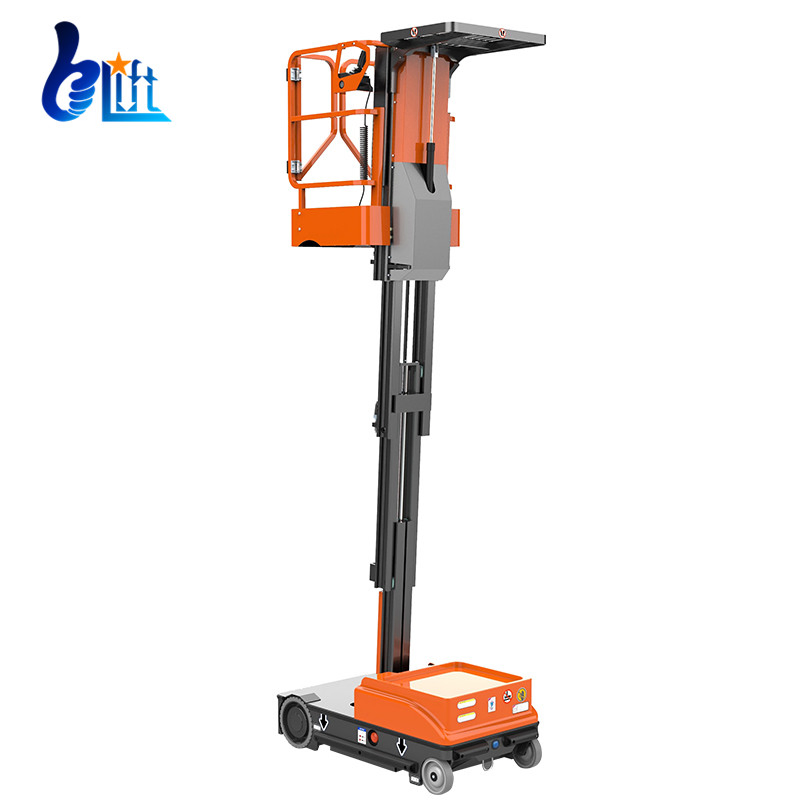

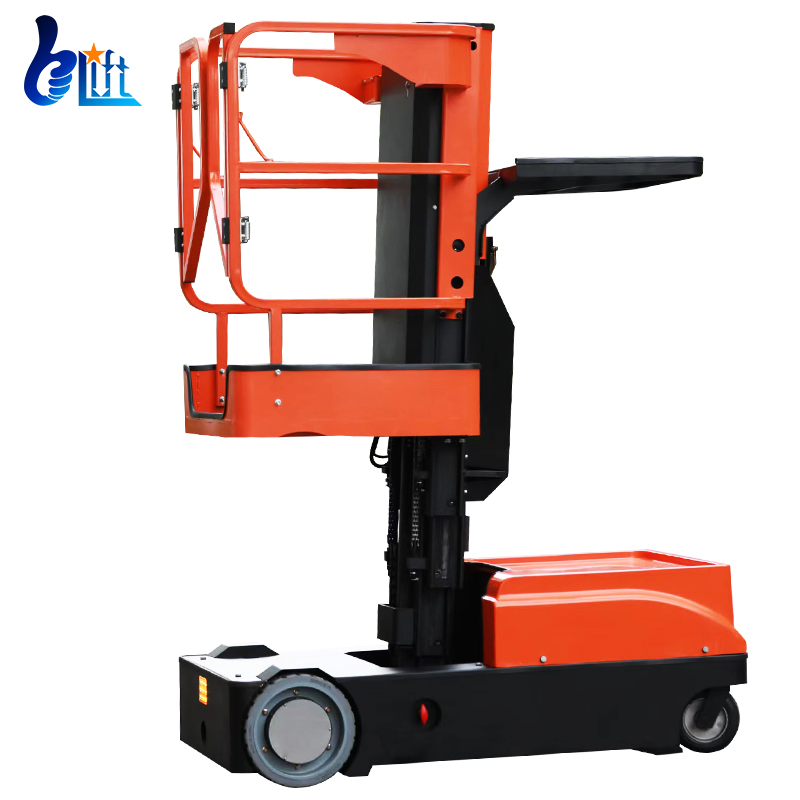

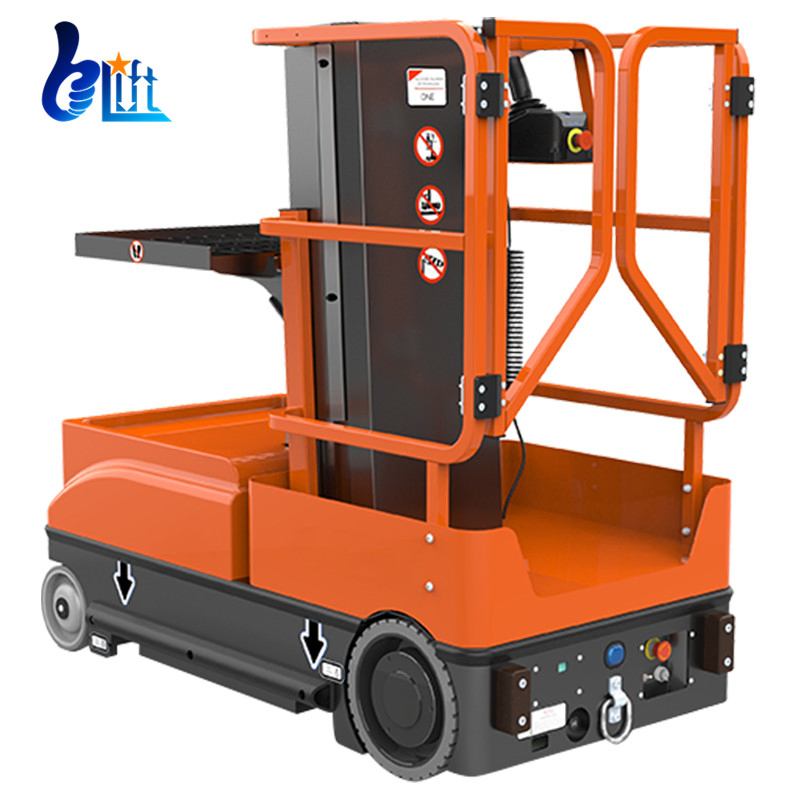

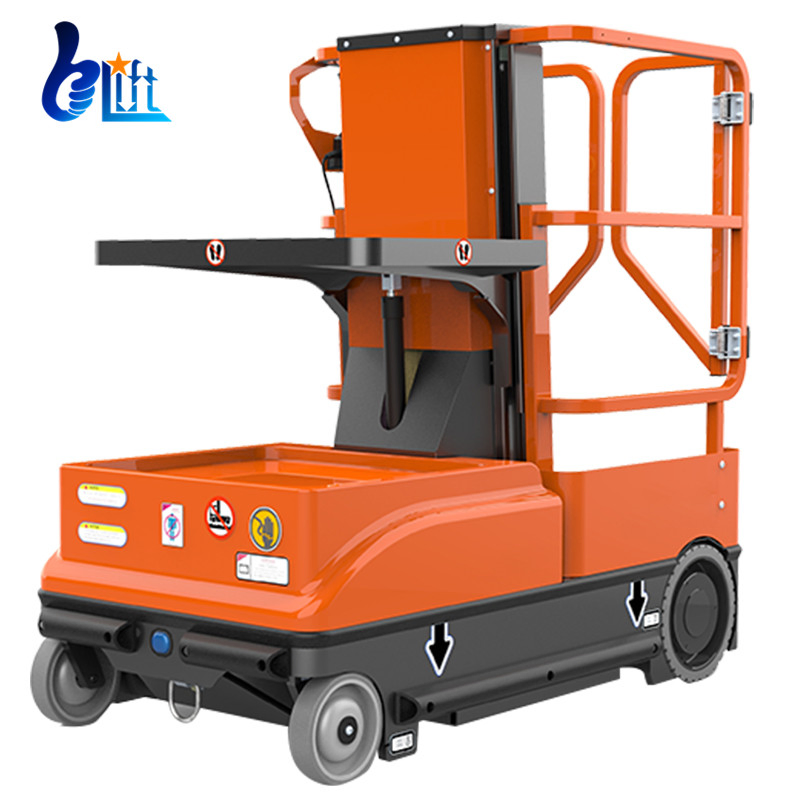

Self-propelled Order Picker is specially designed for indoor outdoor aerial works with lower height and narrow space. With compact sizes, light weight and strengthened structure, it is portable and easy to operate. Equipped with automatic walking, turning, and lifting functions, it highly improves working efficiency in supermarkets, warehouses, and workshops.
| Model Specifications | EAP-H5 | EAP-H6 |
|---|---|---|
| Maximum platform height (mm) | 3000 | 4000 |
| Working height (mm) | 5000 | 6000 |
| Overall machine length (mm) | 1480 | 1480 |
| Overall machine width (mm) | 756 | 756 |
| Standing platform size (mm) | 695*720 | 695*720 |
| Standing platform load (kg) | 150 | 150 |
| Grid platform load (kg) | 90 | 90 |
| Overall machine weight (kg) | 840 | 870 |
| Performance | ||
| Driving speed (Km/h) | 0-4 | 0-4 |
| Lifting motor (V/Kw) | 24/0.8 | 24/0.8 |
| DC battery (V/Ah) | 2×12/100 | 2×12/100 |

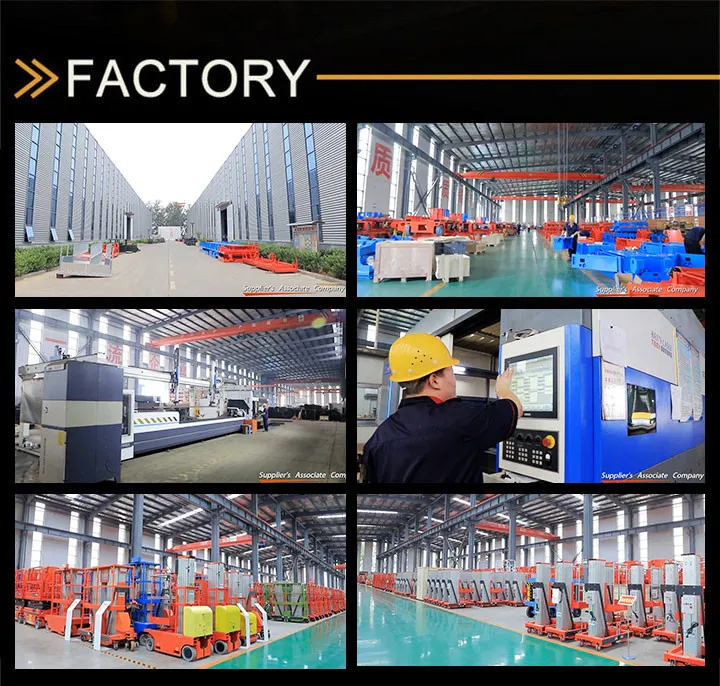

Specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Our products are recognized by customers worldwide with certifications including CE, ROHS, SGS, and ISO.
