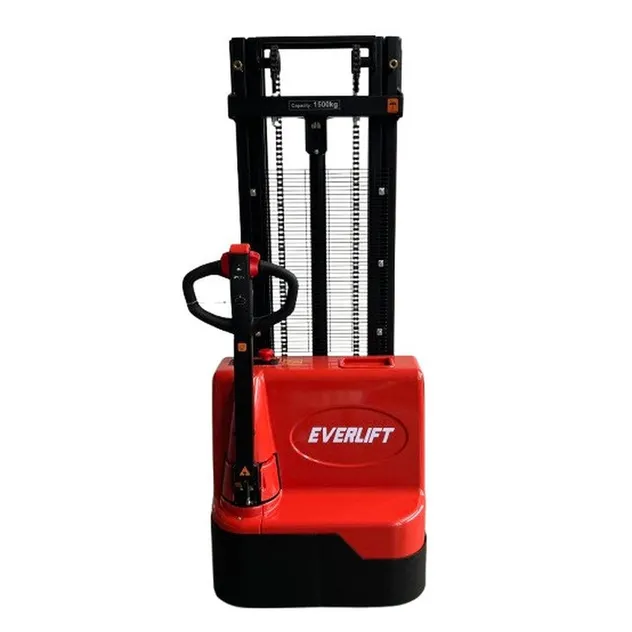

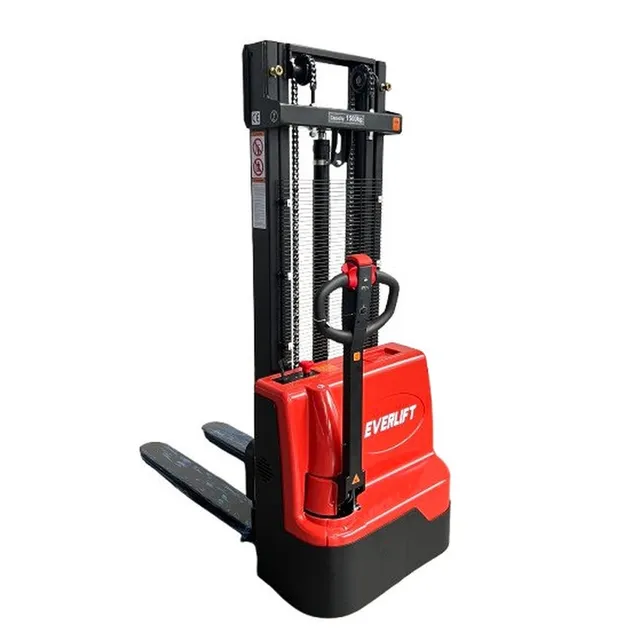

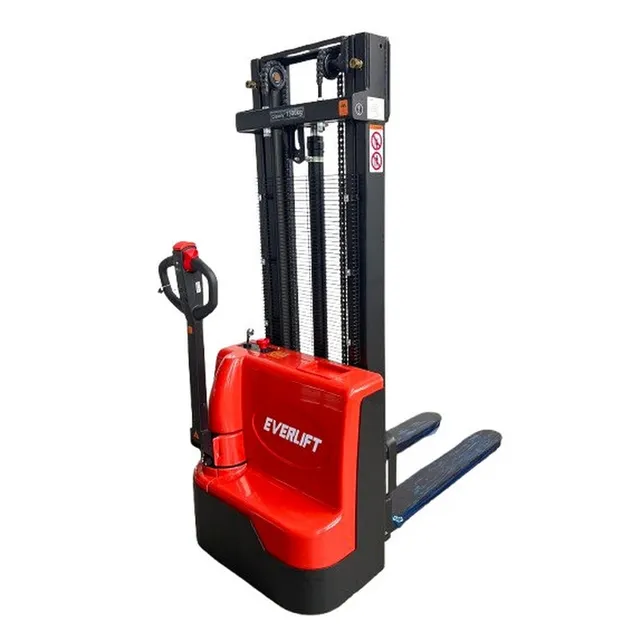

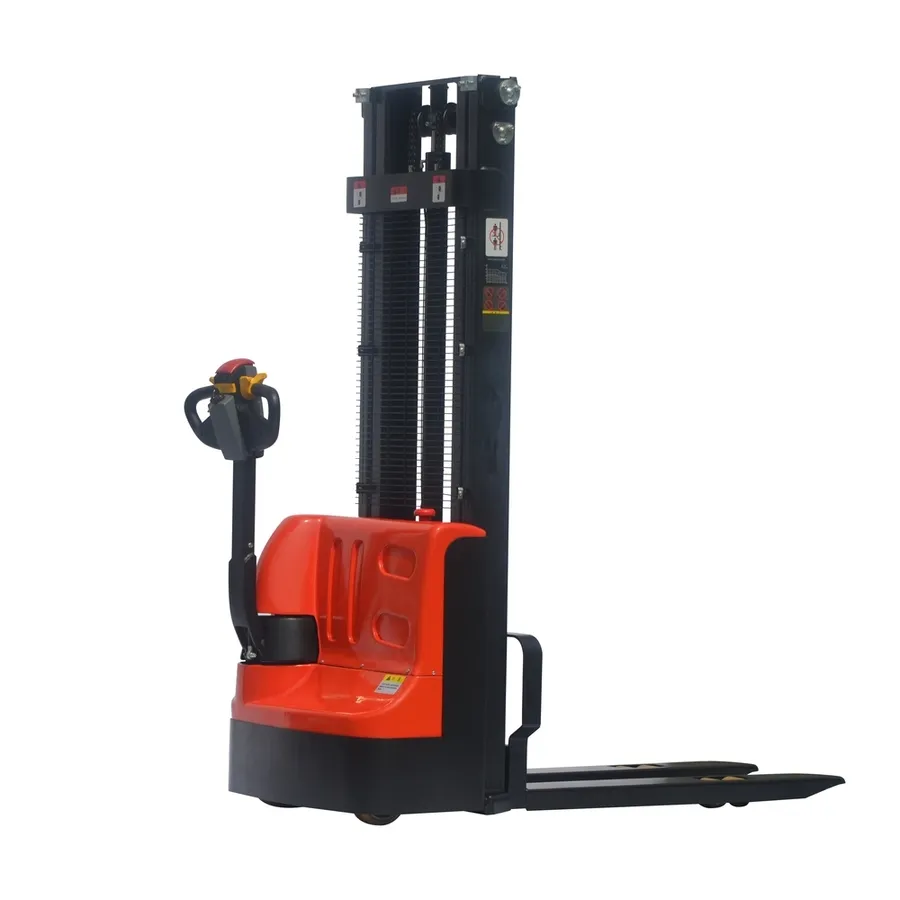

The ELES-15J Electric Stacker is a compact, battery-powered walkie stacker built for efficient warehouse operations. Featuring a 1,500kg load capacity and up to 3m lift height, this pedestrian stacker delivers reliable performance in tight spaces.
Its ergonomic center-handle design ensures smooth, effortless control, making it an ideal pallet stacker for logistics, manufacturing, and retail environments.
| TECHNICAL PARAMETERS | |
|---|---|
| Product Name | Electric Pallet Stacker |
| Load Capacity | 1,500 kg |
| Max Lift Height | 1,600 - 3,500 mm |
| Fork Dimensions | 1,150 × 100 × 40 mm |
| Fork Width Range | 210 - 850 mm |
| Overall Length | 1,843 mm |
| Turning Radius | 1,448 mm |
| Travel Speed (Loaded/Unloaded) | 4.2 / 4.6 km/h |
| Lift Speed (Loaded/Unloaded) | 70 / 110 mm/s |
| Gradeability (Loaded/Unloaded) | 6% / 8% |
| Drive Motor | 0.75 kW DC |
| Lift Motor | 2.2 kW DC |
| Battery | 24V / 85-100Ah |
| Self Weight | 765 kg |
| Tires | PU Solid |

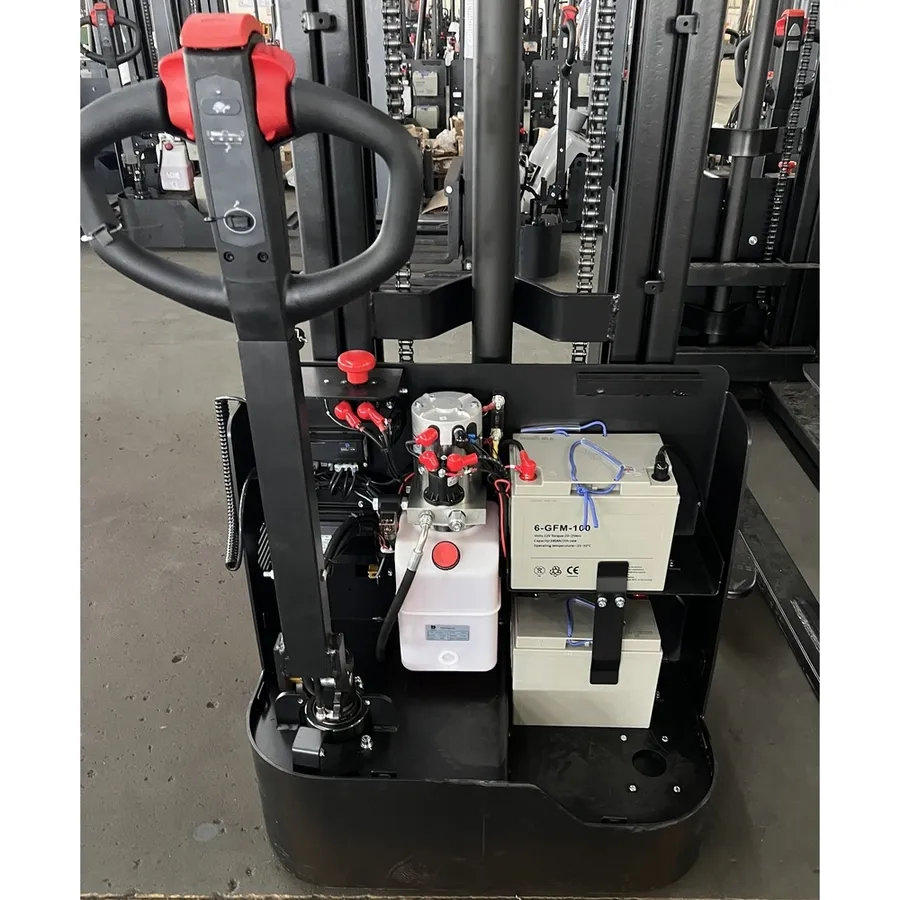

This pedestrian stacker delivers fast lifting speed up to 150mm/s and strong traction force up to 1100N, powering through heavy pallet cycles with ease. Move more loads in less time and keep your warehouse running at peak productivity.

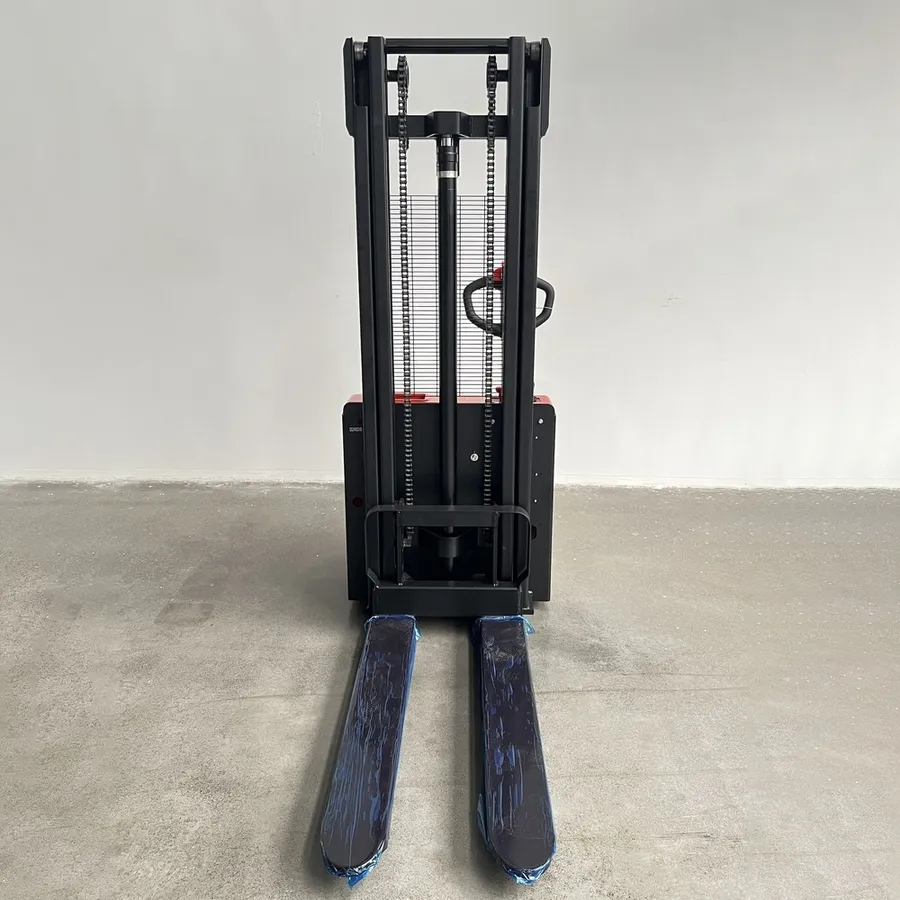

Multiple mast options offer lift heights ranging from 1.6m to 3.5m, easily adapting to high shelving or low-clearance areas. Maximize your vertical storage potential and make full use of every square meter in your facility.

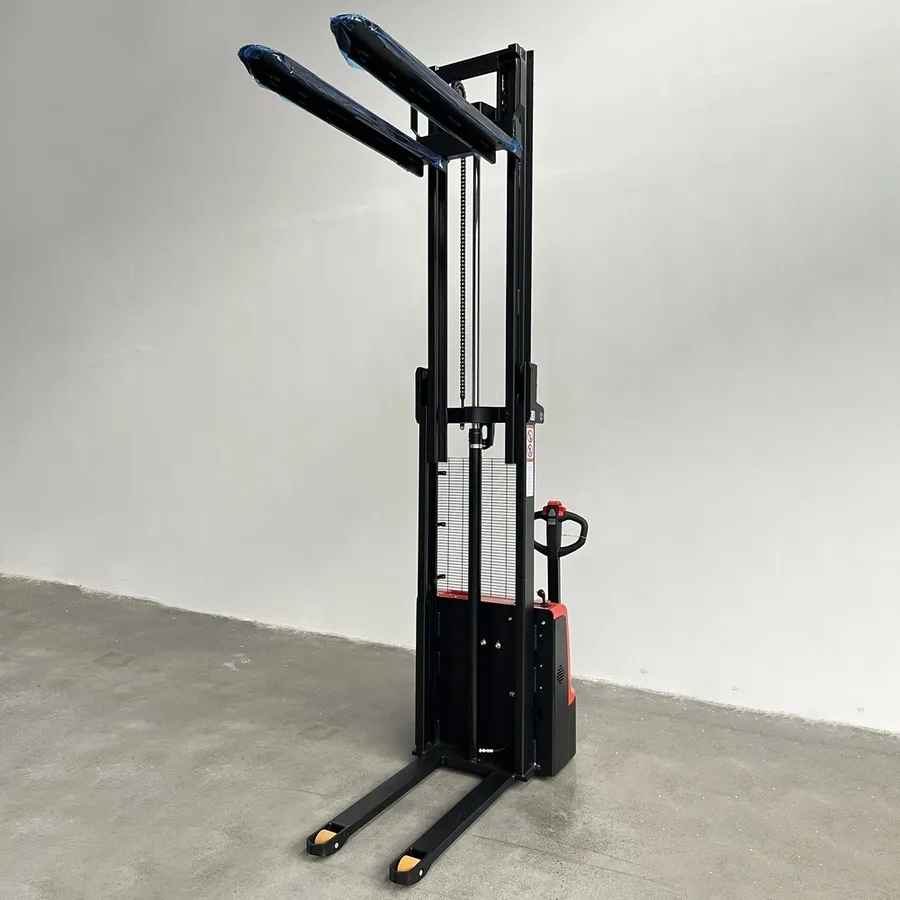

With 6% loaded gradeability and a compact 1,448mm turning radius, this walkie stacker navigates ramps and tight corners with confidence. Maintain full control and workplace safety in space-limited environments.
