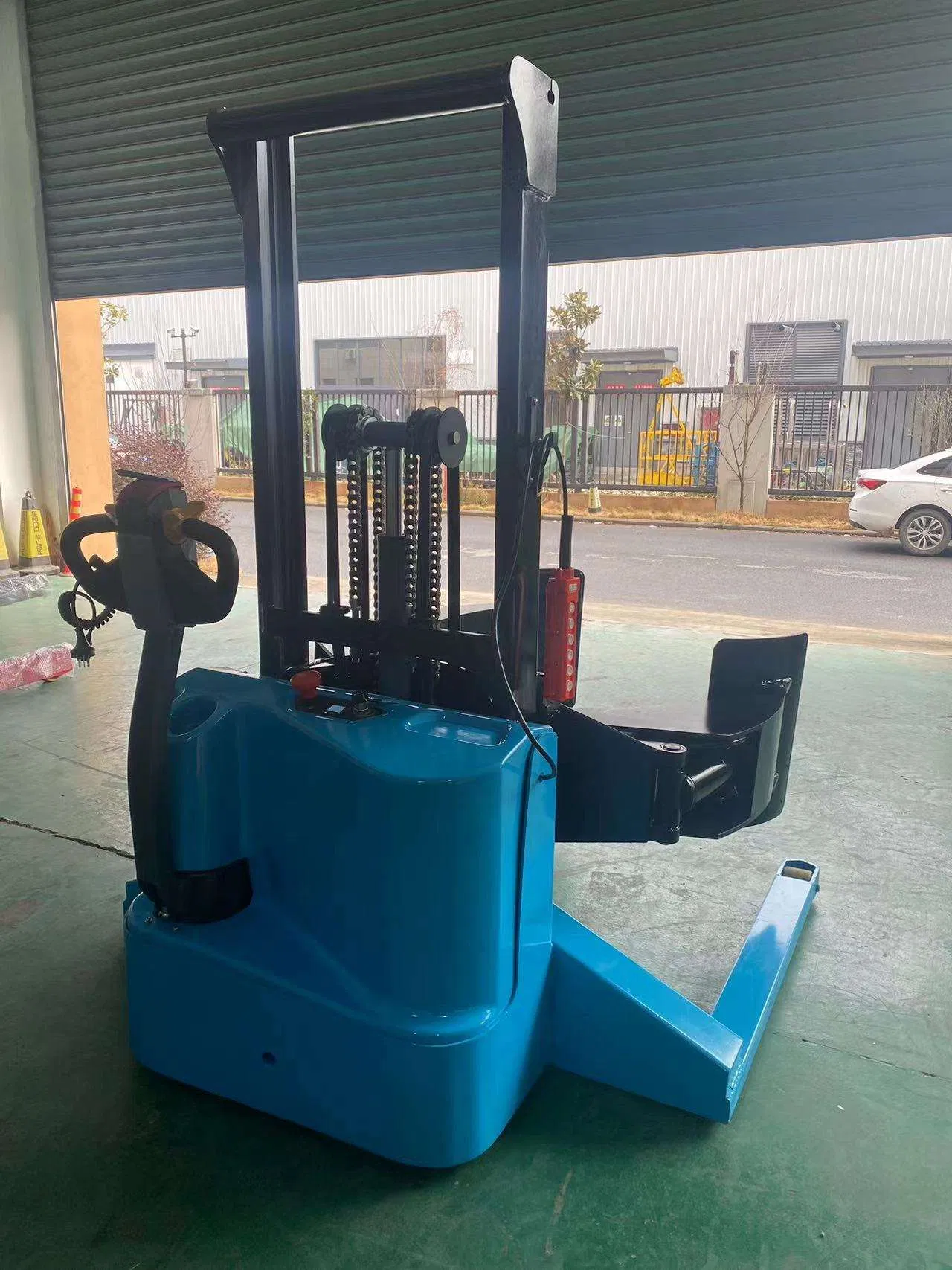

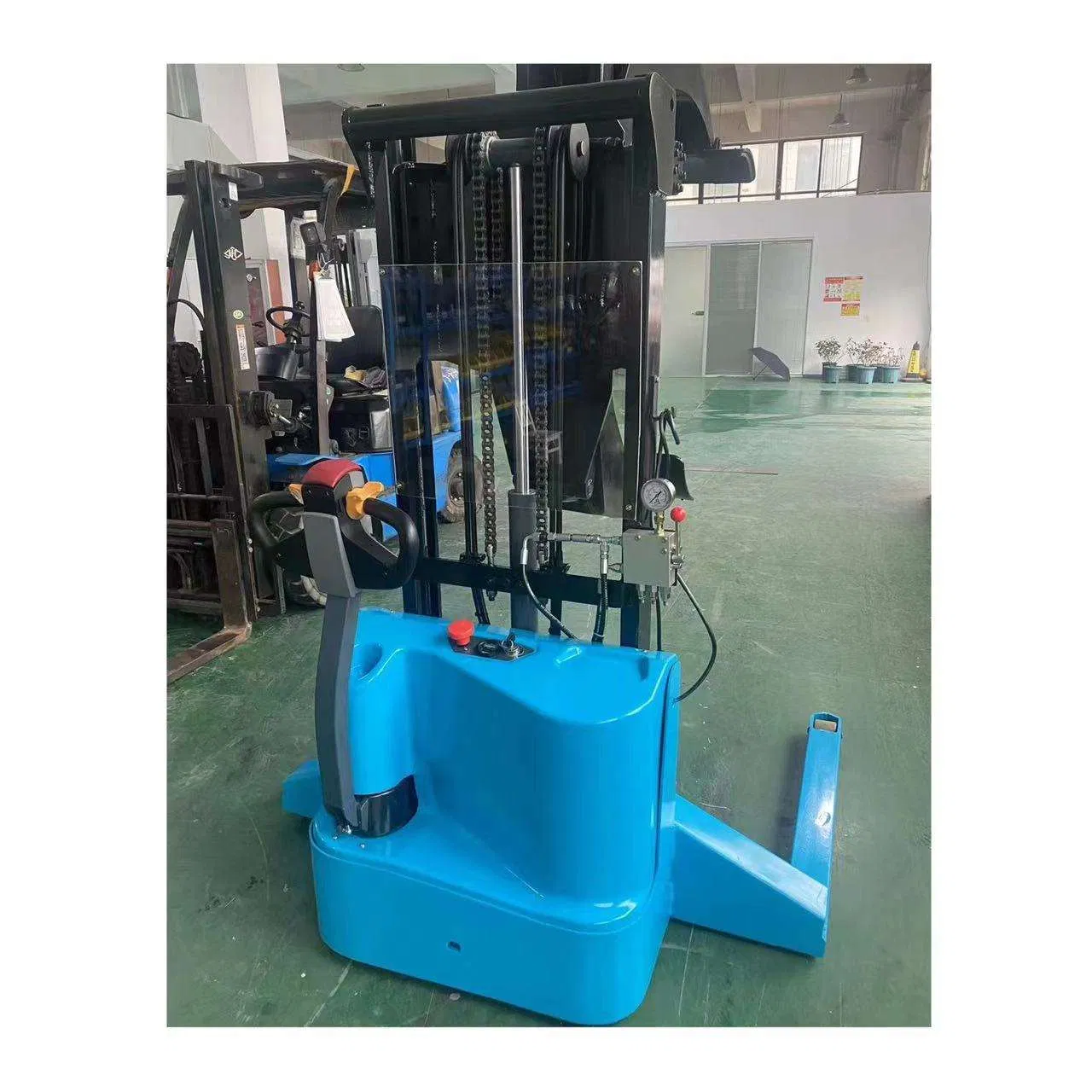

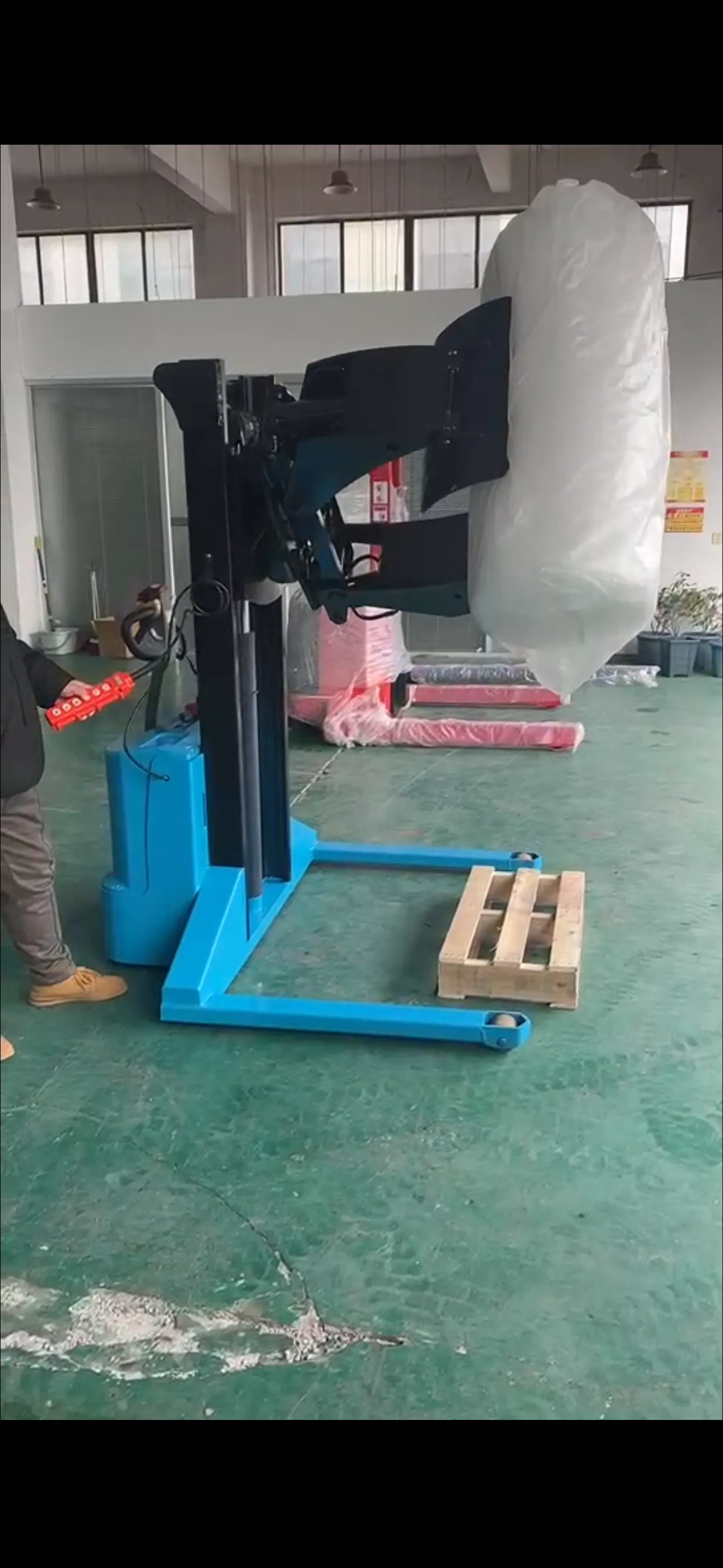

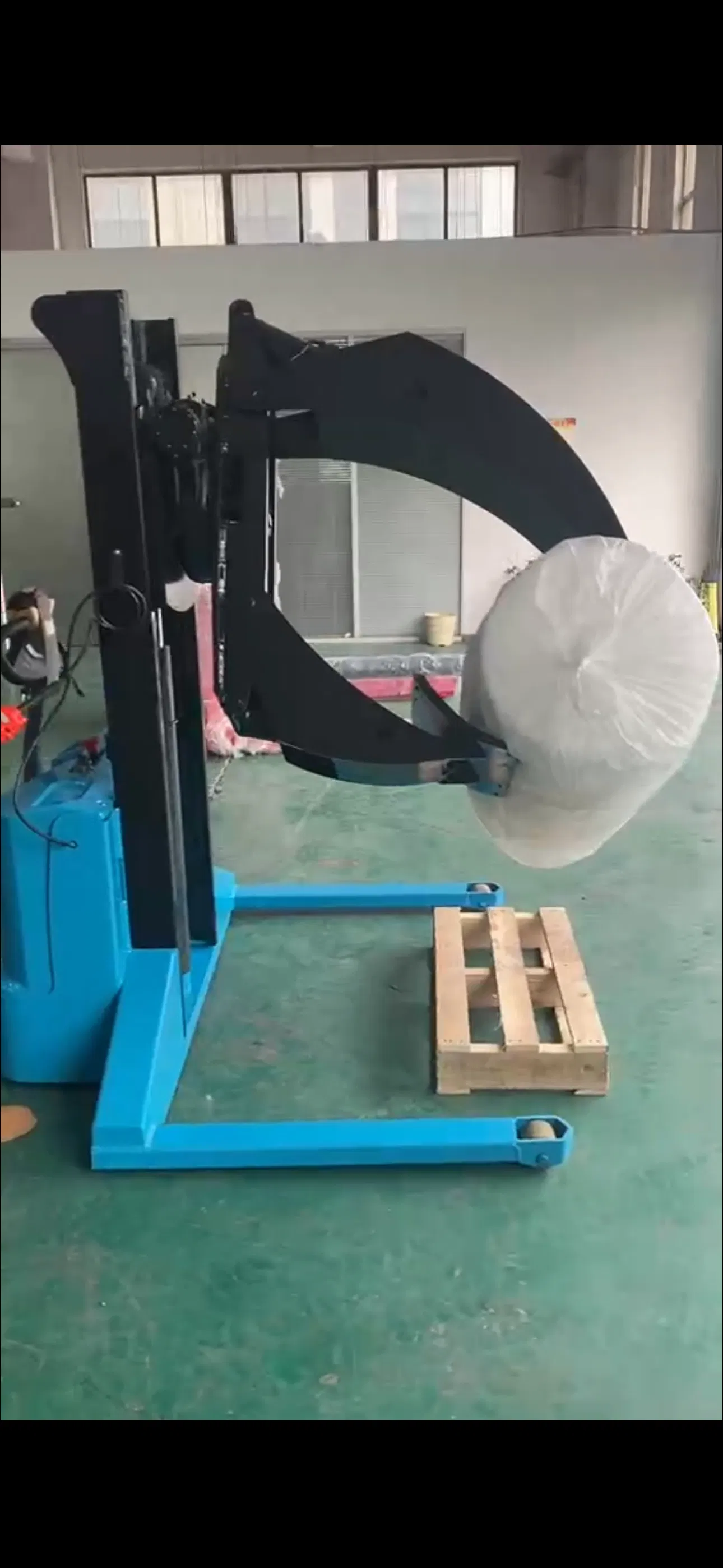

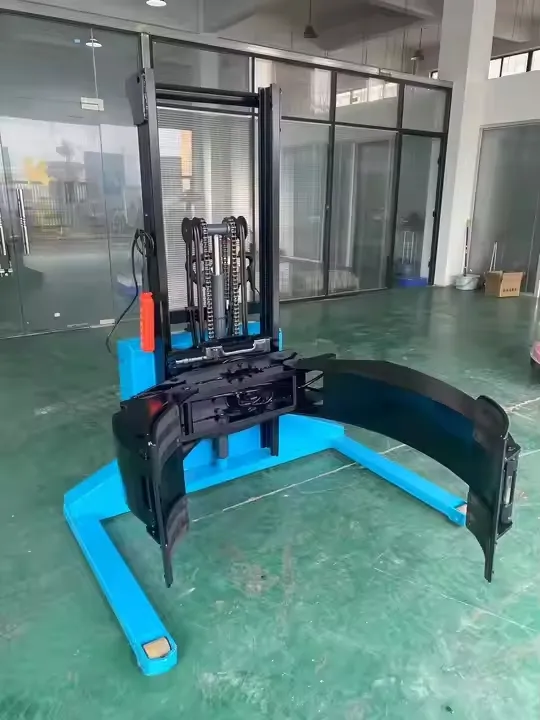

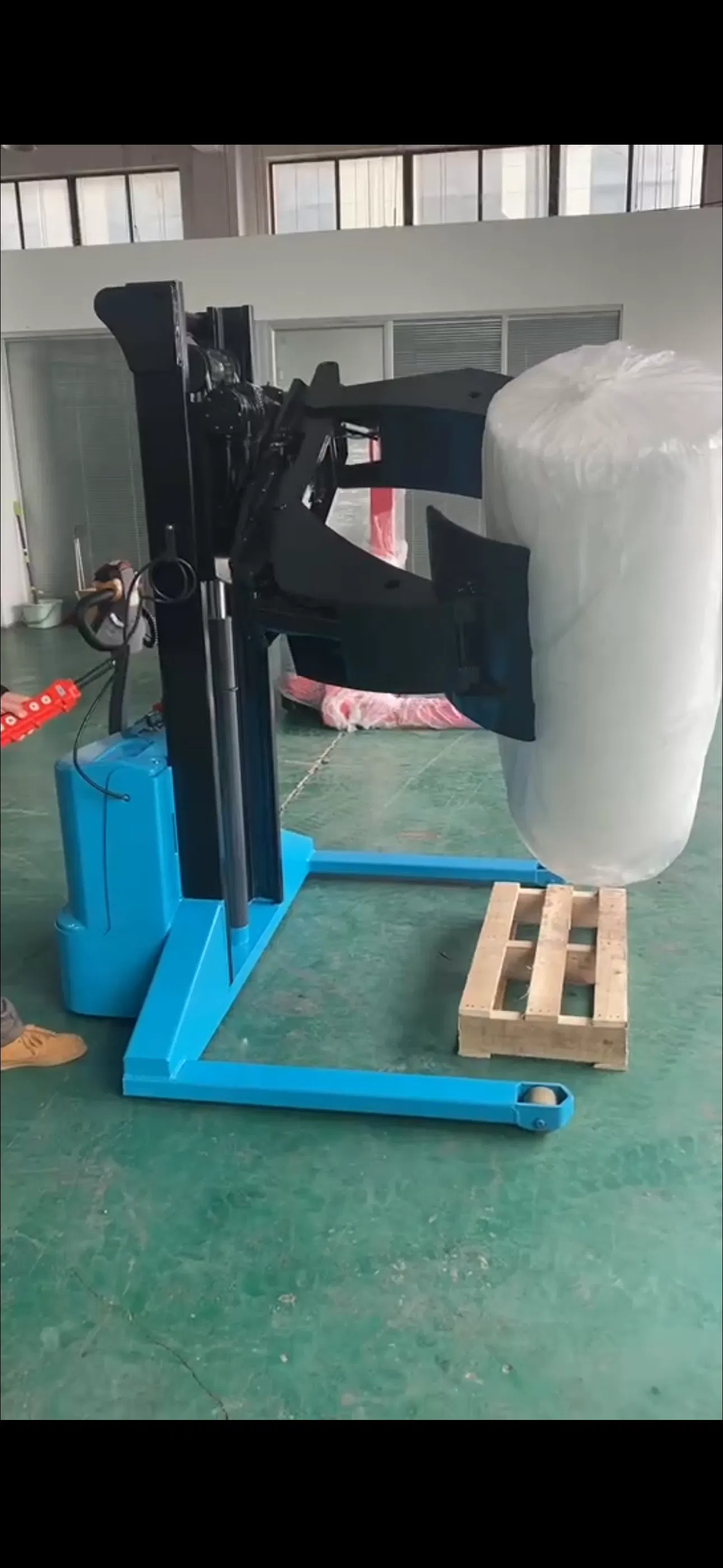

3000mm 1000kg Full electric walkie roll stacker with Paper Roll Clamp
Electric paper roll stackers are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.
| Parameter | Unit | Value |
|---|---|---|
| Rated load | kg | 500/1000/1500 |
| Max height of clamp | mm | 1500/3000/customized |
| Min height of clamp | mm | 100 |
| Load center | mm | 500 |
| Operation way | - | Electric moving, lifting, rotating, graping |
| Turning radius | mm | 1520 |
| Aisle width | mm | 2500 |
| Adjustable extent of clamp | mm | 700-1200 |
| Rotation angle | ° | 90/180/360 |
| Running speed (load/unload) | km/h | 4.3/4.5 |
| Hoisting speed (load/unload) | mm/s | 110/160 |
| Climbing capability (load/unload) | % | 5/8 |
| Braking mode | - | Electronic brake |
| Battery | v/ah | 24/80Ah |
