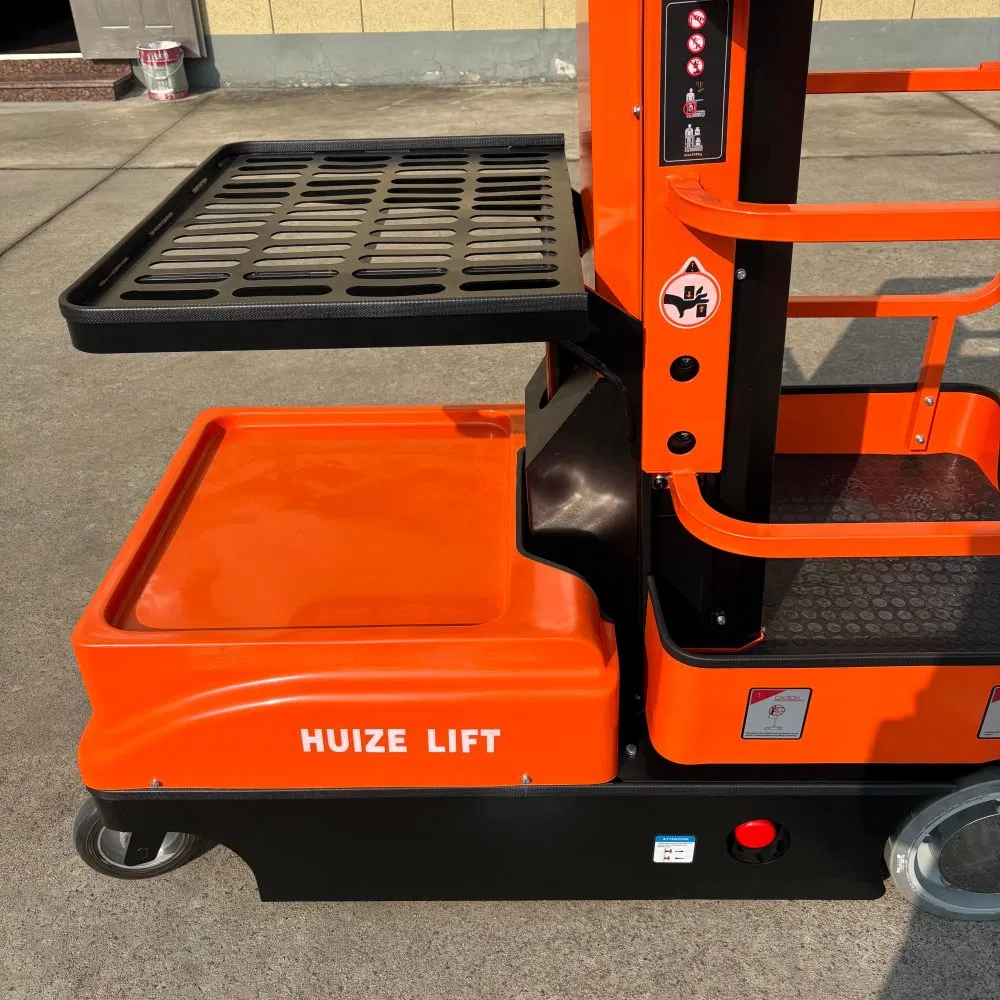

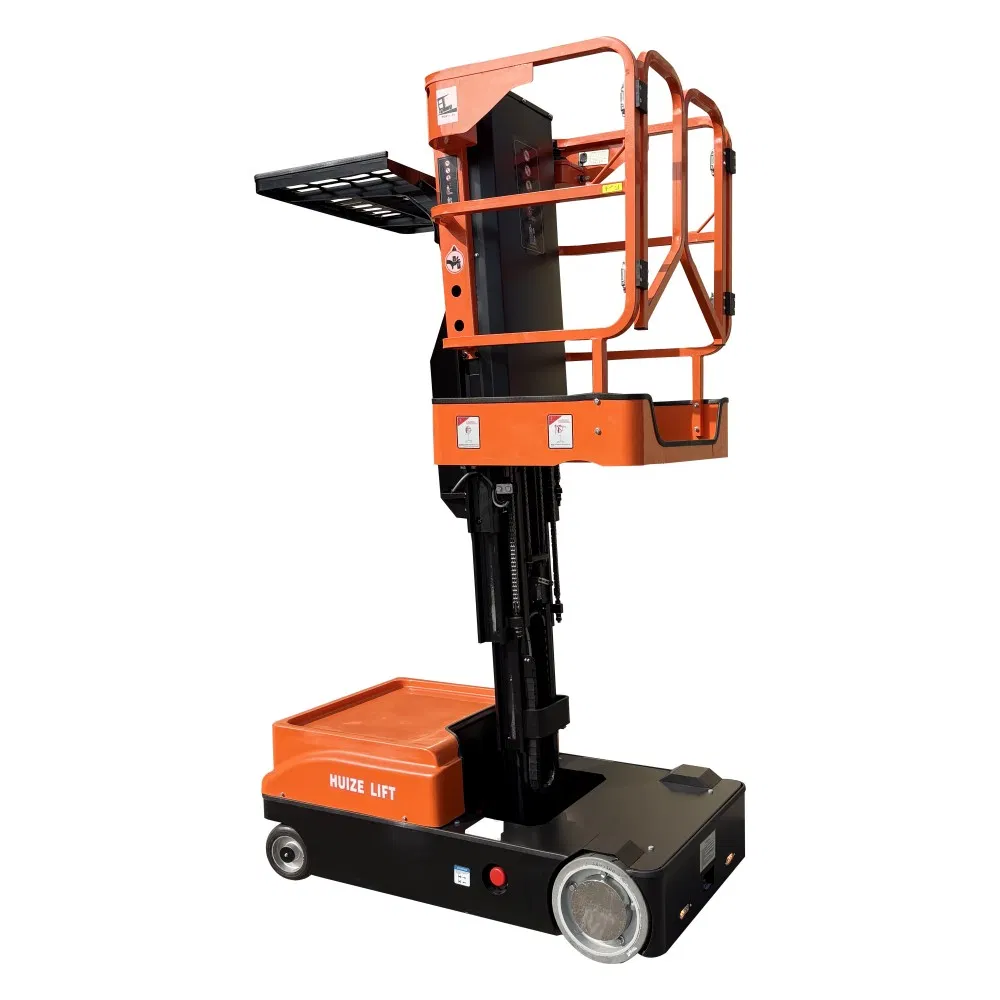

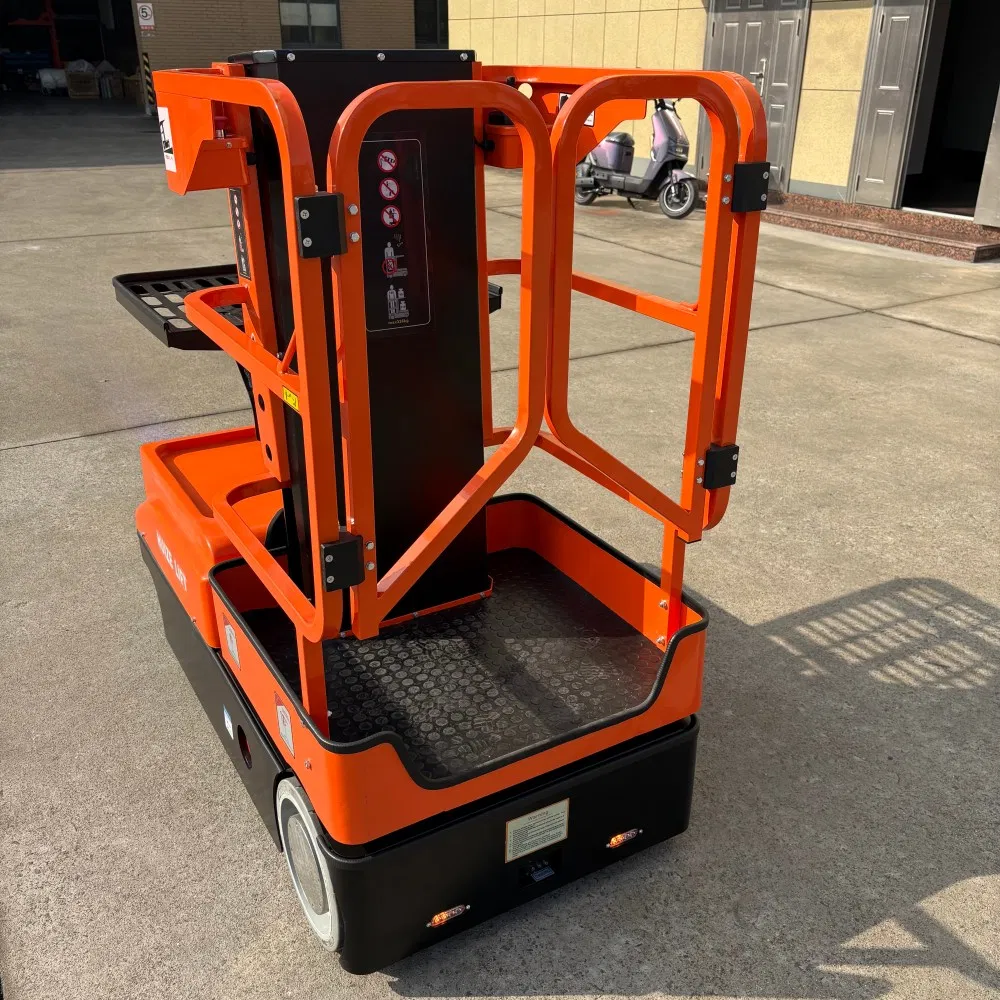

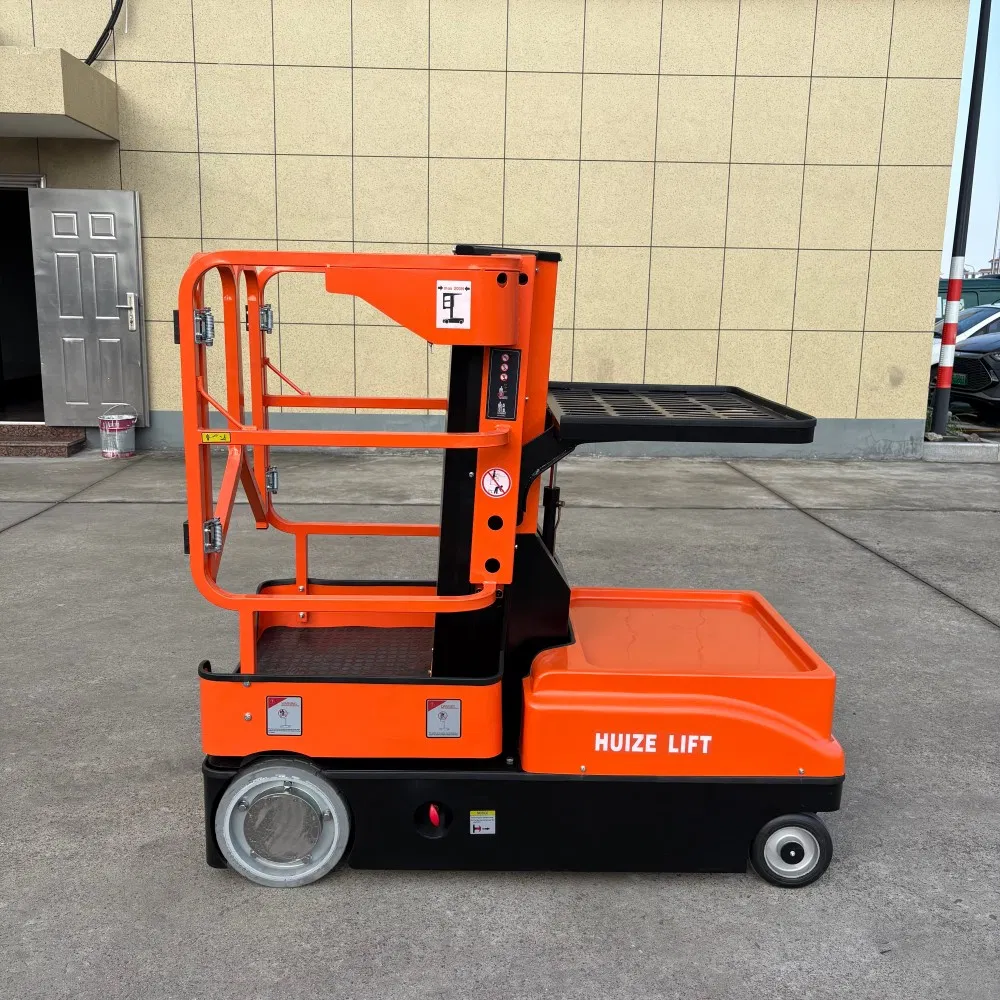

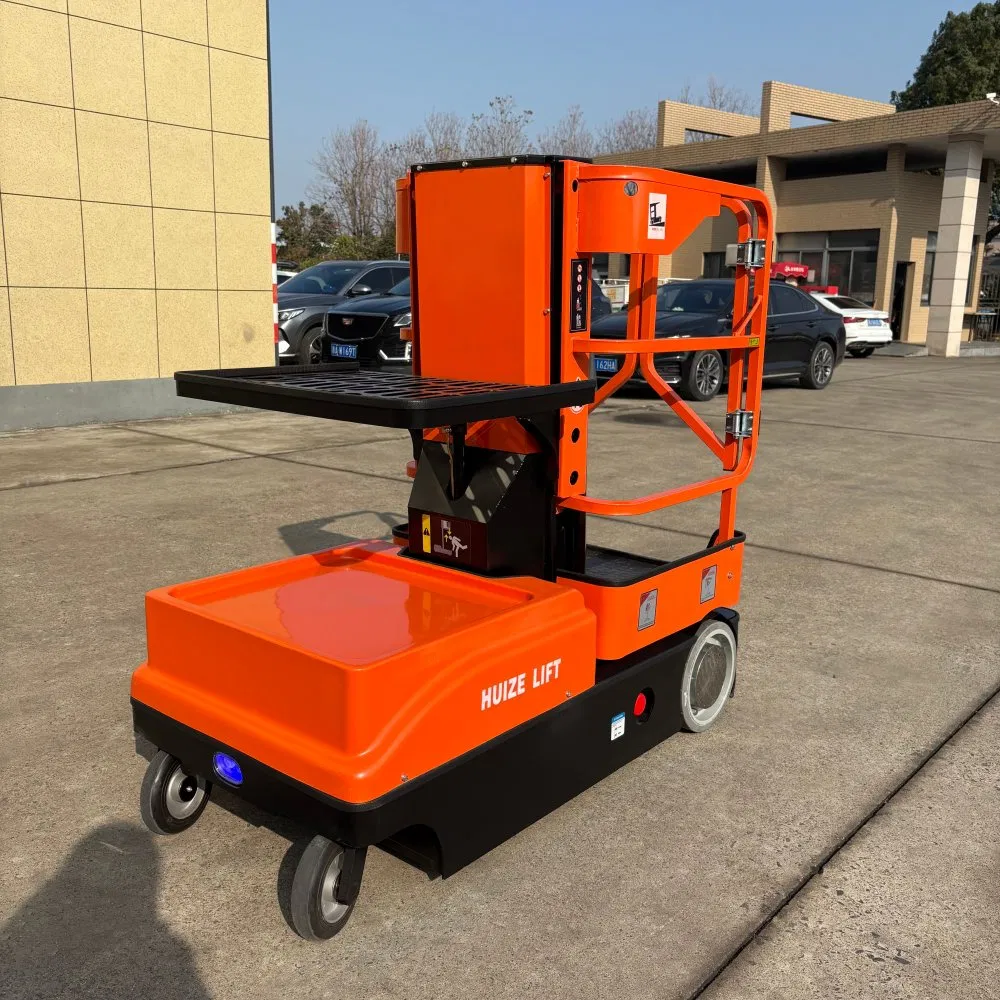

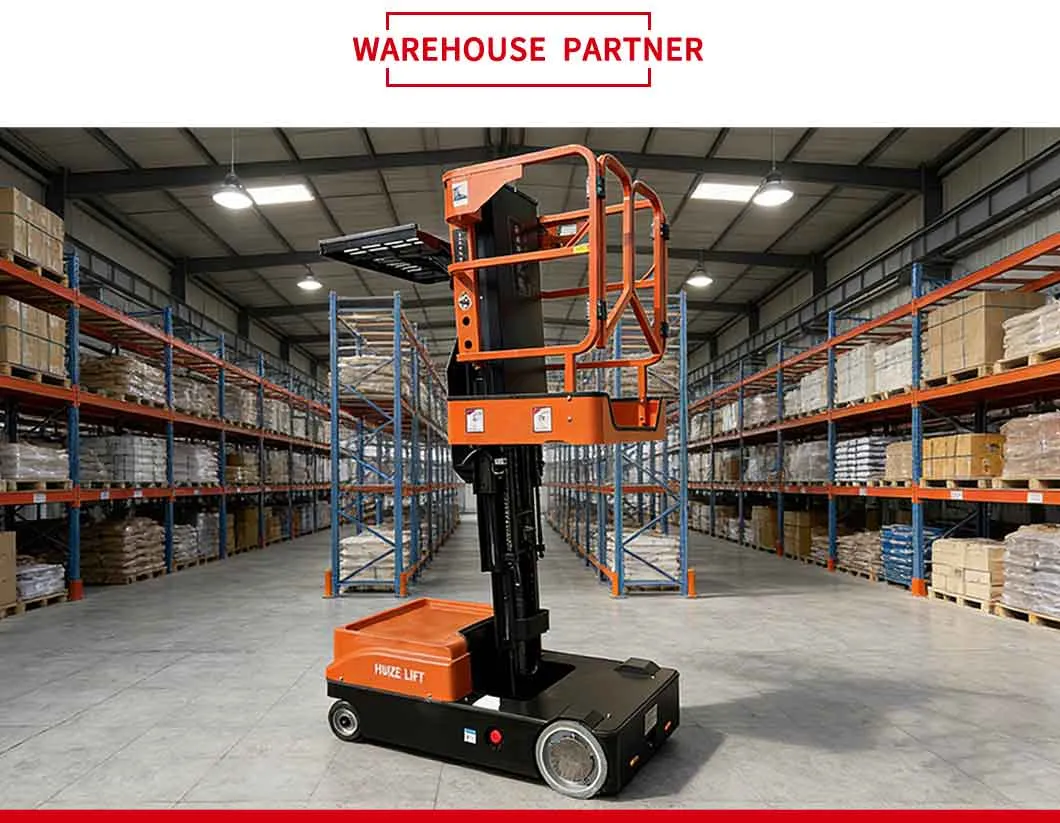

Picking Height 3m 4m Full Electric Low Level Aerial Order Picker Forklift for Warehouse Use
The electric high-level order picker is constructed with high-quality steel and features intelligent control. It offers a maximum working height of 6 meters and a maximum platform height of 4 meters, with precise control over lifting height. Boasting stable performance and easy maintenance, it is equipped with self-locking guardrails and multiple safety devices to ensure personnel safety during order picking, inventory counting, and replenishment operations. Aerial order pickers are ideal for use in both narrow aisles and high rack installations.
| Model | OPC03M | OPC04M |
|---|---|---|
| Max. Working Height | 5000 mm | 6000 mm |
| Max. Platform Height | 3000 mm | 4000 mm |
| Min. Platform Height | 360 mm | 560 mm |
| Platform Length / Width | 685 mm / 745 mm | 685 mm / 745 mm |
| Overall Height - Stowed | 1465 mm | 1760 mm |
| Overall Length / Width | 1480 mm / 750 mm | 1480 mm / 750 mm |
| Platform Capacity | 136 kg | 136 kg |
| Cargo Tray Capacity | 90 kg | 90 kg |
| Carry Deck Capacity | 110 kg | 110 kg |
| Lifting Motor | 24 V / 0.8 kw | 24 V / 0.8 kw |
| Drive Speed | 0 - 4 km / h | 0 - 4 km / h |
| Battery Voltage/ Capacity | 2 X 12 V / 108 Ah | 2 X 12 V / 108 Ah |
| Overall Net Weight | 790 kg | 910 kg |
