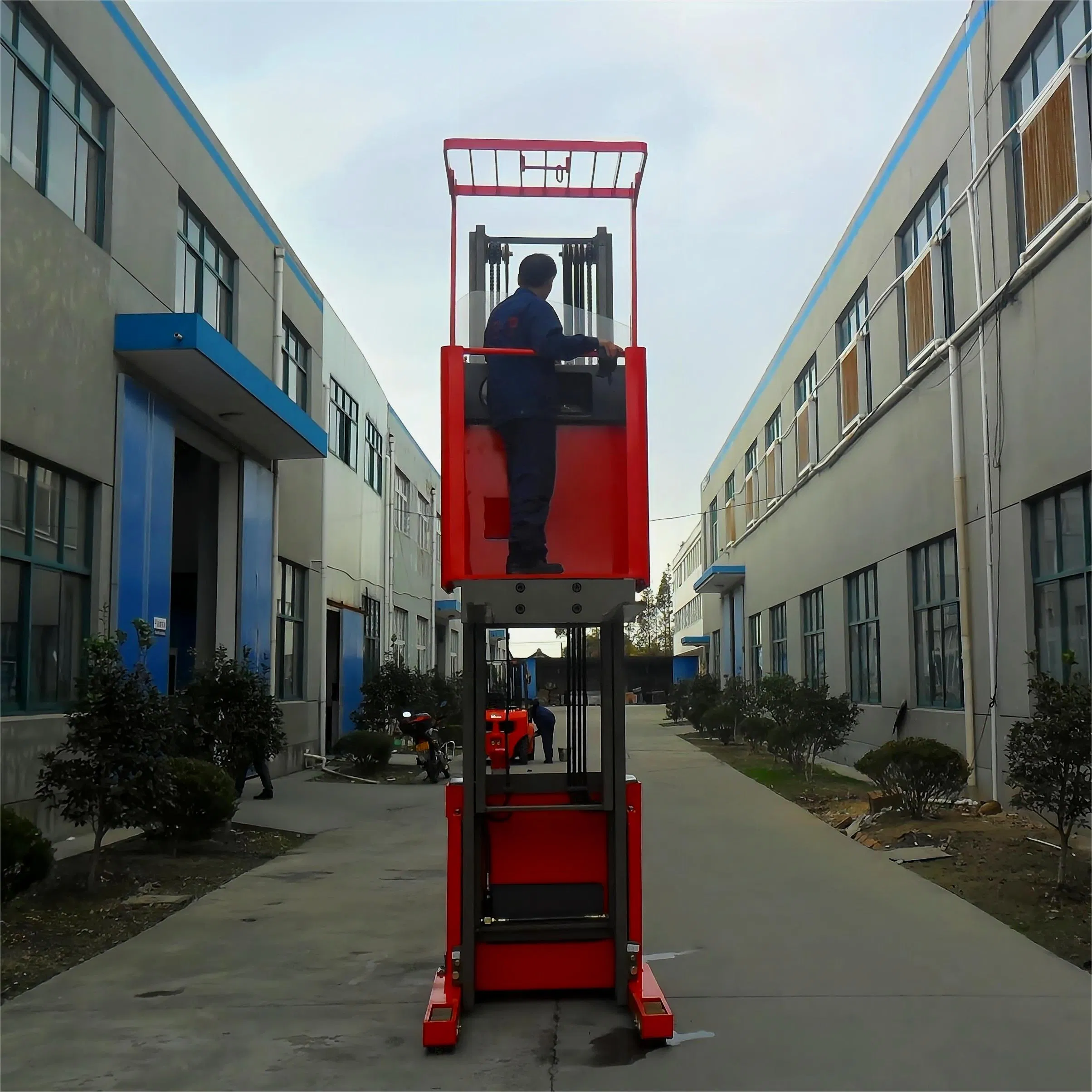

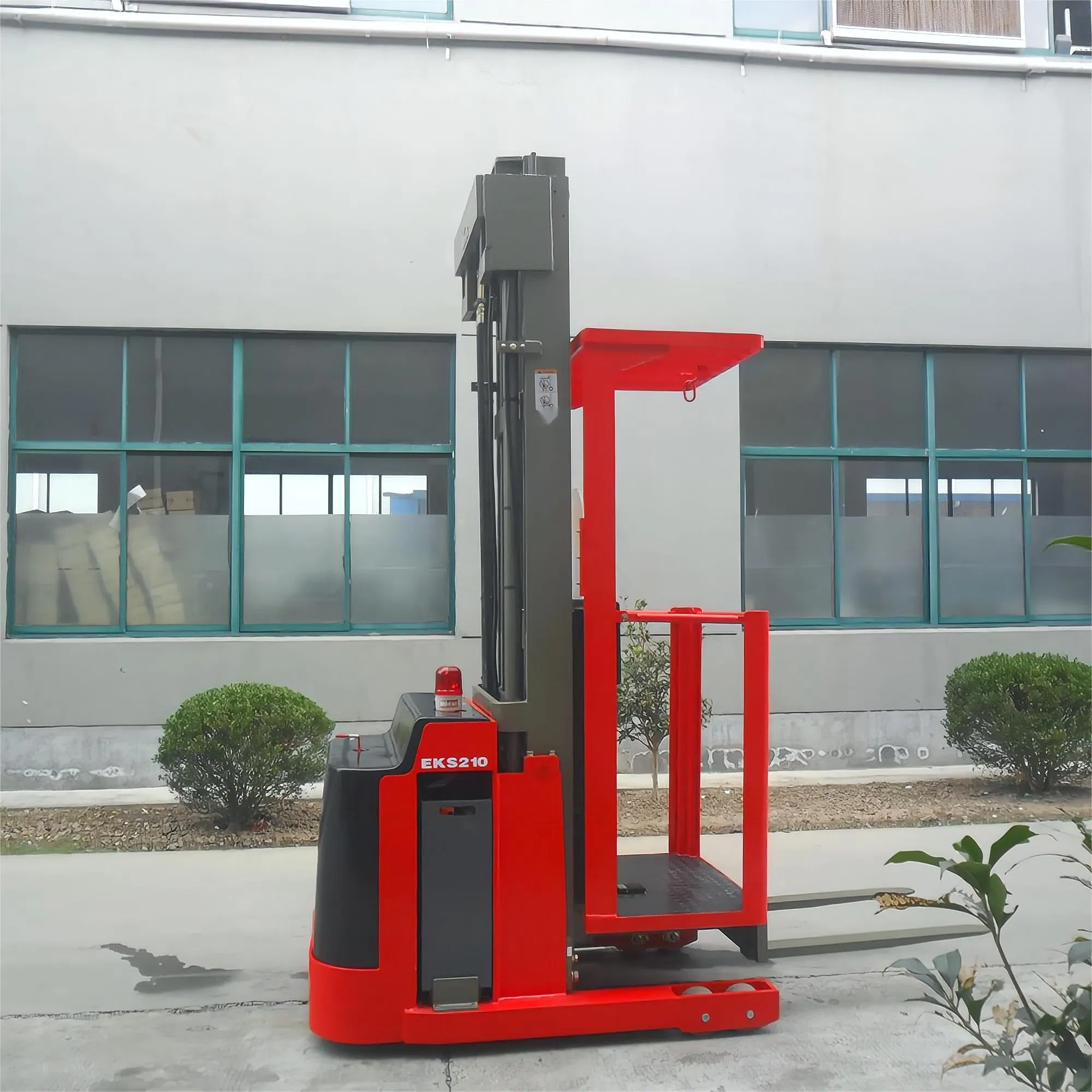

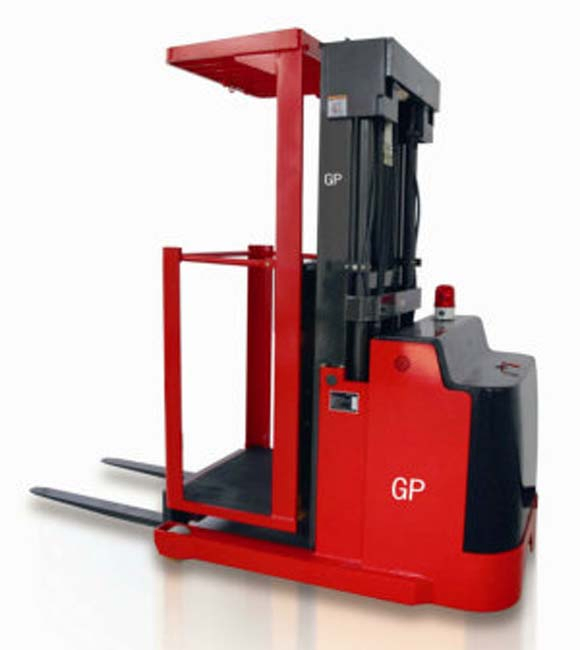

Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access
1 / 5
Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access

Full Electric Forklift Order Picker Low Level Access

Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years
Send Inquiry

Product Description

Basic Product Information
Model NO.
EKS210--30
Type
Electric Forklift
Power
DC Motor
Load Capacity
≤1T
Fuel
Electric
Load Center
500mm
Lift Height
3000~5000mm
Condition
New
Mast Extended Height
3310mm
Standard Fork Length
920mm
Operation Type
Stand on
Color
Red
HS Code
8427109000
Production Capacity
500unit/Month
Packaging & Delivery
Package Size
420.00cm * 150.00cm * 220.00cm
Gross Weight
4515.000kg
Transport Package
Standard Packing
Main Features & Advantages
  • EPS (Electric Power Steering) for energy saving and low noise.
  • Steering wheel position display for precise control.
  • Lifting system with proportional control for smooth start and stop.
  • Maintenance-free AC driving system.
  • Auxiliary lifting function to improve working efficiency.
  • Equipped with location detection guard for driver safety.
  • Automatic power cut-off at highest position to avoid impact.
  • Speed limitation feature when at high lift positions.
  • Easy to disassemble and low maintenance requirements.
Technical Specifications
Model No. Unit EKD210-30 EKD210-45 EKS210-45
CapacityKg100010001000
Max Lifting Heightmm300045004500
Load Centermm500500500
Pedal Clearancemm160160160
Wheel Type-Polyurethane solidPolyurethane solidPolyurethane solid
Overall Lengthmm191019102565
Overall Widthmm9009001080
Mast Lowered Heightmm214028302830
Turning Radiusmm178517851990
Walking SpeedKm/h4.0/5.84.0/5.84.0/5.8
Battery CapacityV/Ah24/21024/21048/400
Driving MotorKw1.51.52

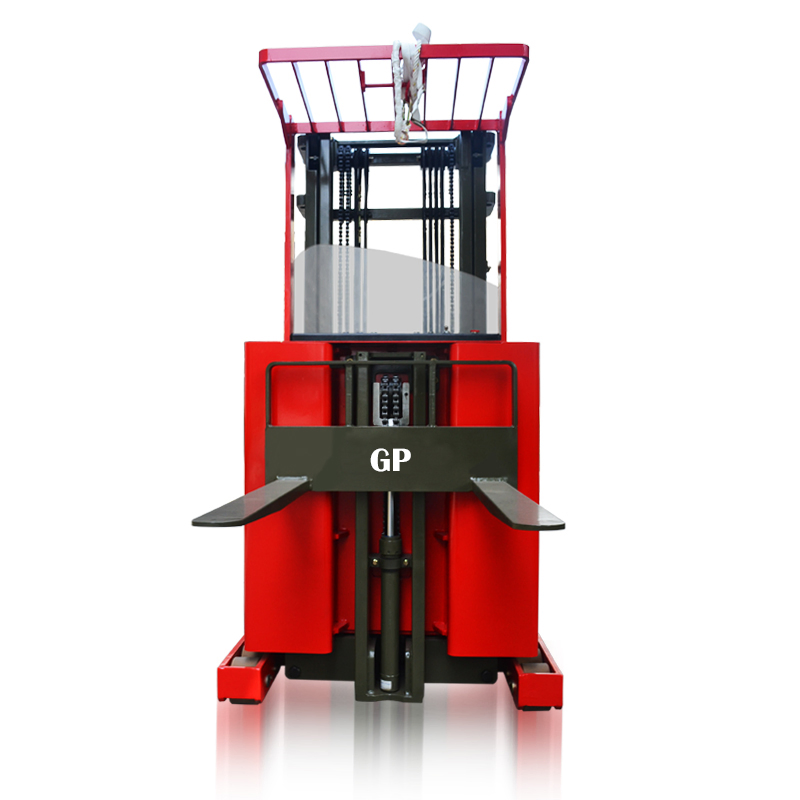

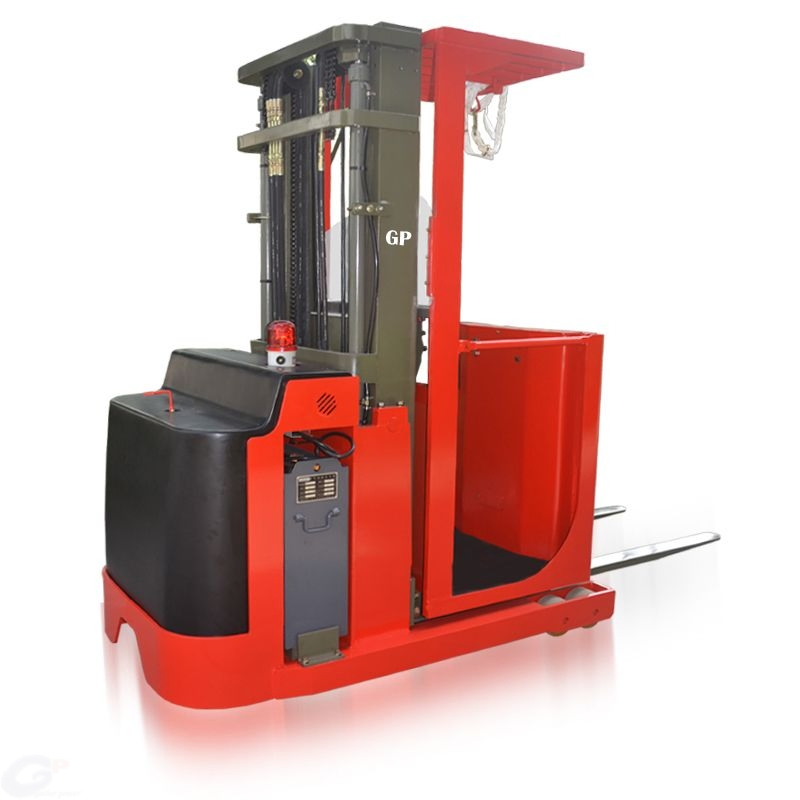

Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access
Full Electric Forklift Order Picker Low Level Access
Electric Forklift View 1
Electric Forklift View 2
Electric Forklift View 3
Electric Forklift View 4
Electric Forklift View 5
Electric Forklift Footer View
Frequently Asked Questions (FAQ)
What is the maximum load capacity for this electric forklift series?
The EKS210 and EKD210 series are designed for light-duty operations with a load capacity of up to 1000kg (1 Ton).
How does the EPS system benefit the operator?
The Electric Power Steering (EPS) system significantly saves energy, reduces operational noise, and makes steering much lighter and more precise for the driver.
What safety mechanisms are built into the lifting system?
The forklift includes a location detection guard, a high-position speed limit, and an automatic power cut-off when the forks reach their maximum height to prevent mechanical impact.
Is the driving motor difficult to maintain?
No, the forklift uses a maintenance-free AC driving motor, which eliminates the need for frequent servicing compared to traditional DC motors.
Can the mast height be customized?
The series offers standard lifting heights ranging from 3000mm to 4500mm or up to 5000mm depending on the specific model requirements.
What type of tires are standard on these models?
All models come equipped with high-quality Polyurethane solid tires, providing excellent durability and stability on warehouse floors.
