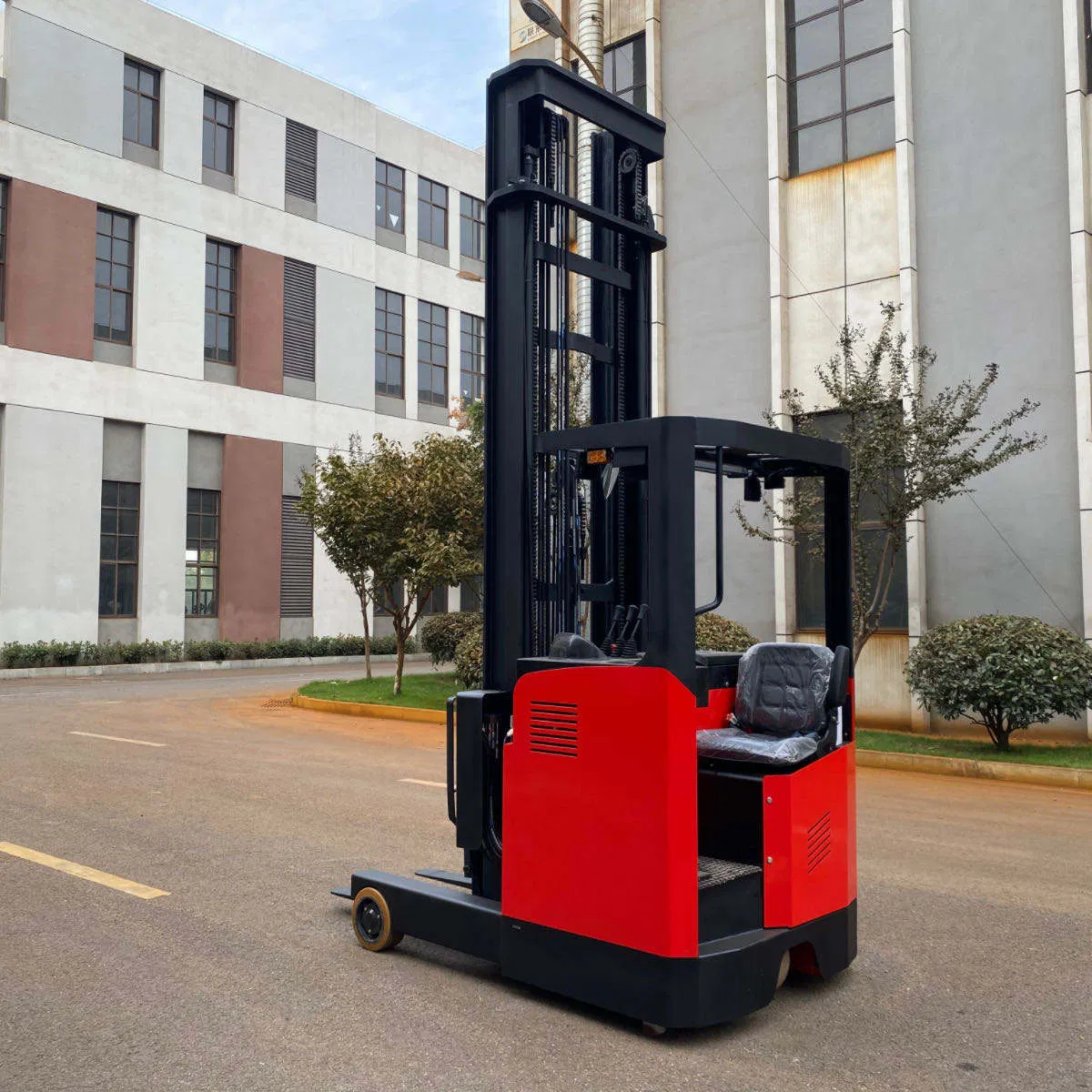

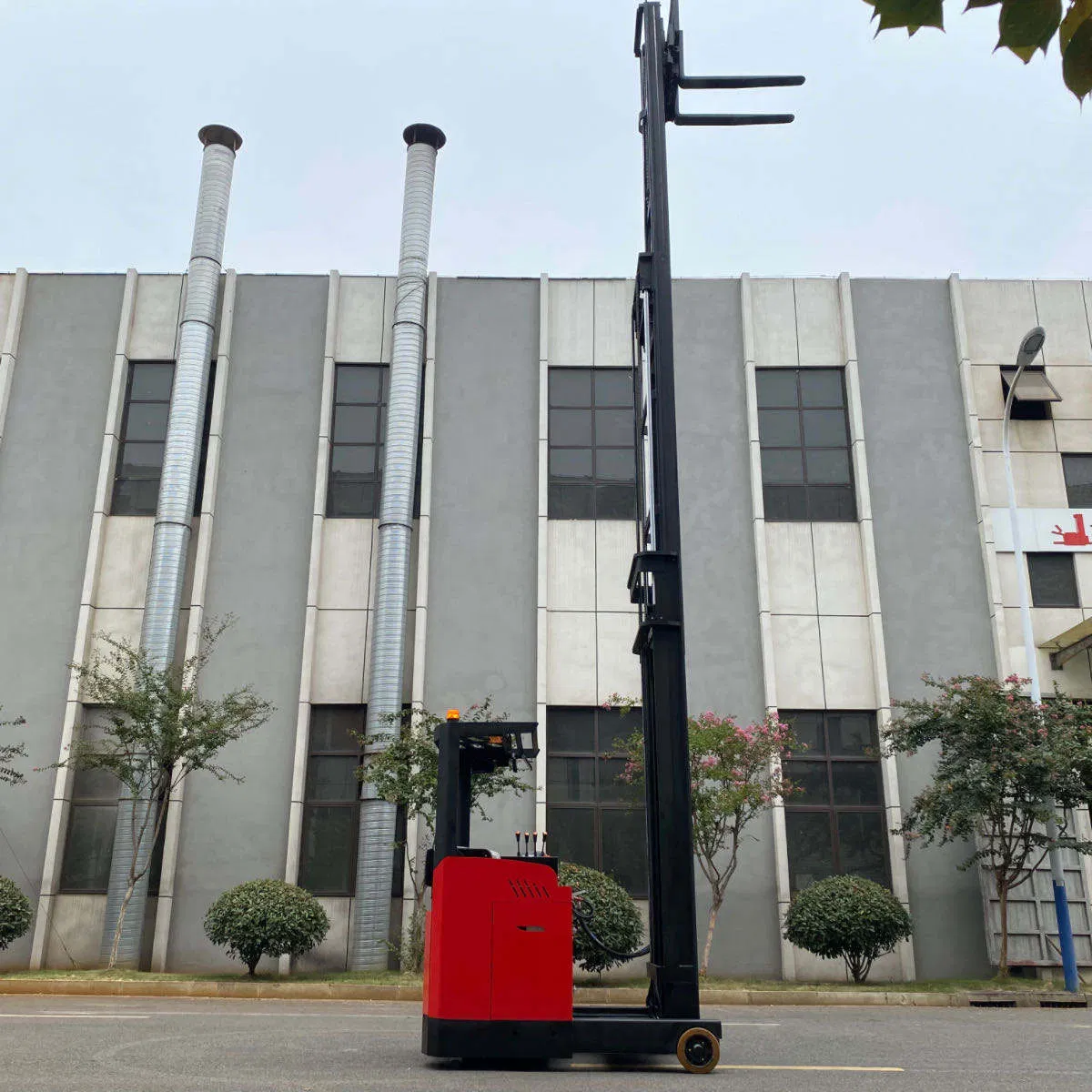

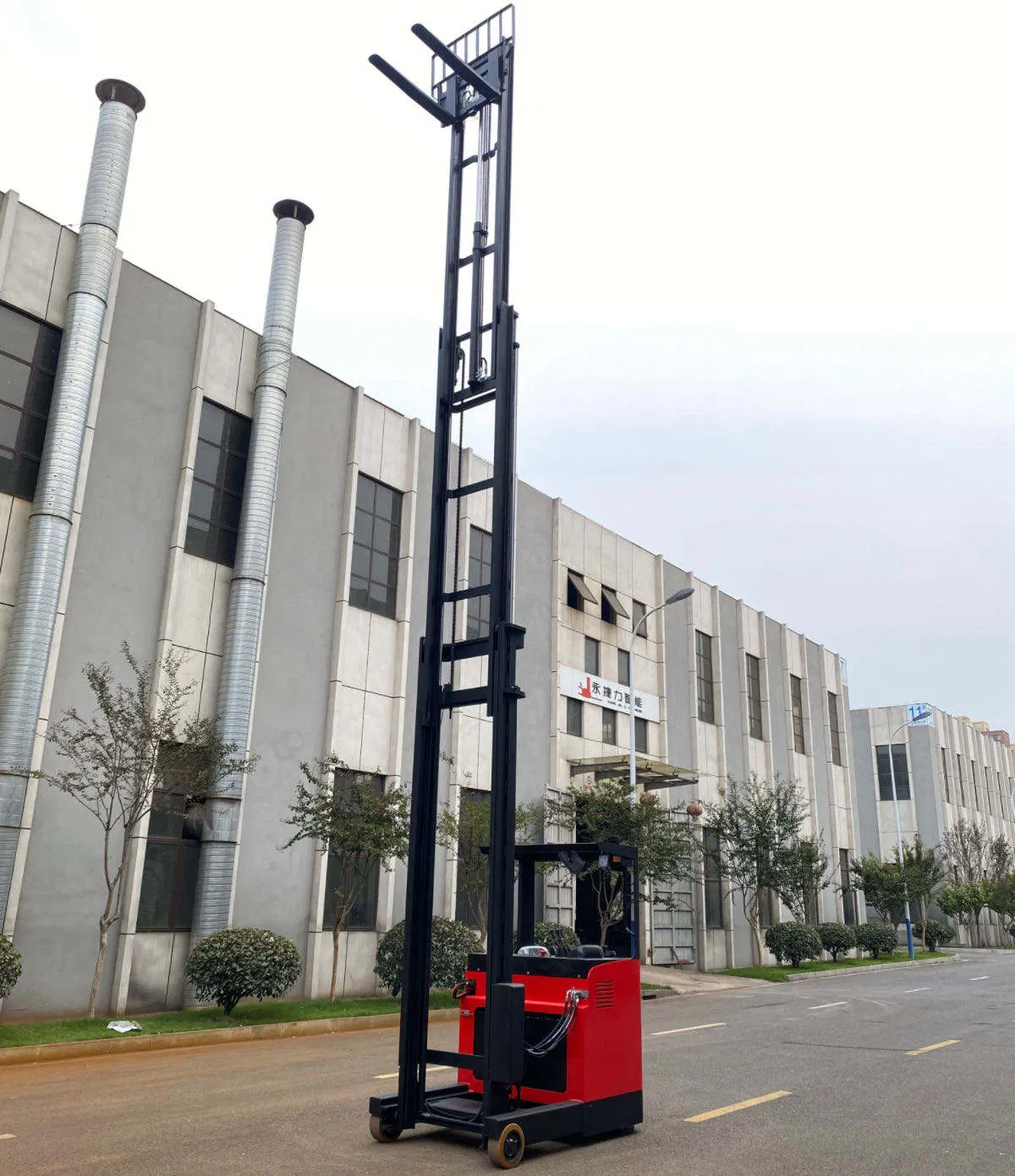

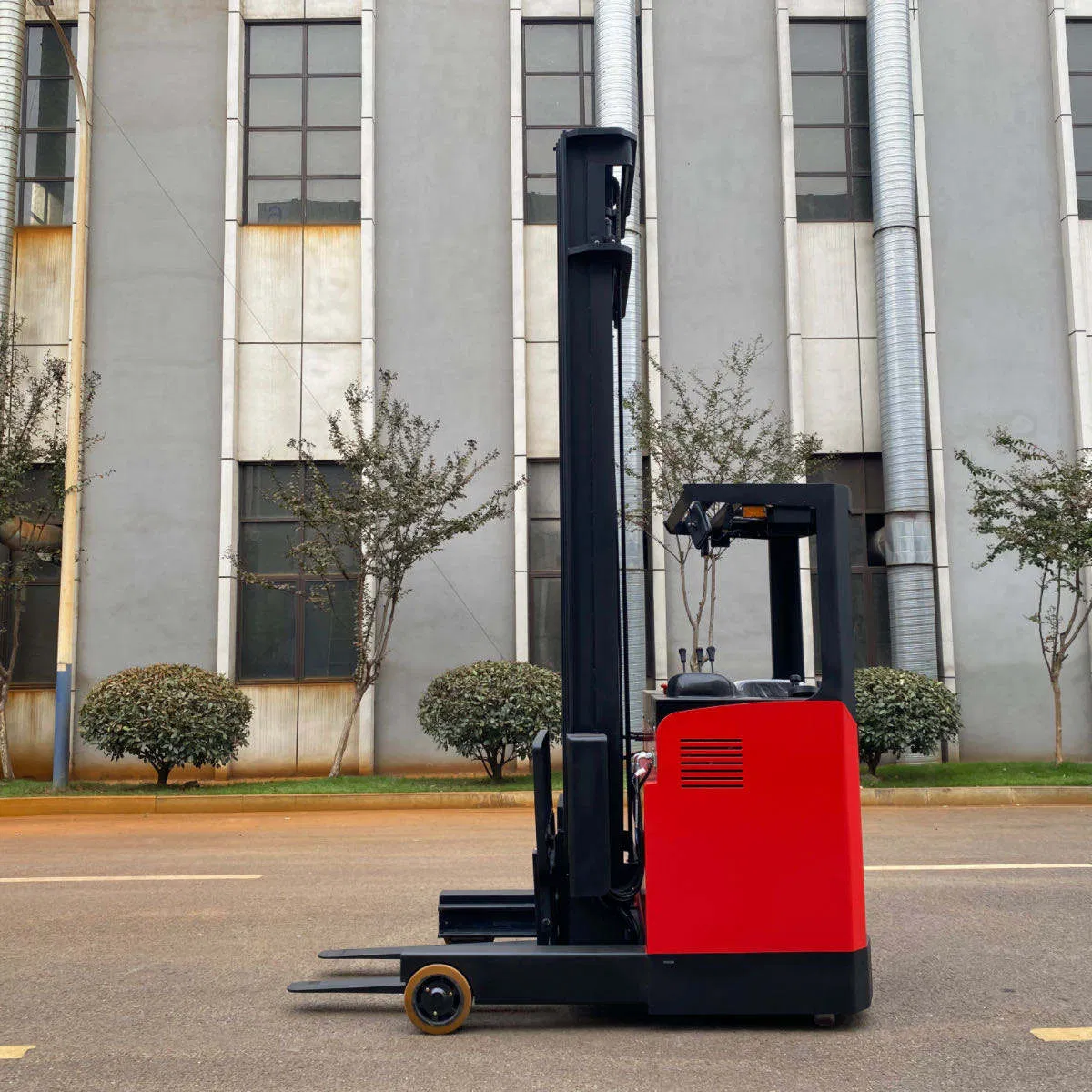

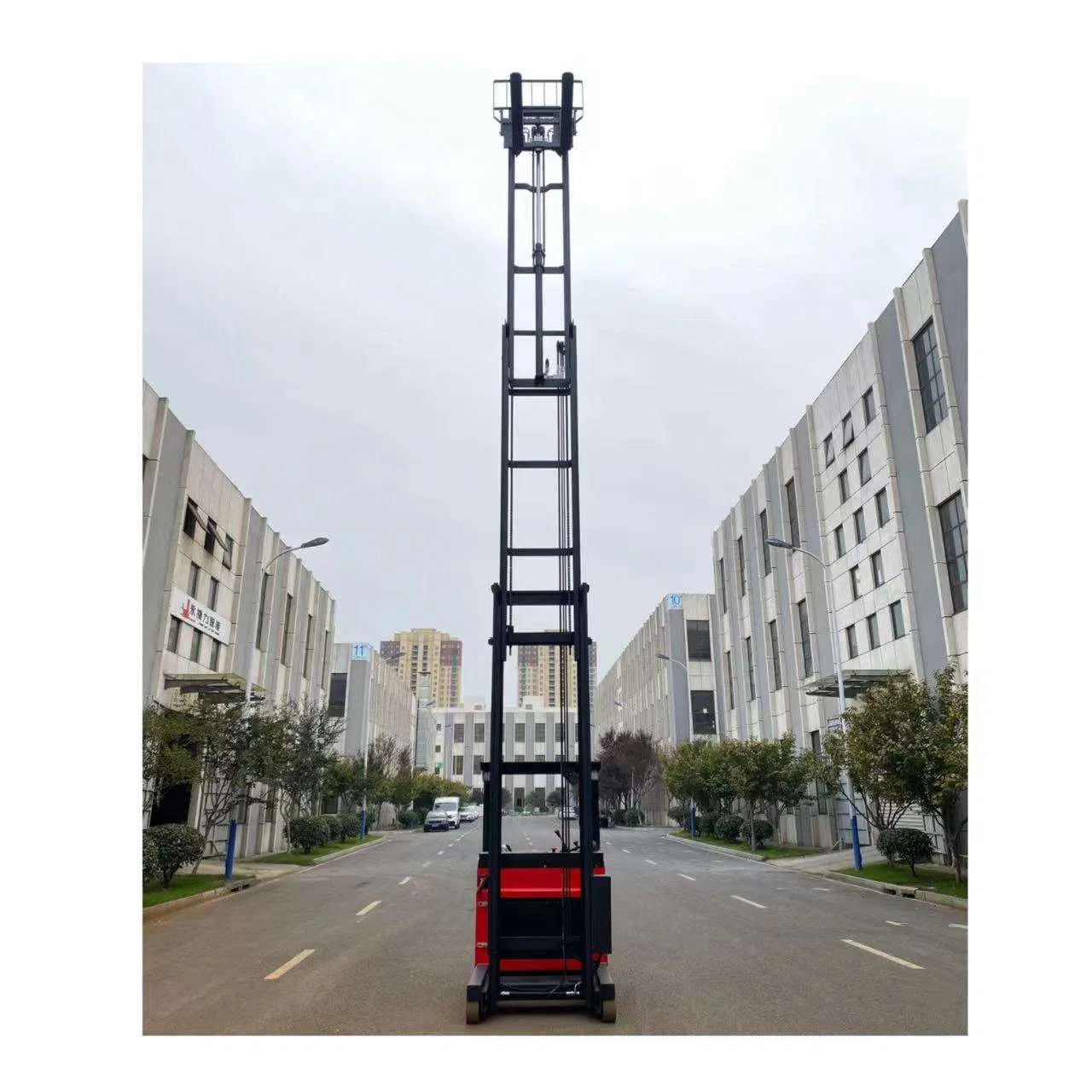

1.5t Electric Reach Truck Warehouse Narrow Aisle Seated Type Forklift

Overview & Basic Info

Model NO.

CQDS1530

Type

Electric Forklift

Power

AC Motor

Load Capacity

1-1.5t

Fuel

Electric

Load center

500mm

Lift height

3000mm

Condition

New

Color

Customer Demanded

Certification

CE

Battery

48V/420ah

Application

Warehouse Material Handling

Production Capacity

500 Set/Sets Per Month

Product Description

1.5T Electric Reach Truck Warehouse Narrow Aisle Seated type Forklift

CQDS series reach stacker cranes are suitable for large capacity and high lift cargo storage applications. The rated load is 1500Kg-2000kg and the maximum lifting height is 6000mm. It has the feature of moving the gantry forward as a whole, with small turning radius, so that the baffle code at the bottom of the shelves can be ignored. Suitable for large-scale three-dimensional factories, warehouses, supermarkets and wharves to store goods.

Product Parameters

Characteristics	No.	Model Parameter	Unit	CQDS15	CQDS20	CQDS25	CQDS30
General	1.2	Power	-	Electric	Electric	Electric	Electric
	1.3	Operation	-	Seated type	Seated type	Seated type	Seated type
	1.4	Rated load capacity	Q(kg)	1500	2000	2500	3000
	1.5	Load center distance	C(mm)	500	500	500	500
Wheels	3.1	Wheel type	-	PU	PU	PU	PU
	3.2	Front wheel spec	mm	267*114	267*114	267*114	280*135
	3.3	Drive wheel spec	mm	382*142	382*142	382*142	382*142
Dimensions	4.1	Mast closed height	h1(mm)	2105	2105	3550	2485
	4.3	Lifting height	h3(mm)	4500	4500	8000	4500
	4.9	Vehicle body width	b1(mm)	1270	1270	1270	1270/1460
	4.14	Min. turning radius	Wa(mm)	1800	1900	1900	1922
Performance	5.1	Travel speed (loaded)	km/h	7.8/6.8	7.8/6.8	7.8/6.8	7.8/6.8
	5.2	Lifting speed (loaded)	m/s	0.330/0.245	0.300/0.235	0.280/0.200	0.240/0.170
	5.4	Max. gradeability	%	≤10	≤10	≤10	≤10
Motor	6.1	Drive motor power	kw	6.5	6.5	6.5	8
Motor	6.4	Battery voltage	V/Ah	48V420A	48V420A	48V420A	48V420A

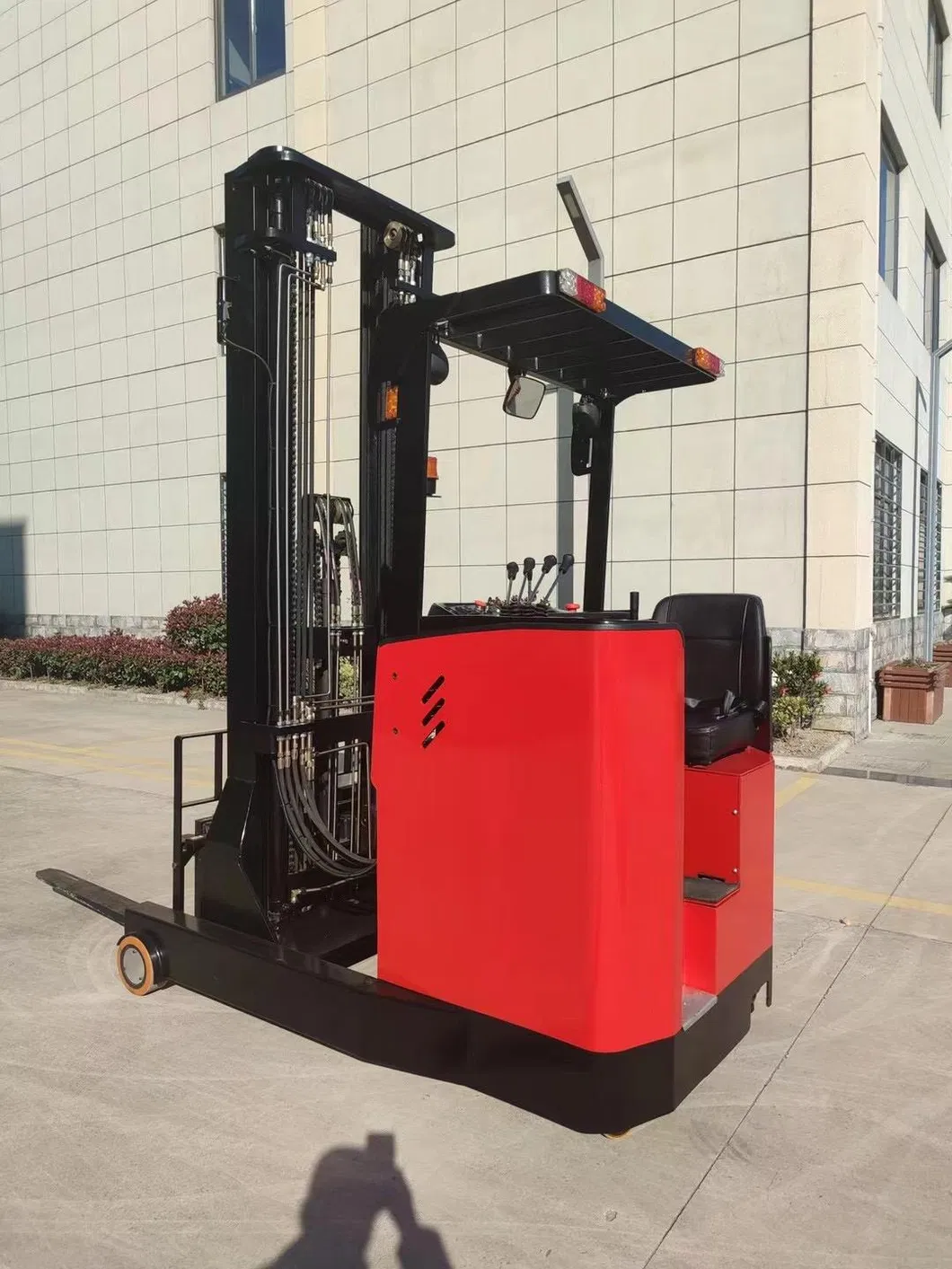

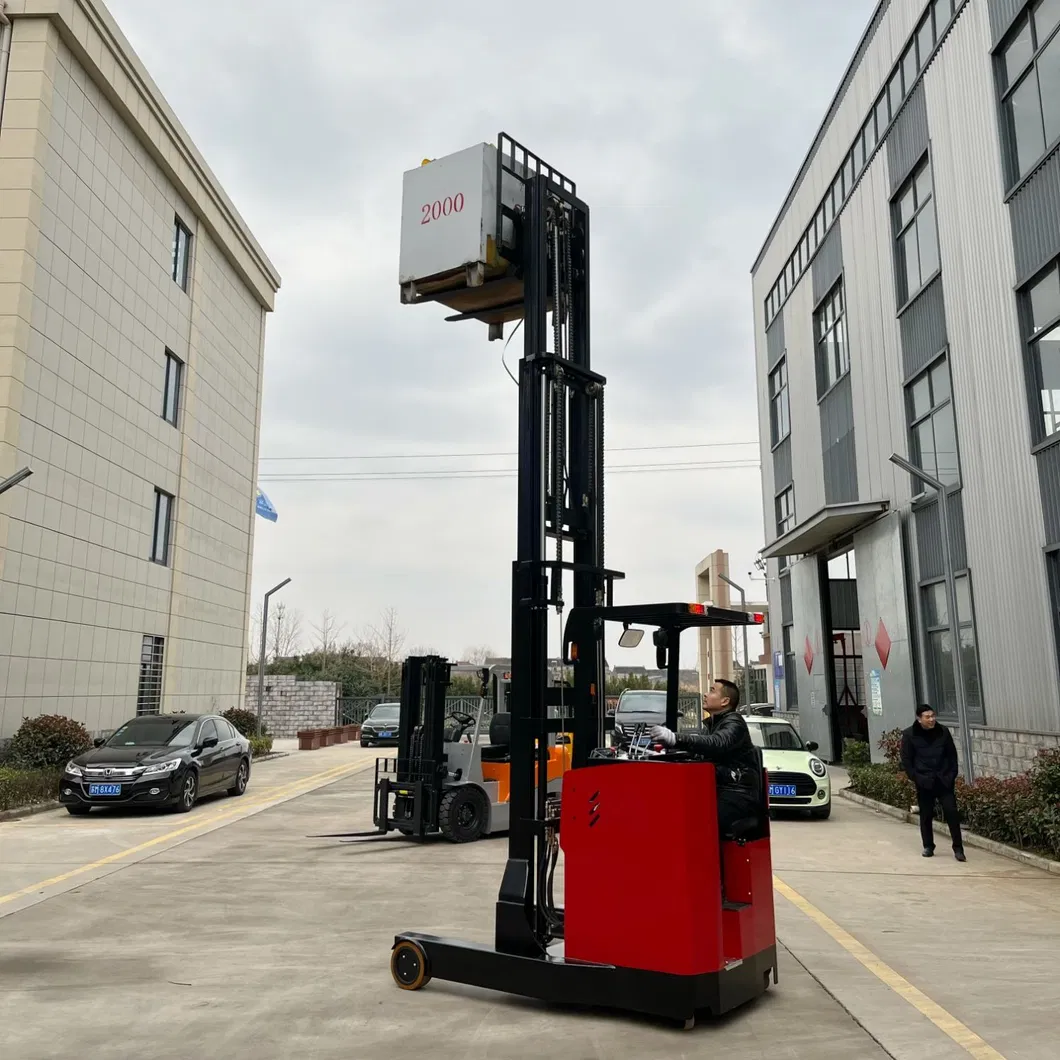

Detailed Photos

Production & Profile

Frequently Asked Questions

What is your terms of packing?

Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.

What is your terms of delivery?

EXW, FOB, CFR, CIF, DDU.

How about your delivery time?

Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Do you test all your goods before delivery?

Yes, we have 100% test before delivery to ensure quality and safety.

How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them.
