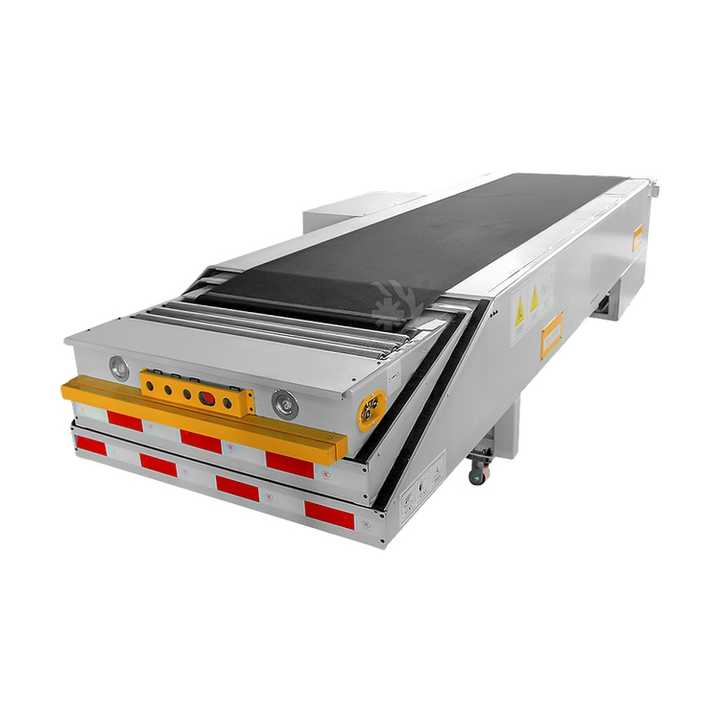

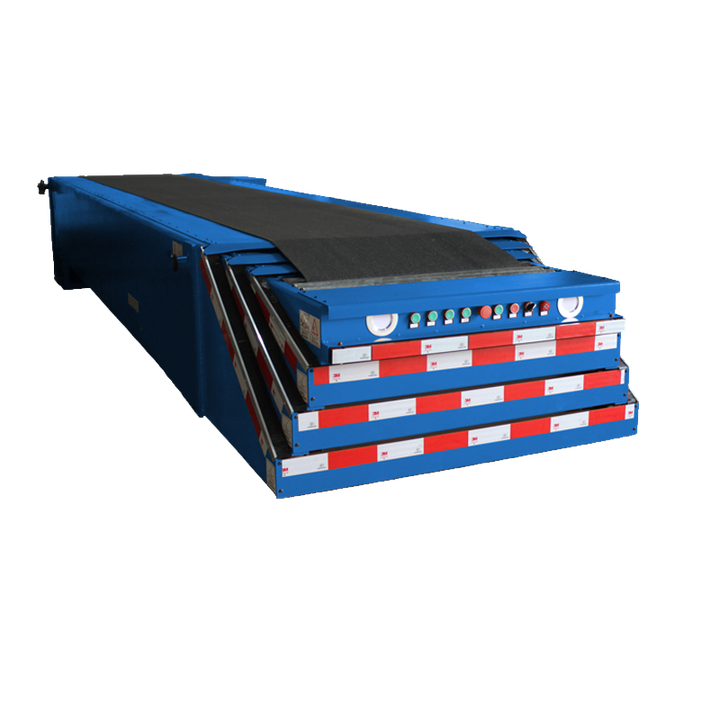

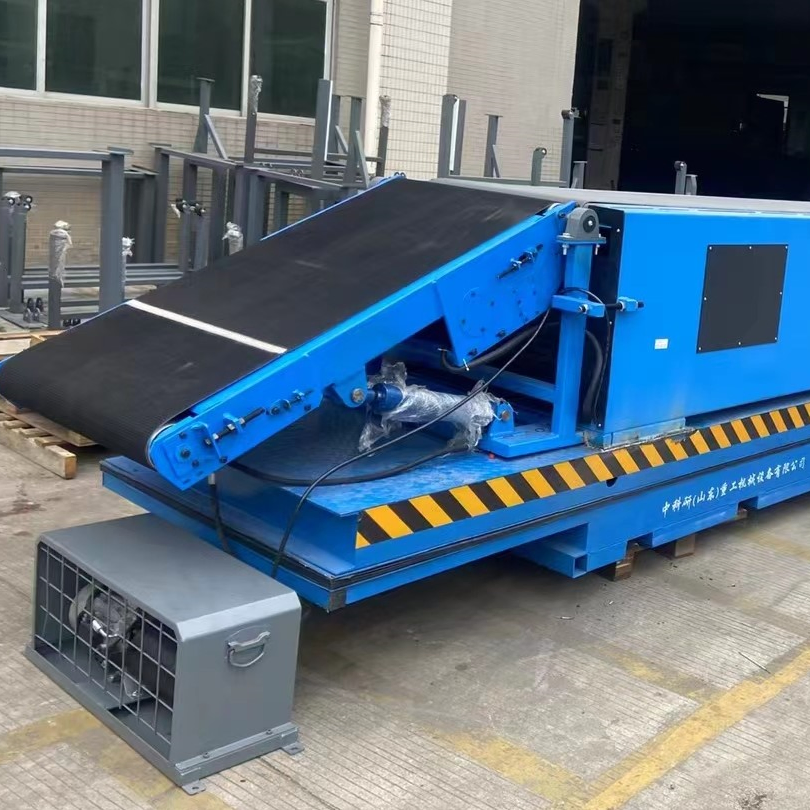

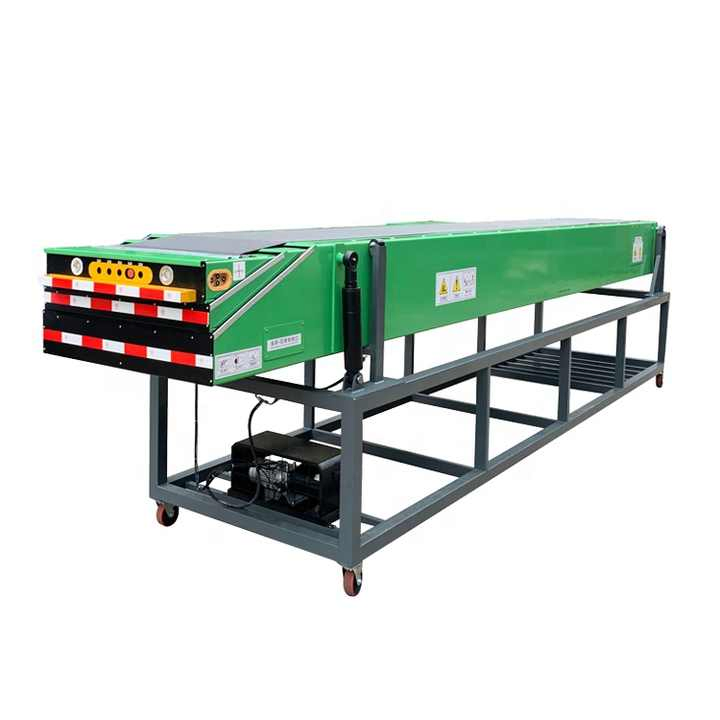

Versatile Extendable Conveyor System for Streamlined Truck Loading

Customization:	Available
After-sales Service:	on-Site Assitance and Remote Assistance
Warranty:	12 Months

📋

Basic Specifications

Model NO.

Telescopic belt conveyor

Structure

Belt Conveyor

Material

Rubber

Material Feature

Oil Resistant, Heat Resistant, Fire Resistant, Strong and Durable

Condition

New

Lead Time

15-30 Days

Belt Width

800 mm

Trademark

ODM & OEM

Production Capacity

10,000 Units/Year

Origin

China

⚙️

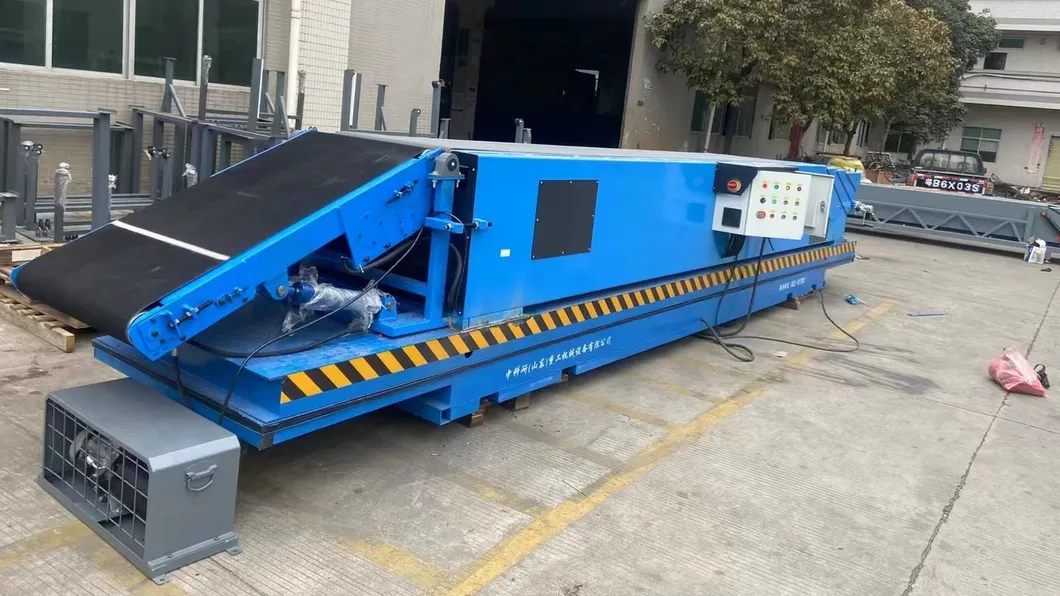

Telescopic Truck Loading Conveyor Introduction

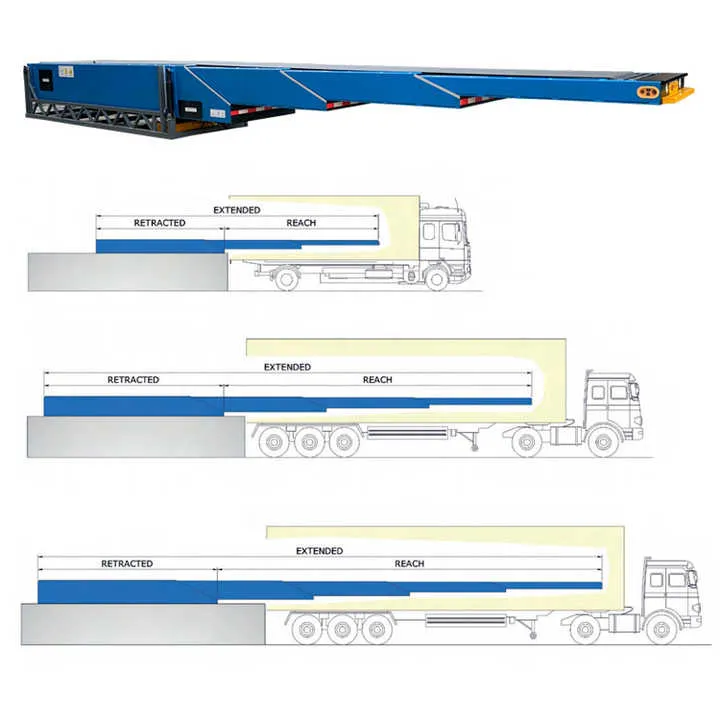

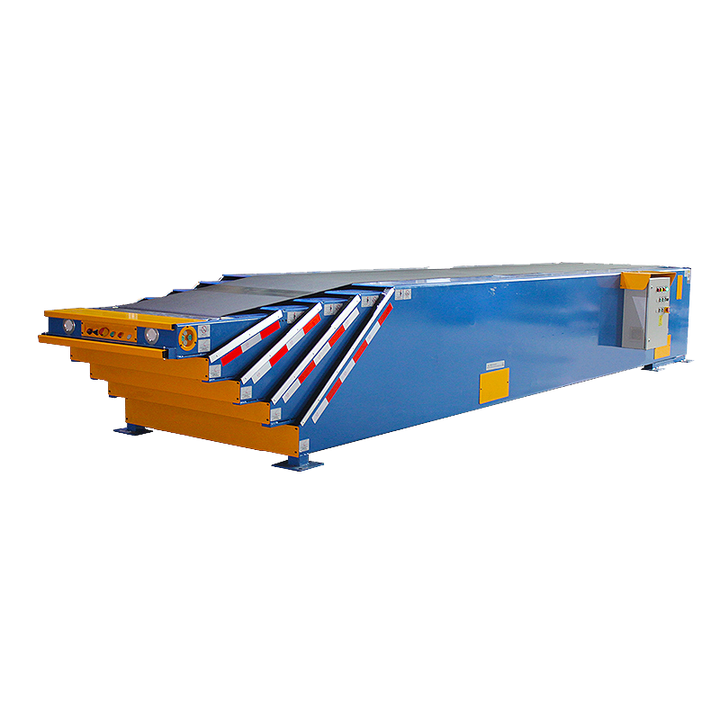

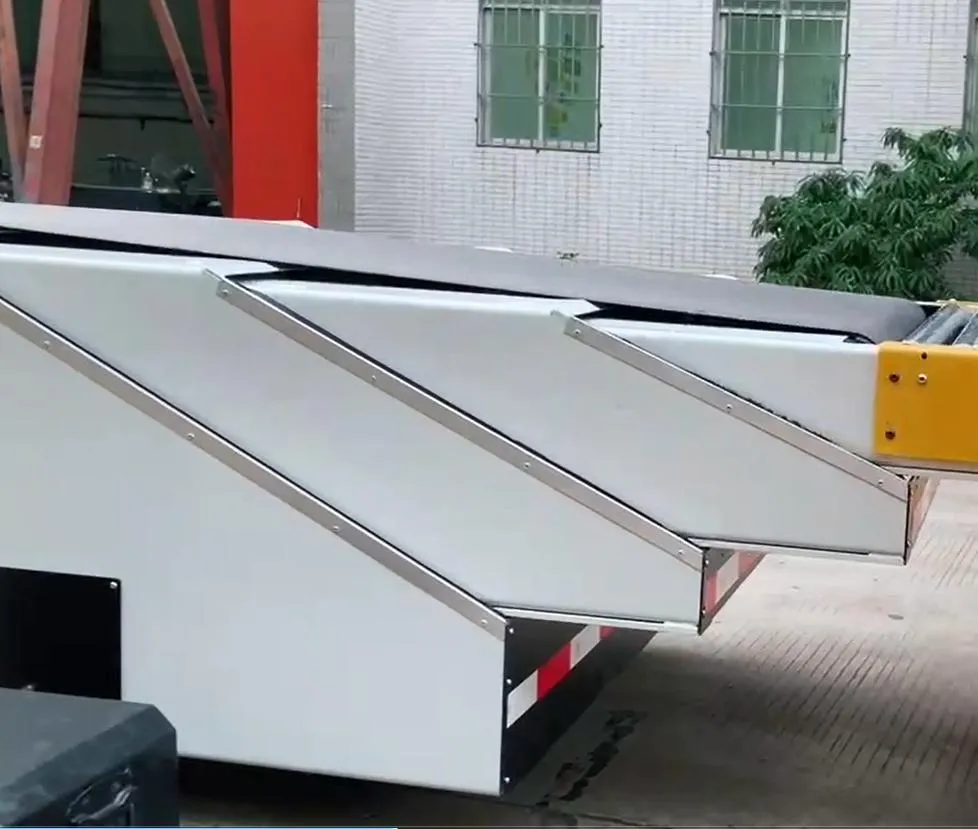

Telescopic truck loading unloading conveyor operation situation of accord with human body engineering, which can realize the rapid loading and unloading, suitable for all kinds of freight cars of cargo handling. This Telescopic belt conveyor can freely expand and contract in the length direction and control the length of the conveyor at any time. It can transport materials in both directions and can be used in conjunction with other conveying equipment and material sorting systems to realize automated production of materials entering and exiting warehouses or vehicle loading and unloading.

💡

Features & Applications

Truck Loading Conveyor Application:

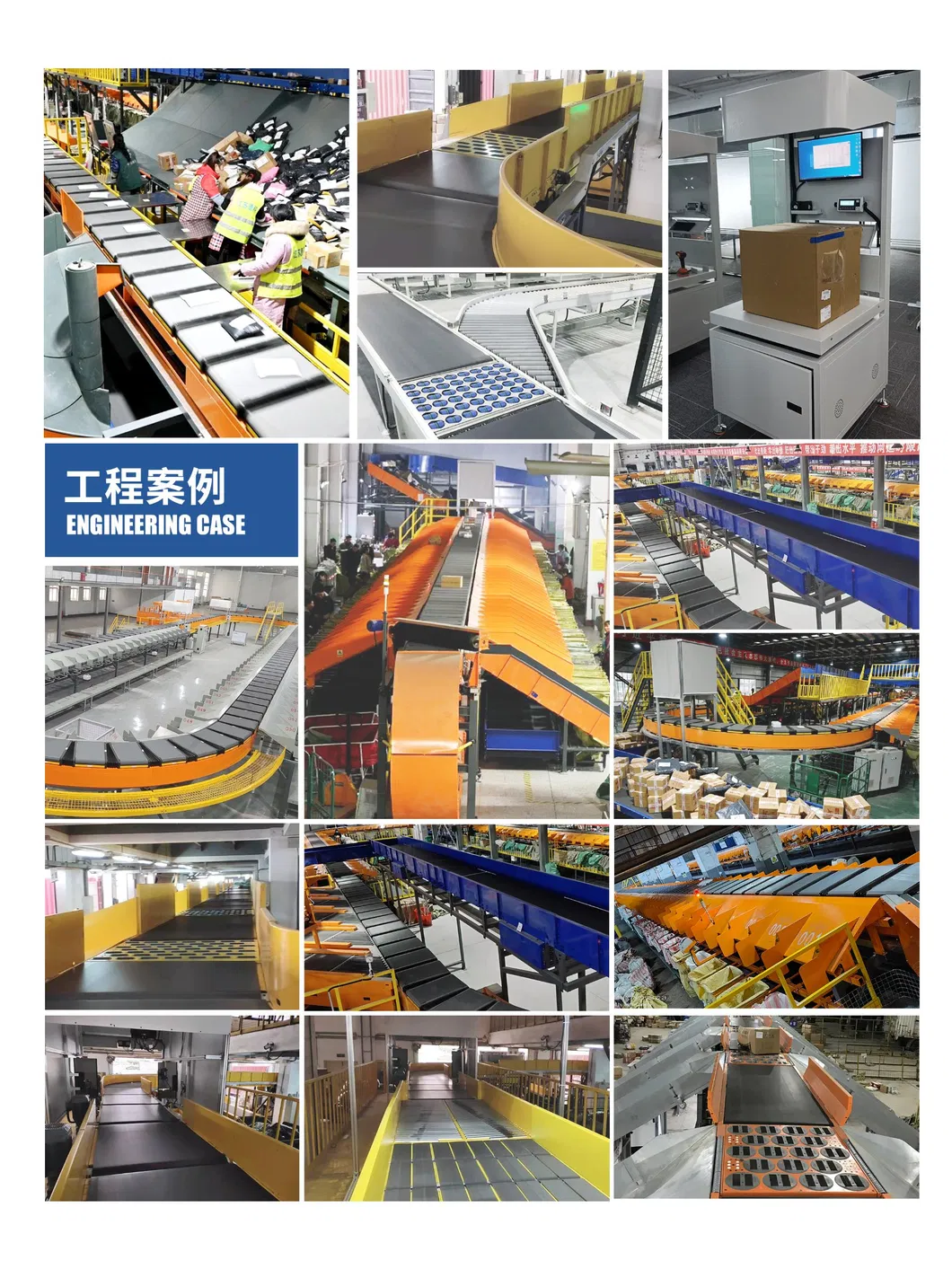

Suitable for loading and unloading trucks, cartons, woven bags, packages, luggage, tires, plastic boxes/drums, etc. Widely used in Chemical Industry, Grain Transport, Mining Transport, Power Plant, E-Commerce Retail, and Logistics Warehouses.

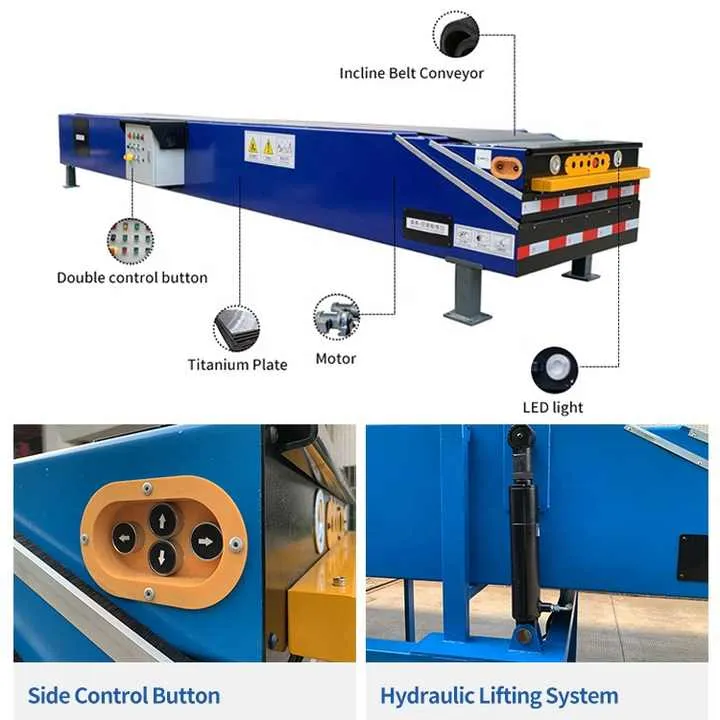

Key Performance Features:

Mobility: Requires only 2 people to move to different locations at will.
Reach: Push it directly into the car, working up to 10 meters deep.
Efficiency: Loading/unloading efficiency can reach about 30 pieces per minute.
Adjustability: Mechanical arm hydraulic device allows height adjustment from 2 to 4 meters.

📊

Technical Parameters

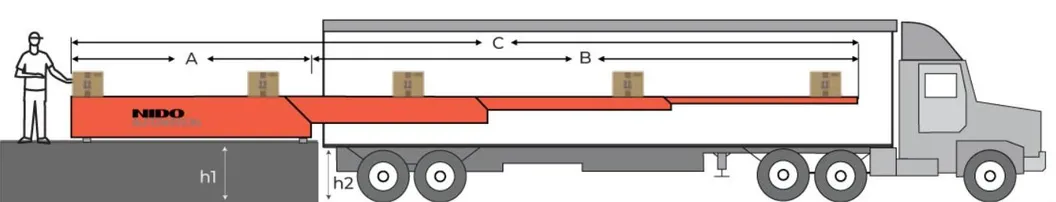

Name	Type	Fixed length (mm)	Stretch length (mm)	Overall length (mm)	Effective Width (mm)	Conveying height (mm)
Two Sections	XJ-SS-2-3/2	3000	2000	5000	800	800
Two Sections	XJ-SS-2-5/3	5000	3000	8000	800	800
Three Sections	XJ-SS-3-5/7	5000	7000	12000	800	800
Four Sections	XJ-SS-4-6/12	6000	12000	18000	800	850
Five Sections	XJ-SS-5-6/16	6000	16000	23000	800	900
