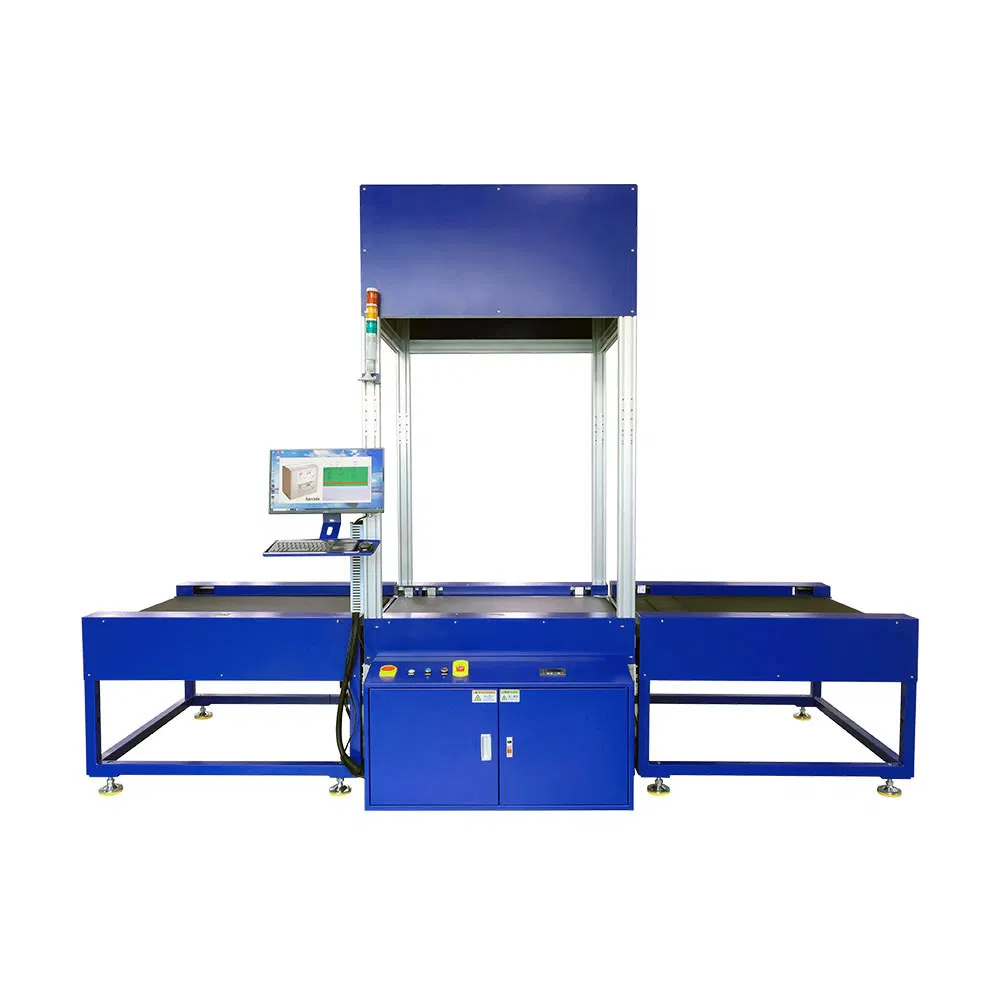

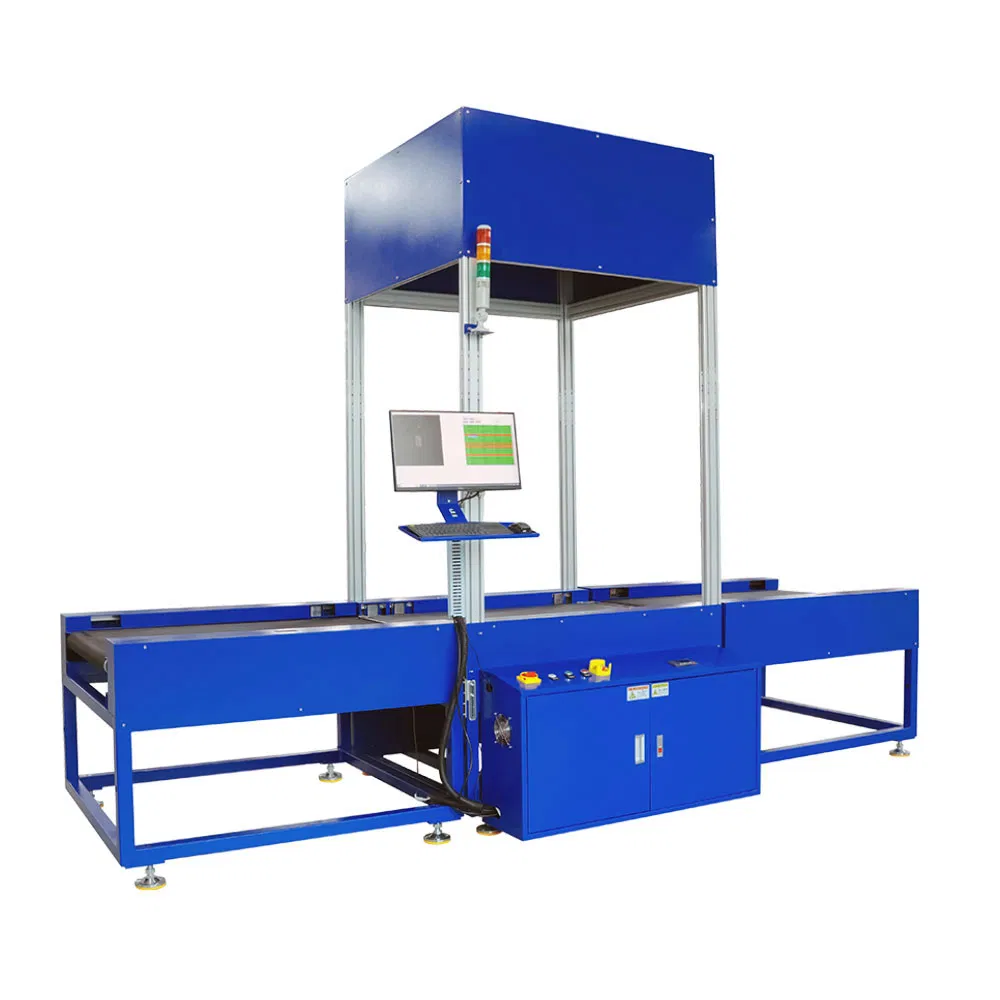

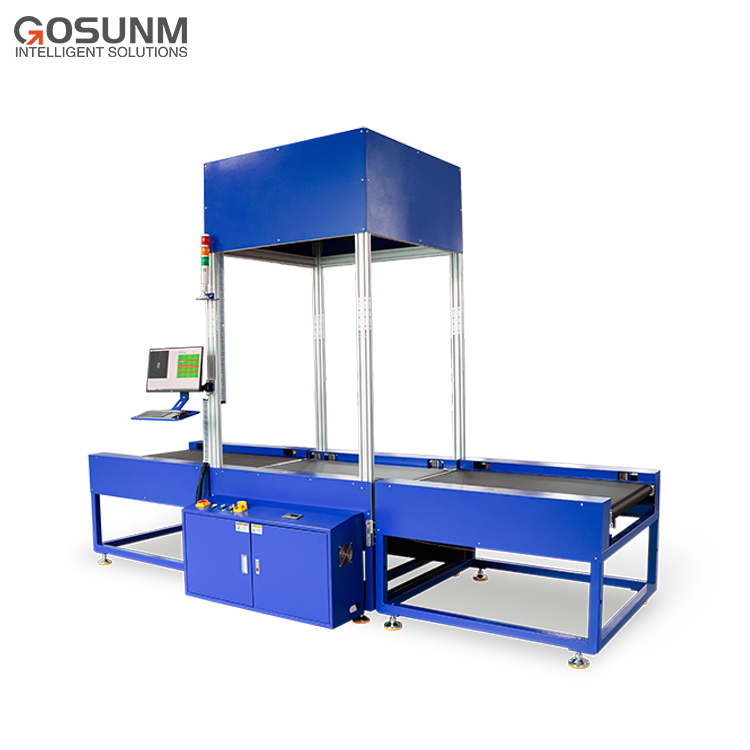

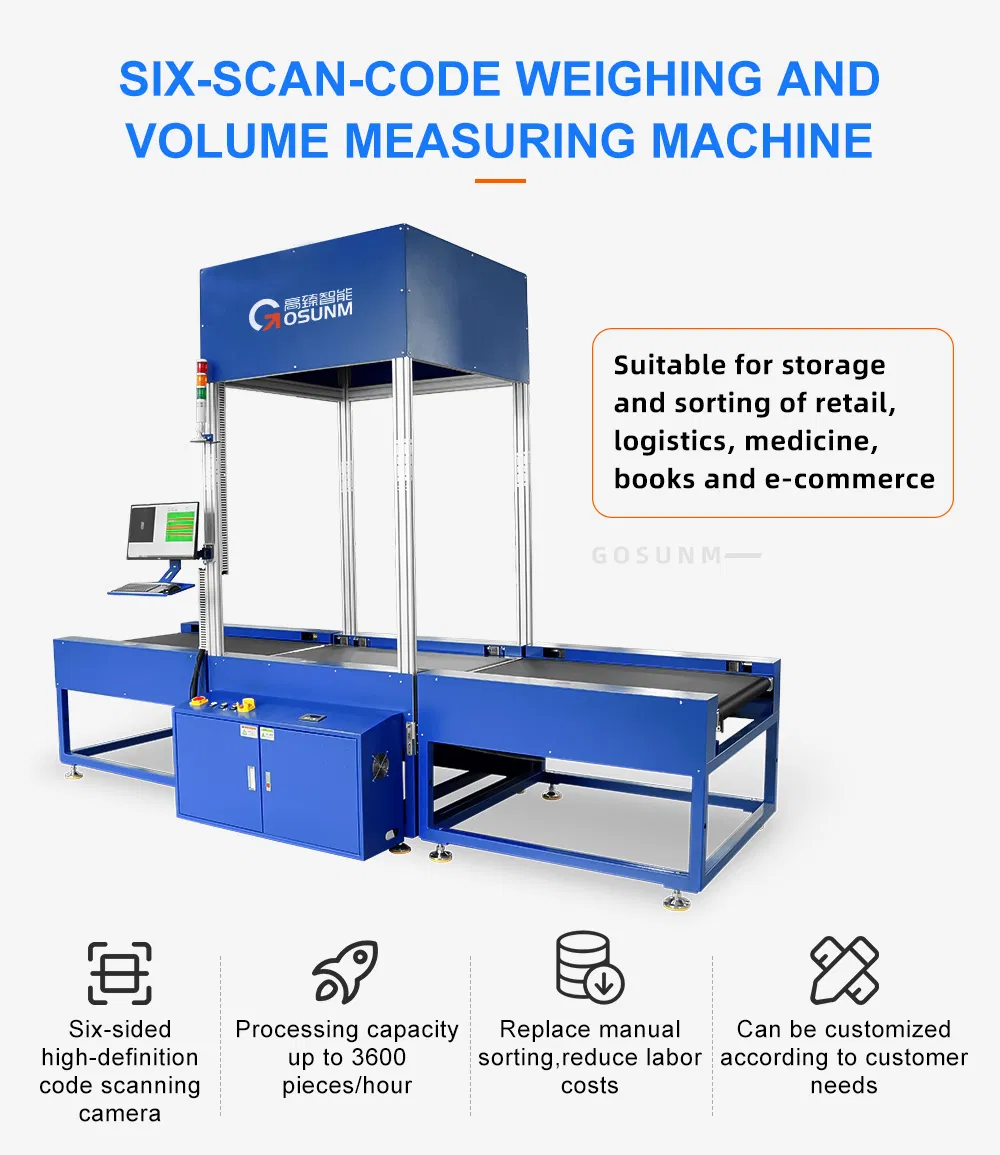

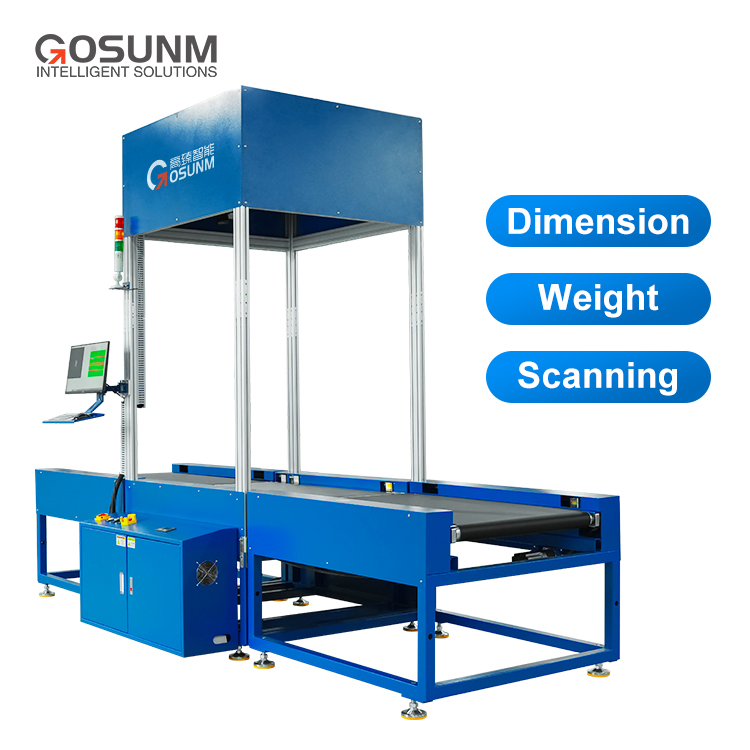

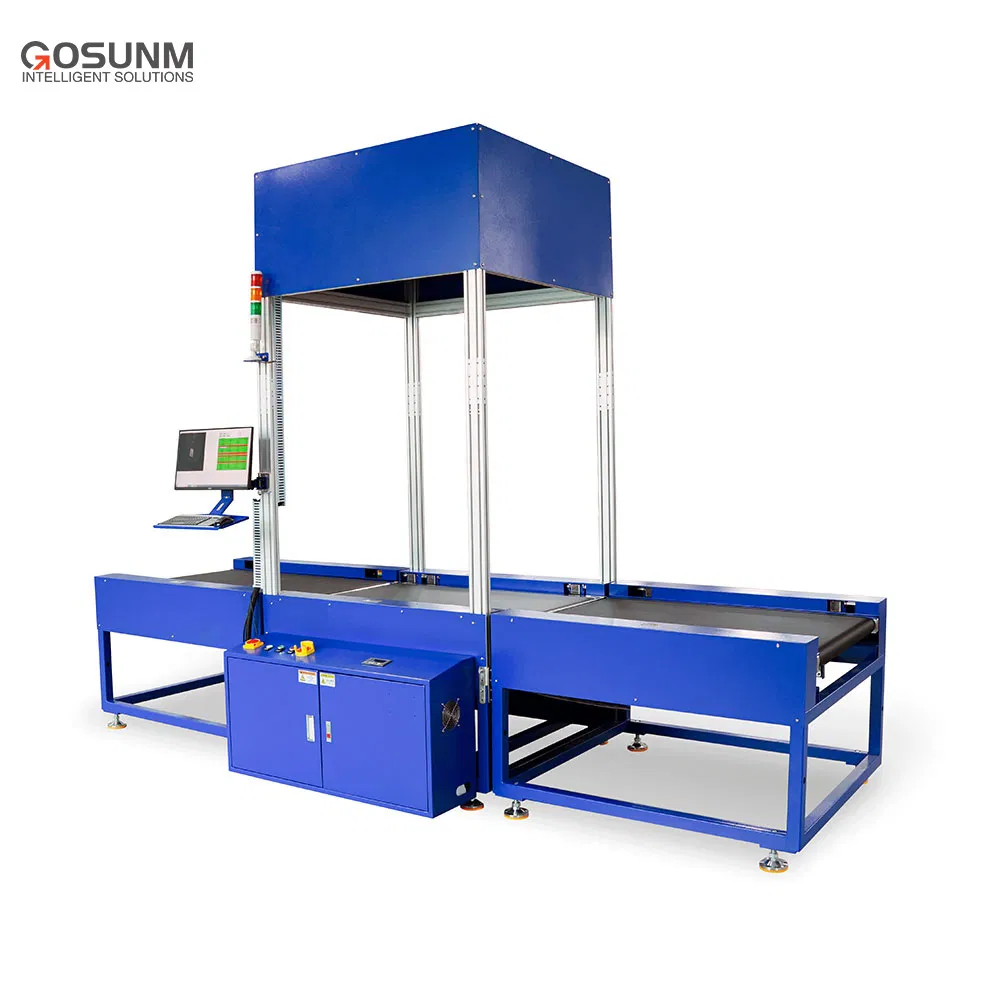

Dynamic Dws Smart Weighing System for Dimensions up to 1200mm

Customization: Available
After-sales Service: Online Support/ Field Maintenance
Warranty: 12 Months

Product Description

Technical Specifications

Model NO.
GSB-DWS
Structure
Warehouse Logistics Solution
Material
Stainless Steel
Material Feature
Oil Resistant
Application
Grain Transport, Logistics Parcels
Condition
New
Weighing Range
Min:0.2kg Max:60kg
Size Range
L<=1200mm, W<=800mm, H<=600mm
Transfer Speed
0-1.5m/S
Weighing Accuracy
Within 50g
Scanning Method
Top Auto Scan
Measuring Range
100*100*40-1200*800*600(mm)

Product Overview

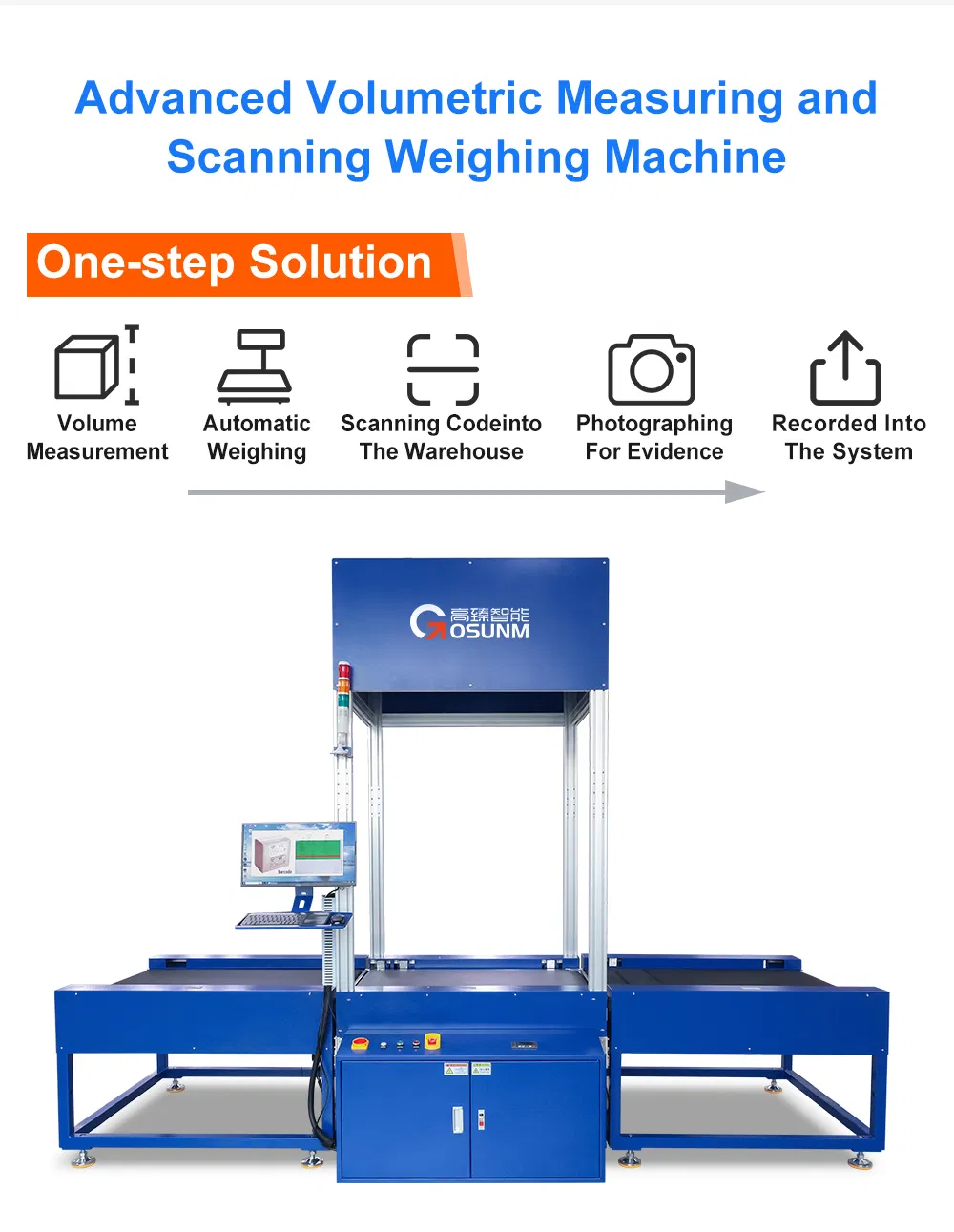

Introducing the state-of-the-art Dynamic DWS with Real-time Printing & Labeling Machine and Wheel Sorter—an unparalleled, highly automated logistics sorting solution that is revolutionizing industries such as e-commerce, express delivery, warehousing, and smart manufacturing. This cutting-edge system facilitates seamless end-to-end automation, encompassing dynamic weighing, precise volumetric measurement, and the advanced capabilities of label printing and applying, along with intelligent sorting. Experience a remarkable boost in sorting efficiency and accuracy that sets a new standard in operational excellence.

⚖️ Dynamic Weighing

Precise range from 0.2kg to 60kg

📏 Volumetric Measurement

Supports parcels up to 1200mm length

🚀 High Speed

Up to 5,000 parcels per hour

Core Performance Data

Range0.2kg-60kg
Measuring range1200*800*600mm - 100*100*40mm
Barcode density0.3mm
SpeedLine speed 0-1.5 meters / second
Power supplySingle-phase 220V 50~60HZ
Volume accuracy± 10mm
Weight accuracy± 50g
Sorting speed3,000-5,000 parcels/hour

Product Presentation

Frequently Asked Questions

What is the weighing range of the GSB-DWS system?
The system can handle a weighing range from a minimum of 0.2kg up to a maximum of 60kg.
What are the maximum parcel dimensions supported?
It supports parcels with dimensions up to 1200mm in length, 800mm in width, and 600mm in height.
How accurate is the weighing and volume measurement?
The weighing accuracy is within ±50g, and the volumetric measurement accuracy is within ±10mm.
What is the sorting capacity of the machine?
The machine offers high sorting efficiency, handling between 3,000 to 5,000 parcels per hour depending on the parcel size and setup.
What scanning method does this system use?
The GSB-DWS uses a "Top Auto Scan" method, allowing for efficient and seamless barcode reading as items move through the conveyor.
Is the system suitable for express delivery logistics?
Yes, it is specifically designed for e-commerce, express delivery, warehouse logistics, and smart manufacturing environments.
