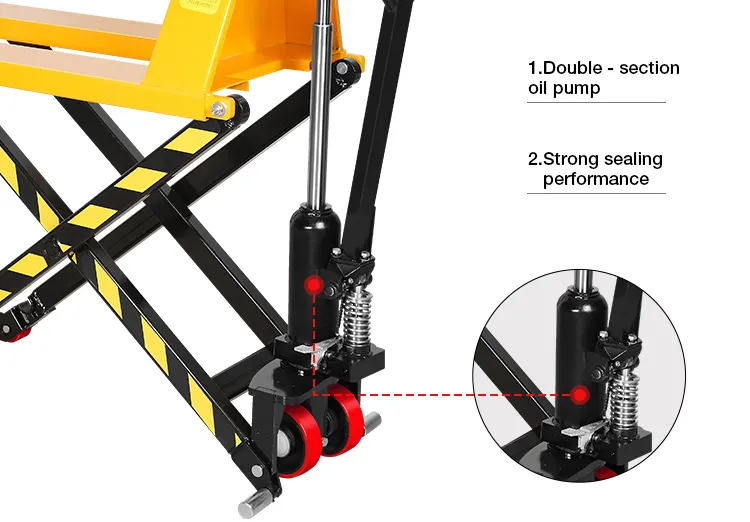

High-quality dual-stage hydraulic pump with strong sealing, no sticking, reduces maintenance frequency, and extends overall service life.

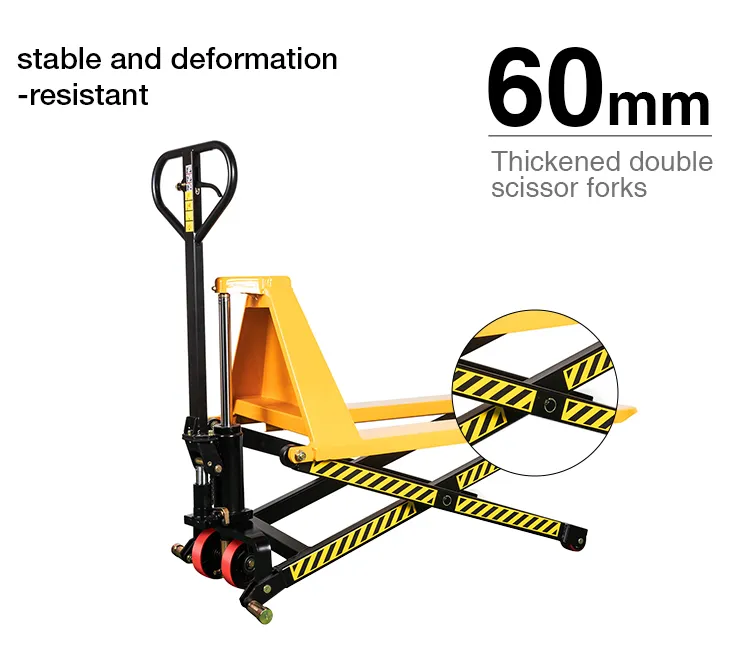

60mm thickened double scissor design offers excellent resistance to bending and compression, ensures smooth lifting, and resists deformation over long-term use.

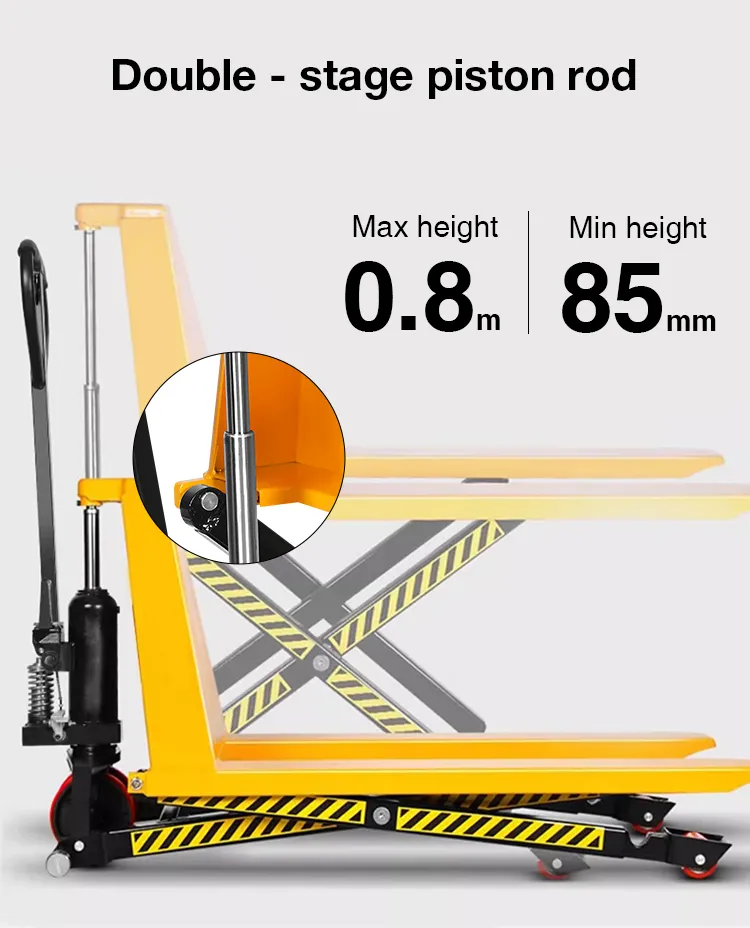

Equipped with dual-stage piston rods, enabling faster lift speed and higher lift height, suitable for different working heights; transport and operation in one step.
Designed for safety and reliability, ensuring every start and stop is safe, protecting operator safety during warehouse operations.

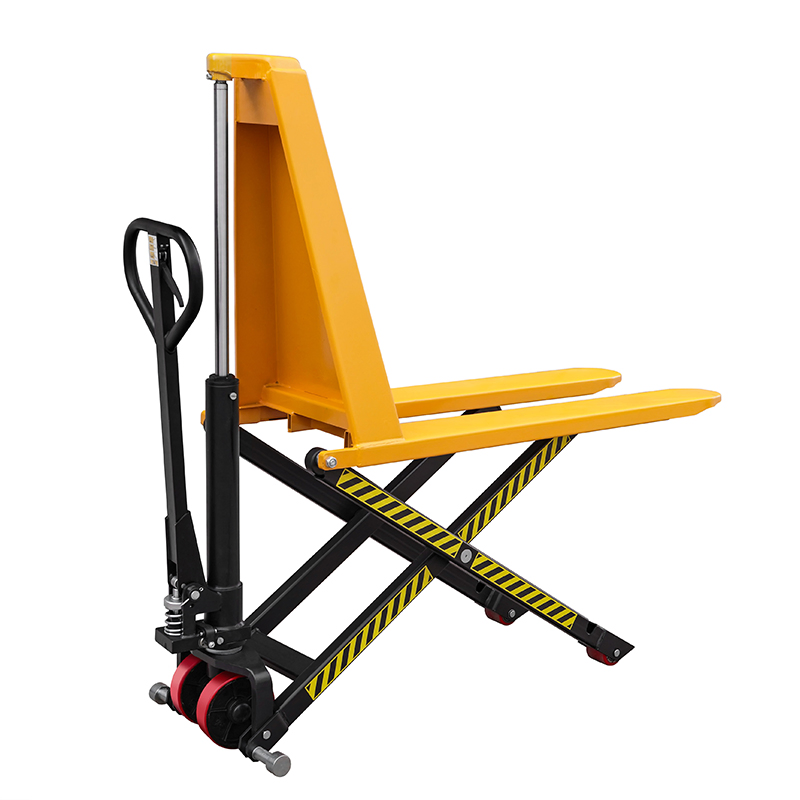

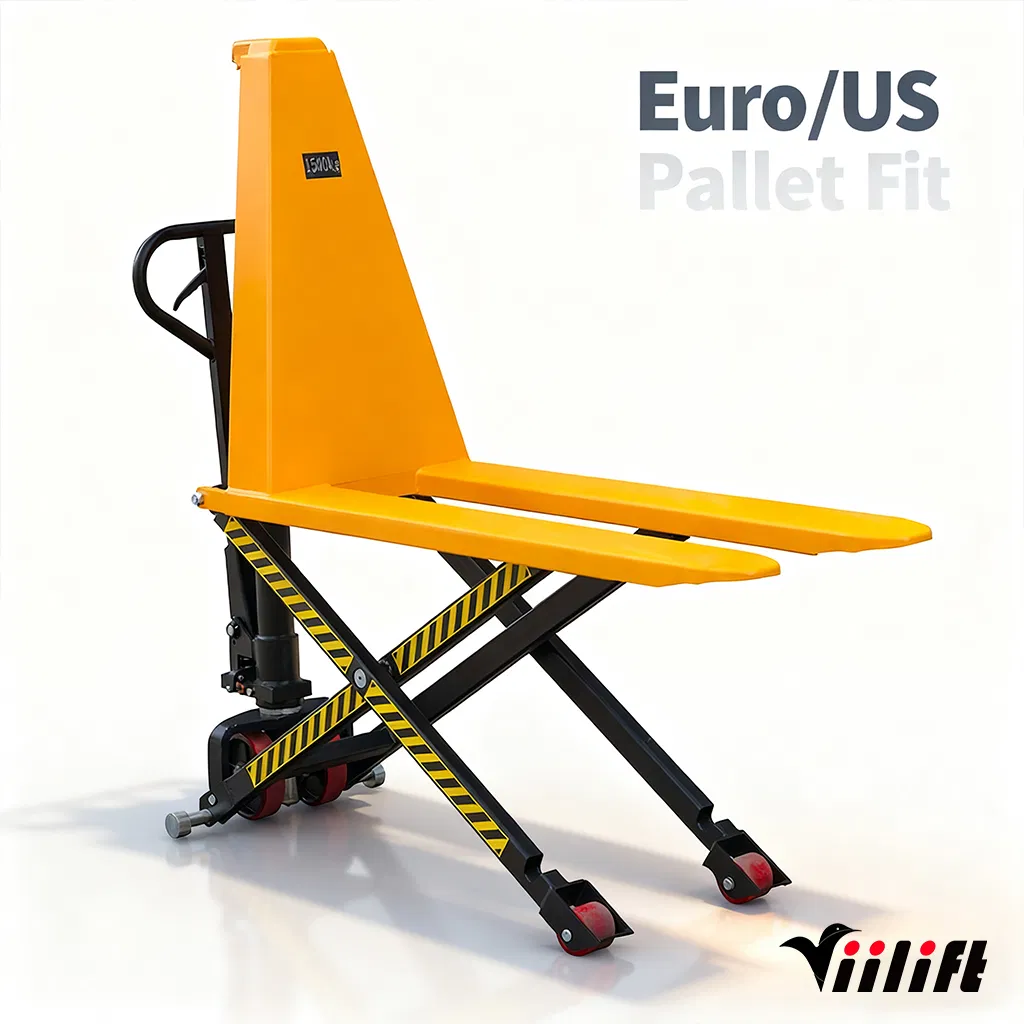

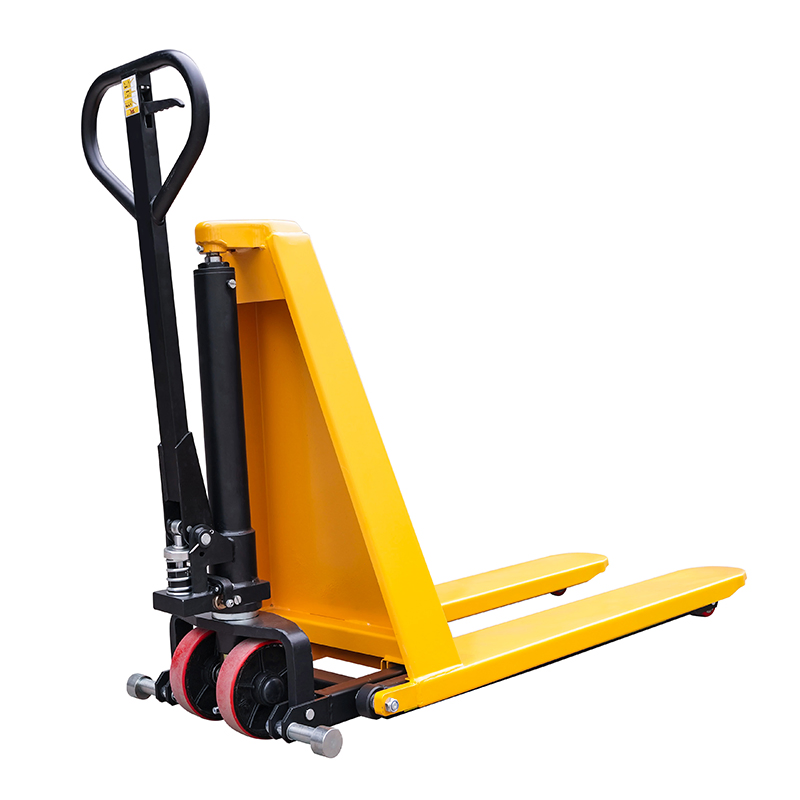

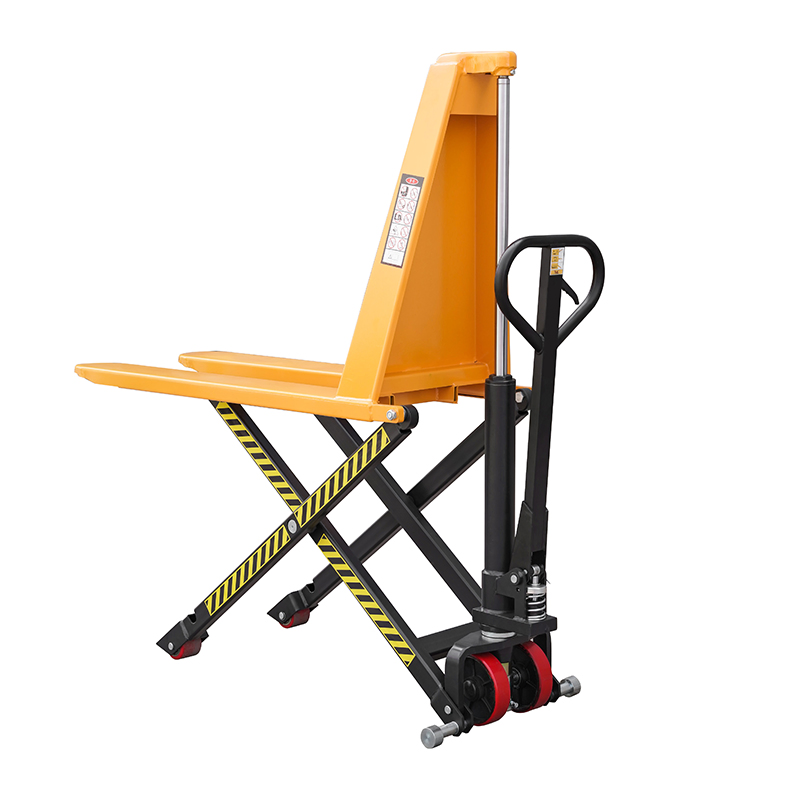

| Model | GBC10 | GBC15 |
|---|---|---|
| Load Capacity (kg) | 1000 | 1500 |
| Fork Length (mm) | 1150 | 1150 |
| Fork Width (mm) | 160 | 160 |

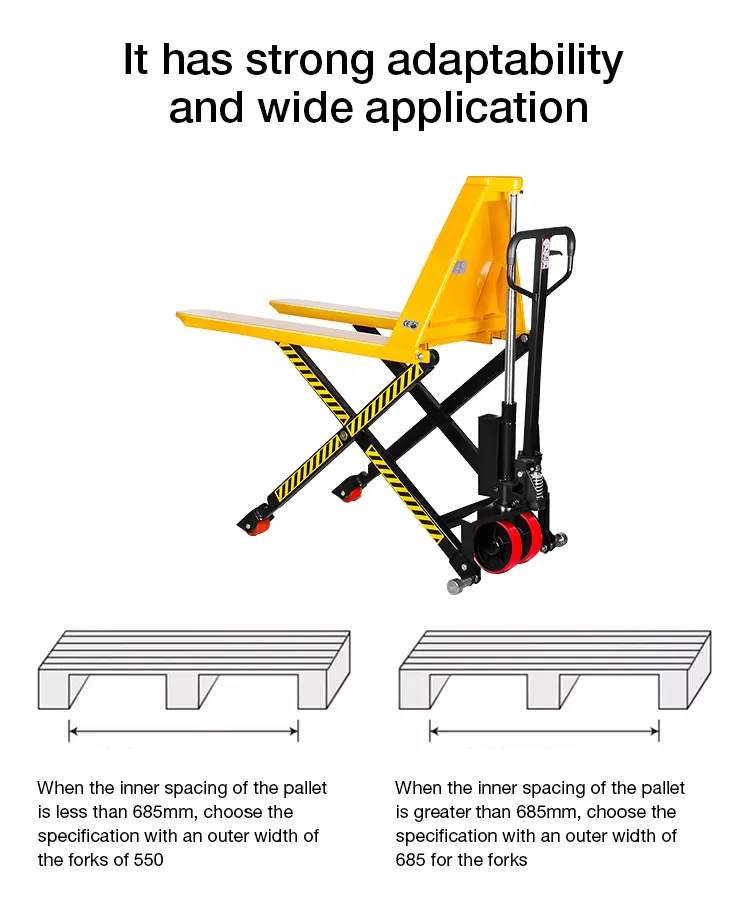

| Outside Fork Width (mm) | 550 / 685 | 550 / 685 |
| Lowered Height (mm) | 85 | 85 |
| Lifting Height (mm) | 800 / 1000 / 1200 | 800 / 1000 / 1200 |
| Wheel Type | Polyurethane | Polyurethane |
| Steering Wheel (mm) | φ180 | φ180 |
| Power Type | Manual | Manual |
| Weight (kg) | 120 | 140 |
| Warranty | 12 months | 12 months |
