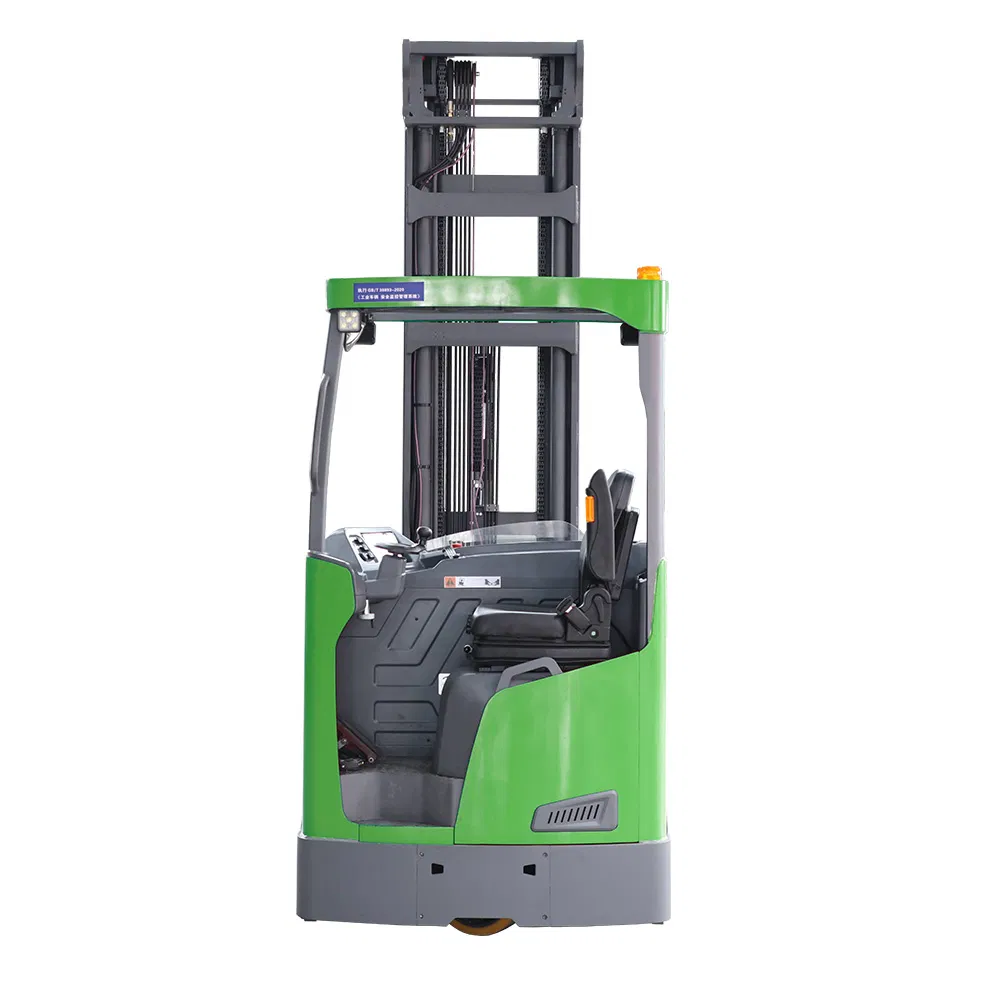

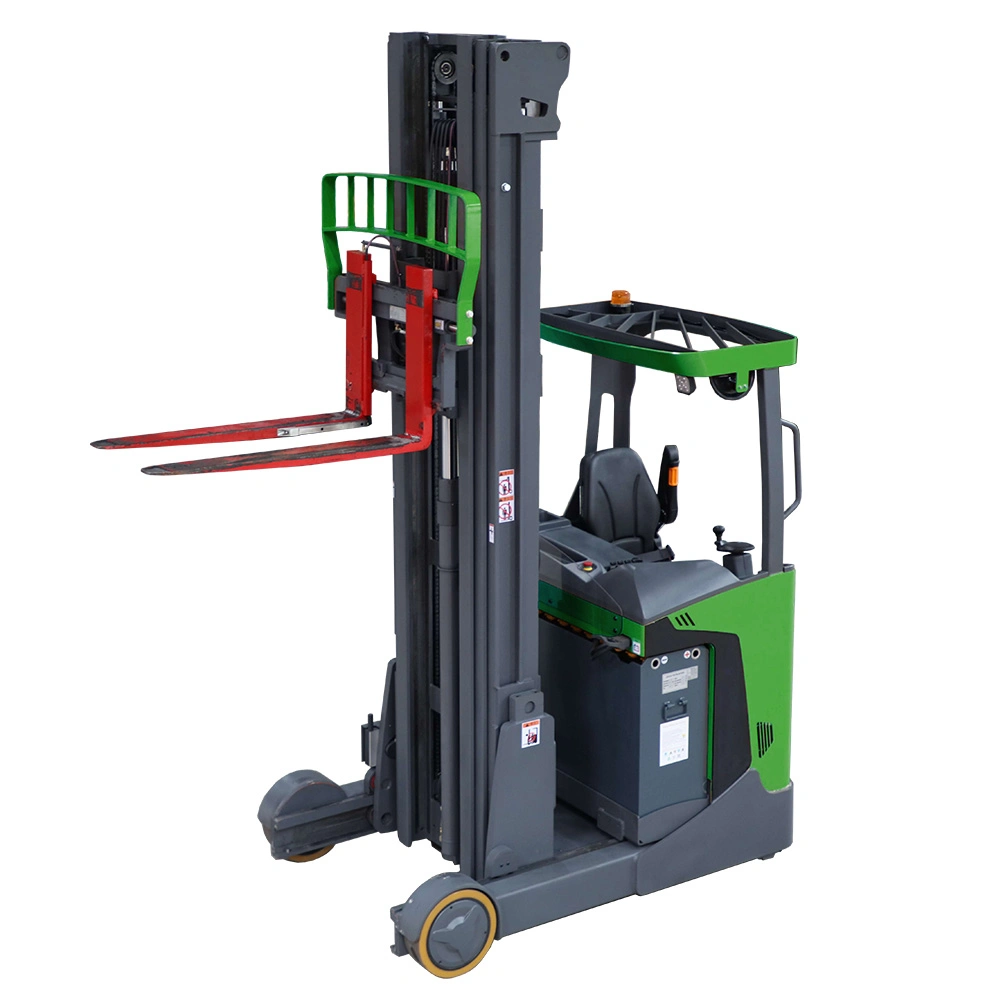

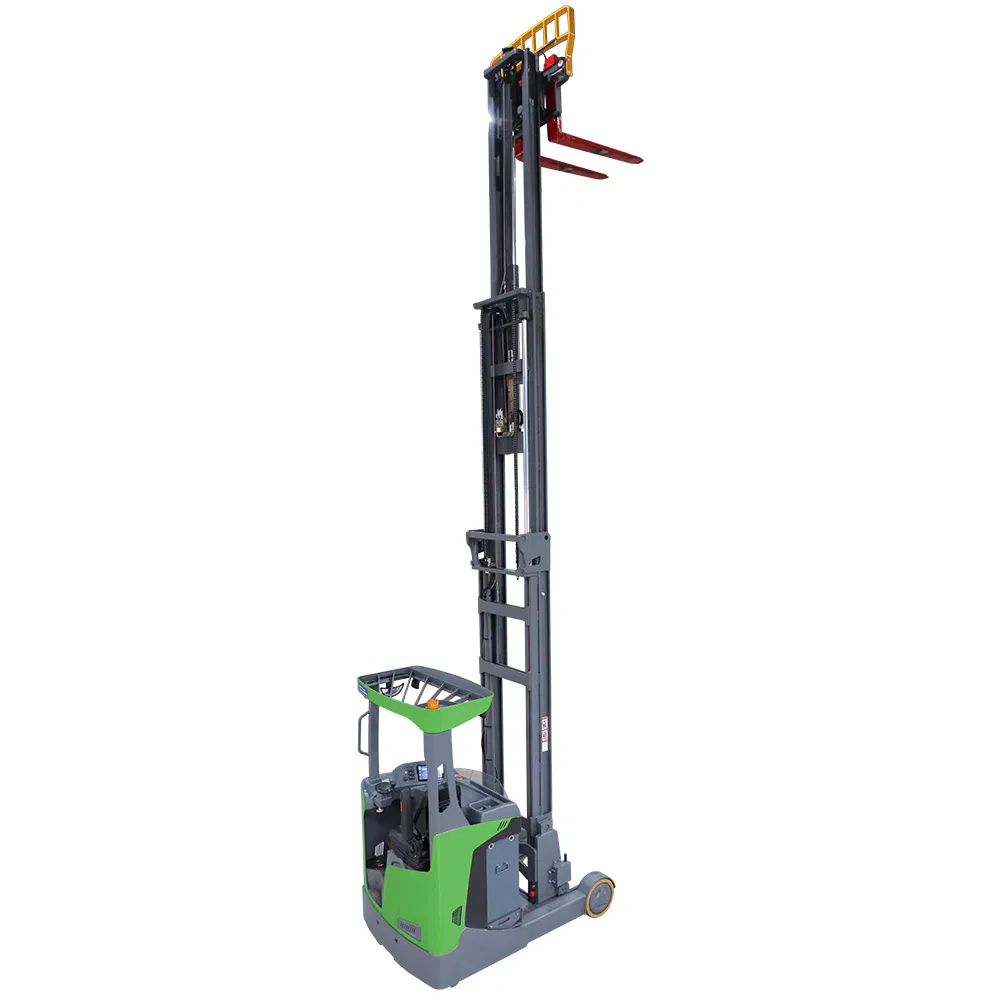

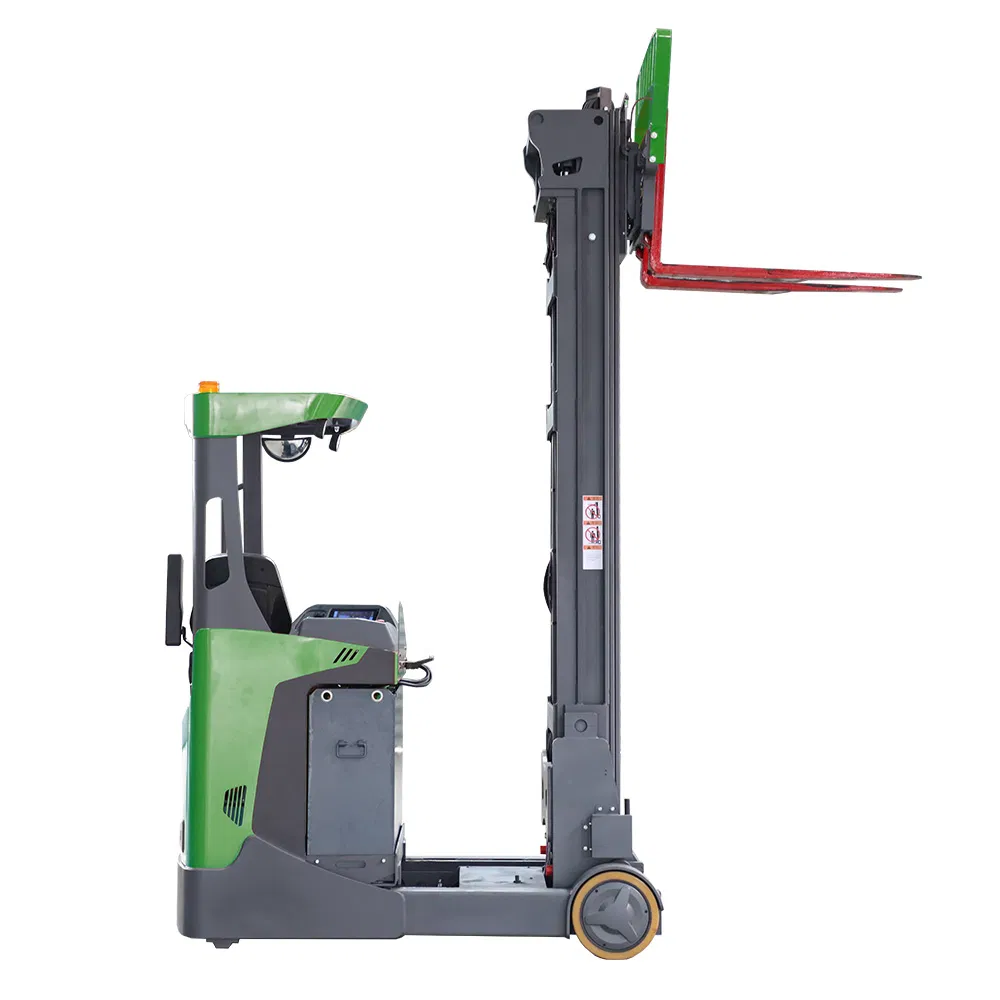

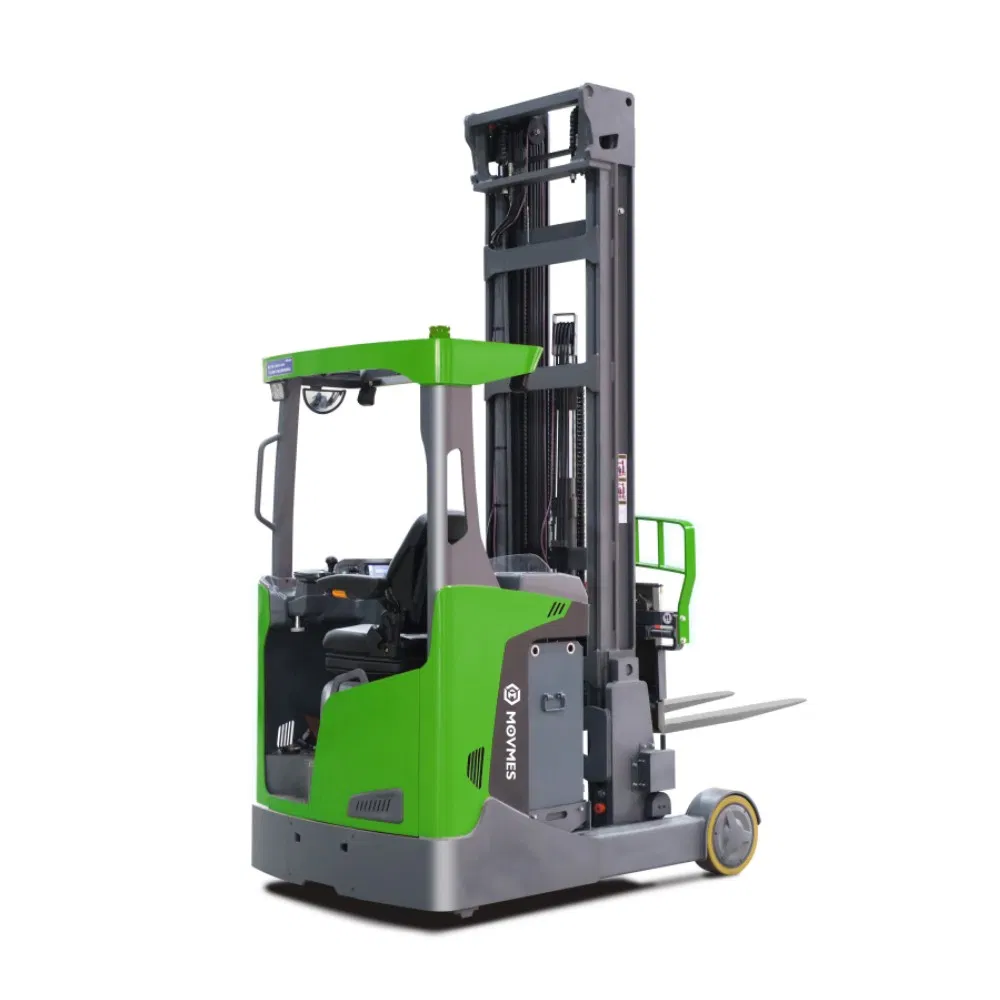

Narrow Aisles Warehouse 2.0t 2000kg Electric High Lift Forklift Reach Truck for Russia

Basic Information

Model NO.

CQD20-D

Type

Stacker / Reach Truck

Power

AC Motor

Fuel

Electric

Load Capacity

1T - 5T

Load Center

>500mm

Lift Height

>5000mm

Wheel Material

PU

Wheelbase

1510 mm

Battery Voltage

48V / 500 Ah

Product Description

Narrow Aisles warehouse 2.0T (2000kg) Electric High Lift Forklift Reach Truck designed for high-efficiency logistics and warehousing operations.

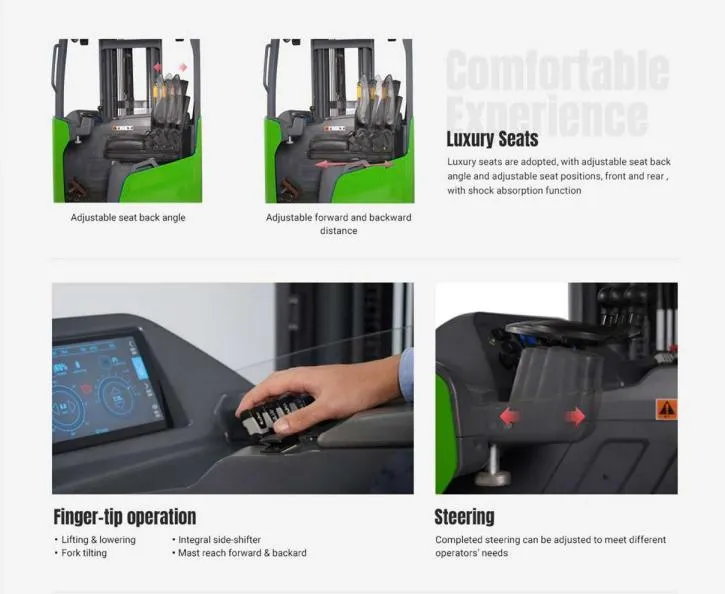

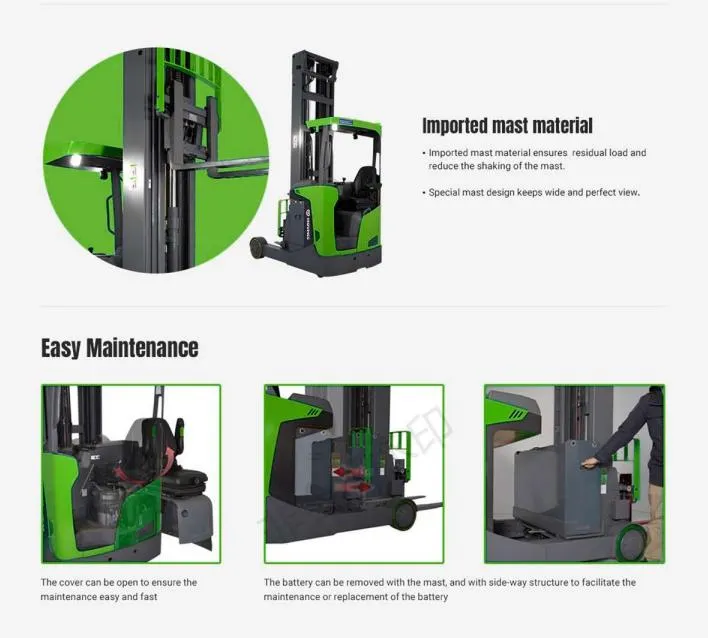

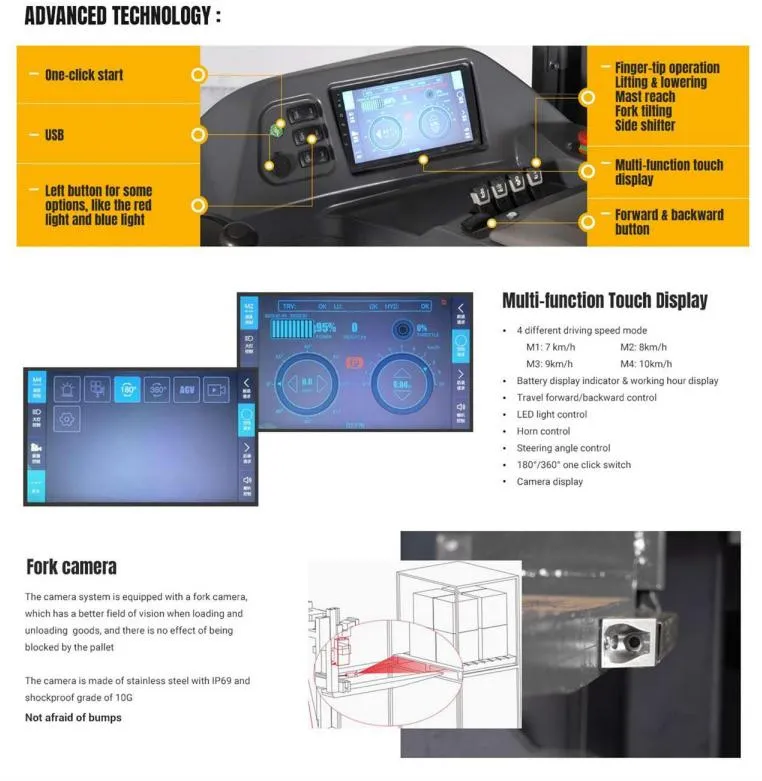

Finger-tip control 48V Full AC power INMOTION Controller Germany KORDEL Gear Box Electric power steering (EPS) Imported mast steel LED warning lights

Technical Specifications

Parameter Item	Unit	Specification (≤9.5m)	Specification (>9.5m)
Rated capacity	kg	2000	2000
Load centre distance	mm	600	600
Service weight	kg	3605	4750
Tyre size, front	mm	Φ343×140	Φ343×140
Tyre size, rear	mm	Φ340×114	Φ340×114
Max. lift height	mm	3000 - 9500	10200 - 12500
Overall length	mm	2466	2466
Turning radius	mm	1783	1783
Travel speed (laden/unladen)	km/h	10.5/11	10.5/11
Battery weight	kg	870	870

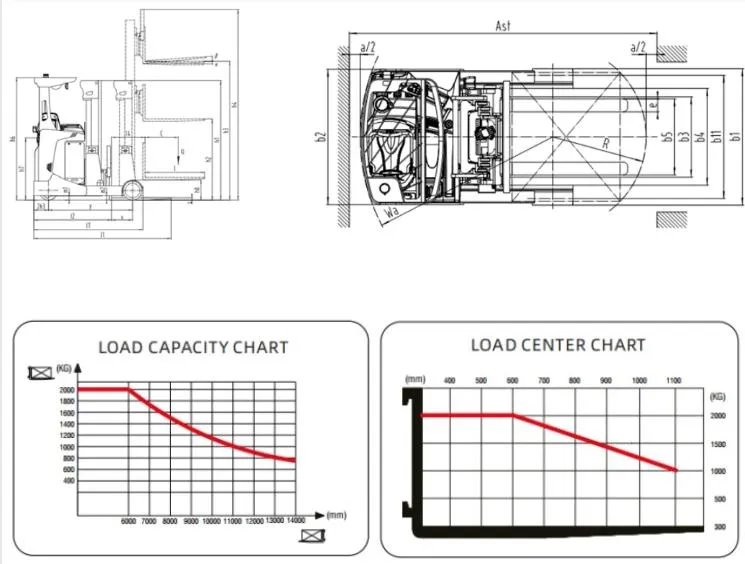

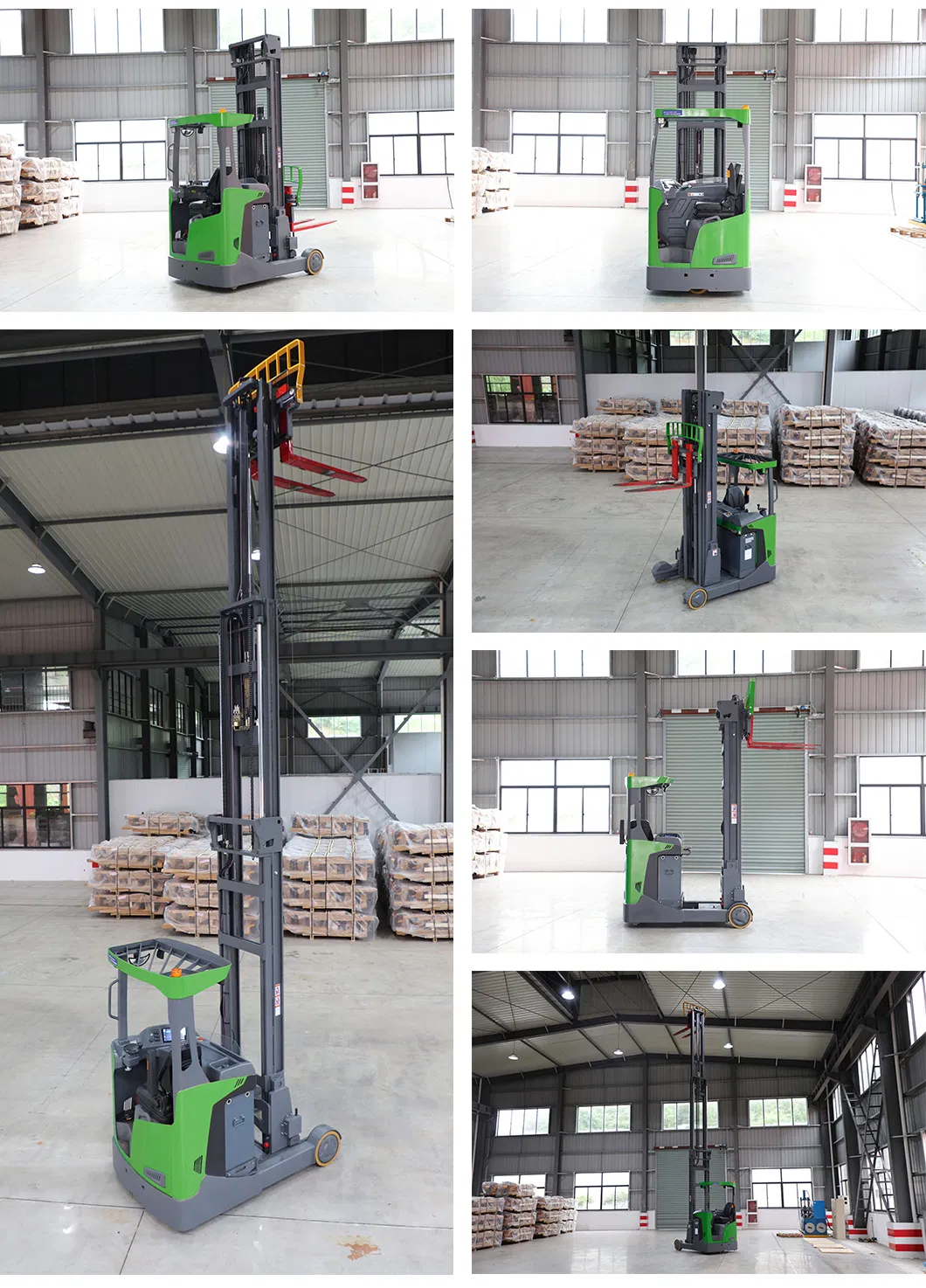

Detailed Views & Diagrams

Certifications & Quality Standards

ISO9001:2008 Quality Management System

ISO14001:2004 Environmental Management

OHSAS18001:2007 Occupational Health

TUV / GS / CE Certified

Products comply with international CE standards including ISO3691-1, EN1175-1, and EN16307-1. Approximately 90% of the material handling equipment range is TUV approved.

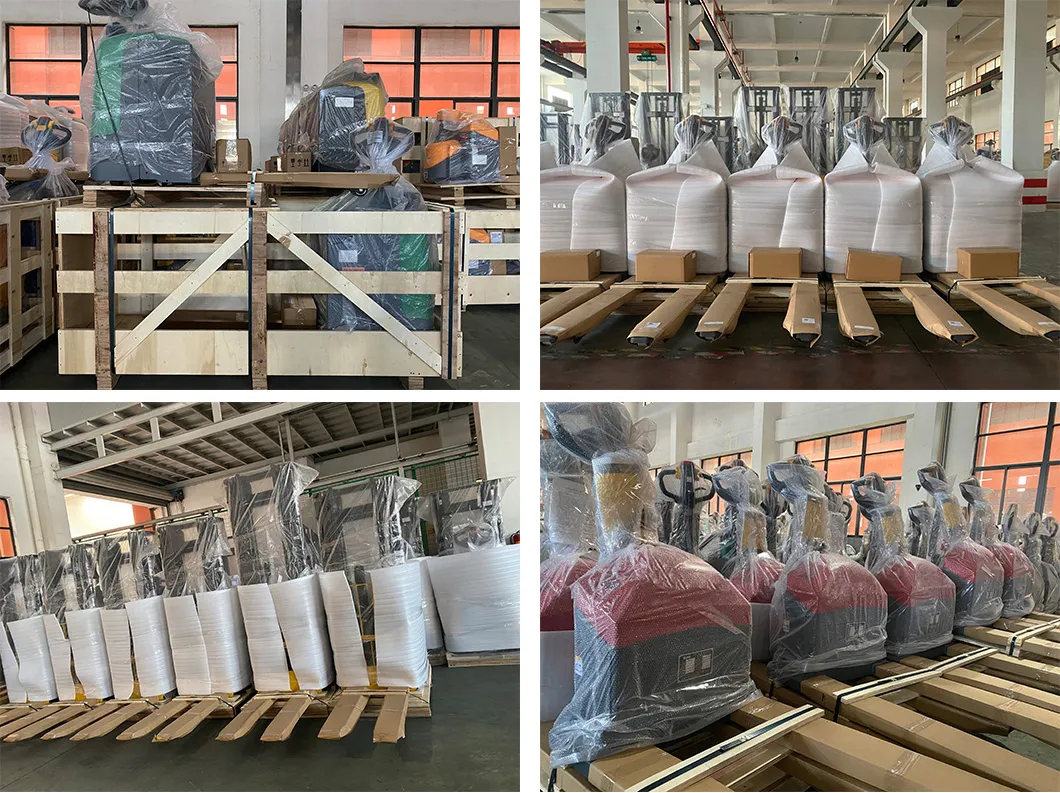

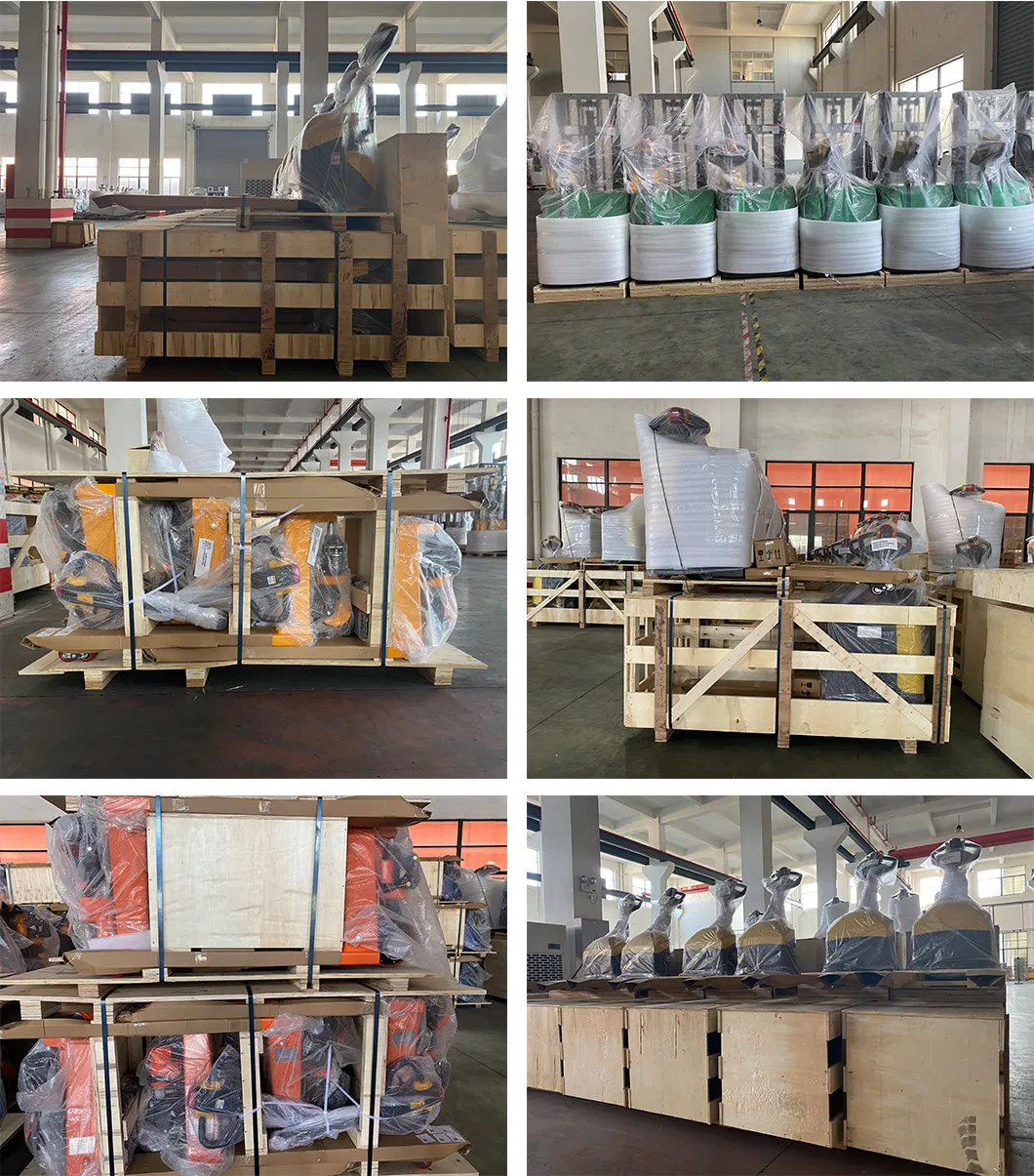

Packing & Factory Overview

36 Years Industrial Experience

150,000m² Factory Area

1,200 Dedicated Employees

188 Mechanical Technicians

500 Types of Equipment

Frequently Asked Questions

What is the continuous working time for the electric truck?

The continuous working time is approximately 3-6 hours, depending on the specific battery volume and workload.

How long does it take to fully charge the battery?

It typically takes 3 to 6 hours to reach a full charge.

What are the charger specifications for the CQD20-D?

The unit uses a charger compatible with 48V500Ah Lead-acid batteries. Power plugs can be provided in USA, UK, Australia, or European standards.

What is the warranty period for this equipment?

We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.

What international quality standards are met?

The equipment is manufactured under ISO9001, ISO14001, and OHSAS18001 systems and meets CE standards (ISO3691-1, EN1175-1).

Are customized OEM or ODM services available?

Yes, there is extensive experience in developing and producing customized warehouse logistics equipment, including reach trucks and forklifts, for global brands.
