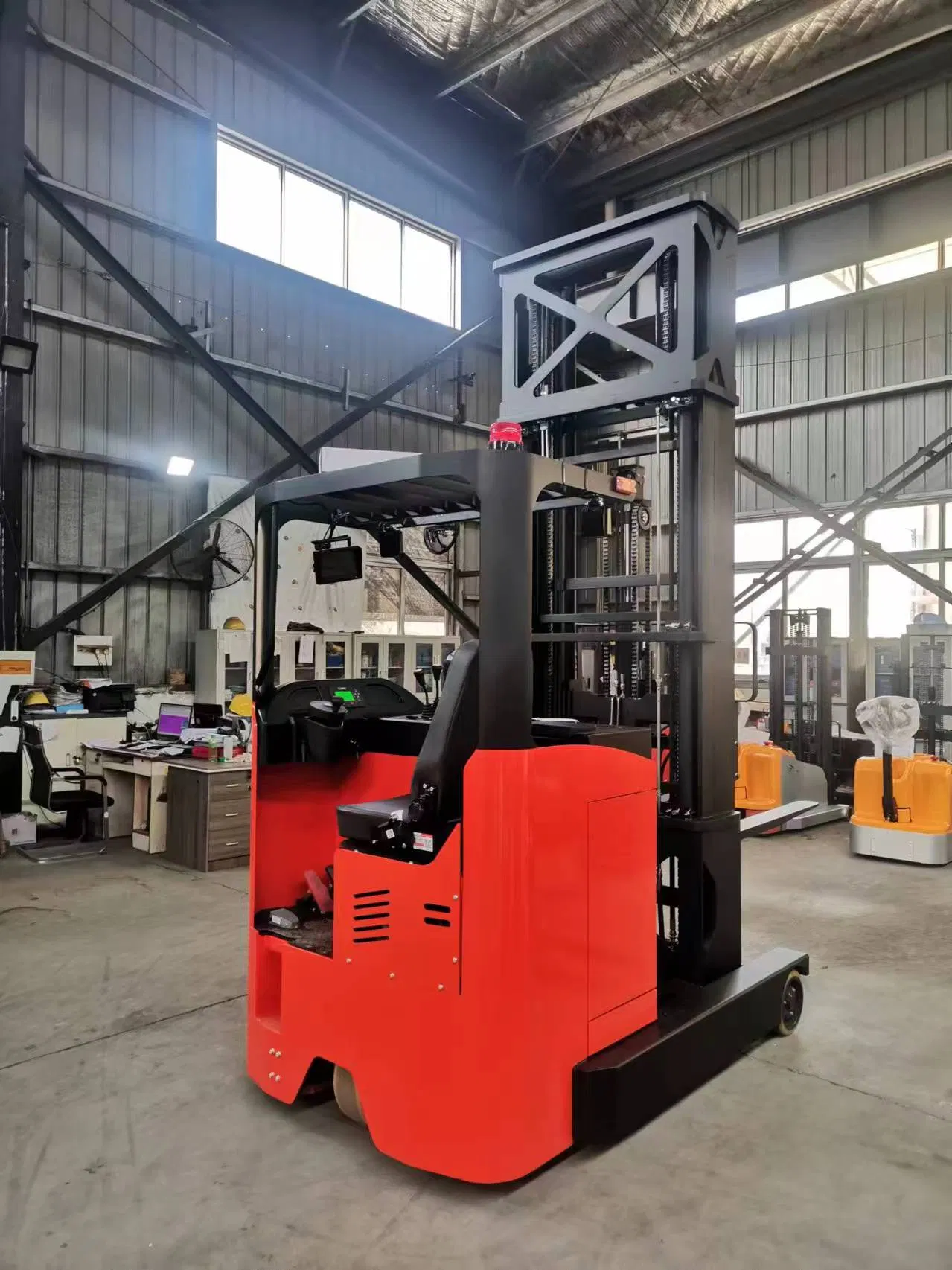

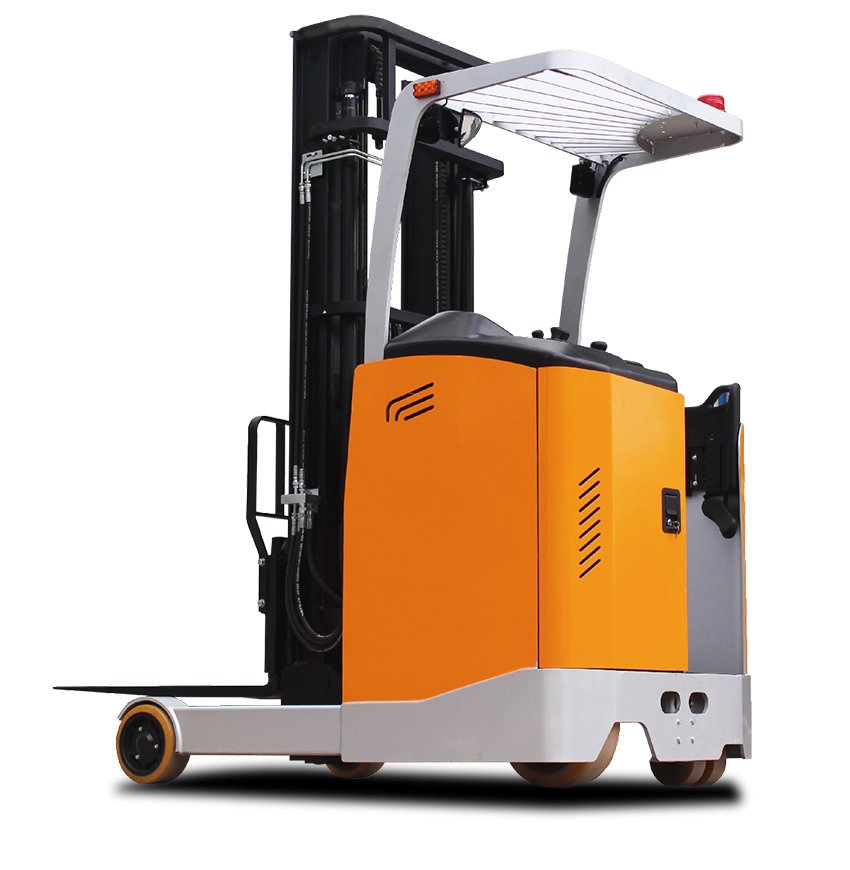

Reach Trucks for Indoor and Outdoor Use High Reach Forklifts Order Pickers

1 / 5

Reach Trucks for Indoor and Outdoor Use High Reach Forklifts Order Pickers

Customization:	Available
After-sales Service:	24h Online Service
Warranty:	One Year After Delivery

Send Inquiry

Product Description

ℹ

Basic Information

Type:

Electric Forklift

Power:

AC Motor

Load Capacity:

1T - 5T

Fuel:

Electric

Lift height:

>5000mm

Condition:

New

Battery Voltage:

48V300ah

Brake Type:

Electromagnetic

Tyre Type:

Polyurethane PU

📋

Product Description

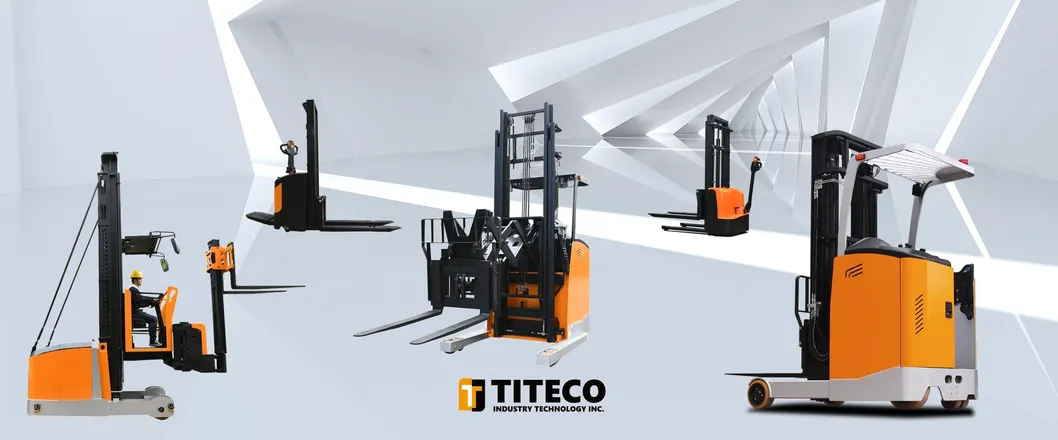

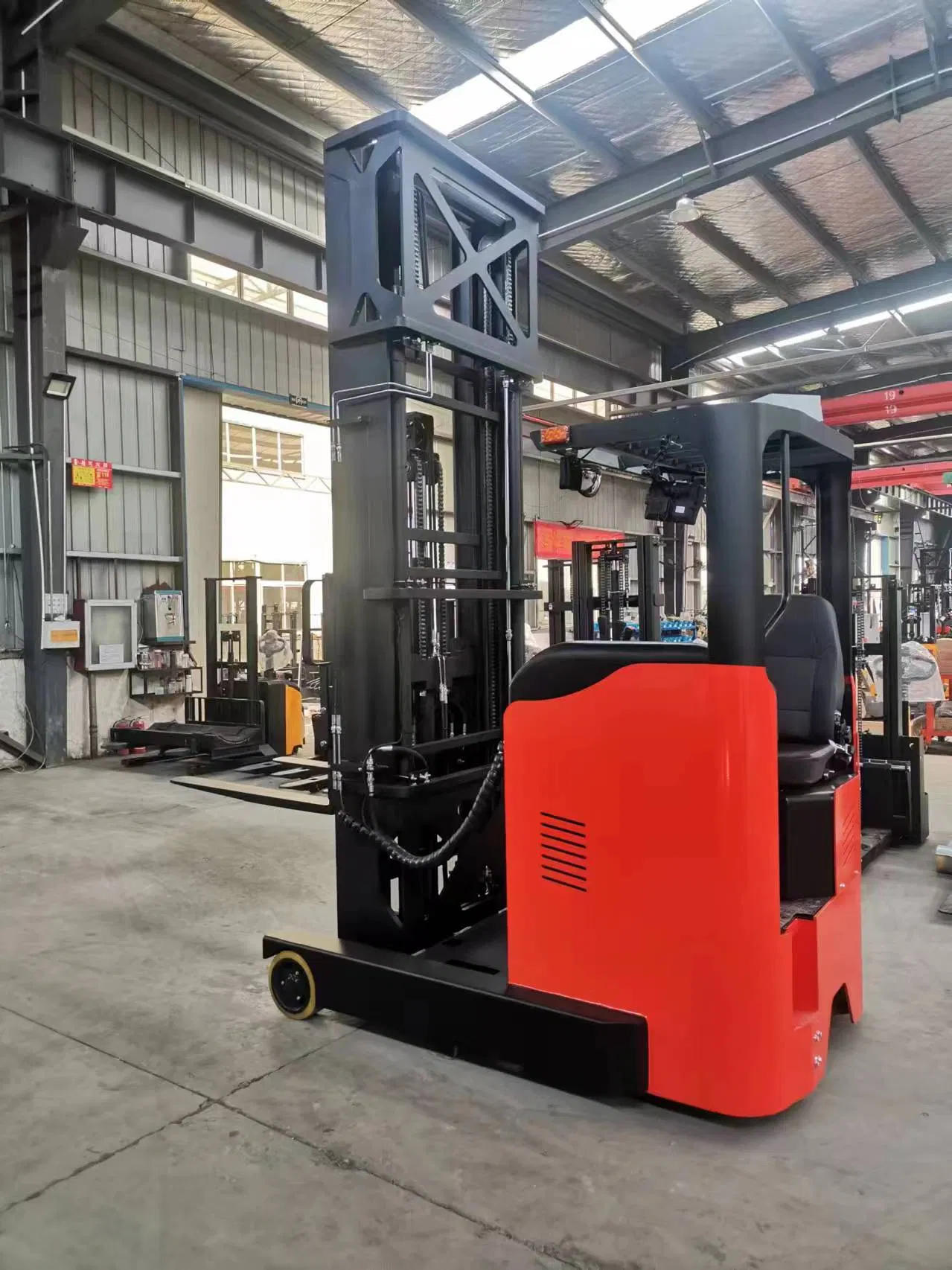

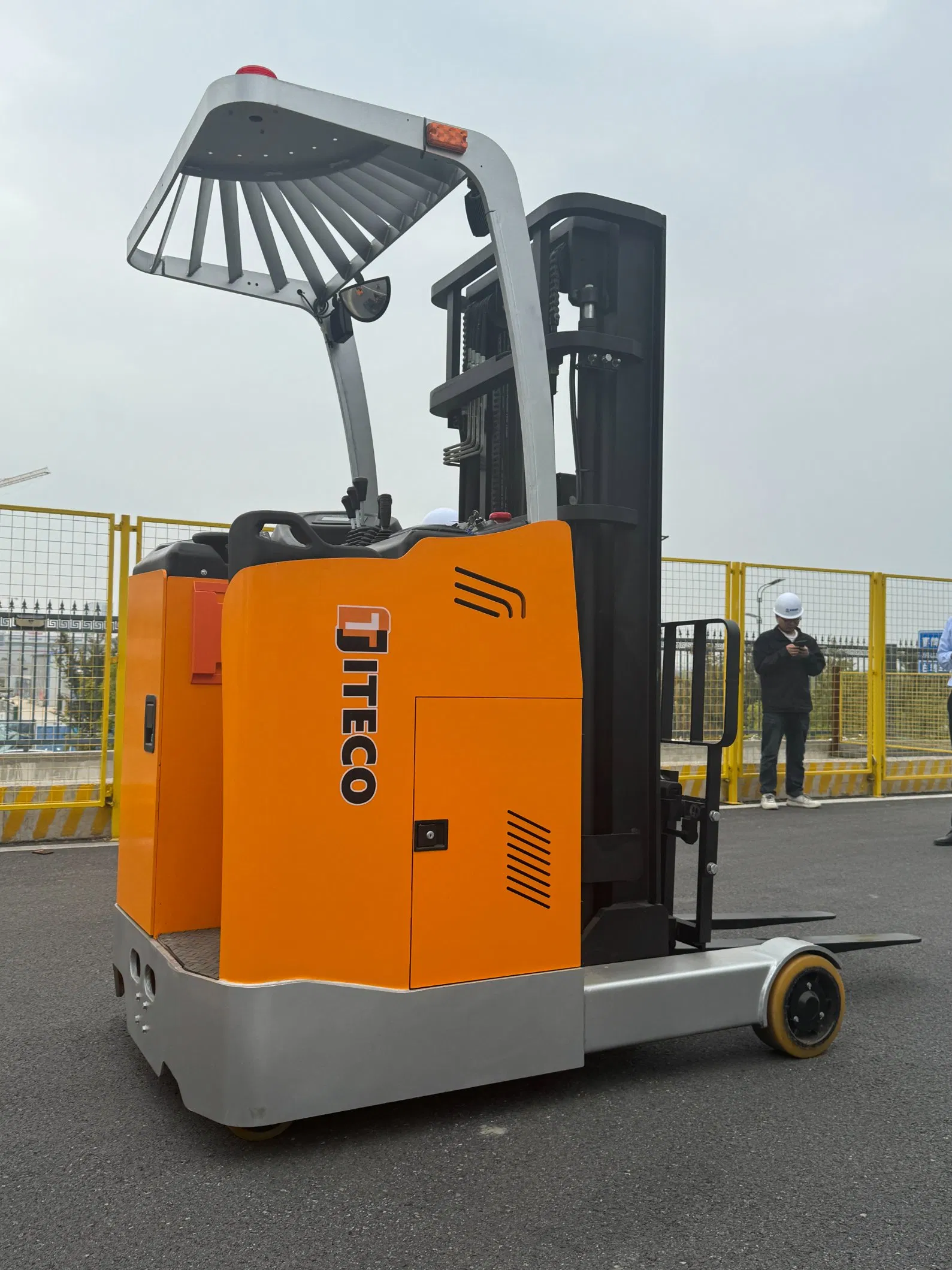

Our reach truck forklifts feature a compact structure specifically engineered for operations in narrow aisles and limited warehouse spaces. With high lifting and superior loading capacity, these vehicles are ideal tools for efficient loading, unloading, and stacking in modern warehouses, supermarkets, and industrial workshops.

🪑

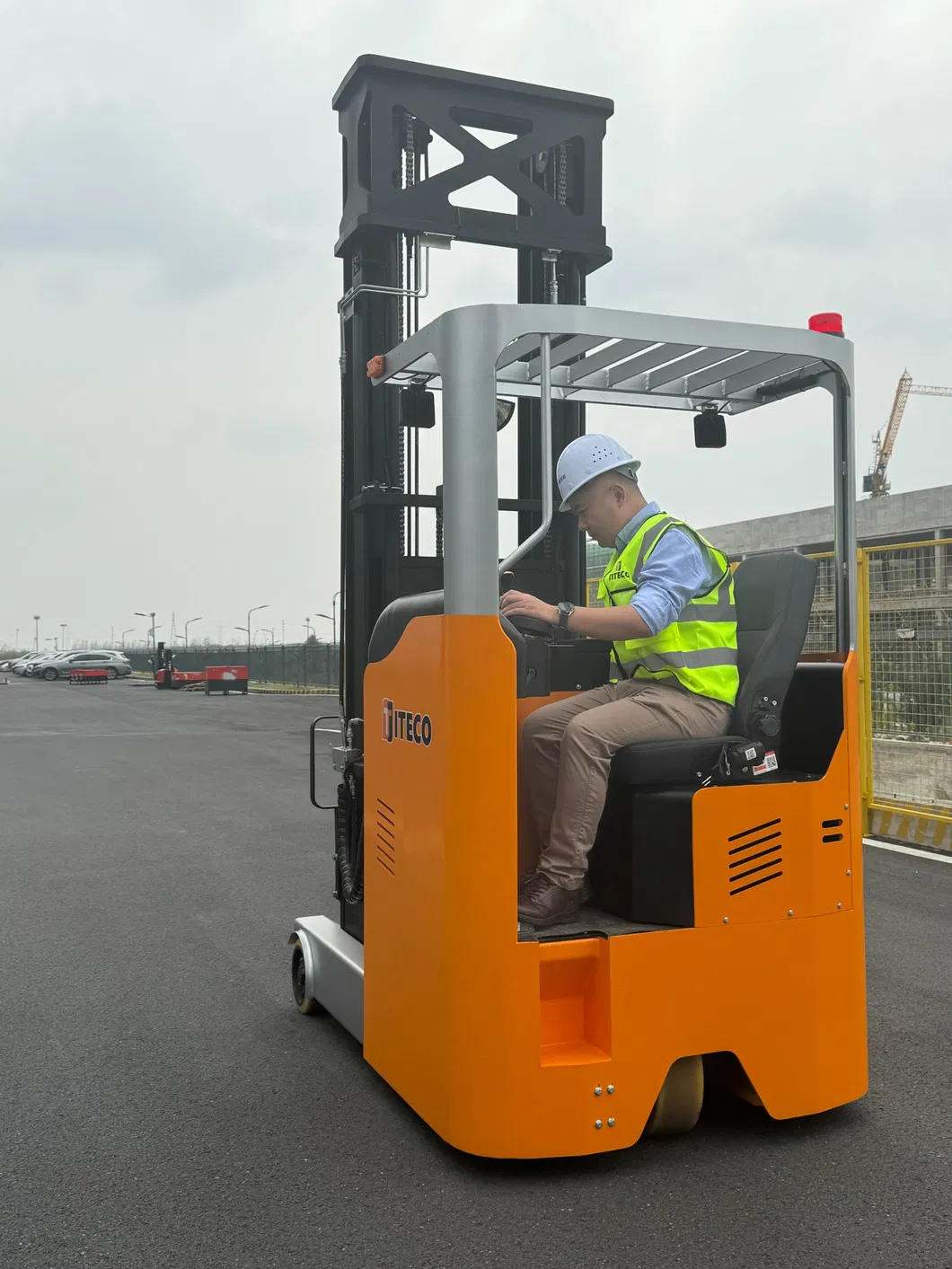

Sit Type - 48V Specification

Model	Unit	CQDE15-45S	CQDE20-45S	CQDE25-80S	CQDE30-45S
Load Capacity	kg	1500	2000	2500	3000
Load Center	mm	500	500	500	500
Wheelbase	mm	1470	1620	1620	1650
Lifting Height	mm	4500	4500	8000	4500
Overall Width	mm	1270	1270	1270	1270/1460
Travel Speed (L/U)	km/h	14/14	14/14	10/8	12/10
Lift Motor	kw	7.5AC	12AC	15AC	15AC

🧍

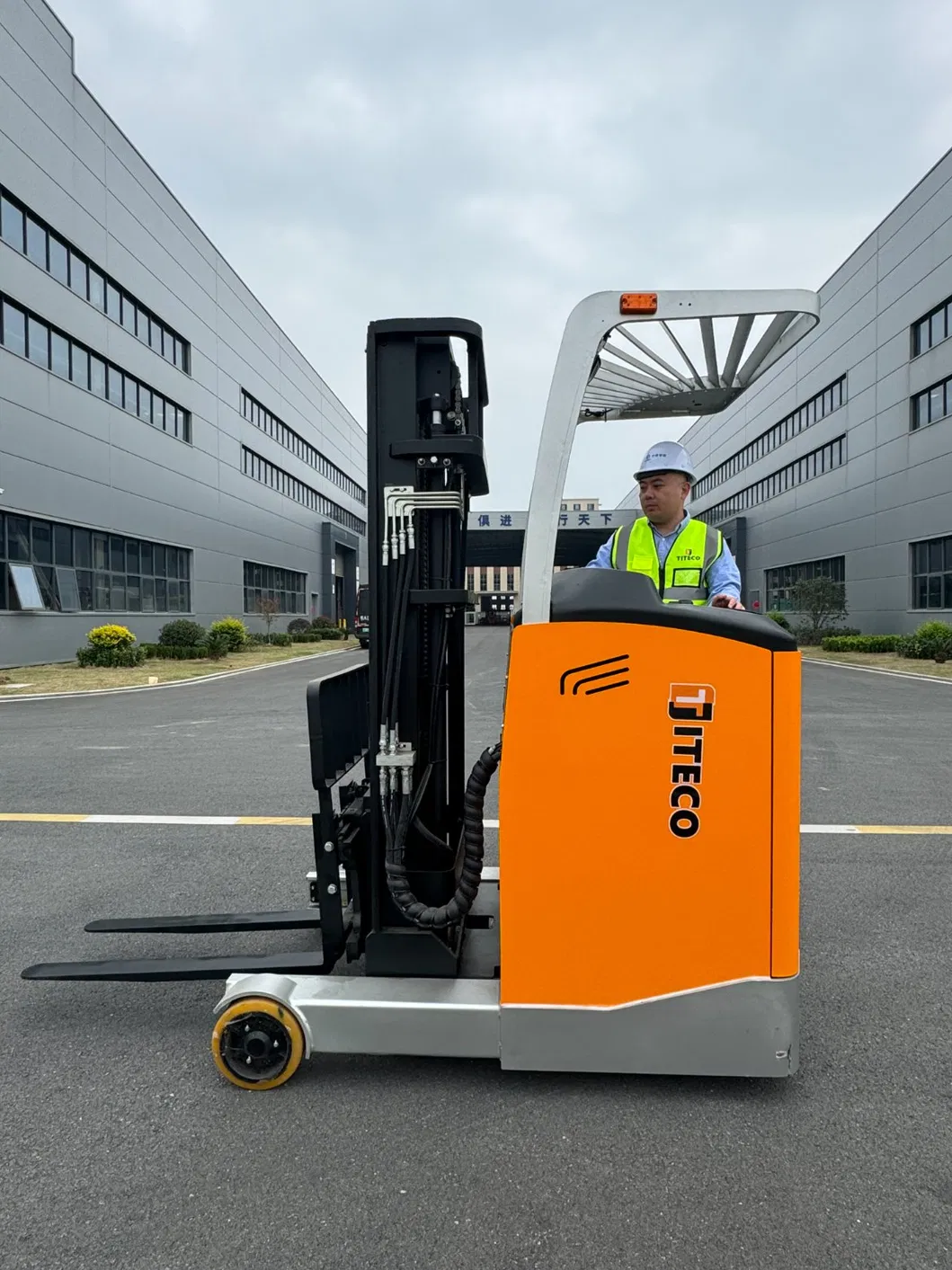

Stand Type - 48V Specification

Model	Unit	CQD15-45S	CQD20-45S	CQD25-45S	CQD30-60S
Load Capacity	kg	1500	2000	2500	3000
Lifting Height	mm	4500	4500	4500	6000
Turning Radius	mm	1680	1836	1996	2200
Service Weight	kg	2850	3025	3200	3850
Drive Motor	kw	4.5AC	6.5AC	6.5AC	8AC

⭐

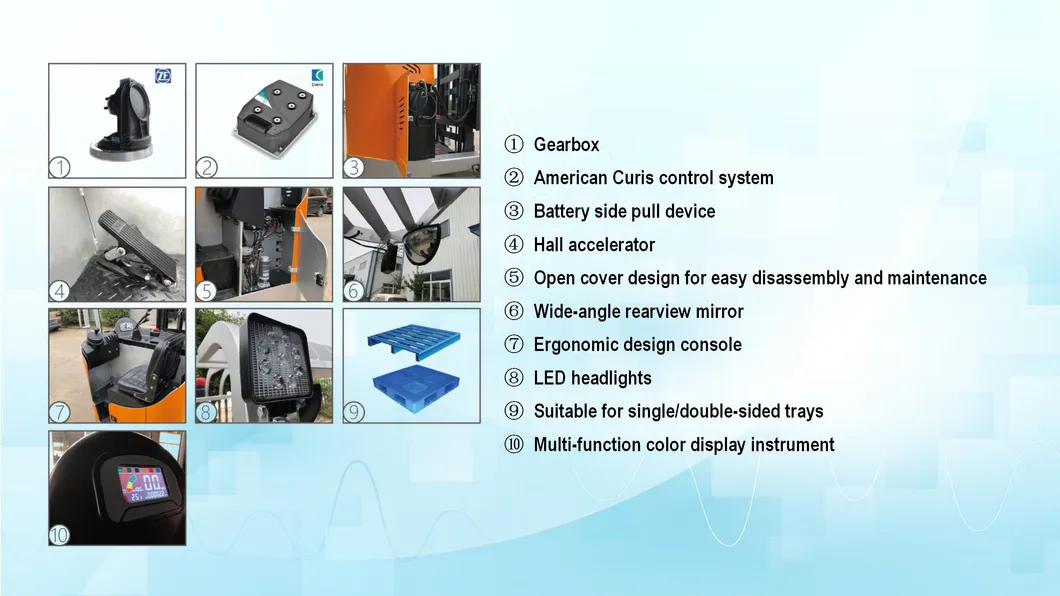

Features & Details

Compact body structure with seated type operation for maximum flexibility in large tonnage applications.
Small turning radius with moving gantry design, perfect for narrow aisle navigation.
Full AC drive system providing strong climbing ability and regenerative braking with zero carbon brush maintenance.
Intelligent high-definition display for real-time operation status monitoring and rapid fault troubleshooting.
EPS (Electric Power Steering) reduces energy consumption by ~20% while minimizing driver fatigue.
Side-pull battery design with standard roller trolley for efficient multi-shift replacements.

🏗️

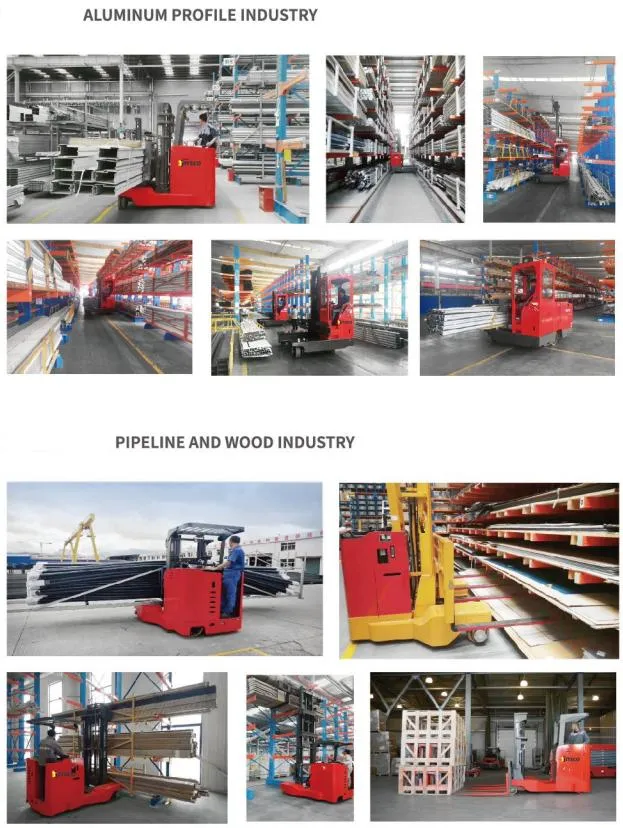

Applications & Logistics

❓

Frequently Asked Questions

Q1: What are the primary advantages of an electric reach truck?

Reach trucks are designed for high-density storage. Their ability to "reach" out to pick pallets and their compact turning radius make them perfect for narrow aisles where standard forklifts cannot operate.

Q2: Why is a full AC drive system better than DC?

AC systems are maintenance-free because they don't use carbon brushes. They offer better efficiency, regenerative braking to save power, and more consistent performance under heavy loads.

Q3: What is the maximum lift height available?

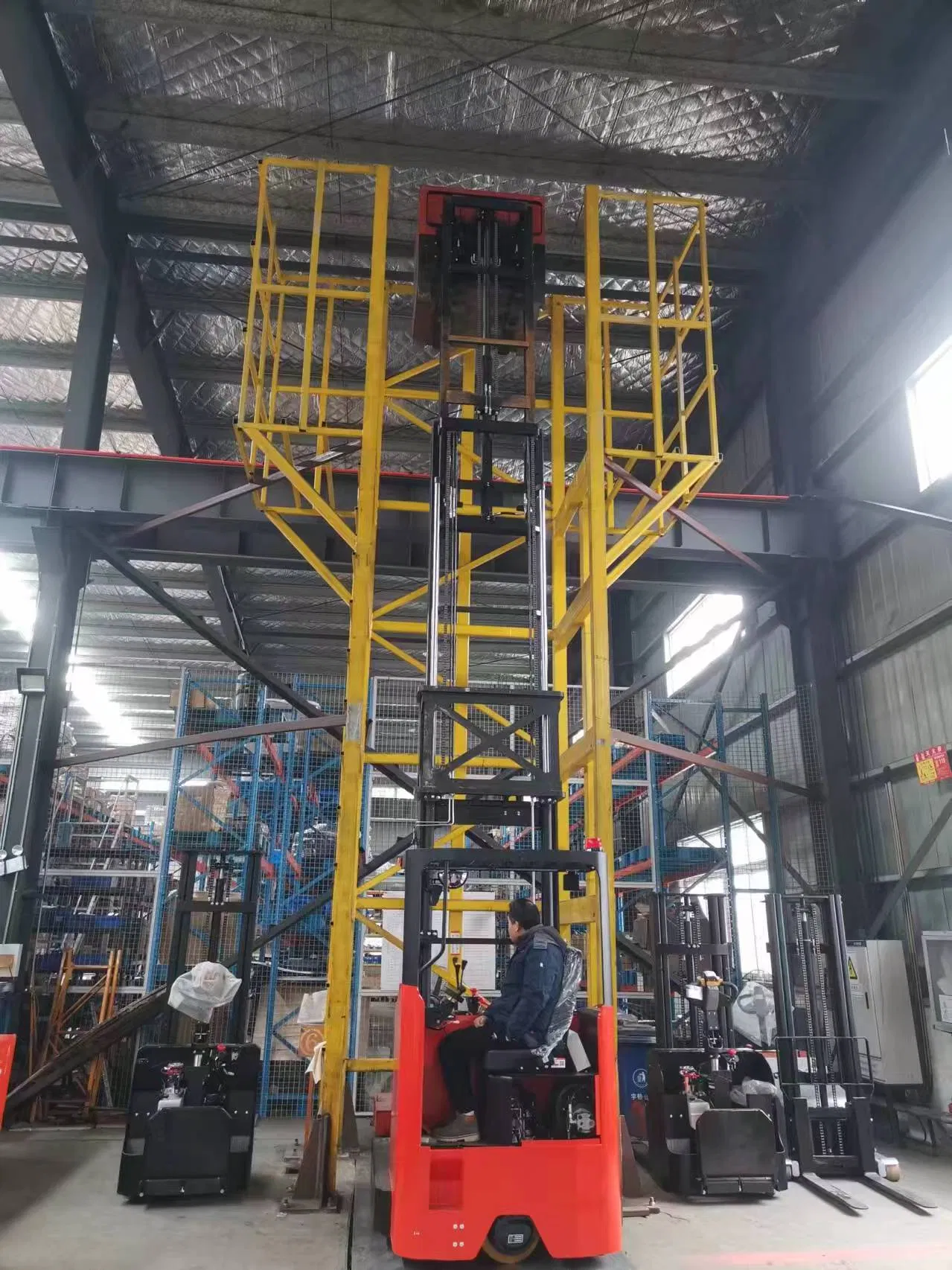

Depending on the model, our reach trucks can reach lifting heights of up to 12,000mm (12 meters), making them suitable for high-bay racking systems.

Q4: How does the EPS steering system benefit the operator?

Electric Power Steering (EPS) allows for precise, effortless control of the vehicle. It reduces physical strain on the driver and lowers energy consumption by approximately 20%.

Q5: Is the battery easy to replace for 24/7 operations?

Yes, the side-pull battery design combined with a standard battery roller trolley allows for quick and safe battery swaps, ensuring minimal downtime during multi-shift work.

Q6: What type of floors are suitable for these forklifts?

Equipped with Polyurethane (PU) wheels, these trucks are ideal for smooth indoor warehouse floors, providing excellent grip and durability while protecting the floor surface.
