📋Basic Specifications
| Model NO. | FB25R |
| Type | Electric Forklift |
| Power | AC Motor |
| Load Capacity | 1T - 5T (Rated 2500kg) |
| Fuel | Electric |
| Lift Height | >5000mm |
| Load Center | 500mm |
| Battery Voltage | 48V / 560(630)Ah |
| Service Weight | 4150kg |
| Turning Radius | 2180mm |
🏗️Product Overview

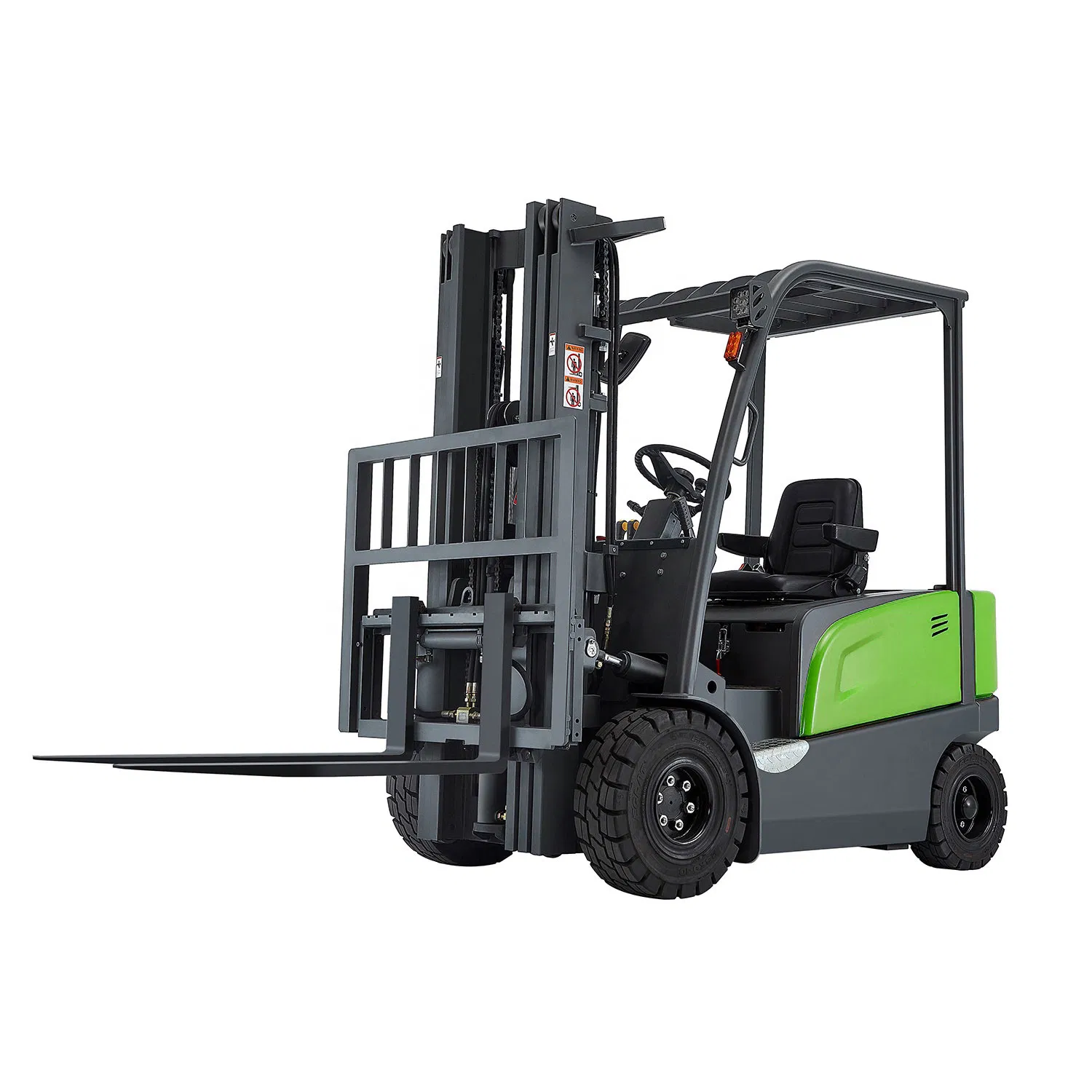

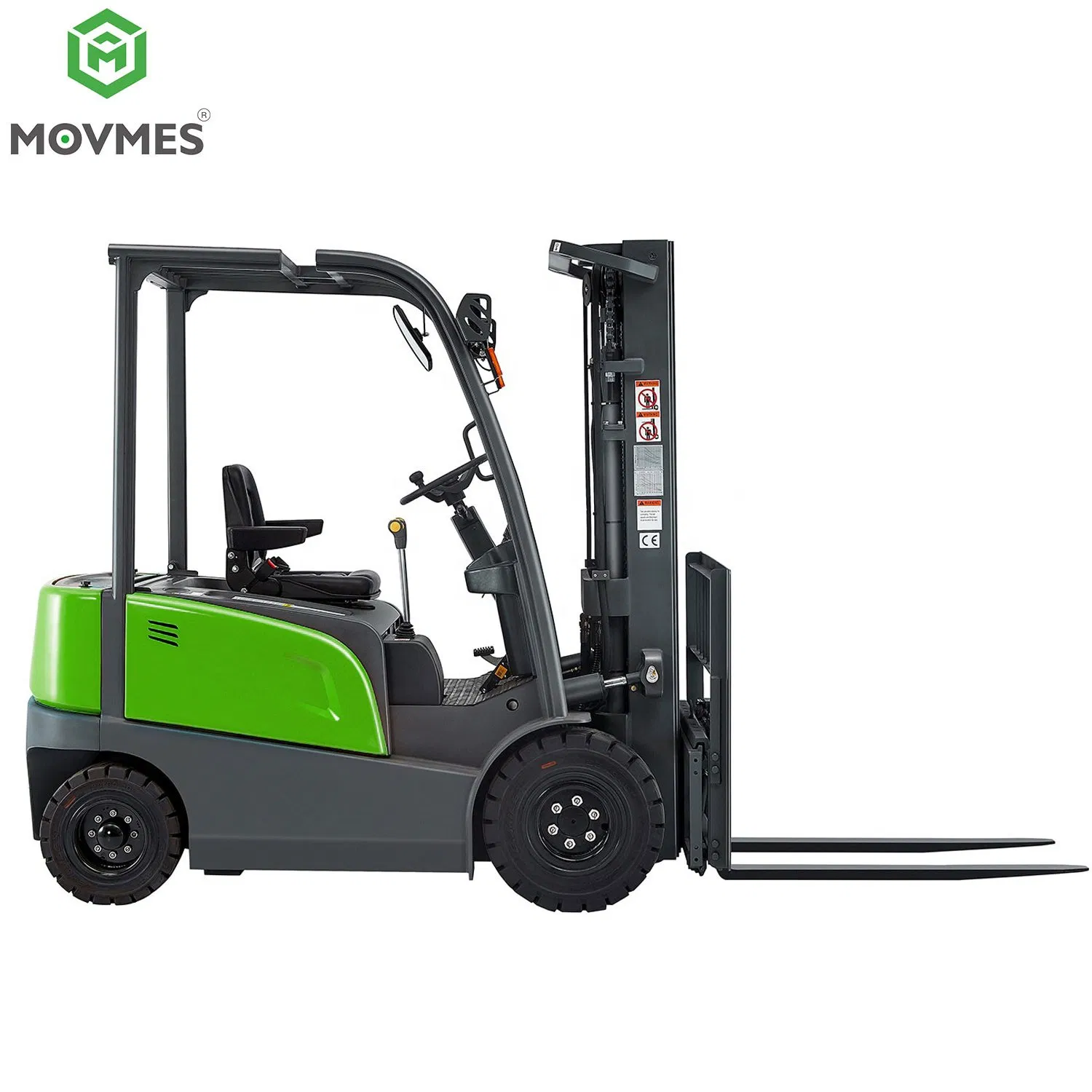

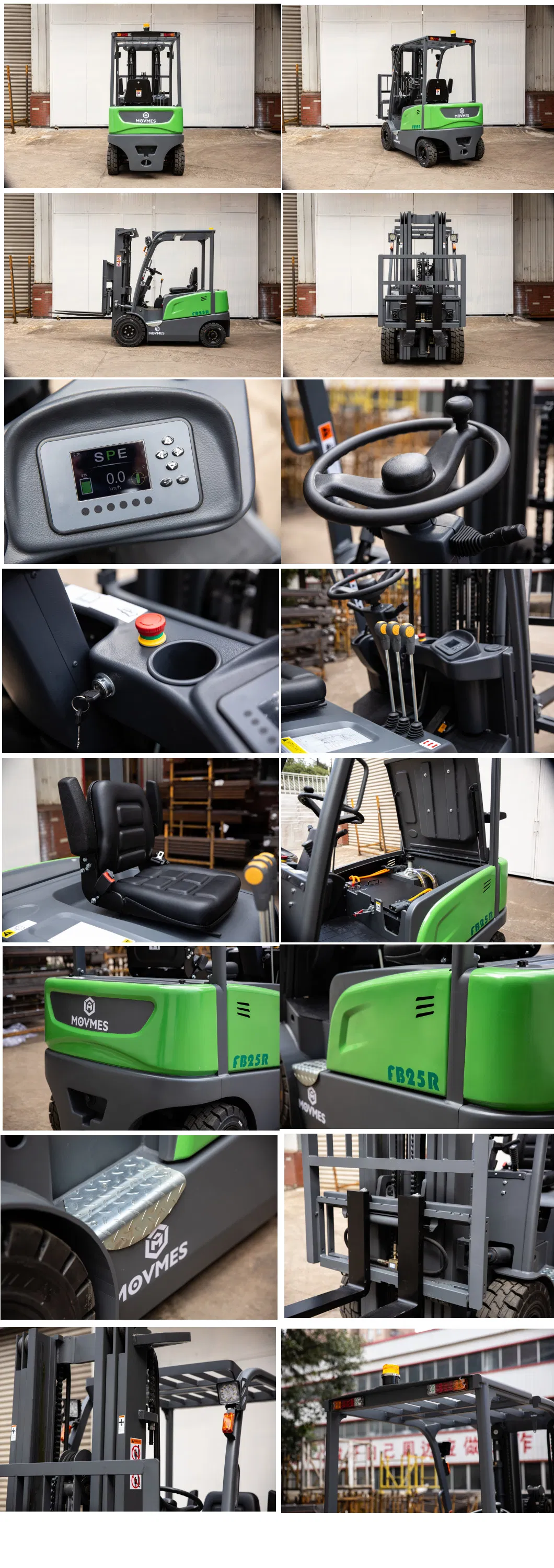

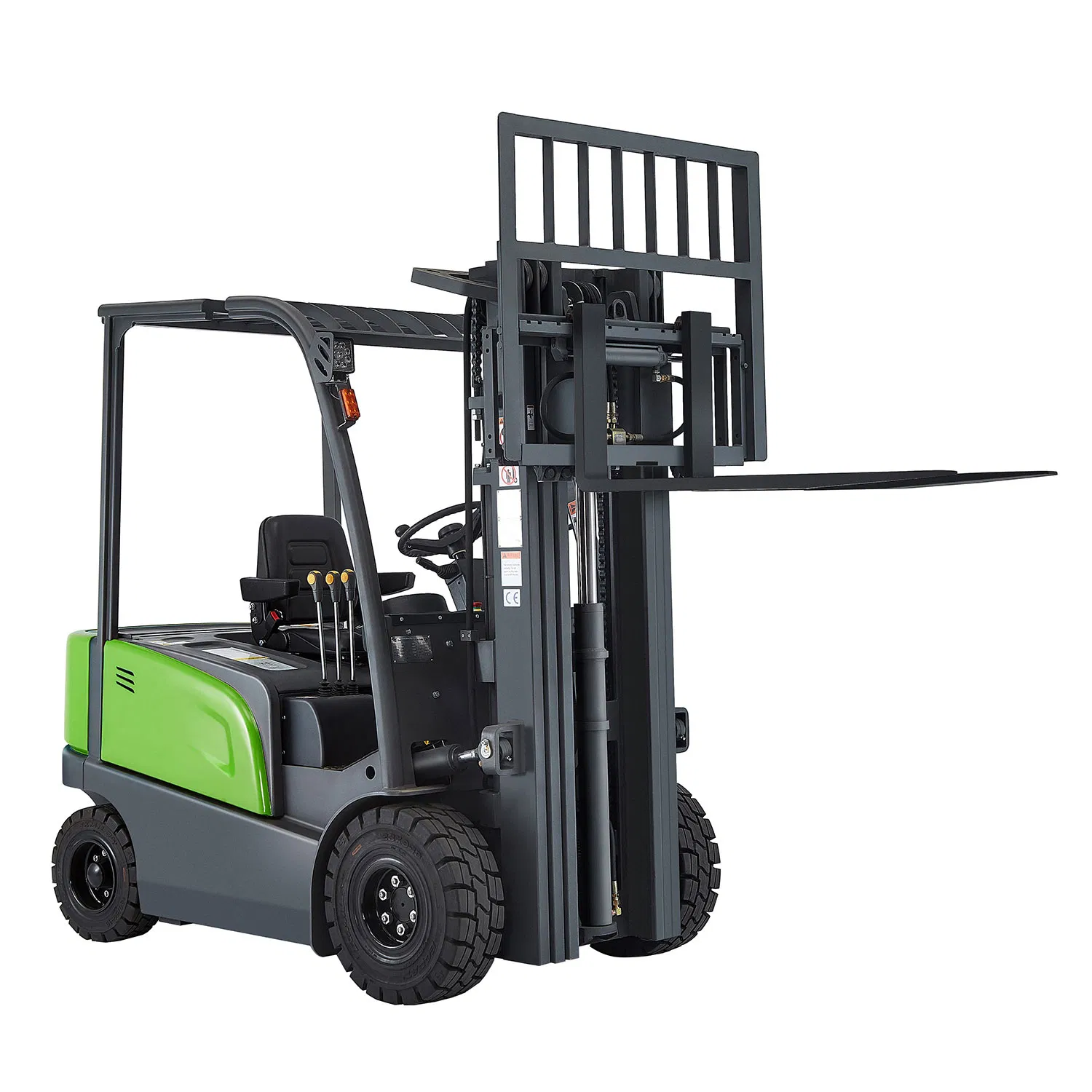

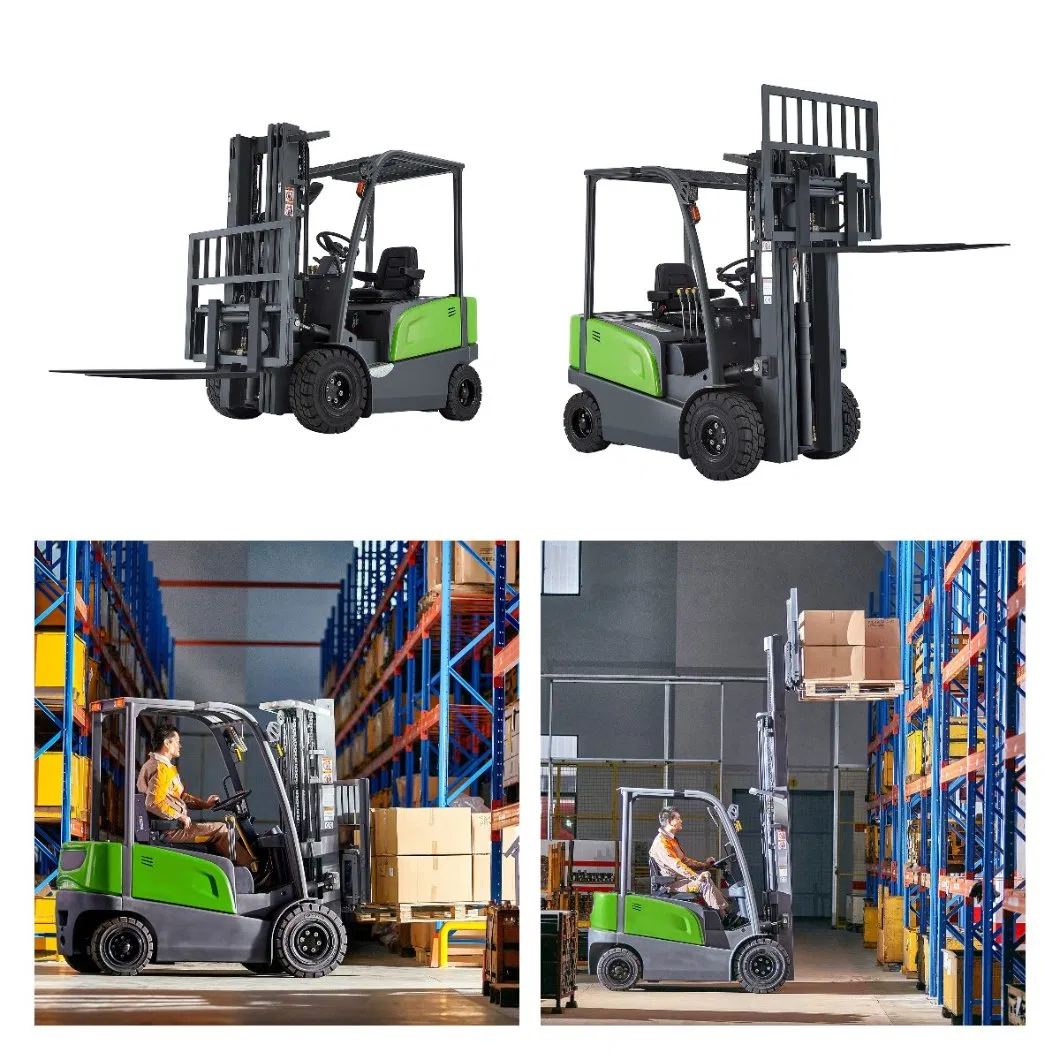

The FB25R 2500kg Electric Forklift is designed for high-efficiency warehouse operations, offering superior counterbalance stability and AC power performance.
⚙️Main Configuration
- 48V FULL AC Power System
- Advanced JIACHENG Controller
- Durable Pneumatic Tyres
- 1070mm Forged Fork
- Multiple Valve Control
- 48V 500Ah Lead-acid Battery
- 48V 65A Fast Charger
- Lifting Type Battery Design
- Full LED Lighting Package (Front, Signal, Rear, Reversing Buzzer)

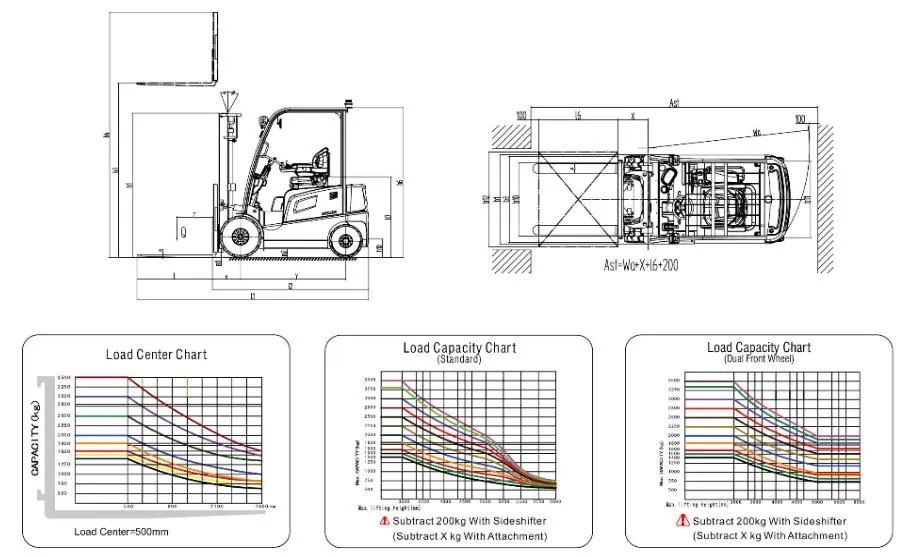

📊Technical Parameters
| Parameter Item |
Unit/Code |
Specification |
| Operation Type | - | Seated |
| Capacity / Rated Load | Q (kg) | 2000-2500 |
| Lift Height | h3 (mm) | 3000 - 6000 |
| Wheelbase | Y (mm) | 1480 |
| Tyre Size (Front) | mm | 23x9-10 |
| Tyre Size (Rear) | mm | 18x7-8 |
| Overall Length | I1 (mm) | 3310 |
| Overall Width | b1 (mm) | 1200 |
| Travel Speed (Laden/Unladen) | Km/h | 12 / 13 |
| Lifting Speed (Laden/Unladen) | mm/s | 0.26 / 0.3 |

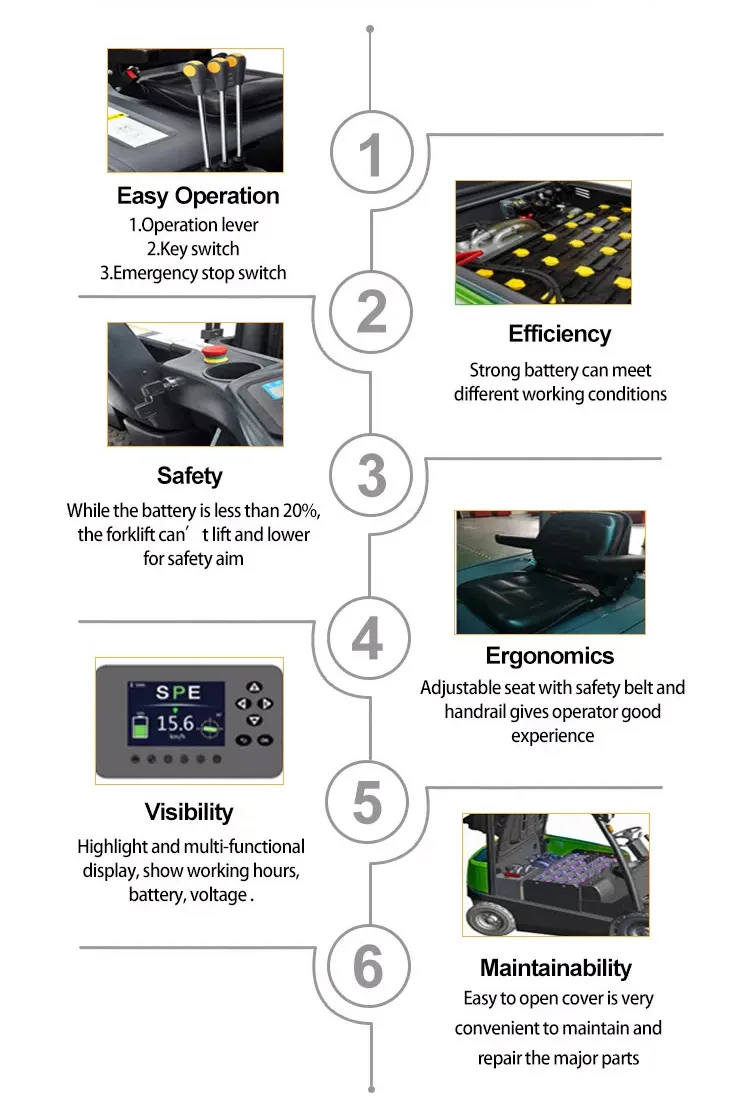

🛡️Safety and Stability
- Driving Efficiency: Popular H-type driving axle with optimized structural layout.
- High Torque: AC driving motor with heat radiating grooves for long-duration use.

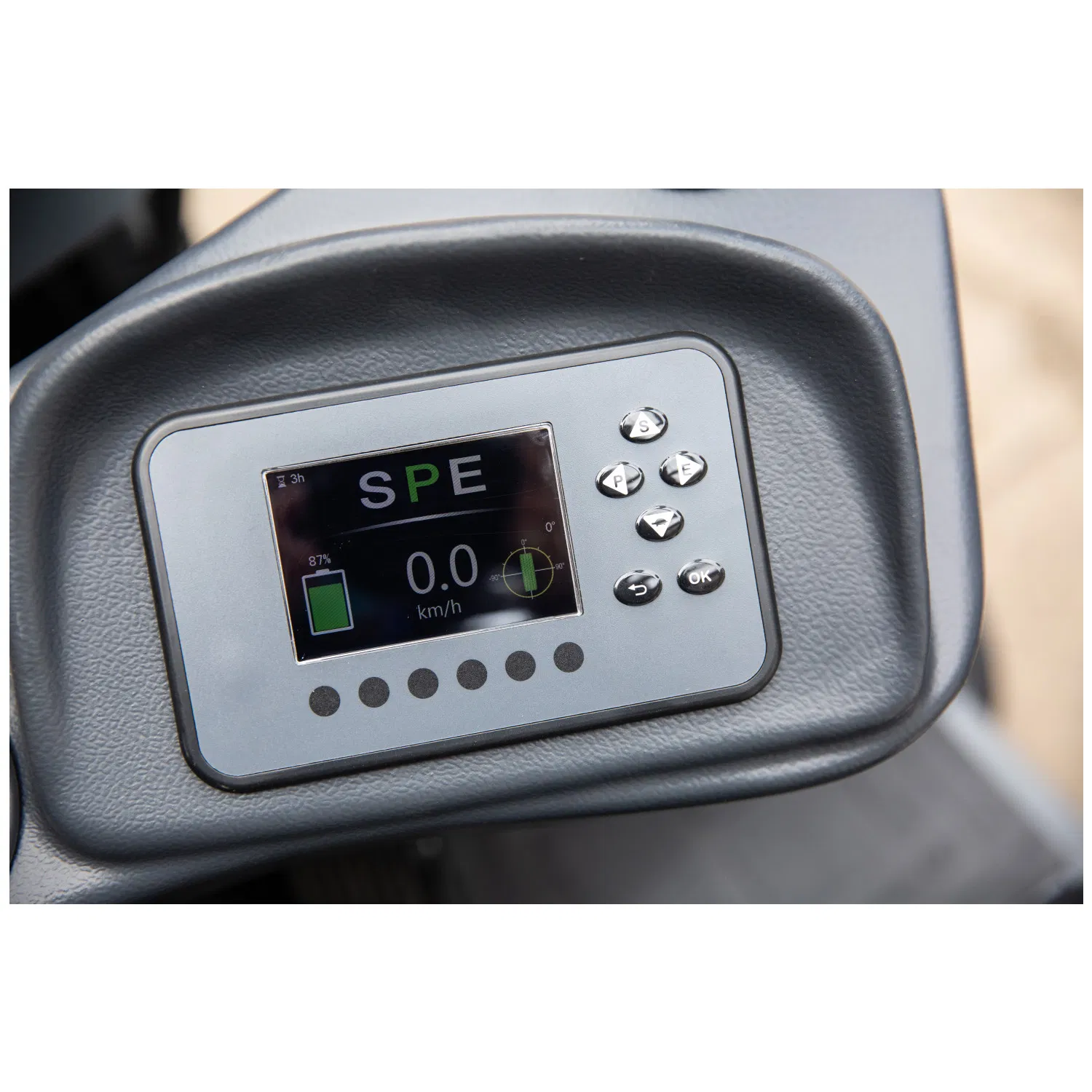

- Smart Monitoring: Multifunctional display for battery status, fault codes, and runtime.
- Low Maintenance: Brushless AC motor eliminates carbon brush replacement.
- Stability: Relocated battery provides a lower center of gravity.
- Protection: Robust metal housing and full LED safety lighting.
👤Ergonomics & Service

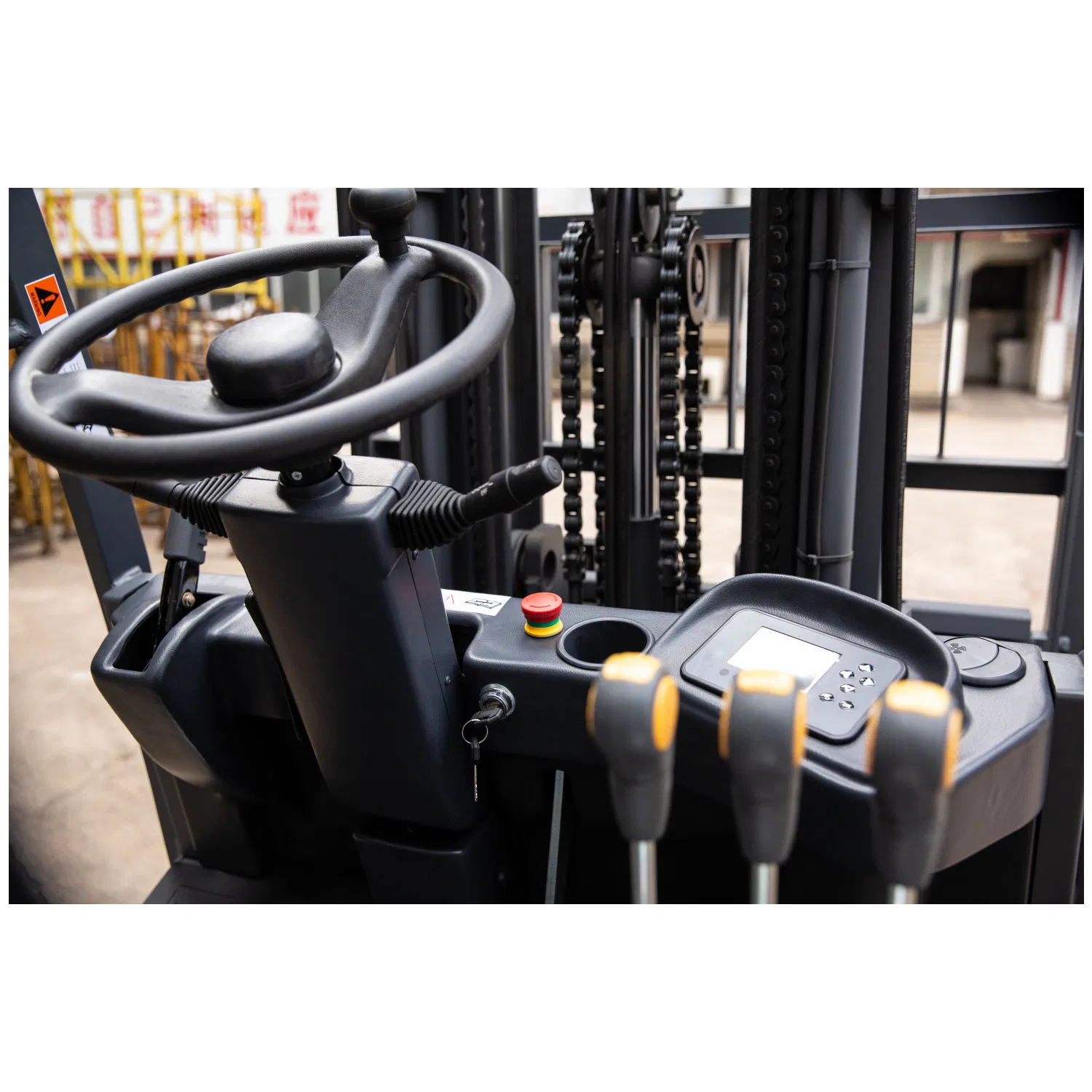

- Large, comfortable operating room with adjustable steering column.
- Clear-view mast for maximum visibility.
- Easy-access controller and steering potentiometer for maintenance.
- Over-discharge protection system with warning indicators.
- Instrument panel mounted braking oil cup for convenient checks.
📜Quality & Certifications
Our products comply with the following international standards:
- ISO9001:2008 Quality Management System
- ISO14001:2004 Environmental Management System
- OHSAS18001:2007 Occupational Health and Safety
- CE / TUV / GS certified for global compliance
🔗Related Production

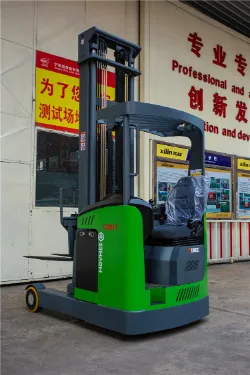

CQD15 Narrow Aisle Reach Truck
1.5 Ton, 5000-8000mm Lift
CPD15S-E 3-Wheel Electric Forklift
1.5 Ton, Compact Design
CPD20SA Series
1.6/2.0 Ton High Capacity
❓Frequently Asked Questions
Q1: What is the continuous working and charging time for these electric trucks?
The continuous working time is approximately 3-6 hours depending on the battery volume. Charging typically takes between 3 to 6 hours for a full cycle.
Q2: What are the specifications for the electric forklift chargers?
We provide chargers compatible with 48V500AH lead-acid batteries. Power plugs can be customized to USA, UK, Australian, or European standards.
Q3: Do you offer customized, OEM, or ODM products?
Yes, we have been professional developers and producers of warehouse equipment since 1985. We provide extensive OEM services for major global logistics brands.
Q4: How long is the warranty period?
We provide a one-year warranty. During this period, we provide replacement for wearing parts free of charge if they are damaged by non-human factors.
Q5: Are the forklifts certified for international markets?
Yes, up to 90% of our products are CE approved by TUV. We comply with standards including ISO3691-1, EN1175-1, and EN16307-1.
Q6: What safety features are included for high-intensity use?
The equipment features a dual-controller design (driving and steering/lifting), an over-discharge protection system, and a low gravity center for maximum steering stability.
