Customization:	Available
Cab Location:	Not Adjustable
Type:	Order Picker

Send Inquiry

Product Description

Basic Info

Model NO.

JX1

Power

DC Motor

Load Capacity

500kg

Fuel

Electric

Load center

500mm

Lift height

3220mm-4880mm

Condition

New

Self Weight

1160kg

Battery Voltage

224ah/24V

Turning Radius

1260mm

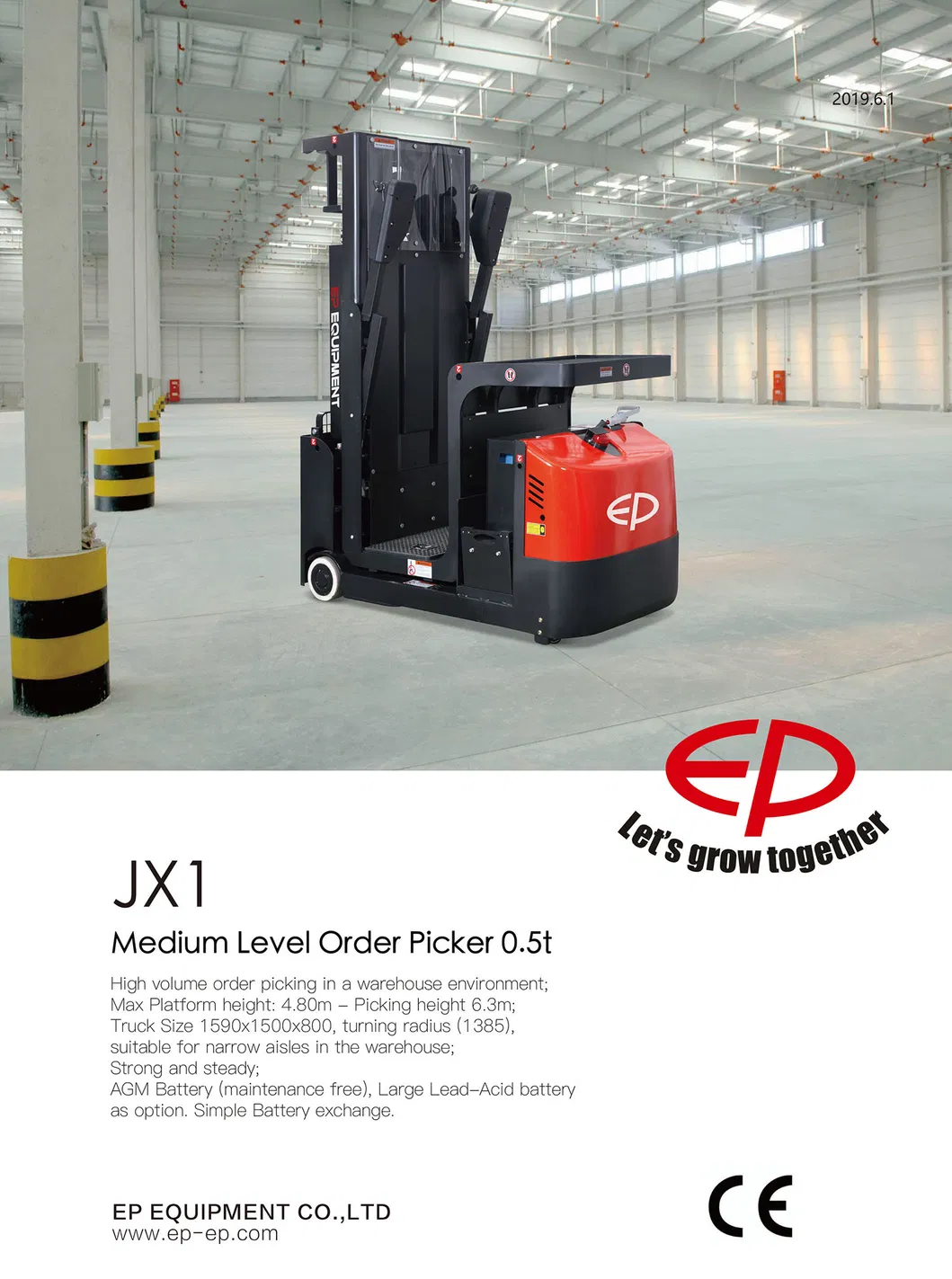

Medium Level High Lifting Order Picker

Technical Specifications

Distinguishing mark
1.2	Model designation			JX1(3200)	JX1(3600)	JX1(4100)	JX1(4880)
1.3	Drive unit			Electrics	Electrics	Electrics	Electrics
1.5	Rated capacity on front platform	Q 1	Kg	227	227	227	227
1.9	Wheelbase	y	mm	1150	1150	1150	1256
Weight
2.1	Service weight (include battery)		kg	1160	1230	1340	1530
Dimensions
4.4	Lift height	h3	mm	2950	3350	3850	4630
4.14	Stand height, elevated	h12	mm	3200	3600	4100	4880
4.21	Overall width	b1/b2	mm	800	800	800	860
Performance Data
5.1	Travel speed, laden/unladen		km/h	5.5	5.5	5.5	5.5
5.2	Lifting speed, laden/unladen		m/s	0.17/0.21	0.17/0.21	0.17/0.21	0.17/0.21
Electric-engine
6.4	Battery voltage/nominal capacity		V/Ah	24V/224AH	24V/224AH	24V/224AH	24V/280AH

Product Gallery & Details

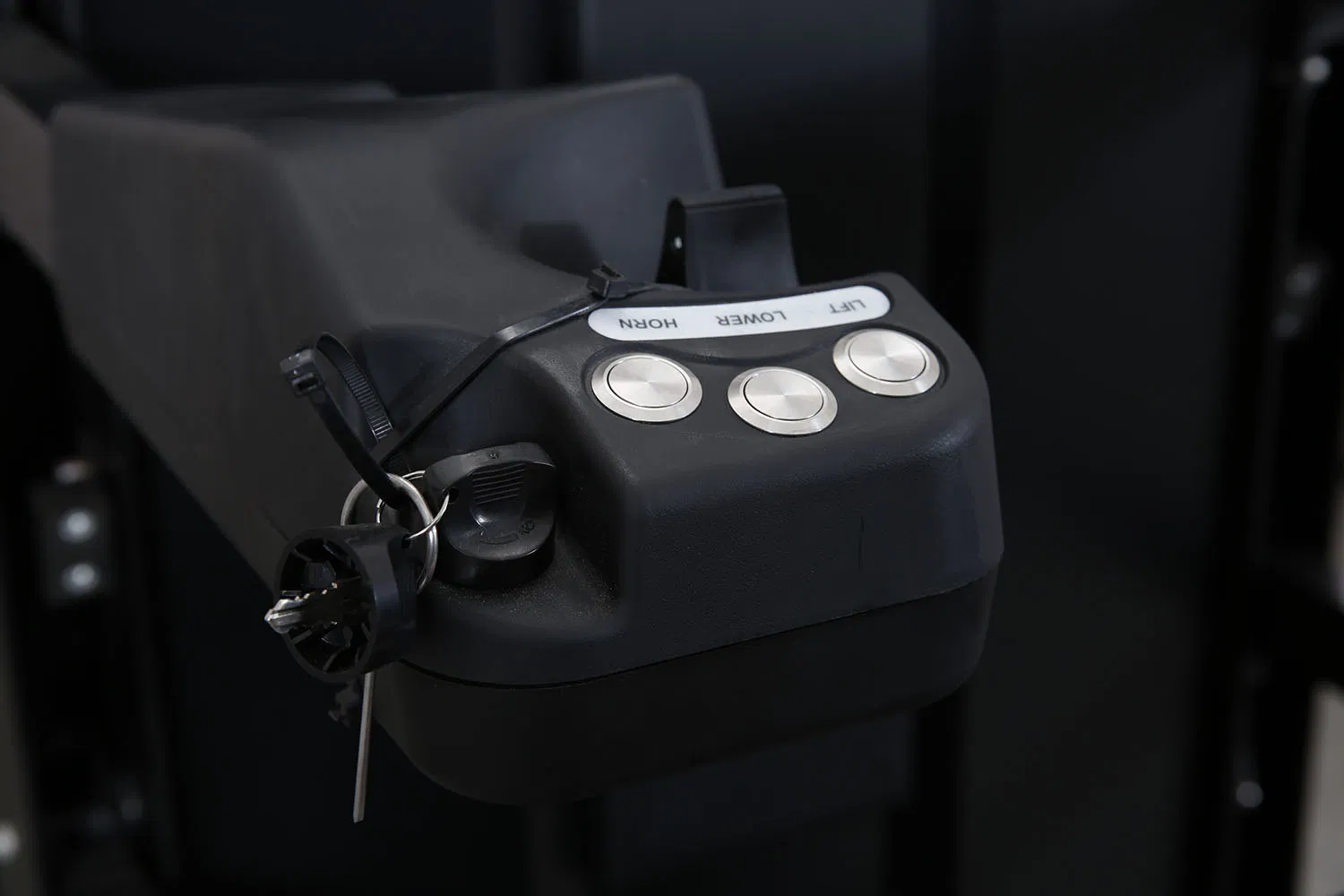

Order Picking Truck Details

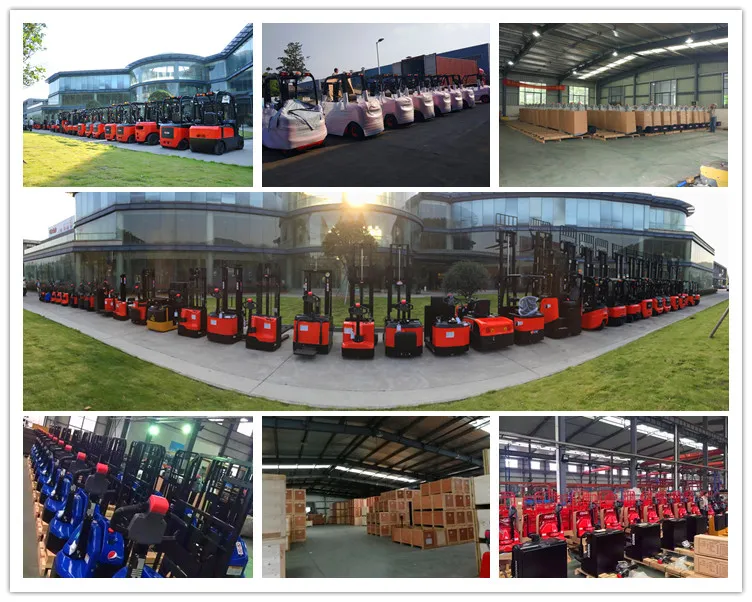

Packaging and Shipping

Online Support Systems

Online claim system for rapid response
Online technique system for maintenance support
Online forklift tracking system
Online spare parts order system

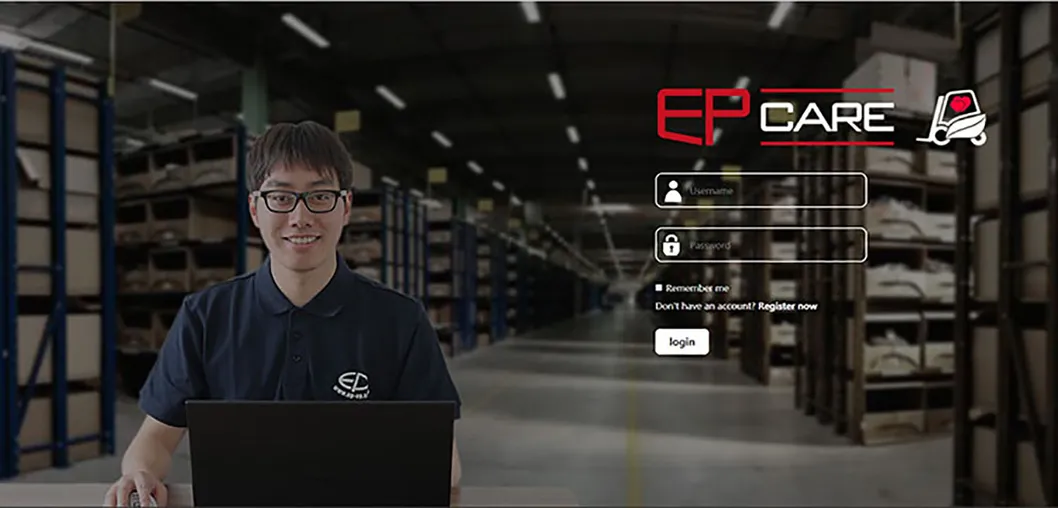

Service System Overview

Global Support Network

Frequently Asked Questions

What is the maximum load capacity of the JX1 order picker?

The JX1 model has a total rated load capacity of 500kg, with the front platform specifically rated for 227kg.

What are the available lift heights for this model?

The lift heights range depending on the configuration, from 3220mm up to a maximum standing height of 4880mm.

What type of battery system does the JX1 use?

It is equipped with a 24V/224AH battery, though the high-reach JX1(4880) model utilizes a 24V/280AH battery.

What is the turning radius of the vehicle?

The JX1 features an impressive turning radius of 1260mm to 1450mm, making it highly maneuverable in tight warehouse spaces.

What is the travel speed of the order picker?

The vehicle can reach a travel speed of up to 5.5 km/h when unladen, with speed automatically adjusted based on the elevation height for safety.

Does the JX1 use an AC or DC drive unit?

The JX1 utilizes a high-efficiency AC drive unit for reliable performance and electronic steering for precise control.
