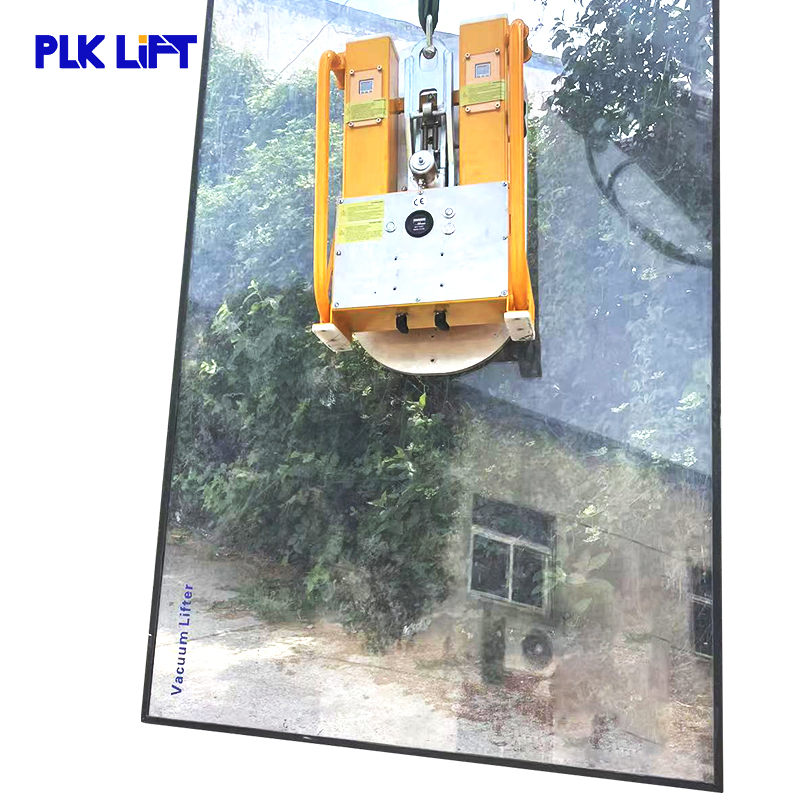

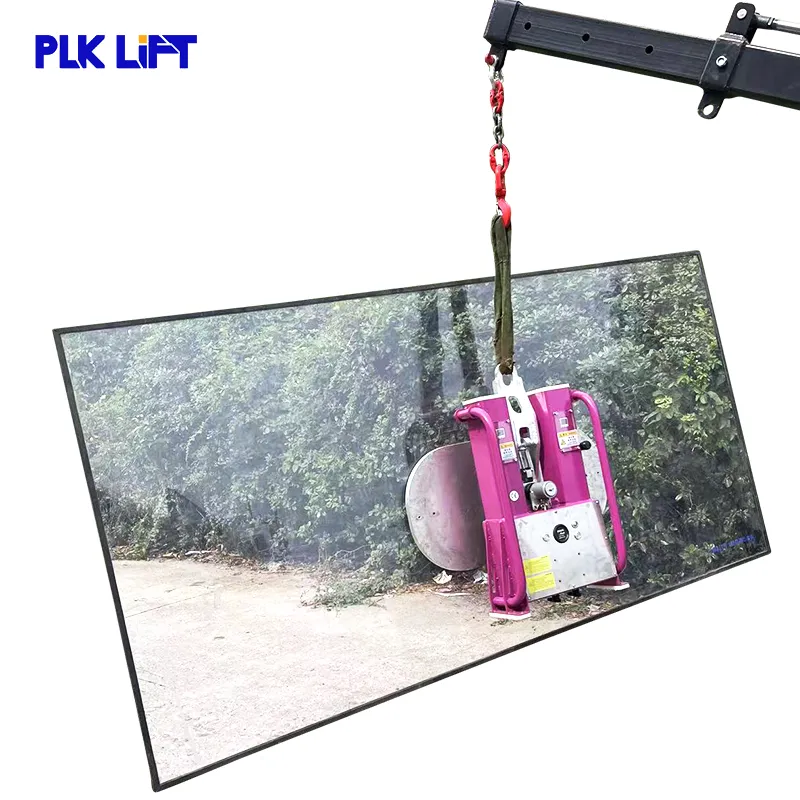

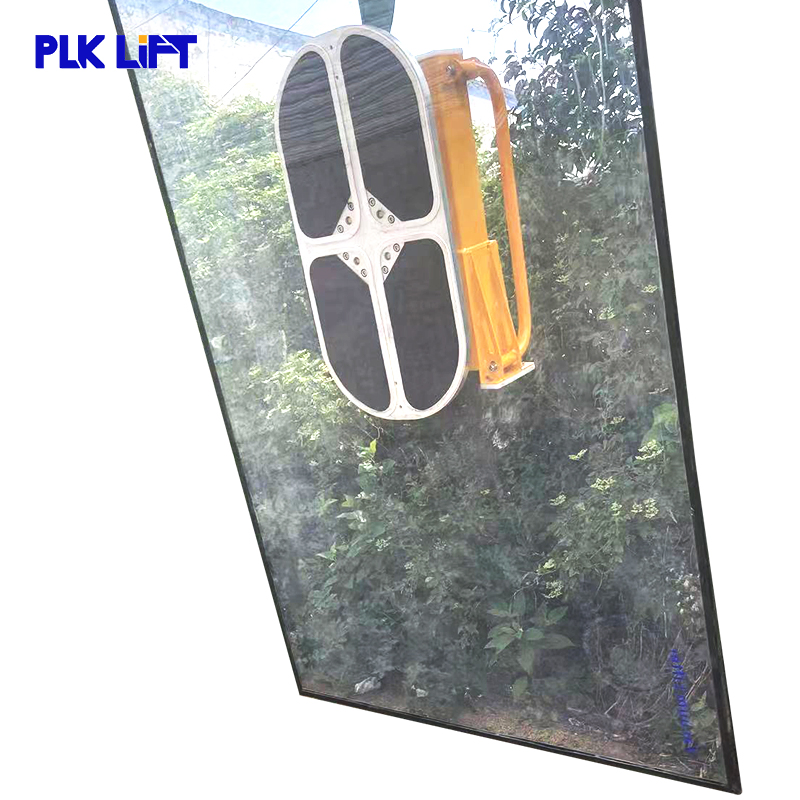

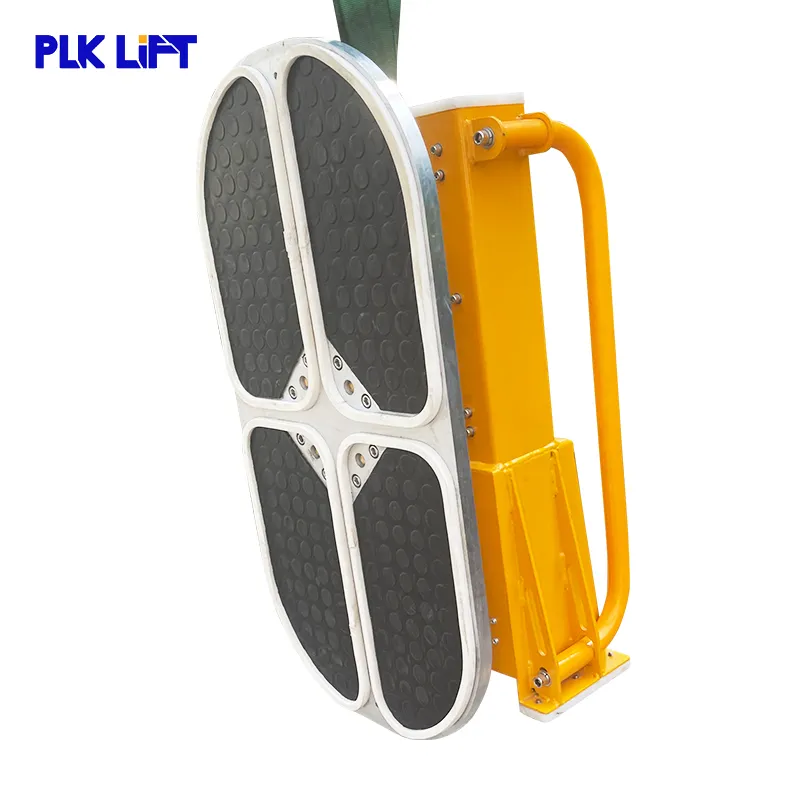

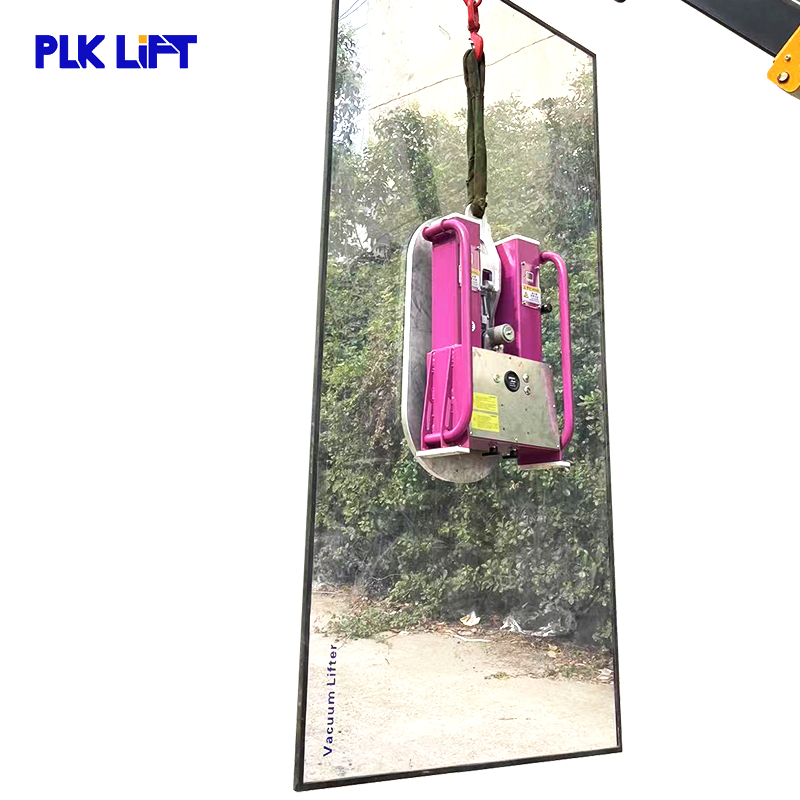

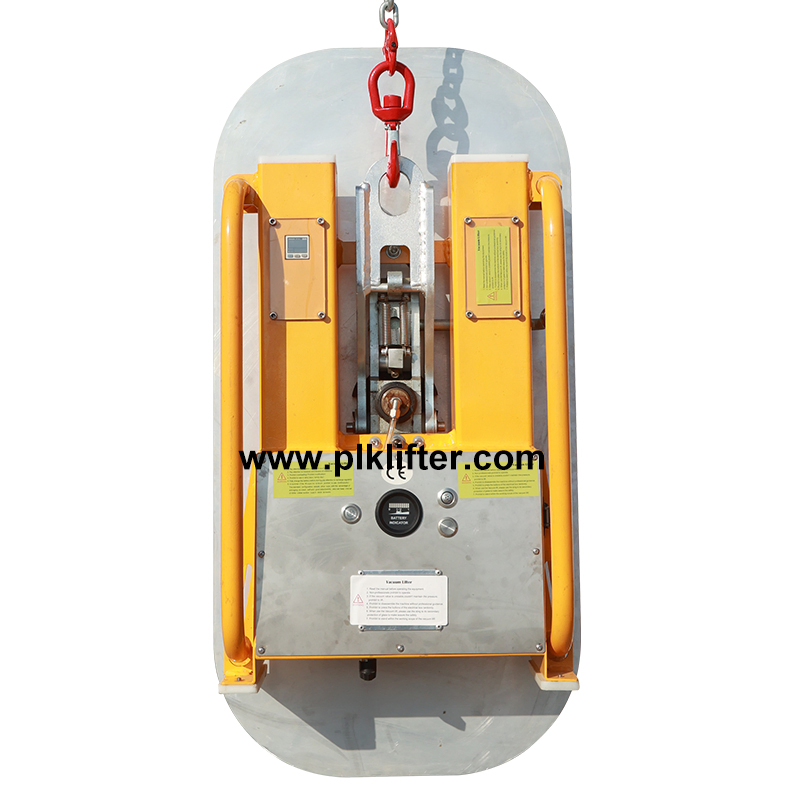

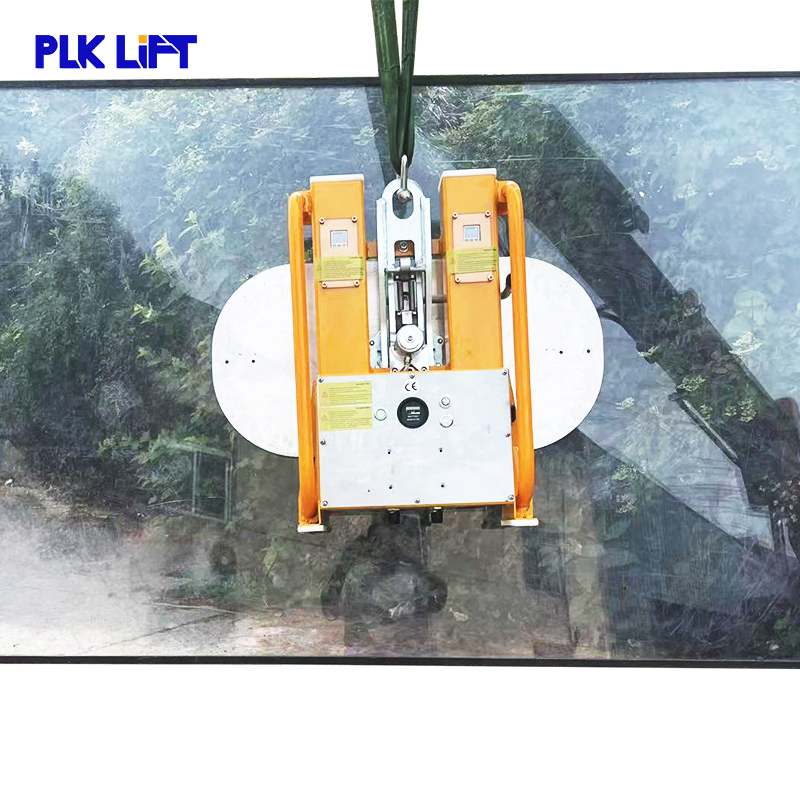

Lightweight Vacuum Suction Cup Lifter for Indoor Glass Curtain Wall Fitting and Moving

1 / 5

Lightweight Vacuum Suction Cup Lifter for Indoor Glass Curtain Wall Fitting and Moving

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

Cup Quantity

Single Cup Capacity

100kg

Charger

AC220/110

Extension Bar

590mm

Tilting

90 Degree Manual

Power Supply

Battery

Lifting Method

Vacuum

Control

Wire Controller

Usage

Glass Installing

Certification

GS, CE, RoHS, ISO 9001

HS Code

8428909090

Product Overview

Vacuum Suction Cups are specially designed for handling different kinds of heavy plate, board, and glass. They are highly efficient for installing steel boards, glass walls, and moving materials such as granite and marble.

Model No.	Unit	GL-SC-D500	GL-SC-D750	GL-SC-D250	GL-SC-D375
Lifting Capacity	kg	500	750	250	375
Net Weight	kg	56	66	62	72
Pad Size	mm	800*400	1000*500	800*400	1000*500
Vacuum Circuit	/	Single	Single	Dual	Dual
Battery	V/Ah	12/12	12/12	12/12	12/12
Power	V	110/220	110/220	110/220	110/220

Features & Advantages

Sealed cover for components protection, safe and reliable. Suitable for bridge cranes or cantilever cranes.

Adjustable suction cup positions to accommodate different shapes and sizes of glass.

Manual 360° vertical rotation and 90° horizontal rotation; electric taking and releasing.

Equipped with American THOMAS vacuum pump and high-quality maintenance-free battery.

Digital display vacuum pressure switch and battery fuel gauge for safety monitoring.

Vacuum pressure auto-supply system ensures constant safety pressure during handling.

Equipped with power-cut pressure-keeping device and alarm system for accidental power failure.

Includes 12V backup battery to ensure uninterrupted project progress.

Frequently Asked Questions

What materials can this vacuum lifter handle?

It is designed for various heavy plates, including glass, steel boards, granite, and marble with smooth surfaces.

Does it require a continuous power supply?

No, it is powered by a high-quality maintenance-free battery, allowing for cordless operation during installation.

What happens if the power fails during a lift?

The device is equipped with a pressure-keeping system and an alarm that maintains suction to provide enough time to safely lower the material.

Is the suction cup configuration adjustable?

Yes, the positions of the suction cups can be adjusted to handle different shapes and sizes of materials.

How can I monitor the safety of the vacuum pressure?

The lifter features a digital display vacuum pressure switch and a battery gauge for real-time monitoring.
