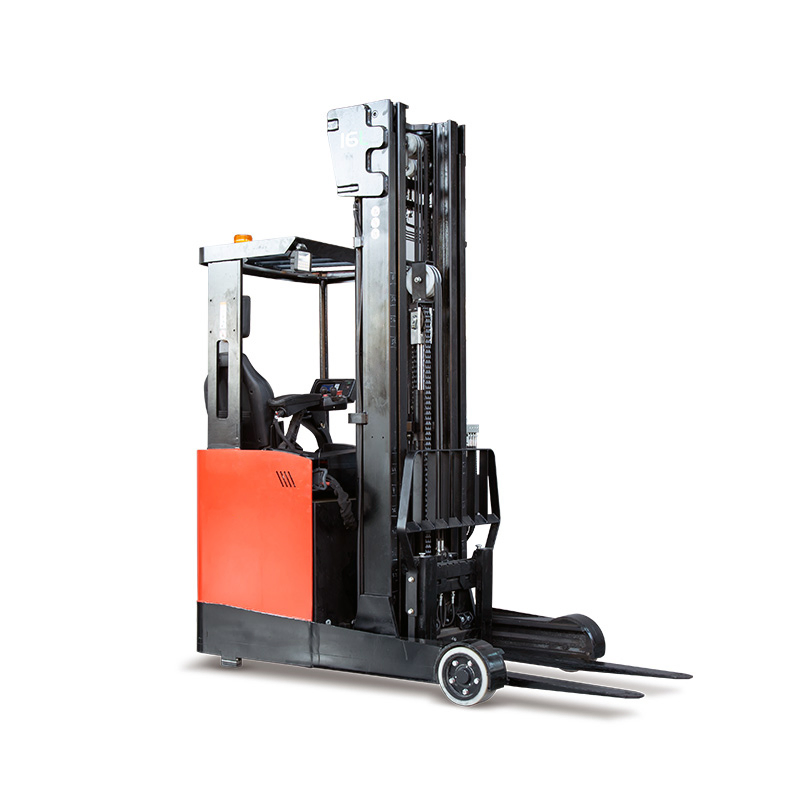

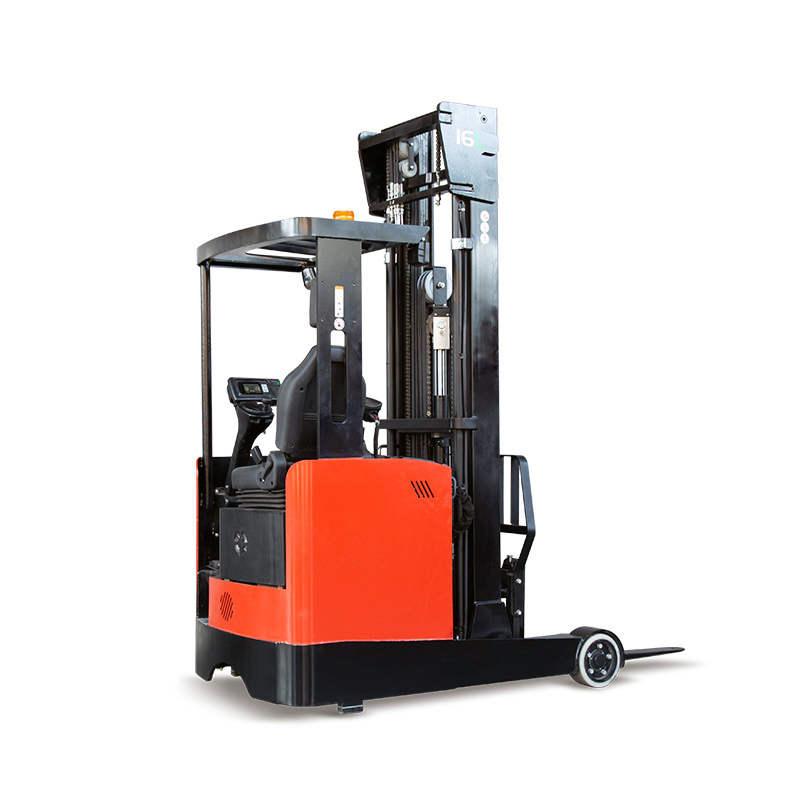

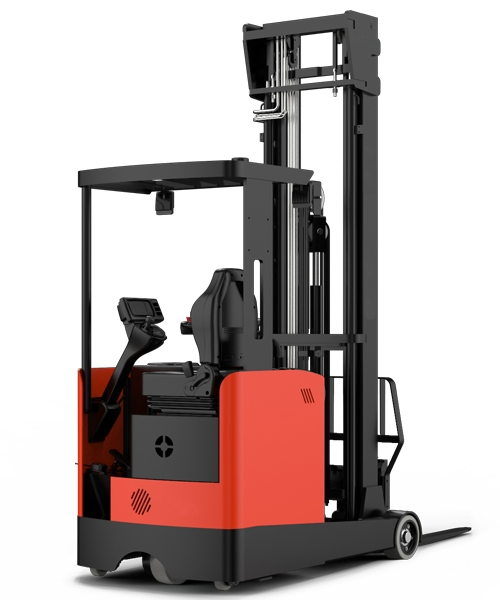

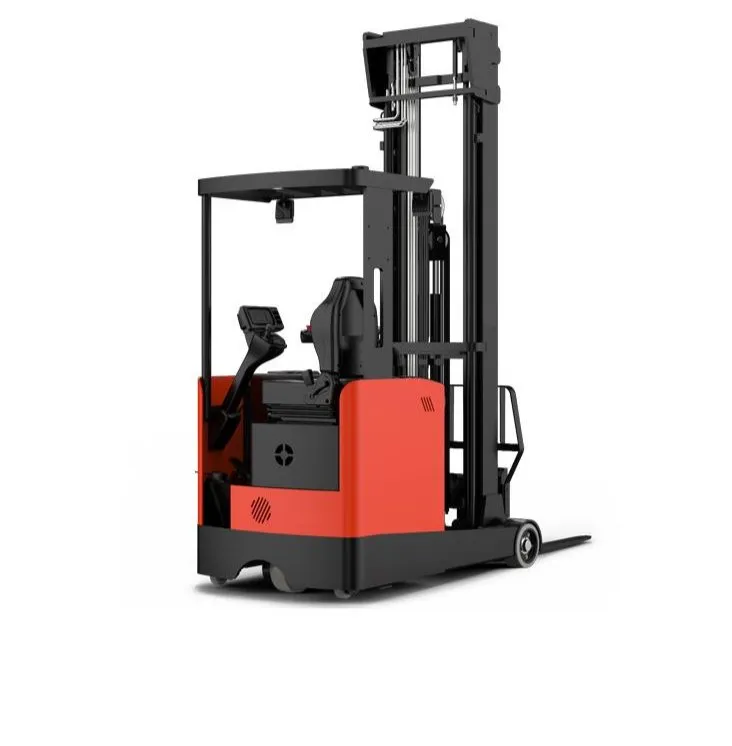

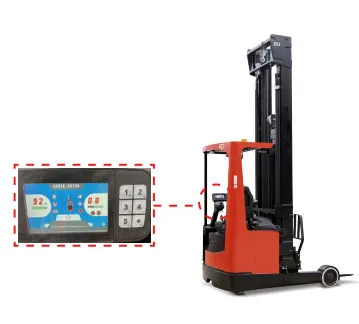

CQD16L Electric Reach Truck 1.6T

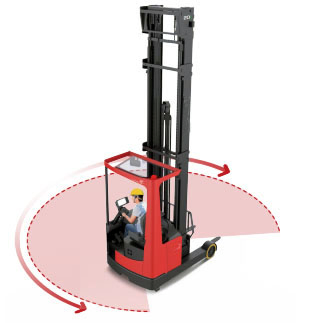

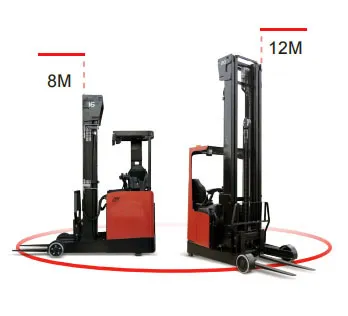

The CQD16L is fully designed around all the advantages of Li-Ion technology. Built on reliable engineering tradition, the CQD series offers precise stacking, quiet operation and high stability. The compact design and upgrade functionality reinforce operation visibility and workplace safety.
| No. | Description | Unit | Data |
|---|---|---|---|
| 1.2 | Model | - | CQD16L |
| 1.3 | Drive | - | Electric |
| 1.4 | Drive mode | - | Seated |
| 1.5 | Load capacity | Q (kg) | 1600 |
| 1.6 | Load center distance | c (mm) | 600 |
| 2.1 | Service weight | kg | 2840 |
| 4.4 | Lift height | h3 (mm) | 6500 |
| 4.7 | Height of overhead guard | h6 (mm) | 2153 |
| 4.19 | Overall length | l1 (mm) | 2434 |
| 4.21 | Overall width | b1/ b2 (mm) | 1080/1090 |
| 5.1 | Travel speed, laden/unladen | km/h | 9/9.3 |

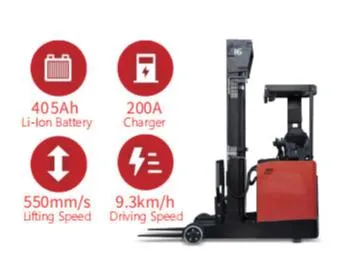

| 6.4 | Battery voltage/nominal capacity | V/Ah | 48/280 |

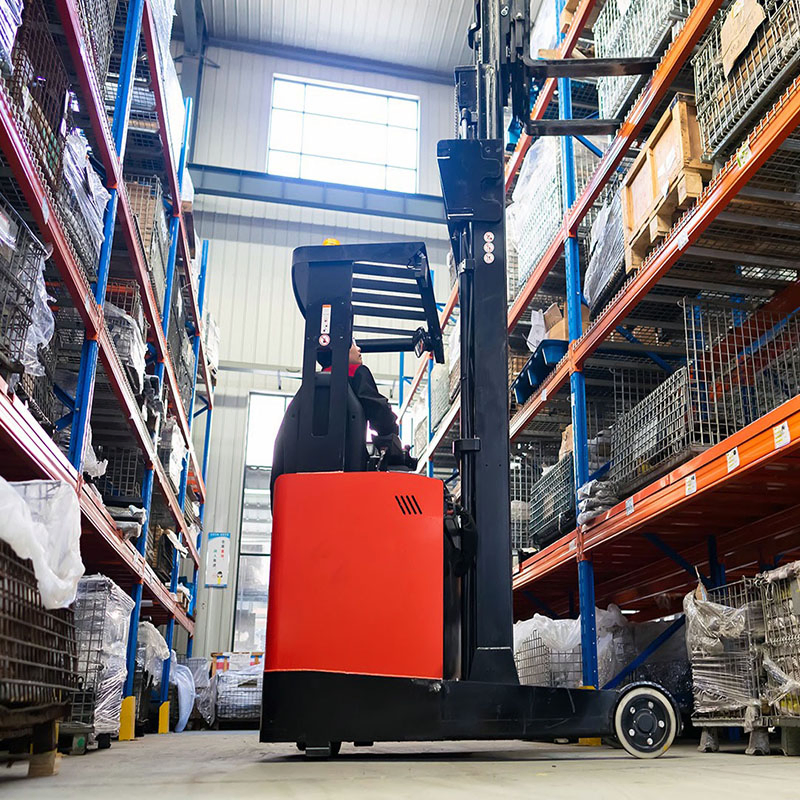

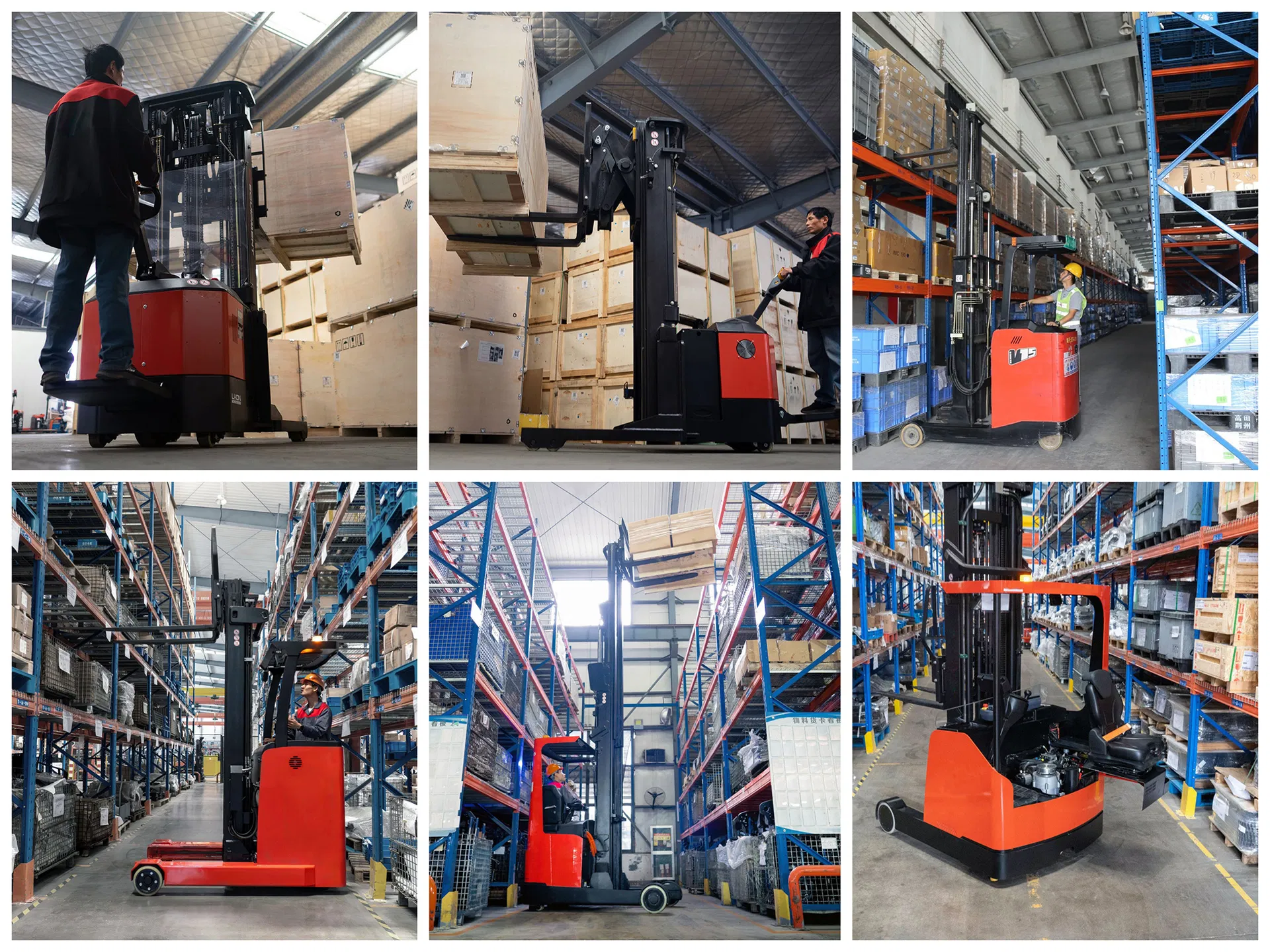

With a compact structure, the CQD16L is the perfect tool for transportation and high lifting operations in medium to large warehouses, regardless of wide or narrow-aisle racking settings. It tremendously helps in logistics, textile, and home appliance manufacturing where materials handling involves numerous movements at height.

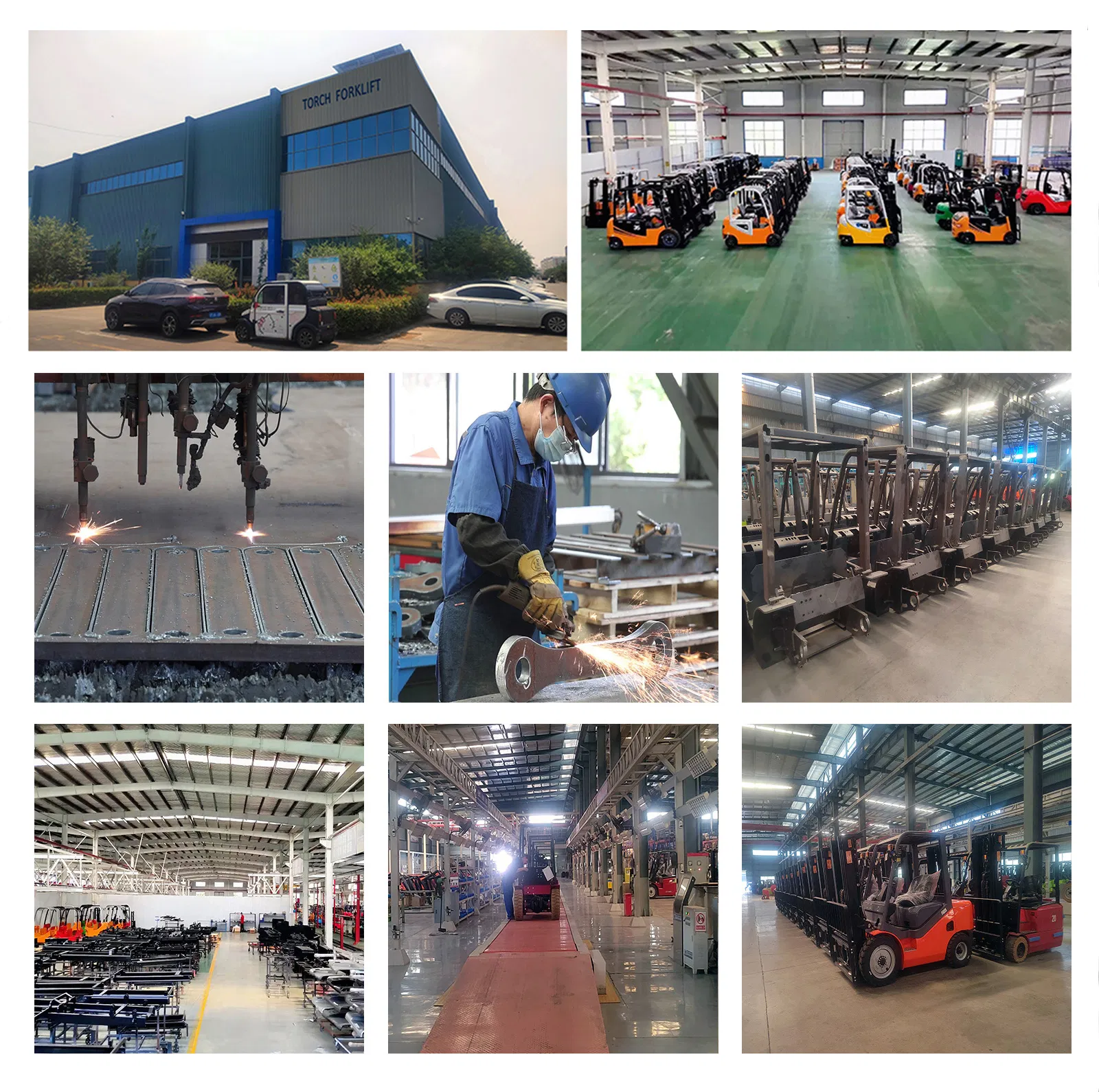

Specializing in R&D, production, and service of high-performance material handling equipment. Our products including electric forklifts, stackers, and industrial AGVs are exported to more than 100 countries including the USA, Mexico, Canada, and Russia.
