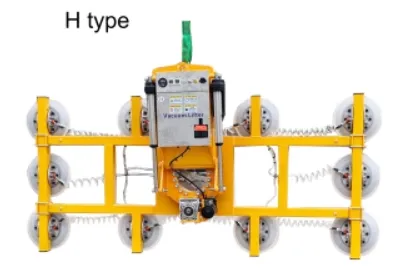

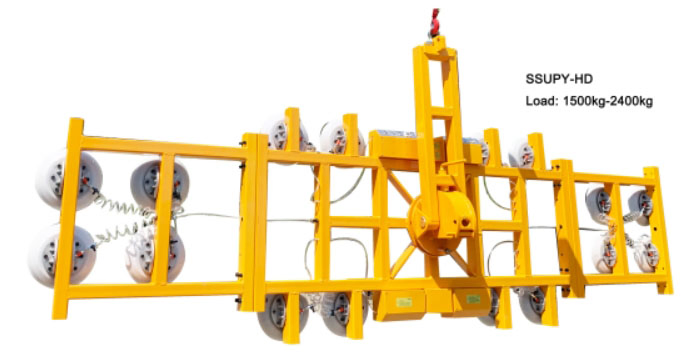

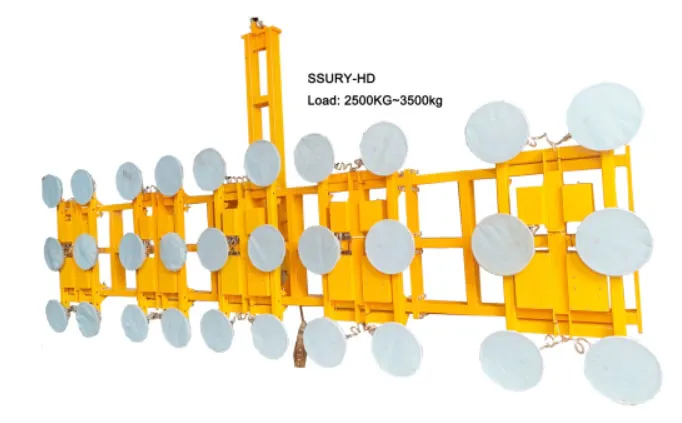

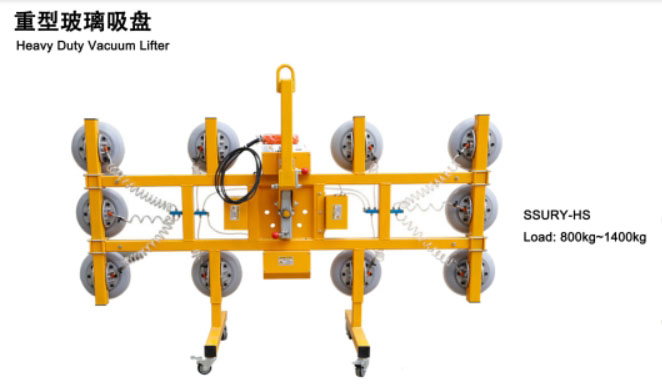

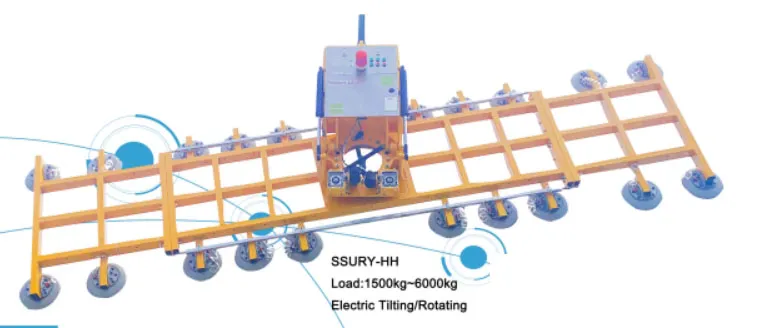

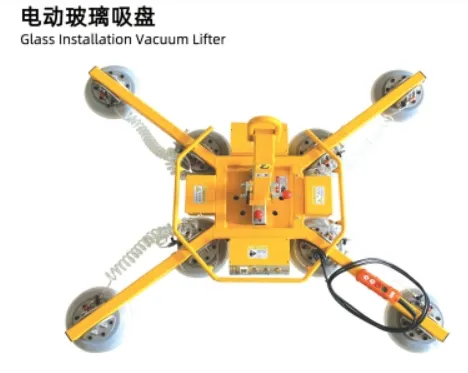

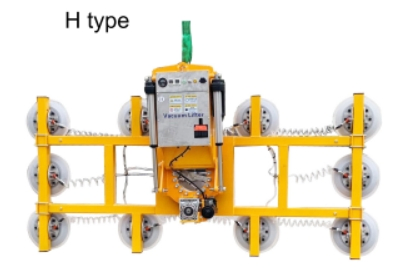

HHSSURY series vacuum lifter is ideally designed for glass curtain wall installation, deep processing, and handling tasks.
- Equipped with high-performance vacuum pumps and maintenance-free batteries; no external air or power source needed during operation.
- Digital display vacuum pressure switches and fuel gauges for real-time safety monitoring.
- Automatic vacuum pressure supply system maintains constant safety pressure values during glass handling.
- Integrated power-cut pressure-keeping and alarm devices ensure extended safety handling time during accidental power failures.
- Adjustable cup positions to accommodate various glass shapes and sizes, fully customizable.
- Manual 360-degree vertical rotation and 90-degree horizontal rotation with electric suction and release.
- Sealed component covers and 12V backup battery systems ensure project progress and reliability.

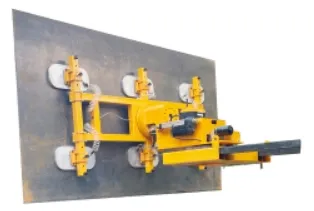

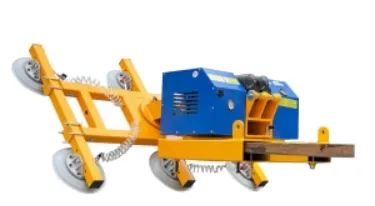

Fork-Mounted Vacuum Lifting Attachments:
Self-powered units can be attached directly to forks for efficient glazing of glass, metal, and concrete slabs weighing up to 800kgs. Ideal for factory, warehouse, or on-site glazing.
- Dual system control: One vacuum system for primary work and one for alternate backup.
- Advanced driving wheels and intelligent power units enable electric walking, lifting, and lowering.
- Adjustable suction cup configurations with independent control valves for irregular glass shapes.
- Electric glass stacker functionality combines forklift advantages with vacuum suction precision.
Frequently Asked Questions
Does the vacuum lifter require an external power supply?
No, the device is battery self-powered with a maintenance-free battery, making it ideal for sites without easy access to electricity.
What safety features are included for accidental power failure?
The lifter is equipped with a pressure-keeping device and an alarm system. In case of power failure, the system maintains suction to allow for emergency handling.
Can it handle different shapes of glass?
Yes, the position of the suction cups is adjustable, and each cup features an independent control valve to manage various shapes and sizes.
What are the rotation and tilting capabilities?
The units generally offer manual 360-degree vertical rotation and 90-degree horizontal tilting. Some models support electrical rotation as an option.
Is this equipment suitable for outdoor use?
Yes, it is designed with large wheels and a robust build suitable for both indoor warehouse environments and outdoor construction sites.
What is the maximum lifting capacity?

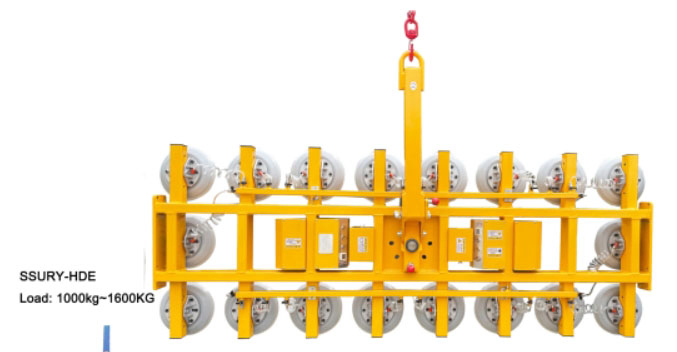

The series covers various specifications, typically ranging from 800kg to 1600kg depending on the specific model and cup configuration.
