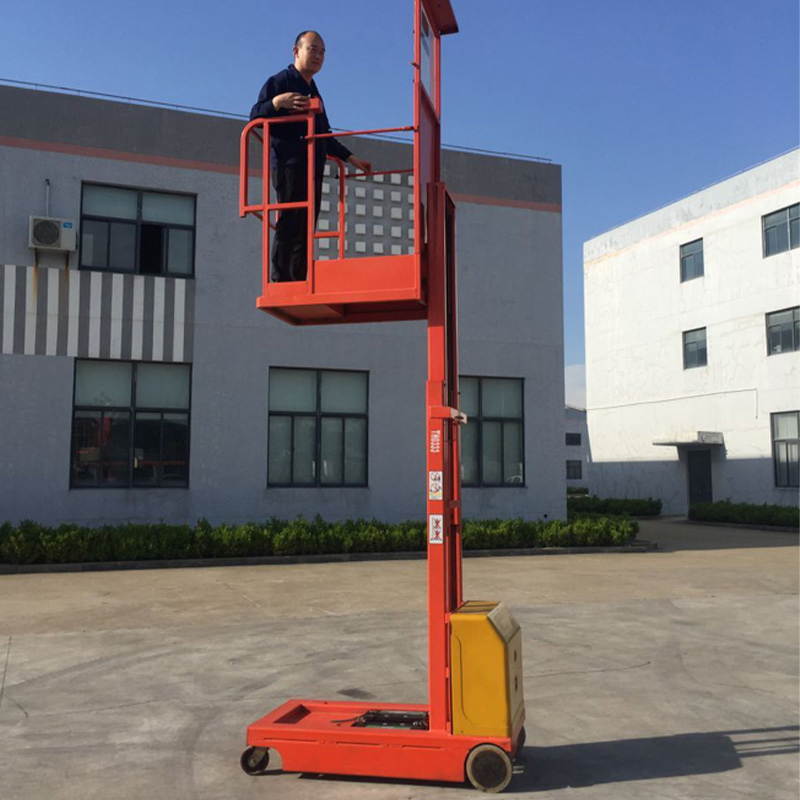

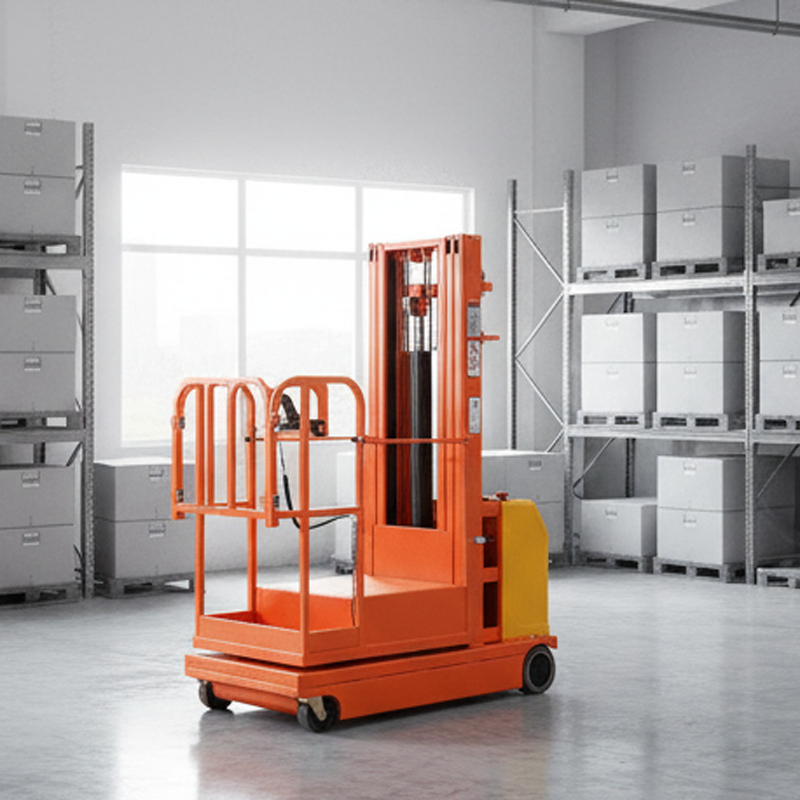

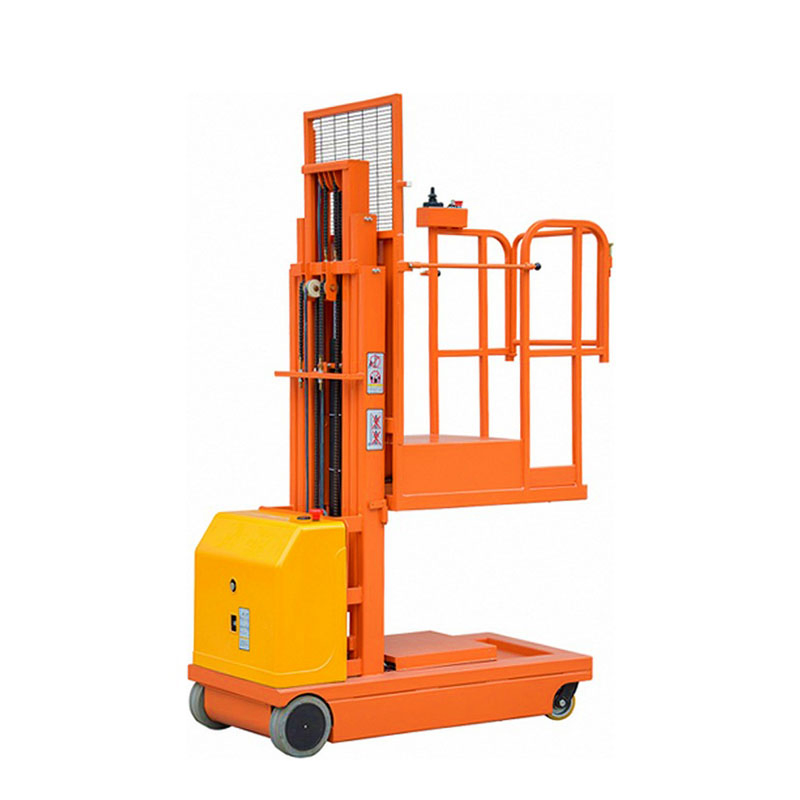

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

1 / 5

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Customization:	Available
After-sales Service:	Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specification

Model NO.

OP0.2-3

Transport Package

Wooden Box

Specification

Customized

Origin

China

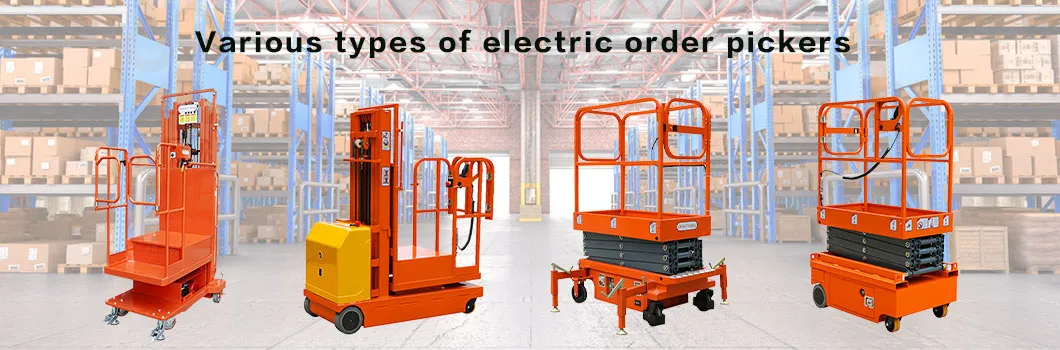

Truck Mounted Order Picker

Technical Parameters

Model	Unit	EOP3-2.7	EOP3-3.3	EOP3-4.0	EOP3-4.5
Max Platform height (H)	mm	2700	3300	4000	4500
Max Machine height (H1)	mm	4120	5000	5400	6000
Load capacity	kg	300	300	300	300
Platform size	mm	600x640	600x640	600x640	600x640
Max driving speed (lowered)	km/h	4	4	4	4
Max driving speed (raised)	km/h	1.6	1.6	1.6	1.6
Min turning radius	mm	1600	1600	1600	1600
Max climbing ability	%	15~20	15~20	15~20	15~20
Motor	v/kw	2x24/0.4	2x24/0.4	2x24/0.4	2x24/0.4
Lift motor	v/kw	24/1.6	24/1.6	24/1.6	24/1.6
Maintenance Free Battery	v/Ah	2x12/150	2x12/150	2x12/150	2x12/150
Overall size (AxBxC)	mm	1530x700x1830	1530x700x2130	1620x700x1840	1620x700x2000
Net weight	kg	430	450	660	680

Product Gallery

Order Picker Detail 1

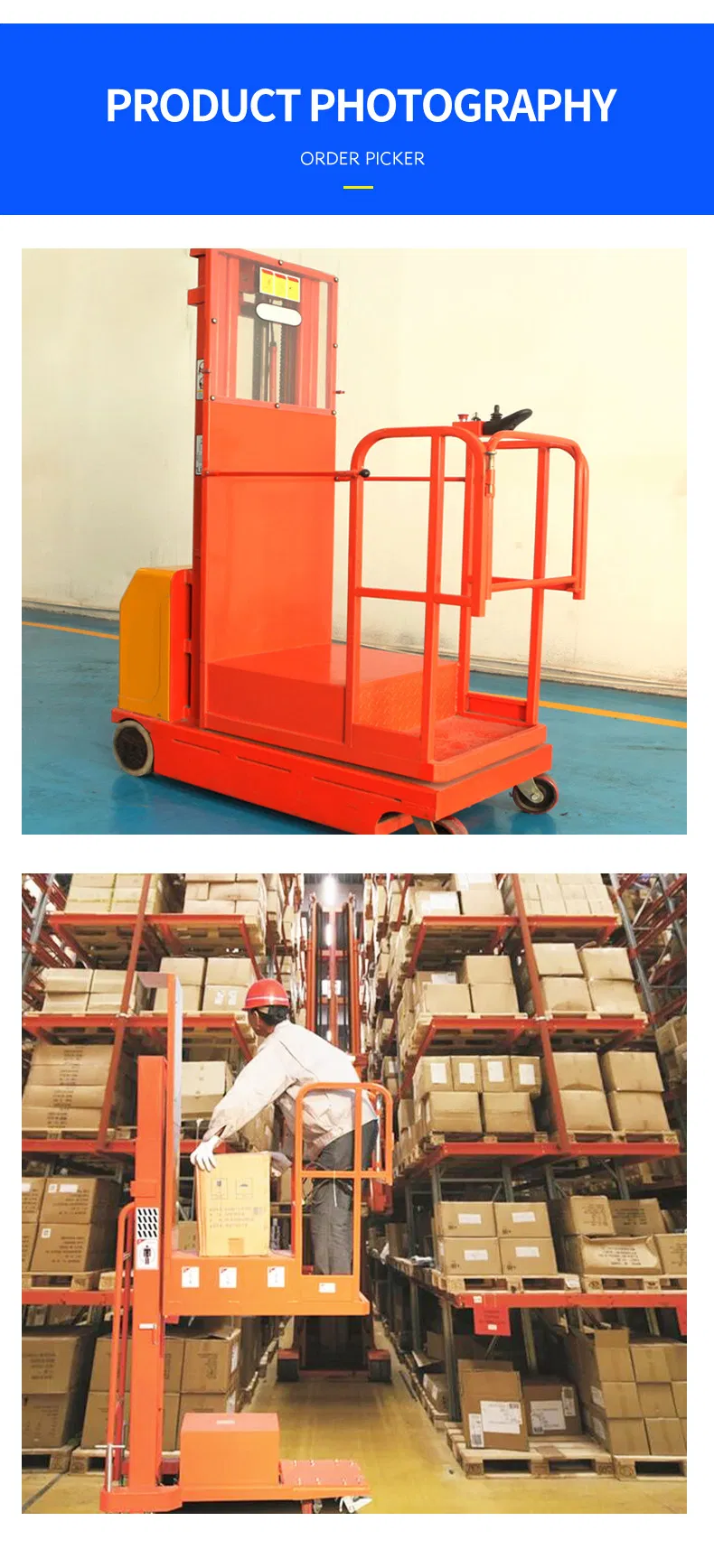

Order Picker Detail 2

Order Picker Detail 3

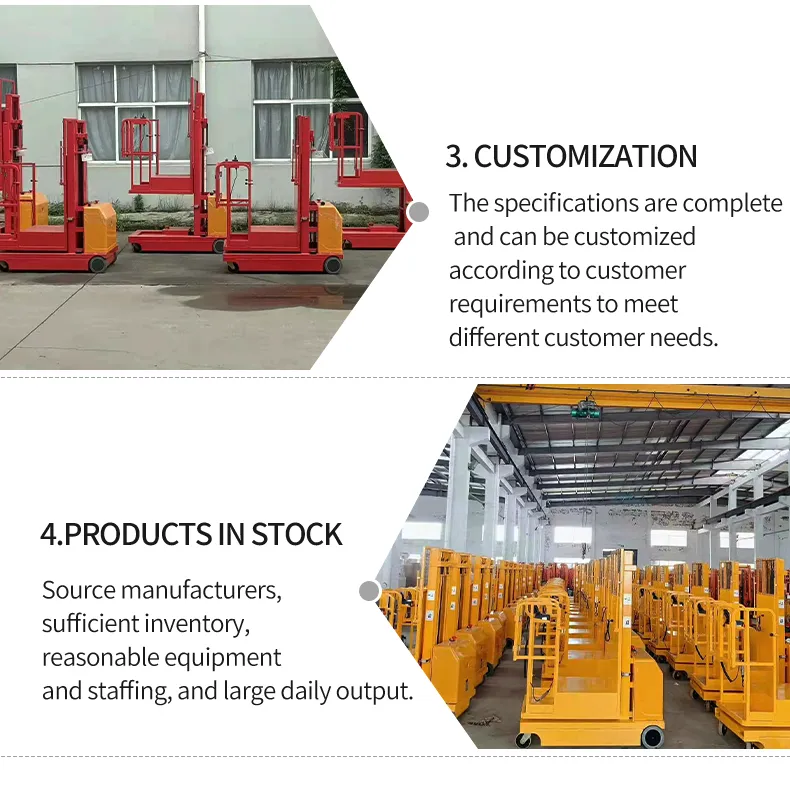

Order Picker Detail 4

Order Picker Detail 5

Order Picker Detail 6

Order Picker Detail 7

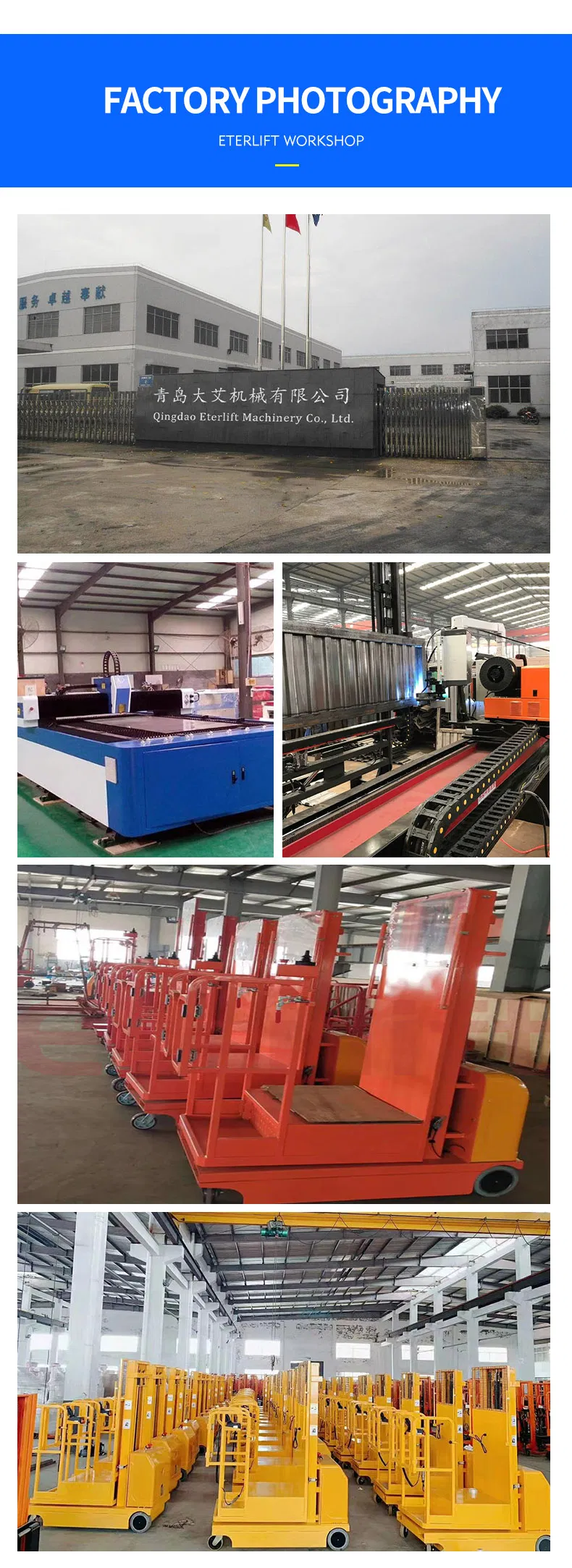

Order Picker Detail 8

Order Picker Detail 9

Order Picker Detail 10

Frequently Asked Questions

What is the maximum load capacity for this order picker?

The maximum load capacity for the entire EOP3 series is 300kg.

What are the available platform heights?

We offer four standard platform heights: 2700mm, 3300mm, 4000mm, and 4500mm.

Is the battery easy to maintain?

The machine is equipped with a maintenance-free battery (2x12V/150Ah), reducing long-term upkeep requirements.

Can the order picker operate on slopes?

Yes, it has a maximum climbing ability of 15% to 20%, depending on the specific conditions.

How is the product protected during shipping?

All units are packed in secure wooden boxes to ensure safety during international transport.

What is the turning radius for narrow aisle operations?

The minimum turning radius is 1600mm, making it highly maneuverable in tight warehouse spaces.
