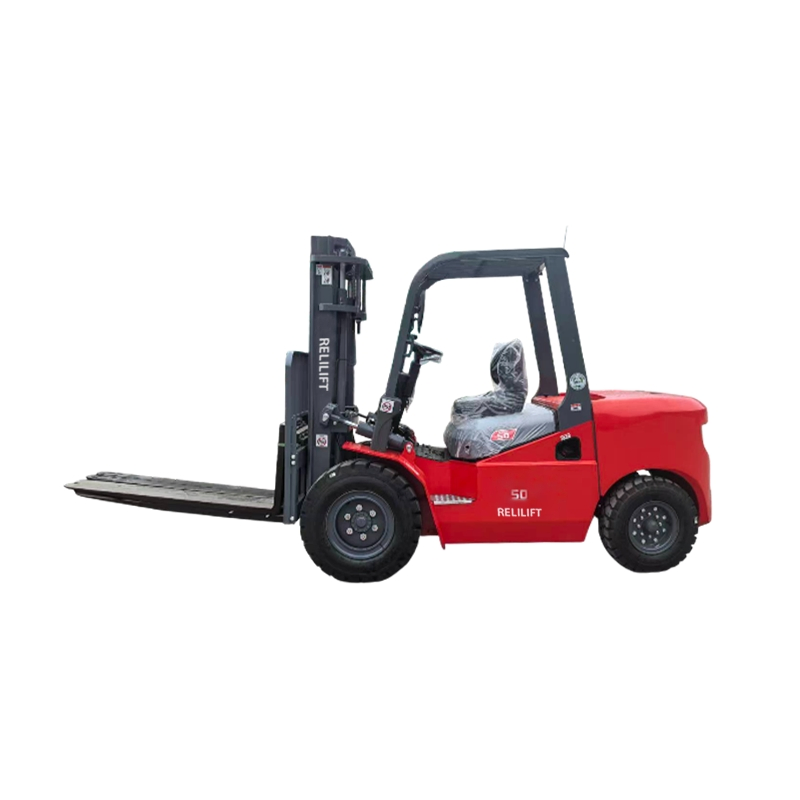

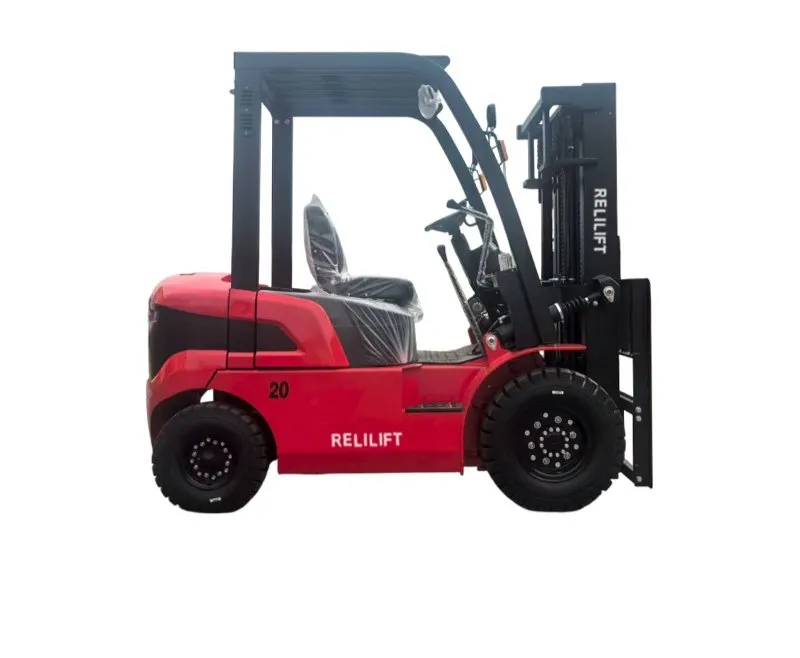

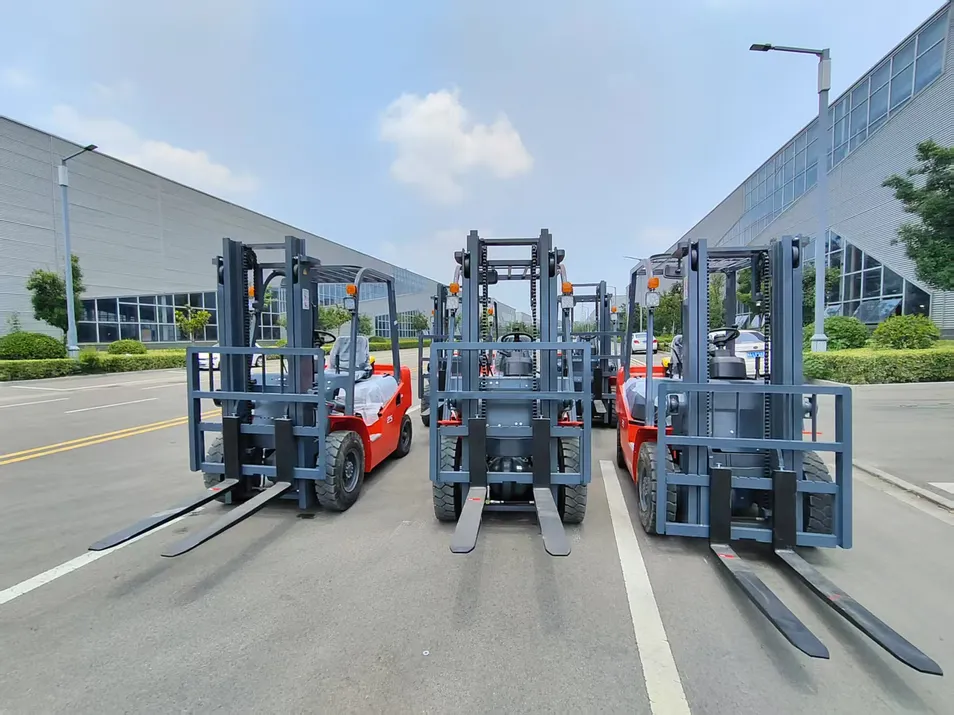

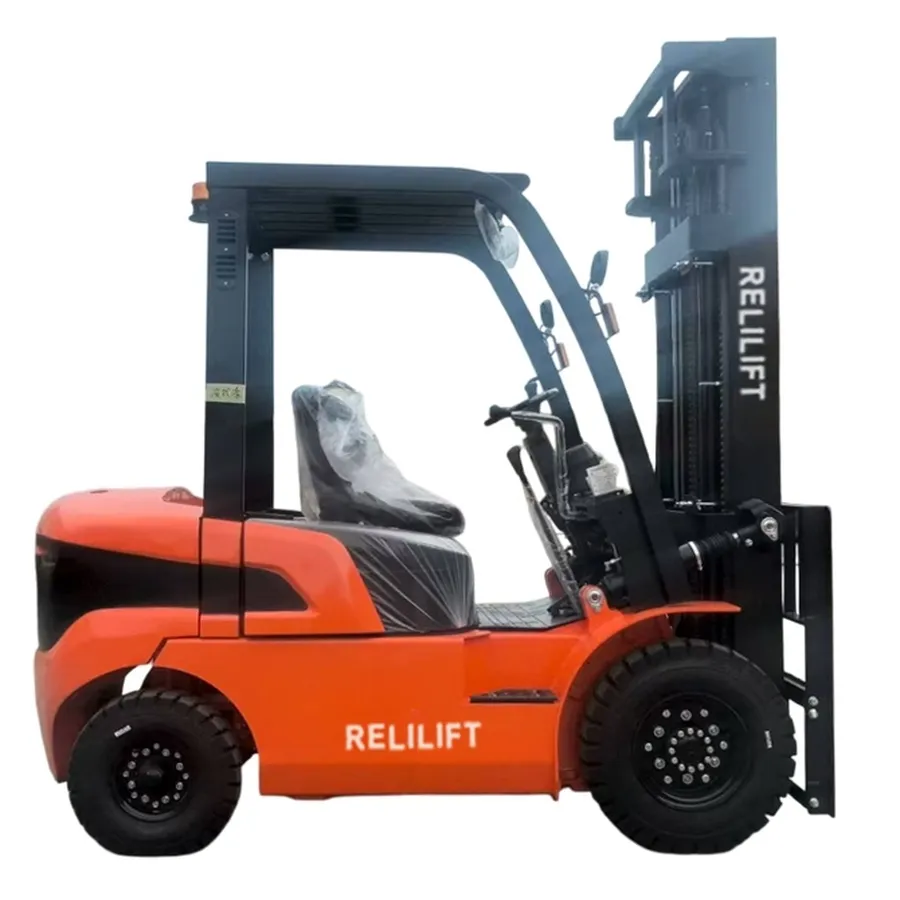

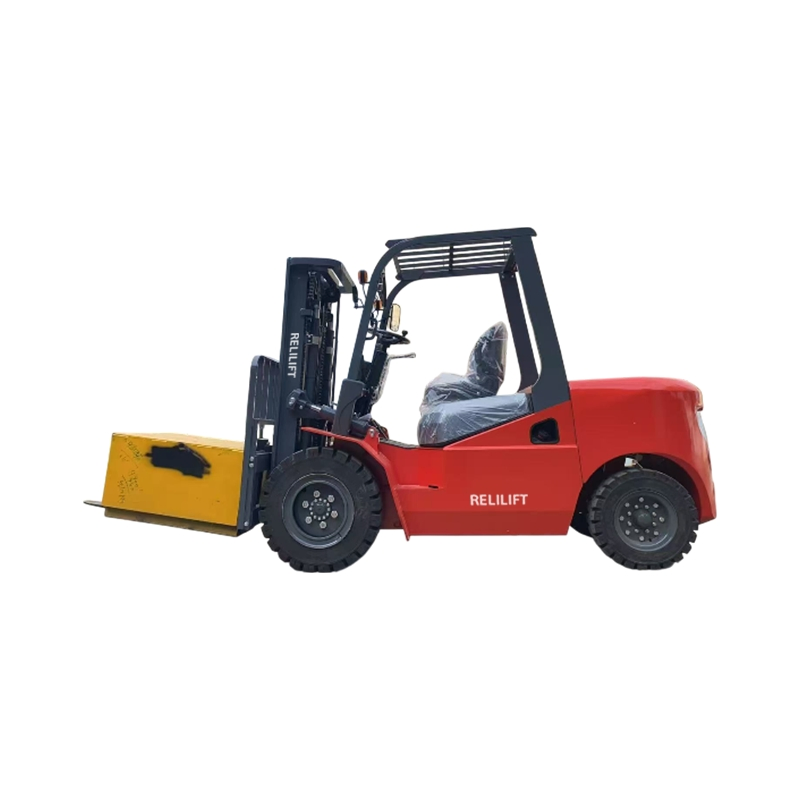

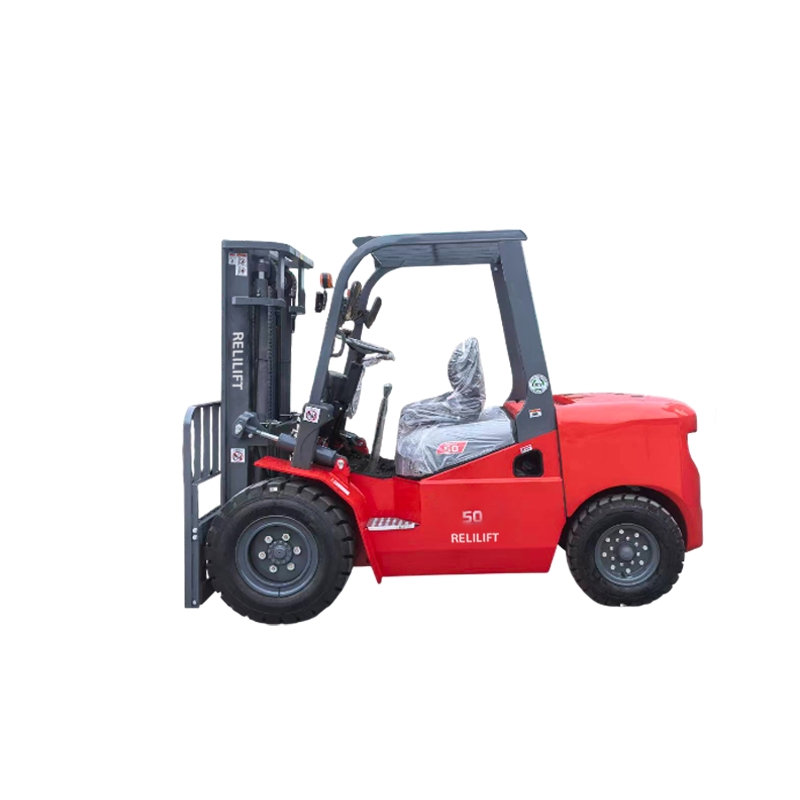

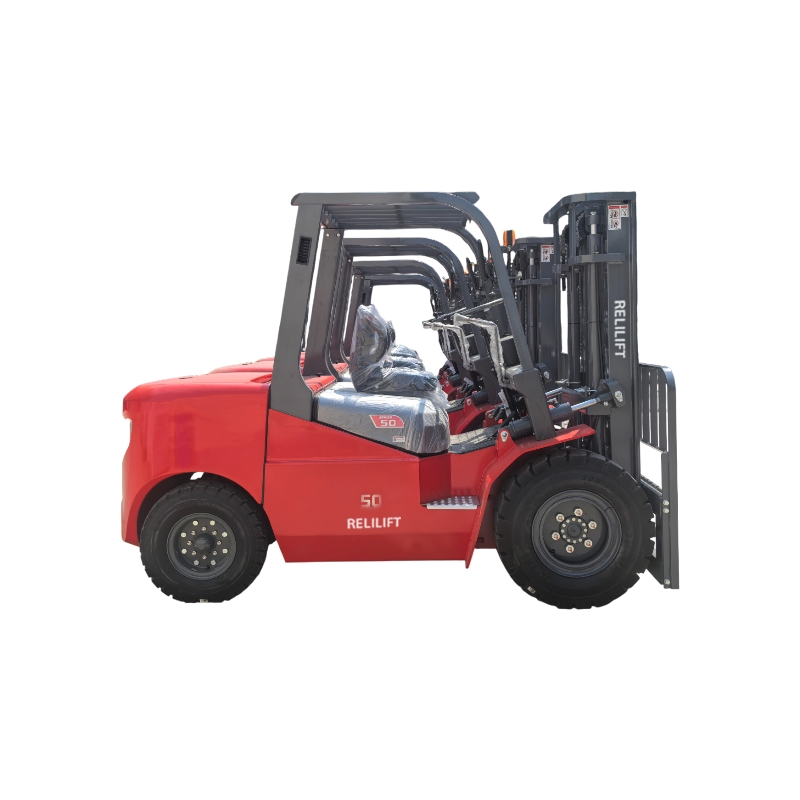

DIESEL FORKLIFT: A robust, industrial material-handling vehicle powered by a diesel internal combustion engine, specifically engineered to handle heavy loads and operate in demanding outdoor or semi-outdoor environments.
It leverages diesel's high energy density to deliver exceptional load capacities typically ranging from 2 to 20+ tons, making it ideal for moving bulky items like steel coils, shipping containers, or construction materials. It features a classic counterbalance design and durable, deep-tread tires for uneven terrain.
Warehouse handling, loading and unloading on/off shelves, internal loading in containers.
Parts handling, supply to production lines, semi-finished product transfer.
Rear warehouse of supermarkets, mall storage, and internal handling in distribution centers.
Cold chain logistics and internal transportation in food processing plants.
| Model | CPC20 | CPC30 | CPC35 | CPC40 | CPC50 |
|---|---|---|---|---|---|
| Power Type | Diesel | Diesel | Diesel | Diesel | Diesel |
| Rated Load Capacity (kg) | 2000 | 3000 | 3500 | 4000 | 5000 |
| Load Center (mm) | 500 | 500 | 500 | 500 | 500 |
| Max. Lifting Height (mm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Overall Width (mm) | 1160 | 1230 | 1230 | 1290 | 1380 |
| Min. Turning Radius (mm) | 2160 | 2390 | 2390 | 2550 | 3000 |
| Travel Speed (Loaded) | 17 km/h | 18 km/h | 18 km/h | 18 km/h | 22 km/h |
| Engine Model | Quanchai | Quanchai | Quanchai | Quanchai | Quanchai |

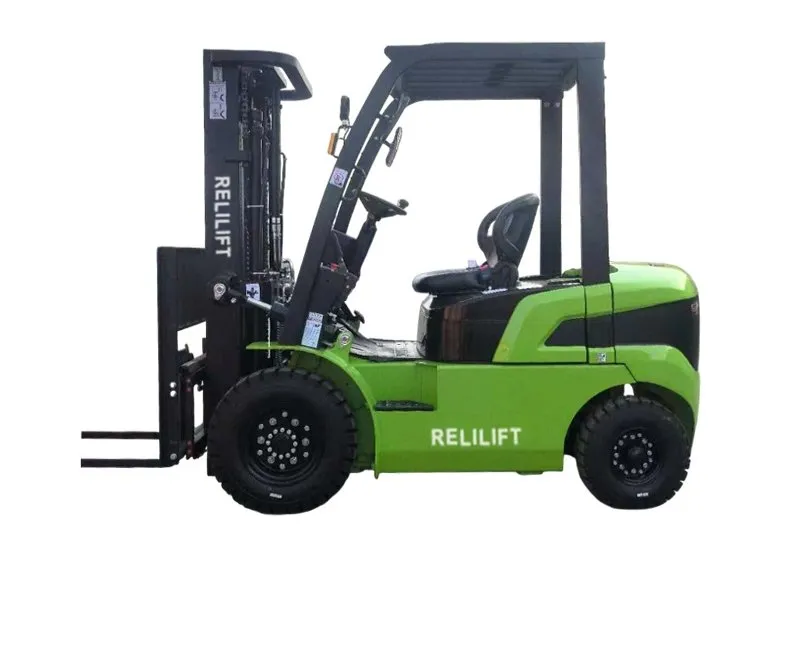

Equipped with a high-torque diesel engine delivering reliable power for heavy loads and challenging terrain.

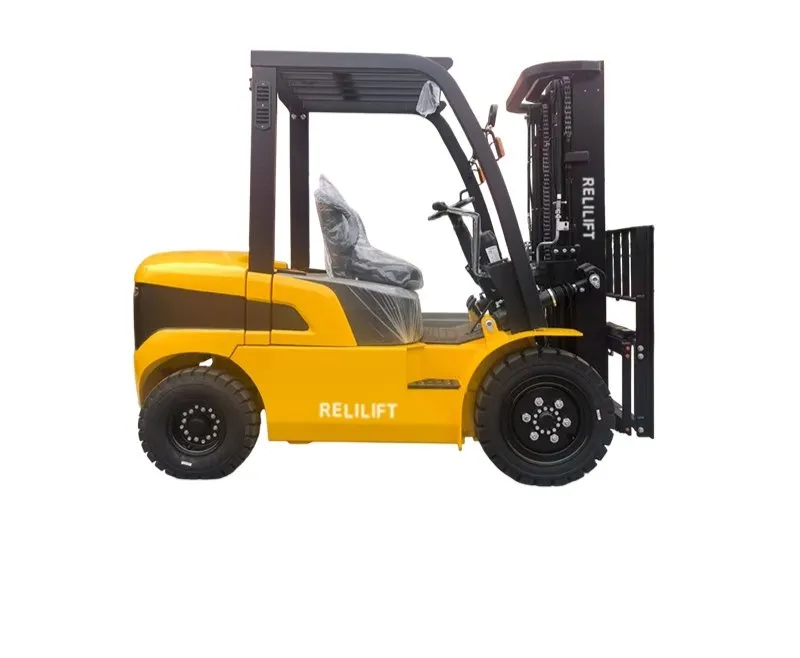

Ergonomically designed cabin reduces fatigue during extended operation, boosting overall productivity.
