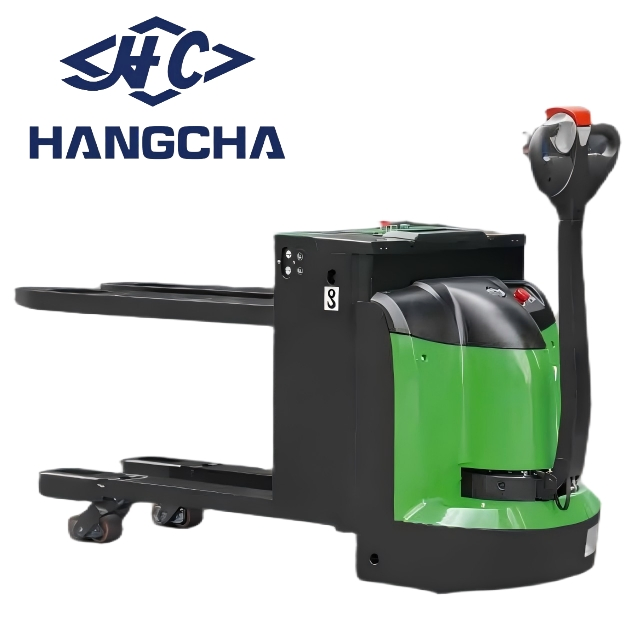

Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking
Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking
Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking
Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking
Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking
1 / 5
Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking
Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking
Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking
Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking
Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking

Hangcha a Series High Lift Pallet Truck 2t Efficient Handler for Warehouse/Workshop MID-Height Cargo Stacking

Customization: Available
After-sales Service: 1 Year or 2000h Which Comes First
Warranty: 1 Year or 2000h Which Comes First
Send Inquiry

Product Description

Technical Specifications
Model NO.
CBD20-AC2-L
Type
Stacker
Power Source
AC Motor (Electric)
Load Capacity
2000kg
Load Center
600mm
Lift Height
3000~5000mm
Control System
Curtis
Battery Capacity
24/210
Tyres
PU
HS Code
8427109000
Product Overview

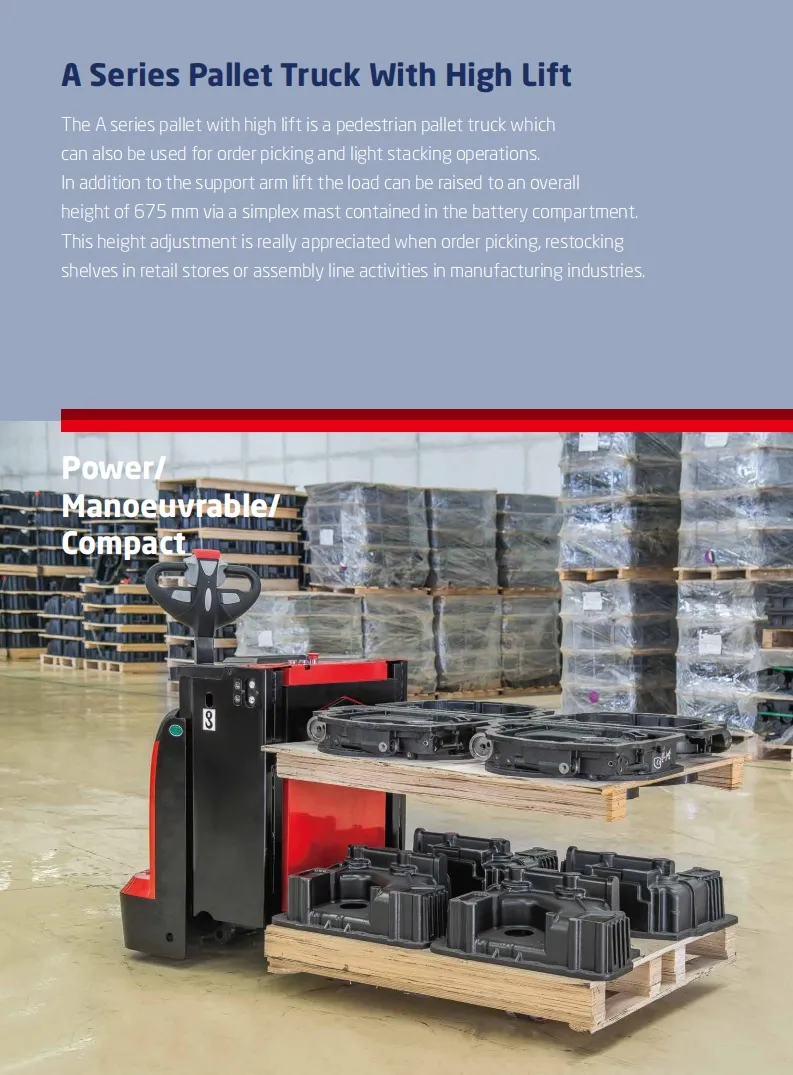

A Series Pallet Truck With High Lift

The A series pallet with high lift is a pedestrian pallet truck which can also be used for order picking and light stacking operations. In addition to the support arm lift the load can be raised to an overall height of 675 mm via a simplex mast contained in the battery compartment.

Ideal Applications:

  • ◈ Order picking and restocking shelves
  • ◈ Retail store operations
  • ◈ Assembly line activities in manufacturing

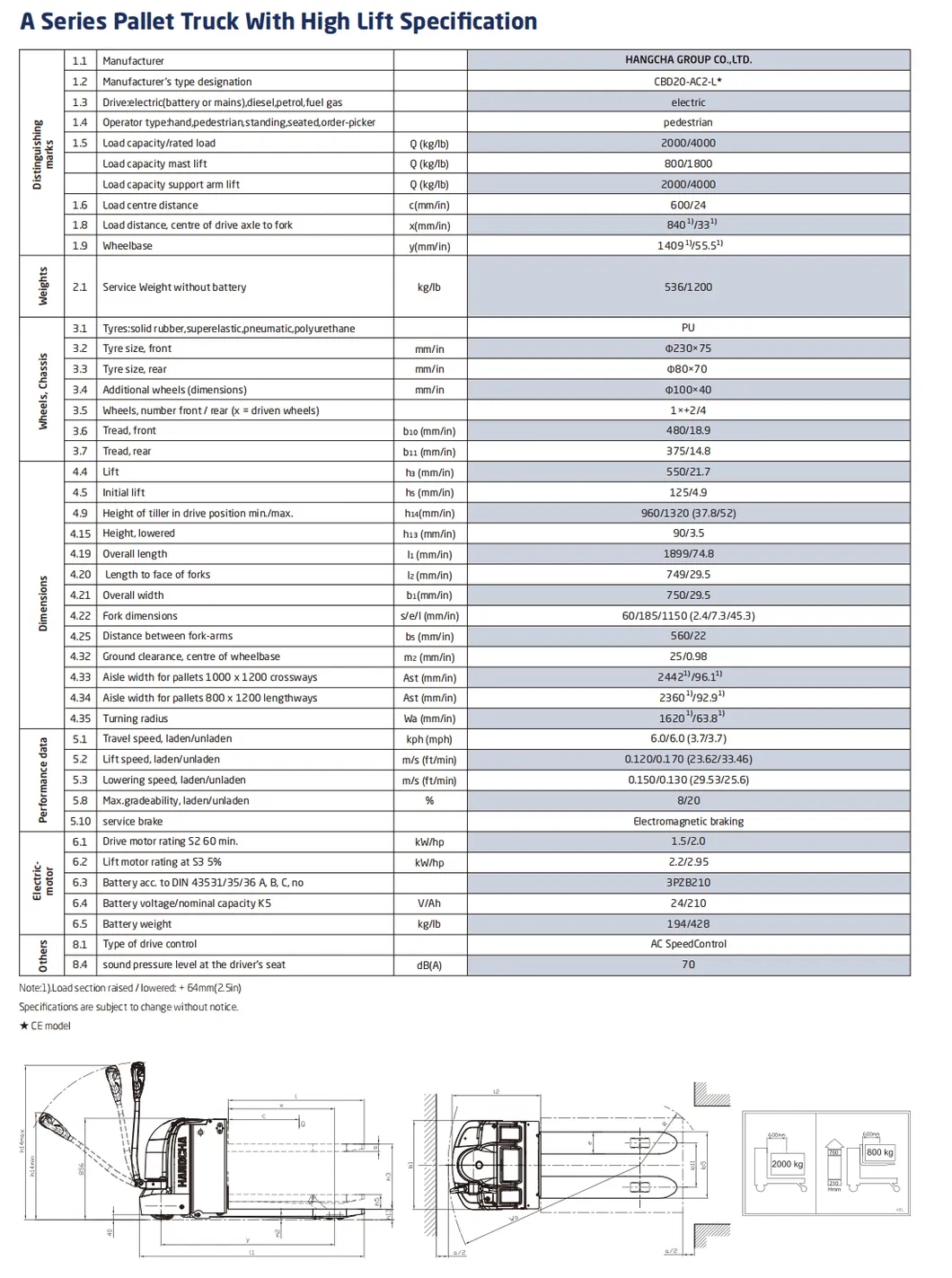

Performance Parameters
High Lift Pallet Truck Parameters
Detailed Product Photos
Pallet Truck View 1
Pallet Truck View 2

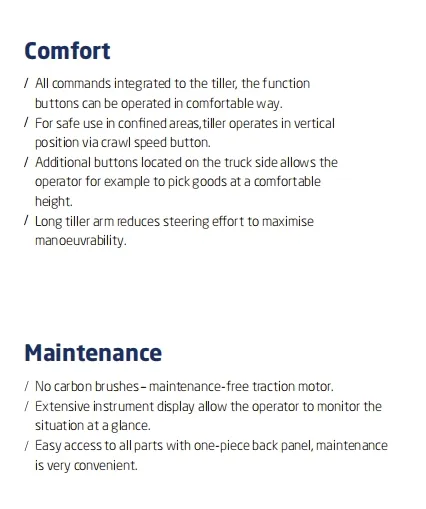

Pallet Truck View 3

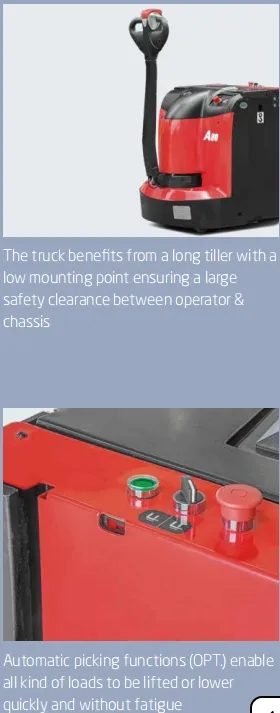

Pallet Truck View 4
Pallet Truck View 5
Frequently Asked Questions
What products and solutions do you provide?
We provide a full series of Forklifts and genuine spare parts, offering comprehensive material handling solutions and equipment to meet diverse industrial needs.
What is the estimated delivery time for orders?
Delivery times vary by specification: 1.5-3.5T standard specs take 25-30 days; 4-10T models take 30-35 days; large capacity models above 10T require 45-60 days. Special specifications can be checked upon request.
Can equipment be customized with different colors or logos?
Yes, we support customization requests for different colors, logos, and other special requirements.
What is the load capacity and lift height of this model?
The CBD20-AC2-L model has a load capacity of 2000kg and supports a lift height ranging from 3000mm to 5000mm.
What type of control system and power source does it use?
This pallet truck is powered by an efficient AC Motor (Electric) and is equipped with a high-quality Curtis control system for precise operation.
What are the primary applications for this high lift pallet truck?
It is specifically designed for pedestrian pallet handling, light stacking, order picking, and restocking in retail or assembly line environments.
